Field Notes
<--2015-09-17 09:30:00 | 2015-11-03 09:00:00-->Other sites visited today: Tonzi | Tonzi
Vaira: 2015-10-01 09:00:00 (DOY 274)
Author: Joe Verfaillie
Others: Siyan
Summary: Rainy day, measured sensor locations.

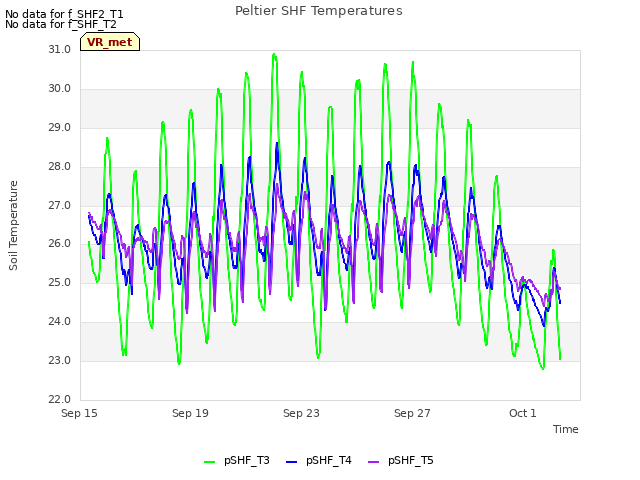

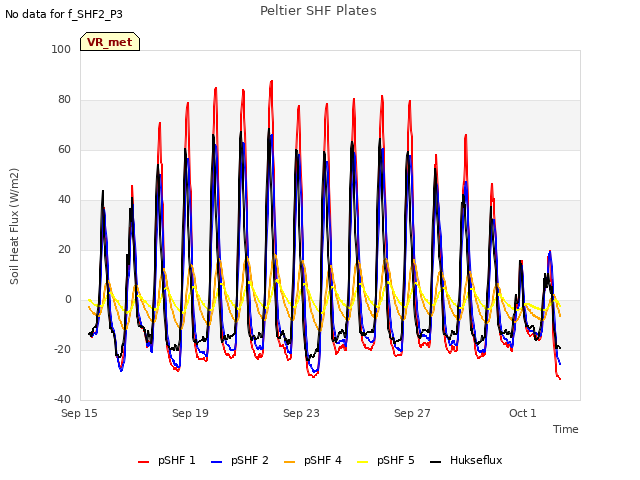

| Vaira 2015-10-01 I arrived about 9:00 with Siyan. It was cool and cloudy with a little bit of rain. We forgot the cable for the moisture point probes. Only about the top centimeter of soil was damp from the light rain. The trees here are beginning to show brown leaves. Siyan downloaded data and did spectral measurements. I tried to map the locations of sensors for Ameriflux. One of the Peltier heat flux plates is not working. I traced the wires for the Peltier heat flux plates and didn’t find any problems. We will need to dig them up this winter to check on them. |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2015-10-01 | TZ_floor | 35.6 |
| 2015-10-01 | TZ_road | 38.8 |
| 2015-10-01 | TZ_tower | 37 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
0 photos found
9 sets found

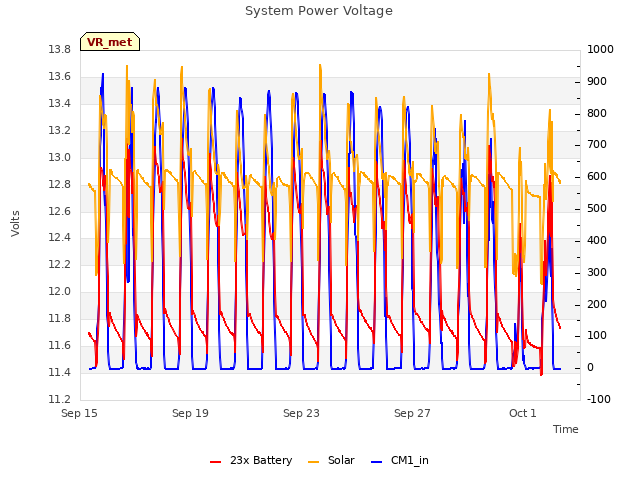

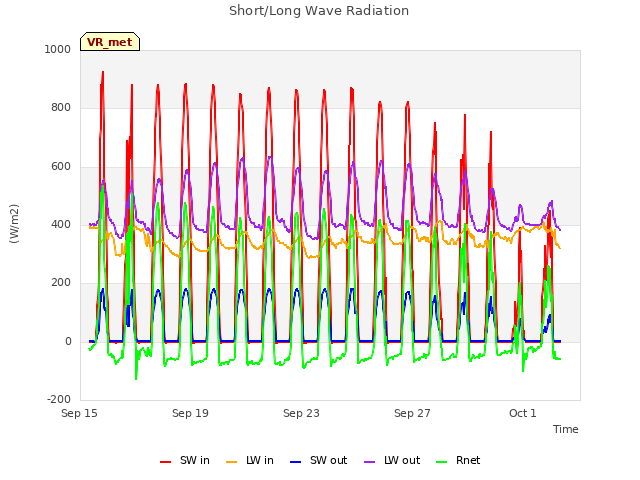

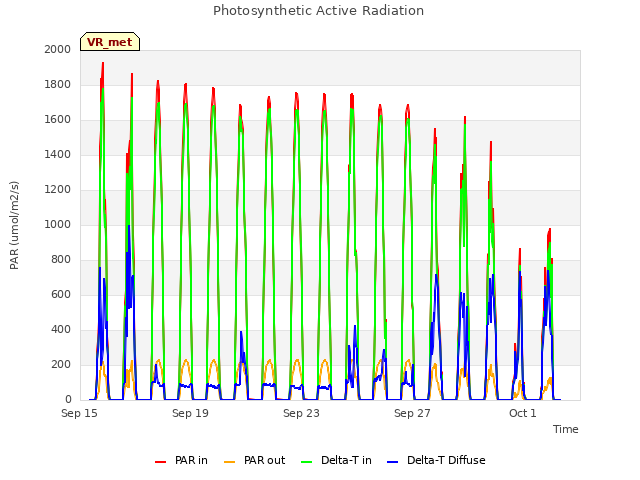

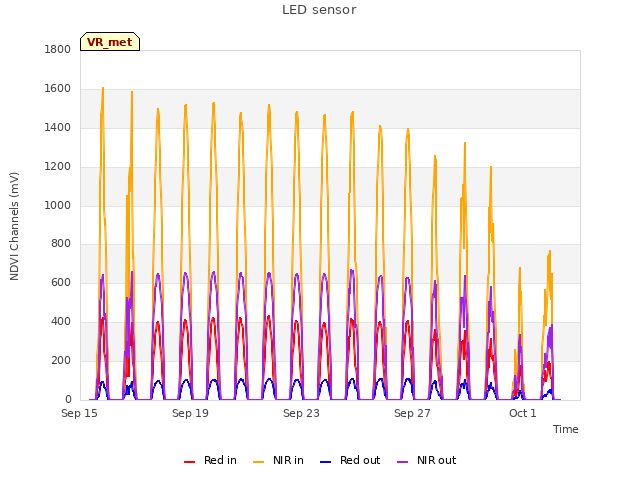

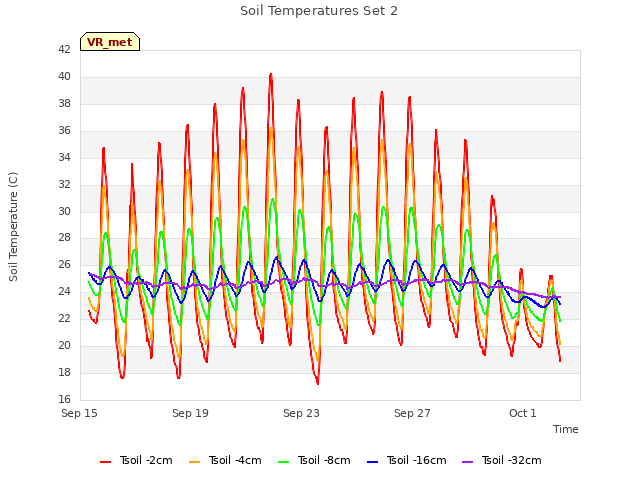

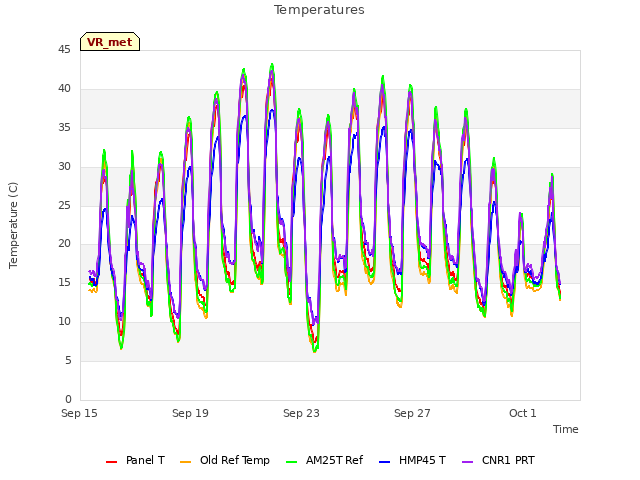

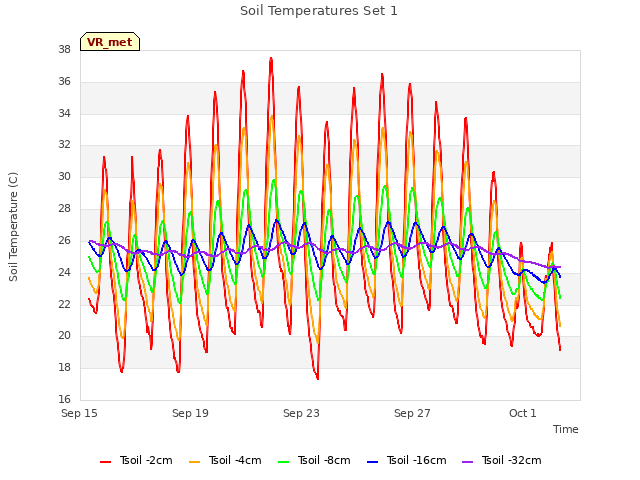

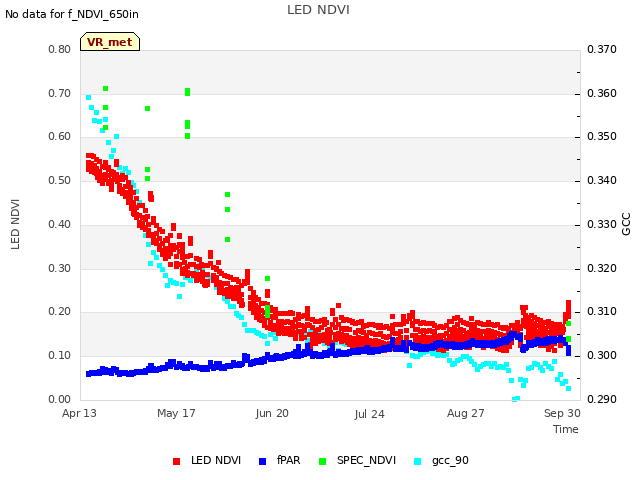

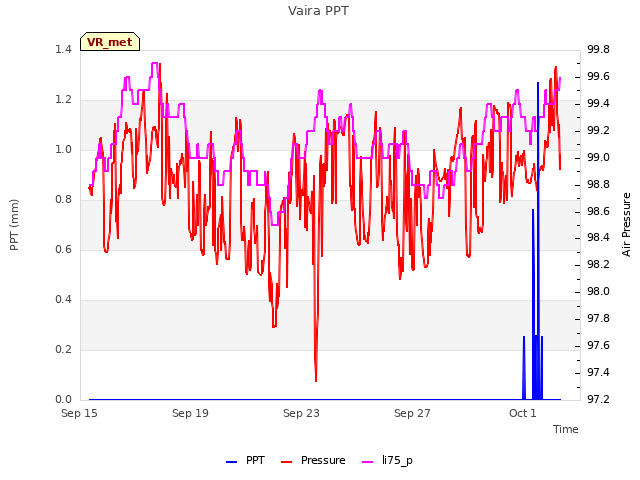

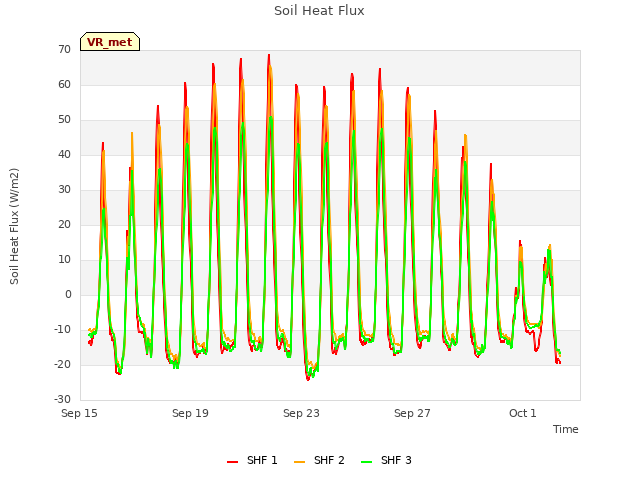

16 VR_met graphs found

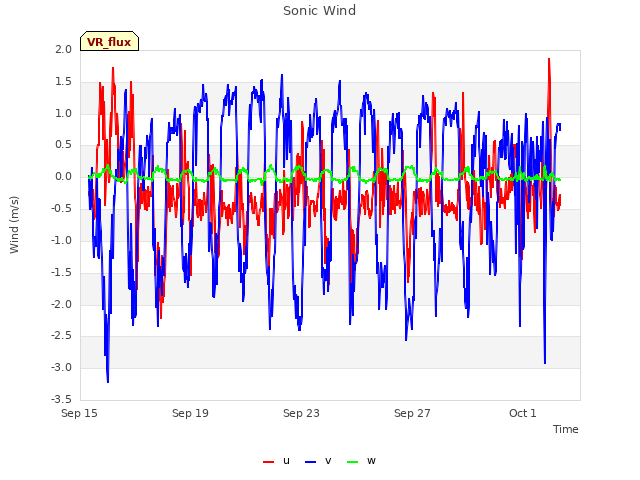

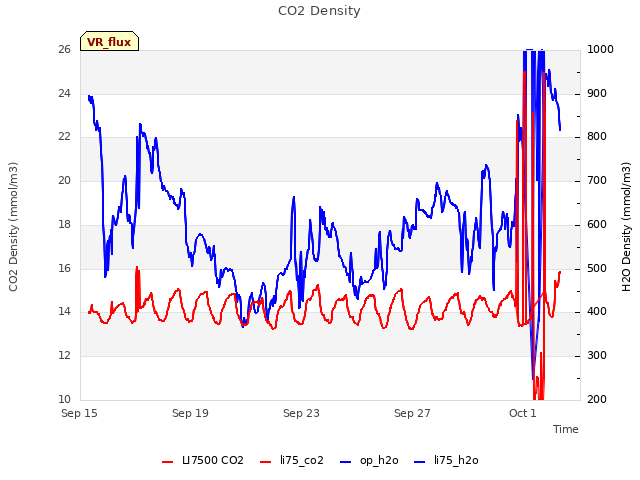

2 VR_flux graphs found

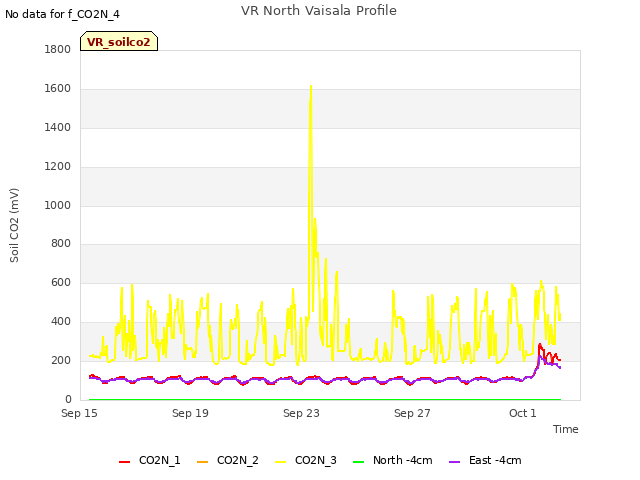

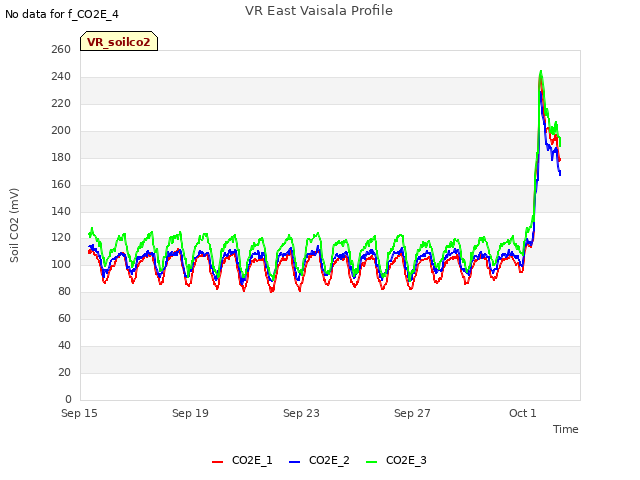

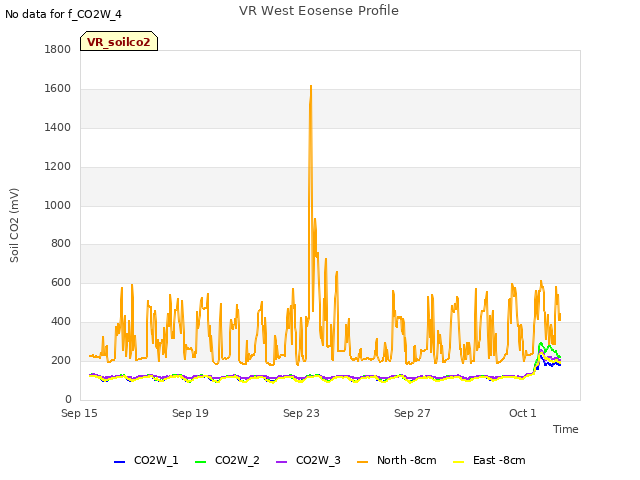

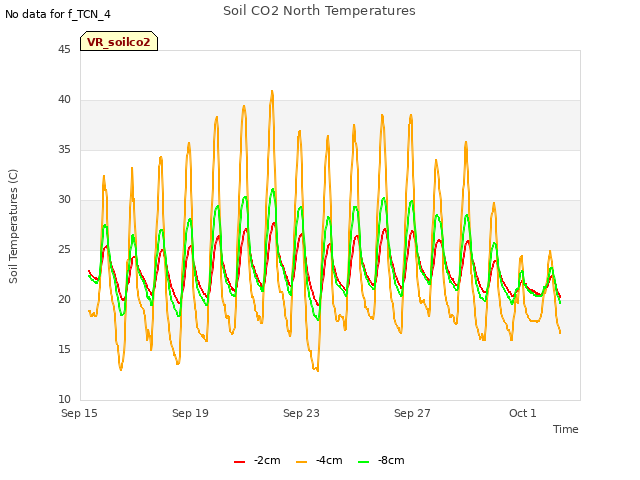

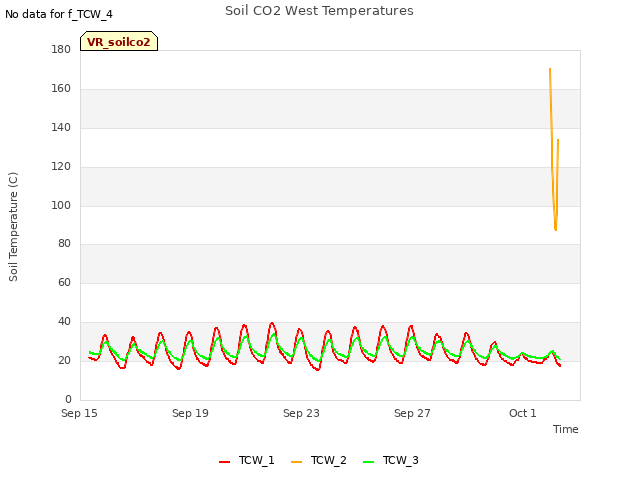

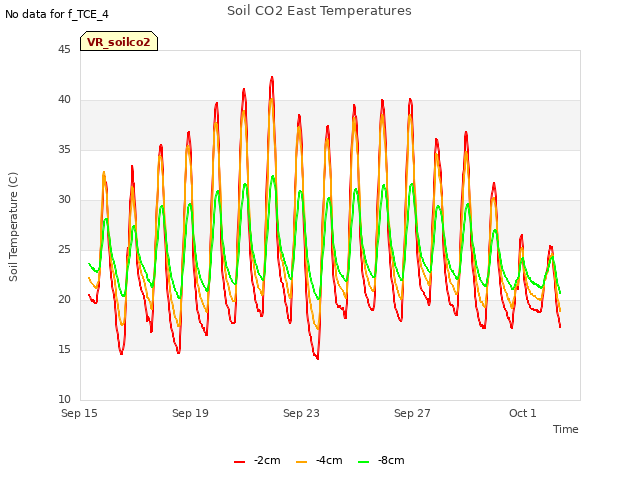

6 VR_soilco2 graphs found
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
