Field Notes

<--2014-06-05 13:10:00 | 2014-06-17 12:40:00-->
Other sites visited today: Sherman Island | Mayberry | West Pond | Twitchell Rice | Twitchell Alfalfa
Phenocam link: Searching...

East End: 2014-06-12 11:47:00 (DOY 163)
Author: Sara Knox
Others: Joe, Kathleen, Madeline

Summary: Downloaded data. Added conductivity probe and uploaded new Met program. Water samples. Joe added crossbars to solar panel scaffolding.

East End Wetland
2014-06-12

We arrived about 11:47 PDT. It was sunny, very windy and slightly chilly with the wind. The water level is definitely higher than previous weeks.

I attended to the tower and downloaded data. Kathleen took water samples (3 in water) and Madeline cleaned the sensors. Joe swapped the crossbars on the solar panel scaffolding. We also added a conductivity probe sn 6494 and interface sn 3585 at the site and uploaded a new Met program to account for the new probe (that also meant we had to rewire a few sensors to take into account the new program). All seemed ok after these changes.

7500 readings:
CO2 = 16.37 mmol m-3 (same after cleaning)
H2O = 511 mmol m-3 (same after cleaning)
p = 100.32 kPa
t = 23.18 C
Diag: 248 (same after cleaning)
Sos: 343 m s-1

7700 readings:
CH4: 1.87 ppm
RSSI: 51% (86% after cleaning)
Topped off reservoir.

MET seems good. Keep an eye on the DO probe.
Cleaned Radiation sensors.
 

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

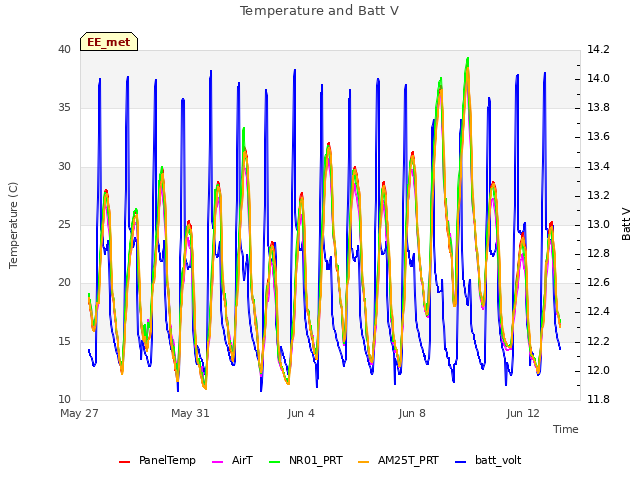

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

Explore the graph:Solar Radiation in a new window

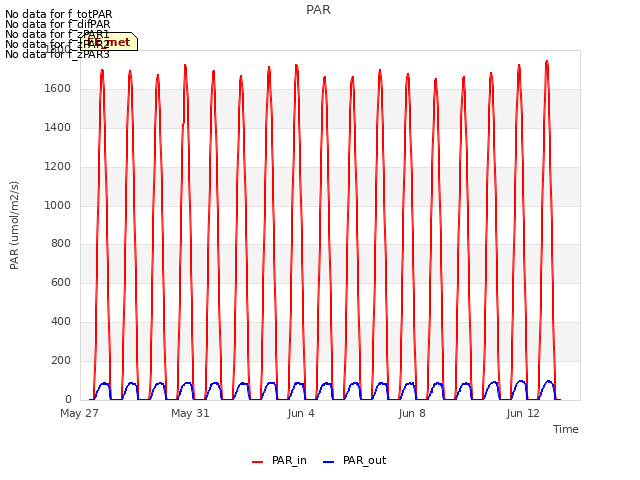

Explore the graph:PAR in a new window

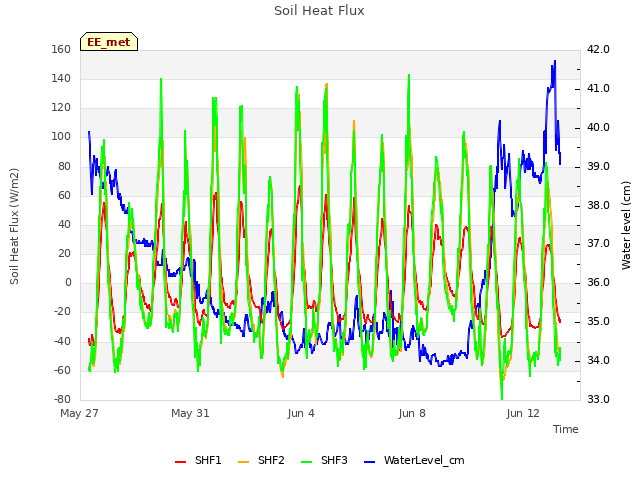

Explore the graph:Soil Heat Flux in a new window

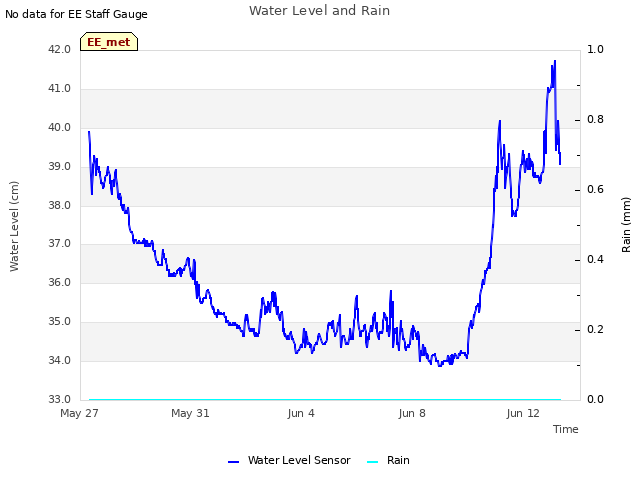

Explore the graph:Water Level and Rain in a new window

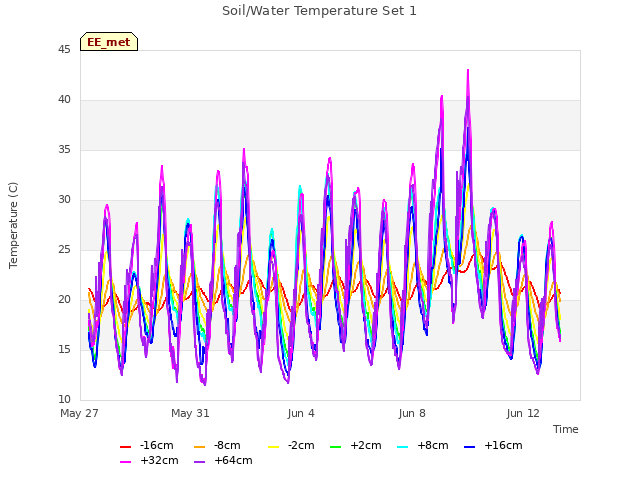

Explore the graph:Soil/Water Temperature Set 1 in a new window

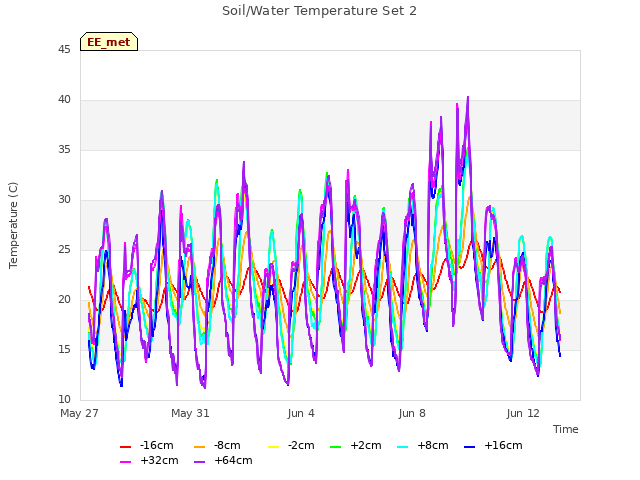

Explore the graph:Soil/Water Temperature Set 2 in a new window

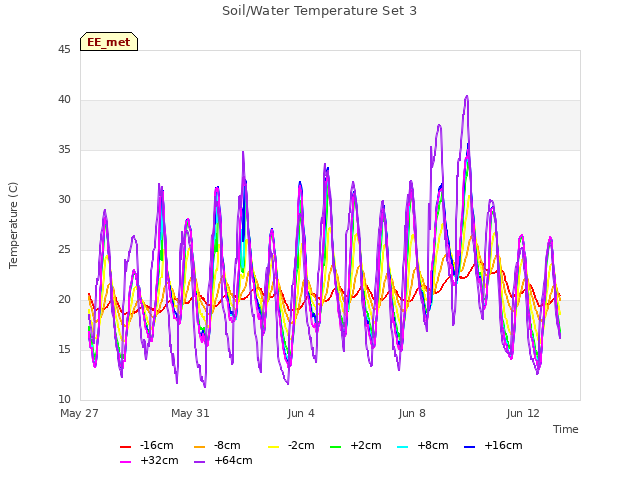

Explore the graph:Soil/Water Temperature Set 3 in a new window

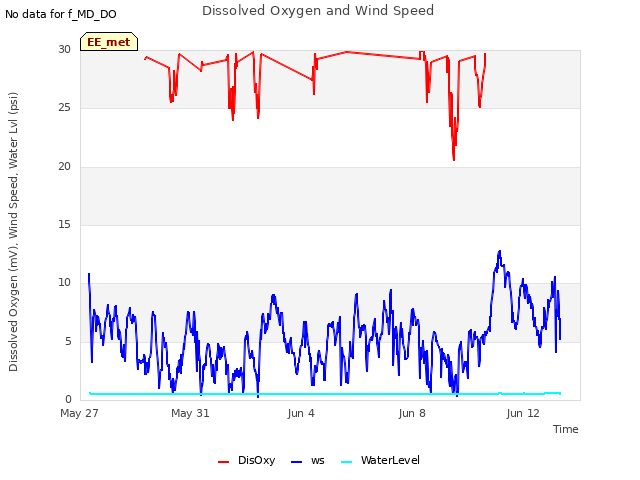

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

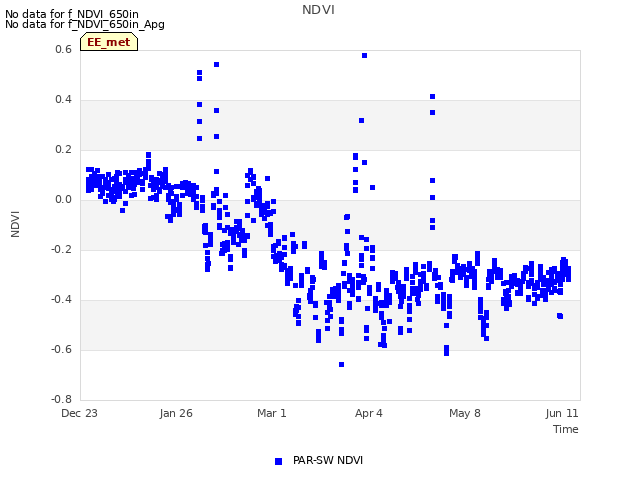

Explore the graph:NDVI in a new window

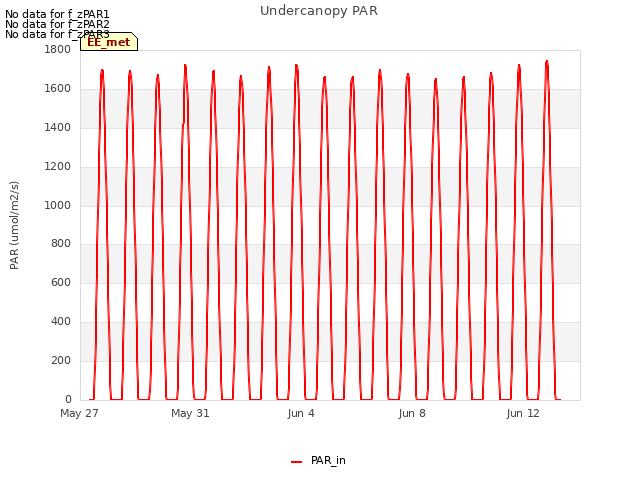

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

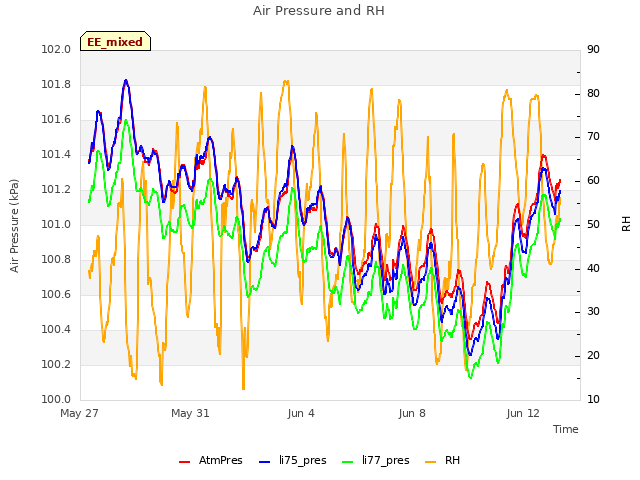

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

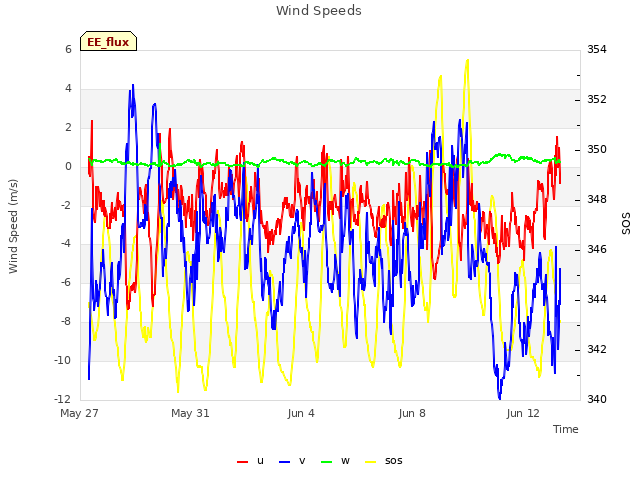

Explore the graph:Wind Speeds in a new window

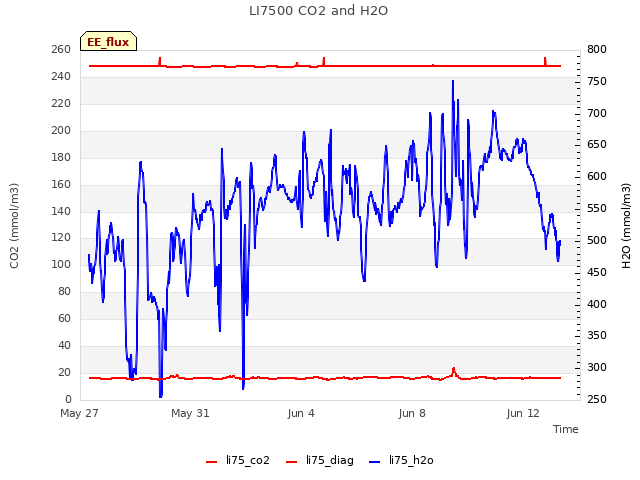

Explore the graph:LI7500 CO2 and H2O in a new window

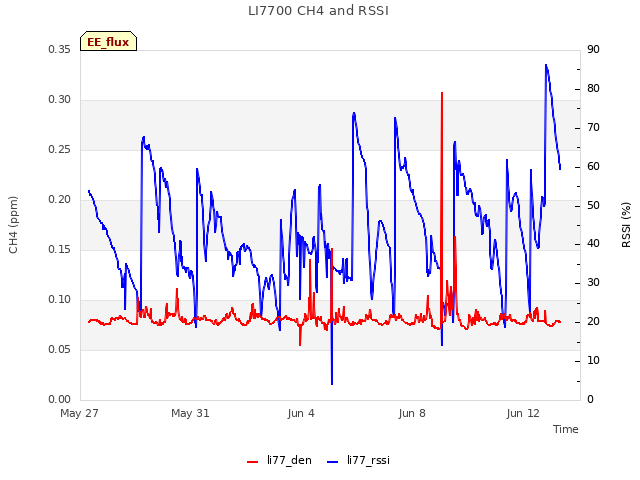

Explore the graph:LI7700 CH4 and RSSI in a new window

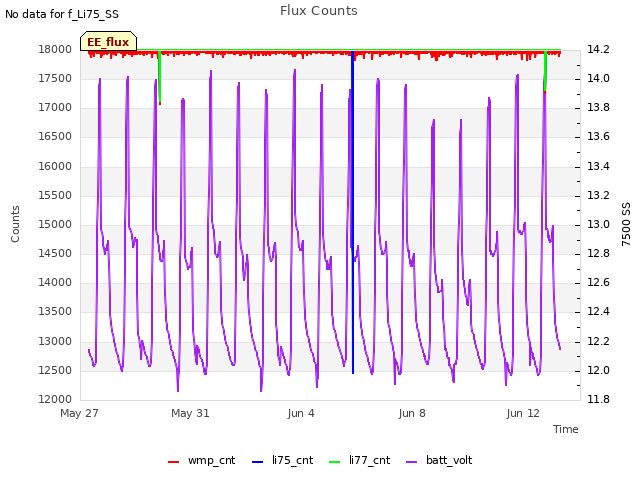

Explore the graph:Flux Counts in a new window

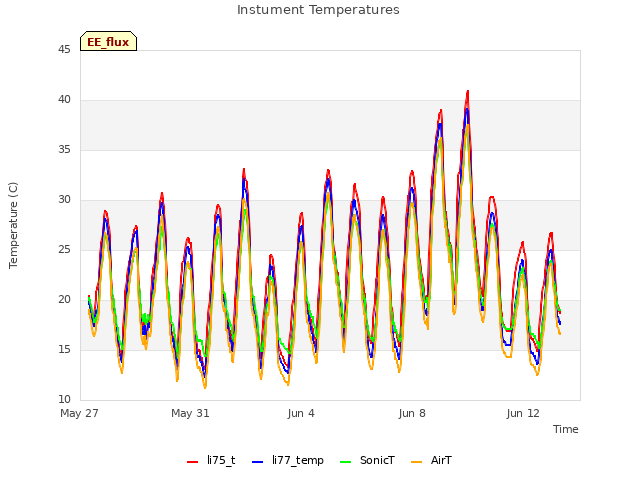

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

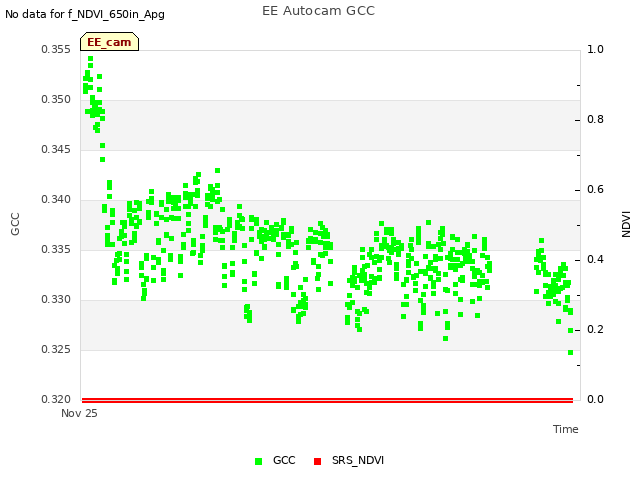

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

Explore the graph:Sonic SOS in a new window

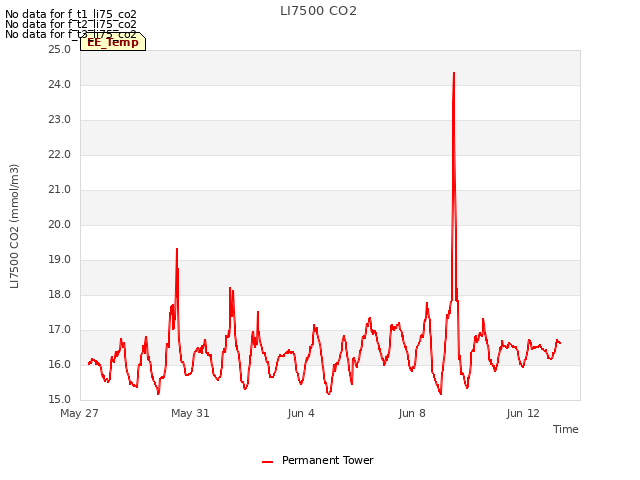

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

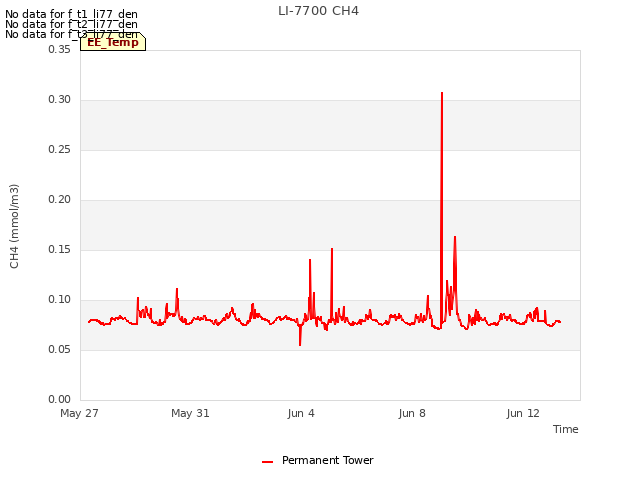

Explore the graph:LI-7700 CH4 in a new window

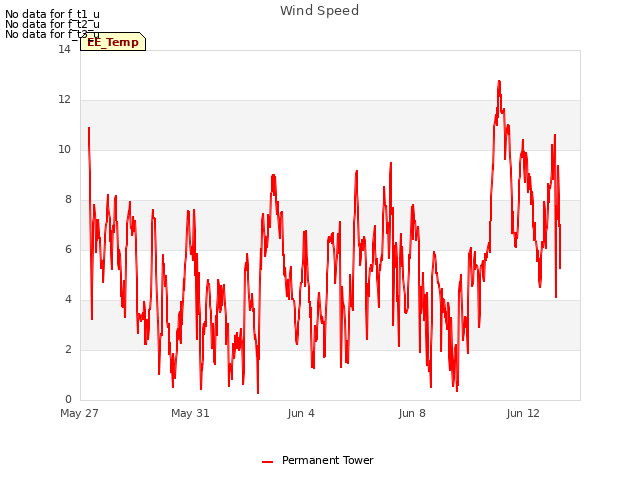

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

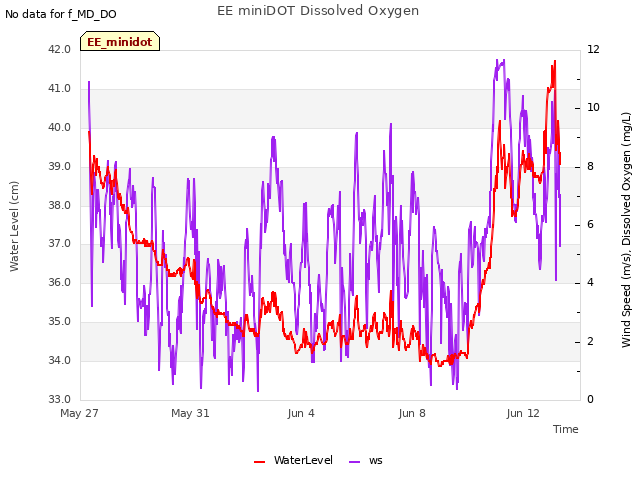

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

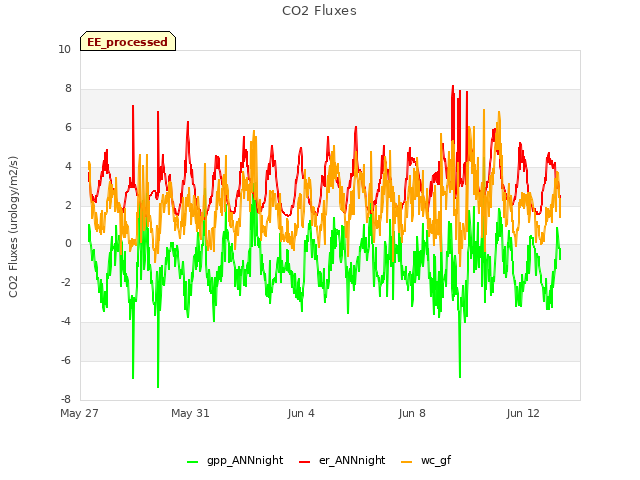

Explore the graph:CO2 Fluxes in a new window
