Vaira: 2013-10-18 09:00:00 (DOY 291)
Author: Joe Verfaillie
Others: Siyan
Summary: Cow fence fixed - not as bad as reported, tested tipping bucket, leveled radiometers, standard fieldwork, tree still have leaves.

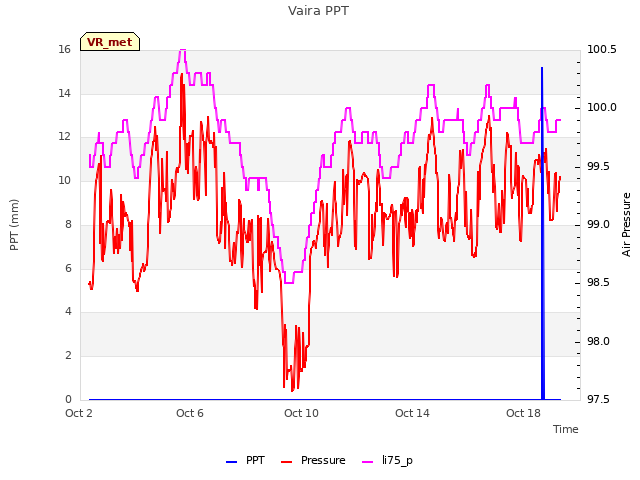

| Vaira 2013-10-18 I arrived about 9:00am with Siyan. It was clear, sunny and warm with a light breeze from the east shifting to the south. The trees looked better than I expected still relatively green. There was only one wire of the fence broken, but the Vairas found a section that went missing about a year ago and left it inside the fence for us. I fixed the broken wire and put the old wire under the solar panels as backup. I ran a test of the tipping bucket letting 16oz (473ml) of water to drip through it. It gave a reading of 24.892mm (only two tips short). I did not adjust its screws. These values need to be removed from the raw data. The radiometers were very close to level. I adjust the platform a little to get it closer to level. The BF3 diffuse sensor was also a little off level. I adjusted the tripod legs to get it closer to level. I made a copy of the RPi card for development purposes. I collected all the data. All looked well. Using the terminal to move the Phenocam images to the USB stick worked well, but the write is a bit delayed so one needs to wait to eject the USB stick. Siyan did the standard field work. |
Field Data
No tank data
Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2013-10-18 | TZ_floor | 31.3 |
| 2013-10-18 | TZ_road | 39.3 |
| 2013-10-18 | TZ_tower | 36 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
5 photos found
BF3 diffuse PAR sensor after leveling
CNR1 sensor after leveling
Site
PAR sensor level
Joe on site
9 sets found

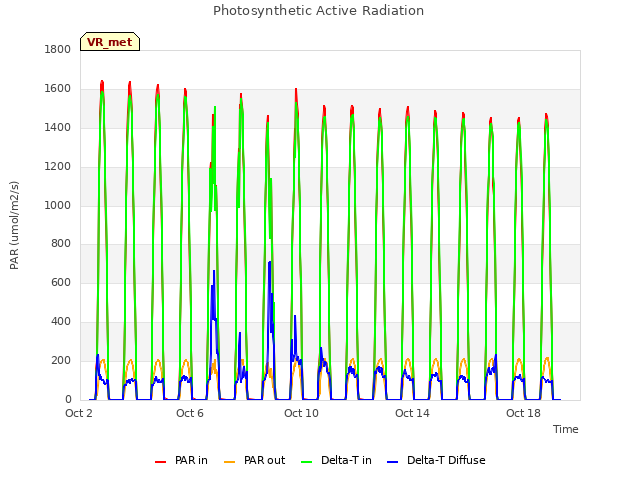

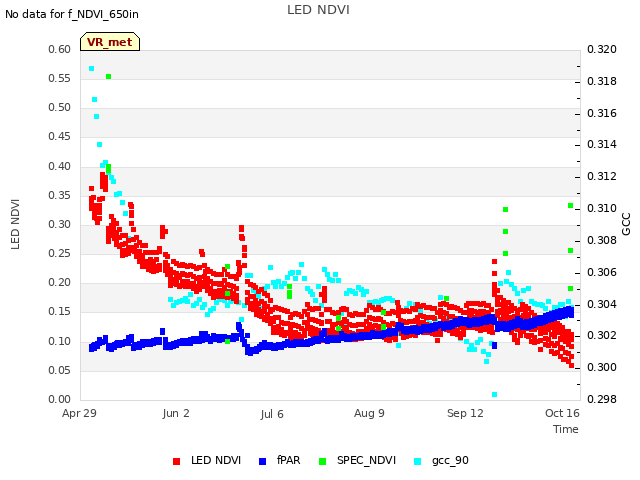

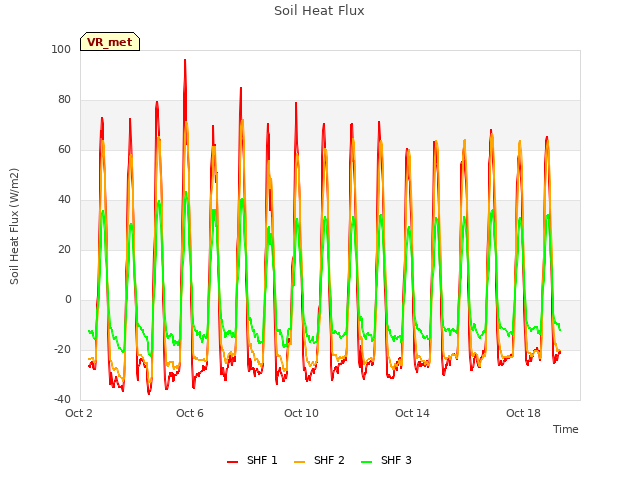

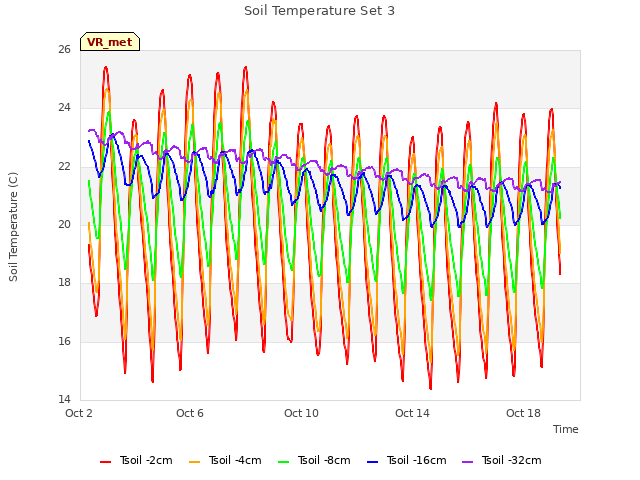

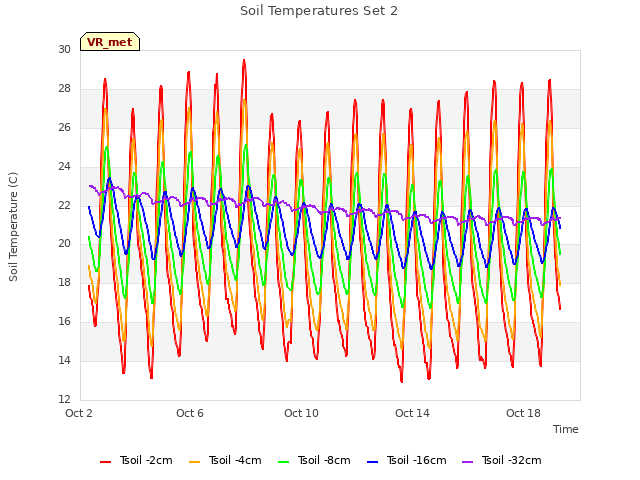

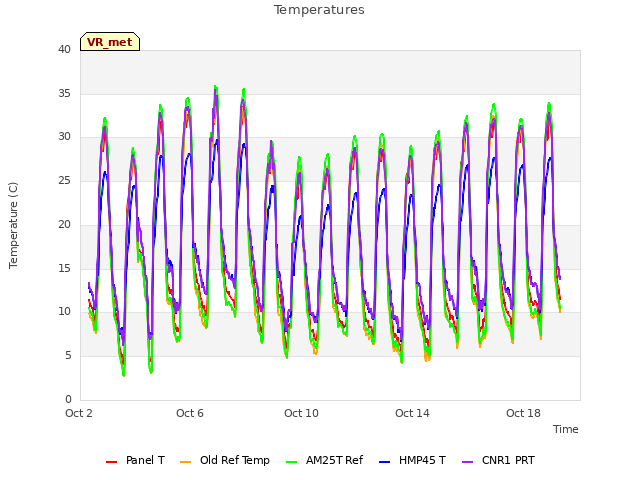

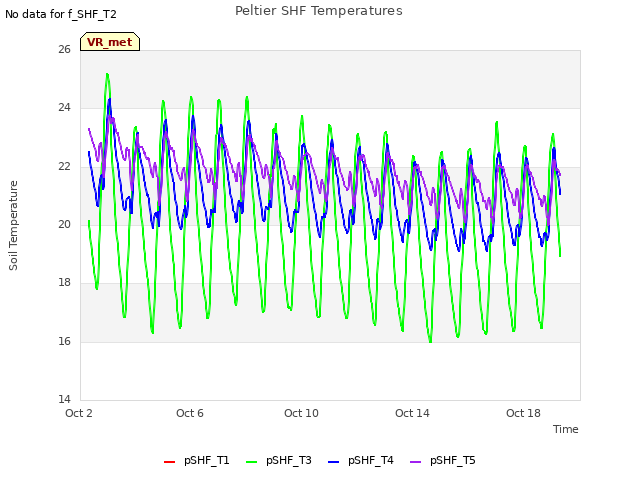

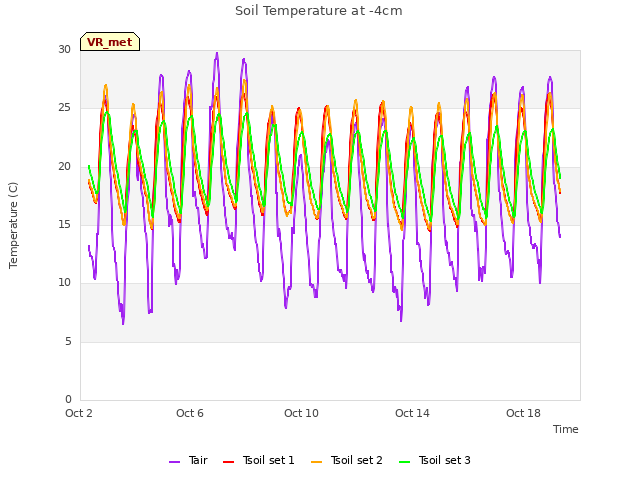

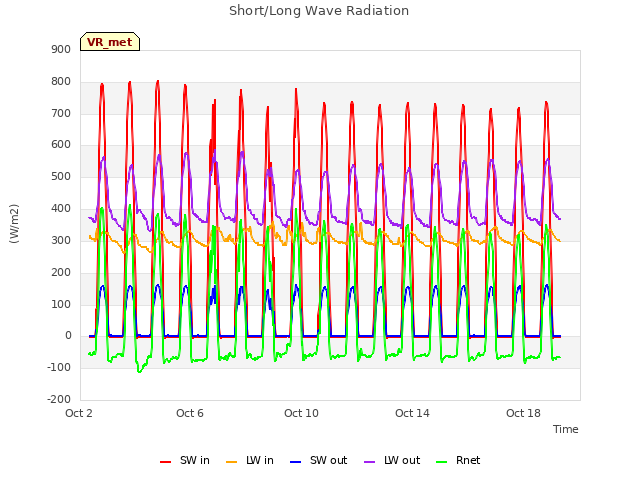

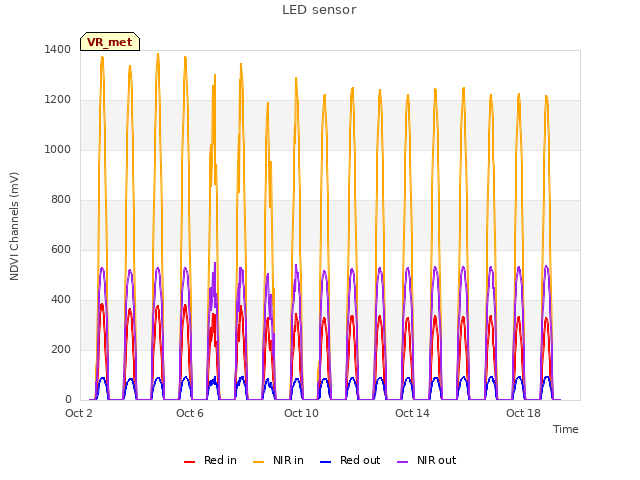

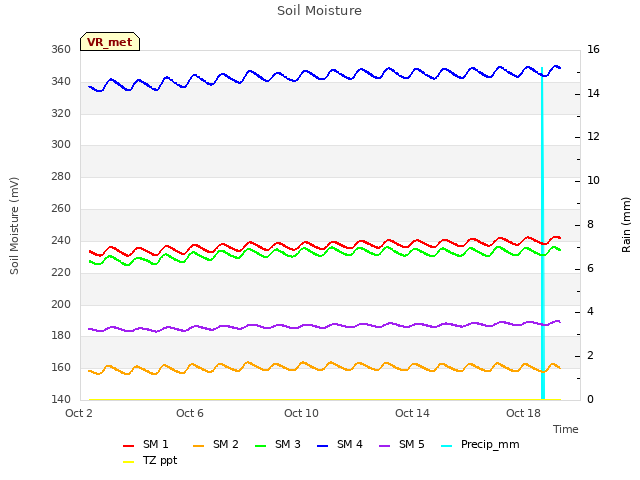

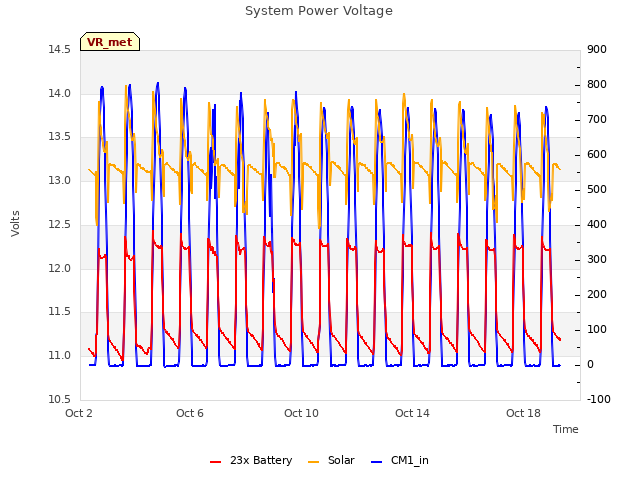

16 VR_met graphs found

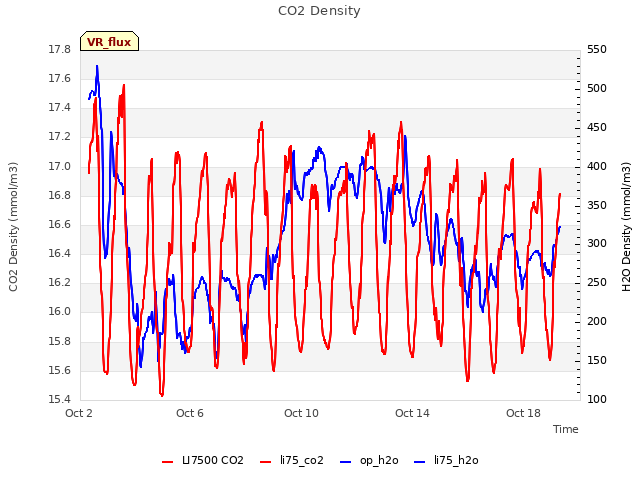

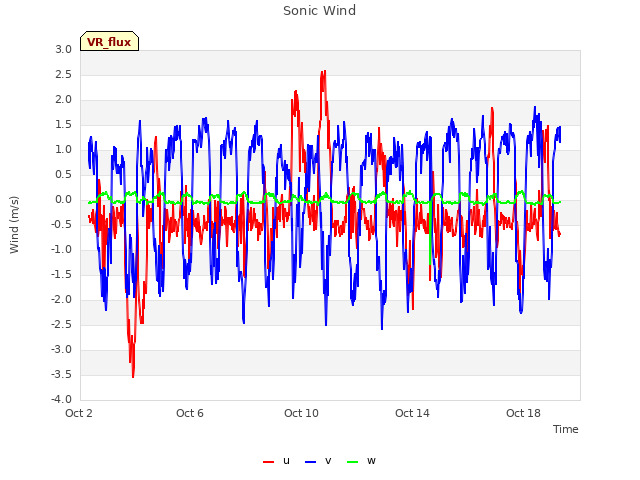

2 VR_flux graphs found

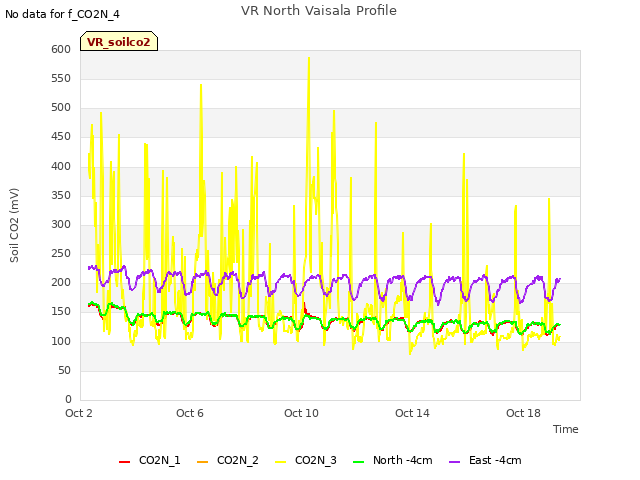

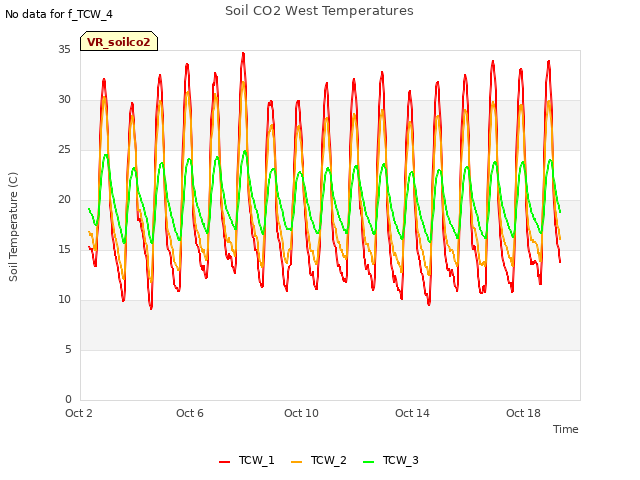

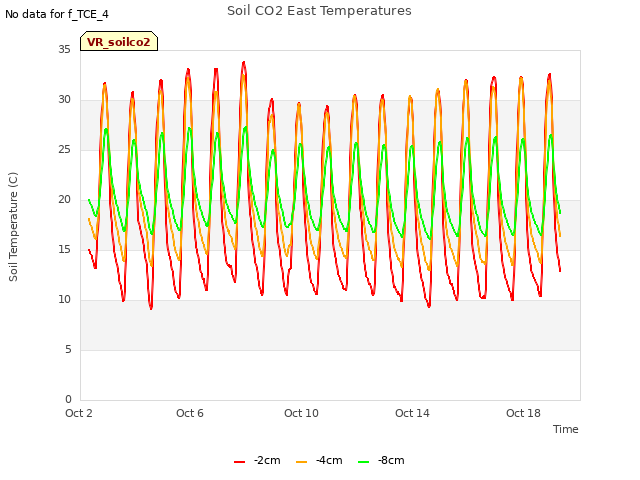

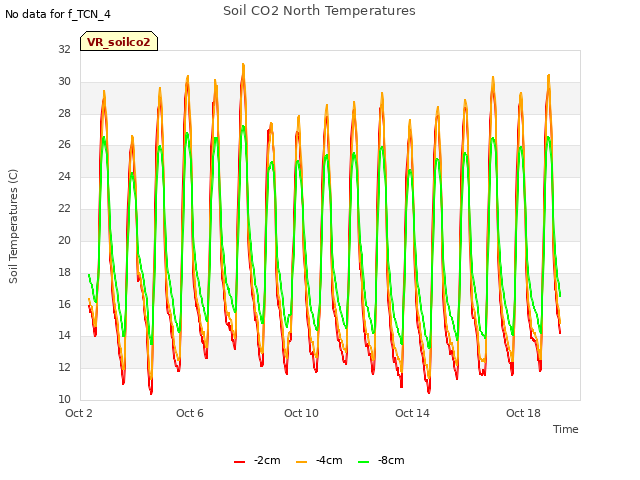

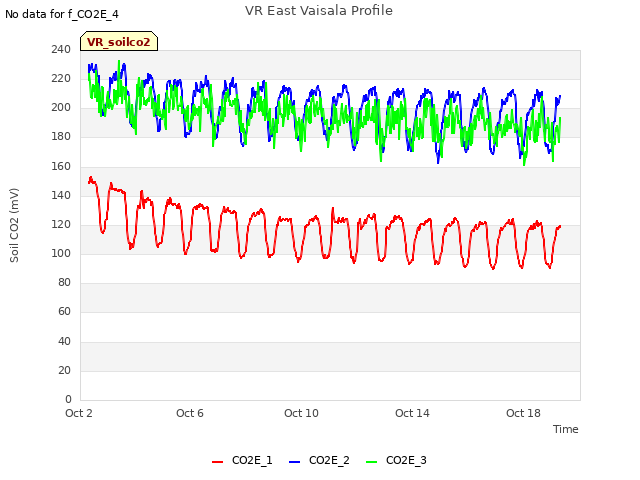

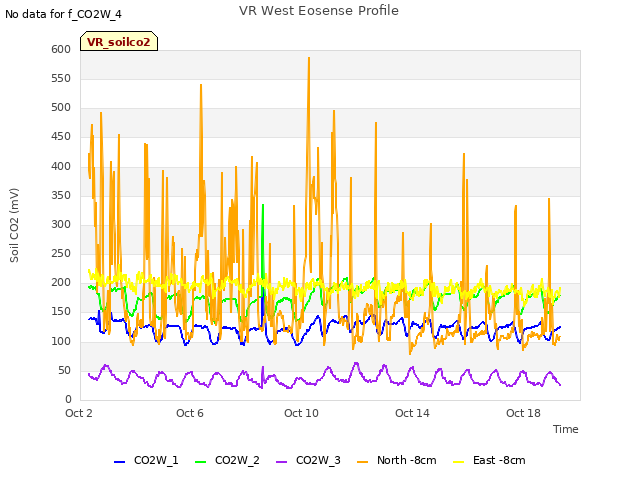

6 VR_soilco2 graphs found
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
