Tonzi: 2013-10-18 09:00:00 (DOY 291)
Author: Siyan Ma
Others: Joe

Summary: Standard fieldwork, Joe tested tipping buckets and leveled radiometers, Tram came in for repair, partial Moisture point due to dead battery.

When: Date: 10/18/2013 , Day: 291 , Watch Time: 9:00 am
Where: Tonzi/Vaira Ranch
Who: Siyan Joe
Weather: clear, sunny
Phenology: oak trees at Vaira still look green, while oak leaves are quite brown and fallen. The biomass fence was moved, and the TDR probes still in the fence. Mr. Tonziâ€™s pond has little water (see pictures below).

Summary

Checked and downloaded data from PC at Tower, Floor.
Joe downloaded data at Vaira and swapped memory cards of CR1000s at three sites. Everything worked well.

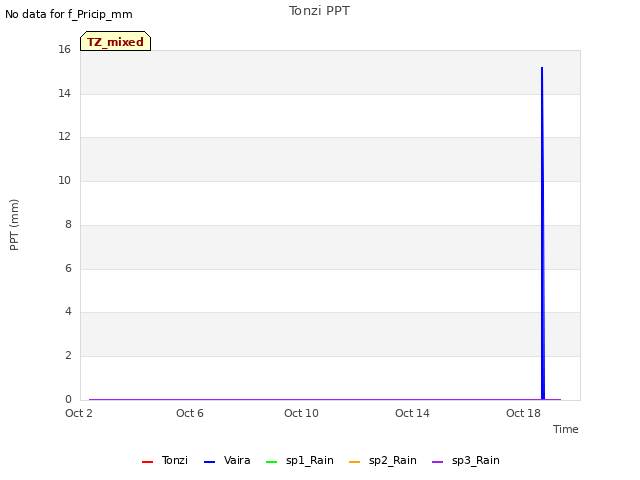

Joe leveled the radiation sensors and calibrated rain gauges at Tonzi and Vaira.

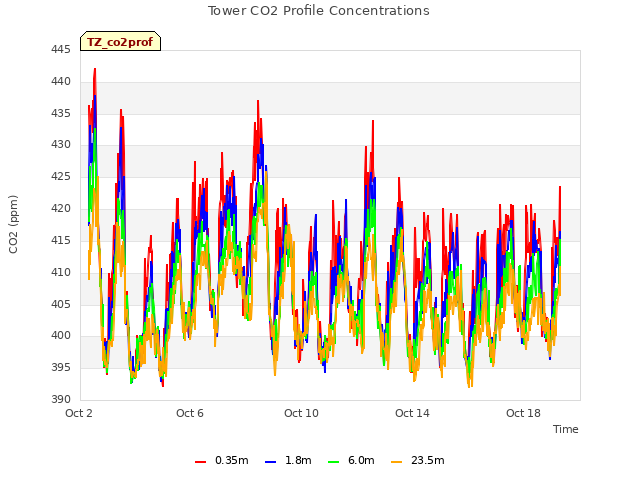

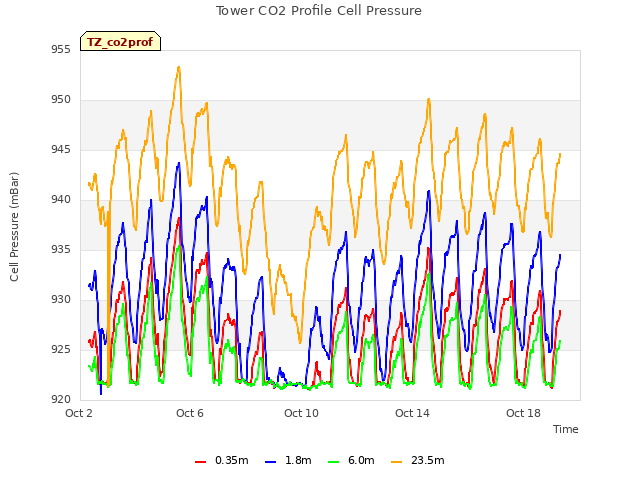

Calibrated CO2 profile system; Zero drifted -5 ppm.
The Tram cart wasnâ€™t functioning well and taken back to the lab.
Read dendrometers

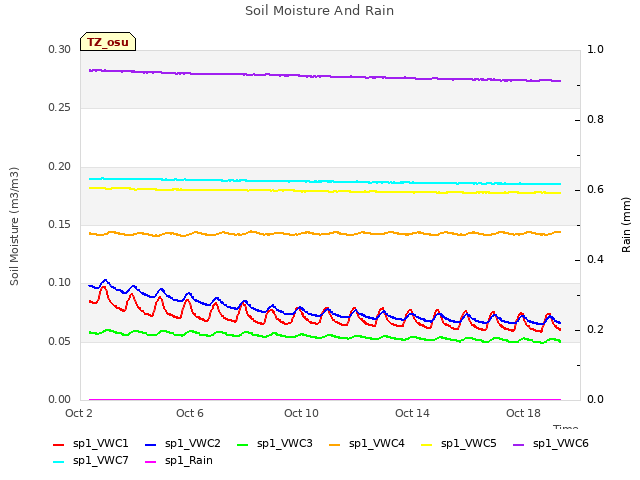

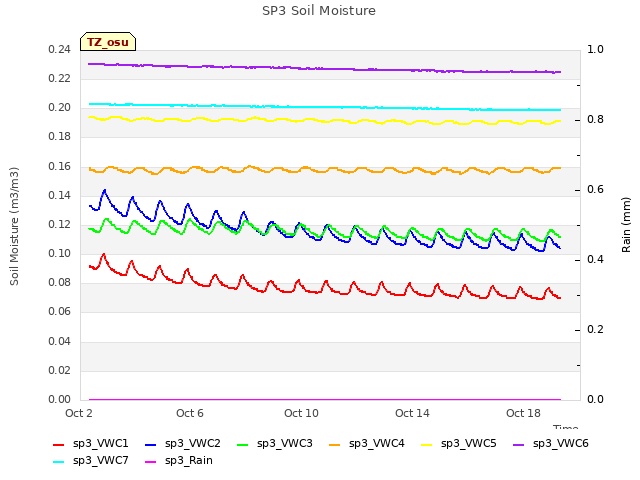

Measured soil moisture (didnâ€™t finish because the battery was dead.)

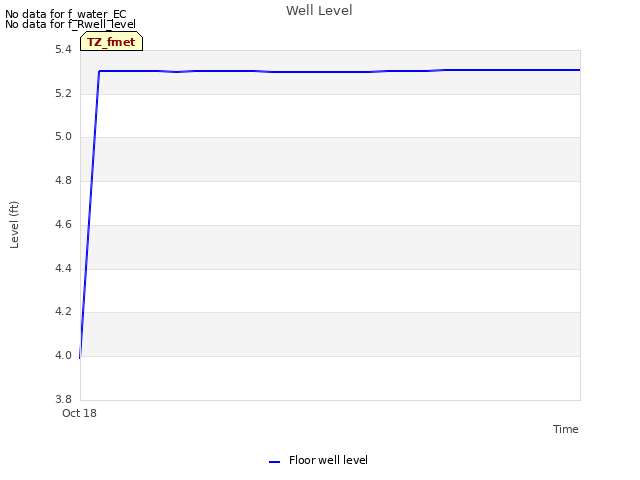

Measure groundwater well:

Date	DOY	Location	Depth without the black thing (feet)
10/18/2013	291	Floor	31.3
		Tower	36
		Road	34.3

Vaira_Grass Site

Fence and gate power: 12 v.
Panel and Batteries: - v; - amps; - amps.
Joe downloaded data and swapped the memory cards of CR1000.

Screen shot of Vaira flux data logger table

Screen shot of Vaira soil co2 data logger table

Screen shot of Vaira met data logger table

Check the fans of air temp and relative humidity sensors at Vaira. YES!
Check levels of Radiation sensors, clear up surfaces.YES!
Joe calibrated rain gauge. Pretty good.
Joe re-leveled radiation sensors.
Closed gate and set up fence. YES!

Tonzi_Tower Site

Fence and gate power: 12 v.
Panel and Batteries: - v; - amps; - amps.
Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 â€“ 5 v.)

Tower Gill sonic plots screen before downloading data

Screen shot of tower flux data logger table

downloading data from PC.
Swapped the memory cards of CR1000.
check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
Joe calibrated rain gauge. Pretty good.
Joe re-leveled radiation sensors.
Check calibration cylinders;

CO2tank	404.2ppm	1000	18psi
N2		1500	10

Is the pump runningâ€Œ YES!
Screen shot of Li-800 calibration pre-cal

zero

Span

close gate and set up fence. YES!

Toniz_Floor Site

Fence and gate power: 12 v.
Panel and Batteries: - v; - amps; - amps.
Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 â€“ 5 v.)

Floor Gill sonic plots screen before downloading data

downloading data from PC. YES!
Swapped the memory cards of CR1000.

Screen shot of floor flux data logger table

Check MD-9 system connections YES!

CR23X3 â€“ floor-Met
CR23X6 â€“ tower-Met
CR10X2 â€“ floor-Met

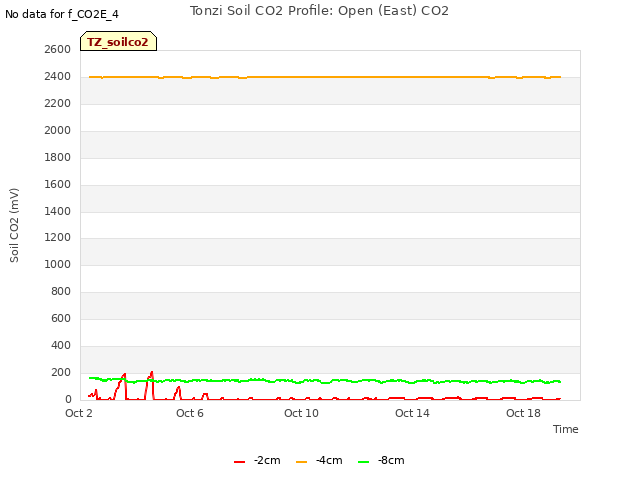

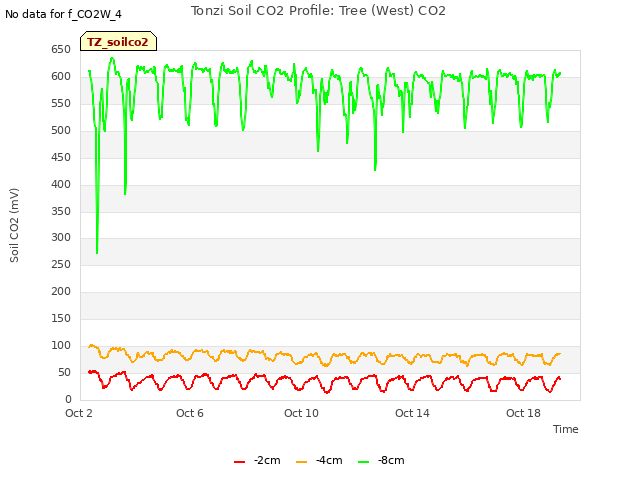

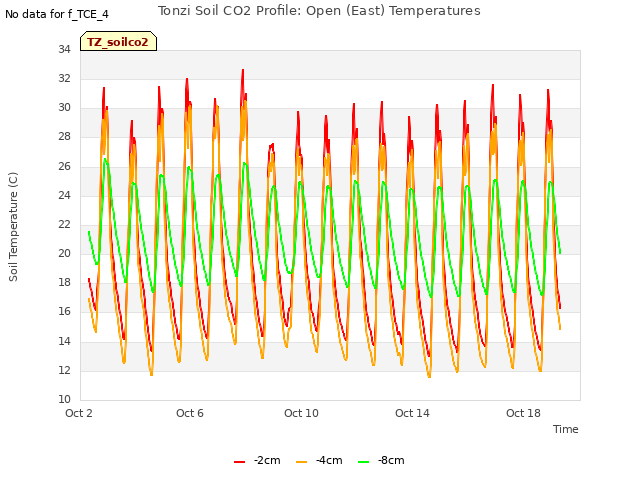

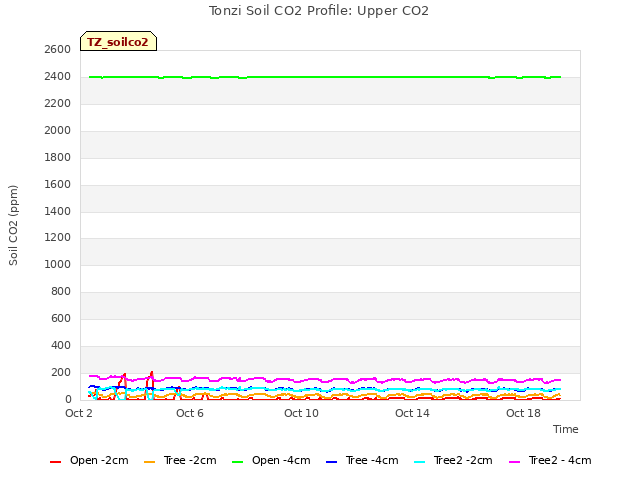

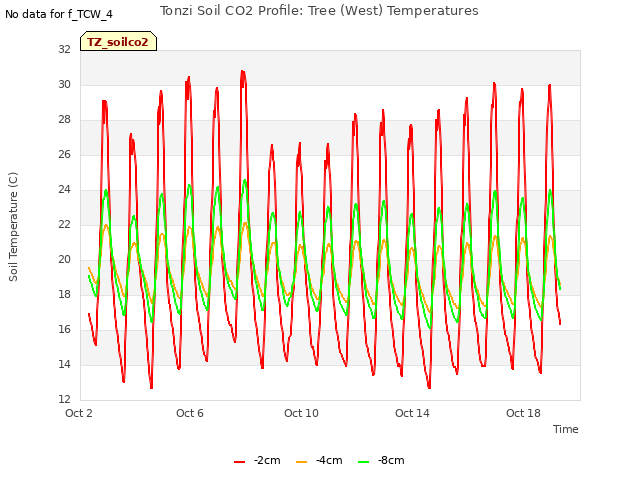

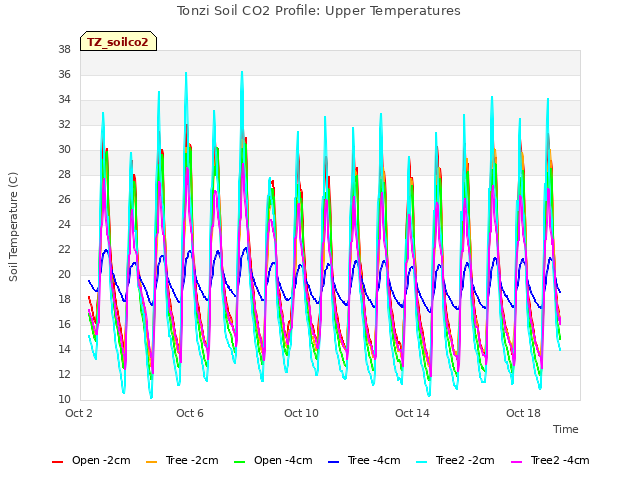

Soil CO₂ profile: CR23X5 â€“ soil CO₂ profile

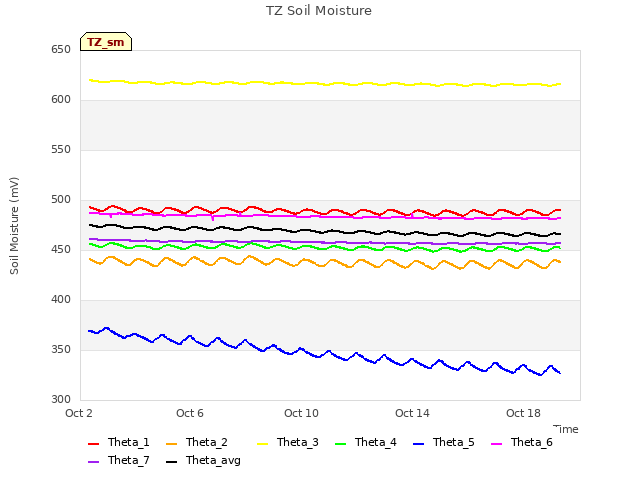

Screen shot of soil moisture data logger table

Screen shot of floor met data logger table

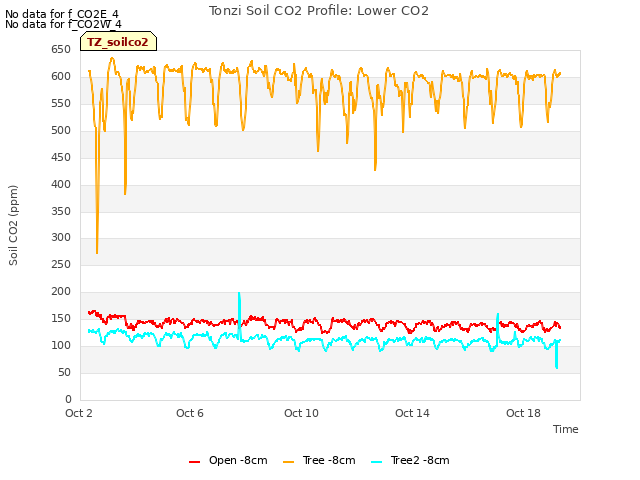

Screen shot of soil co2 data logger table

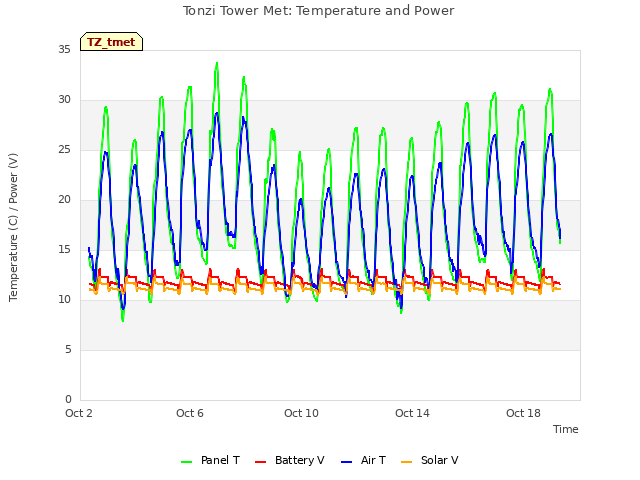

Screen shot of tower met data logger table

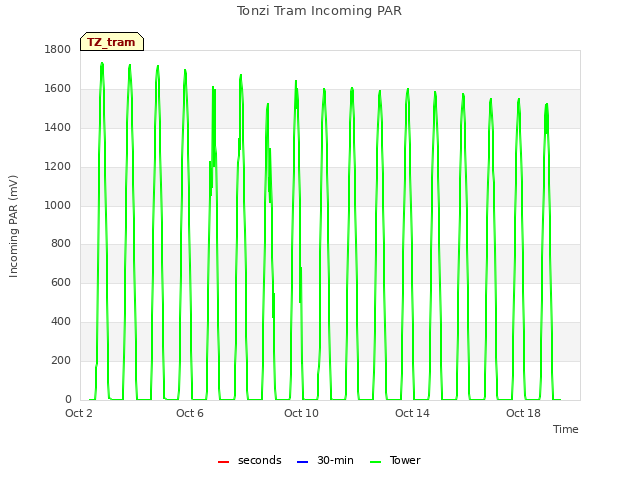

TRAM

Close gate and set up fence. YES!

Tonzi
Dendrometer

Date	Day	Tag #	Reading (mm)
10/18/2013	291	245	12.9
		102	21
		79	19.1
		72	15
		2	17
		3	20.1
		5	24.5
		4	4
		7	16.6
		8	8.5
		245	12.9

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
10/18/2013	291
	sm
0-15	3.1	0.4	17.1	6.5
15-30	11.5	7.2	17.3	7.5
30-45	17.6	10.6	10.9	12.3
45-60		2.2	12.8

	A6D882B	A3D04E8	A6D72F5

0-15
15-30
30-45
45-60

vaira	7933dee	00000128B97F3	00000128B8072	00000128BDDE8
0-15	3.5	3.4	2.3	0.25
15-30	8.9	10.6	3.5	2.9
30-45	11.7	11.4	7.6	9.65
45-60	23.8	20.5	7.3	12.2
