When: Date: 9/4/2008 , Day: 248 , Watch Time: .
Where: Tonzi/Vaira Ranch
Who: Siyan, Jessica
Weather: clear, hot
Phenology: 50% yellow oak leaves, saw cows at Vaira
Summary

1. check and download data at Tower, Floor, and Vaira
2. Swap Li-7500 at the three towers.
3. Calibrate Li-800 in the field
4. dendrometer

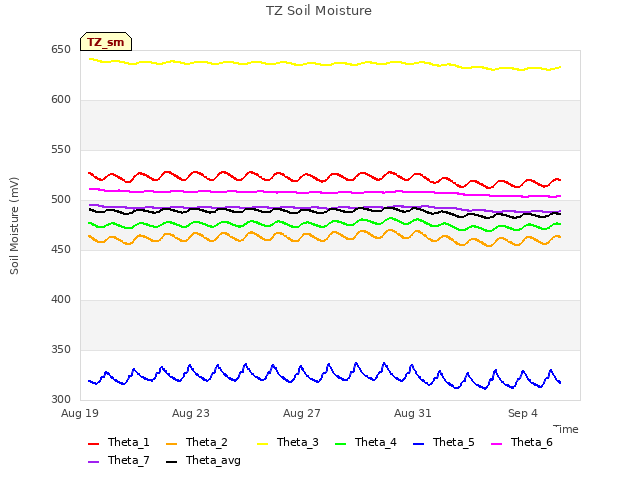

5. Soil moisture

Vaira_Grass Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.5 v; 13.0 amps; 2.2 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\V08_ 248 .flx D:\Data\VR08 .raw
	mean	std		mean	std
w	0.4	0.28	Ts	31.0	1.06
u	0.34	0.87	H2O	1.48	0.03
v	1.14	0.67	CO2	1.93	0.019
			Tc	2.67	0.132

1. downloading data YES!
2. swaping Li-7500 Analyzer. (Remove SN# 42 ; install SN# 976 )
3. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
4. Check MD-9 system connections YES!

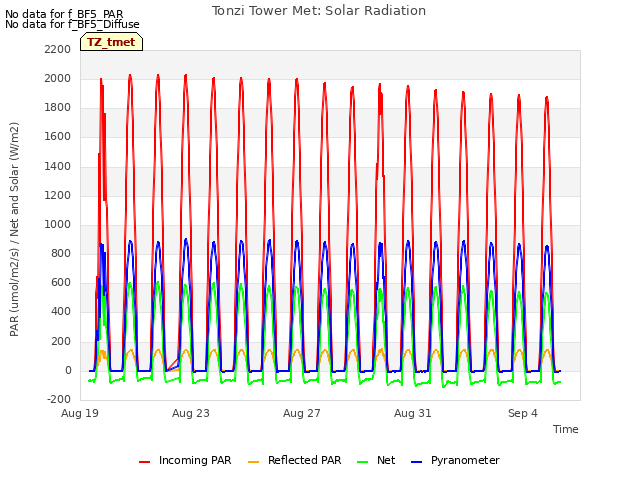

5. Check levels of Radiation sensors, clear up surfaces. YES!
6. Check rain gage, make sure not clogged. YES!
7. Closed gate and set up fence. YES!

Tonzi_Tower Site

1. Fence and gate power: 12 v.

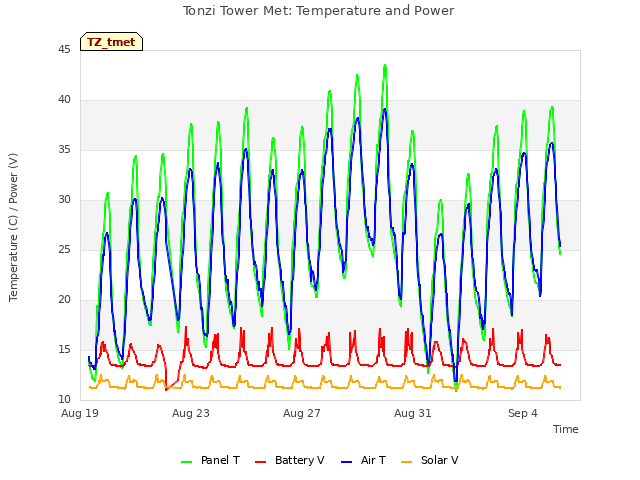

2. Panel and Batteries: 13.5 v; 0.0 amps; 5.1 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\T08_ 248 .flx D:\Data\TW08 .raw
	mean	std		mean	std
w	-0.2	0.436	Ts	27.6	0.737
u	1.35	0.655	H2O	1.57	0.013
v	1.23	0.464	CO2	1.49	0.008

1. downloading data YES!
2. swaping Li-7500 Analyzer. (Remove SN# 65 ; install SN# 418 )

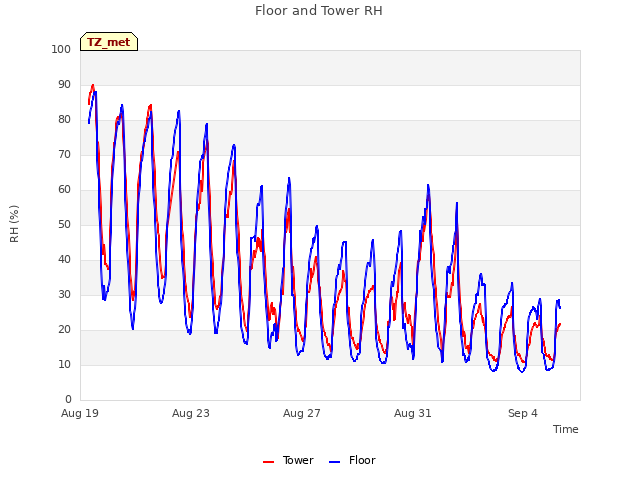

3. check the fans of air temp. and relative humidity sensors on the tower and the floor.
4. Manually calibrate Li-800. YES!

Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ YES!
How to check the CO2 values‌ Click “Ports/Flags” button to see which ports or flags is setting high. Pressure should be less than ambient value. When Flag 8 is high, it may indicate that RRR’s battery is low.

1	2	3	4	zero	span
390	390	390	390	0.736	428.4
922	922	922	922	942	922.7
47	47	47	47	46.9	46.9
51	51	51	51	50.8	50.7

1. close gate and set up fence. YES!

Toniz_Floor Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.3 v; 13.4 amps; 2.0 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\F08_ 248 .flx D:\Data\FL08 .raw
	mean	std		mean	std
w	-0.34	0.364	Ts	32.1	0.737
u	1.08	0.487	H2O	1.177	0.15
v	1.87	1.154	CO2	1.619	0.023

1. downloading data YES!
2. swaping Li-7500 Analyzer. (Remove SN# 35 ; install SN# 41 )
3. Check MD-9 system connections YES!

CR23X3 – floor-Met
CR23X5 – soil CO₂ profile
CR23X6 – tower-Met
CR10X2 – floor-Met
CR10X4 – sap-flow

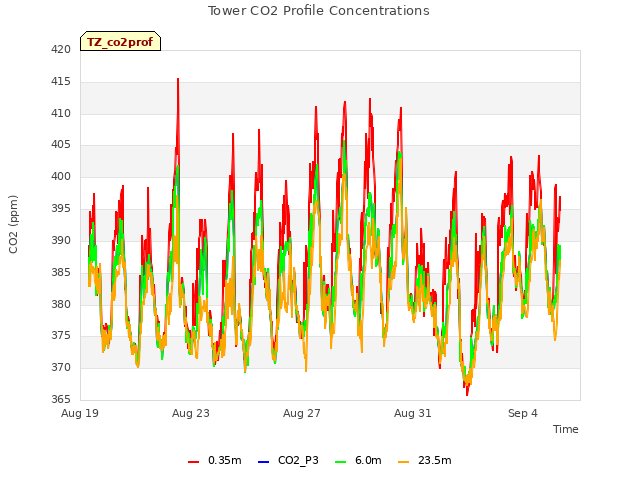

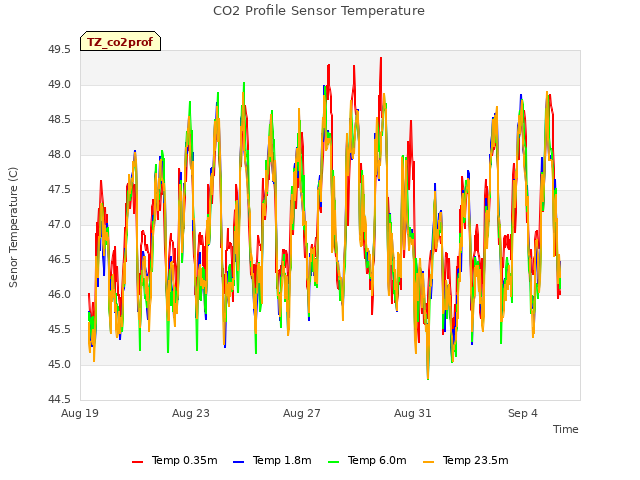

CR10X7 – CO₂ profile

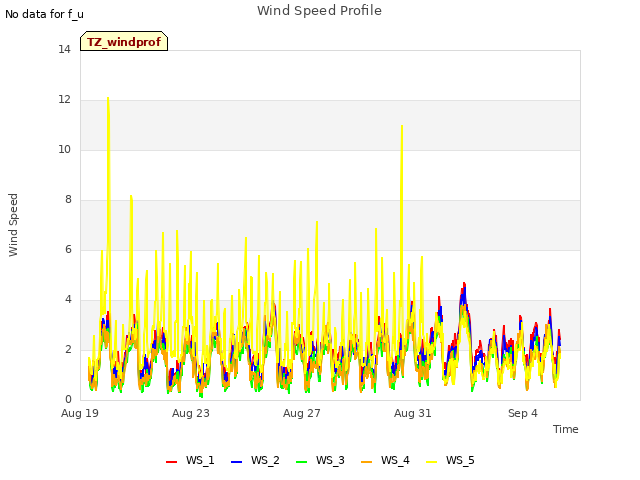

CR10X8 – wind profile

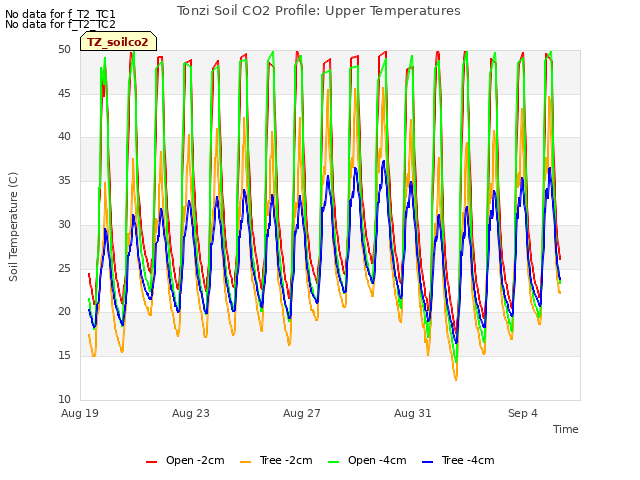

1. Soil CO₂ profile

Reading from datalogger

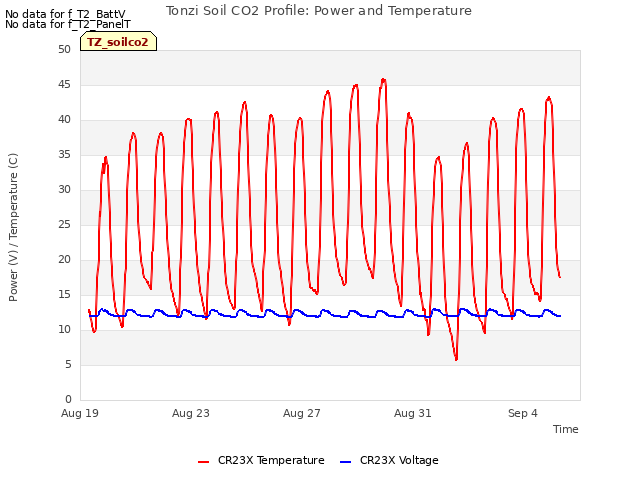

Panel temp
Battery voltage
CO2E_1		TCE_1		CO2W_1		TCW_1
CO2E_2		TCE_2		CO2W_2		TCW_2
CO2E_3		TCE_3		CO2W_3		TCW_3
CO2E_4		TCE_4		CO2W_4		TCW_4

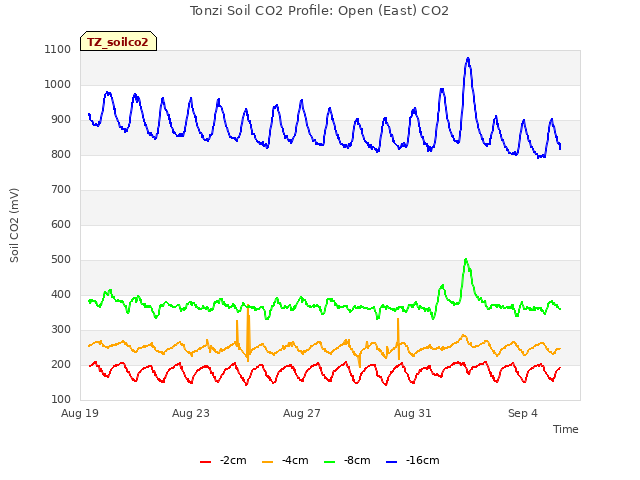

Reading from panels of analyzers

depth	Open	order	depth	Tree	order
2cm (1%)	350	1	2cm (1%)	600	1
4cm	500	2	4cm	740	4
8cm	730	3	8cm	1350	2
16cm	830	4	16cm	2990	3

1. Close gate and set up fence.

Tonzi
Dendrometer
Date	Day	Tag #	Reading (cm)
9/4/2008	248	71	X
		72	8.1
		77	X
		78	X
		79	11.5
		245	3.6
		248	X
		250	9.0
		255	X
		‌252‌	X
		102	4.2

Notes: “X” means not working any more.
