When: Date: 9/19/2008 , Day: 263 , Watch Time: 10:30am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Stefania
Weather: Dry, nice cool breeze
Phenology: oak leave 90% yellow at Tonzi, 30% at Vaira.
Talked with Mr. Tonzi. He recalled dry years: 1860-1861, 1975. Mr. Tonzi got out of cow business in 1975 because it was an extremely dry year.
Summary:

1. check and download data at Tower, Floor, and Vaira. Three EC systems worked well.
2. Calibrate Li-800 in the field. CO2 profile system worked well, but CO2 tank is 500 psig. Should we order a new one and replace it soon‌
3. read dendrometer

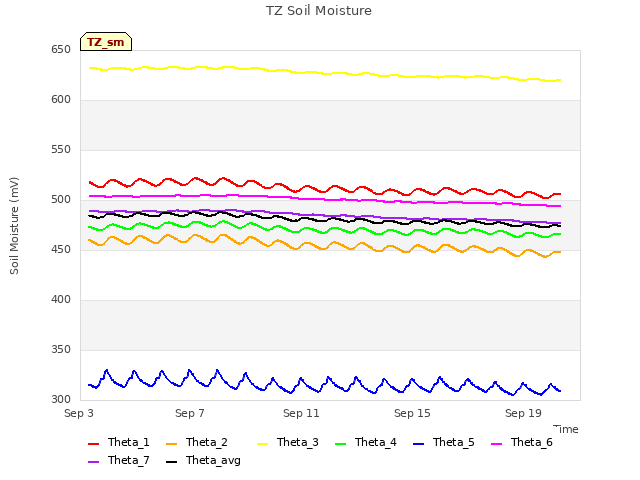

4. measured soil moisture

Vaira_Grass Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.8 v; 11.2 amps; 1.9 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\V08_ 263 .flx D:\Data\VR08 .raw
	mean	std		mean	std
w	0.56	0.42	Ts	21.1	1.21
u	-0.7	0.66	H2O	3.38	0.025
v	2.22	1.29	CO2	1.77	0.037
			Tc	1.87	0.174

1. downloading data YES!

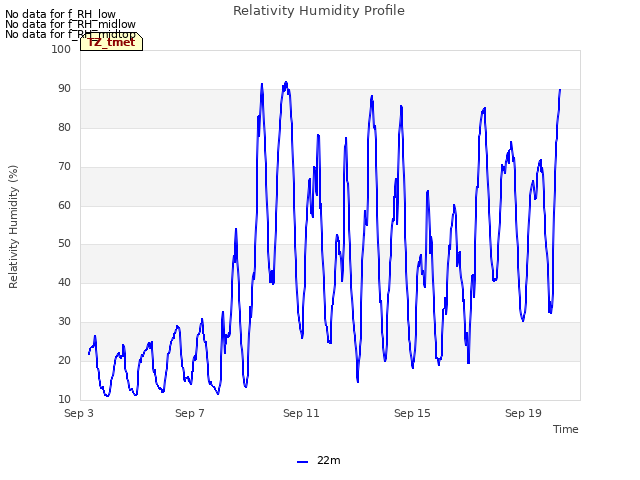

2. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
3. Check MD-9 system connections YES!
4. Check levels of Radiation sensors, clear up surfaces. YES!

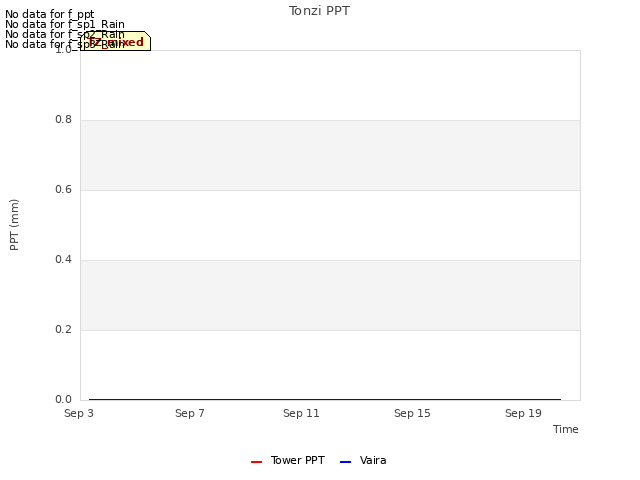

5. Check rain gage, make sure not clogged. YES!
6. Closed gate and set up fence. YES!

Tonzi_Tower Site

1. Fence and gate power: 12 v.

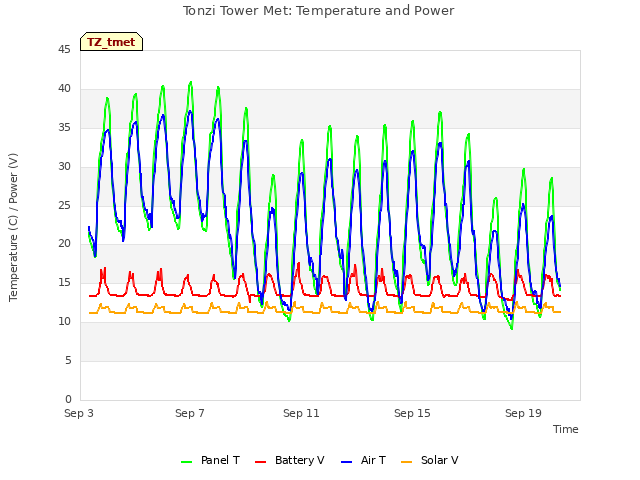

2. Panel and Batteries: 13.6 v; 0.0 amps; 4.5 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\T08_ 263 .flx D:\Data\TW08 .raw
	mean	std		mean	std
w	0.12	0.649	Ts	20.3	0.385
u	2.36	1.555	H2O	2.938	0.025
v	4.01	0.891	CO2	1.74	0.008

1. downloading data YES!
2. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
3. Check rain gage, make sure not clogged.
4. Check calibration cylinders;

CO₂ 500 psig; flow 20 psi.
N₂ 1100 psig; flow 20 psi.

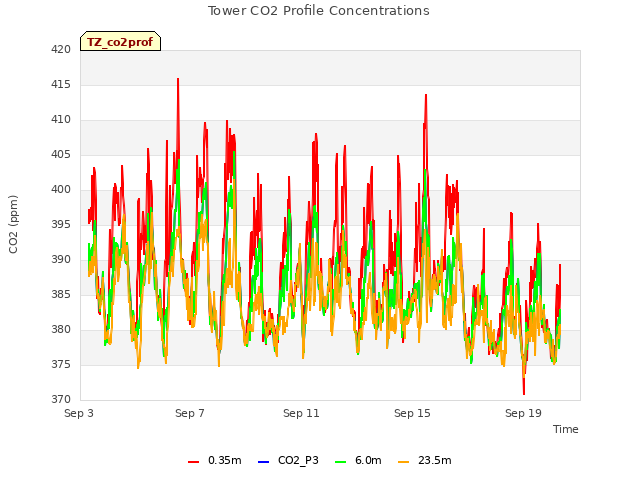

Manually calibrate Li-800. YES! Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ YES!

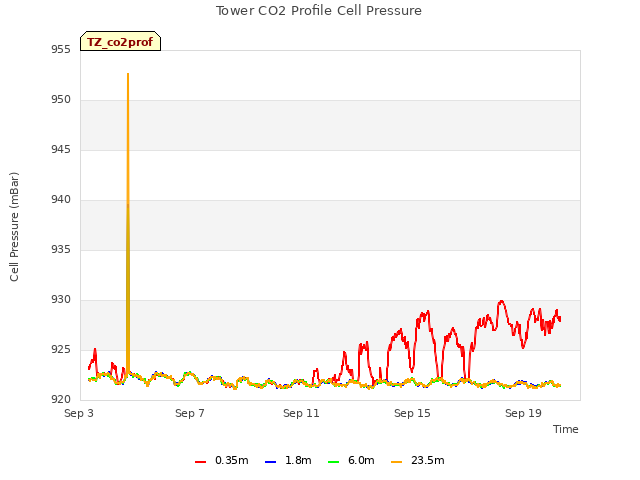

How to check the CO2 values‌ Click “Ports/Flags” button to see which ports or flags is setting high. Pressure should be less than ambient value. When Flag 8 is high, it may indicate that RRR’s battery is low.

1	2	3	4	zero	span
384	378	378	380	0.73	430
927	921	921	921	947	928
47	46	46	46	45	45
51	50	51	51	50	50

1. close gate and set up fence. YES!

Toniz_Floor Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.4 v; 19.3 amps; 2.0 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\F08_ 263 .flx D:\Data\FL08 .raw
	mean	std		mean	std
w	-0.02	0.30	Ts	22	1.2
u	-0.58	1.23	H2O	2.6	0.04
v	1.23	1.4	CO2	1.5	0.2

1. downloading data YES!
2. Check MD-9 system connections YES!

CR23X3 – floor-Met
CR23X5 – soil CO₂ profile
CR23X6 – tower-Met
CR10X2 – floor-Met
CR10X4 – sap-flow
CR10X7 – CO₂ profile
CR10X8 – wind profile

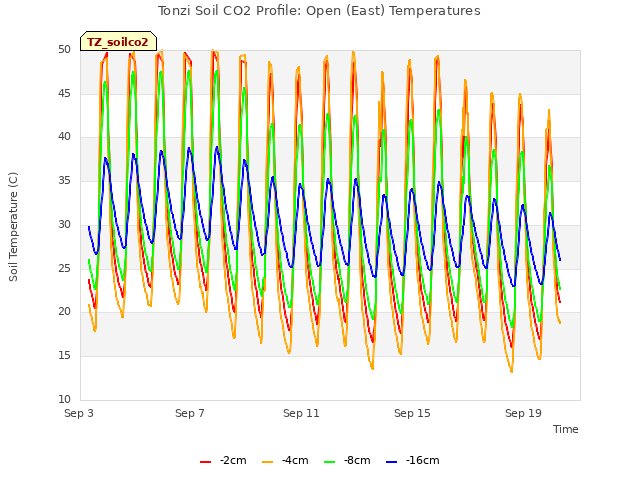

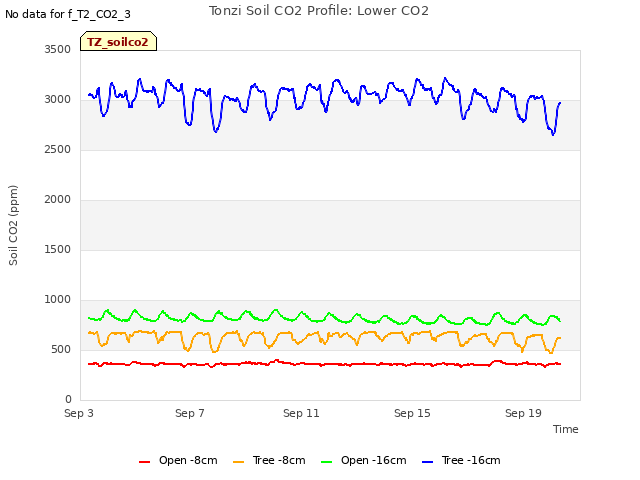

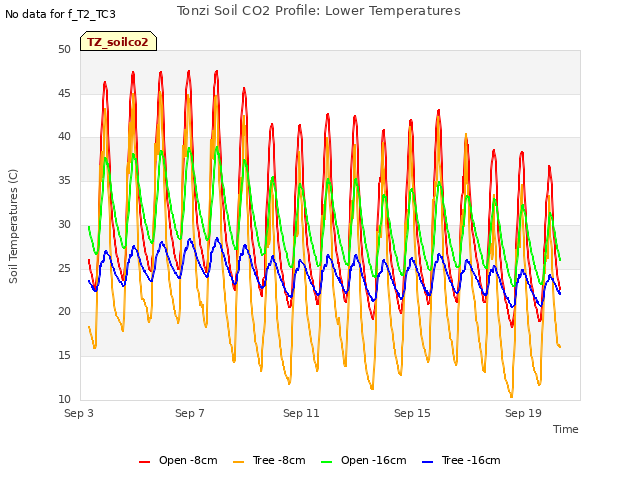

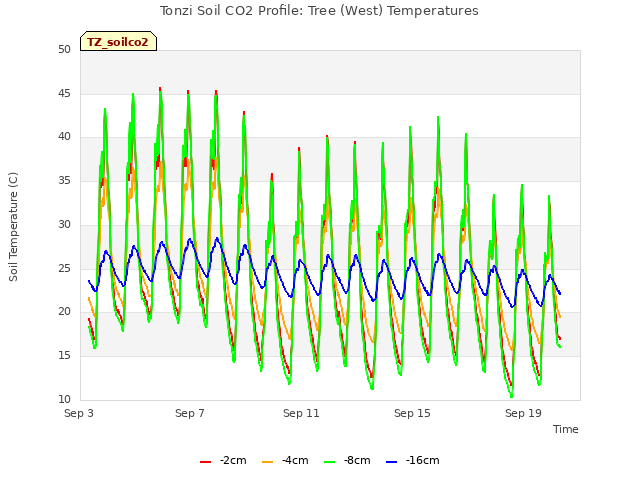

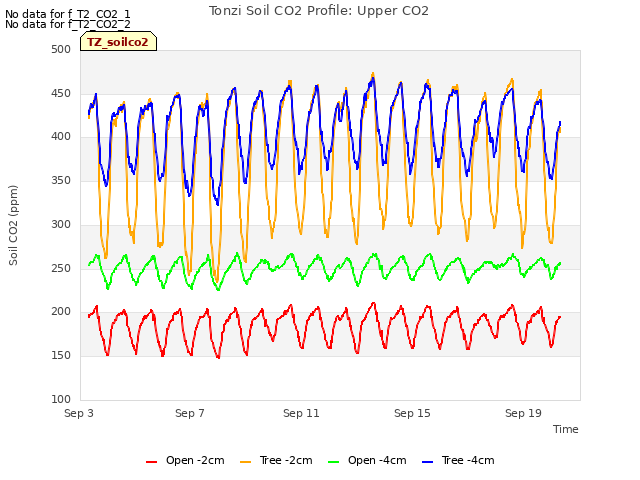

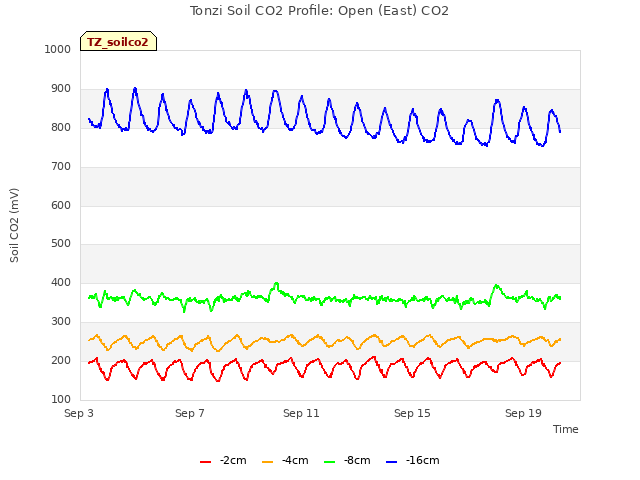

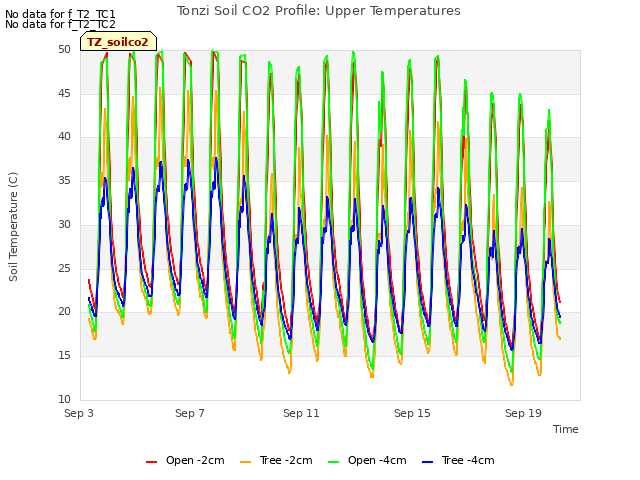

1. Soil CO₂ profile

Reading from datalogger YES!

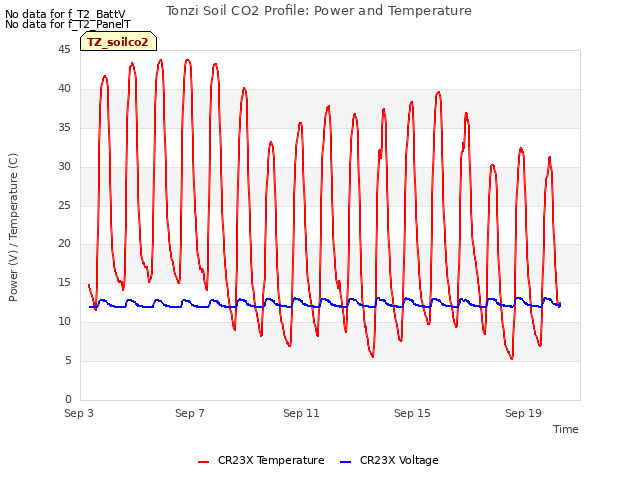

Panel temp		28.5
Battery voltage		12.9
CO2E_1	180	TCE_1	37	CO2W_1	302	TCW_1	25
CO2E_2	252	TCE_2	40	CO2W_2	371	TCW_2	25
CO2E_3	353	TCE_3	33	CO2W_3	493	TCW_3	26
CO2E_4	389	TCE_4	28	CO2W_4	1387	TCW_4	23

Reading from panels of analyzers

depth	Open	order	depth	Tree	order
2cm (1%)		1	2cm (1%)		1
4cm		2	4cm		4
8cm		3	8cm		2
16cm		4	16cm		3

1. Close gate and set up fence. YES!

Tonzi
Dendrometer
Date	Day	Tag #	Reading (cm)
9/19/2008	263	71	X
		72	8.2
		77	X
		78	X
		79	11.5
		245	3.5
		248	X
		250	8.9
		255	X
		‌252‌	X
		102	4.3

Notes: “X” means not working any more.

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
19-Sep-08	263
	SM
0-15	4.5	3.9	5.6	0.8	5.1	0.8	5.5	6.1	2.1
15-30	12.4	11.4	12.7	12.4	7.2	6.0	10.8	11.1	3.9
30-45	17.6	10.5	8.7	15.1	7.6	9.3	13.9	16.1	12.8
45-60	12.8	6.3	13.9	9.6	17.0	10.2	12.9	18.1	9.9
	A6D882B	A3D04E8	A6D72F5
0-15	7.4	6.1	2.3
15-30	6.3	6.3	11.4
30-45	14.8	16.1	12.6
45-60	15.9	9.5	2.0
vaira	57318a	7933dee
0-15	1.8	0.3
15-30	5.6	6.9
30-45	11.5	13.1
45-60	21.2	19.5
