When: Date: 8/6/2008 , Day: 219 , Watch Time: 9:30am .
Where: Tonzi/Vaira Ranch
Who: Siyan, DDB
Weather: clear, not too hot, see storm cloud far away, nice breeze
Phenology: dry yellow grasses, oak leaves start turning into yellow (Mr. Tonzi thinks so. He also remembered that 1975 was a very dry year. Grass needs 4in continuous rainfall to develop roots, around Oct. 15th)
Summary

1. DDB connected the second solar panel to the regular of the first one at Vaira.
2. DDB moved the thermalcouple sensor from sonic area to Li-7500 head.
3. DDB double checked the grounding of met datalogger at Vaira. Looks OK.
4. CO2 profile: DDB fixed the pump and manually calibrated Li-800 successfully. The communicating problem was solved by checking and reconnecting two ends of cable connections.
5. Tram system’s battery was dead, voltage 3.0. How to fix it‌ First, disconnect datalogger’s power; Second, set back to the charging station or swap a fully charged small battery; Third, put the whole set at the end opposite to the charging station. Reconnect datalogger’s power and see whether RRR works OK.
6. Ground water measurement: near floor site=28.7 feet; south tower = 33.6 feet; by road = 37.55 feet.
7. checked and downloaded data at Tower, Floor, and Vaira. EC systems worked well.
8. read dendrometers.

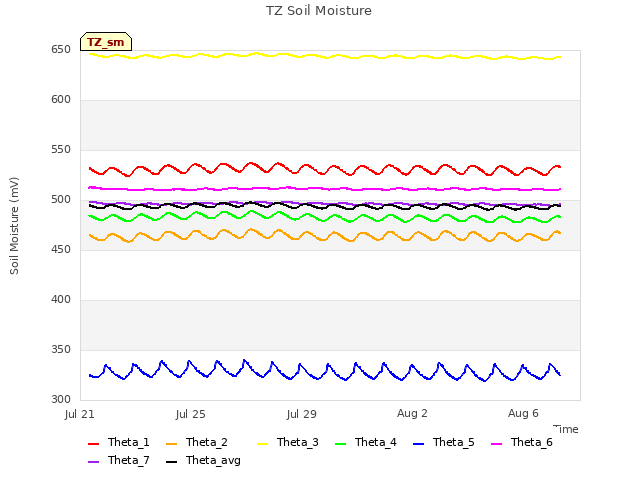

9. measured soil moisture probes.

Vaira_Grass Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.5 v; 12.2 amps; 2.2 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\V08_219 .flx D:\Data\VR08 .raw
	mean	std		mean	std
w	0.29	0.371	Ts	26.116	1.547
u	-1.08	1.035	H2O	2.42	0.034
v	1.56	0.789	CO2	1.91	0.042
			Tc	2.431	0.167

1. downloading data YES!
2. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
3. Check MD-9 system connections YES!
4. Check CR23X with two multiplexers

Sys_vot = 13.8

1. Check levels of Radiation sensors, clear up surfaces. YES!

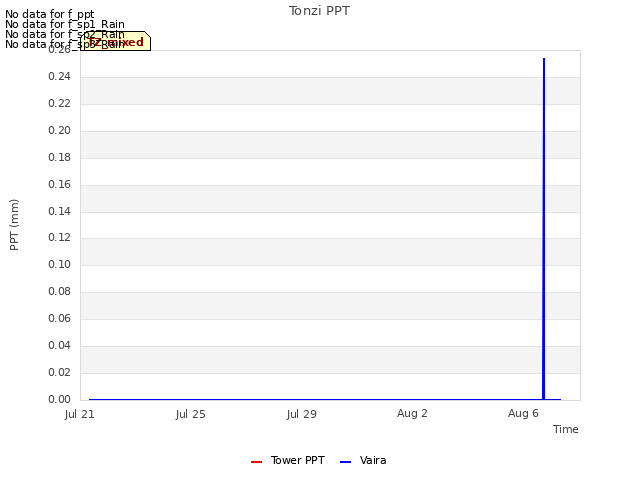

2. Check rain gage, make sure not clogged. YES!
3. Closed gate and set up fence. YES!

Tonzi_Tower Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: missed v; amps; amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\T08_ 219 .flx D:\Data\TW08 .raw
	mean	std		mean	std
w	0.74	0.767	Ts	27.73	0.72
u	0.50	0.891	H2O	2.4	0.085
v	1.38	1.107	CO2	1.4	0.016

1. downloading data YES!

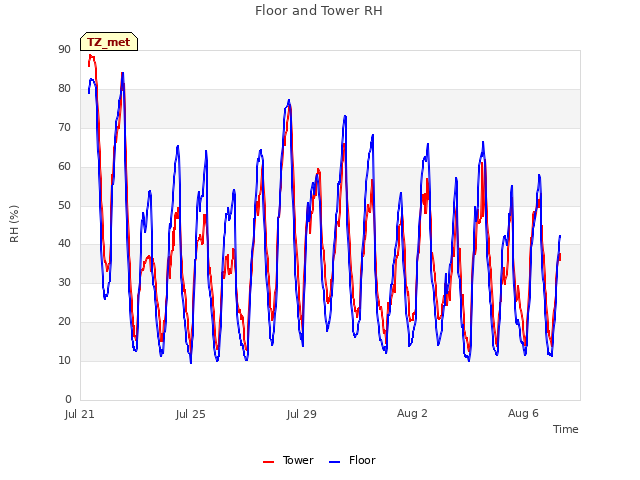

2. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
3. Check calibration cylinders;

CO₂ 1400 psig; flow 20 psi.
N₂ 1400 psig; flow 20 psi.
Manually calibrate Li-800. Following Ted’s instruction: YES!
H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt

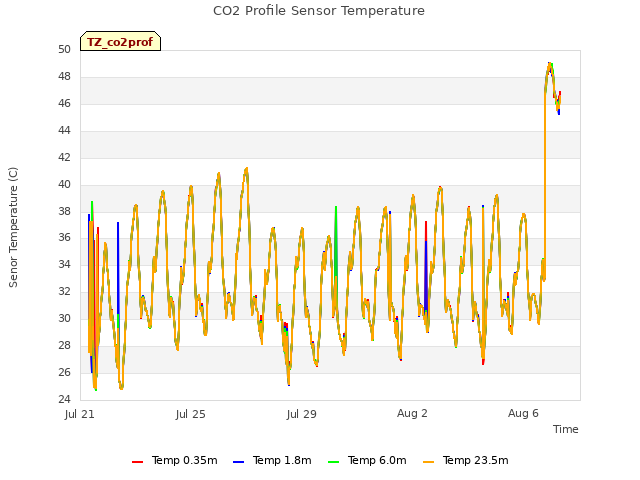

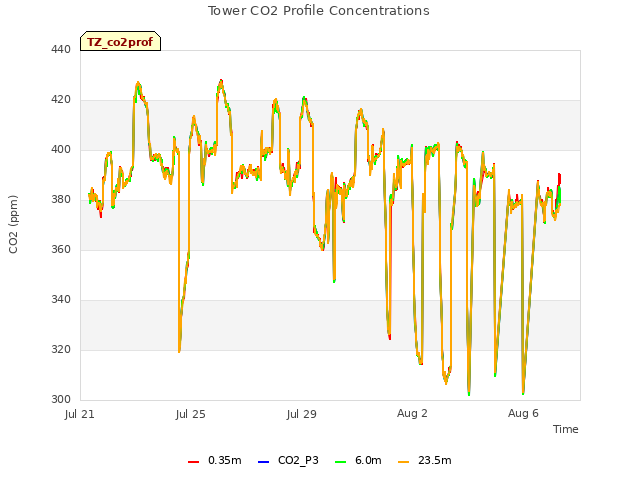

Is the pump running‌ CO2 profile: DDB fixed the pump and manually calibrated Li-800 successfully. The communicating problem was solved by checking and reconnecting two ends of cable connections.

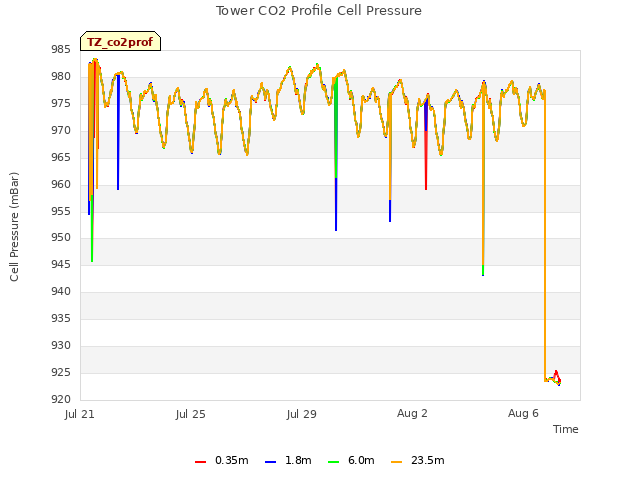

How to check the CO2 values‌ Click “Ports/Flags” button to see which ports or flags is setting high. Pressure should be less than ambient value. When Flag 8 is high, it may indicate that RRR’s battery is low.
Before pump fixed:

1	2	3	4	zero	span
371	372	371	370	318	265
977	977	977	977	988	978
33	33	33	33	33	31
51	51	51	51	50	50

1. close gate and set up fence. YES!

Toniz_Floor Site

1. Fence and gate power: v.
2. Panel and Batteries: v; amps; amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\F08_ 219 .flx D:\Data\FL08 .raw
	mean	std		mean	std
w	-0.05	0.297	Ts	30.4	1.576
u	-1.30	0.379	H2O	1.95	0.095
v	0.208	0.832	CO2	1.601	0.017

1. downloading data YES!
2. Check MD-9 system connections YES!

CR23X3 – floor-Met
CR23X5 – soil CO₂ profile
CR23X6 – tower-Met
CR10X2 – floor-Met
CR10X4 – sap-flow
CR10X7 – CO₂ profile

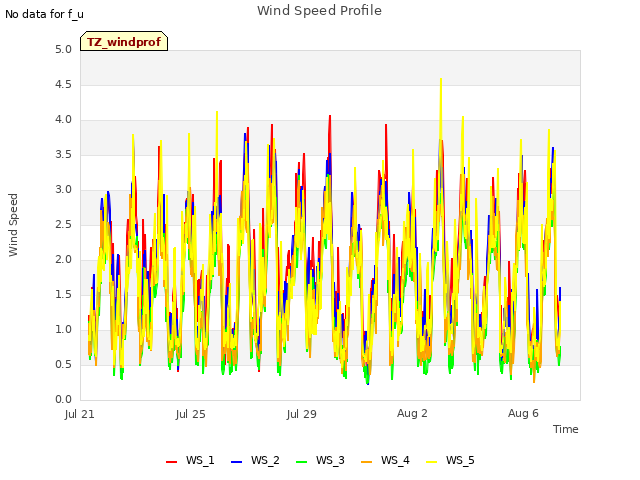

CR10X8 – wind profile

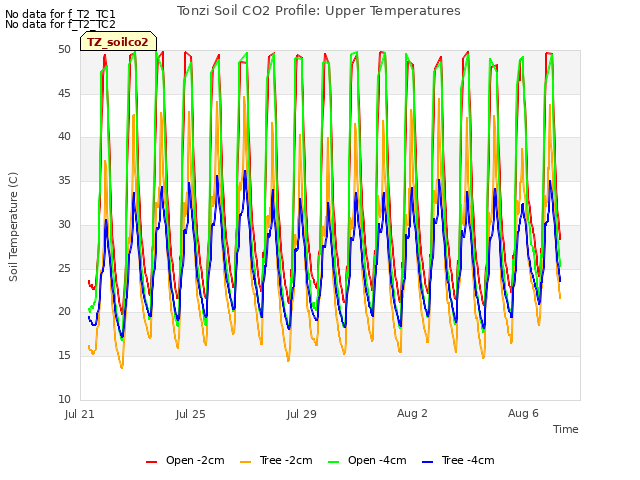

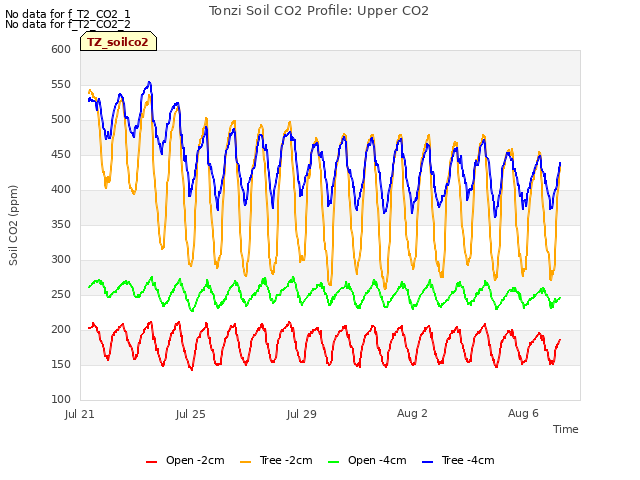

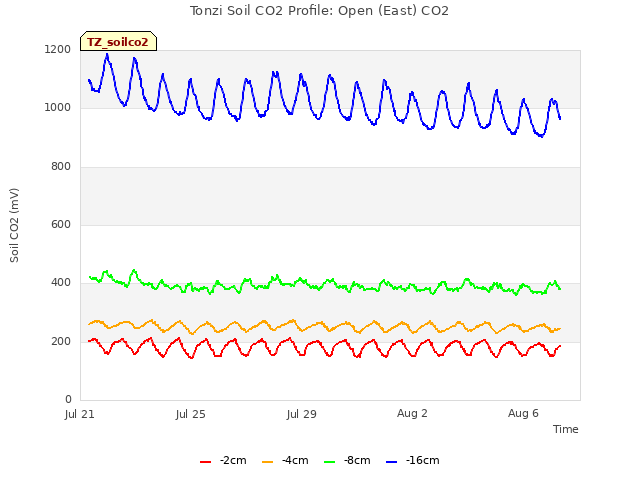

1. Soil CO₂ profile

Reading from datalogger

Panel temp		39.5
Battery voltage		12.9
CO2E_1	172	TCE_1	50	CO2W_1	317	TCW_1	32
CO2E_2	244	TCE_2	59	CO2W_2	409	TCW_2	30
CO2E_3	376	TCE_3	43	CO2W_3	653	TCW_3	33
CO2E_4	473	TCE_4	35	CO2W_4	1584	TCW_4	25

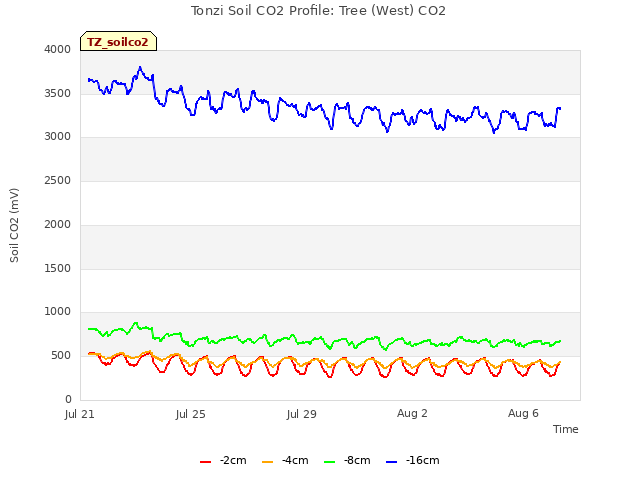

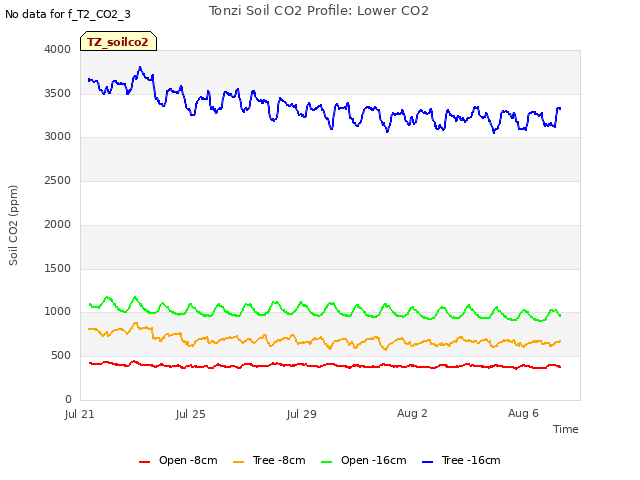

Reading from panels of analyzers

depth	Open	order	depth	Tree	order
2cm (1%)	350	1	2cm (1%)	640	1
4cm	510	2	4cm	810	4
8cm	780	3	8cm	1290	2
16cm	960	4	16cm	3170	3

1. Close gate and set up fence. YES!

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
6-Aug-08	219
	SM
0-15	9.9	13.4	20.7	9.7	50.1	14.8	16.0	14.0	11.5
15-30	14.0	12.1	7.9	13.0	50.1	7.9	14.0	12.8	4.8
30-45	26.6	19.9	18.2	24.3	50.1	18.2	22.9	25.3	21.7
45-60	20.5	13.4	21.9	18.8	50.1	18.0	22.3	28.4	17.2
	A6D882B	A3D04E8	A6D72F5
0-15	17.0	14.6	10.9
15-30	7.5	7.5	11.5
30-45	25.3	26.2	21.1
45-60	26.0	20.7	9.9
vaira	57318a	7933dee
0-15	7.4	9.2
15-30	5.8	8.6
30-45	19.8	21.4
45-60	28.3	26.1

Tonzi
Dendrometer
Date	Day	Tag #	Reading (cm)
8/6/2008	219	71	X
		72	8.9
		77	X
		78	X
		79	12.1
		245	3.8
		248	X
		250	9.1
		255	X
		‌252‌	X
		102	4.5

Notes: “X” means not working any more.
