Field Notes

<--2012-07-26 01:00:00 | 2012-08-09 13:15:00-->
Other sites visited today: Sherman Island | Mayberry | Twitchell Rice | West Pond
Phenocam link: Searching...

DWR Corn: 2012-08-02 14:00:00 (DOY 215)
Author: Joe Verfaillie
Others: Sara, Carina, Laurie

Summary: Collected data, swapped 7500, moved tipping bucket, corn is flowering, standard fieldwork.

DWR Corn
2012-08-02

I arrived about 2pm PDT with Sara, Carina, and Laurie. It was Clear, Sunny and hot with a very light breeze from the west. The corn has grown and another couple feet since I was there two weeks ago. It is beginning to flower and produce tassels.

I moved the tipping bucket from its temporary location below the eddy sensors to the top of the southwest corner of the scaffolding.

I swapped the LI7500 and moved the box mount to below the eddy sensors. Sn 0065 came off and sn 0042 went on.

I collected all the data. The card on the flux CR1000 did not format properly and reported existing files. With the File Control tool I was able to reformat the card and it finally initialized.

I changed the settings on the autocam to keep it from automatically running the script. I still need to changes its timing.

Sara, Carina and Laurie did the standard fieldwork.

2 photos found

Sara taking biomass samples a corn field edge
Sara taking biomass samples a corn field edge

Eddy tower above corn field
Eddy tower above corn field

Graphs display:
3 sets found

Can't check DC_mixed
3 DC_mixed graphs found

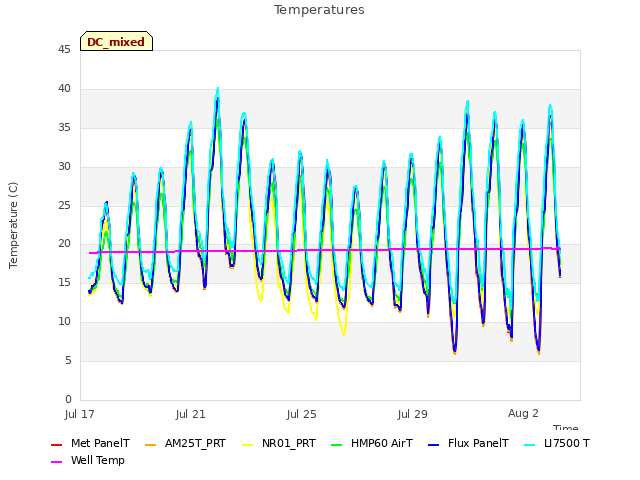

Explore the graph:Temperatures in a new window

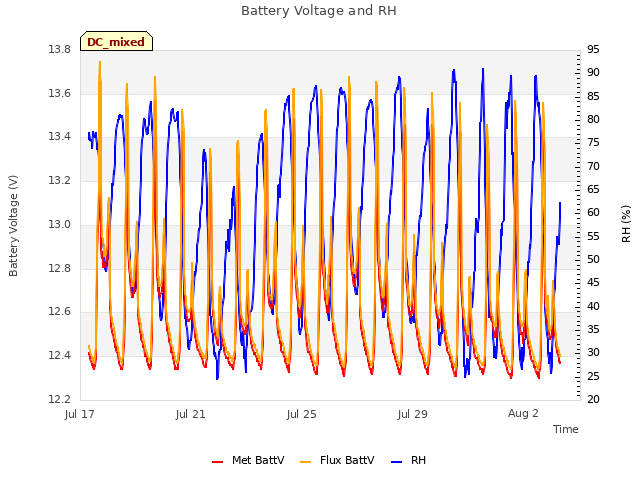

Explore the graph:Battery Voltage and RH in a new window

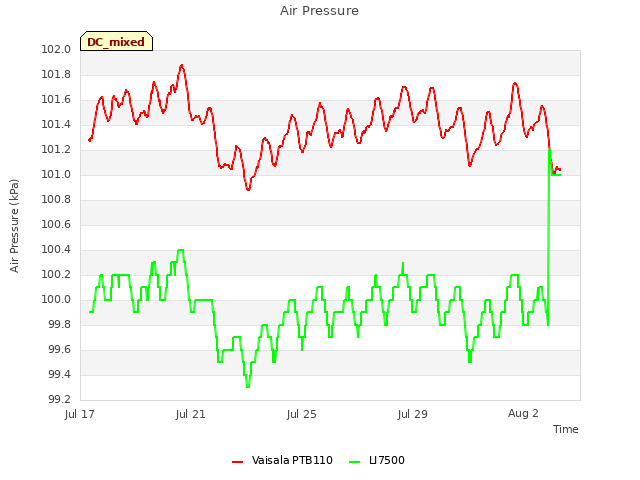

Explore the graph:Air Pressure in a new window

7 DC_met graphs found

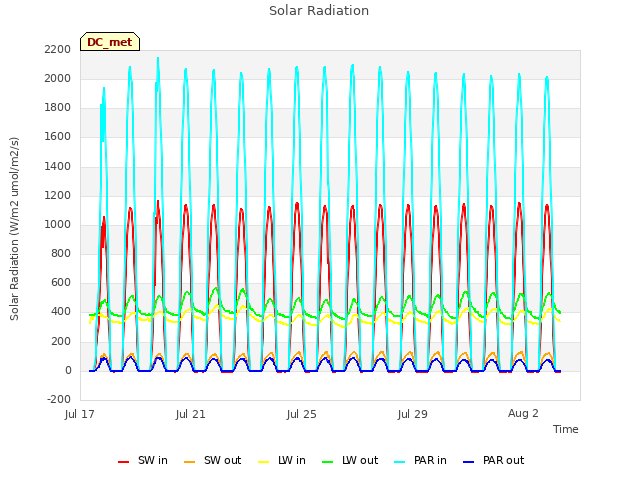

Explore the graph:Solar Radiation in a new window

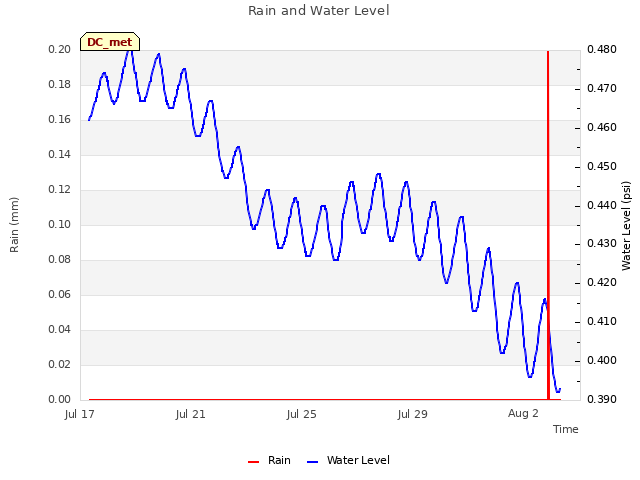

Explore the graph:Rain and Water Level in a new window

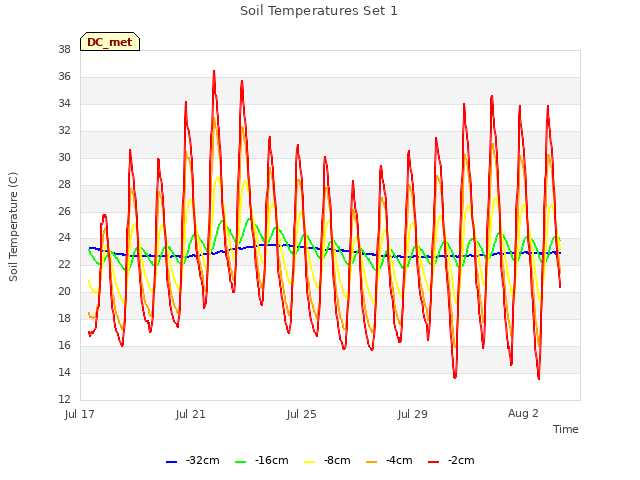

Explore the graph:Soil Temperatures Set 1 in a new window

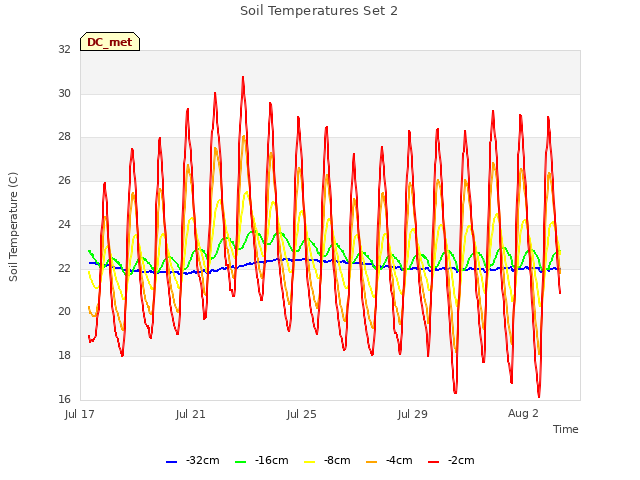

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

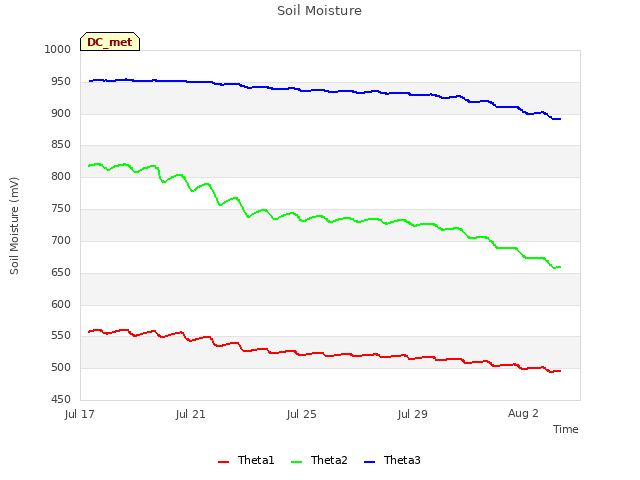

Explore the graph:Soil Moisture in a new window

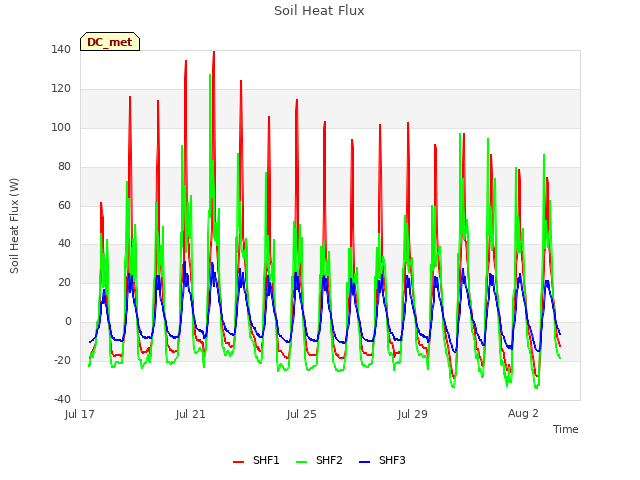

Explore the graph:Soil Heat Flux in a new window

3 DC_flux graphs found

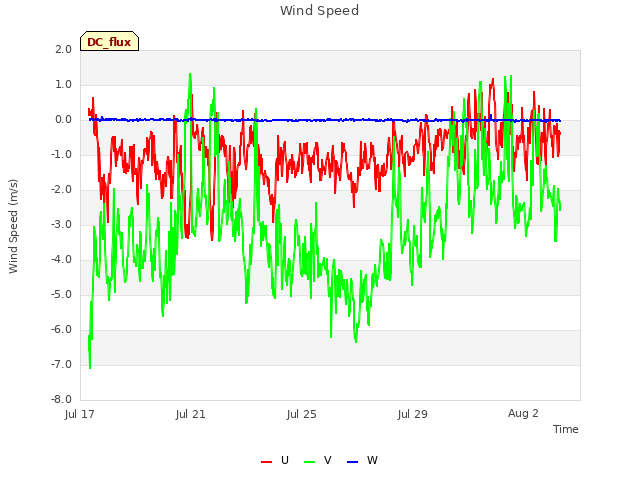

Explore the graph:Wind Speed in a new window

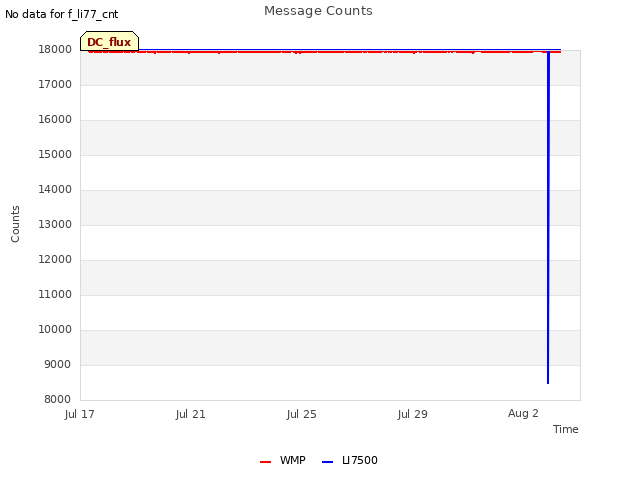

Explore the graph:Message Counts in a new window

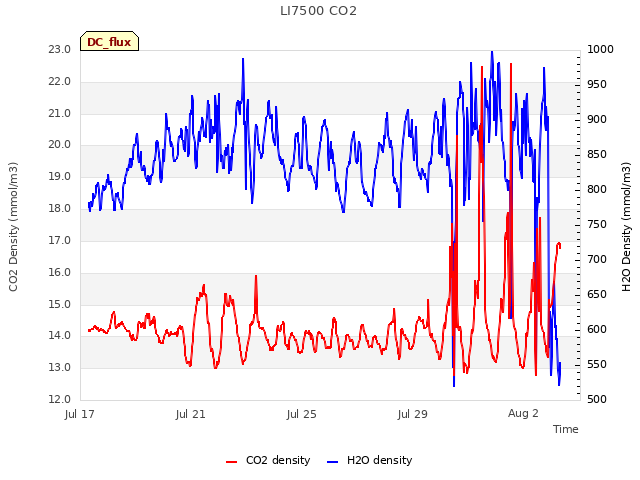

Explore the graph:LI7500 CO2 in a new window
