Twitchell Rice: 2012-06-29 13:00:00 (DOY 181)
Author: Joe Verfaillie
Others: Sara, Carina
Summary: Improved autocam mounting, checked the system - no problems found.
| Twitchell

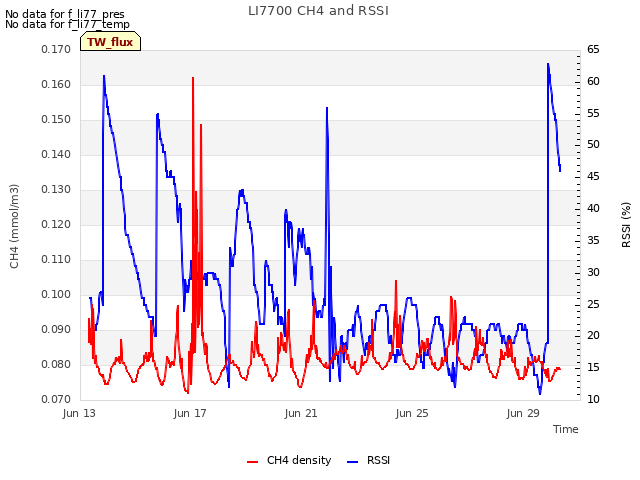

2012-06-29 I arrived about 1pm with Sara and Carina. It was clear, sunny and warm with a wind out of the west to keep it comfortable. The water level in the field might be a little lower. The rice doesn’t look so good with big bare spots. The area under our radiometers looks kind of bare. I moved the autocam to the other side of the 4x4 post and added a folding boom that allows the camera to be lowered for service. I need to add clips on the boom to keep the power wire out of the way. The camera view may have changed a little. The data systems seemed okay. The LI7700 RSSI was 29. After cleaning it was 65. Sara refilled the wash reservoir. |
3 photos found
New autocam mounting
Sara in the field
New camera location
6 sets found

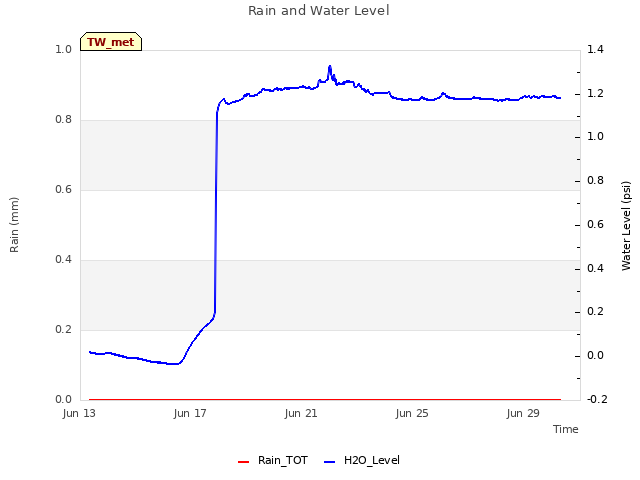

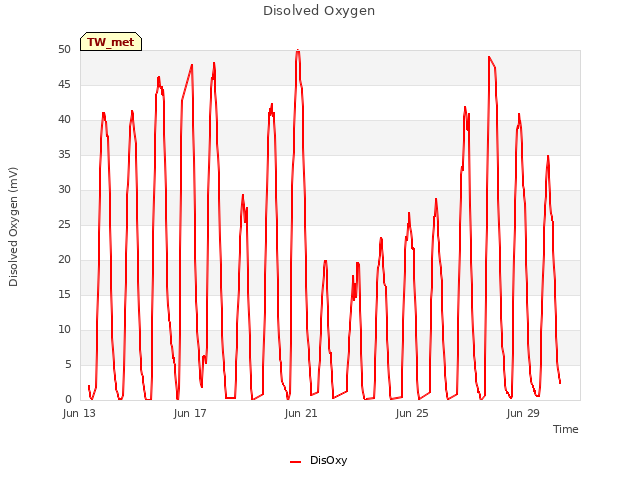

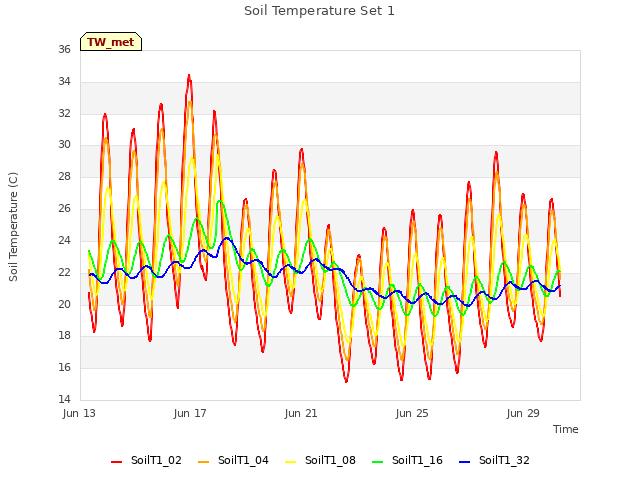

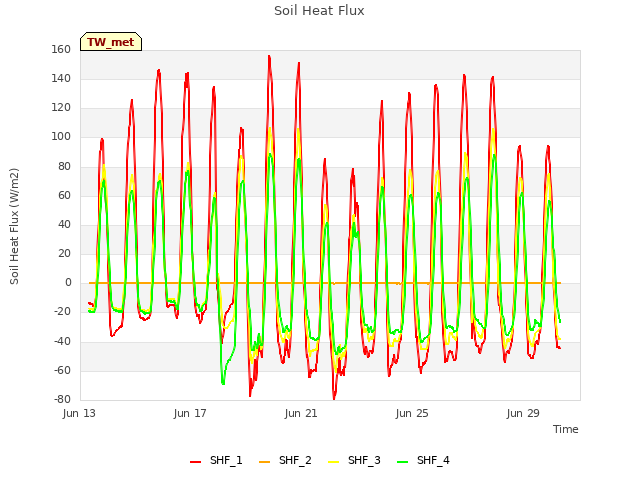

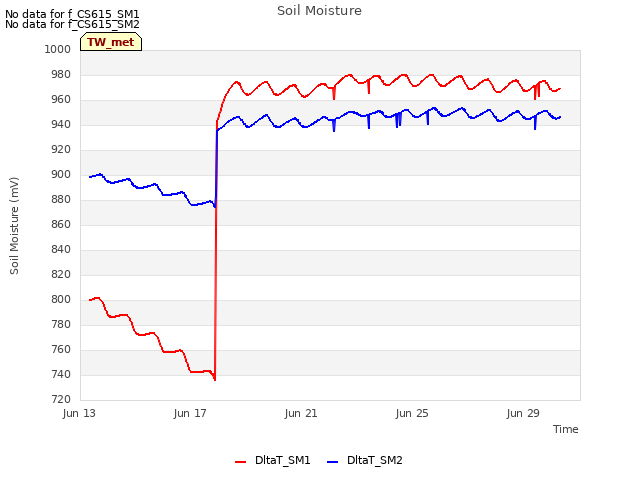

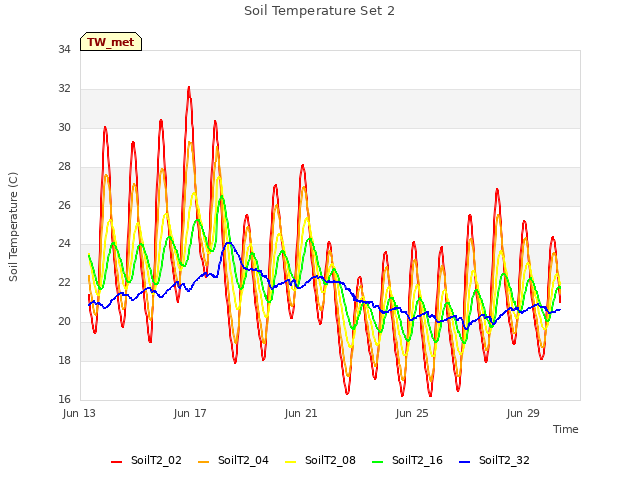

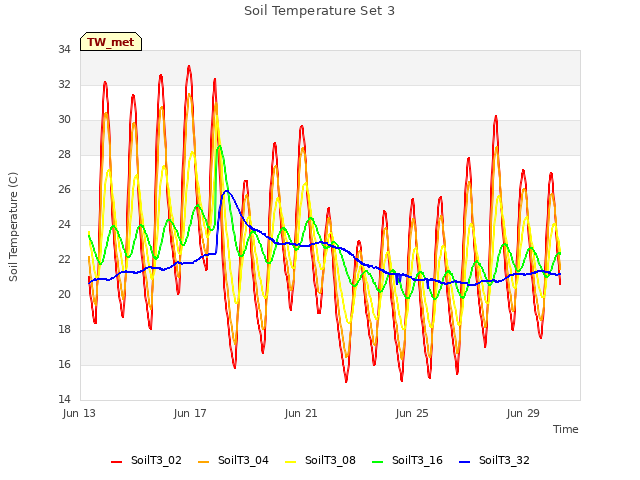

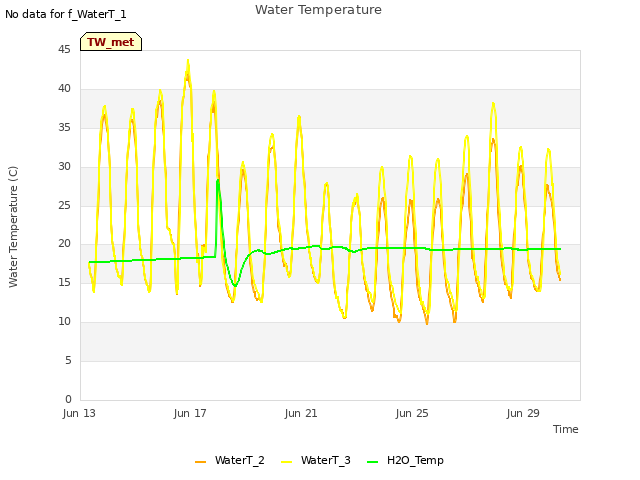

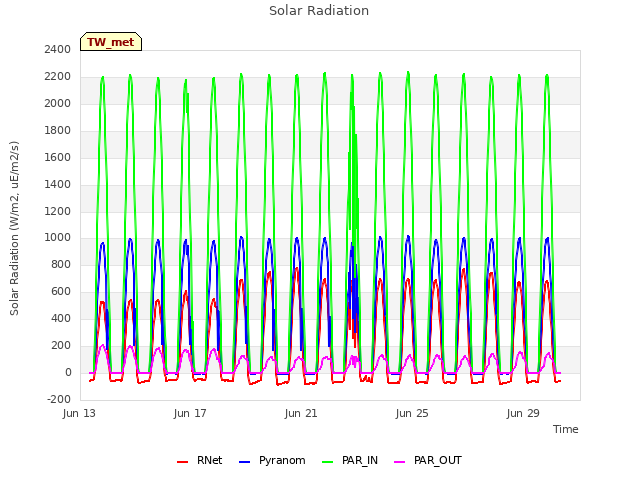

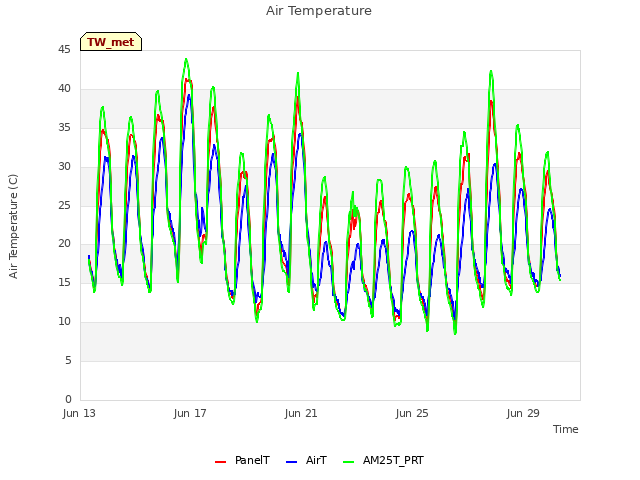

12 TW_met graphs found

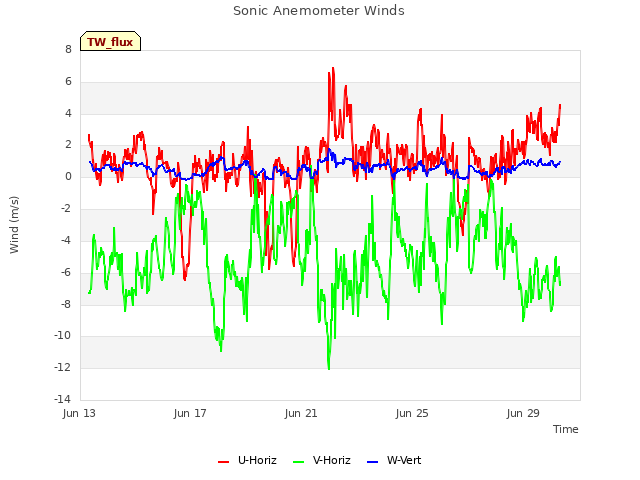

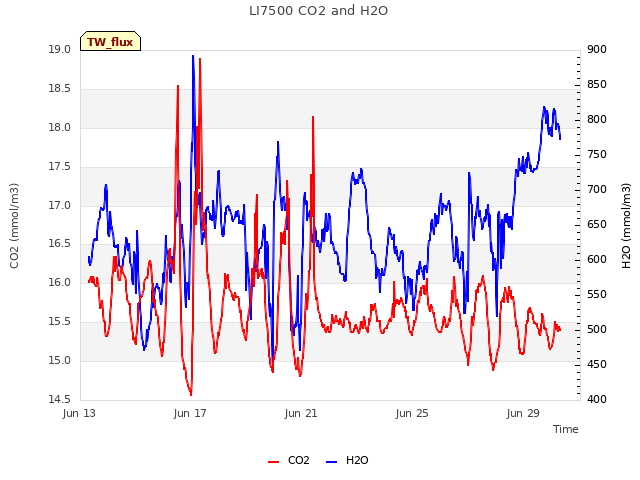

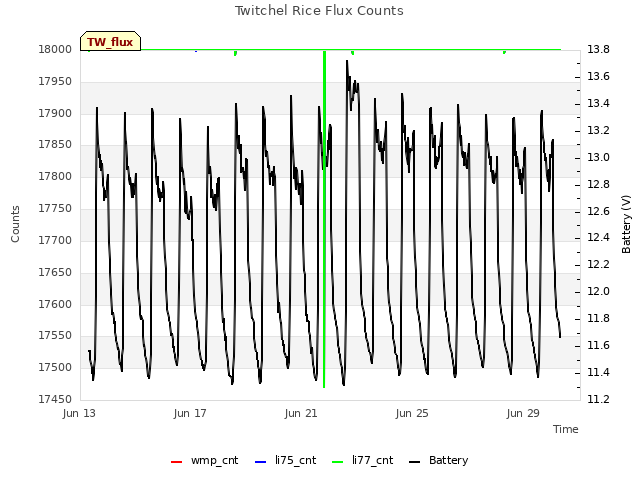

5 TW_flux graphs found
Can't check TWSI_mixed
Can't check SIMBTWEE_met

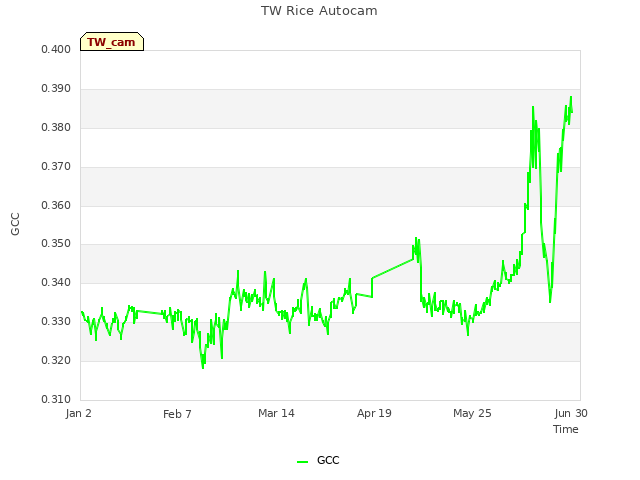

1 TW_cam graphs found
Can't check TATWBABCSB_cam
