Sherman Island: 2012-05-31 14:00:00 (DOY 152)
Author: Joe Verfaillie
Others: Sara, Carina

Summary: Standard field work, removed field wells, added well inside cow fence.

Sherman
2012-05-31

I arrived about 2pm PDT with Sara and Carina. It was clear, hot and sunny with a little bit of a breeze beginning to pick up. Heavy equipment is still dumping rock and gravel in the field just south of the road. The pepper weed is a sea of flowers but the pollen seems less dense in the air. The nasty “hell weeds” are coming up.

I pulled out the two wells in the field and a fence post. The well pipes did not have holes in them, so I drilled two rows of holes on opposite sides. I put one of the wells back in the ground inside the cow fence on the north side of the enclosure new the Moisture Point sensor there. The top 20cm of ground was very hard and dry. Below that it was soft and there was water below about a meter.

The LGR read:
14:19PDT, 30.37C, 148.45Torr, 15.106usec, 10Hz, 1.893ppm

The data loggers looked okay. SHF plate 1 had some bad data in the last collection, but I couldn’t see anything wrong near the multiplexor and the pepper weed was too think to trace the wire very far.

The fan on the HMP45 was not running.

Sara and Carina did LAI, spectra and Moisture Point.

3 photos found

view of field site
view of field site

view of field site
view of field site

Field work - Sara and Carina
Field work - Sara and Carina

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

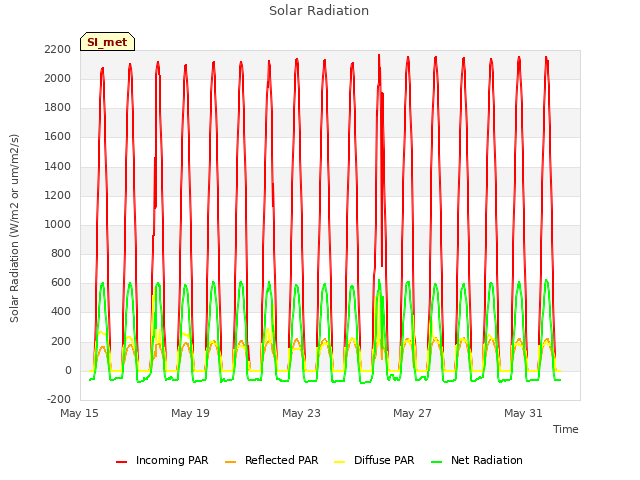

Solar Radiation

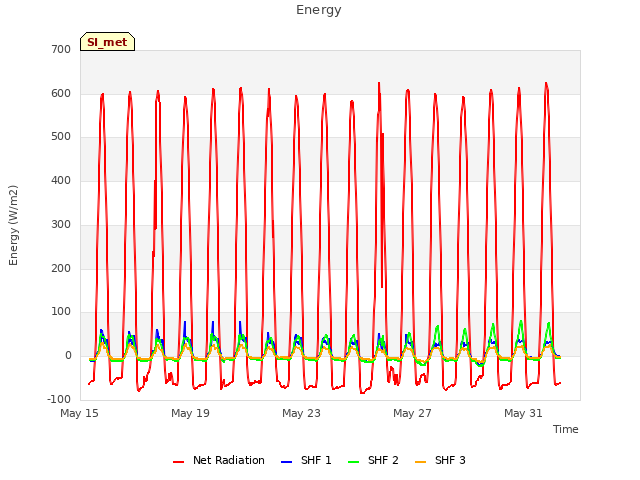

Energy

Soil Temperatures Set 1

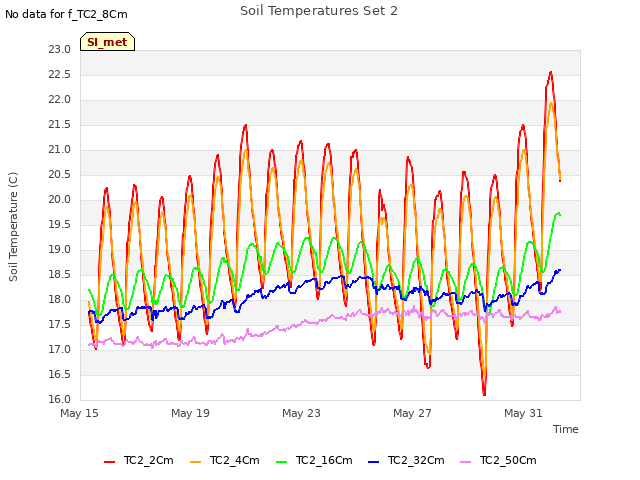

Soil Temperatures Set 2

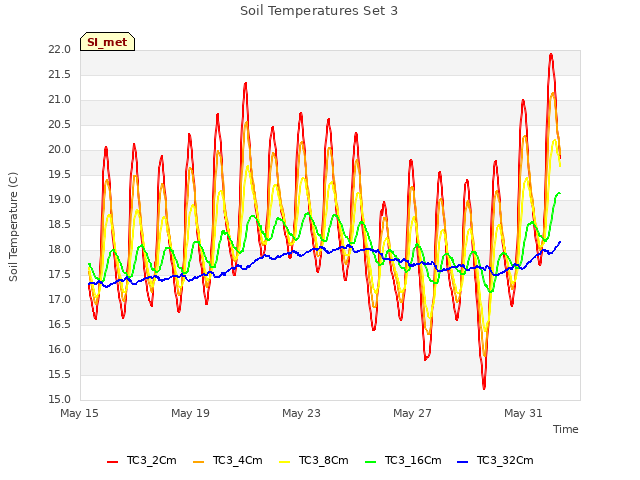

Soil Temperatures Set 3

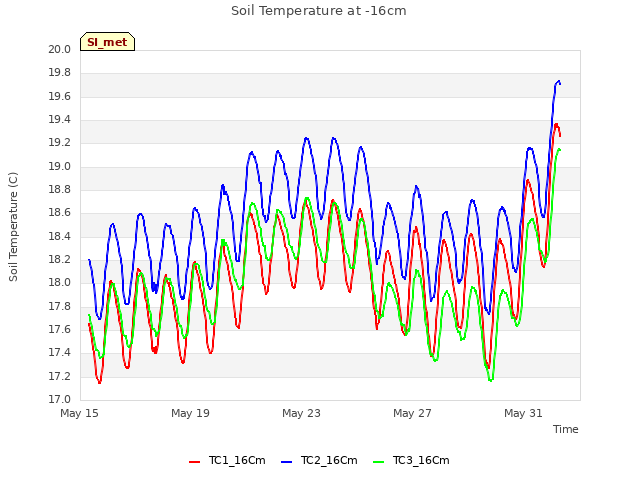

Soil Temperature at -16cm

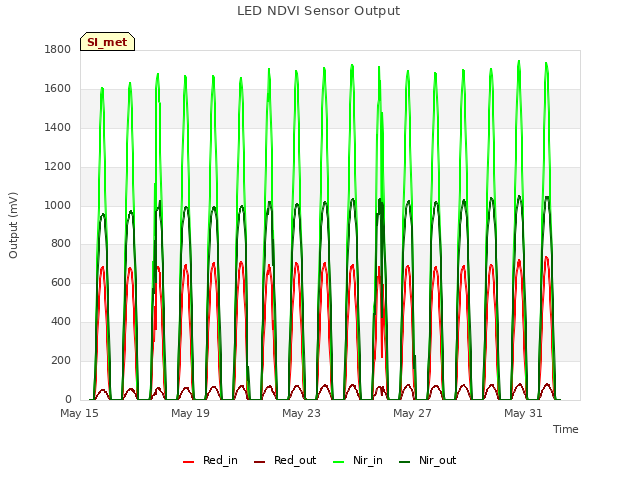

LED NDVI Sensor Output

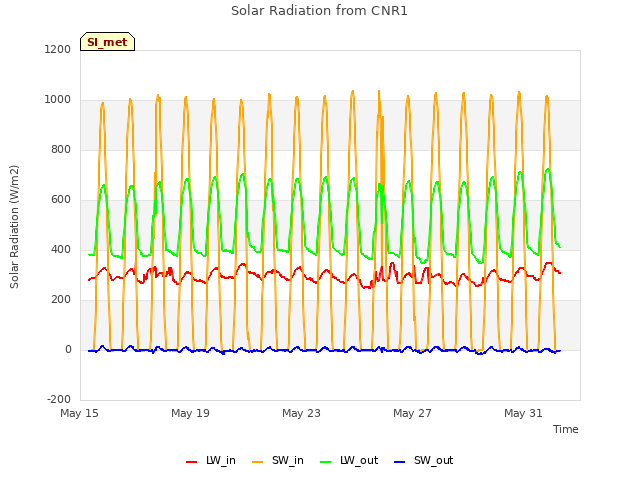

Solar Radiation from CNR1

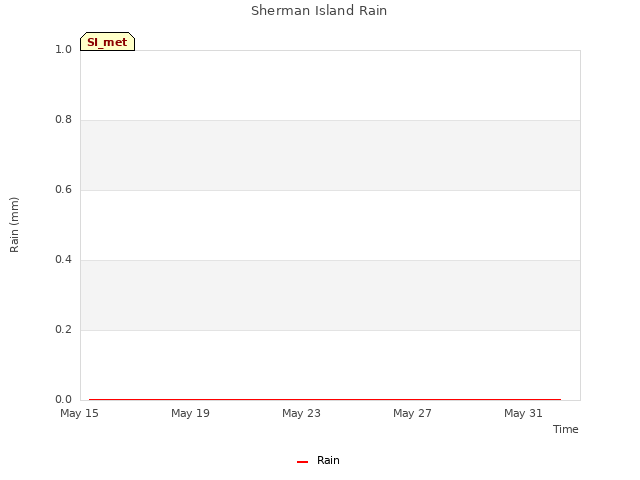

Sherman Island Rain

Sherman Well Level

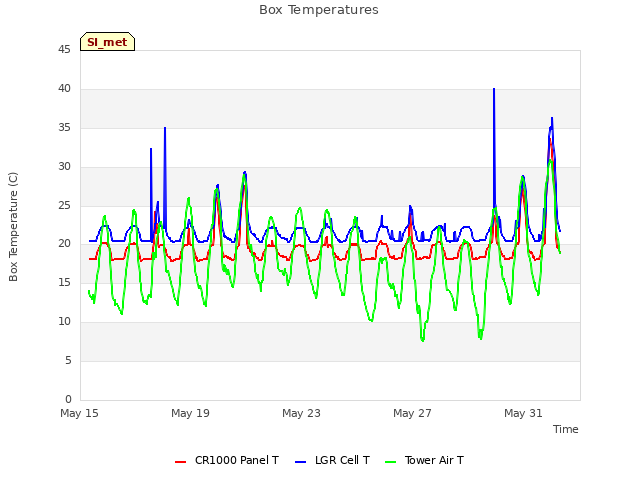

Box Temperatures

Can't check SI_mixed
2 SI_mixed graphs found

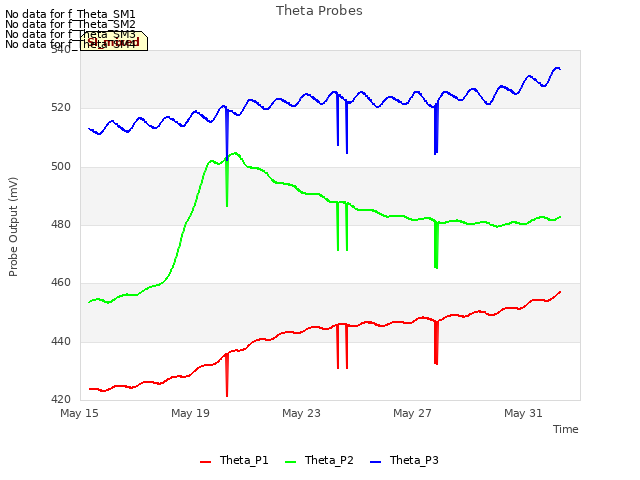

Theta Probes

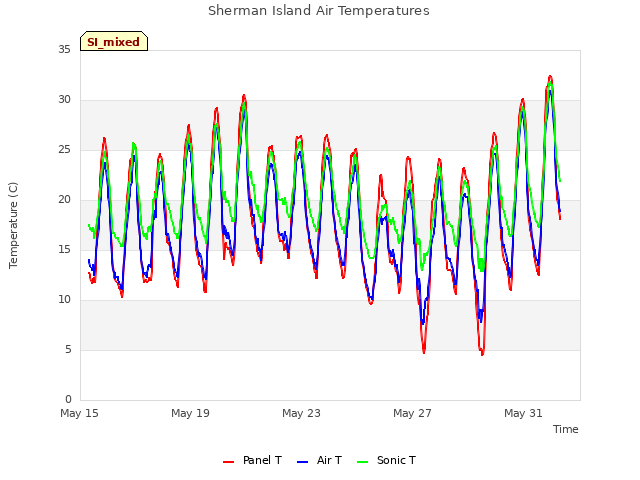

Sherman Island Air Temperatures

4 SI_flx graphs found

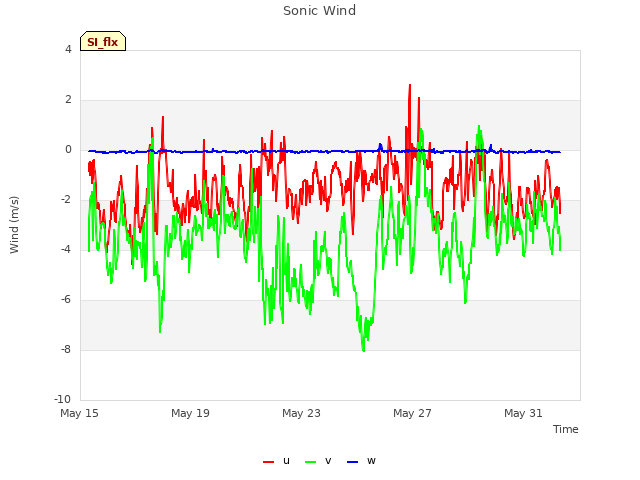

Sonic Wind

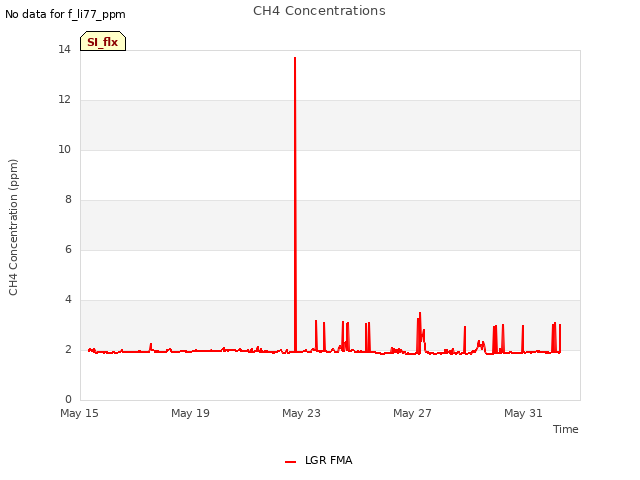

CH4 Concentrations

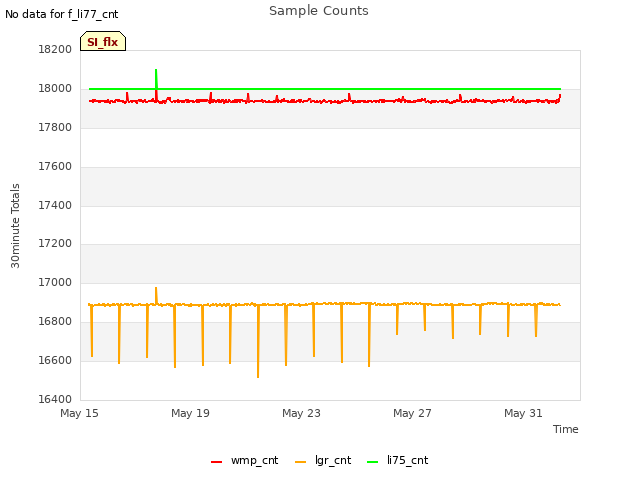

Sample Counts

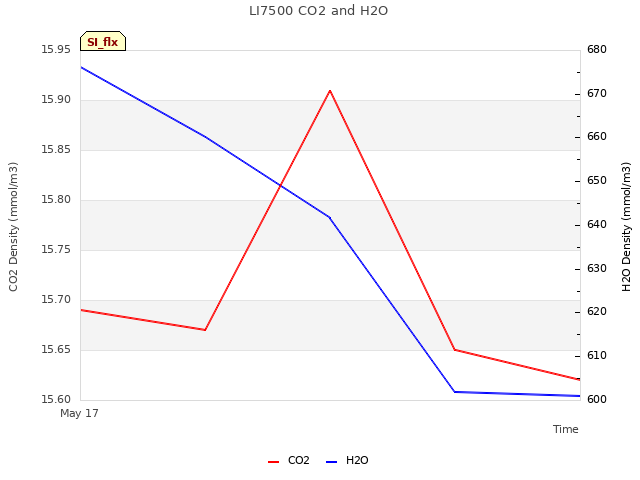

LI7500 CO2 and H2O

3 SI_soilco2 graphs found

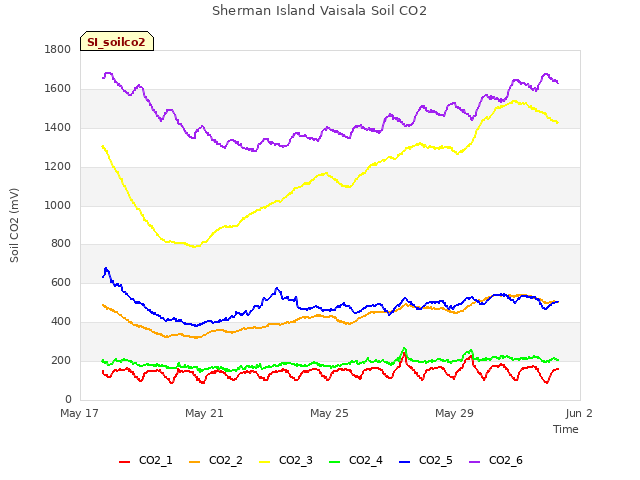

Sherman Island Vaisala Soil CO2

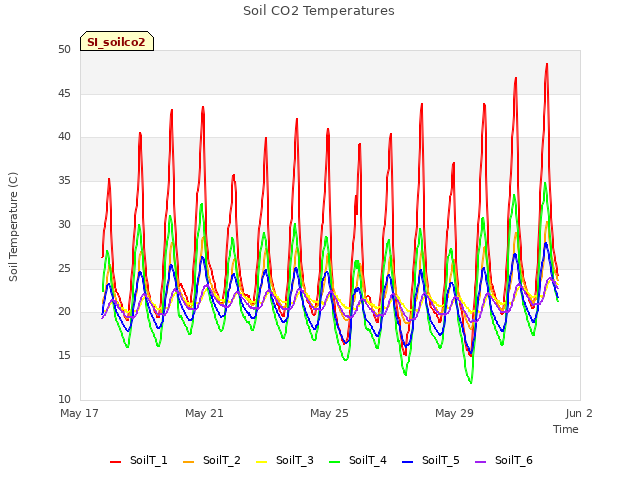

Soil CO2 Temperatures

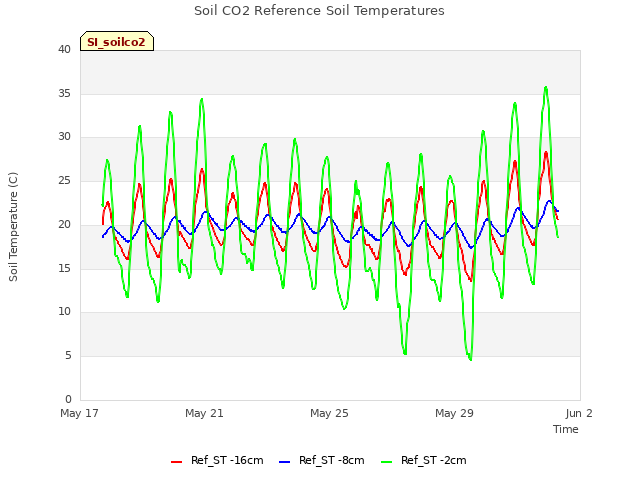

Soil CO2 Reference Soil Temperatures

Can't check TWSI_mixed
Can't check SIMBTWEE_met
