West Pond: 2012-05-31 12:30:00 (DOY 152)
Author: Joe Verfaillie
Others: Sara, Carina

Summary: A quick check, met clock one hour ahead - fixed.

West Pond
2012-05-31

I arrived about 12:30PDT with Sara and Carina. It was clear, hot and sunny with little to no breeze. The water level was low, but there seemed to be some water running from the inlet in the south west corner of the pond. This inlet is where there is a broken pipe. There seems to be a temporary fix in place.

We checked to make sure everything was running. The met CR1000 was one hour ahead. When the data logger read 12:22:53 I reset in the 11:23:00.

The LI7700 RSSI was 44. After cleaning it was 68. We topped off the wash reservoir.

2 photos found

Datalogger enclosure, 7550 box, and 7700 wash reservoir hanging on the scaffolding
Datalogger enclosure, 7550 box, and 7700 wash reservoir hanging on the scaffolding

Inside of datalogger enclosure
Inside of datalogger enclosure

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

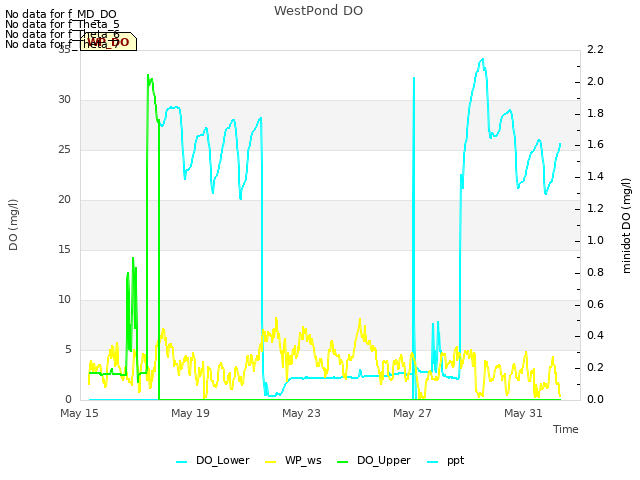

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

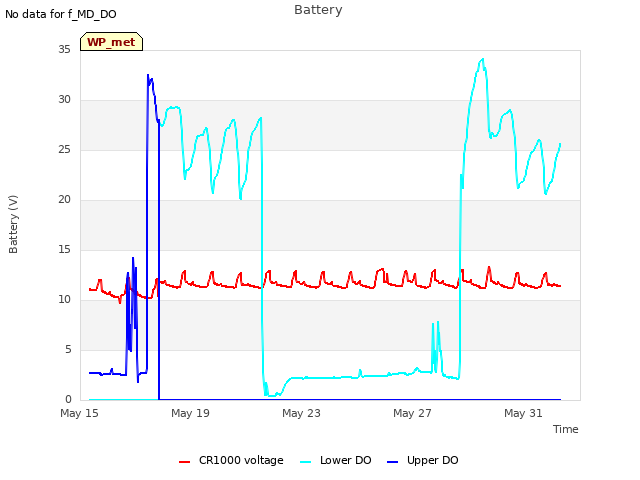

Explore the graph:Battery in a new window

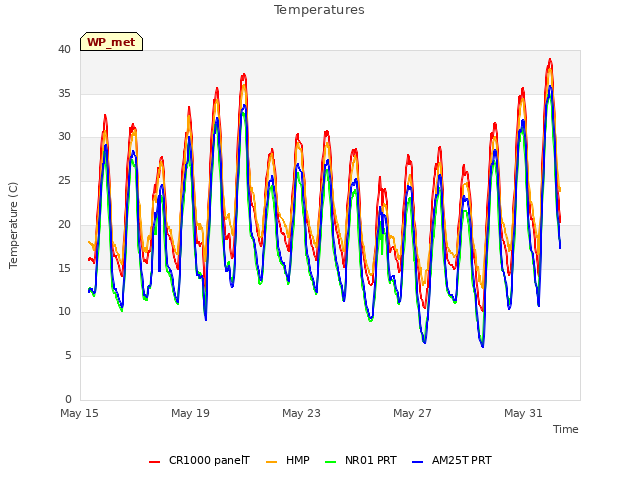

Explore the graph:Temperatures in a new window

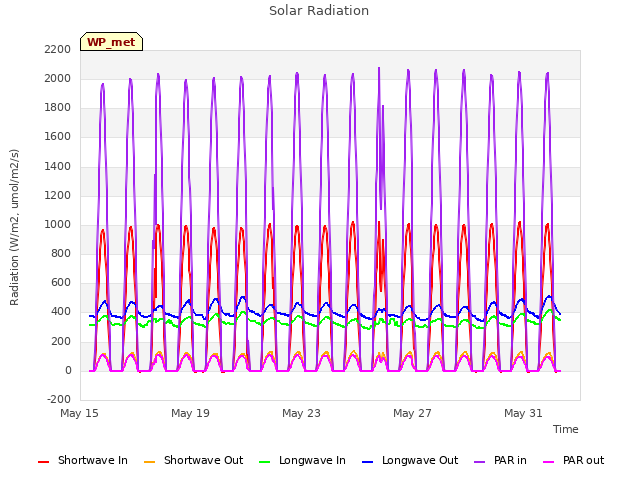

Explore the graph:Solar Radiation in a new window

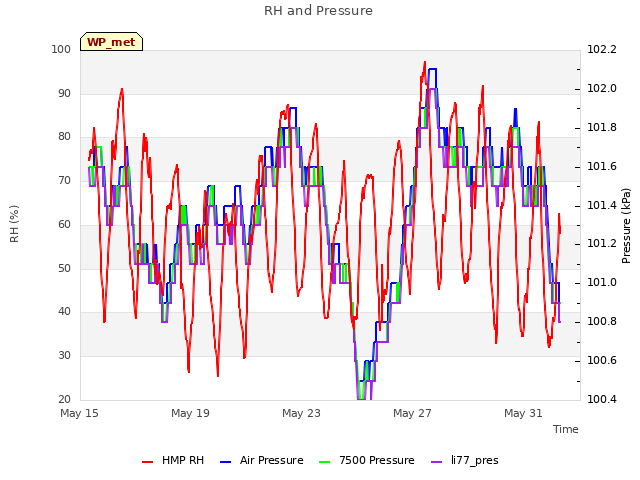

Explore the graph:RH and Pressure in a new window

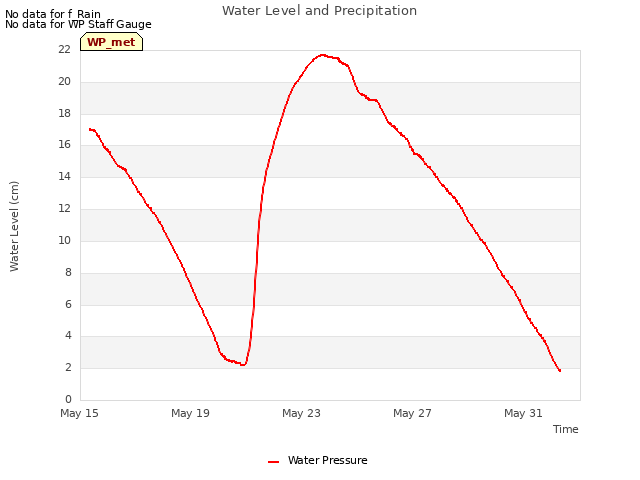

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

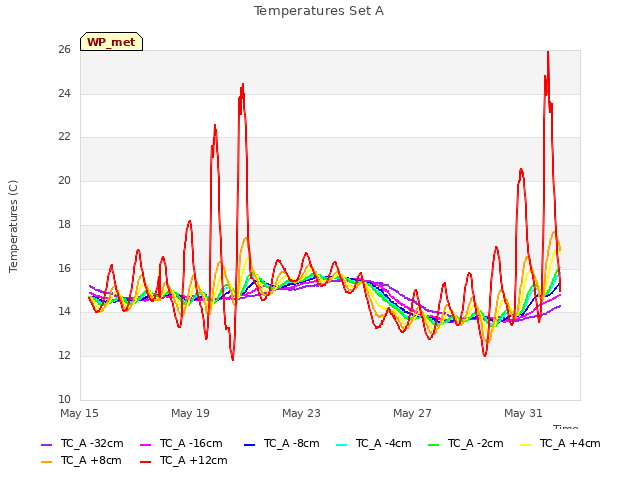

Explore the graph:Temperatures Set A in a new window

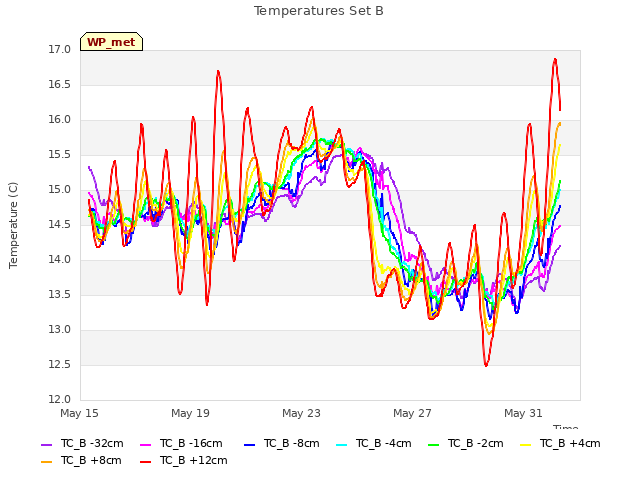

Explore the graph:Temperatures Set B in a new window

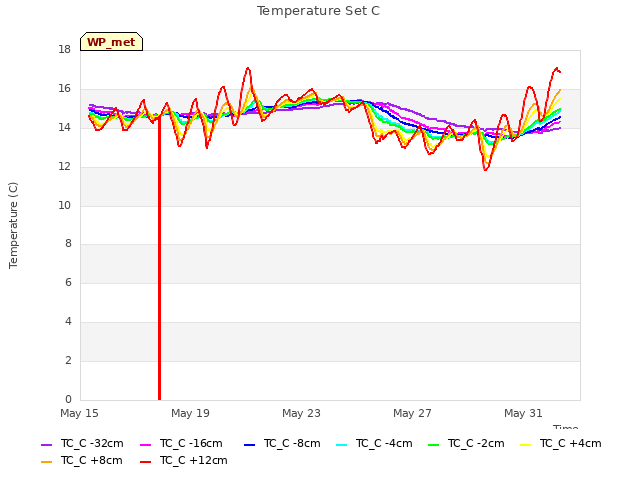

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

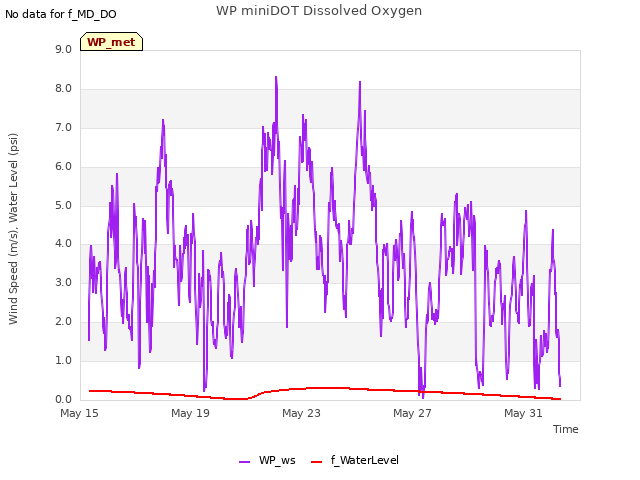

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

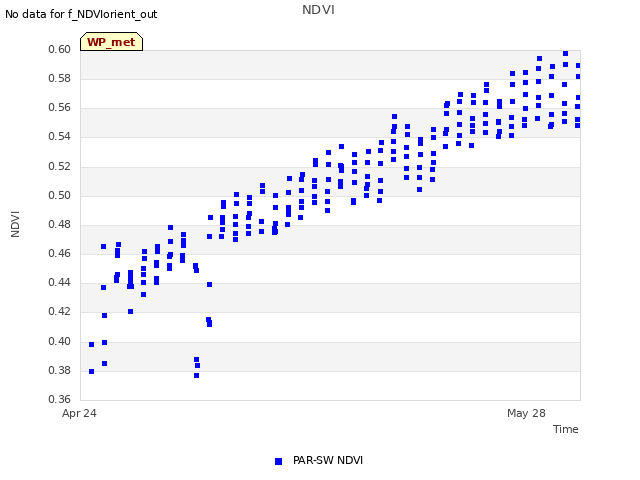

Explore the graph:NDVI in a new window

5 WP_flux graphs found

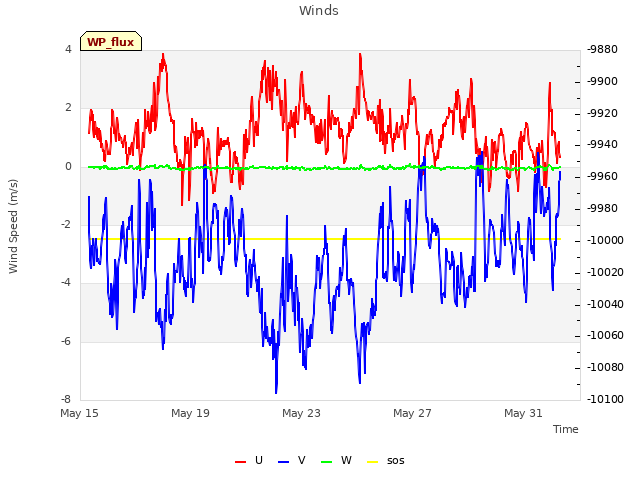

Explore the graph:Winds in a new window

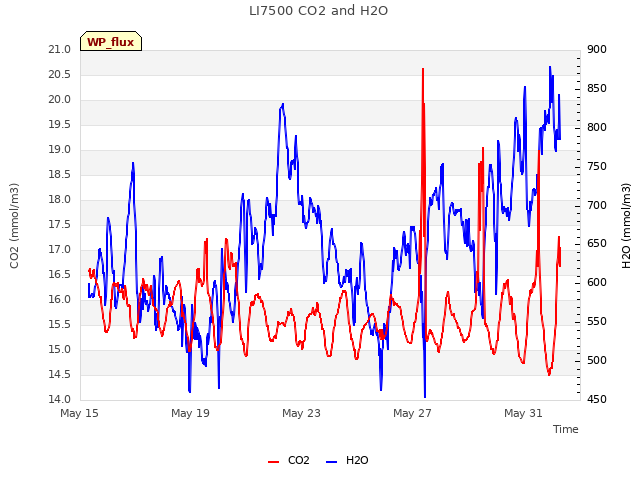

Explore the graph:LI7500 CO2 and H2O in a new window

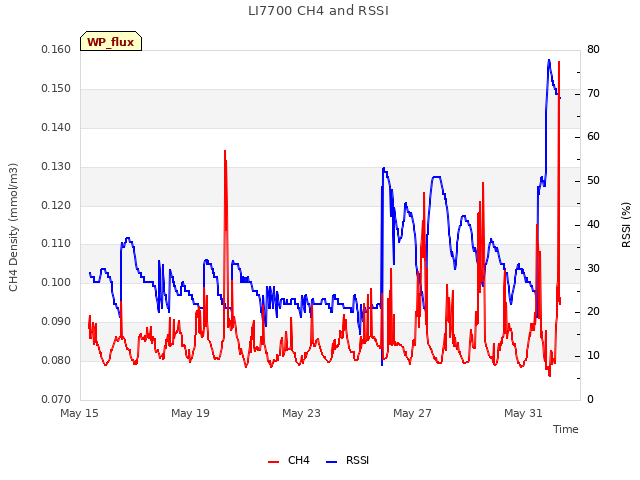

Explore the graph:LI7700 CH4 and RSSI in a new window

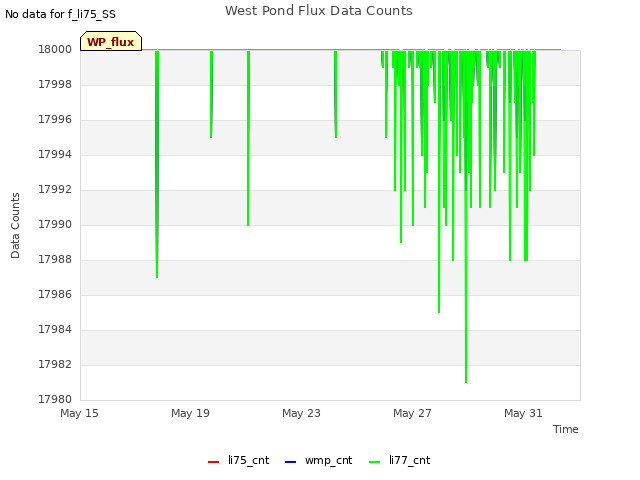

Explore the graph:West Pond Flux Data Counts in a new window

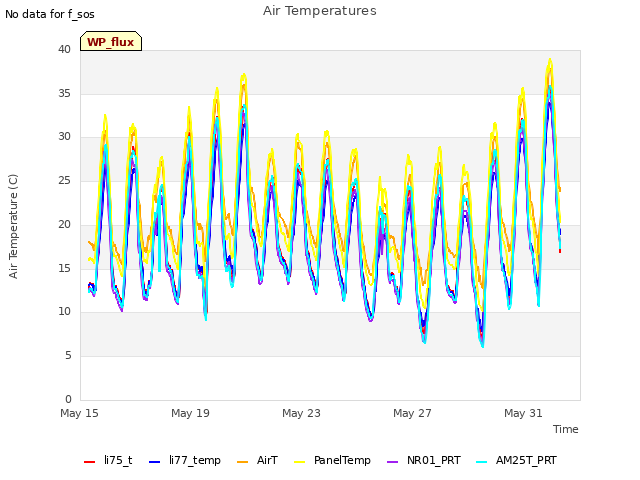

Explore the graph:Air Temperatures in a new window
