Sherman Island: 2011-11-08 11:00:00 (DOY 312)
Author: Joe Verfaillie
Others: Jaclyn, Sara
Summary: Installed new Vaisala probes, swapped HMP45 shield/fan, SHF plate one dead.
| Sherman

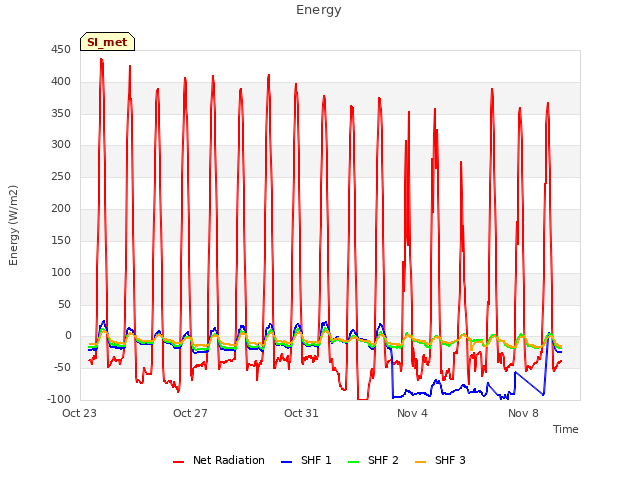

2011-11-08 I arrived about 11PST with Jaclyn and Sara. It was warm, sunny and clear with little to no wind. The field is mostly brown, but the pepper weed still has some small green leaves and the Bermuda grass is still green. I changed the HMP45 shield and fan. I collected data and swapped the CR1000 card. SHF plate number 1 seemed to have a bad reading. I traced wires a little bit but didn?t see any problem. Sara installed three new Vaisala probes at 2, 8 and 16cm. The CR10X program had a bug where it was using the wrong reference temperature to the TCs but we fixed that. It seemed to be running when we left. |
5 photos found
Joe installing soil CO2 probes
New insulated soil CO2 probes installed
New insulated soil CO2 probes installed
Sara wiring soil CO2 data logger
Cows.
7 sets found
No data found for SI_mp.

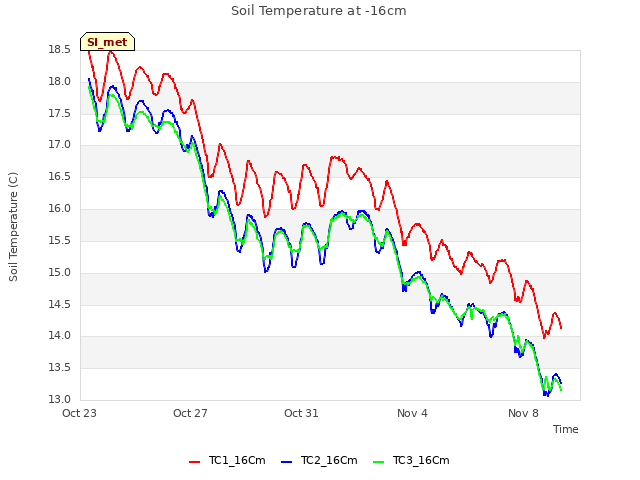

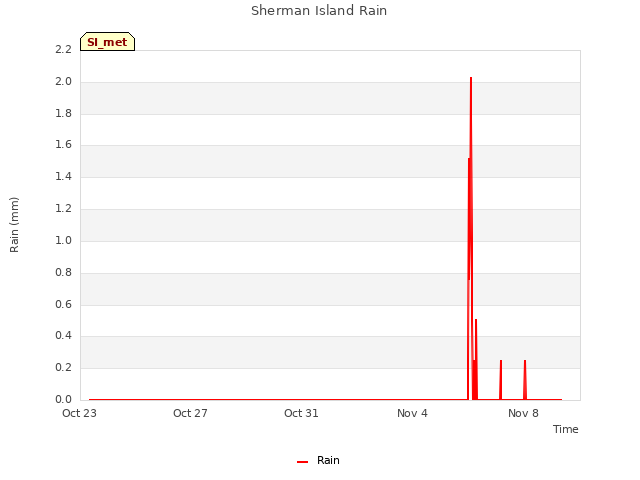

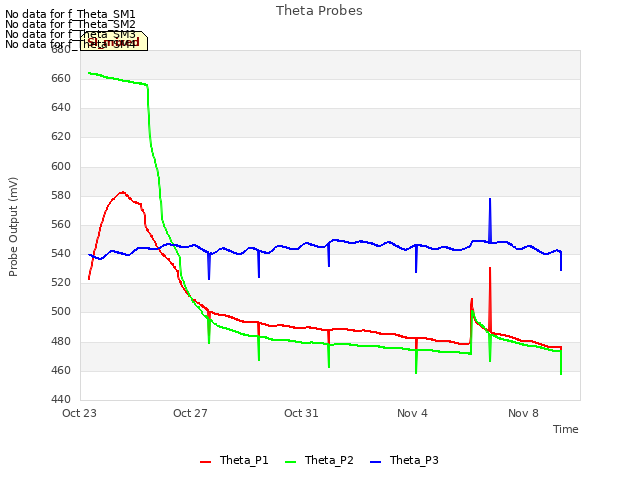

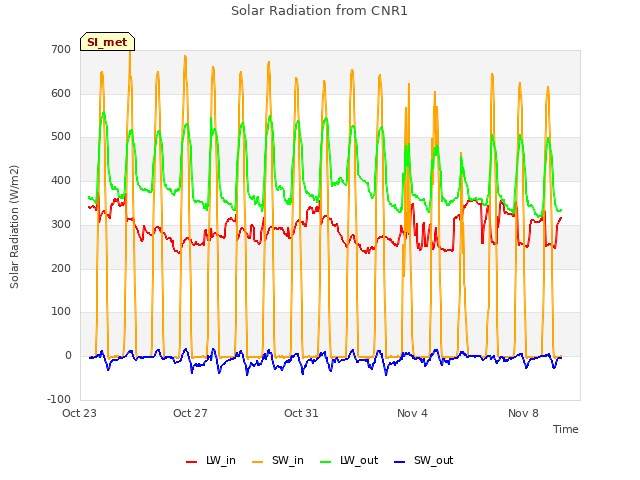

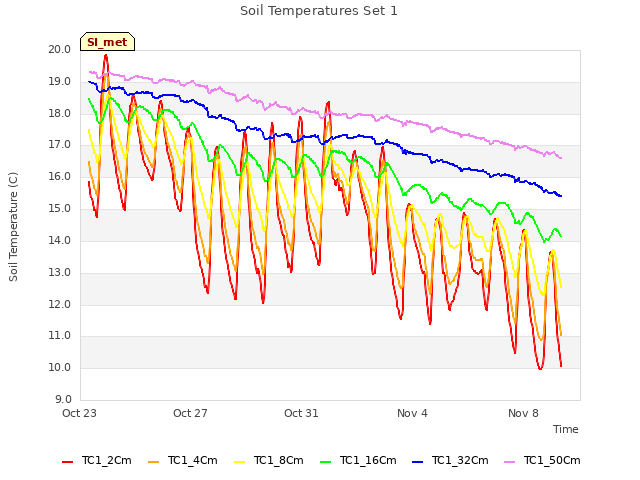

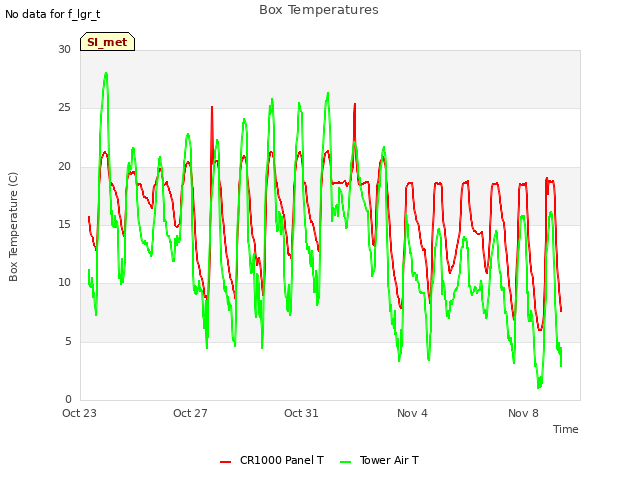

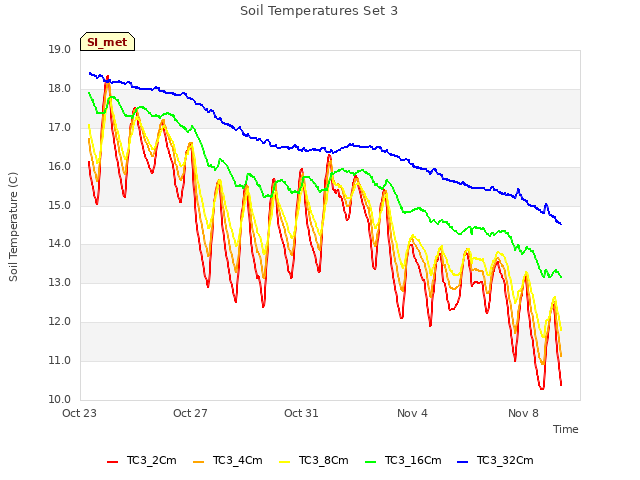

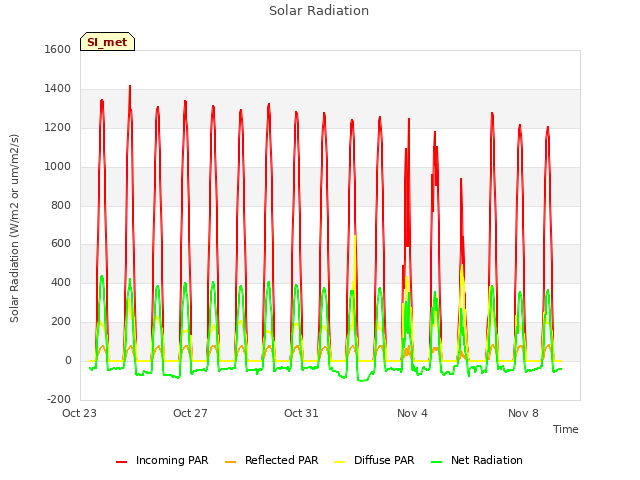

11 SI_met graphs found
Can't check SI_mixed

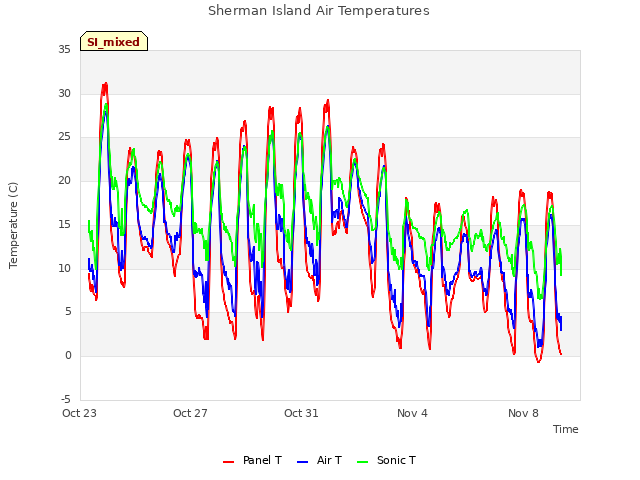

2 SI_mixed graphs found

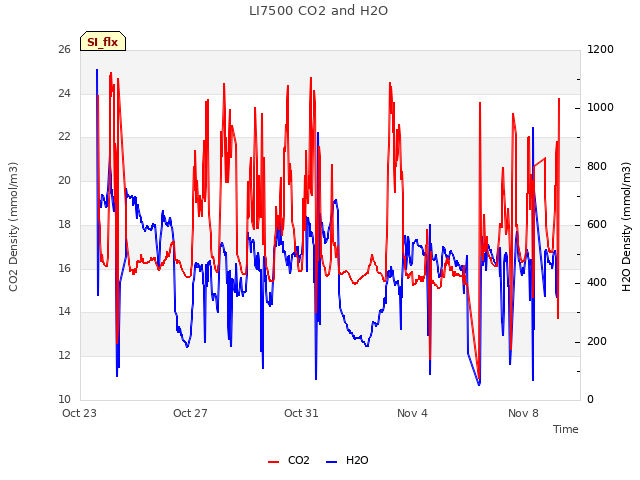

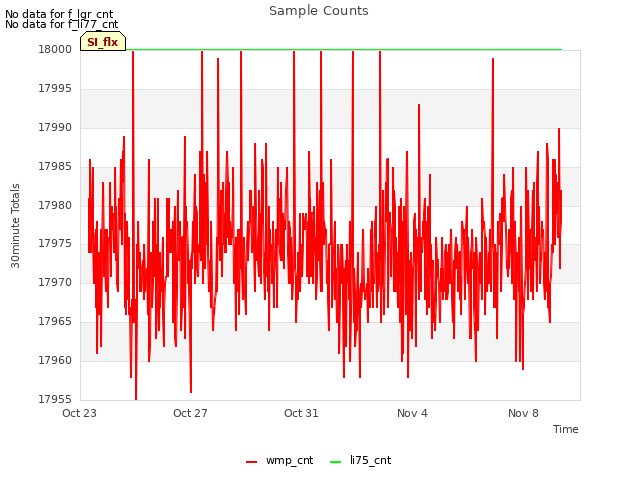

5 SI_flx graphs found
No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
