Twitchell Rice: 2011-09-29 07:20:00 (DOY 272)
Author: Joe Verfaillie
Others:
Summary: Insulated LGR tubing, LGR plugged in low flow, cut grass, reset one theta probe.
| Twitchell

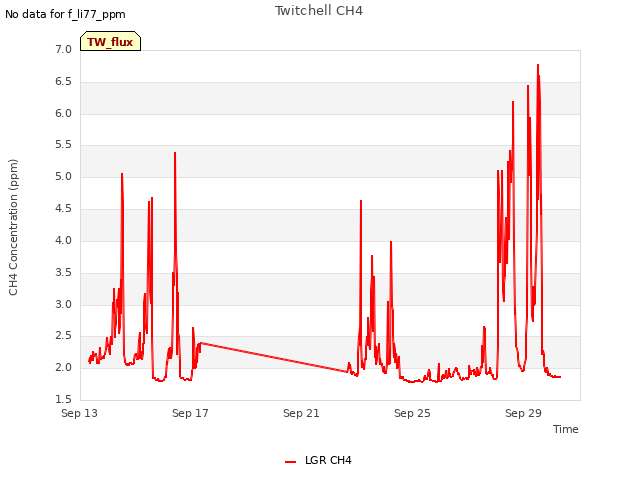

2011-09-29 I arrived about 7:20PST. It was sunny but a little hazy and warming. There was heavy dew on the grass and rice and almost no wind. The rice is still a little green for harvest. Jim says it may be two weeks until the start to harvest field 1. Black birds are helping themselves. All was running when I arrived. The LGR read: 7:28PST, 25.25C, 129.76Torr, 14.512usec, 10Hz, 3.684ppm I added pipe insulation to the tubing to help protect it from UV degradation. I tried to calibrate the LGR but there was no flow in low flow mode and the pressure dropped to zero Torr. The external filters were okay. I didn?t have any spare filters so I did not check the internal filter. However the pressure and flow seemed okay in high flow mode. After adjusting the bypass valve the LGR read: 8:28PST, 26.71C, 146.28Torr, 14.419usec, 10Hz, 2.255ppm I cut the grass around the box and I cut the tops off the cattails in front of the tower. I dug up some rice roots. It looks like some roots go down to 20cm but most are in the 0-10cm range. I collected data and swapped cards. Radiometers were clear. One of the theta probes was reading a little low and I found that it was not completely inserted in the ground. I fixed it. |
7 photos found
Exploring rice root samples
Exploring rice root sampling
Top view of big spider
Top view of big spider
Insulation on CH4 tubing on rice eddy tower
Dust plume and birds.
Dust to the west.
6 sets found

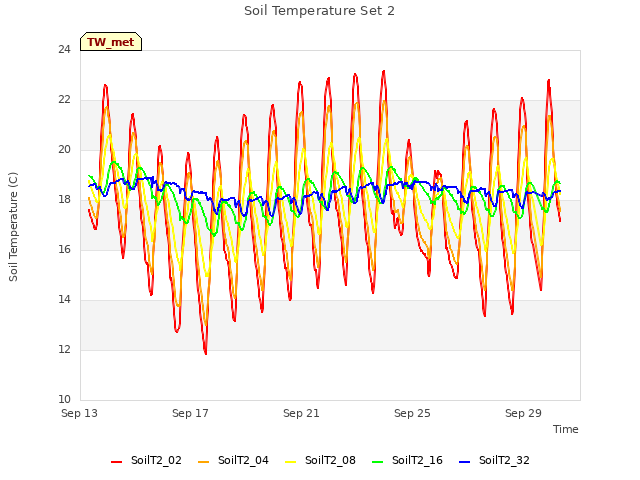

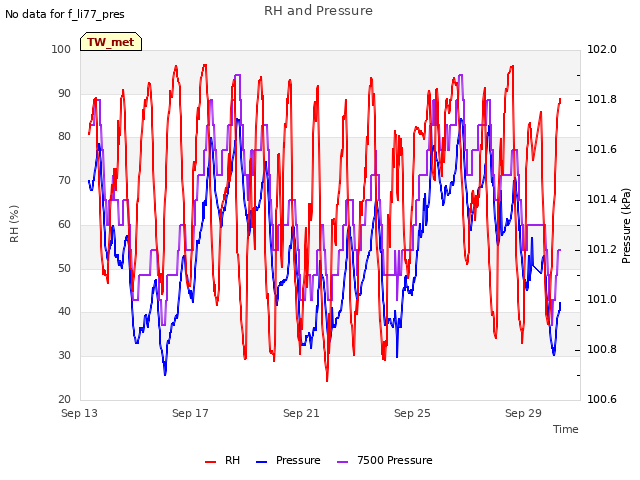

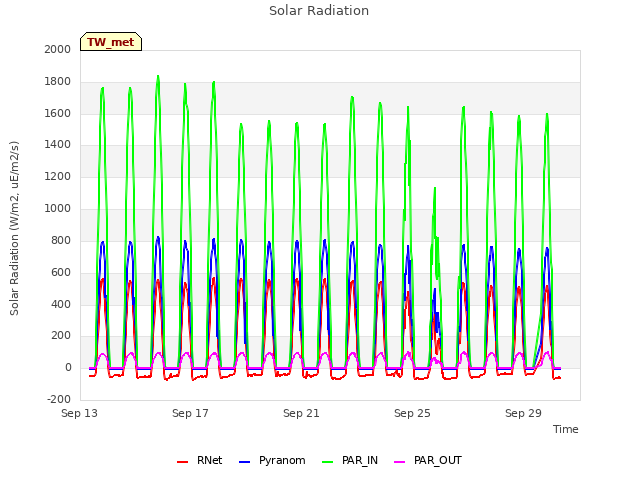

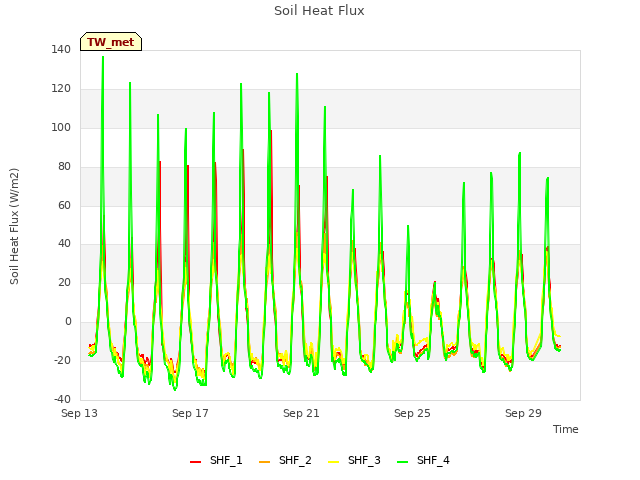

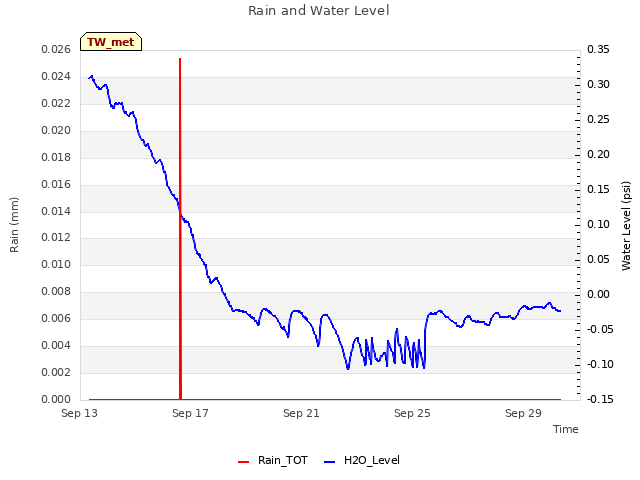

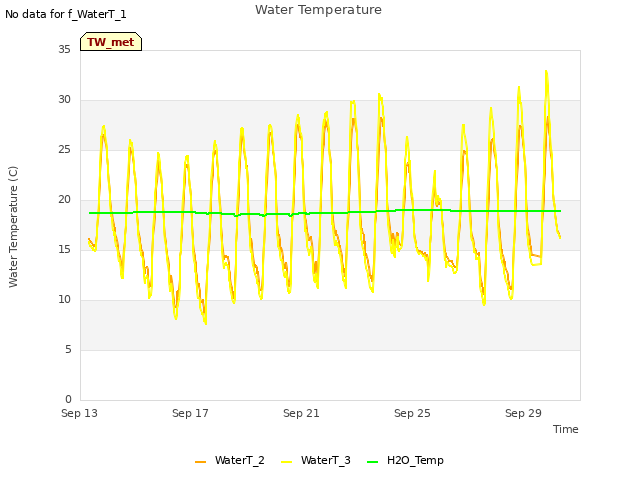

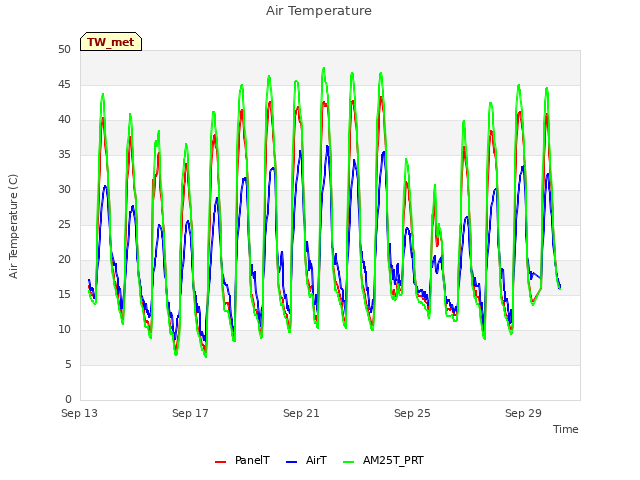

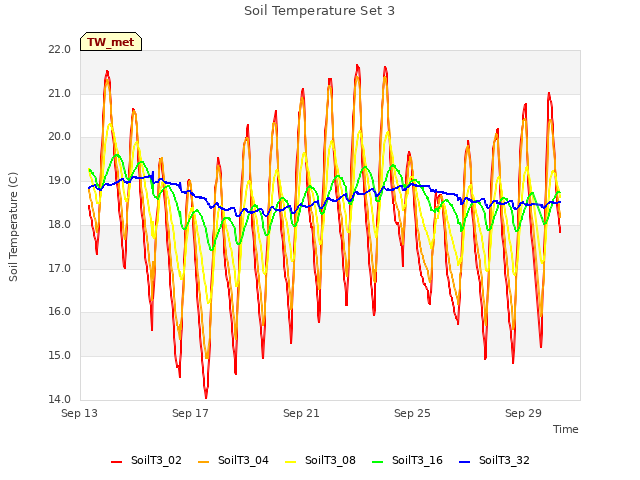

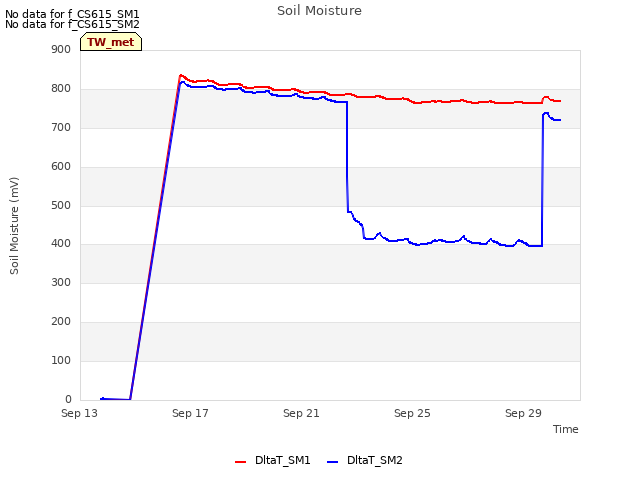

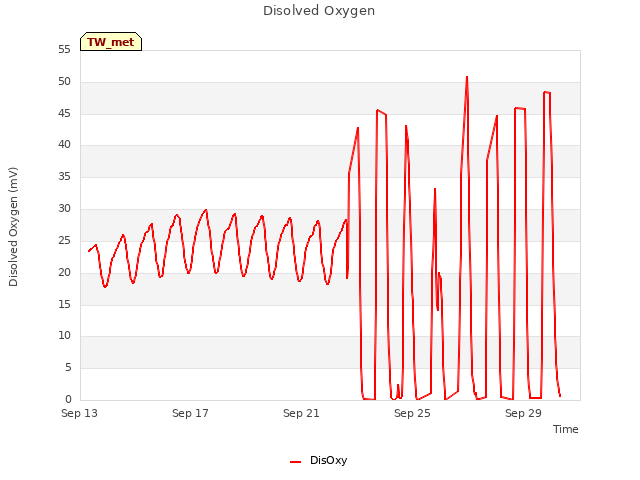

12 TW_met graphs found

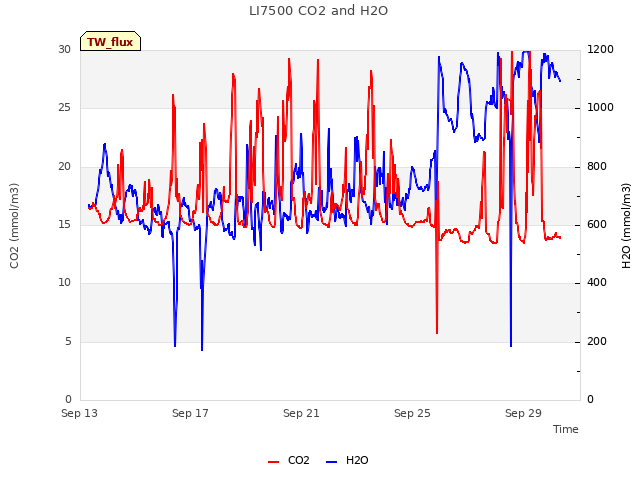

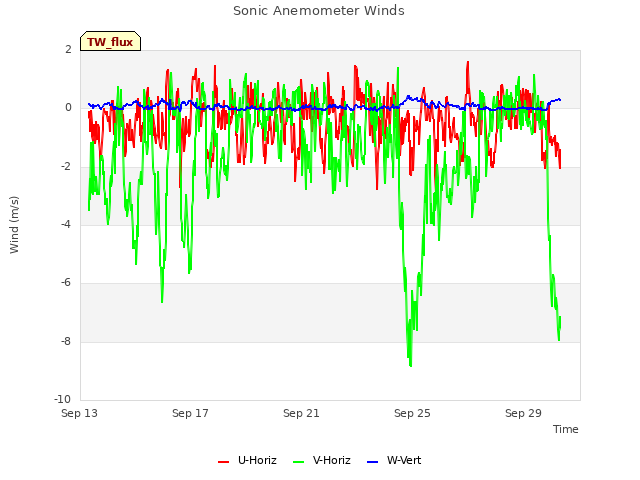

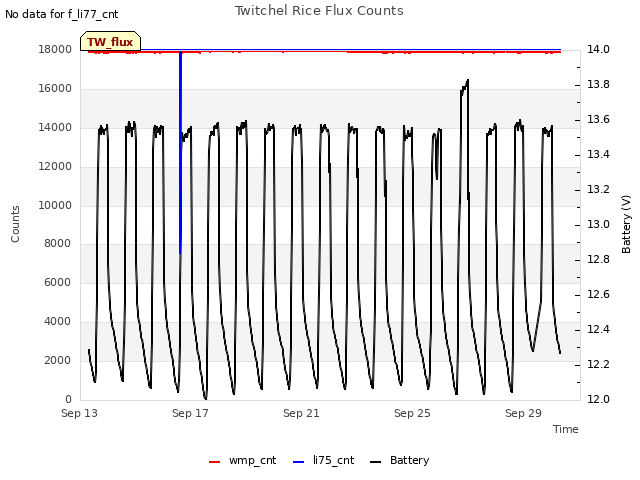

5 TW_flux graphs found
Can't check TWSI_mixed
Can't check SIMBTWEE_met

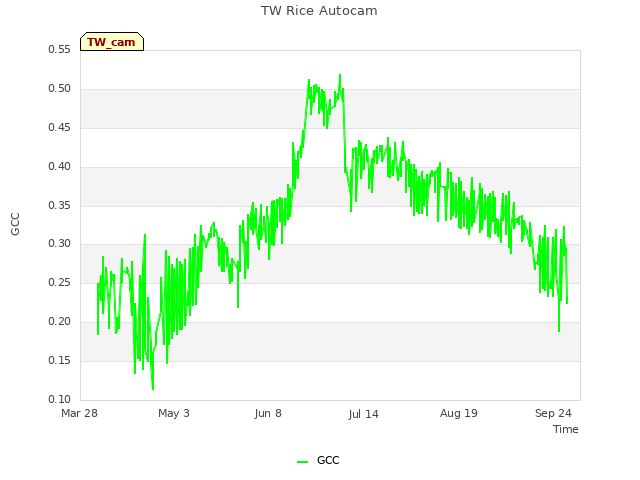

1 TW_cam graphs found
Can't check TATWBABCSB_cam
