Tonzi: 2011-09-29 10:00:00 (DOY 272)
Author: Siyan Ma
Others:

Summary: Standard fieldwork, CO2 profile system not working, error message on Floor computer.


When: Date: 9/29/2011 , Day: 272 , Watch Time: 10:00 am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: clear
Phenology: yellow grass, green oak leaves, dry, dusty

Tonzi

Dead grass and gree trees
A few flowers left in dead grass

Vaira:

Hill with dead grass and green trees
Dead grasses at Vaira field site

Summary
  1. checked and downloaded data at Tower, Floor, and Vaira
  2. Swapped Li-7500 at TZ Tower and Vaira.
  3. Calibrated Li-800 in the field.
  4. Collected samples of oak leaves and pin needles
  5. Read dendrometers
  6. Measured soil moisture
  7. midday water potential: seems lower than last time. Joe suggested that COSMOS data showed little moister recently.
  8. Measure groundwater well:

Date
DOY
Location
Depth without the black thing (feet)

9/29/2011
272
Floor
25.5



Tower
30.3



roadside
34.7

Vaira_Grass Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: 13.2 v; 11.0 amps; 3.8 amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Vaira Gill sonic plots screen before downloading data
  1. downloading data
  2. swap Li-7500: install #42; remove #73.
  3. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
  4. Check MD-9 system connections YES!
  5. Check CR23X with two multiplexers

Screen shot of Vaira data logger table
  1. Check levels of Radiation sensors, clear up surfaces.YES!
  2. Check rain gage, make sure not clogged. YES!
  3. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.). Tower Gill sonic plots screen before downloading data
  4. downloading data YES!
  5. swap Li-7500: install #65; remove #1594.
  6. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  7. Check rain gage, make sure not clogged. YES!
  8. Check calibration cylinders;

CO2 1000 psig; flow 20 psi; 384.08 ppm.
N2 1500 psig; flow 30 psi.
Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ Yes, but no good readings!
Screen shot of Li-800 calibration pre-cal
Screen shot of Li-800 calibration bad readings
  1. close gate and set up fence. YES!

Toniz_Floor Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps. (about 7:00 am local time)
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

First see “Error message on” the screen. Restart the computer and works well.
Floor Gill sonic plots screen error message
  1. downloading data YES!
  2. Check MD-9 system connections YES!

CR23X3 – floor-Met (need to display the readings on the screen)
CR23X5 – soil CO2 profile
CR23X6 – tower-Met
CR10X2 – floor-Met
Screen shot of tower met data logger table
Screen shot of soil co2 data logger table
Screen shot of floor met data logger table
Screen shot of bad data logger table
  1. Soil CO2 profile:

Reading from panels of analyzers

depth
Open
order
depth
Tree
order

2cm (1%)
790
1
2cm (1%)
1140
1

4cm
550
2
4cm
1410
4

8cm
670
3
8cm
1590
2

16cm
630
4
16cm
3410
3
  1. Close gate and set up fence. YES!

Tonzi





Dendrometer










Date
Day
Tag #
Reading (mm)


9/29/2011
272
72
21.9




79
14.5




102
6.2




245
18.3




250
X
(reset to 10.5 on May 7, 2009)



1
15.2




2
14




3
12.1




4
16.6




5
22.9




7
13.6
133



8
5.0
11828



71
X




77
X
‌



78
X
‌



248
X
broken



255
X
‌



‌252‌
X
‌



6
X


Notes: “X” means not working any more.
Dendrometers installed by Gretchen group

tonzi
7931AFE
402165
574B4B
402FF3
574632
7A432E
7A3C6E
7A3B40
7A4AAA

9/29/2011
272









sm








0-15
5.9
1.5
8.2
5.2
11.1
5.0
8.8
3.0
4.9

15-30
12.8
8.2
14.0
10.7
9.9
7.7
14.5
12.2
4.6

30-45
17.0
11.6
11.7
14.0
10.8
9.5
15.2
16.1
13.0

45-60
#DIV/0!
1.3
14.6
13.4
10.2
11.4
16.3
25.4
10.7












A6D882B
A3D04E8
A6D72F5
















0-15
4.2
2.4
1.8






15-30
8.3
0.5
11.7






30-45
16.8
15.3
13.6






45-60
17.6
21.6
10.5
















vaira
57318a
7933dee
00000128B97F3
00000128B8072
00000128BDDE8



0-15
broken
4.5
2.7
1.8
0.05




15-30
broken
15.6
9
5.2
3.6333333




30-45
broken
17.7
2.9
12.1
14




45-60
broken
30.6
14.9333333
8.73333333
14.566667




Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2011-09-29TZ_floor25.5
2011-09-29TZ_road34.7
2011-09-29TZ_tower30.3

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

Water Potential - mode: raw

TimeSpeciesTreereadings (bar)
2011-09-29 11:56:00 OAK UNKNOWN -35 -23 -30 -26 -42.5
2011-09-29 11:56:00 PINE OLD -4.5 -17 -3 -18 -3
2011-09-29 11:56:00 PINE YNG -8 -3 -2 -10 -3

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

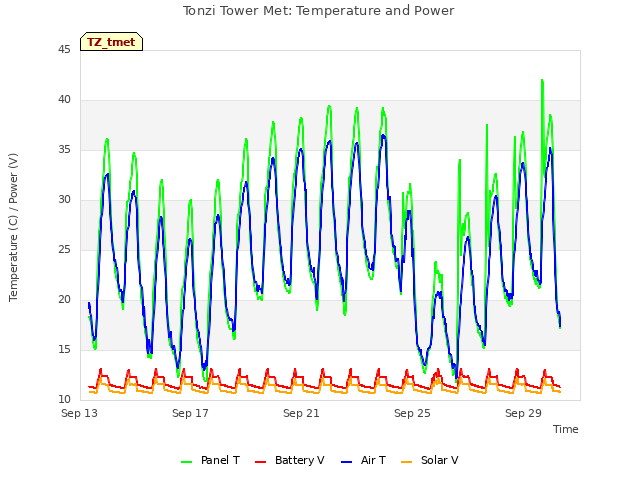

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

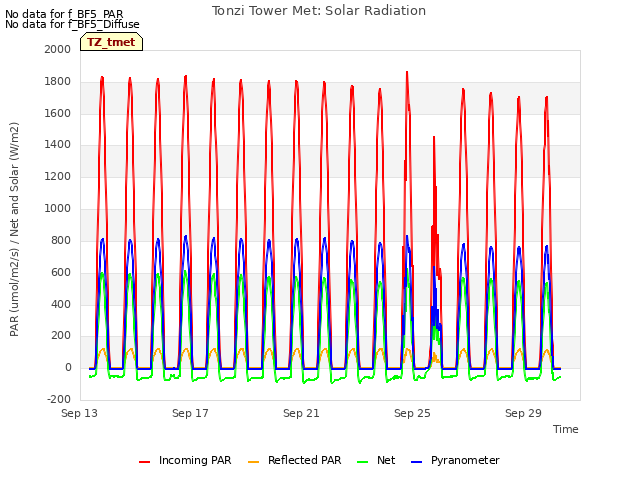

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

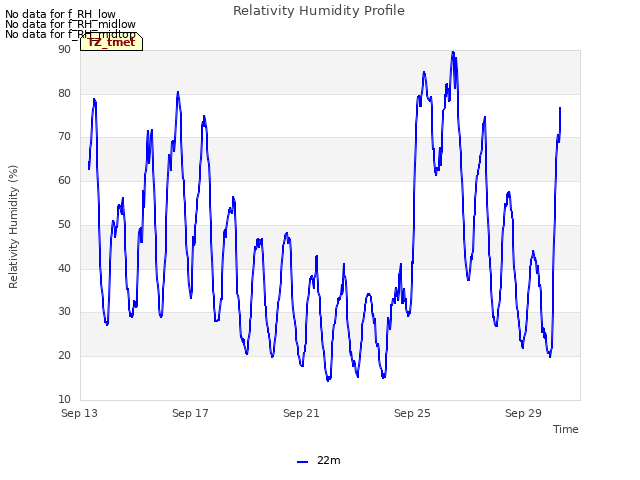

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

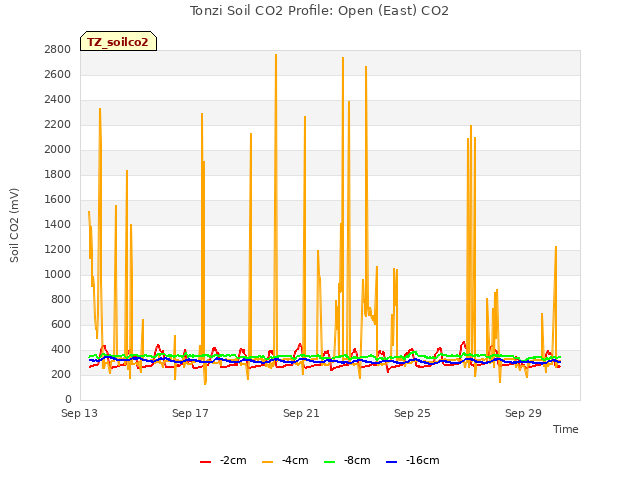

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

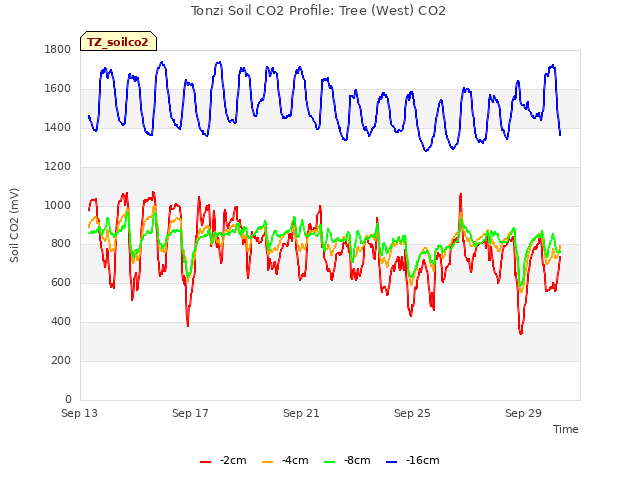

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

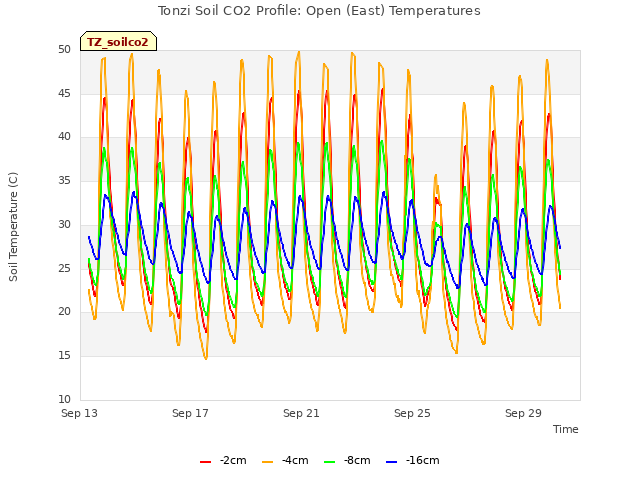

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

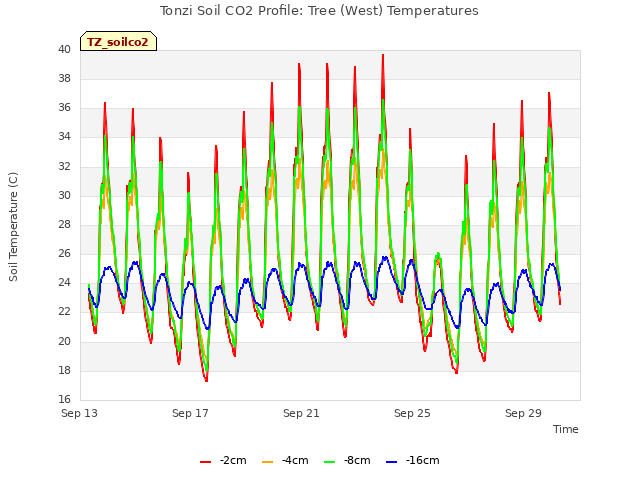

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

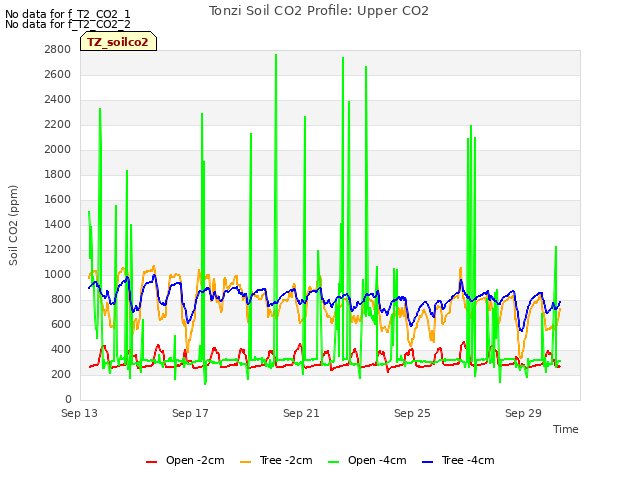

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

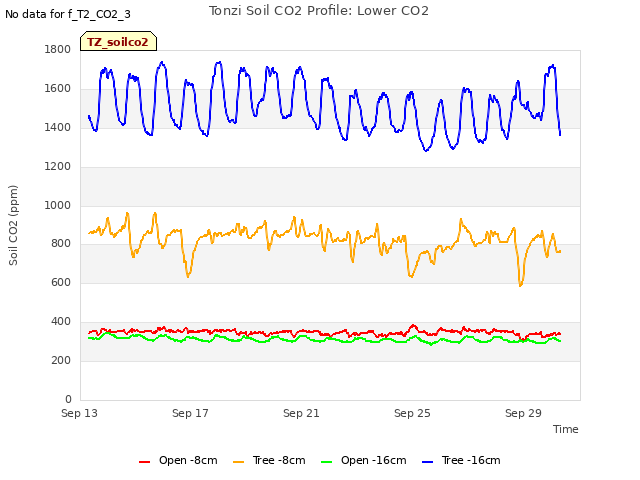

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

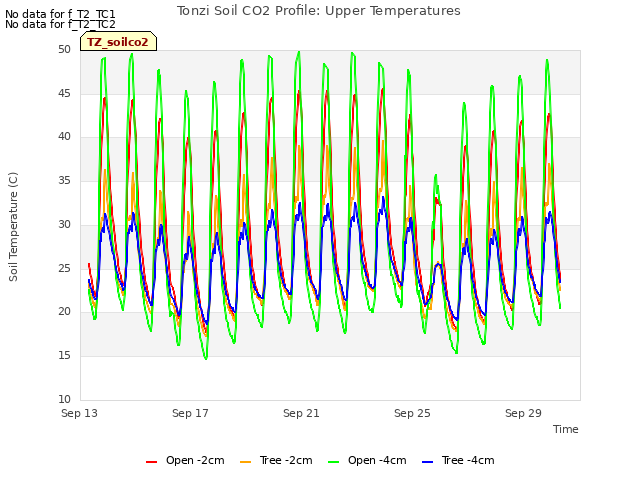

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

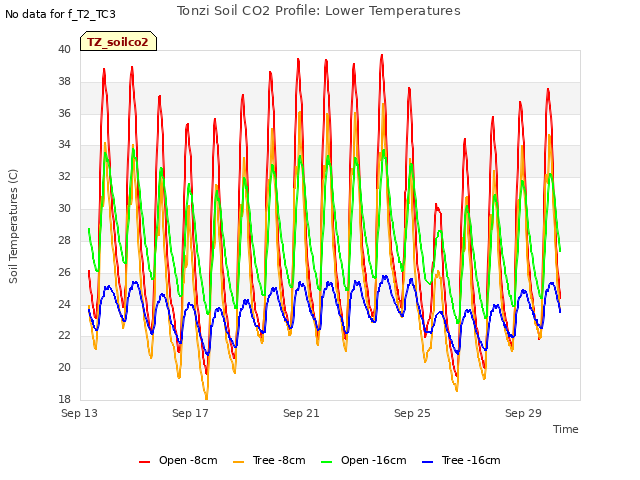

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

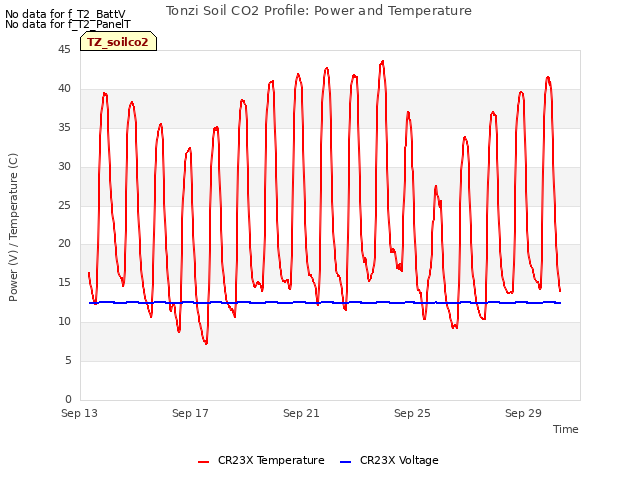

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

Explore the graph:Tree 2 Soil CO2 in a new window

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

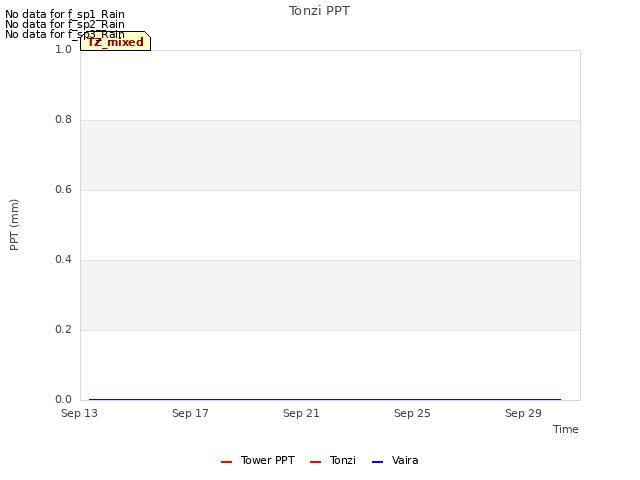

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

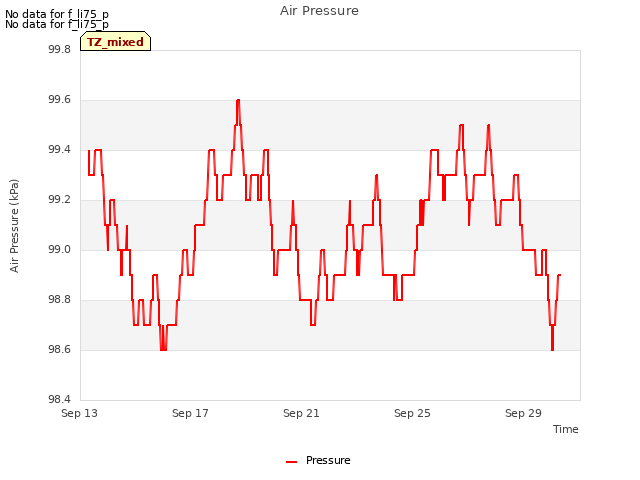

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

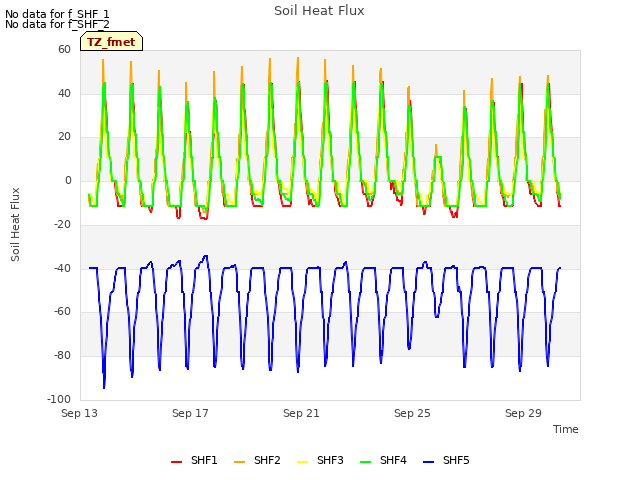

Explore the graph:Soil Heat Flux in a new window

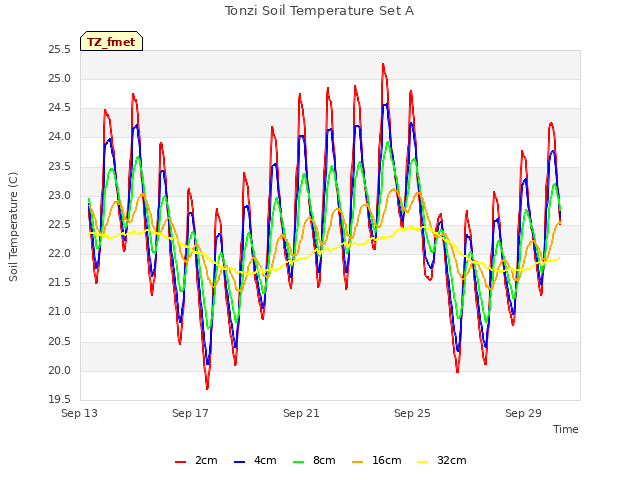

Explore the graph:Tonzi Soil Temperature Set A in a new window

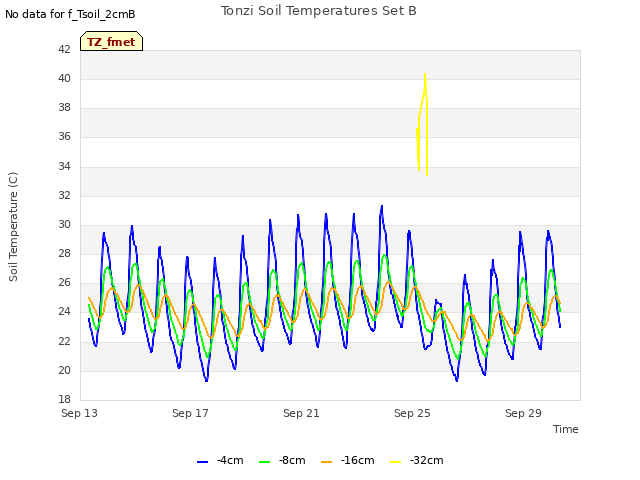

Explore the graph:Tonzi Soil Temperatures Set B in a new window

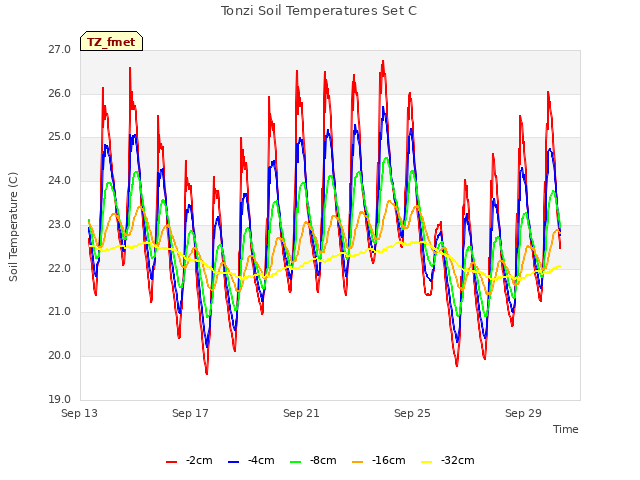

Explore the graph:Tonzi Soil Temperatures Set C in a new window

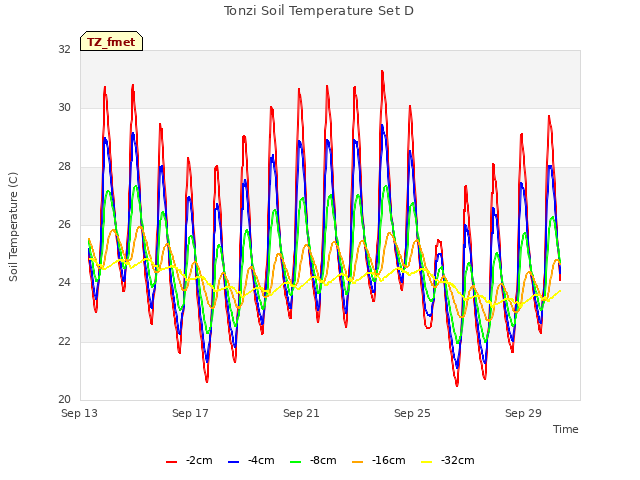

Explore the graph:Tonzi Soil Temperature Set D in a new window

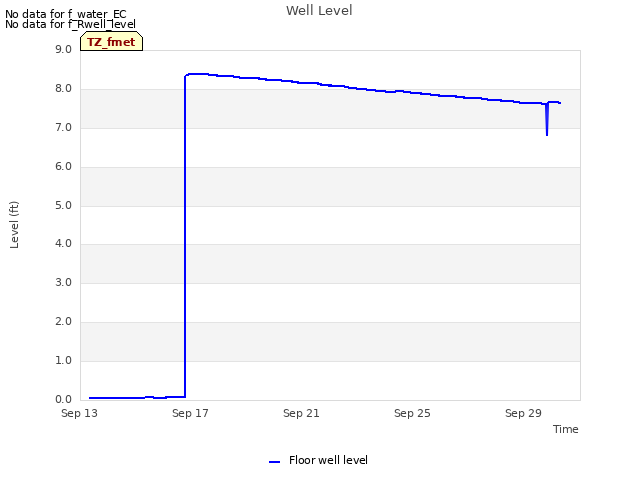

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

1 TZ_tram graphs found

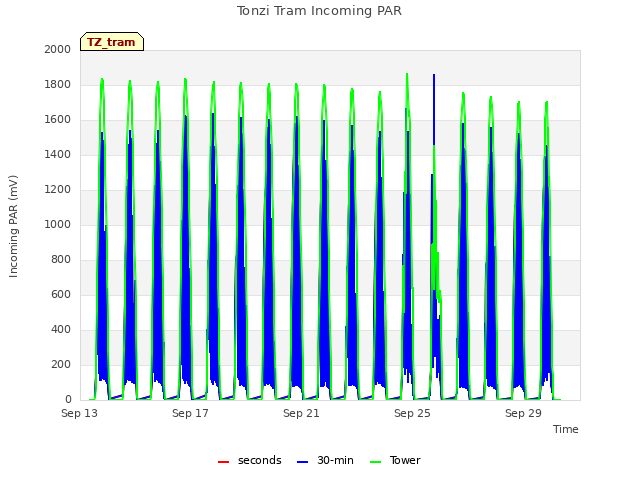

Explore the graph:Tonzi Tram Incoming PAR in a new window

3 TZ_co2prof graphs found

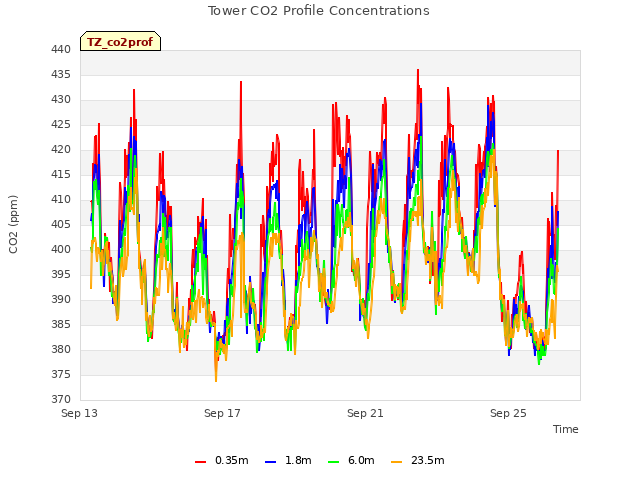

Explore the graph:Tower CO2 Profile Concentrations in a new window

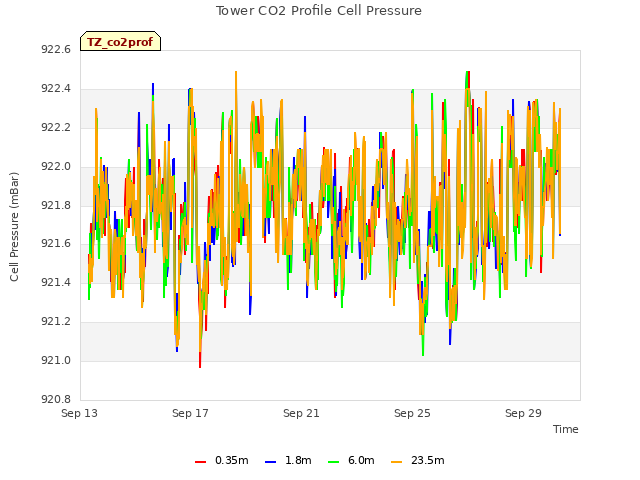

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

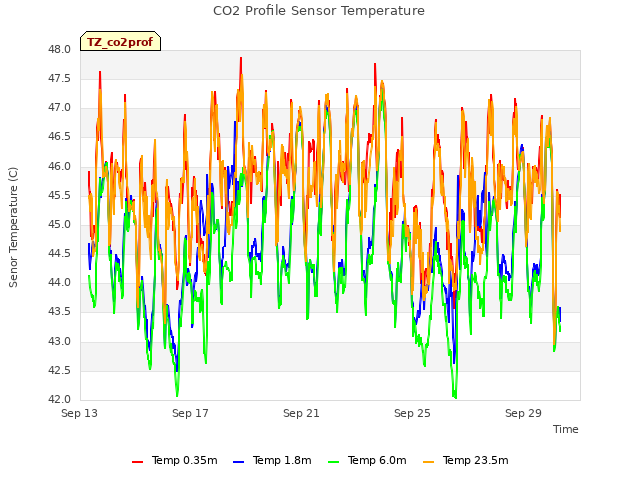

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

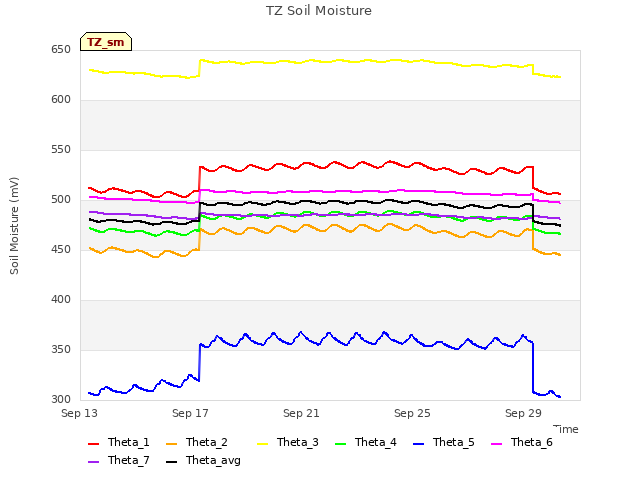

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

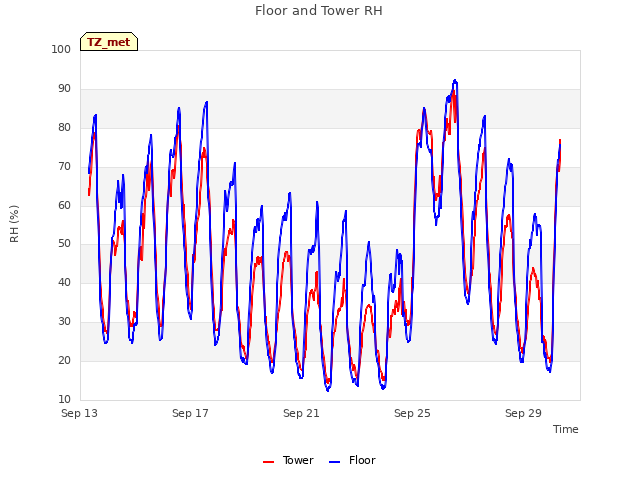

Explore the graph:Floor and Tower RH in a new window
