Field Notes
<--2011-01-05 08:00:00 | 2011-02-03 12:15:00-->Phenocam link: Searching...
Tonzi: 2011-01-19 00:00:00 (DOY 19)
Author: Siyan Ma
Others: Rebecca
Summary: power problem at Vaira and Tonzi-Tower
| Jan. 19, 2011
Siyan Ma * Sunny at Berkeley; foggy when passing the Delta; cloudy at Tonzi and Vaira * Met Rebecca at Tonzi. She was collecting litters from the litter bags. She likes to survey grass species in the spring again. * Saw cows at Tonzi. Muddy road after cows went on. Vaira: 1. No power when arrived. I pushed the reset button on the regulator, and the readings were: 11.9, 2.0, 2.9. 2. Missing data started on Day 17, late afternoon. 3. Swap Li-7500: removed #1596; installed #65. 4. Vaira grassland looked less litter above grasses. 5. Cleaned up bird craps stuck in Rain gauge. 6. Soil Moisture probe near gate was easy to be pulled out. I tried pushing it in a little bit. 7. downloaded data successfully. Tonzi-Tower: 1. No power when I got there. Reset and readings on the regulator were: 11.4, 0.0, 5.2. 2. I wasn’t able to download data at the beginning, but data were downloaded before I left. At that moment, sun came out in a short period. Tonzi-Floor; 1. Power on when I got there. Reset and readings on the regulator were: 12.1, 3.5, 1.9. 2. I wasn’t able to download data at the beginning, but data were downloaded eventurally. 3. Readings from soil CO2 profile system: Open 2410 1350 1480 1160 Under trees 3480 3240 4720 9430 Others: 1. soil moisture machine turned off and on itself during the performance. 2. ground water sensor seems broken because the beep sounds could last all the way after the sensor had been back to the top. 3. need 3-4 blue covers for soil moisture probes. Data collected this time: 1. soil moisture 2. download groundwater continuous data 3. spectrometer at Vaira 4. dendrometer 5. swap 3 camera cards at Tonzi. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
14 photos found
Tonzi pond mostly full
Tonzi pond mostly full another view
New grass at the oak savanna
New grass at the oak savanna
Gopher mound in the new grass
New grass at the oak savanna
Gopher mound on soil moisture probe
Gopher mound on soil moisture probe
Sun through clouds and Tonzi tower
Pine canopy at Tonzi
New grass at the oak savanna
New grass at the oak savanna
New grass at the oak savanna
Muddy road through the oak savanna
16 sets found

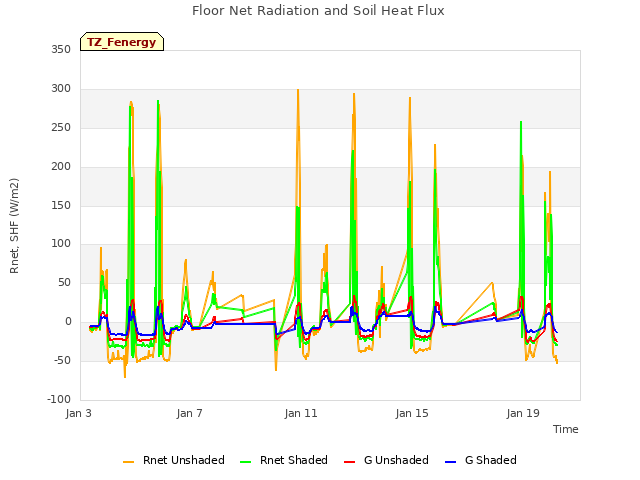

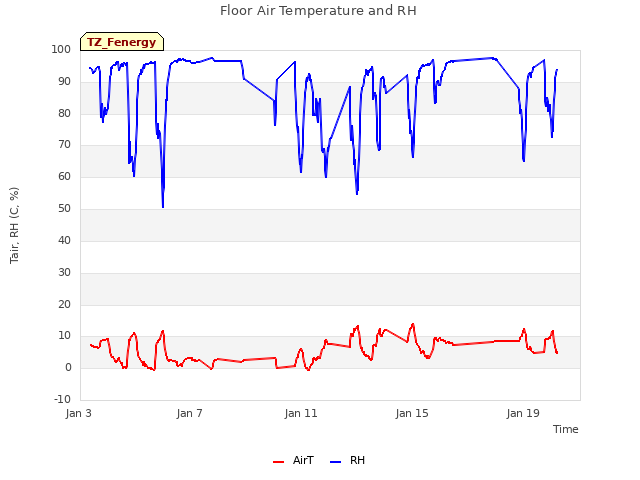

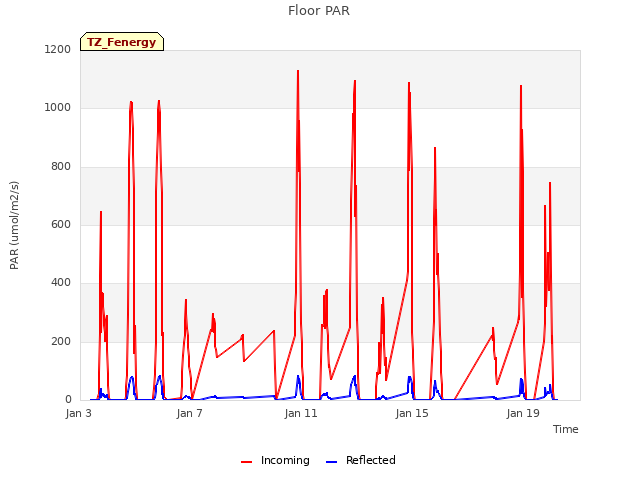

3 TZ_Fenergy graphs found

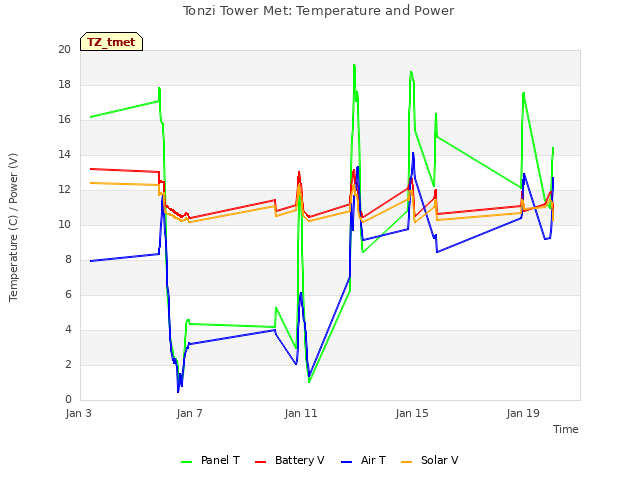

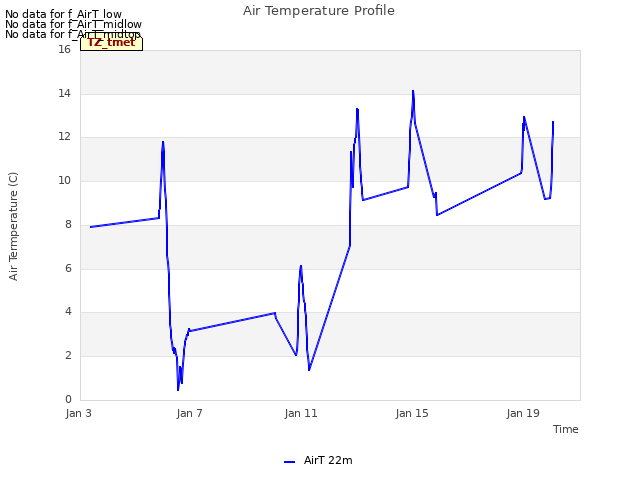

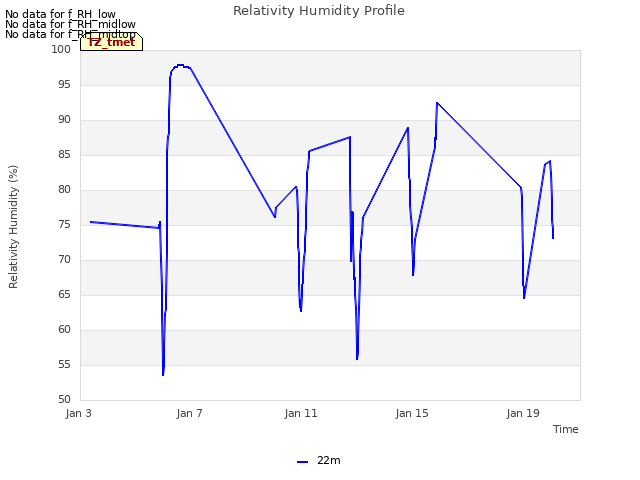

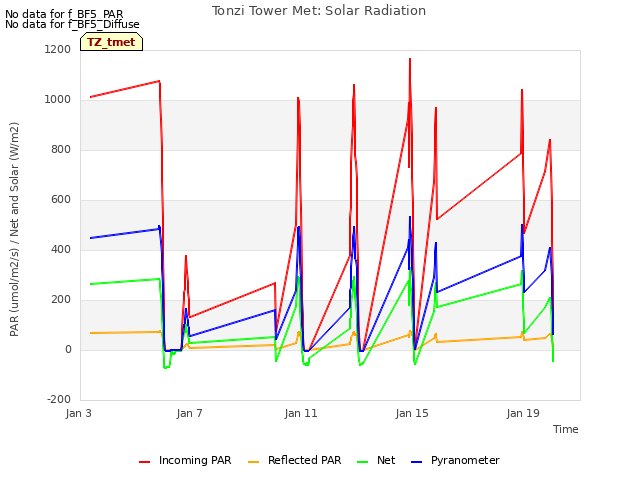

11 TZ_tmet graphs found

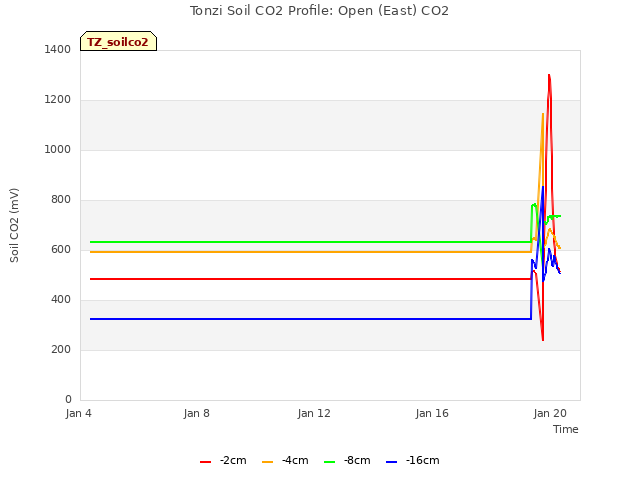

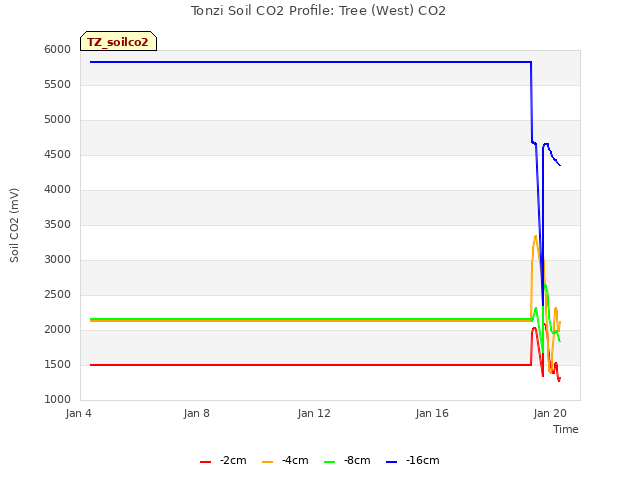

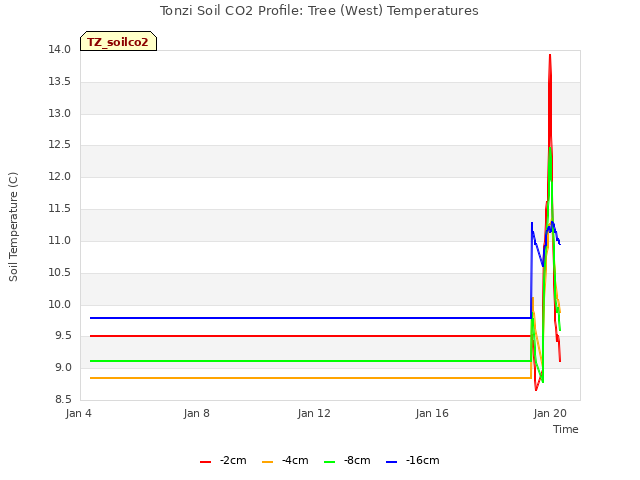

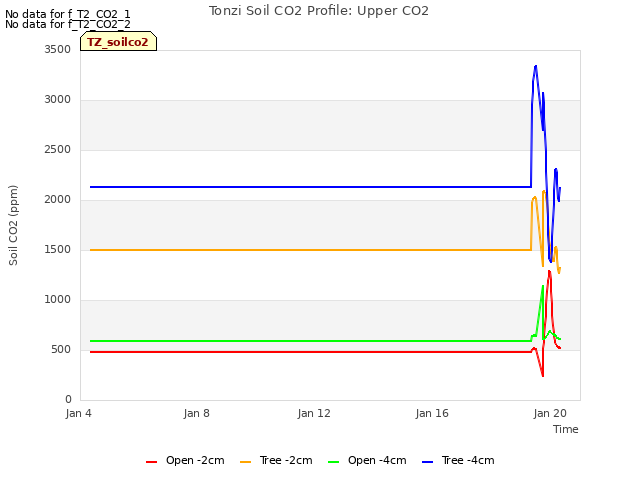

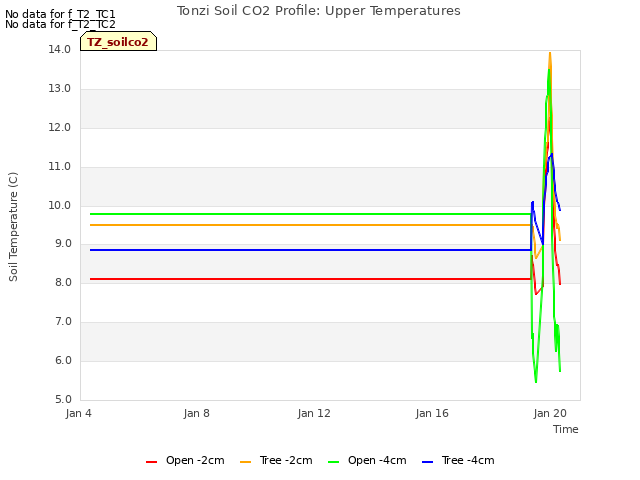

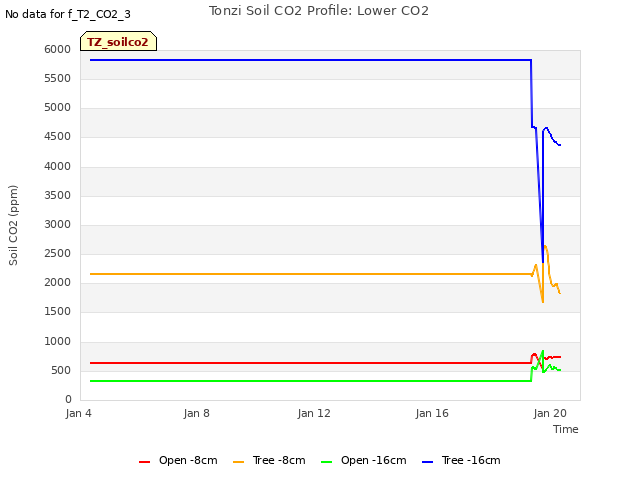

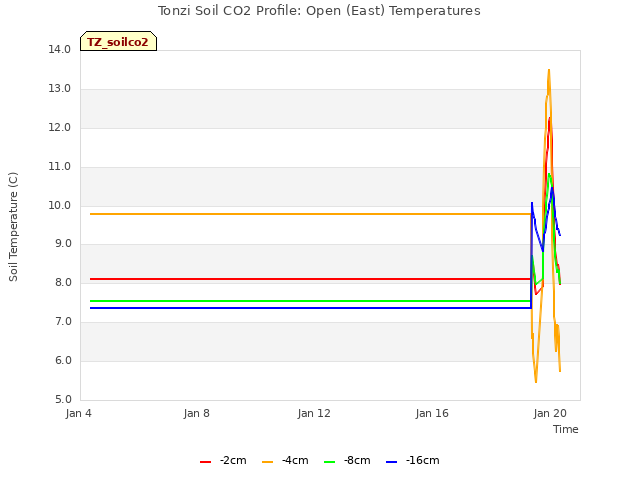

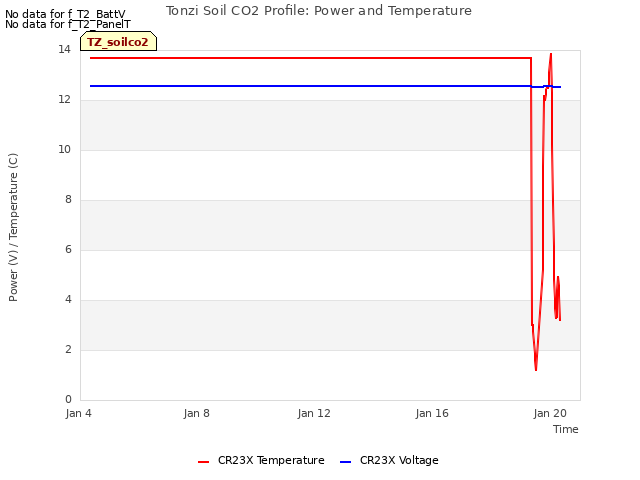

11 TZ_soilco2 graphs found
Can't check TZ_mixed

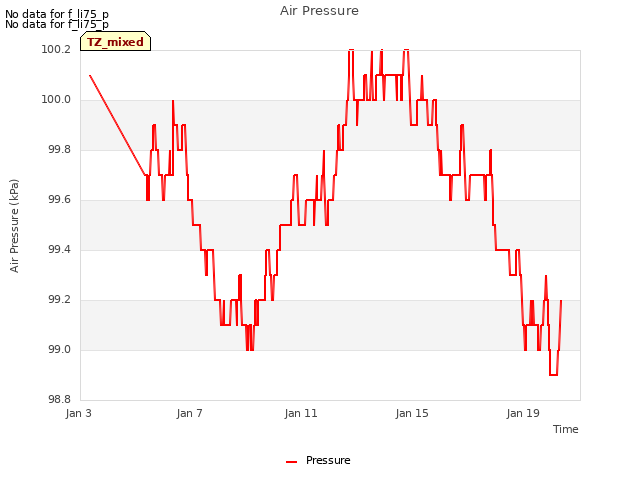

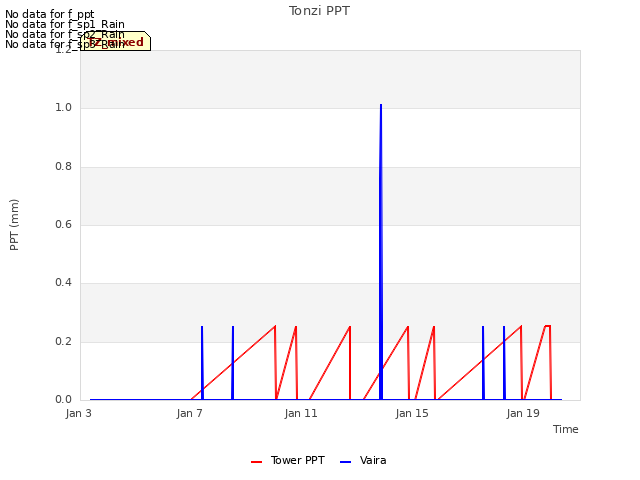

3 TZ_mixed graphs found
1 TZ_fflux graphs found

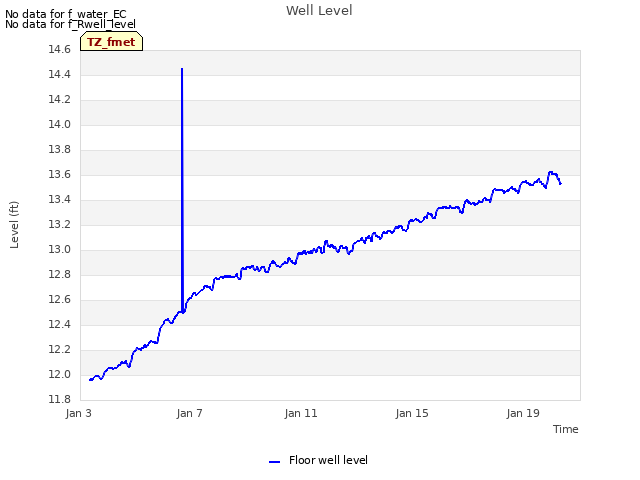

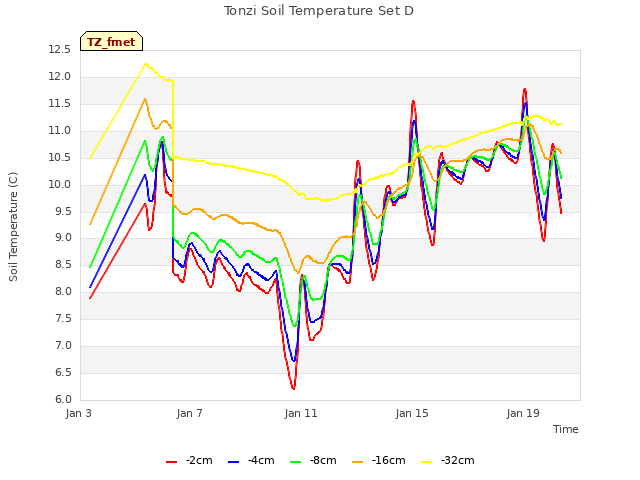

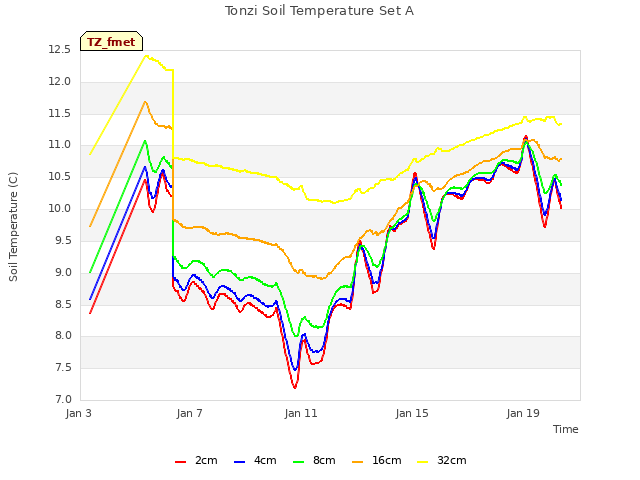

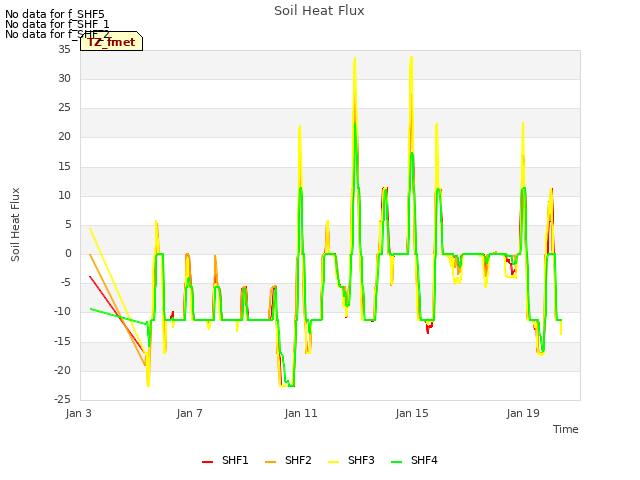

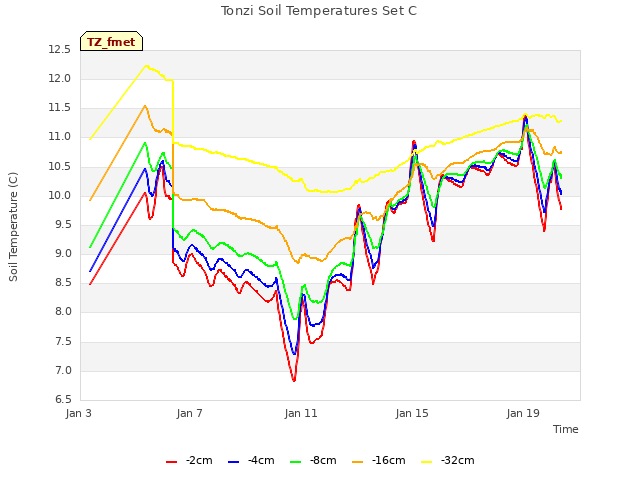

8 TZ_fmet graphs found
No data found for TZ_tram.

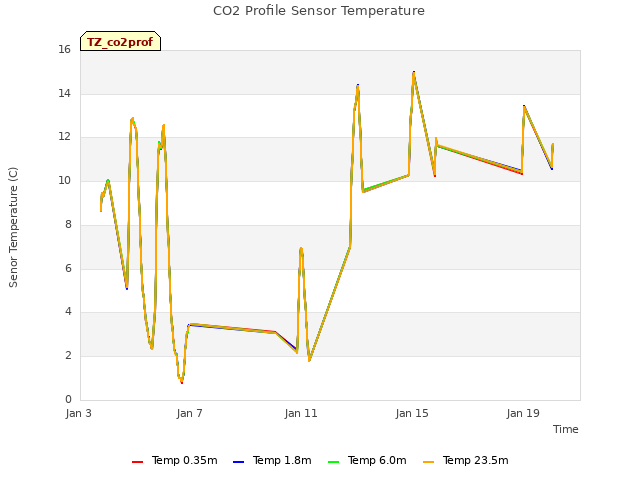

3 TZ_co2prof graphs found
No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

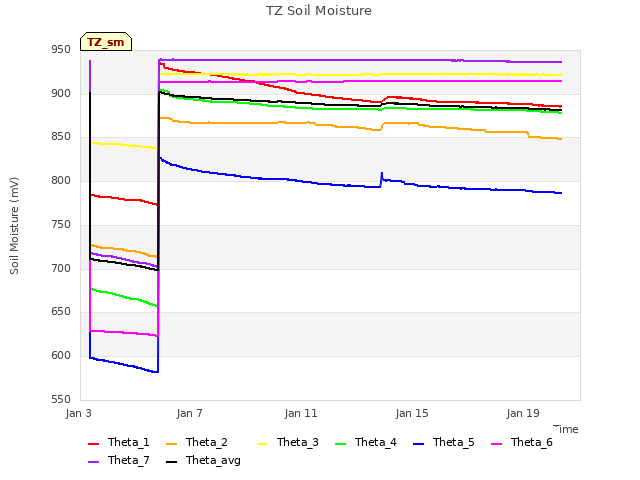

2 TZ_sm graphs found
Can't check TZ_met

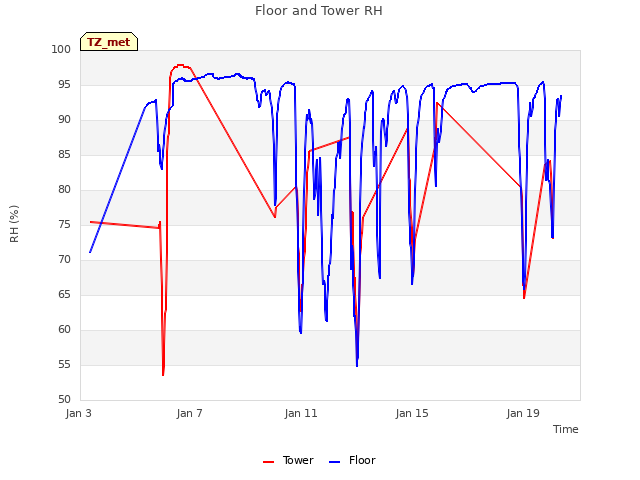

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
