<--2011-02-03 08:15:00 | 2011-03-01 12:00:00-->
Other sites visited today: Sherman Island | Twitchell Rice

Mayberry: 2011-02-08 10:30:00 (DOY 39)
Author: Joe Verfaillie
Others: Jaclyn, Dennis, Naama

Summary: Super windy, collected data, straightened and braced autocam.

Mayberry

I arrived about 10:30 with Dennis, Jaclyn and Naama. It was blowing like crazy from the northwest. Average wind speed was around 12m/s and gusts to 20m/s. The sky was clear and sunny. Waves on the water were splashing over the end of the island and the erosion has increased.

The autocam was leaning over. I righted it and cable tied the fence post pounder to it the keep it upright. I swapped cards on the camera.

The data systems seemed okay. The LI7700 was reporting an RSSI of 79.

The slow data file on the CR1000 card was corrupted. I will try to recover it.

The solar charger reported 14.6V, 6.8A solar, and 1.2A load.

4 photos found

Heavy wind from the north ~20mph
Heavy wind from the north ~20mph

High wind
High wind

High wind
High wind

Nice sunset
Nice sunset

Graphs display:
11 sets found

7 MB_flux graphs found

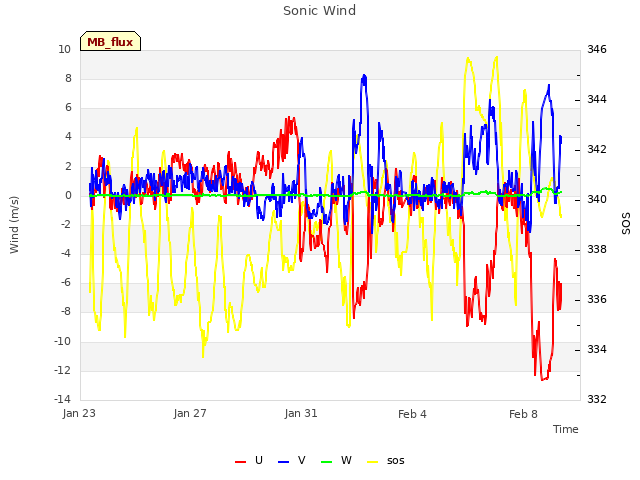

Sonic Wind

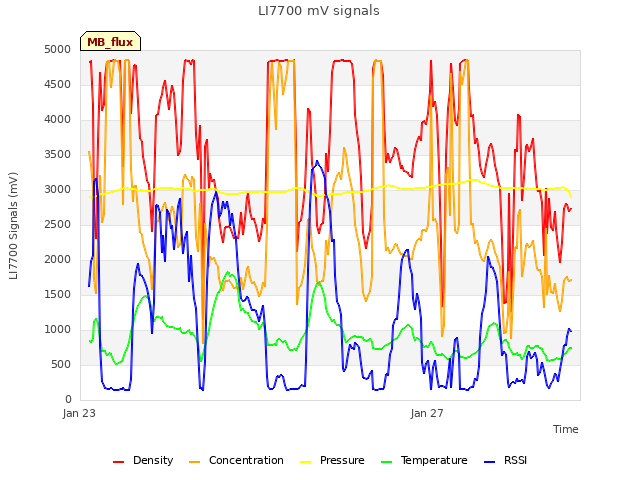

LI7700 mV signals

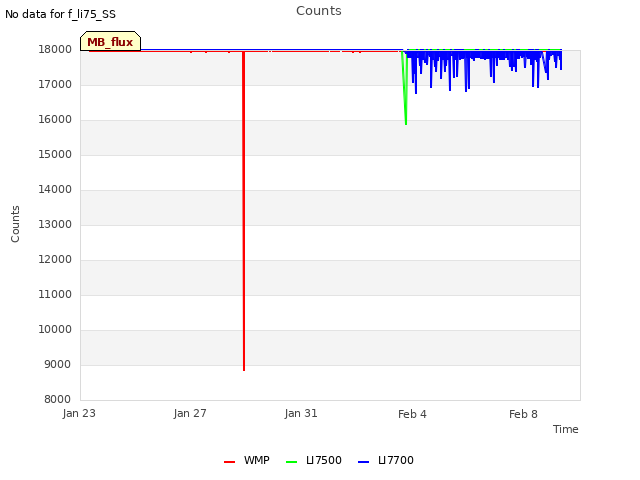

Counts

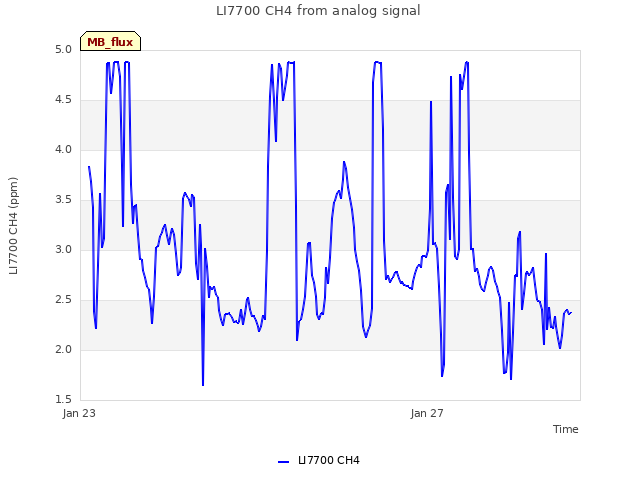

LI7700 CH4 from analog signal

LI7500 CO2 and H2O

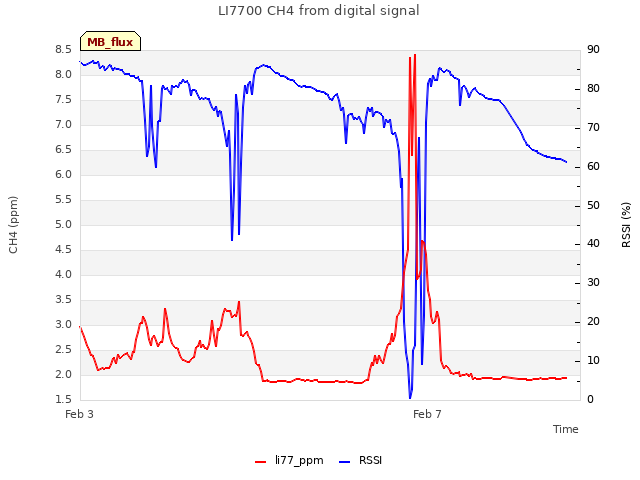

LI7700 CH4 from digital signal

CO2 in ppm

5 MB_met graphs found

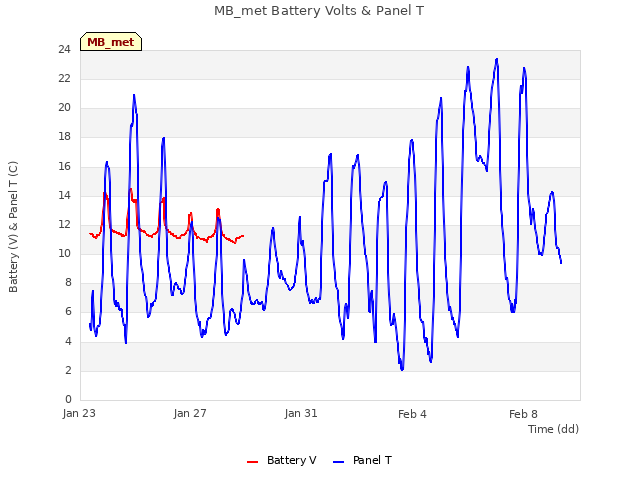

MB_met Battery Volts & Panel T

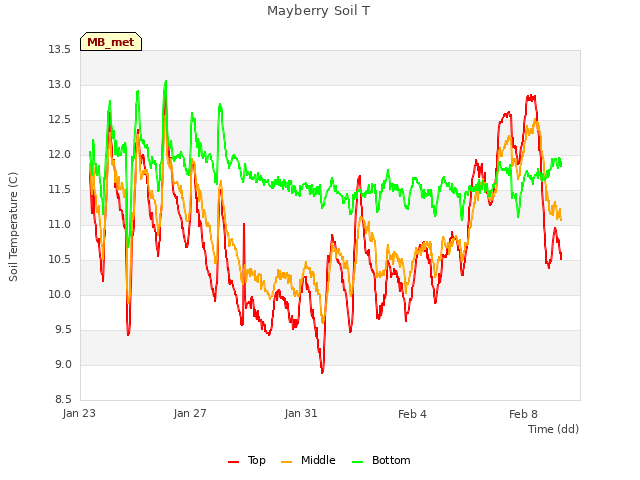

Mayberry Soil T

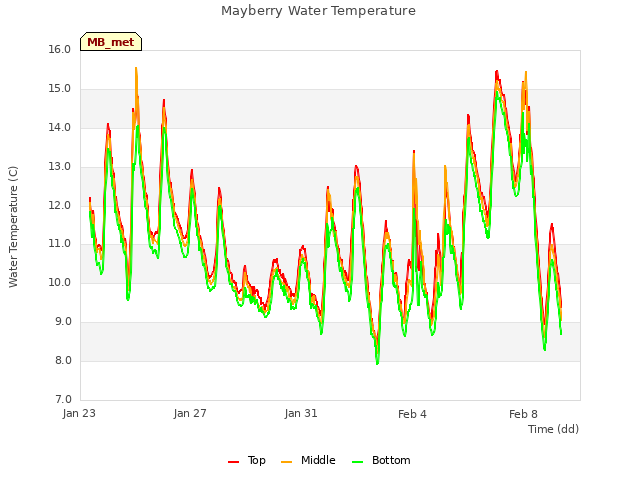

Mayberry Water Temperature

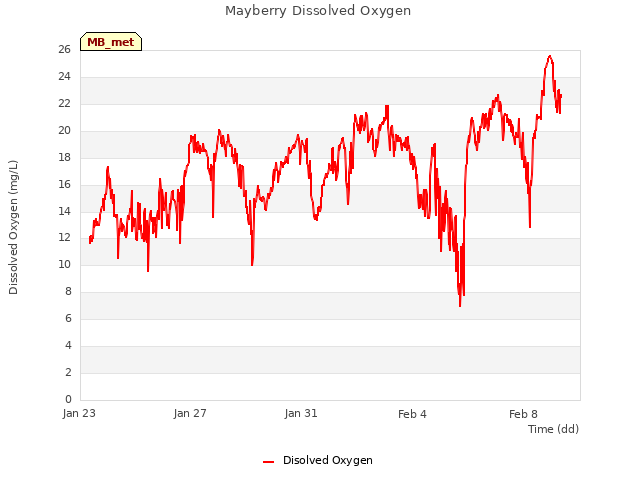

Mayberry Dissolved Oxygen

Mayberry Water Depth

No data found for MB_tule.
Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

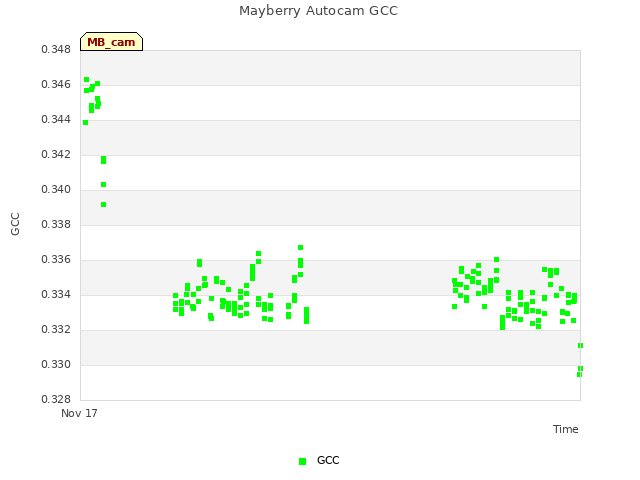

Mayberry Autocam GCC

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA

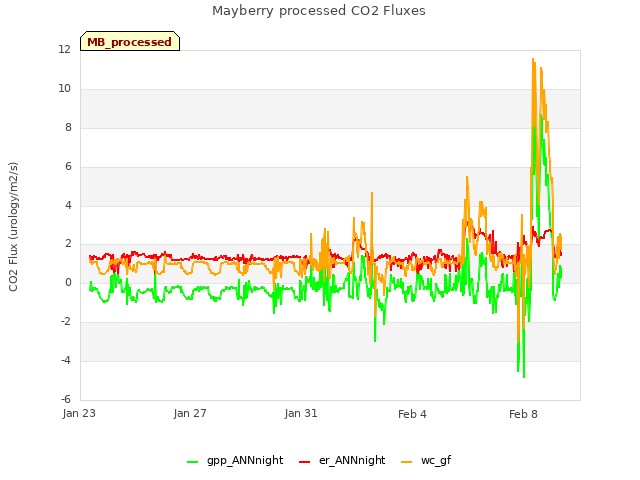

1 MB_processed graphs found

Can't check MB_fd
1 MB_fd graphs found

Water Forced Diffusion CO2 Flux
