Hill Slough: 2024-06-03 16:00:00 (DOY 155)
Author: Daphne Szutu
Others: Arman

Summary: Warm and windy, attempted to swap boardwalk wood but couldn't get bolts loose, reservoir almost empty--refilled

2024-06-03
Hill Slough

Arman and I arrived at 16:00 PST (17:00 PDT). It was warm and very windy. There was another sedan parked in our usual spot, next to a pile of large appliances someone had dumped. We parked just off of the road.

The staff gauge read 4.2ft at 16:25 PST.

I downloaded met, cam, and USB GHG data. The wash reservoir was almost empty; Arman refilled it. Arman cleaned flux and rad sensors. He didn’t see anything particularly dirty about the 7700, but there were some spiderwebs on the spars he cleaned off.

We measured porewater and surface water conductivity.

Sample, Temperature-compensated conductivity, Temperature
Surface, 2193uS, 24.6C
Porewater, 4.9mS, 22.5C

The 7500 read: 410ppm CO2, 575 mmol/m3 H2O, 23.6C, 101.4kPa, 94SS -- 97 after cleaning
The 7700 read: 1.95ppm CH4, 49RSSI – 87 after cleaning

I downloaded the CR23X data at the channel. I still need to figure out why the CTD conductivity data is not getting sent to the CR1000.

We attempted to swap the plywood in the upper boardwalk. At least 3 of the bolts were rusty. We sprayed them with WD40 but couldn’t get them off.

We left at 16:35 PST (17:35 PDT).

0 photos found

Graphs display:
4 sets found

20 HS_met graphs found

Explore the graph:Temperatures in a new window

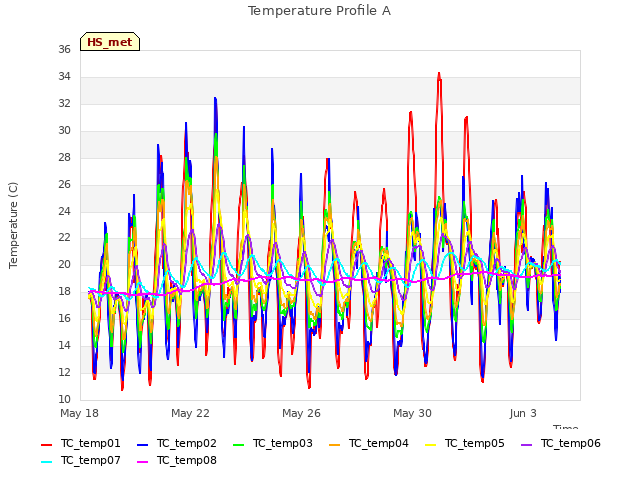

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

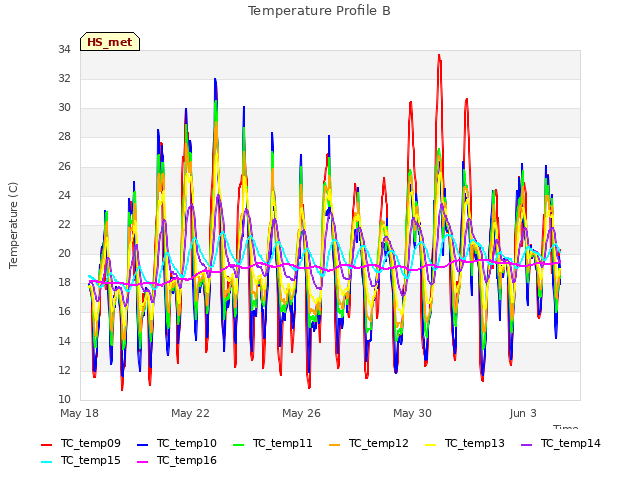

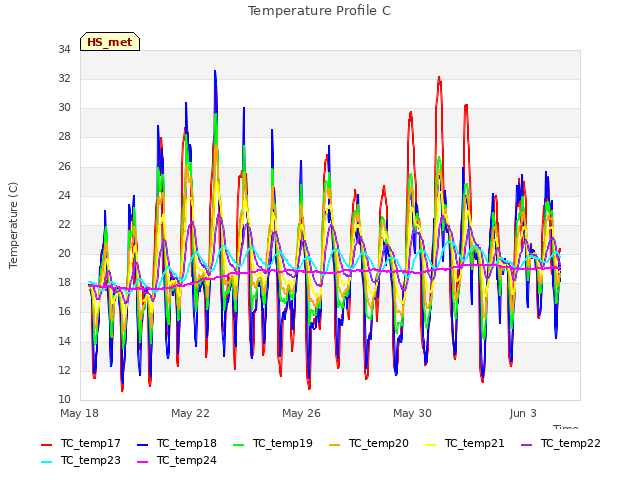

Explore the graph:Temperature Profile C in a new window

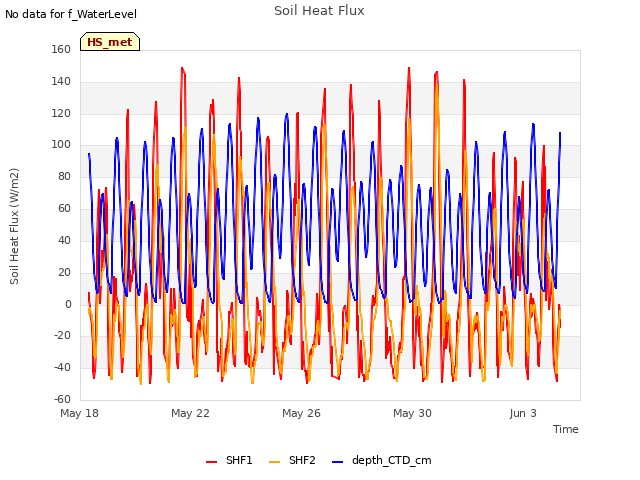

Explore the graph:Soil Heat Flux in a new window

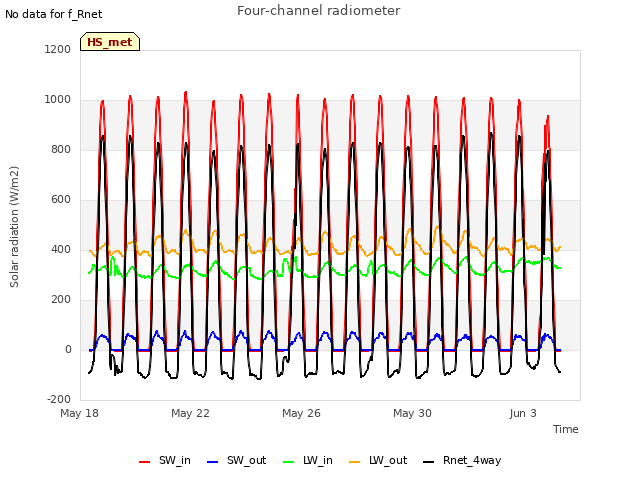

Explore the graph:Four-channel radiometer in a new window

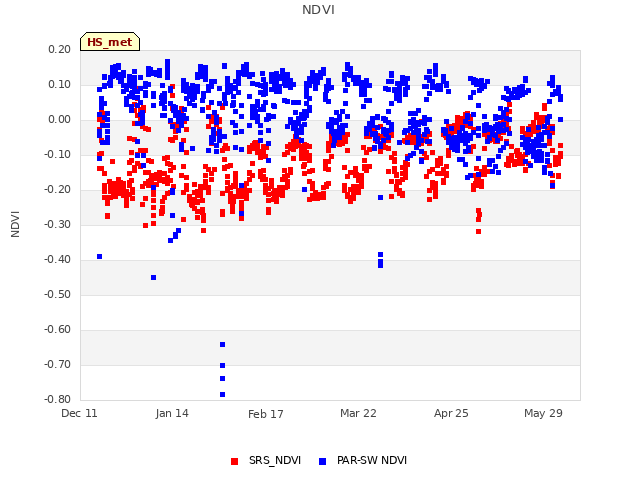

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

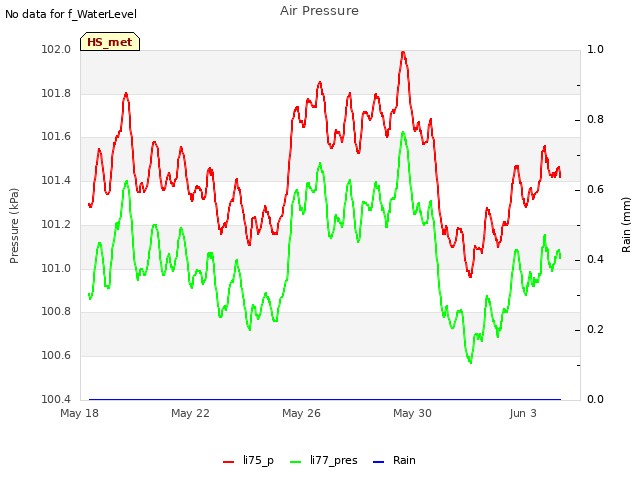

Explore the graph:Air Pressure in a new window

Explore the graph:Air T and RH in a new window

Explore the graph:pCO2 in a new window

Explore the graph:Soil Moisture in a new window

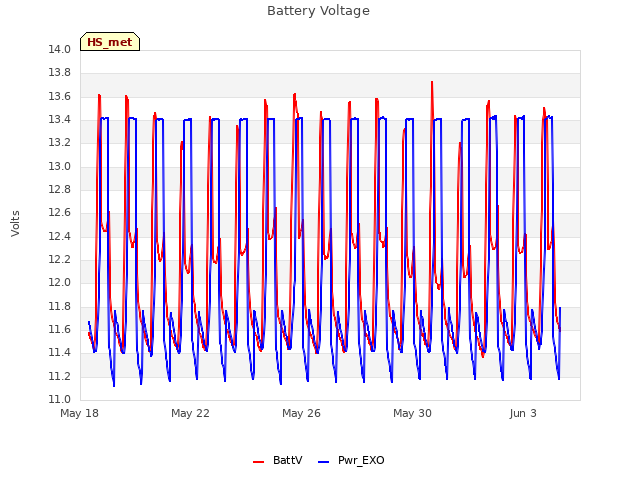

Explore the graph:Battery Voltage in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

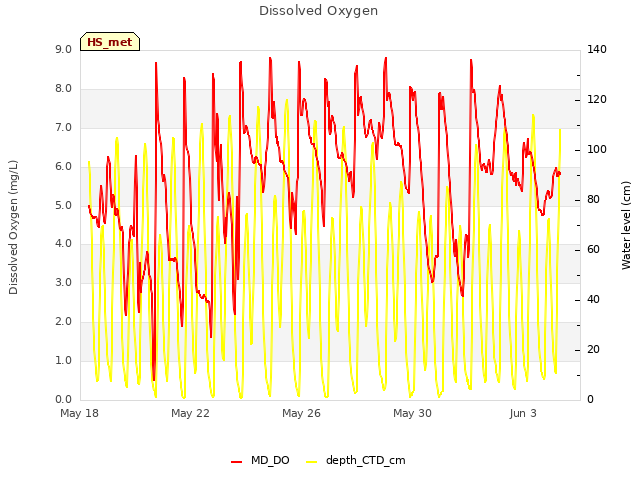

Explore the graph:Dissolved Oxygen in a new window

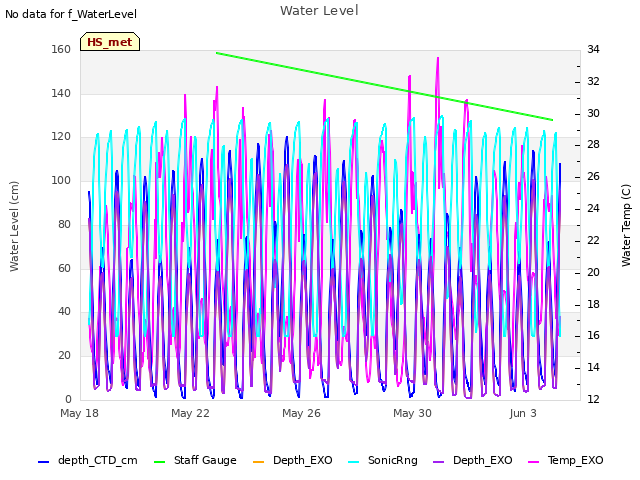

Explore the graph:Water Level in a new window

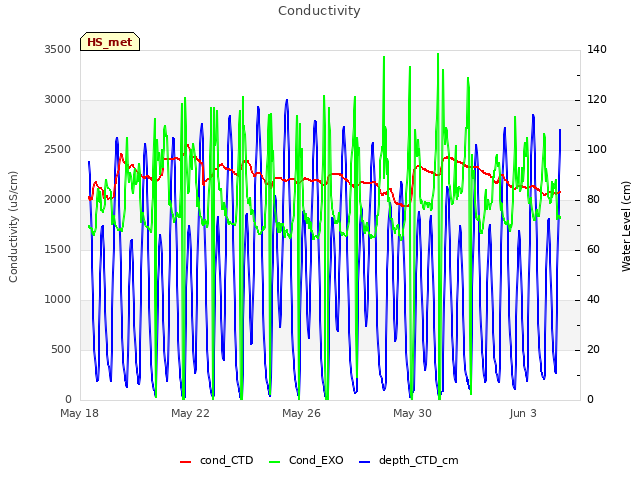

Explore the graph:Conductivity in a new window

Explore the graph:EXO pH + ORP in a new window

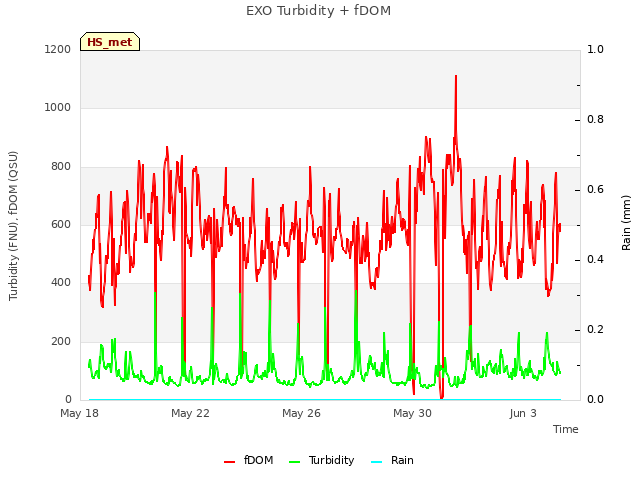

Explore the graph:EXO Turbidity + fDOM in a new window

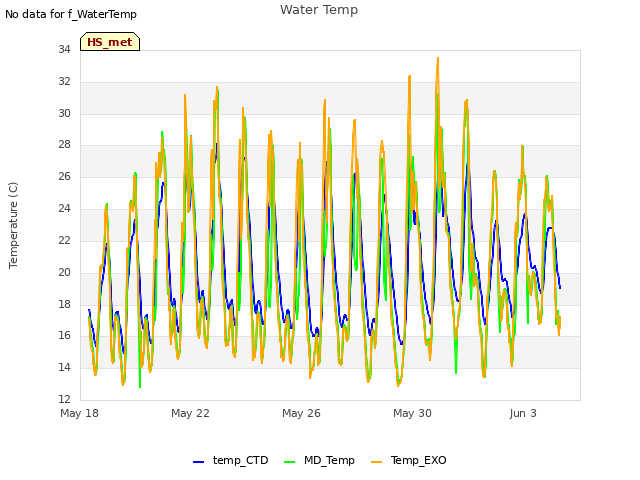

Explore the graph:Water Temp in a new window

4 HS_flux graphs found

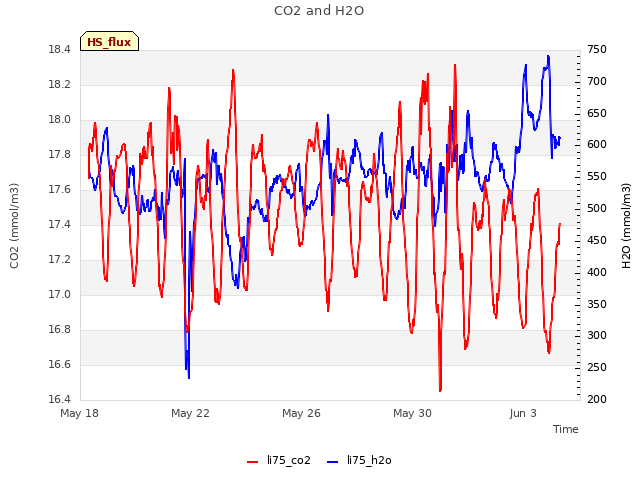

Explore the graph:CO2 and H2O in a new window

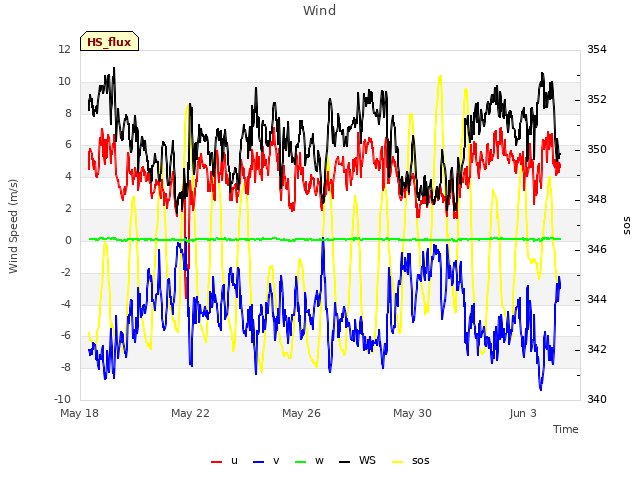

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

1 HS_cam graphs found

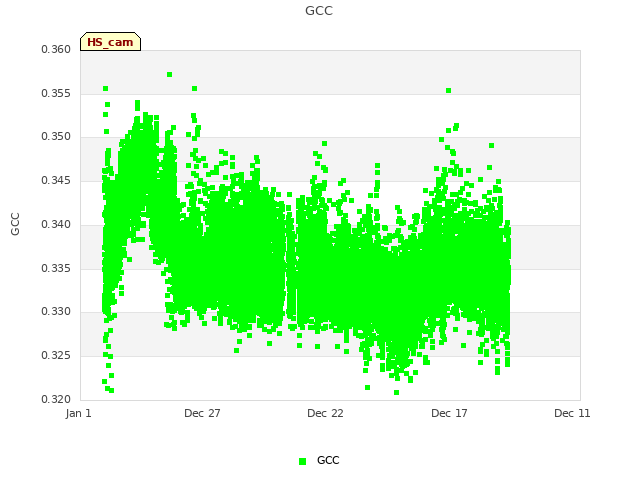

Explore the graph:GCC in a new window

Can't check HS_Processed
2 HS_Processed graphs found

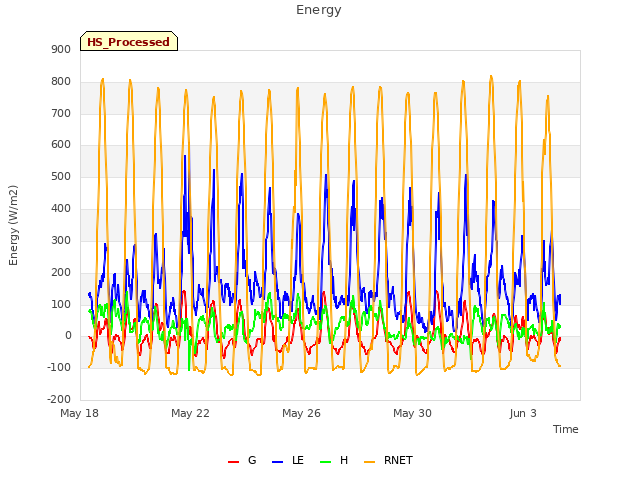

Explore the graph:Energy in a new window

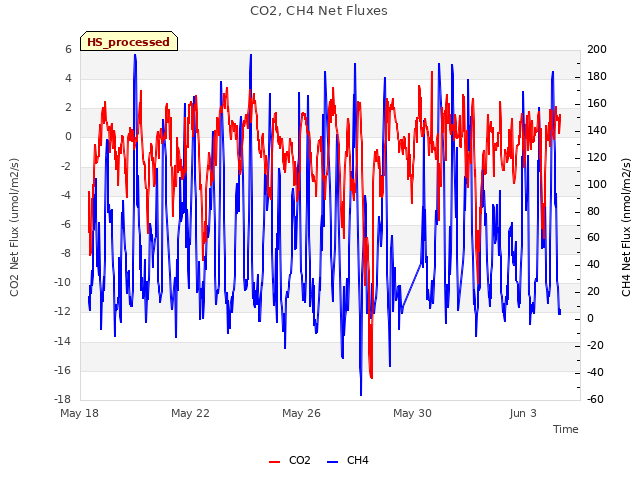

Explore the graph:CO2, CH4 Net Fluxes in a new window
