Vaira: 2024-06-04 08:15:00 (DOY 156)
Author: Joe Verfaillie
Others: Daphne

Summary: Hot day got early start, standard field work, need to do end of year clip plots and clean phenocam window

Vaira
2024-06-04

Daphne and I arrived at about 8:15 PDT. It was clear sunny and warm with a nice breeze oddly from the west. Under heat dome conditions I think we usually have an east wind. The grasses are mostly brown but still a little green mixed in in the low wet places. Veg height is between knee and shoulder – call it 40cm. The grass didn’t feel crispy, but like it had a little moisture. The water hole still had water.

Daphne read the well and did spectral. I collected the met, flux, FD and camera data. All seemed well.
The 7500 read: 447.1ppm CO2, 610.2mmol/m3 H2O, 22.7C, 99.3kPa, 104.2SS

The camera has some spider webs on it that need cleaning next time. I cleaned spider webs off of the eddy sensors and cleaned the radiometers including the Mark 3.

We left at about 8:50 PDT

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2024-06-04VR_well53.32
2024-06-04TZ_floor18.56
2024-06-04TZ_tower23.01
2024-06-04TZ_road28.09
2024-06-04HS5.5

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

1 photos found

Dirt road and brown hills at Vaira
Dirt road and brown hills at Vaira

Graphs display:
9 sets found

16 VR_met graphs found

Explore the graph:Temperatures in a new window

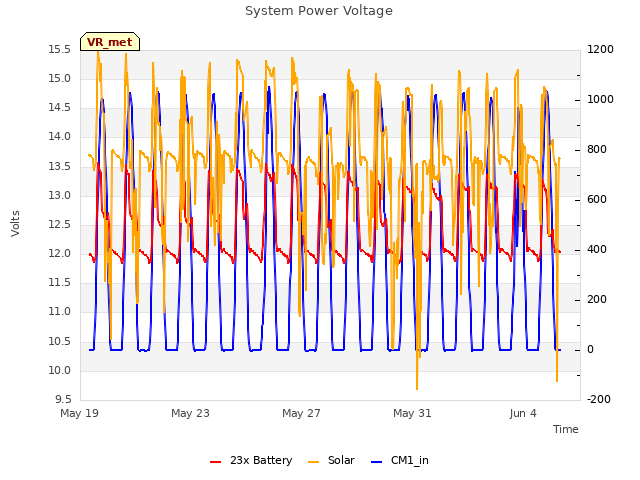

Explore the graph:System Power Voltage in a new window

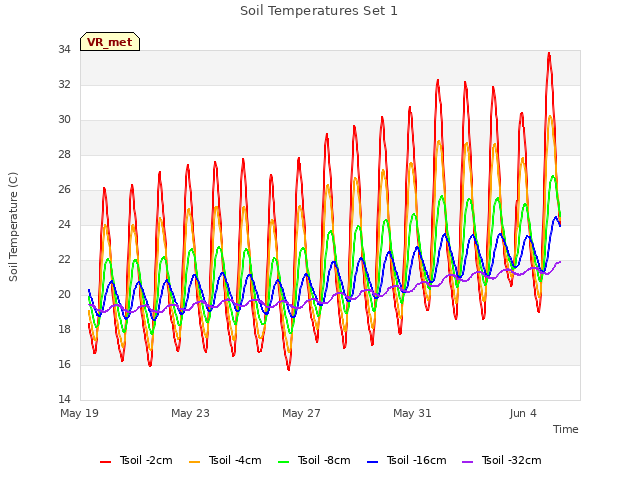

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperature Set 3 in a new window

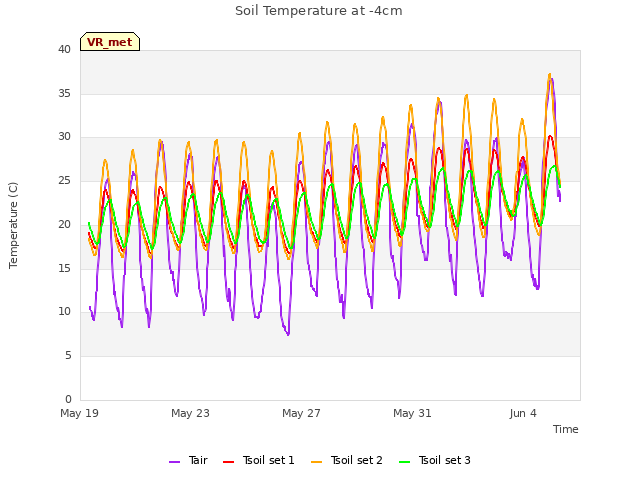

Explore the graph:Soil Temperature at -4cm in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

Explore the graph:Photosynthetic Active Radiation in a new window

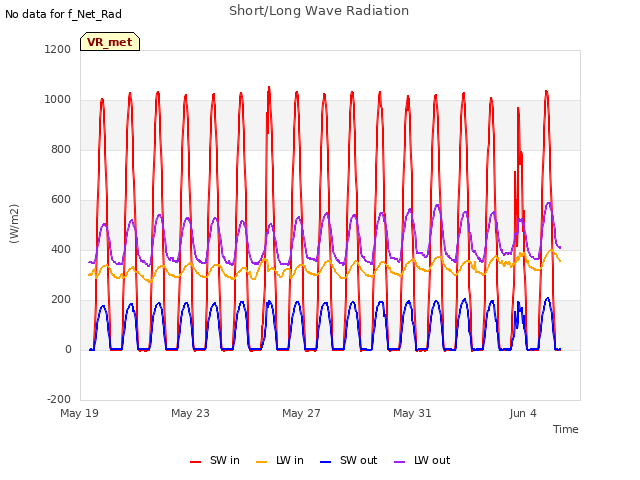

Explore the graph:Short/Long Wave Radiation in a new window

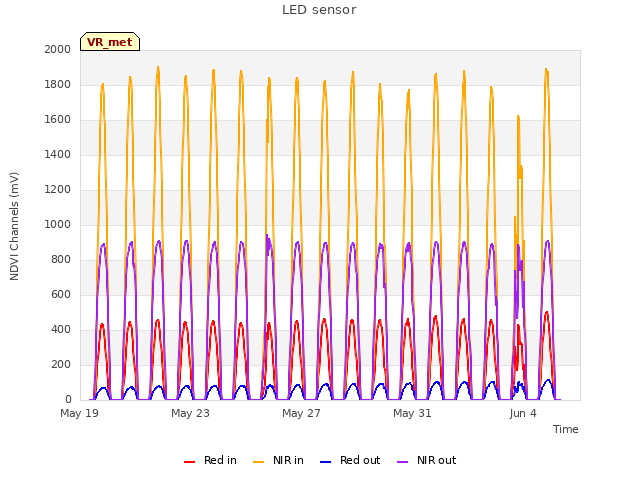

Explore the graph:LED sensor in a new window

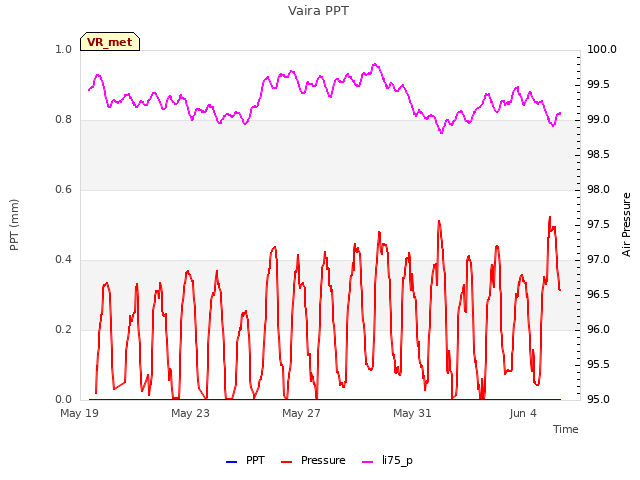

Explore the graph:Vaira PPT in a new window

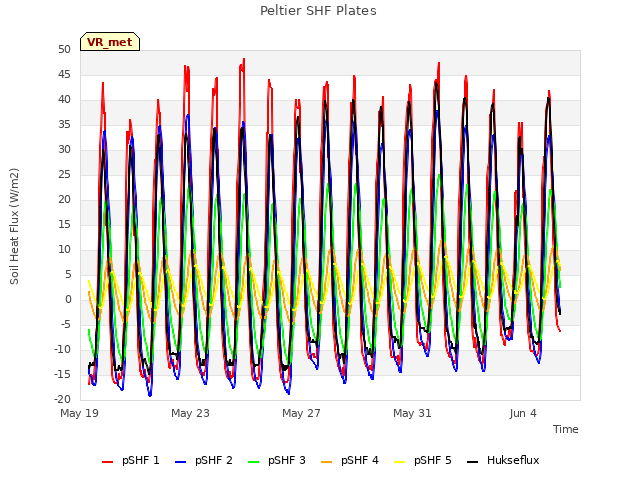

Explore the graph:Peltier SHF Plates in a new window

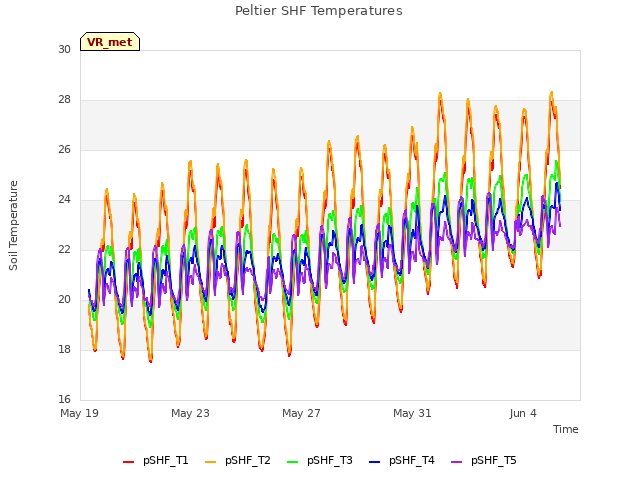

Explore the graph:Peltier SHF Temperatures in a new window

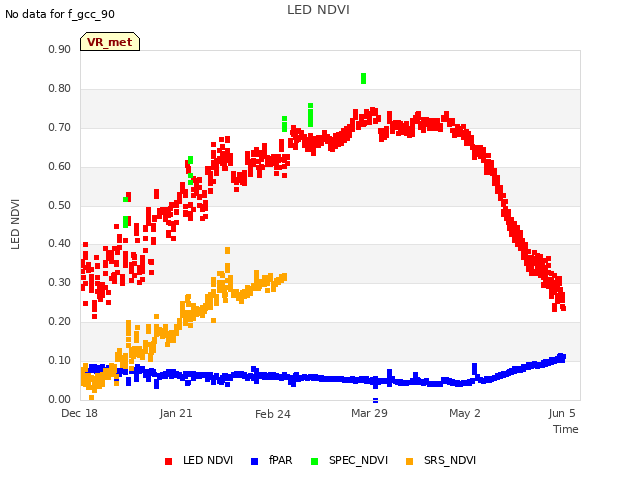

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

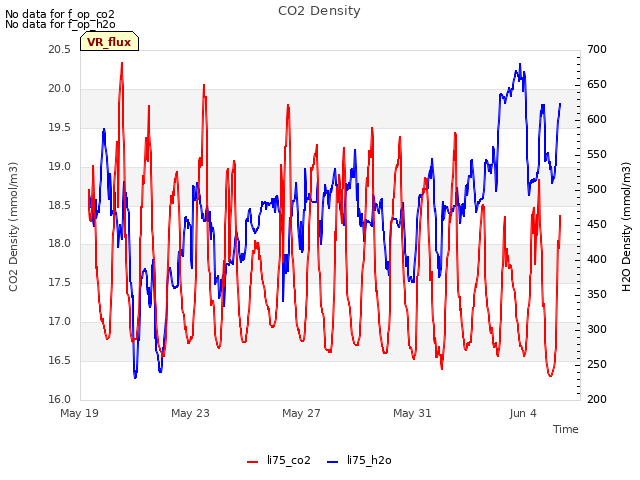

Explore the graph:CO2 Density in a new window

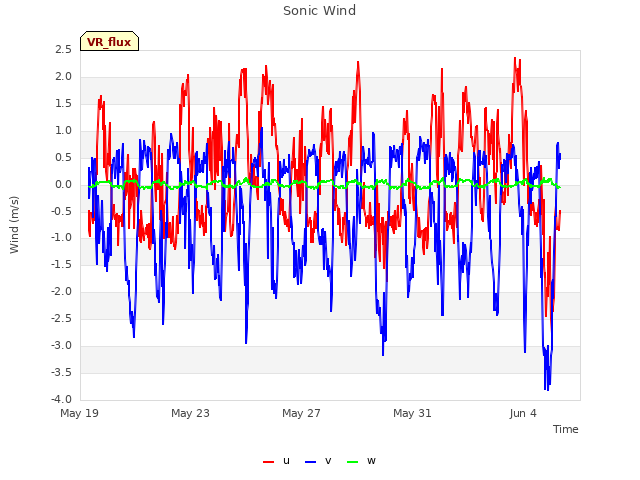

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
2 VR_pond graphs found

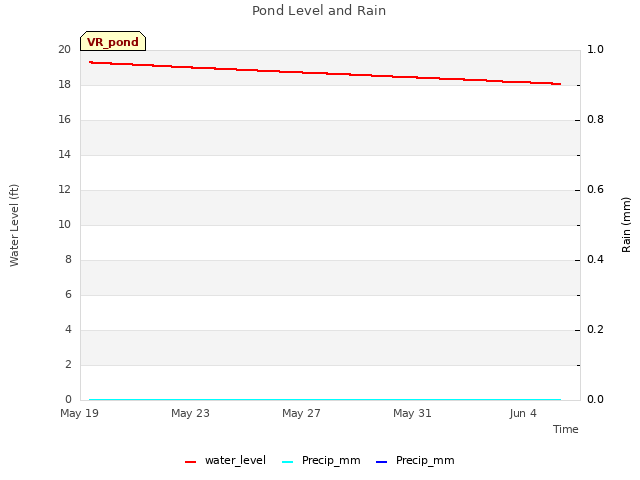

Explore the graph:Pond Level and Rain in a new window

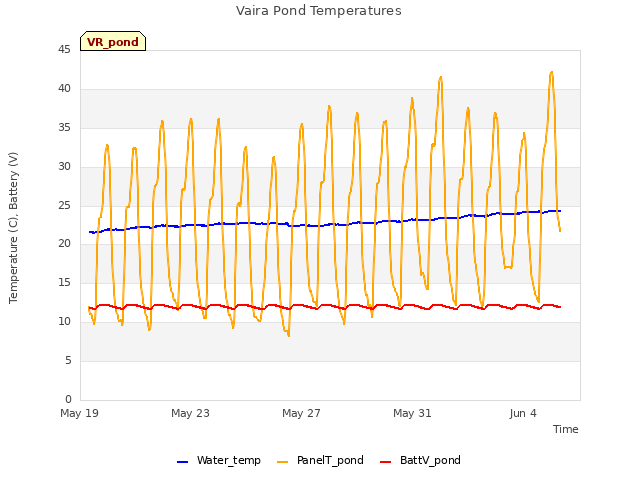

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

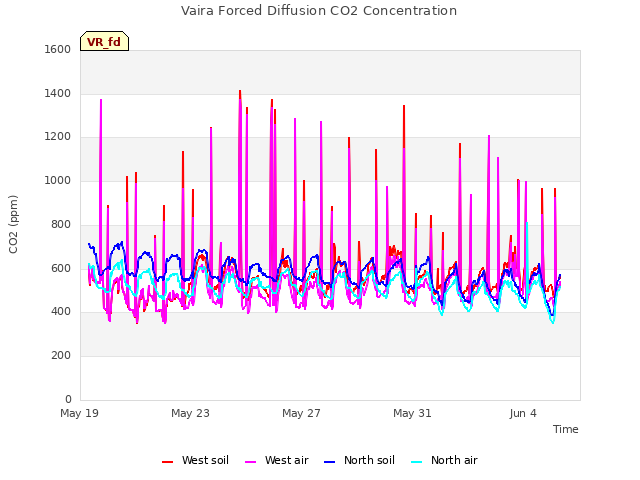

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

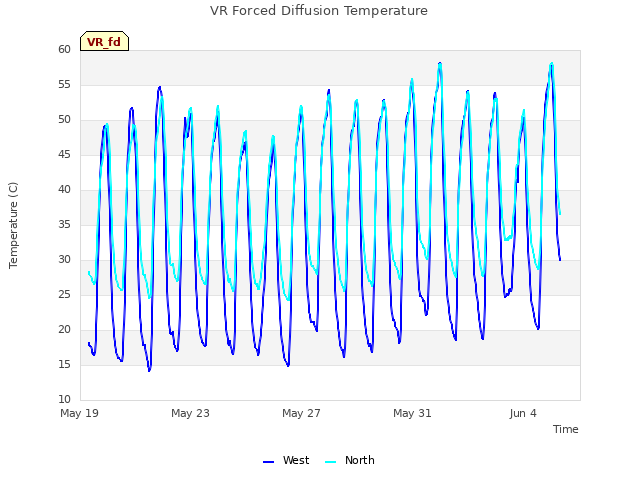

Explore the graph:VR Forced Diffusion Temperature in a new window

No data found for VR_processed.
4 VR_arable graphs found

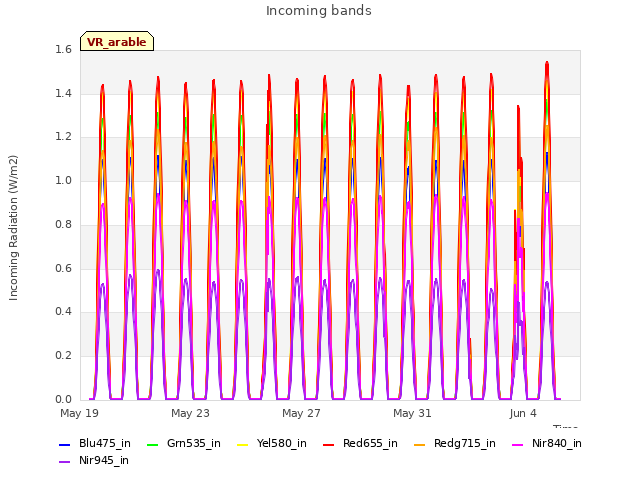

Explore the graph:Incoming bands in a new window

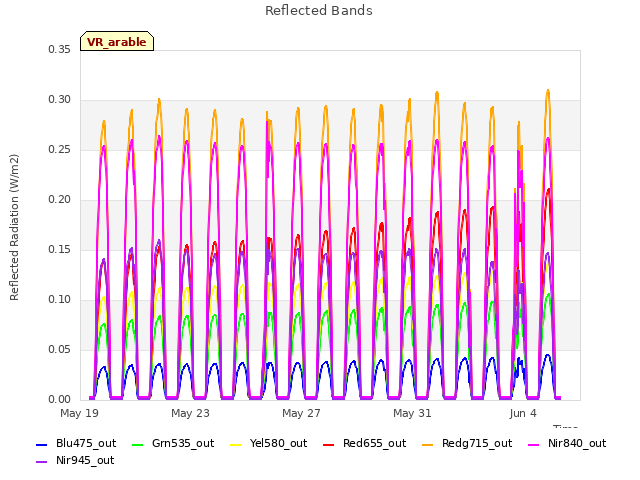

Explore the graph:Reflected Bands in a new window

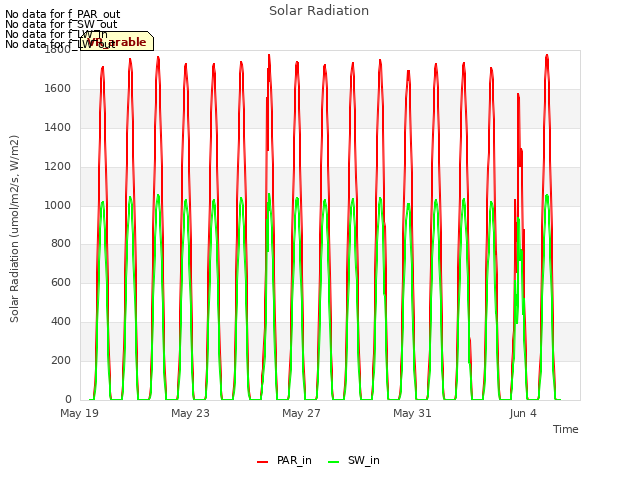

Explore the graph:Solar Radiation in a new window

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

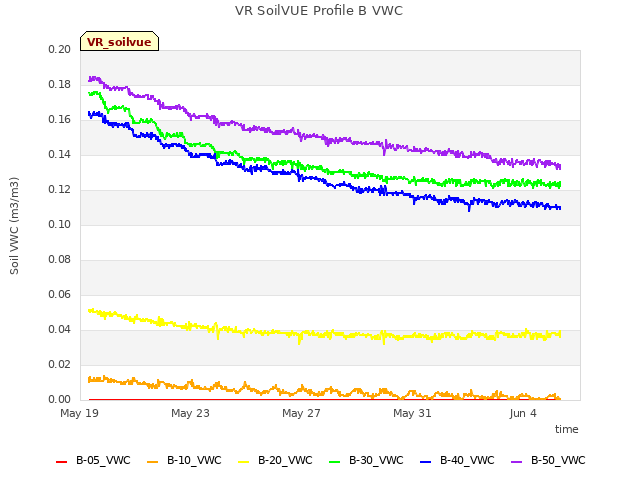

Explore the graph:VR SoilVUE Profile B VWC in a new window

Explore the graph:VR SoilVue B Temperature in a new window

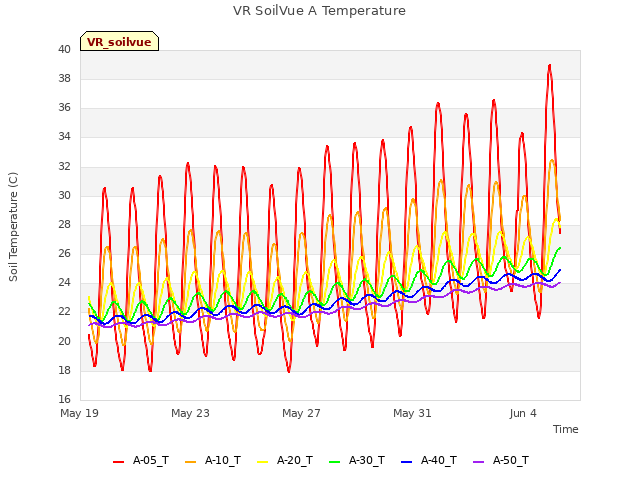

Explore the graph:VR SoilVue A Temperature in a new window

Explore the graph:VR SoilVue C Temperature in a new window

Explore the graph:VR SoilVUE Profile A VWC in a new window

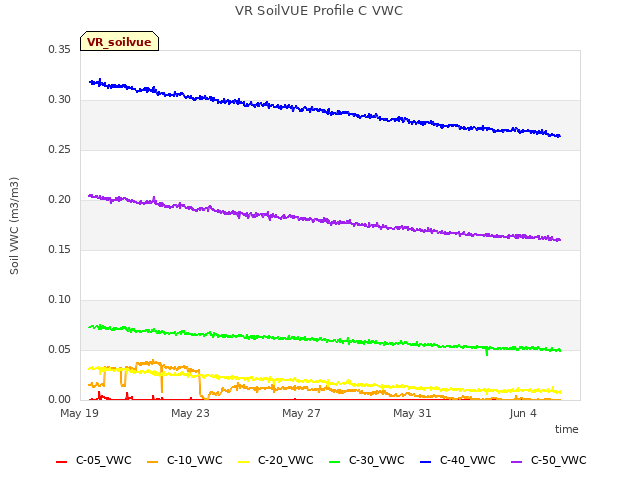

Explore the graph:VR SoilVUE Profile C VWC in a new window
