Other sites visited today: Tonzi

Vaira: 2024-05-08 11:00:00 (DOY 129)
Author: Joe Verfaillie
Others: Daphne

Summary: Standard data collection, grass is high, performance check on west FD - forgot to replace.

Vaira
2024-05-08

Daphne and I arrived at about 11:00 PDT. It was warm and dry with a gusty wind from the north. On the way in from Sacramento we could see snow in the Sierras and a fire burning in the foothills to the east (I can’t find any news on the fire). There was a bit of rain last weekend and there are still puddles on the road today. The grass has grown a lot since I was here last – denser, taller. The trees still look a little thin on leaves but not much of the bright green of fresh leaves left. The usual keyed lock on the gate was out of the loop and another combo lock was added. A combo I got from Dale in December last year let us in and let us put the usual lock in the loop.

Daphne did the well measurement, veg height and spectral measurements. I collected the flux, met, camera and FD data.
The 7500 read: 415ppm CO2, 359.7mmol/m3 H2O, 22.7C, 99.4kPa, 103.3SS

The radiometers were clean and I knocked some weeds down around the solar panels. Daphne pulled some mustard plants.

I ran a performance check on the west FD chamber. It was reading about 878ppm and was reset to 400. I turned the FD chamber upside down to expose both chambers to ambient CO2, but forgot to put it back afterwards. We will be out next week to work at Tonzi and can fix it then.

We left at about 11:40 PDT.

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2024-05-08VR_well52.21
2024-05-08TZ_floor18.28
2024-05-08TZ_tower22.34
2024-05-08TZ_road27.4

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

Grass Height VR 15

DateHeight reps (cm)LocationAverageSampSTDEV
2024-05-0829 69 76 67 70 65 94 83 92 71 77 86 73 64 100 GH_ALL

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

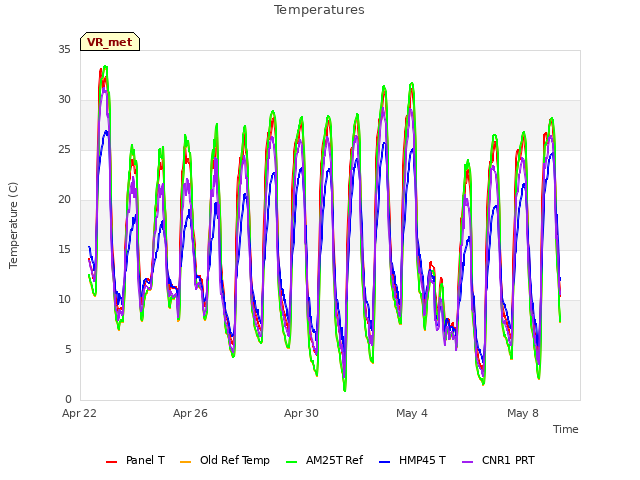

Explore the graph:Temperatures in a new window

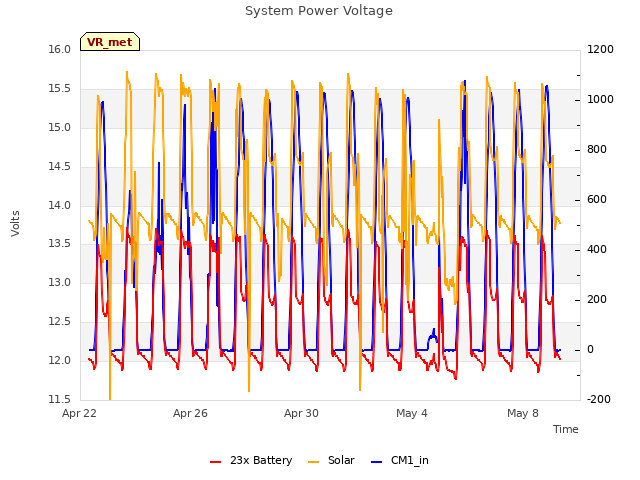

Explore the graph:System Power Voltage in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Soil Temperature at -4cm in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

Explore the graph:Photosynthetic Active Radiation in a new window

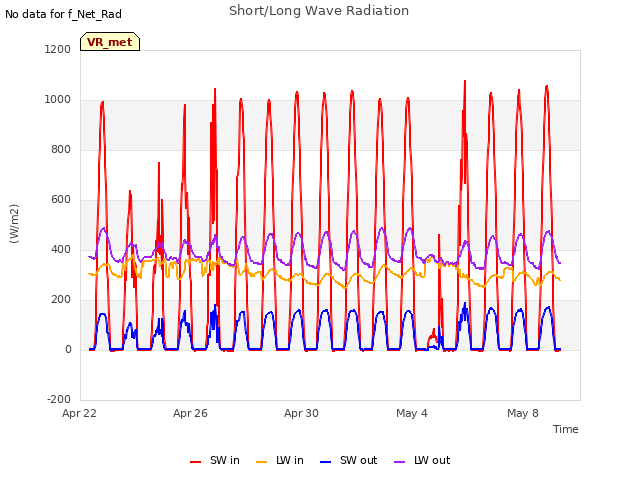

Explore the graph:Short/Long Wave Radiation in a new window

Explore the graph:LED sensor in a new window

Explore the graph:Vaira PPT in a new window

Explore the graph:Peltier SHF Plates in a new window

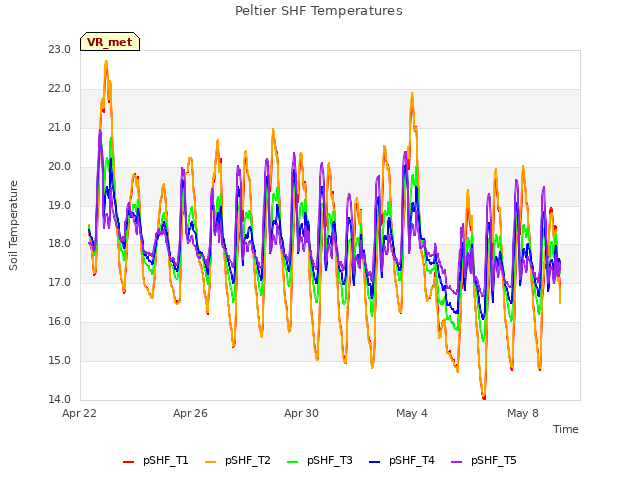

Explore the graph:Peltier SHF Temperatures in a new window

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

Explore the graph:CO2 Density in a new window

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
2 VR_pond graphs found

Explore the graph:Pond Level and Rain in a new window

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

Explore the graph:VR Forced Diffusion Temperature in a new window

No data found for VR_processed.
4 VR_arable graphs found

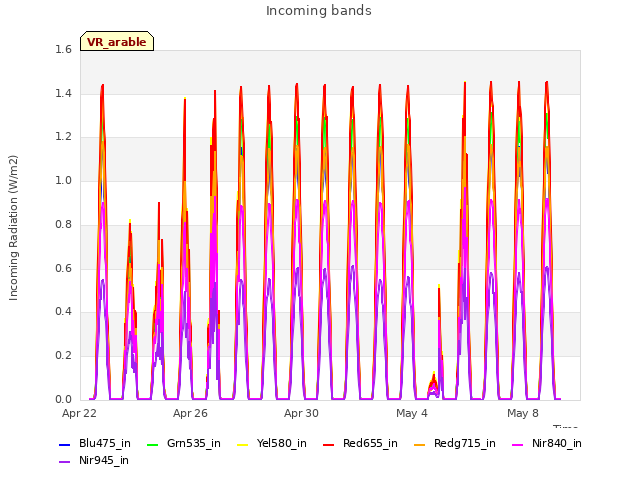

Explore the graph:Incoming bands in a new window

Explore the graph:Reflected Bands in a new window

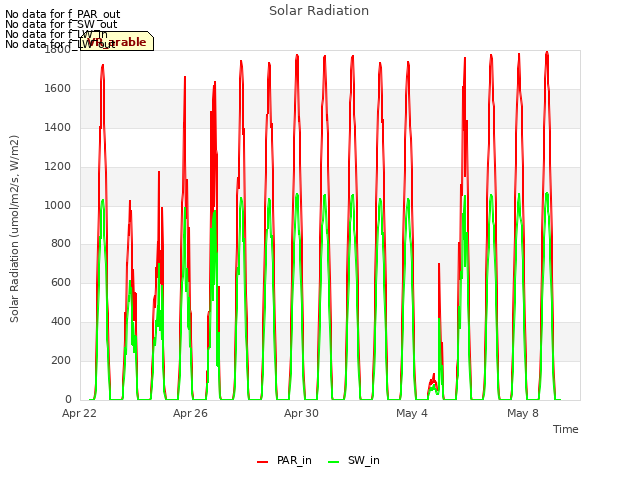

Explore the graph:Solar Radiation in a new window

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

Explore the graph:VR SoilVUE Profile B VWC in a new window

Explore the graph:VR SoilVue B Temperature in a new window

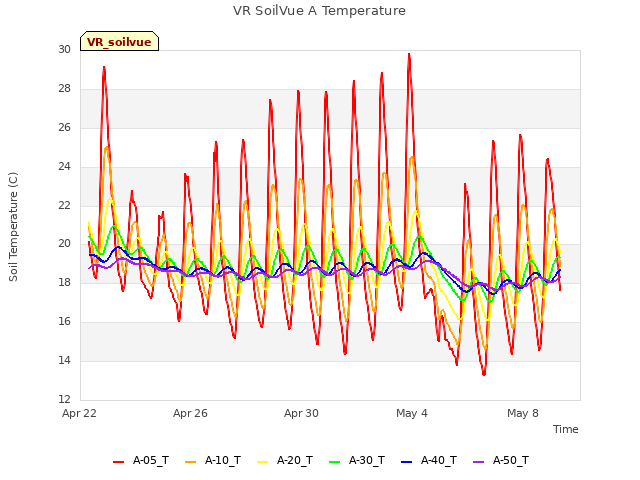

Explore the graph:VR SoilVue A Temperature in a new window

Explore the graph:VR SoilVue C Temperature in a new window

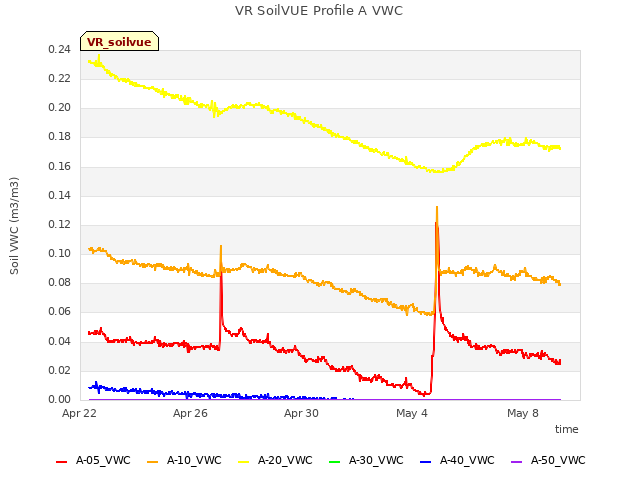

Explore the graph:VR SoilVUE Profile A VWC in a new window

Explore the graph:VR SoilVUE Profile C VWC in a new window
