Vaira: 2023-12-13 11:30:00 (DOY 347)
Author: Joe Verfaillie
Others:

Summary: Standard data collection, saw Dale Vaira, well being drilled on property further in, removed north FD chamber for use at Tonzi.

Vaira
2023-12-13

I arrived at 11:30 PST. It was a beautiful sunny and mild winter day. The trees still have a lot of leaves and more colorful than I remember. I think it has been warm this fall without big storms to knock the leaves off. The gate was held closed by the bungee cord. The usual keyed lock was missing and an additional combo lock was on the chain. I let myself in hoping I wouldn’t get locked in.

While I was at the site a truck came passed with a National Resources Conservation Service (NRCS) employee. I gave him my contact info as he expressed interest in the met data from the tower and he gave me one of the lock combinations. Later I met Dale Vaira and his friend Larry out near the pond. Dale said one of the land holder further in was having a well drilled which probably was the reason for the NRCS and extra lock. Dale also gave the combo for the usual combo lock – just in case. Dale and Larry were doing target practice with a scope on a 22 rifle and later were going to test a pistol like thing called a launcher. The launcher is a non-lethal, co2 cartridge power weapon for home defense that shoots plastic marbles. They put the guns away and had lunch while I went to the pond. Dale also had the keyed lock which he would put back on the gate on their way out.

Old combo: 1984
New lock: 8592 – this will probably disappear after the well is done.

At the site I measured the well and did the usual data collection. I collected the flux, met, camera and FD data. The camera had bumped its date back to April (basically swapped the month 12 for 4) like it does at the end of every year.
The 7500 read: 445.4ppm CO2, 362.9mmol/m3 H2O, 23.2C, 99.9kPa, 112.0SS
The thermistor gets some sun heating it, I should think about a shade for it.

I removed the north FD chamber sn FD20200001 to use under the tree at Tonzi while we wait for Eosense to repair a chamber. I left the stakes and zip ties on the data box and the cable end blowing in the wind. I hope the rain next week won’t get it too wet. The wire arms went with the FD to Tonzi.

I checked the radiometers and the tipping bucket – all were pretty clean. I did spectral measurements.

I left at 13:00 PST

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2023-12-13VR_well60.6
2023-12-13VR_pond13.77
2023-12-13TZ_floor29.15
2023-12-13TZ_road37.65
2023-12-13TZ_tower33.9

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

1 photos found

The trees have more fall colors than I remember this year
The trees have more fall colors than I remember this year

Graphs display:
9 sets found

16 VR_met graphs found

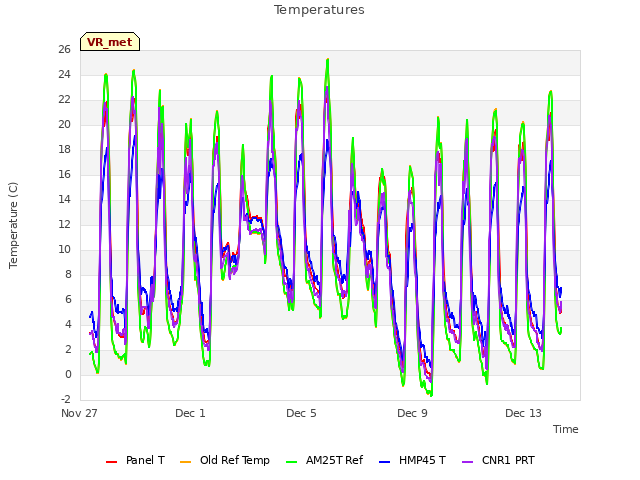

Explore the graph:Temperatures in a new window

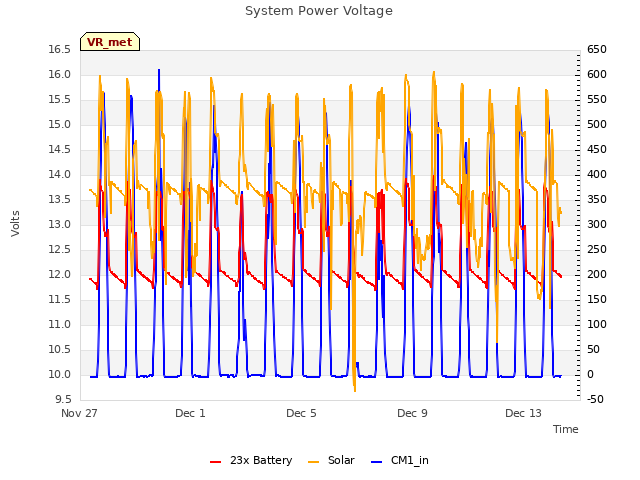

Explore the graph:System Power Voltage in a new window

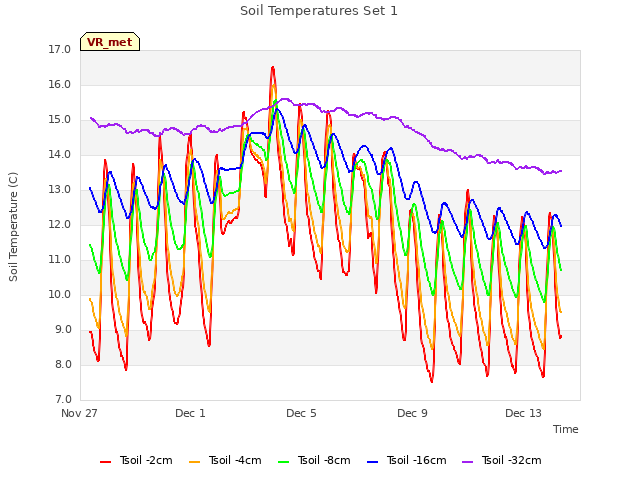

Explore the graph:Soil Temperatures Set 1 in a new window

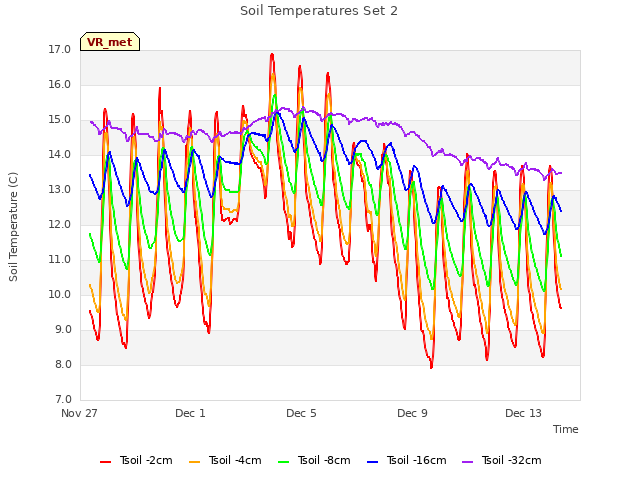

Explore the graph:Soil Temperatures Set 2 in a new window

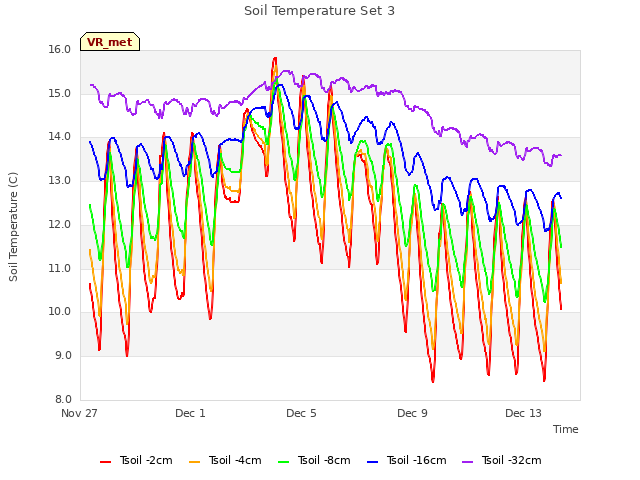

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Soil Temperature at -4cm in a new window

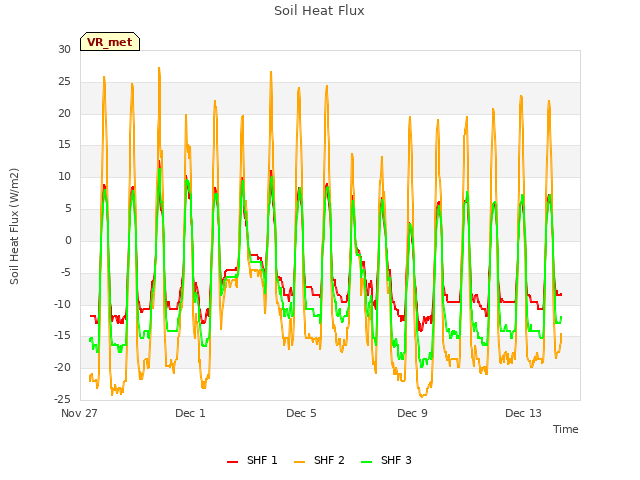

Explore the graph:Soil Heat Flux in a new window

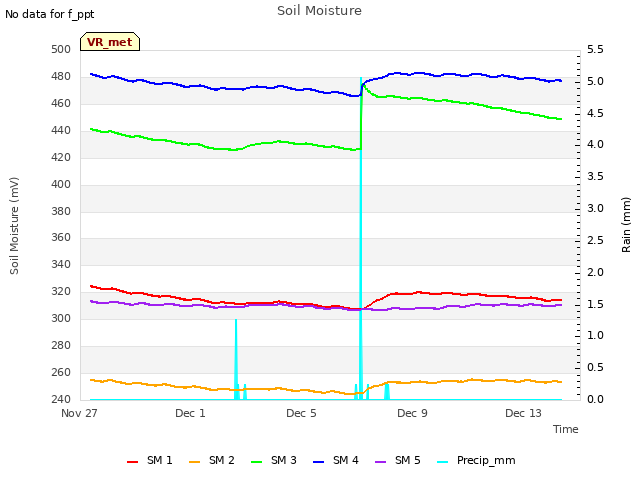

Explore the graph:Soil Moisture in a new window

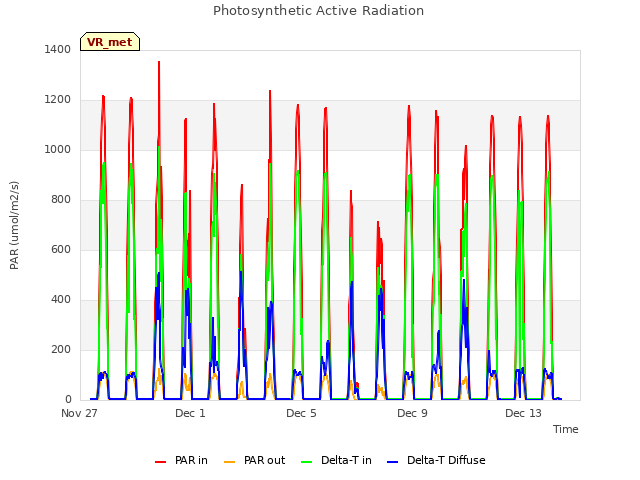

Explore the graph:Photosynthetic Active Radiation in a new window

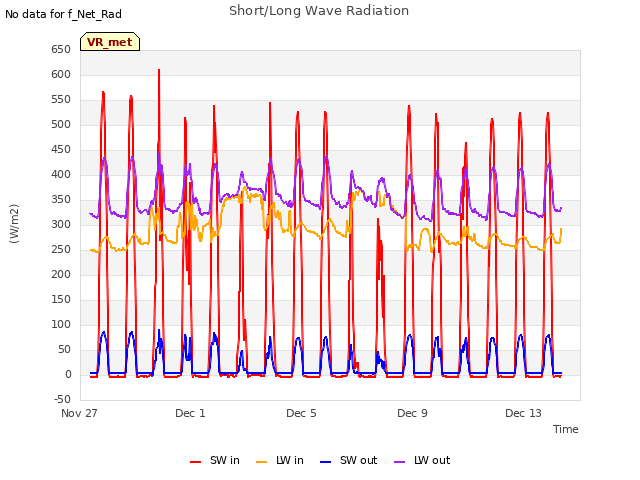

Explore the graph:Short/Long Wave Radiation in a new window

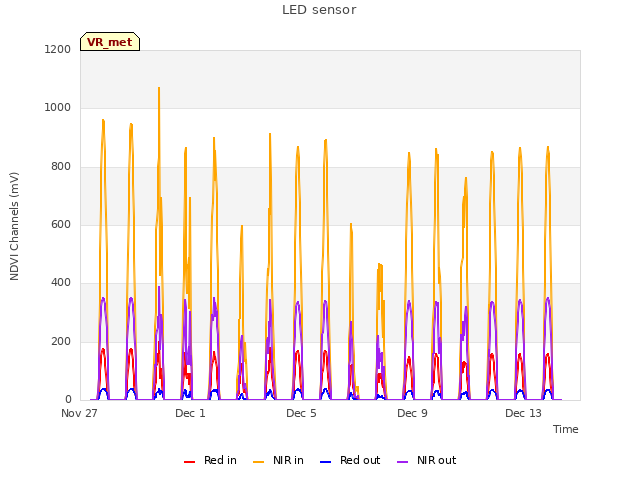

Explore the graph:LED sensor in a new window

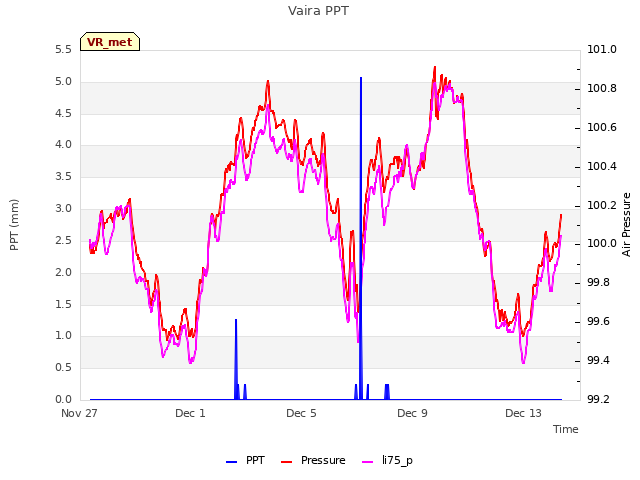

Explore the graph:Vaira PPT in a new window

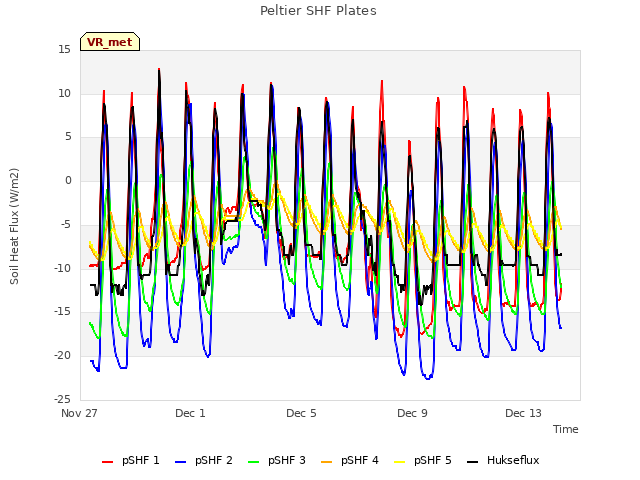

Explore the graph:Peltier SHF Plates in a new window

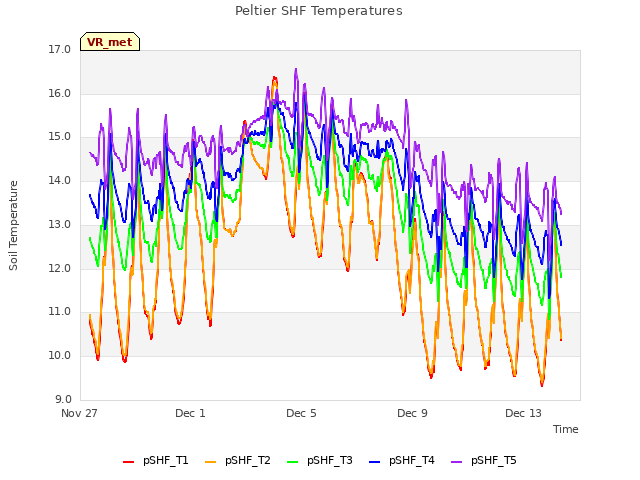

Explore the graph:Peltier SHF Temperatures in a new window

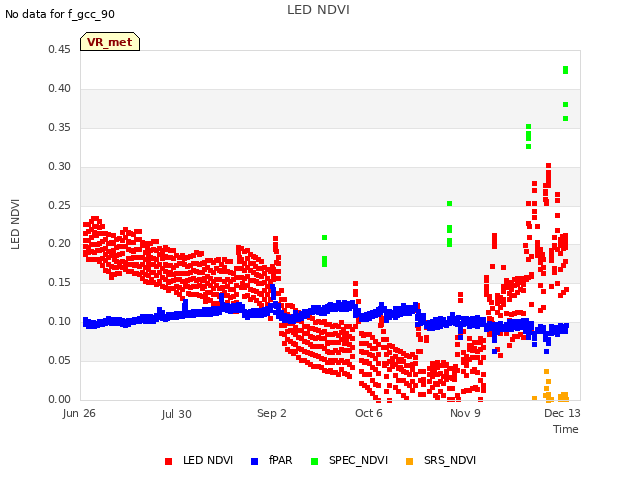

Explore the graph:LED NDVI in a new window

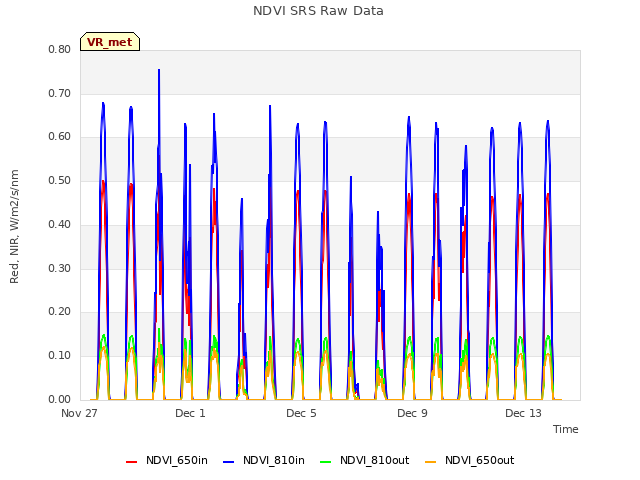

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

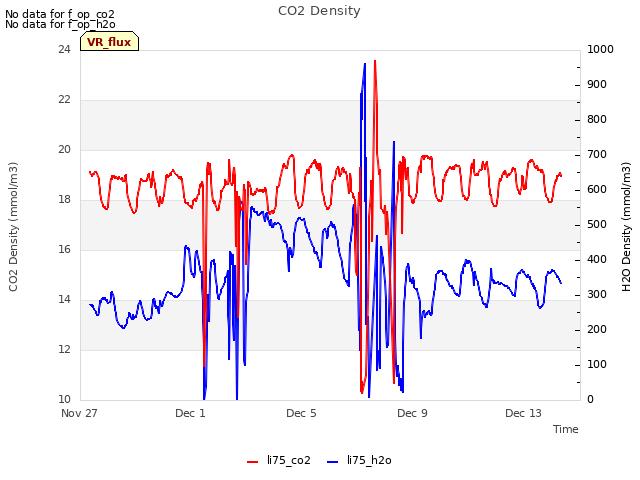

Explore the graph:CO2 Density in a new window

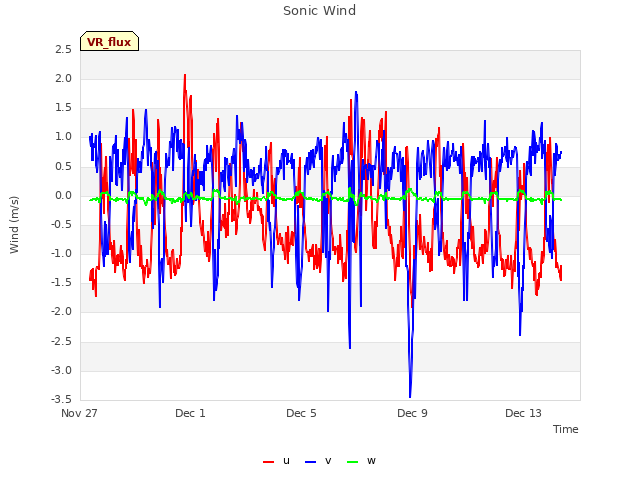

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
2 VR_pond graphs found

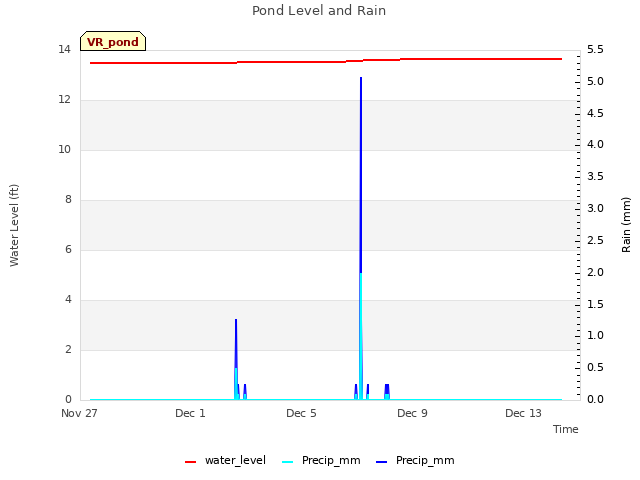

Explore the graph:Pond Level and Rain in a new window

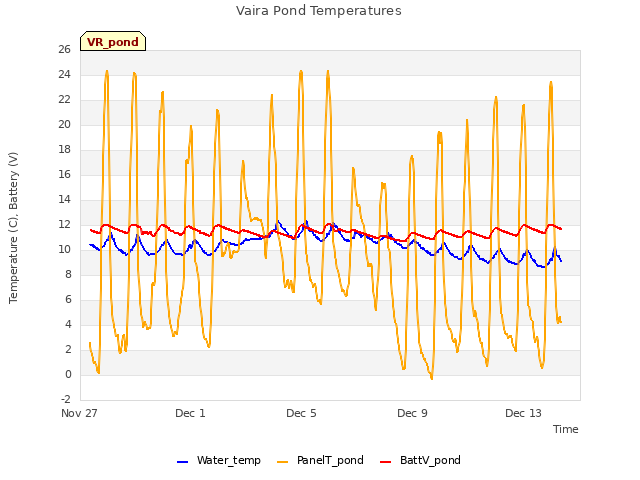

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

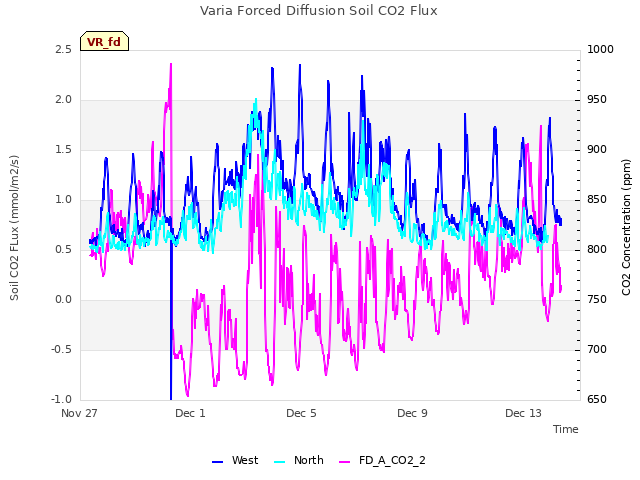

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

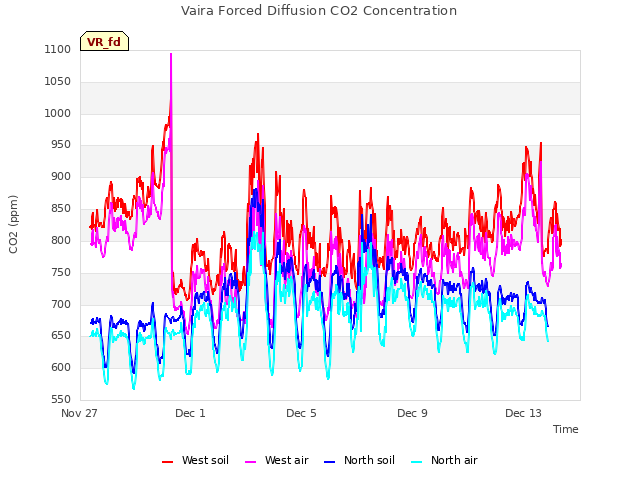

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

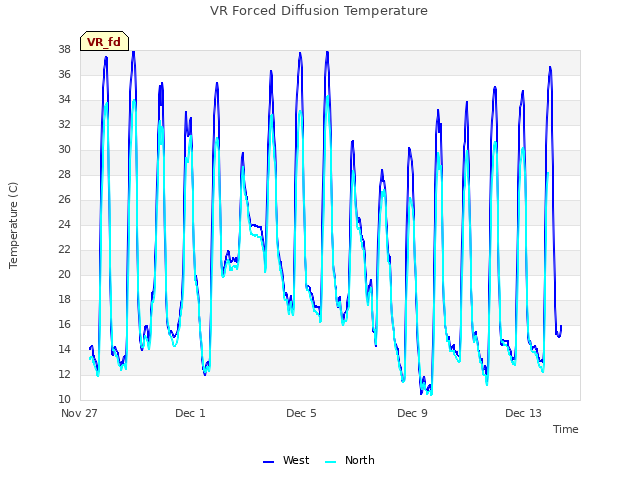

Explore the graph:VR Forced Diffusion Temperature in a new window

4 VR_processed graphs found

Explore the graph:VR VPD in a new window

Explore the graph:NEE in a new window

Explore the graph:Soil Water Content in a new window

Explore the graph:Gap Filled GPP in a new window

4 VR_arable graphs found

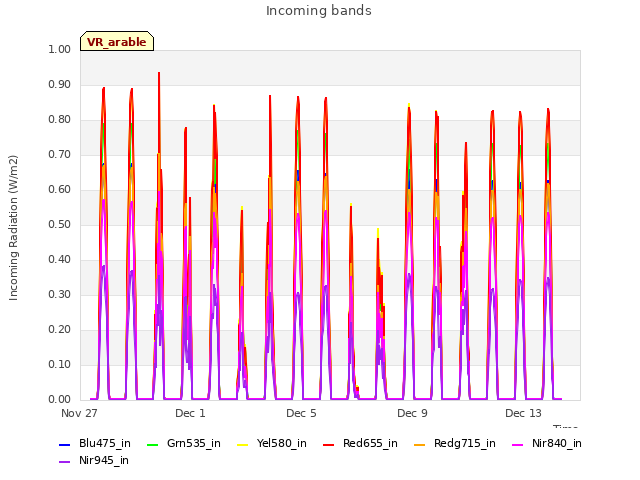

Explore the graph:Incoming bands in a new window

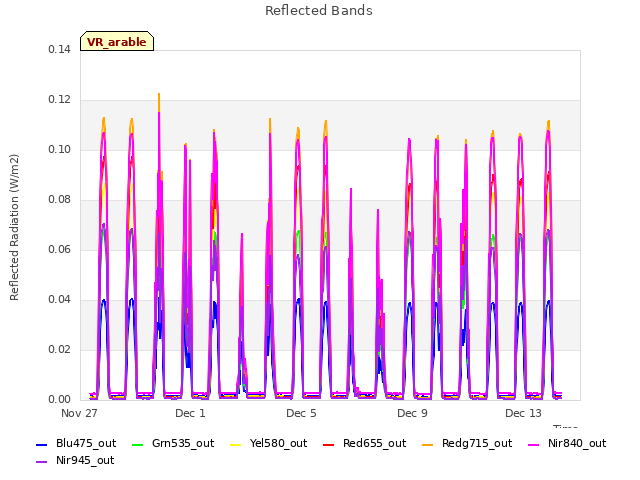

Explore the graph:Reflected Bands in a new window

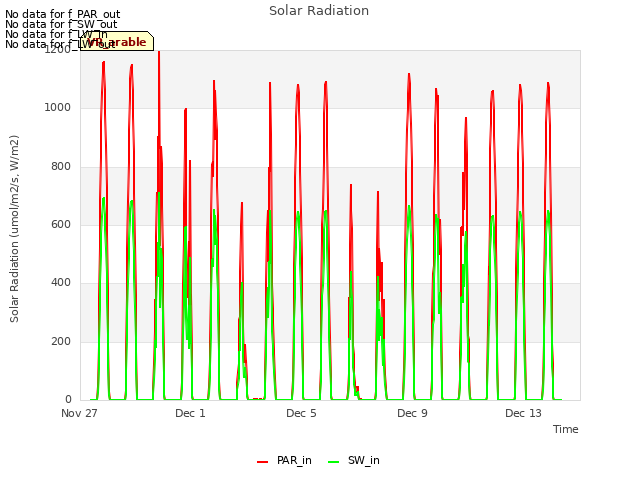

Explore the graph:Solar Radiation in a new window

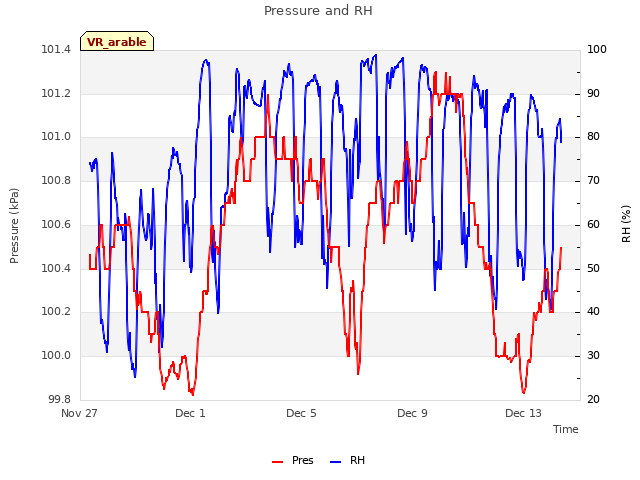

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

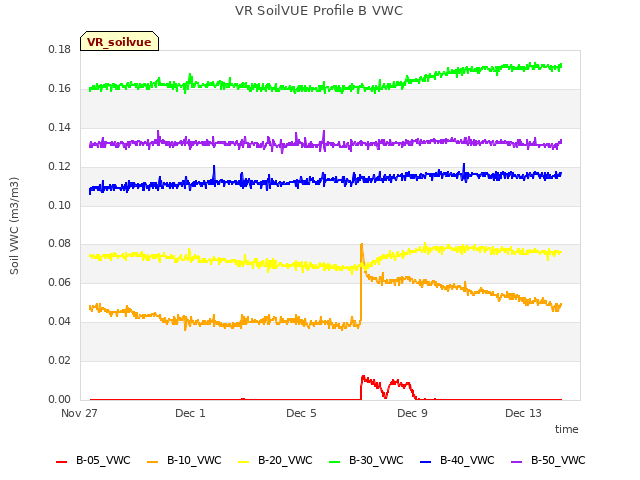

Explore the graph:VR SoilVUE Profile B VWC in a new window

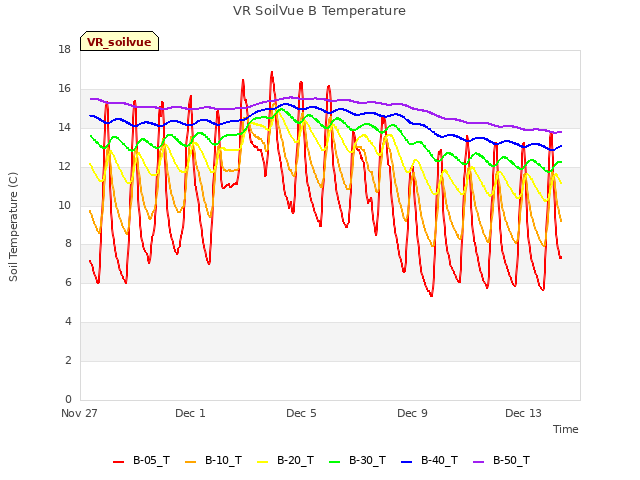

Explore the graph:VR SoilVue B Temperature in a new window

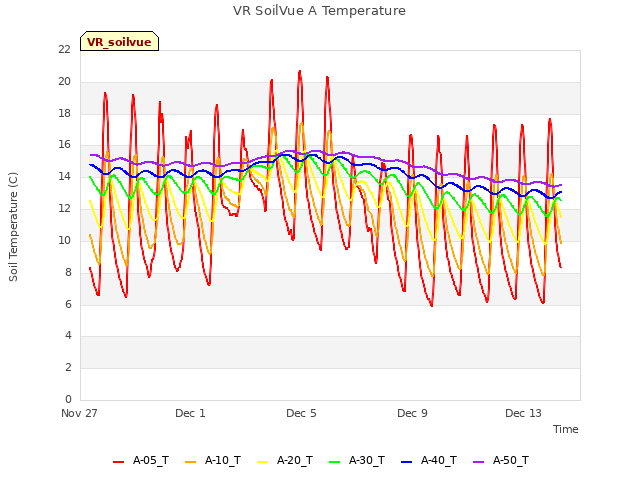

Explore the graph:VR SoilVue A Temperature in a new window

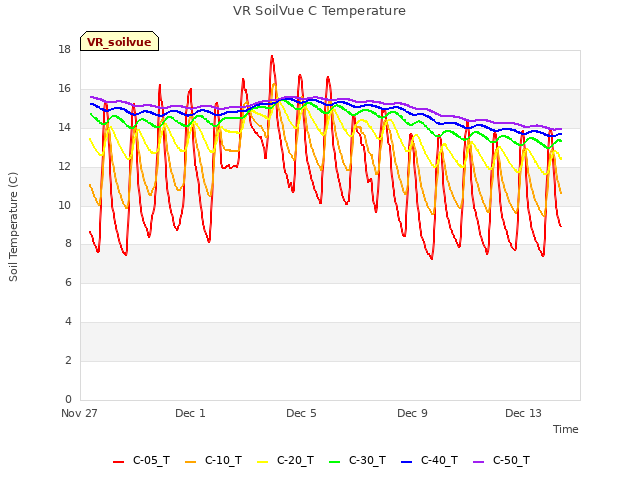

Explore the graph:VR SoilVue C Temperature in a new window

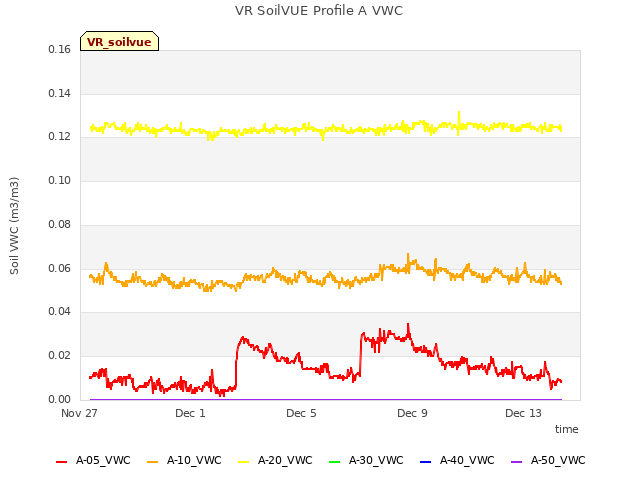

Explore the graph:VR SoilVUE Profile A VWC in a new window

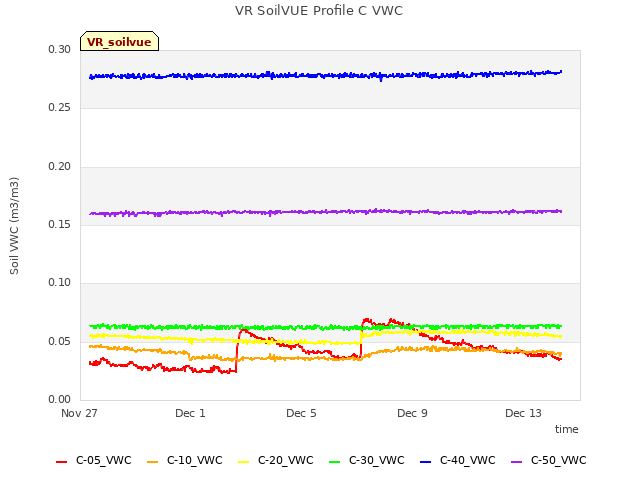

Explore the graph:VR SoilVUE Profile C VWC in a new window
