Vaira: 2024-01-02 10:20:00 (DOY 2)
Author: Joe Verfaillie
Others: Kyoko, Hisashi

Summary: End of year field work, swapped 7500 for calibration, all seems well

Vaira
2024-01-02

I arrived at about 10:20 with Kyoko and Hisashi. The Delta and Central Valley were socked in with fog. Here there is a low overcast occasionally broken with a bit of blue sky and sun. It’s cool with a breeze from the south. There has been some recent storms and more rain to come. The trees are mostly bare and the grass is just biding its time.

Hisashi and Kyoko measured the well. I collected the flux, met, camera and FD data. I swapped the 7500 for calibration: sn 0065 came off and sn 0035 went on.
0065 read: 452.3ppm CO2, 417.2mmol/m3, 10.4C, 100.4kPa, 112.0SS
0035 read: 452.2ppm CO2, 394.9mmol/m3, 10.3C, 100.4kPa, 100.5SS
After I updated the pressure coefficients I reset the box.

The Delta-T had a bunch of dew on the outside. The radiometers and tipping buck were clean.

I tried to do spectra measurements but the sun was a little variable. I did an upward sample and the beginning and end.

I turned on the fence charger – the wire looked clean.

We went to the pond. We saw something we think might have been a bob cat moving at speed across the pasture to the east of the turn to the pond. At first I thought it might be a mountain lion but it seem to have a short tail.

We left at about 11:10 PST.

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2024-01-02VR_well60.85
2024-01-02VR_pond14.53
2024-01-02TZ_road37.9
2024-01-02TZ_floor29.6
2024-01-02TZ_tower34.35

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

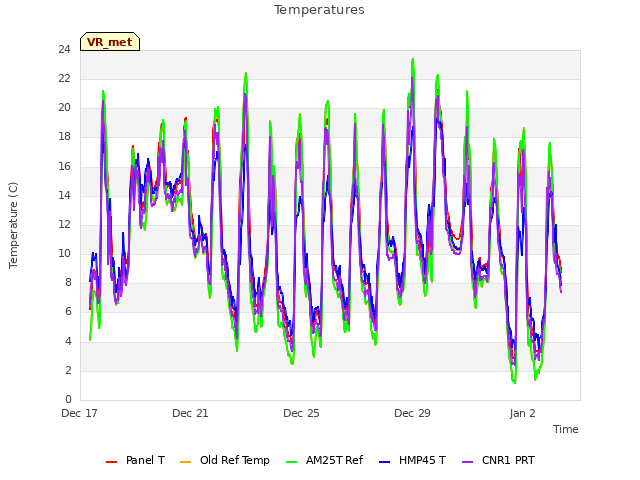

Explore the graph:Temperatures in a new window

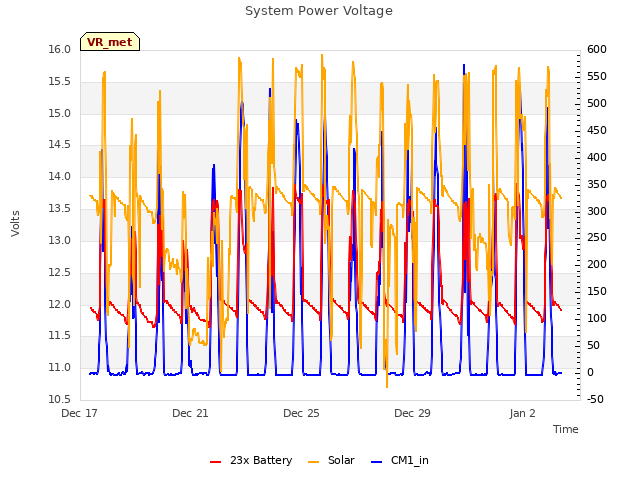

Explore the graph:System Power Voltage in a new window

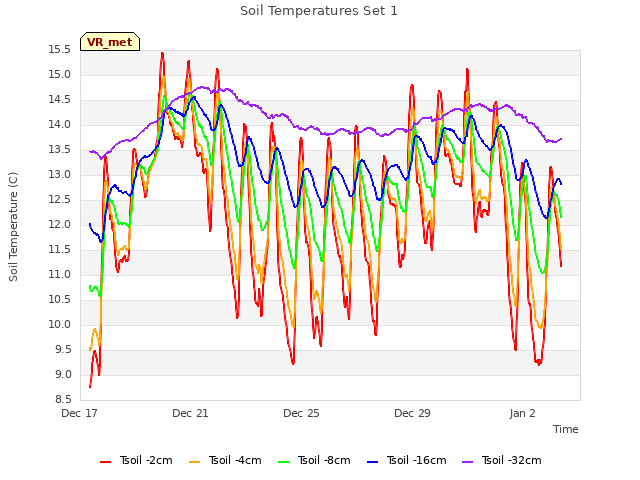

Explore the graph:Soil Temperatures Set 1 in a new window

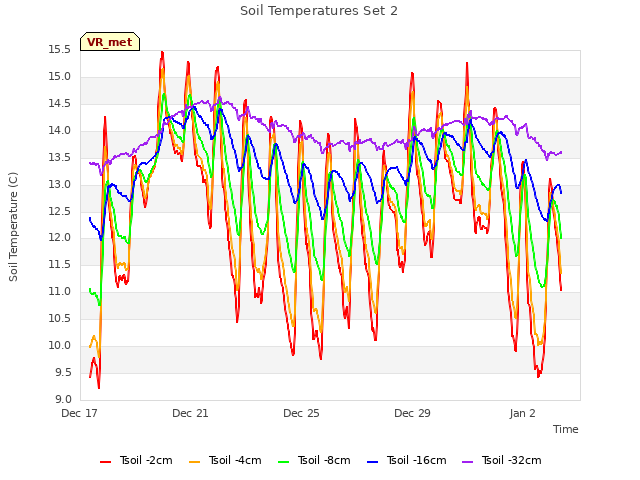

Explore the graph:Soil Temperatures Set 2 in a new window

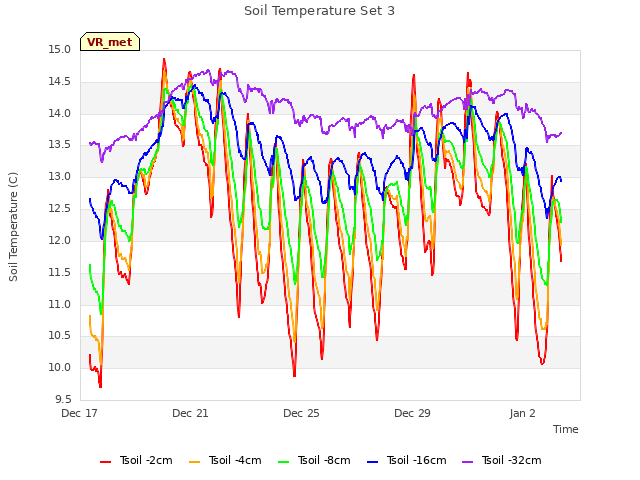

Explore the graph:Soil Temperature Set 3 in a new window

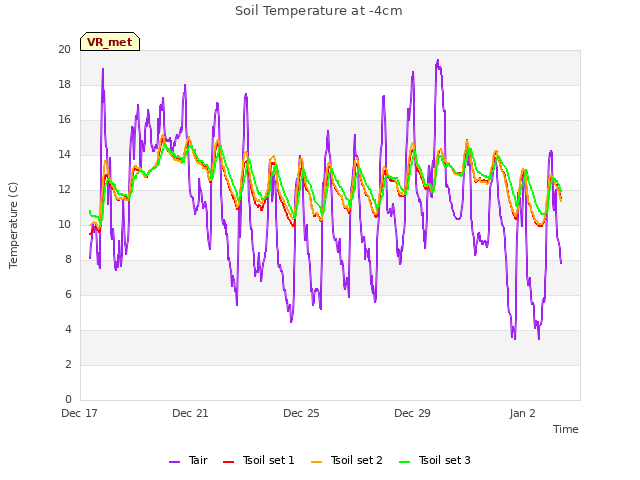

Explore the graph:Soil Temperature at -4cm in a new window

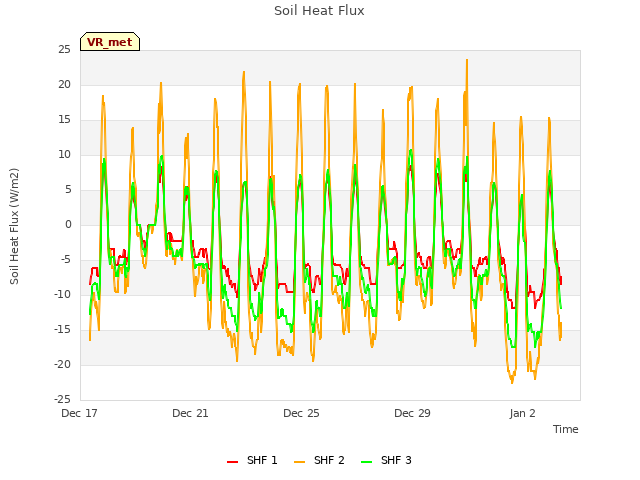

Explore the graph:Soil Heat Flux in a new window

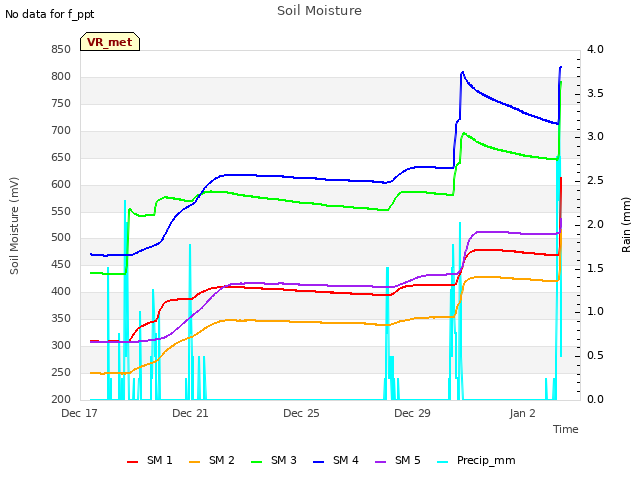

Explore the graph:Soil Moisture in a new window

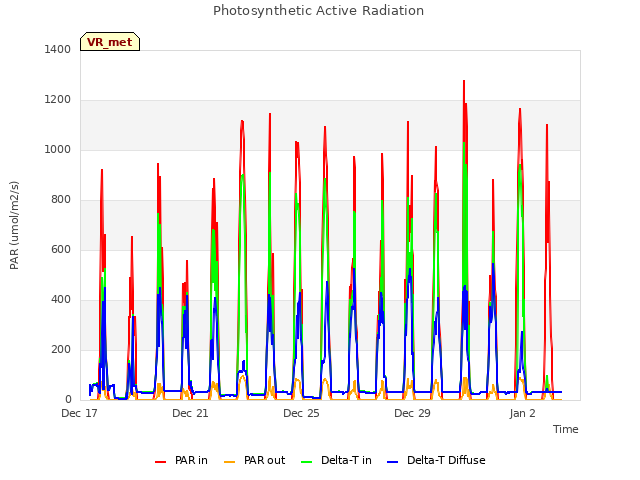

Explore the graph:Photosynthetic Active Radiation in a new window

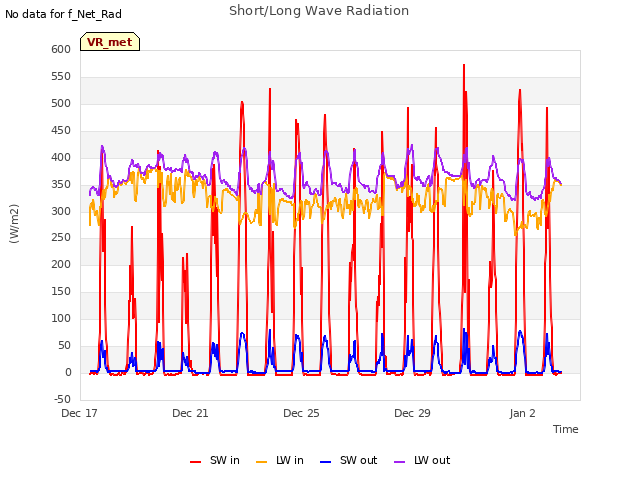

Explore the graph:Short/Long Wave Radiation in a new window

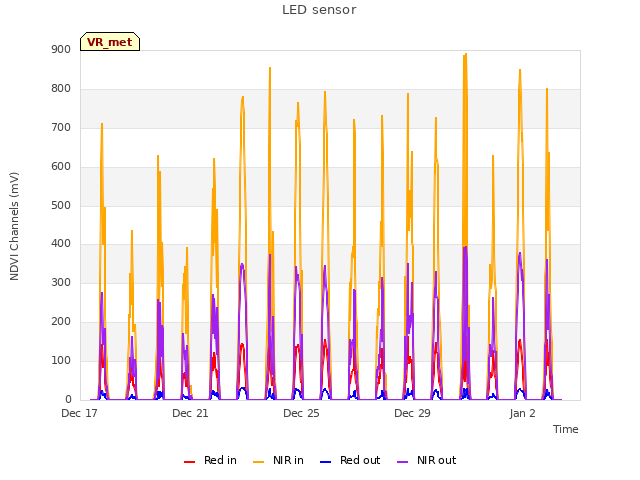

Explore the graph:LED sensor in a new window

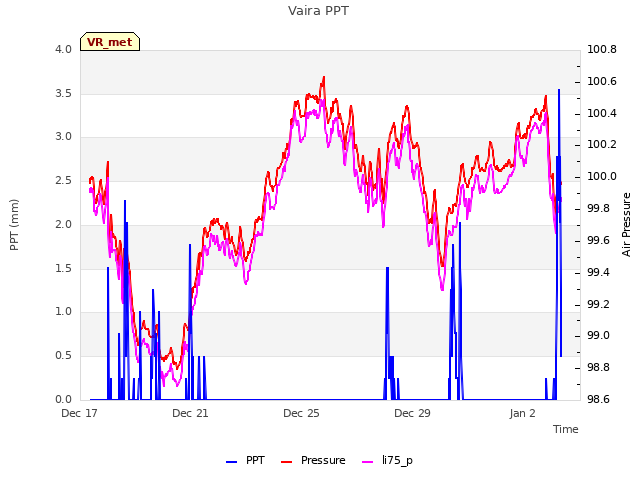

Explore the graph:Vaira PPT in a new window

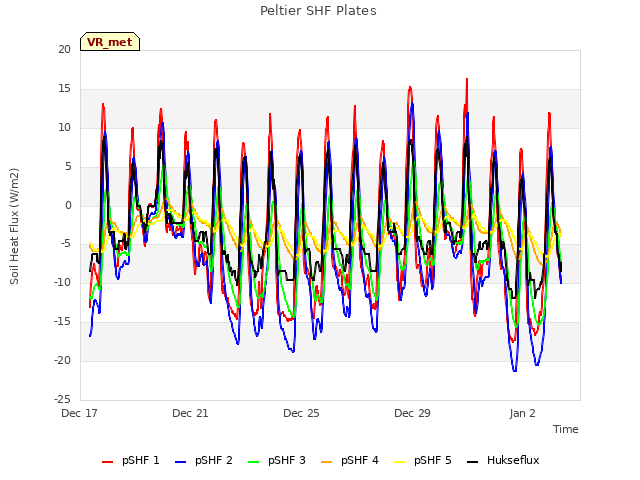

Explore the graph:Peltier SHF Plates in a new window

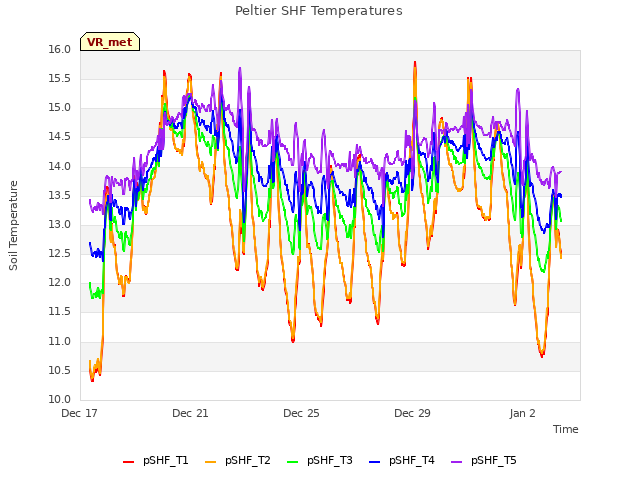

Explore the graph:Peltier SHF Temperatures in a new window

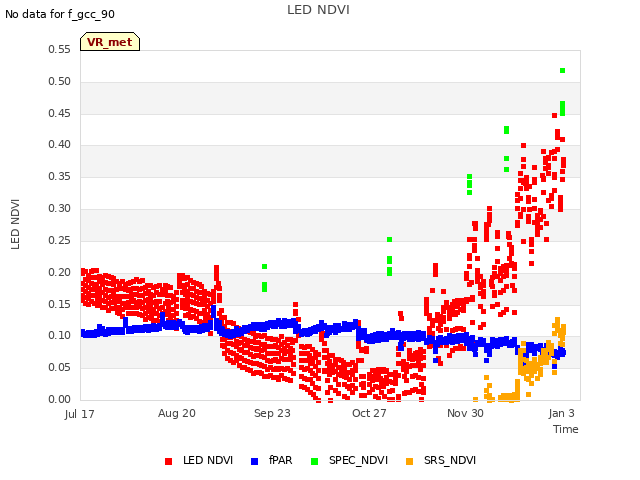

Explore the graph:LED NDVI in a new window

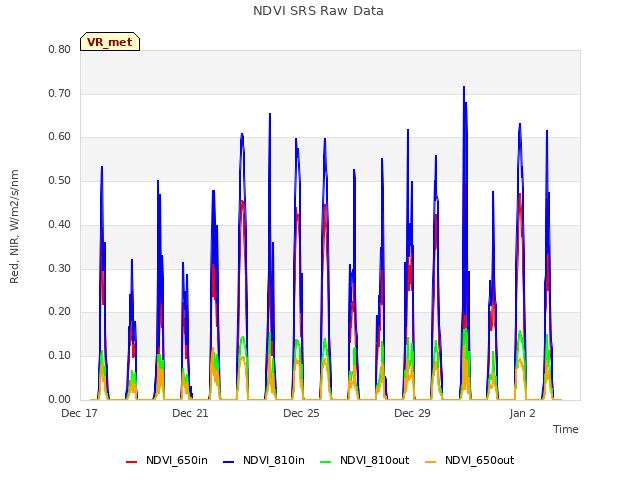

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

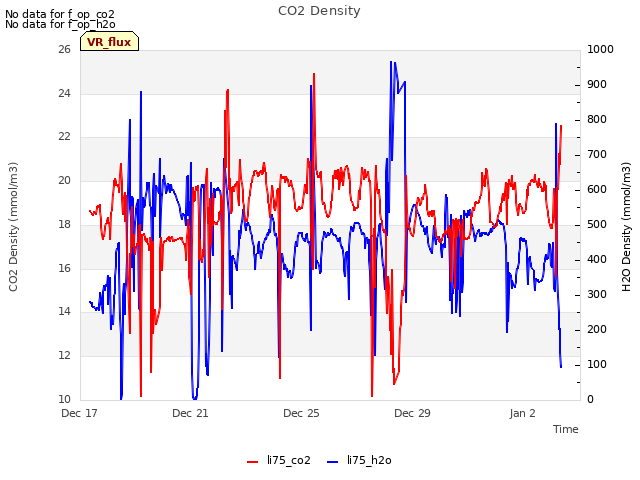

Explore the graph:CO2 Density in a new window

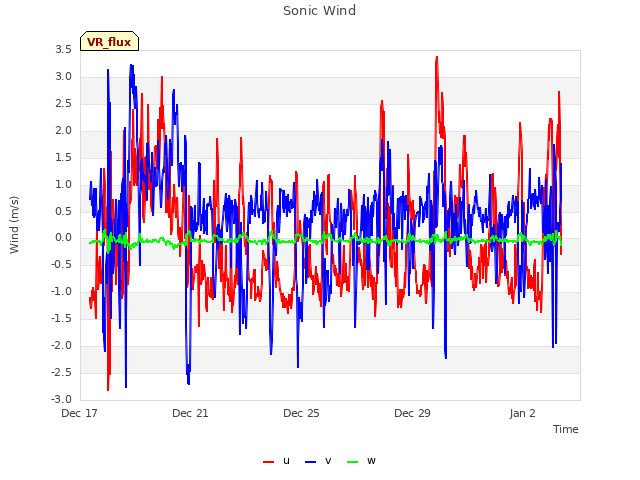

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
2 VR_pond graphs found

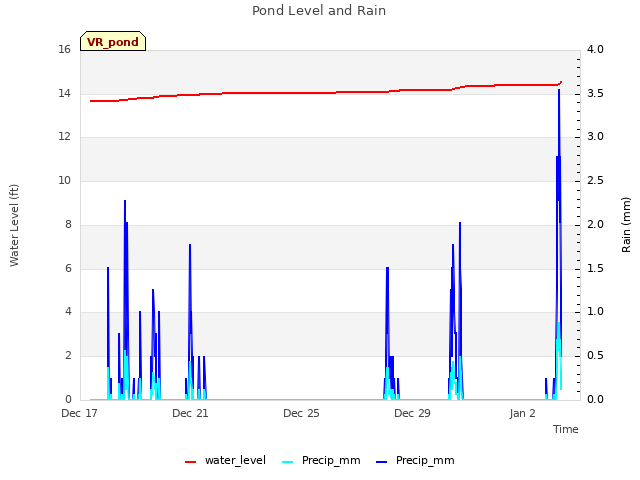

Explore the graph:Pond Level and Rain in a new window

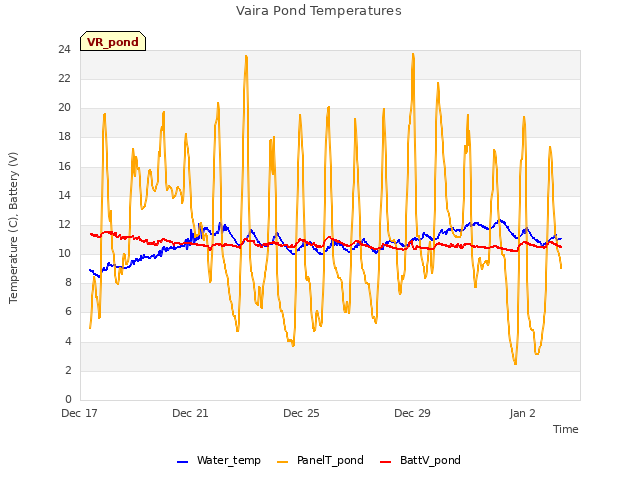

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

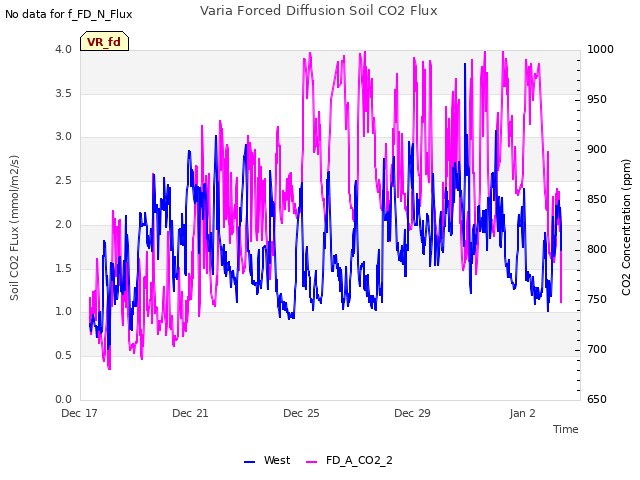

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

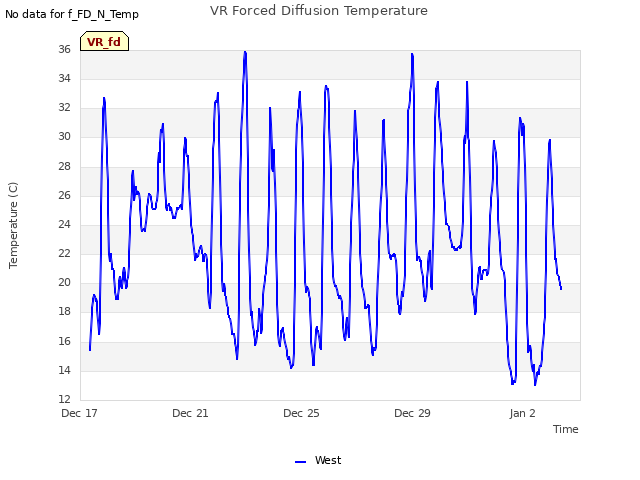

Explore the graph:VR Forced Diffusion Temperature in a new window

4 VR_processed graphs found

Explore the graph:VR VPD in a new window

Explore the graph:NEE in a new window

Explore the graph:Soil Water Content in a new window

Explore the graph:Gap Filled GPP in a new window

4 VR_arable graphs found

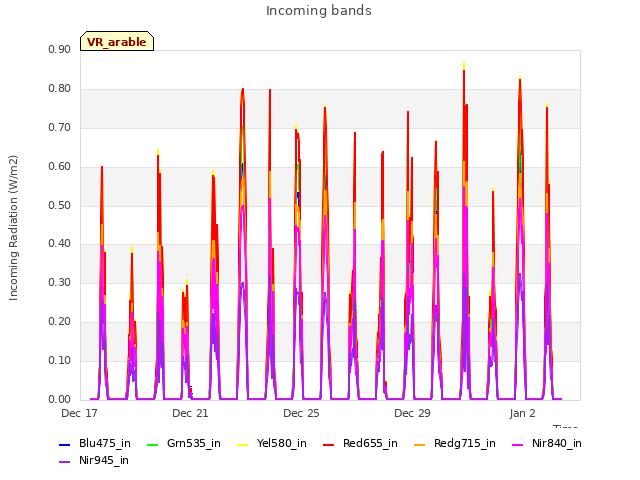

Explore the graph:Incoming bands in a new window

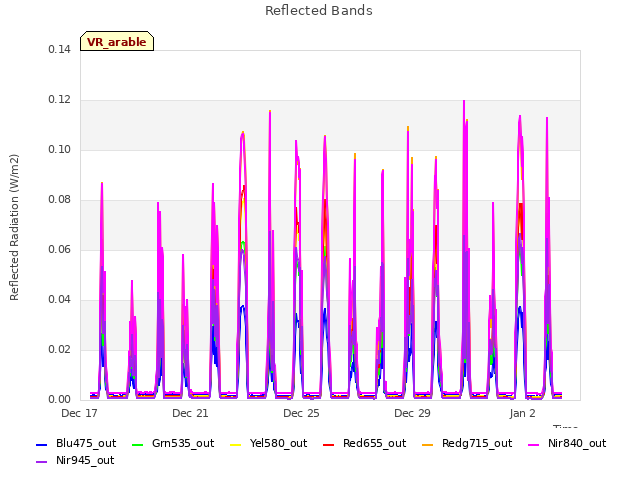

Explore the graph:Reflected Bands in a new window

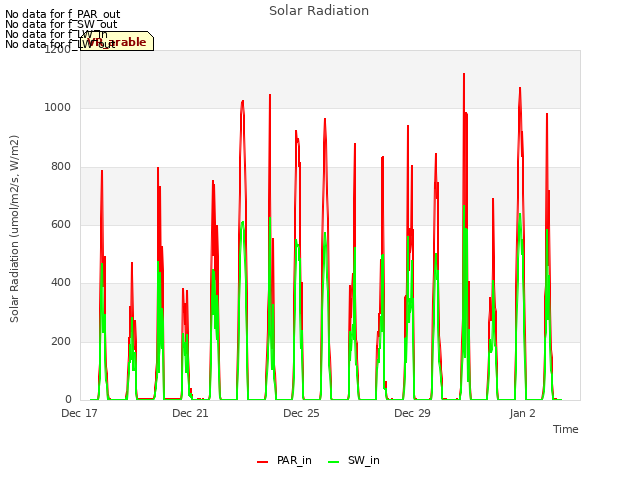

Explore the graph:Solar Radiation in a new window

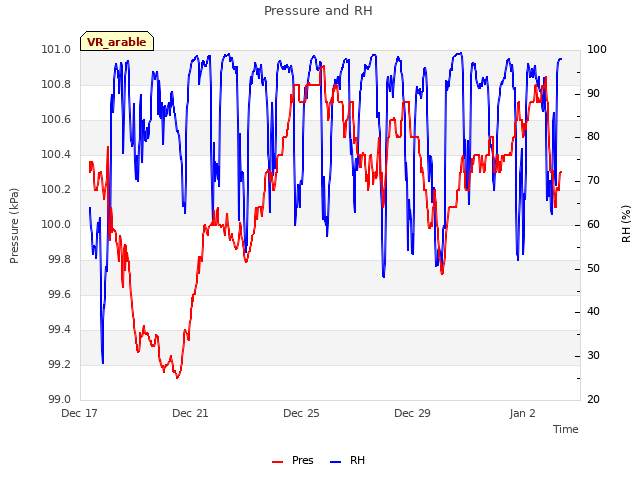

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

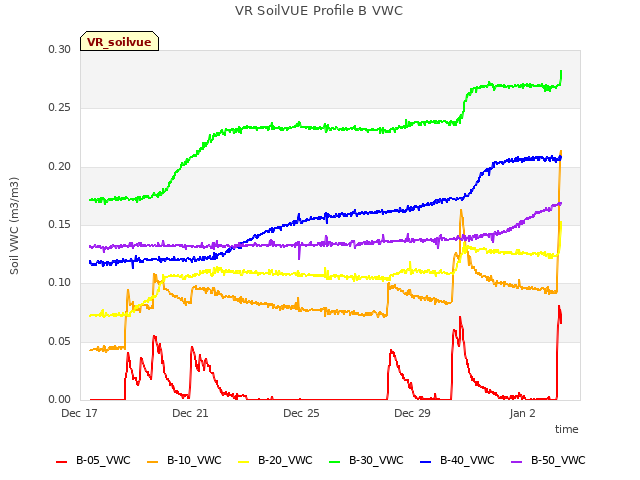

Explore the graph:VR SoilVUE Profile B VWC in a new window

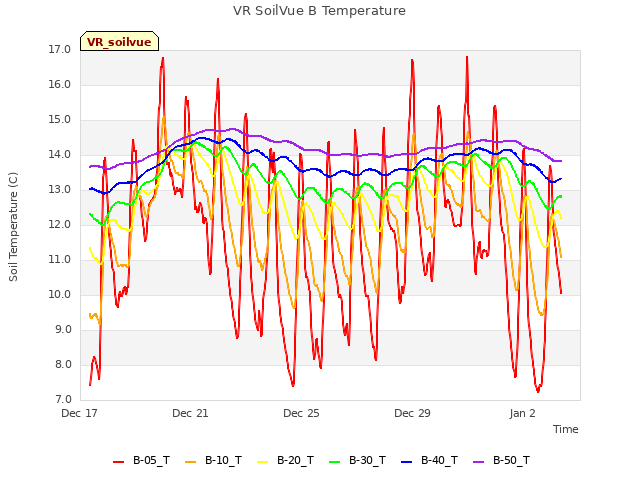

Explore the graph:VR SoilVue B Temperature in a new window

Explore the graph:VR SoilVue A Temperature in a new window

Explore the graph:VR SoilVue C Temperature in a new window

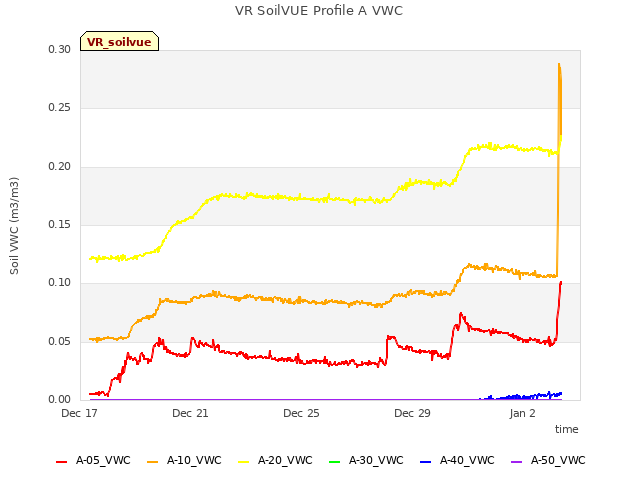

Explore the graph:VR SoilVUE Profile A VWC in a new window

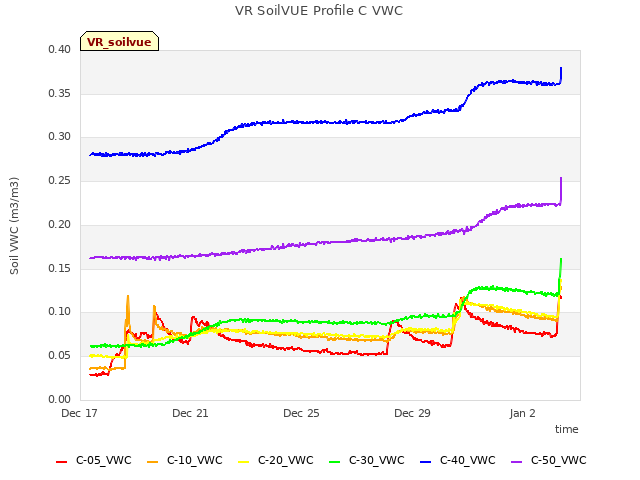

Explore the graph:VR SoilVUE Profile C VWC in a new window
