Field Notes

<--2023-08-24 12:30:00 | 2023-09-28 11:55:00-->
Other sites visited today: Gilbert Tract | Mayberry | West Pond | East End | Bouldin Alfalfa | Hill Slough

Bouldin Corn: 2023-09-12 14:55:00 (DOY 255)
Author: Daphne Szutu
Others: Joe

Summary: Regular data collection/cleaning, biomass samples, moved soil sensors from field to tower, removed PL Arable

2023-09-12
Bouldin Corn

Joe and I arrived at 14:55 PDT. It’s been three weeks since the last site visit. I meant to come last week but Kyle and I were sampling methane bubbles at Mayberry and ran out of time to finish all of the Delta sites. Today was sunny and warm with a little breeze. There were many wasps buzzing about, but I didn’t see any obvious nests.

The fields to our E, S, and SE have been harvested. Charlotte talked to someone on Sept. 7 who said they’ll be harvesting the corn in the next month or so, so today we prepped for harvest. Joe took 5 biomass samples and removed the soil sensors from the field. I re-installed the soil sensors underneath the tower. The Campbell soil moisture probes are installed vertically, with the top of the sensor 10cm below the ground surface. The soil heat flux plates are installed at their usual -2cm depth. I re-taped some of the thermocouples that had slid up or come out. The Theta probe was installed vertically so the sensor body was buried just below the surface.

I collected met, cam, USB GHG, PA, and IRT data. I changed the eddy clock +1:15min around 14:25 PST and restarted logging. I topped off the wash reservoir and cleaned flux and rad sensors. The Mark 3 incoming radiometers were dirty from dried blood or other bodily fluids. I scrubbed it off with rubbing alcohol and a rag.

Joe removed the PL Arable sn C011081 since their inter-comparison project is “on pause.”

The 7500 read: 414ppm CO2, 730mmol/m3 H2O, 32.1C, 101.2kPa, 96SS--99 after cleaning
The 7700 read: 2.04ppm CH4, 36RSSI--72 after cleaning

We left at 15:50 PDT.

Veg Height (cm): Tape measure from ground to top of plant - Heights from 5 individuals harvested for biomass samples
273, 270, 275, 263, 290, avg = 274.2, stdev = 9.93

0 photos found

Graphs display:
6 sets found

17 BC_met graphs found

Explore the graph:Battery Voltage in a new window

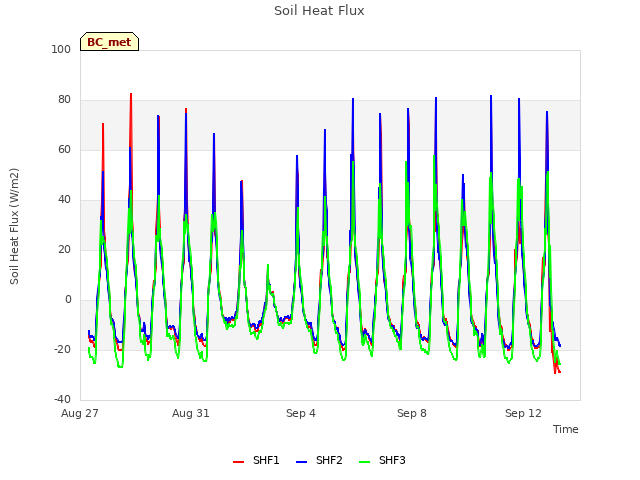

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

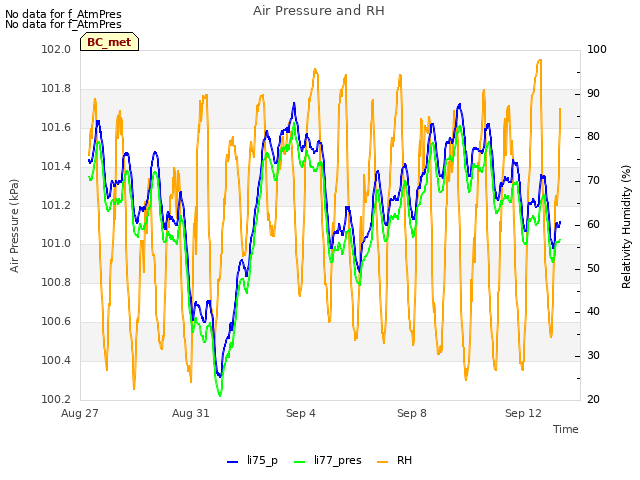

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

Explore the graph:Bouldin Corn PAR in a new window

Explore the graph:NDVI channels in a new window

Explore the graph:PRI Channels in a new window

Explore the graph:Soil Temperatures Set A in a new window

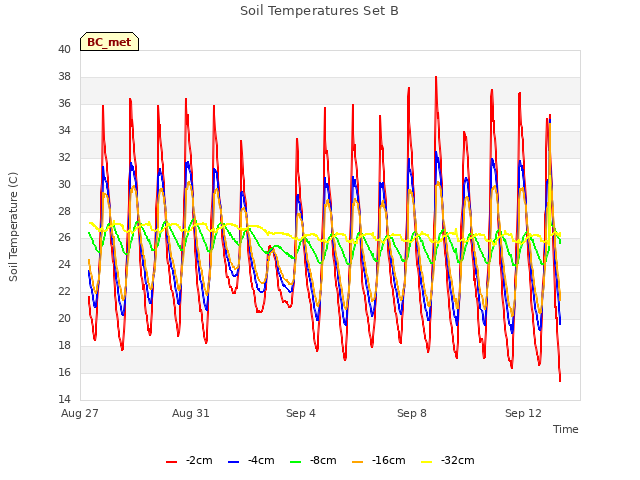

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:SRS NDVI and PRI in a new window

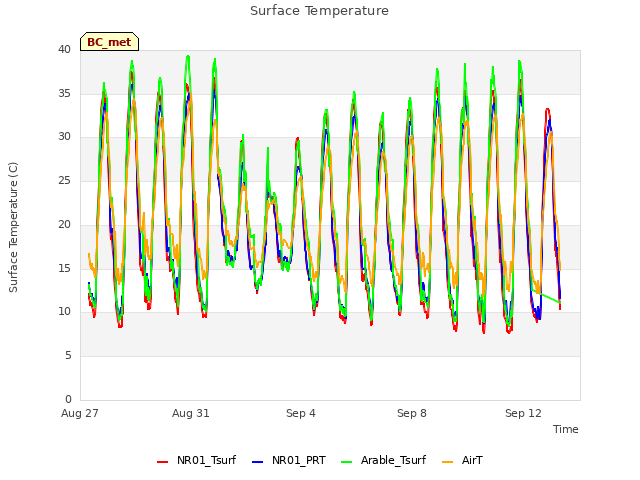

Explore the graph:Surface Temperature in a new window

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

Explore the graph:LI-7500 CO2 and H2O in a new window

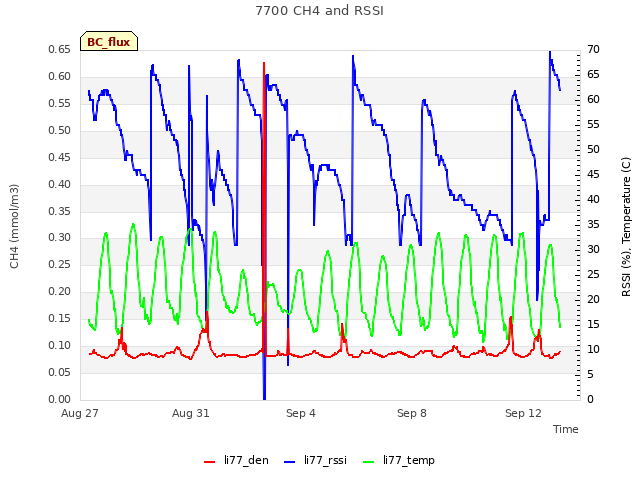

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Wind in a new window

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BC_pa graphs found

Explore the graph:Purple Air Met Data in a new window

Explore the graph:Purple Air Particulate Matter in a new window

1 BC_arable graphs found

Explore the graph:Temperatures in a new window
