Field Notes
<--2005-10-18 00:00:00 | 2005-10-29 12:00:00-->Other sites visited today: Vaira
Tonzi: 2005-10-28 00:00:00 (DOY 301)
Author: Ted Hehn
Others:
| When: Fri-Sat, 28-29Oct05, 302-3
Where: Tonzi Who: Ted Hehn Weather Clear and warm Trip Purpose Install power jacks on PCs and NDVI_2 Tonzi Ranch: Friday – Fencer battery capacity depleted and fence is not putting out full 10 Kvolt pulse. Webcam failed on 27Oct05 Install power jacks and plugs on floor and tower PCs. Saturday- Zero/span LI820 using digital interface software. Success. Begin webcam diagnostics: voltage at 10.4 volts and this is low. Remove power plug and voltage rises to 11.8. Remove webcam and power it using computer power jack and the units LED indicates a successful boot and test sequence. Install webcam and readjust regulator to 12.5 volts. Successful, now able to view with Internet Explorer and snap picture with batch file execution. Install radiation instrument leveling table on tower boom arm. There are currently 2 Licor and 2 K&Z Par sensors mounted on the tower. I am not sure if data are being gathered from both of the K&Z sensors. This will be determined upon my next visit. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

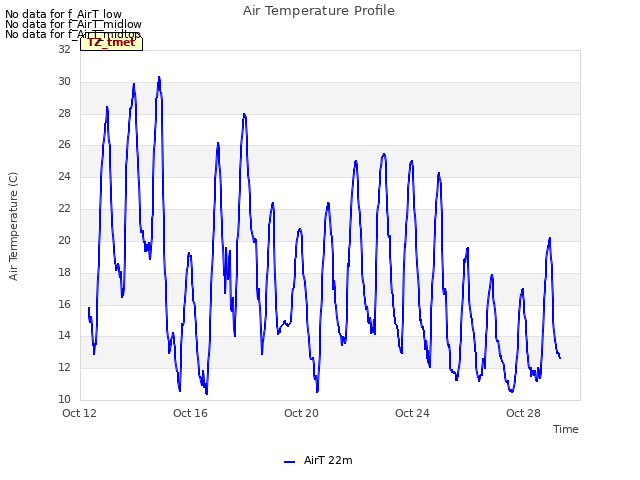

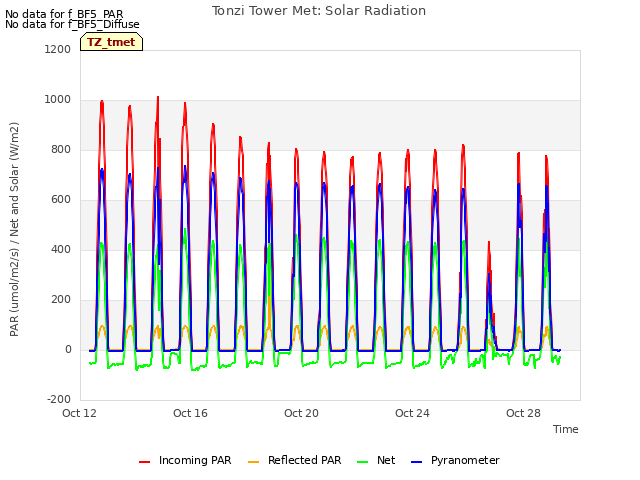

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found
No data found for TZ_fflux.
8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.

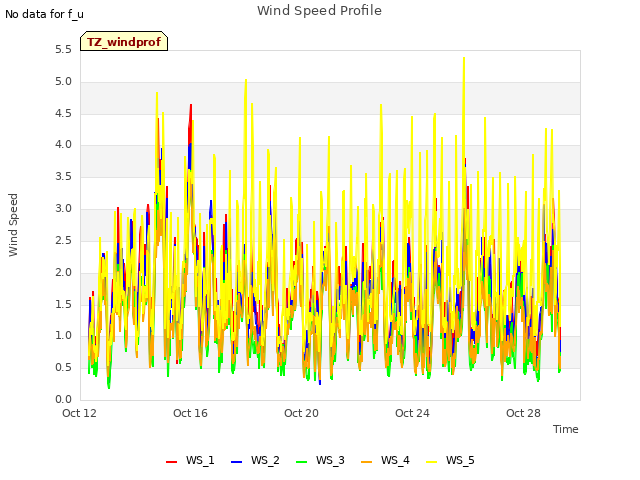

1 TZ_windprof graphs found
No data found for TZ_tflux.
2 TZ_sm graphs found
Can't check TZ_met

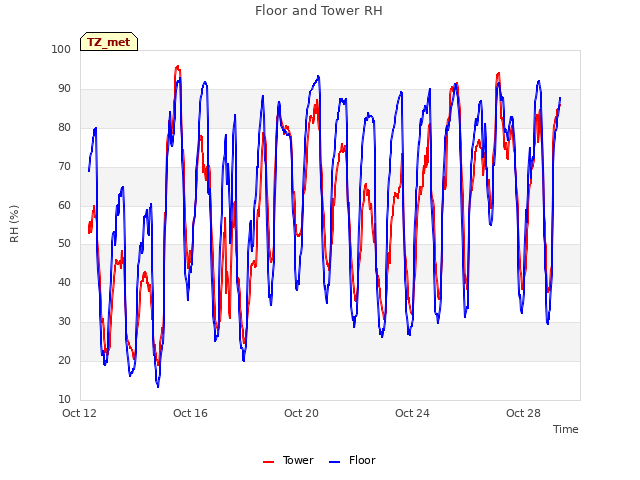

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
