East End: 2022-04-13 14:05:00 (DOY 103)
Author: Daphne Szutu
Others: Koong

Summary: Regular data collection/cleaning, greening up, no sheep today

2022-04-13
East End

Koong and I arrived at 14:05 PDT. We didn’t run into any sheep today. It was breezy/gusty and partly cloudy. There are a few green cattail and tule coming up around the tower. The tule are taller for now. The staff gauge read 61cm.

I collected met, cam, and USB GHG. I noticed that I can simultaneously connect to the picam and to the GHG interfaces. I remember in the past that connecting to the 7550 software would interrupt the picam data download. However, today I could talk to both at the same time without interrupting the picam download. Maybe connecting to the picam after the 7550/7700 interfaces is ok?

Koong cleaned flux and rad sensors and topped off the wash reservoir.

LI-7500 readings:
CO2 428ppm
H2O 298ppm
T 18.4C
P 102.2kPa
SS 95--> 96 after cleaning
LI7700 readings:
CH4 2.03 ppm
RSSI 41--> 82 after cleaning

We left at 14:20 PDT.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

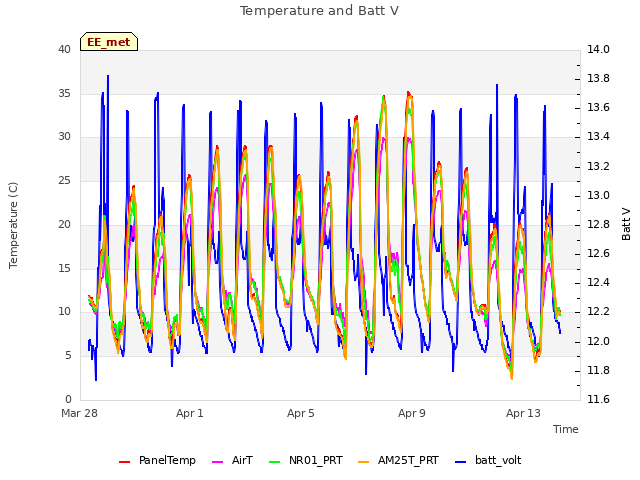

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

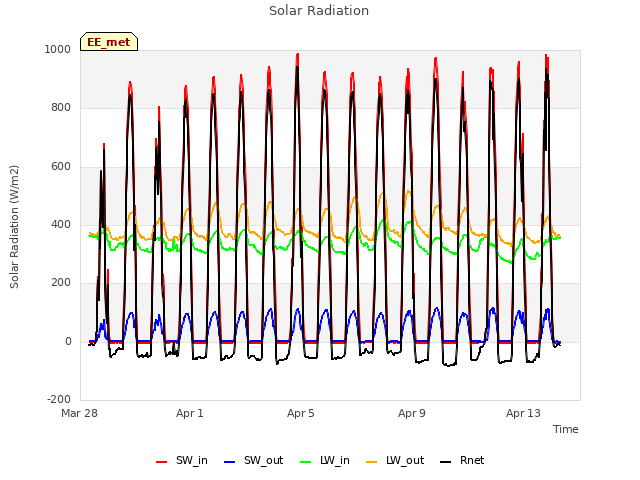

Explore the graph:Solar Radiation in a new window

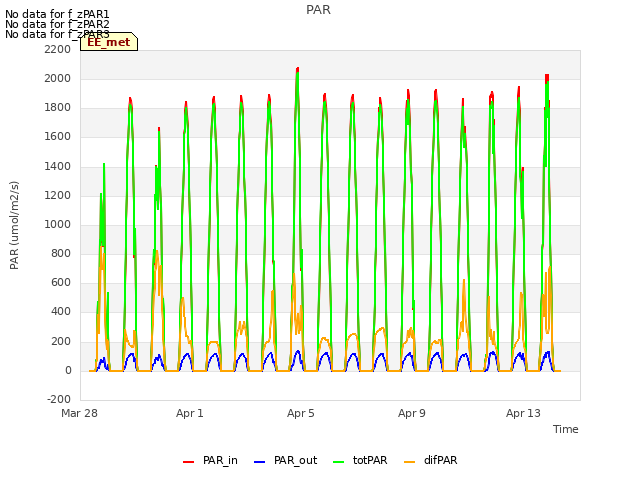

Explore the graph:PAR in a new window

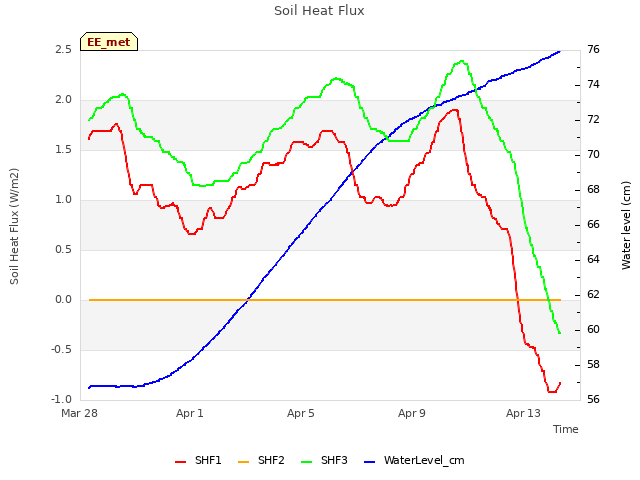

Explore the graph:Soil Heat Flux in a new window

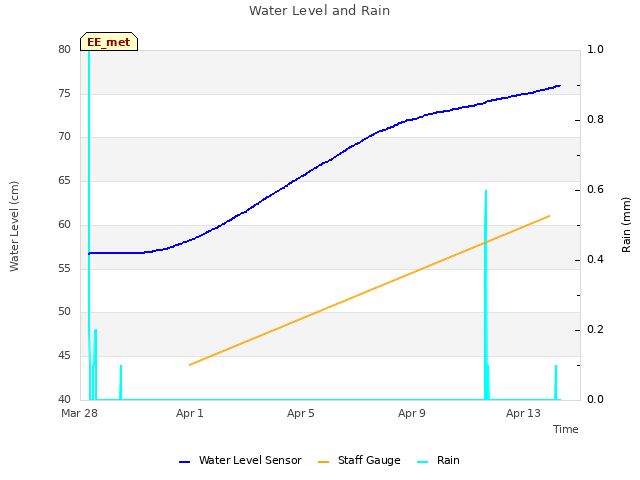

Explore the graph:Water Level and Rain in a new window

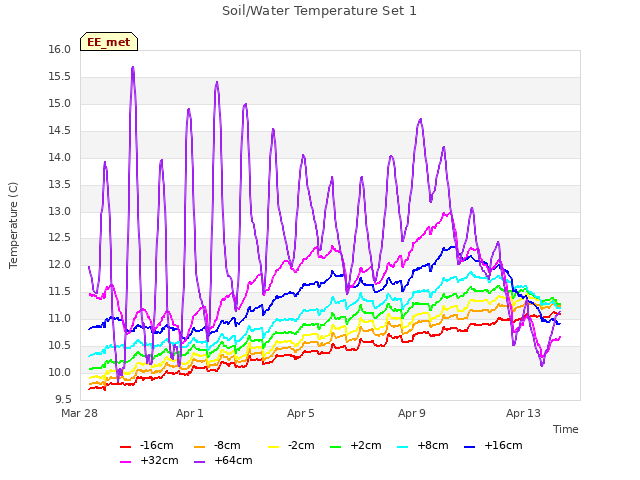

Explore the graph:Soil/Water Temperature Set 1 in a new window

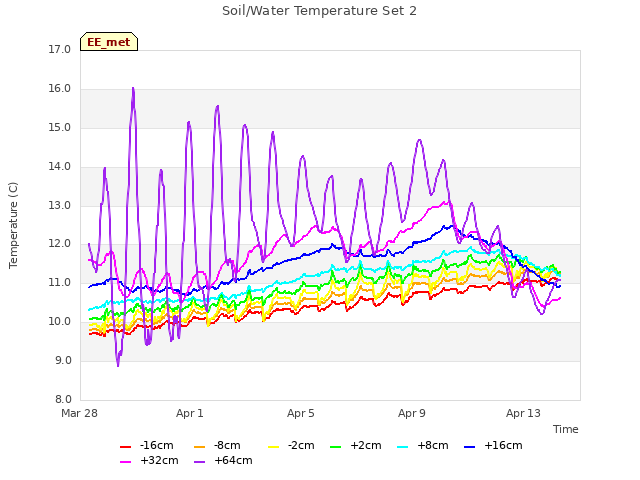

Explore the graph:Soil/Water Temperature Set 2 in a new window

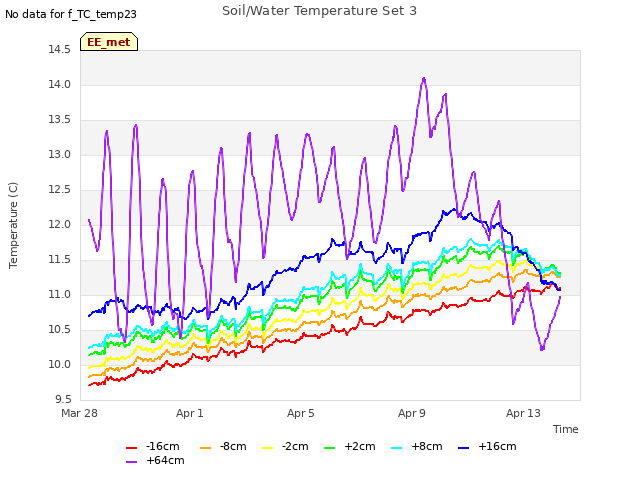

Explore the graph:Soil/Water Temperature Set 3 in a new window

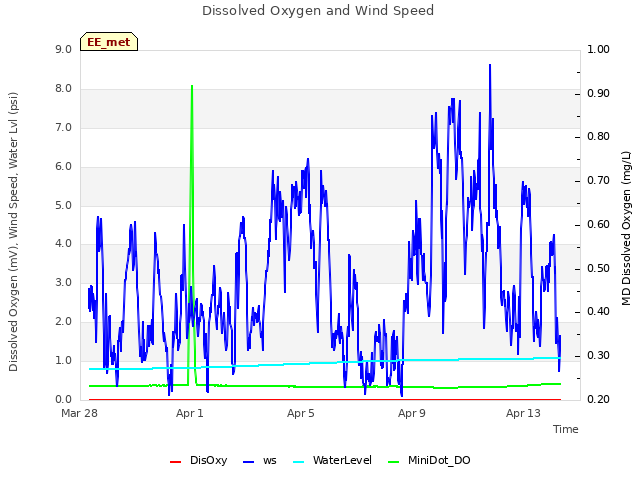

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

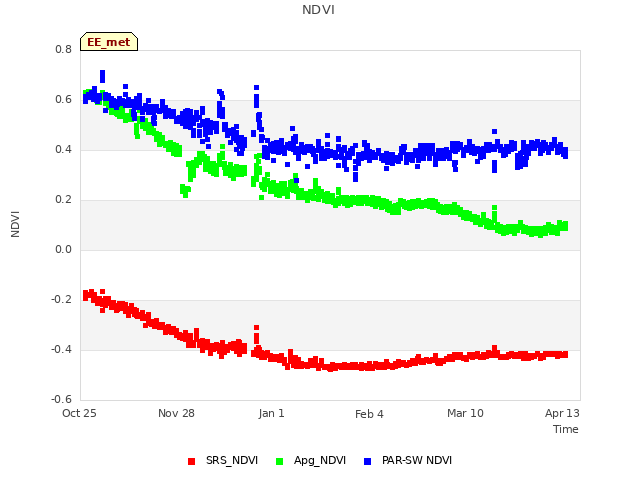

Explore the graph:NDVI in a new window

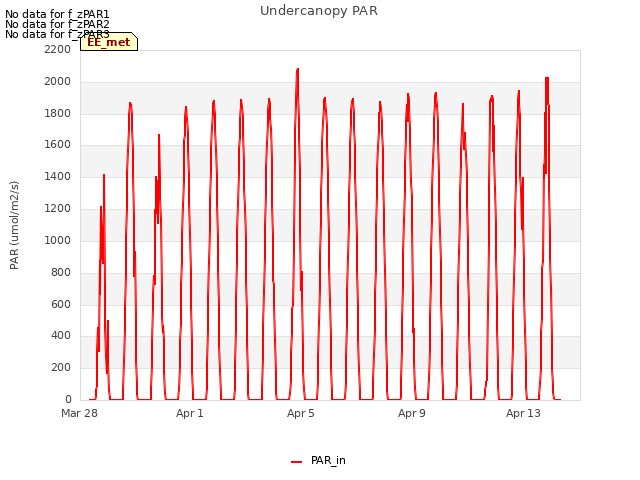

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

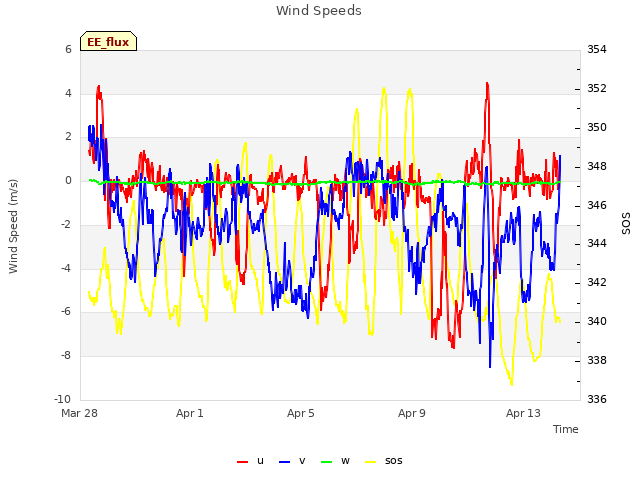

Explore the graph:Wind Speeds in a new window

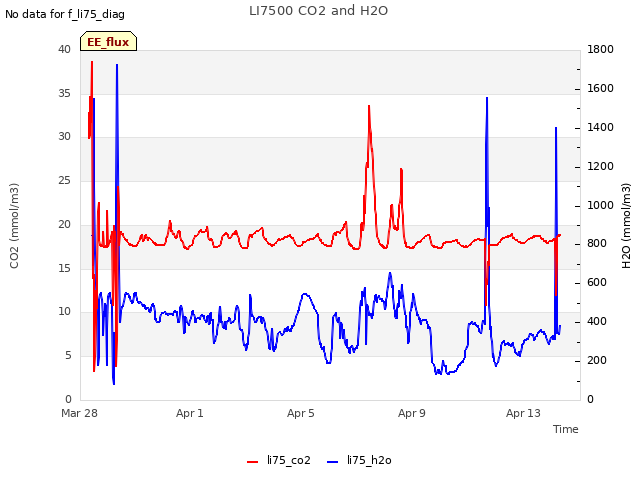

Explore the graph:LI7500 CO2 and H2O in a new window

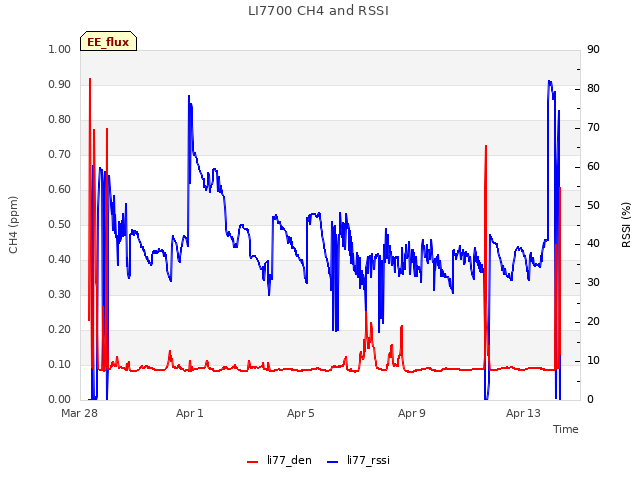

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Flux Counts in a new window

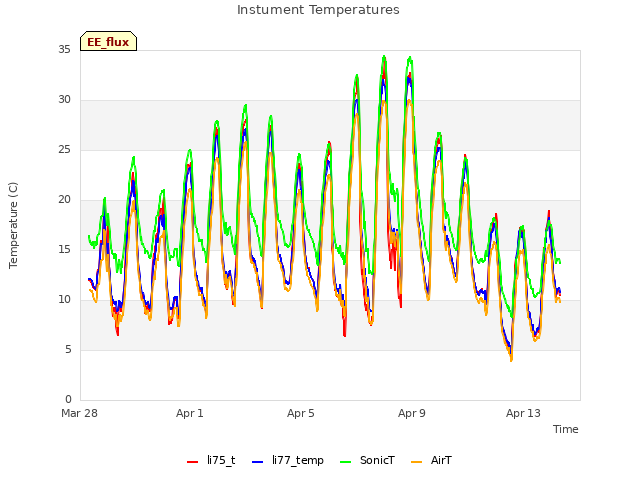

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

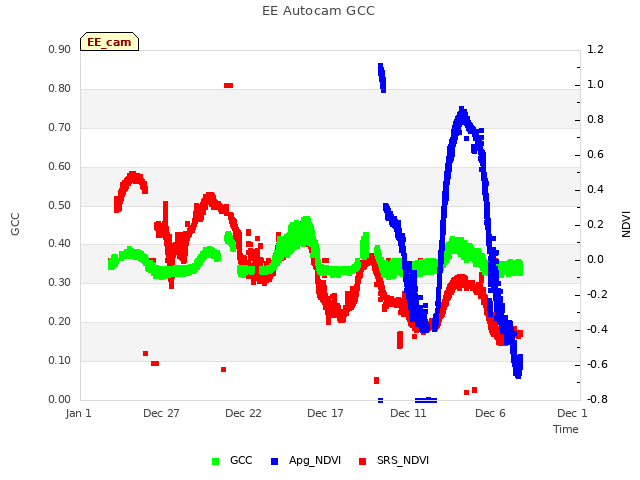

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

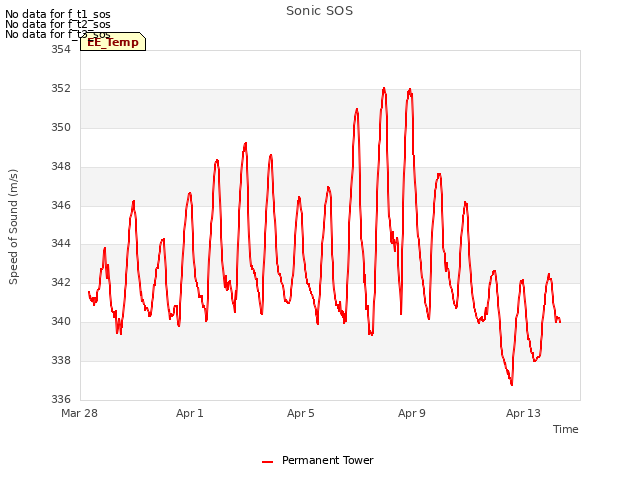

Explore the graph:Sonic SOS in a new window

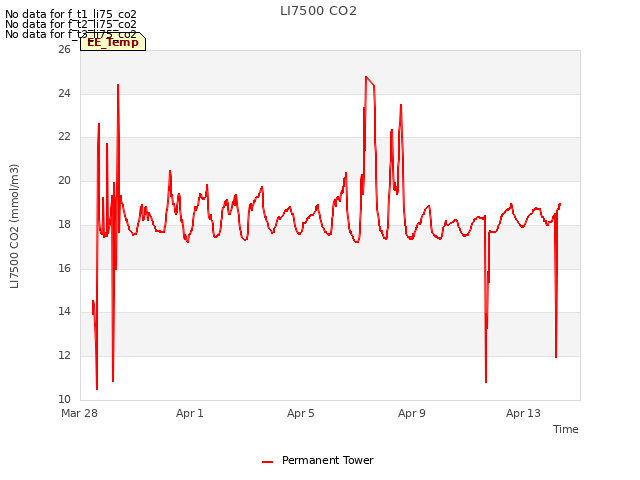

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

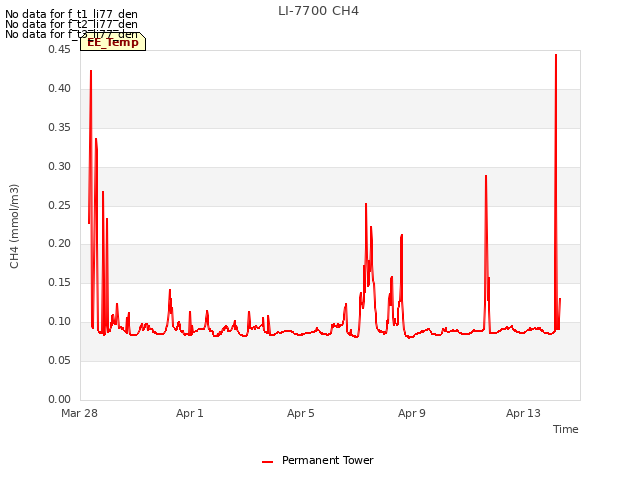

Explore the graph:LI-7700 CH4 in a new window

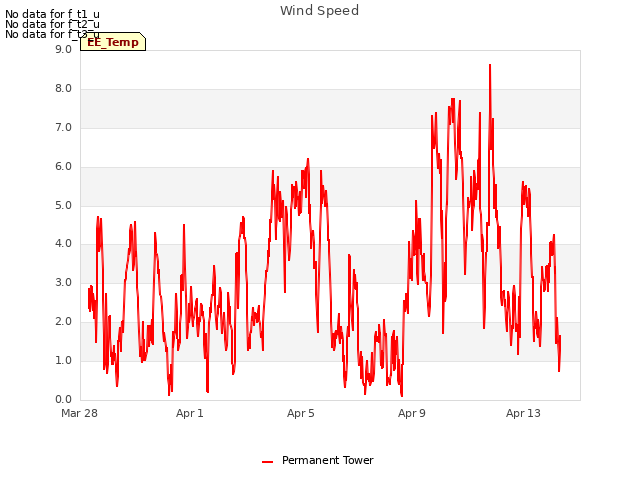

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

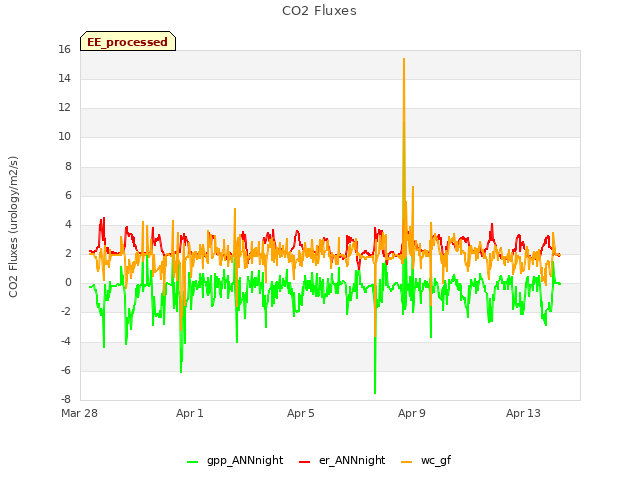

Explore the graph:CO2 Fluxes in a new window
