West Pond: 2022-01-02 13:10:00 (DOY 2)
Author: Daphne Szutu
Others: Mike

Summary: Regular data collection/cleaning, water level a little higher, eddy clock +2min

2022-01-02
West Pond

Mike and I arrived at 13:10 PST. It was cold but mostly sunny. There were thin clouds and/or smog near the horizon. We could hear sounds of hunting, but not too close to us. The water level has come up and the staff gauge read 22 cm.

I downloaded met, cam, and USB GHG data. I downloaded the miniDOT data and changed its desiccant. The miniDOT was barely in the water so I lowered it until it was ½ submerged (any lower and it seemed to hit the soil). The wash reservoir was 1/3 empty; I refilled it.

I changed the eddy clock +2min from 13:21 to 13:23 to match the laptop time and restarted logging.

I cleaned flux and rad sensors. I checked the conductivity sensor as part of its routine check every 3 months and confirmed the orifice was clean. The conductivity sensor was still dry and above the water.

LI-7500 readings:
CO2 447ppm
H2O 330ppm
T 8.8C
P 102.4kPa
SS 101--> 101 after cleaning
LI7700 readings:
CH4 2.9 ppm
RSSI 55--> 79 after cleaning

We left at 13:35 PST.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

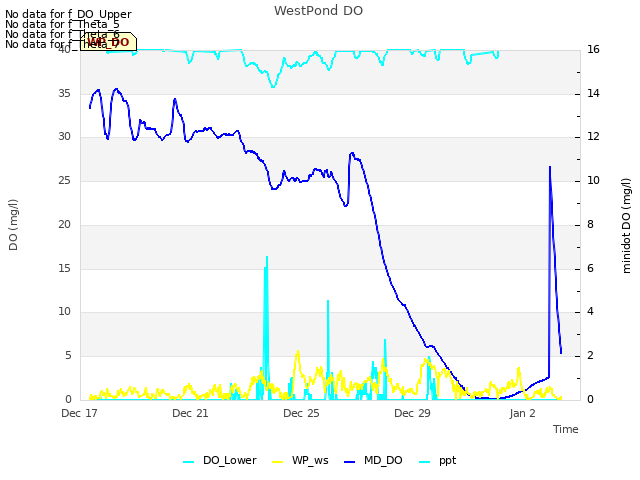

WestPond DO

14 WP_met graphs found

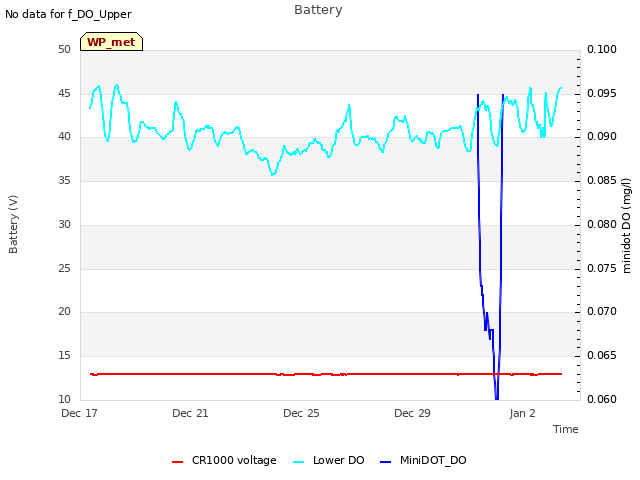

Battery

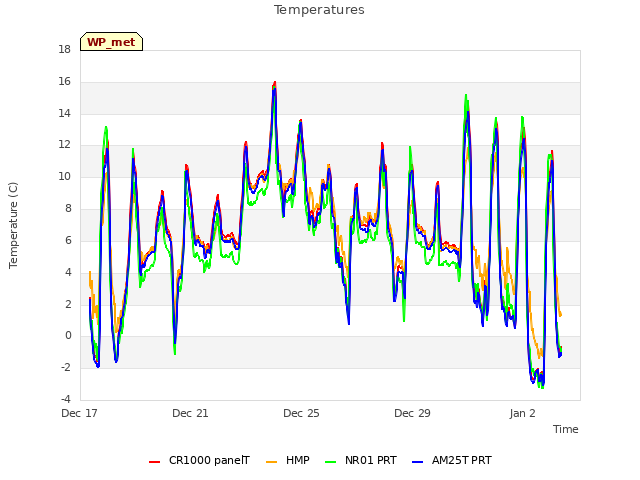

Temperatures

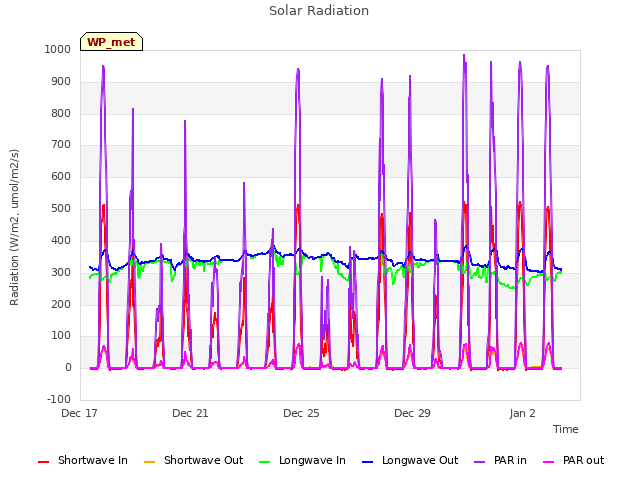

Solar Radiation

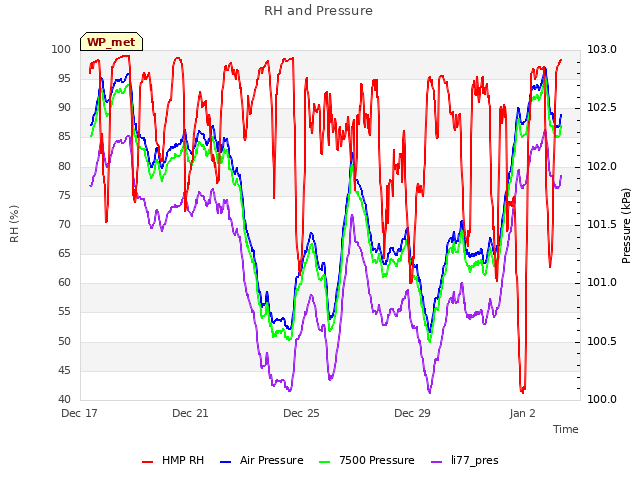

RH and Pressure

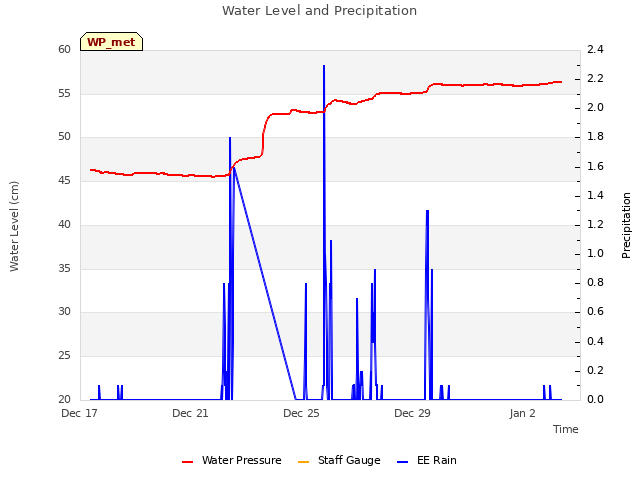

Water Level and Precipitation

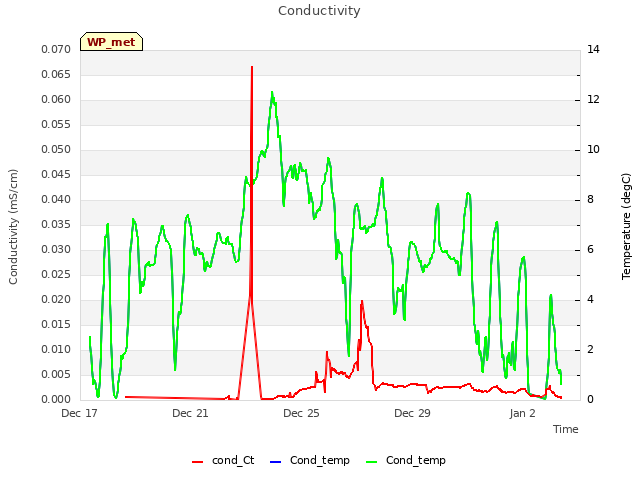

Conductivity

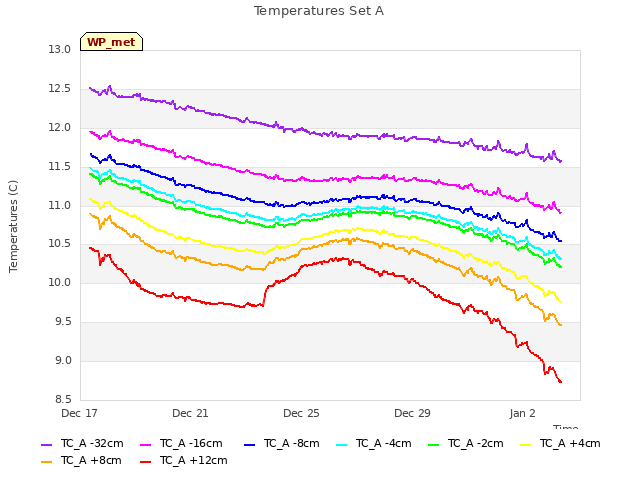

Temperatures Set A

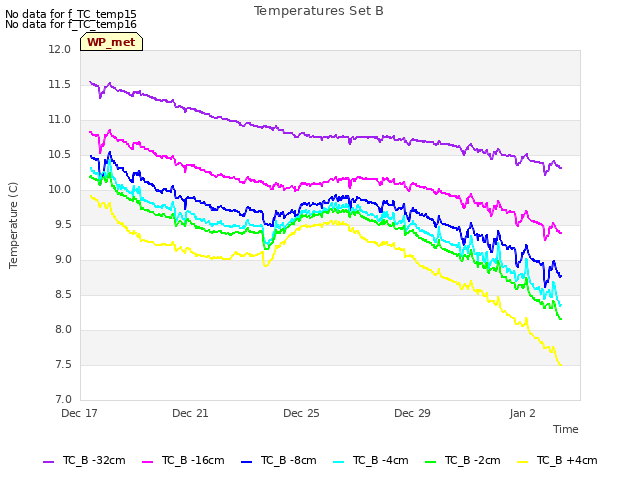

Temperatures Set B

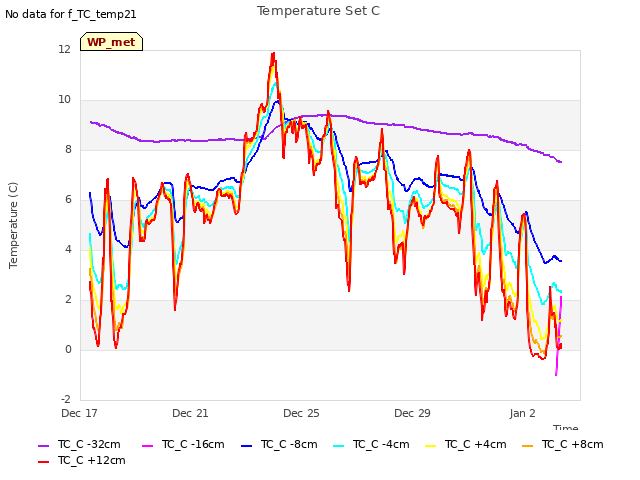

Temperature Set C

Water CO2 and Temp

West Pond Water CO2

WP miniDOT Dissolved Oxygen

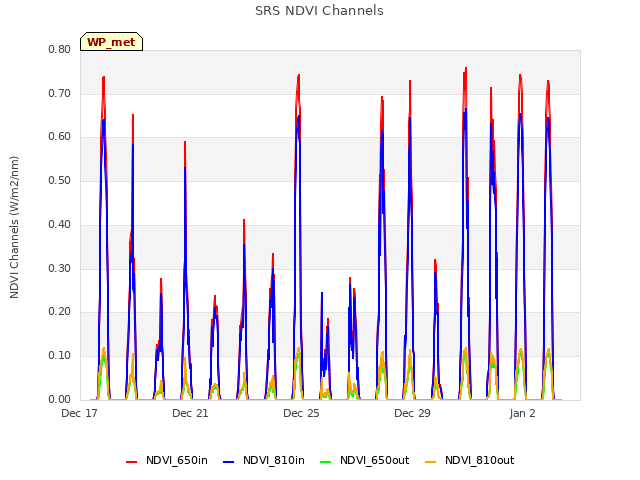

SRS NDVI Channels

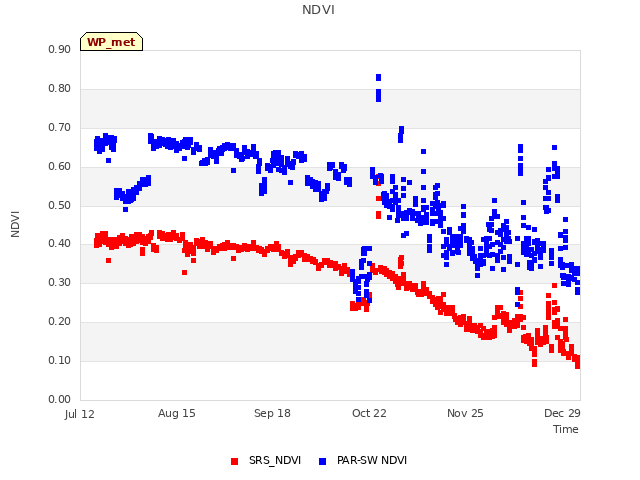

NDVI

5 WP_flux graphs found

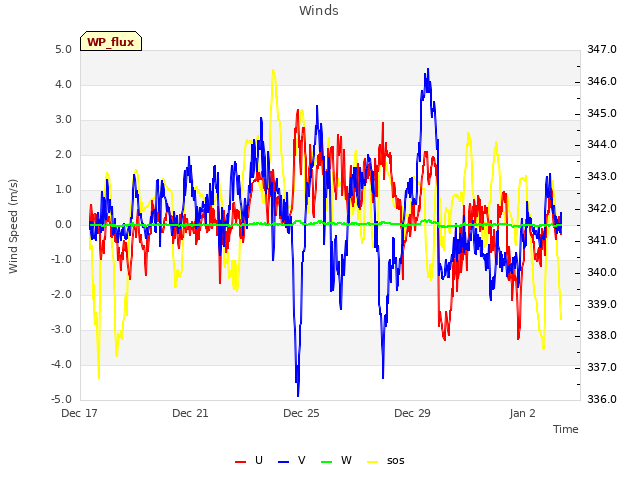

Winds

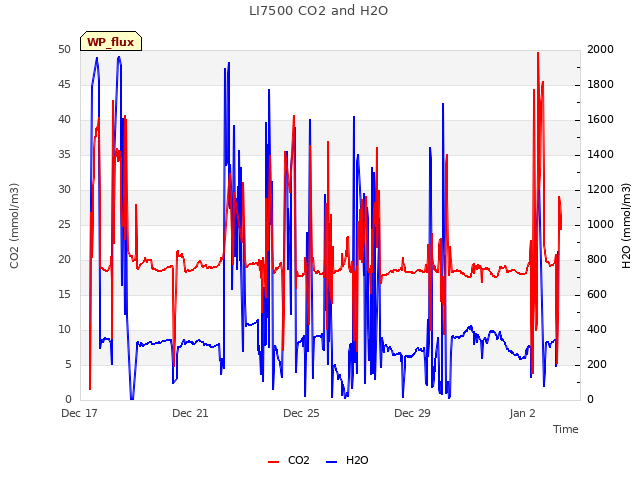

LI7500 CO2 and H2O

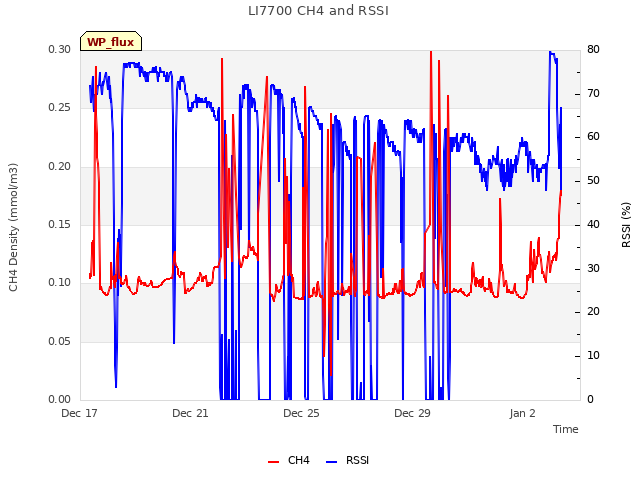

LI7700 CH4 and RSSI

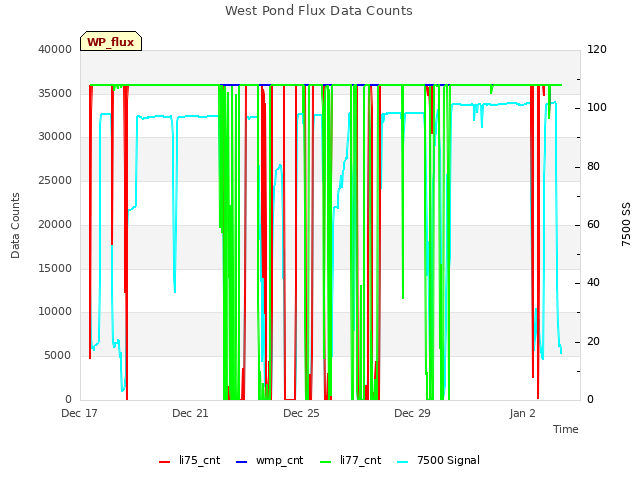

West Pond Flux Data Counts

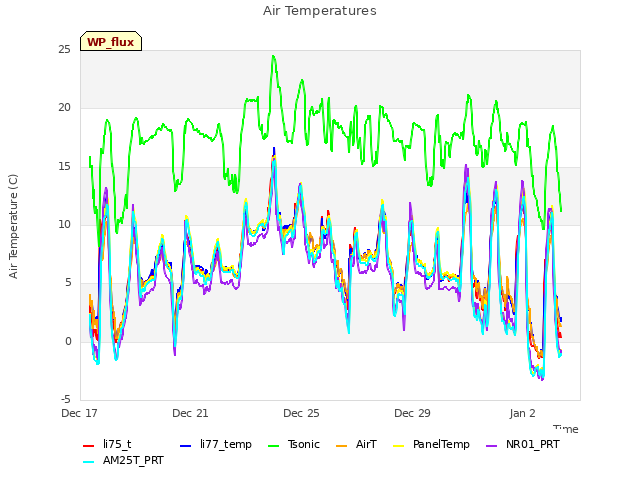

Air Temperatures

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

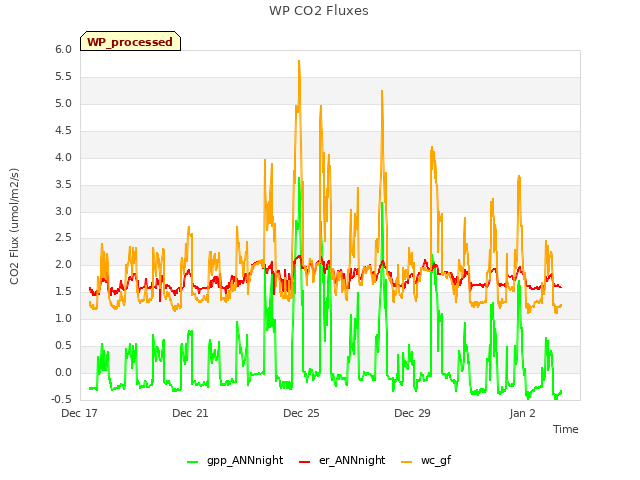

WP CO2 Fluxes

4 WP_arable graphs found

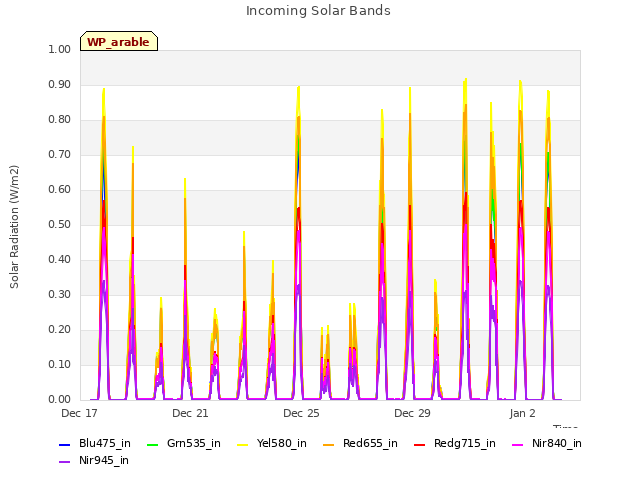

Incoming Solar Bands

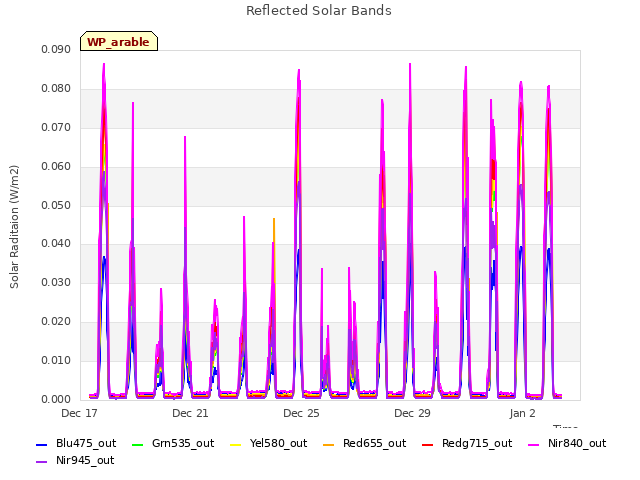

Reflected Solar Bands

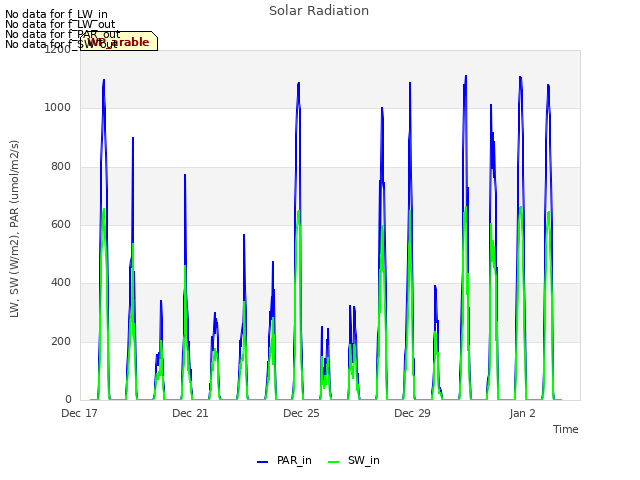

Solar Radiation

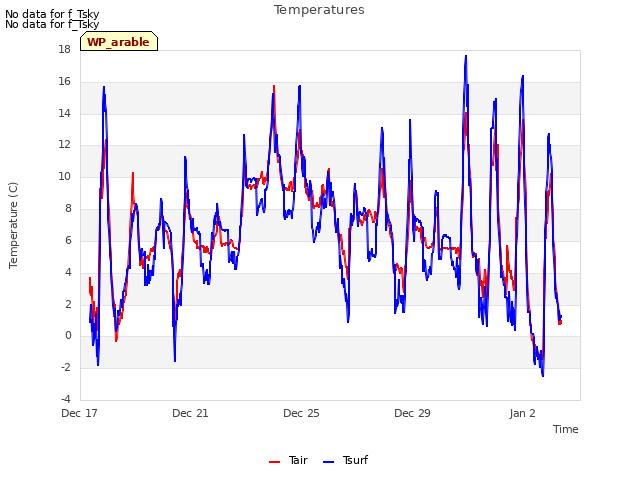

Temperatures
