Field Notes

<--2021-06-24 13:20:00 | 2021-07-29 09:15:00-->
Other sites visited today: Tonzi
Phenocam link: Searching...

Vaira: 2021-07-13 09:30:00 (DOY 194)
Author: Joe Verfaillie
Others:

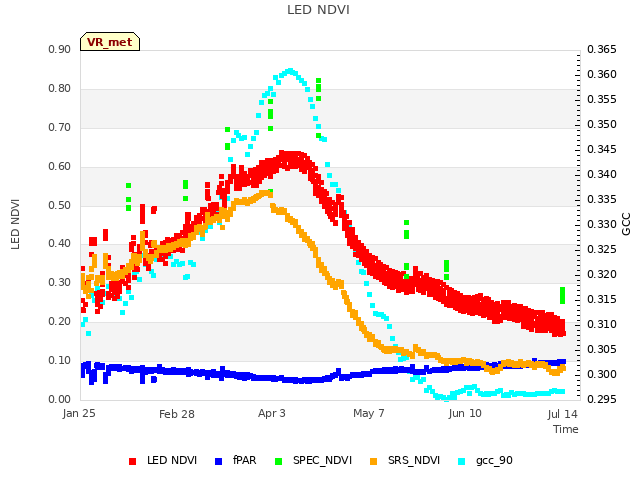

Summary: Performance check in FD Chambers, rewired power in data logger box, did spectra.

Vaira
2021-07-13

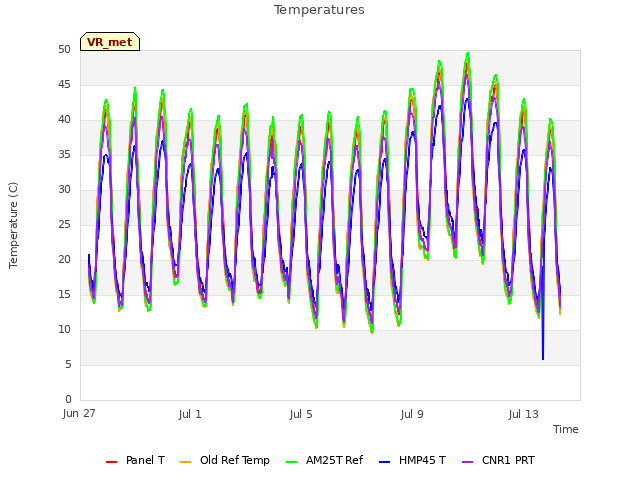

I arrived at about 9:30 PDT. It was clear sunny and hot but the breeze from the west still felt cool. We are coming off several days of 100F (40C) temperatures. Everything on the ground is cooked but the trees still seem okay. I saw two trees that put on leaves this spring but now have died. The water hole is dry.

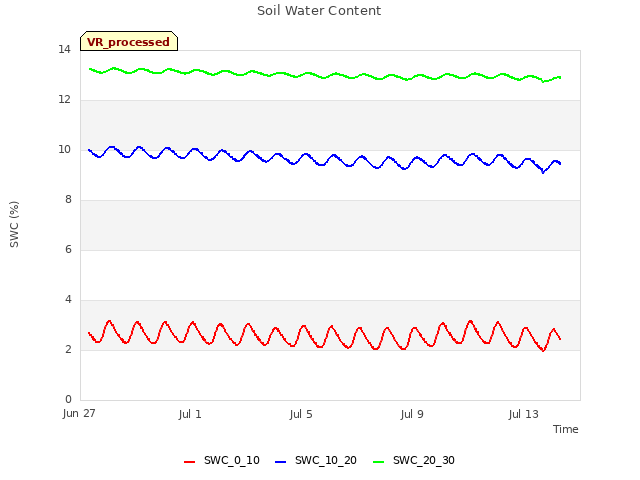

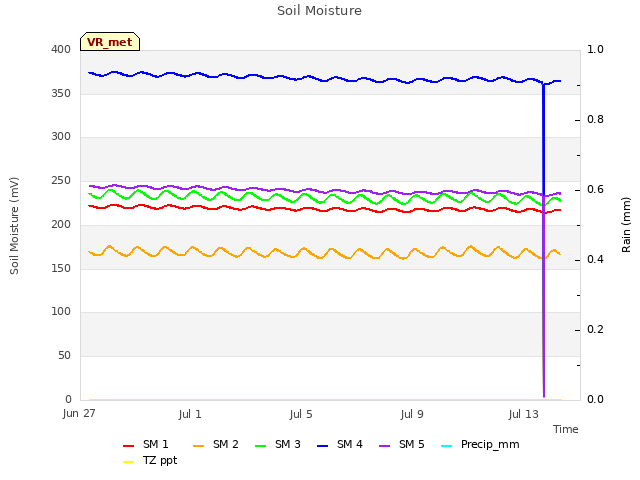

I measured the Well and the soil moisture. I collected the flux data, the camera images.

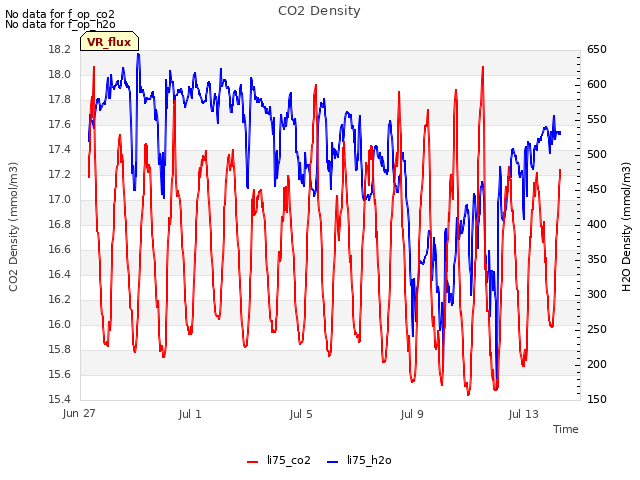

The 7500 read: 419.8ppm CO2, 542.4mmol/m3 H2O, 99.2kPa, 24.0C, 114.3SS â€“ seems high, check last cal.

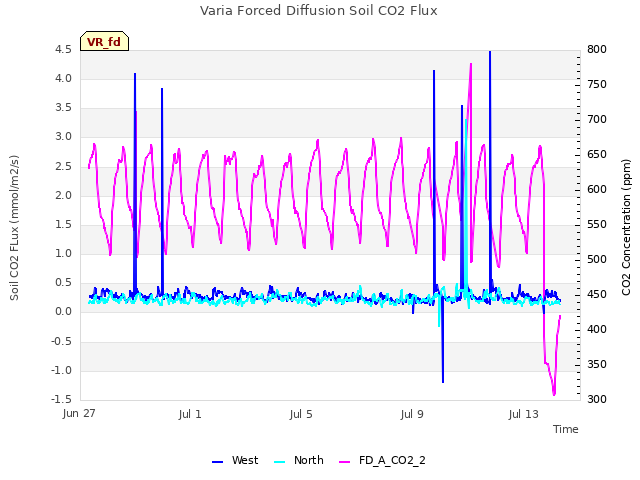

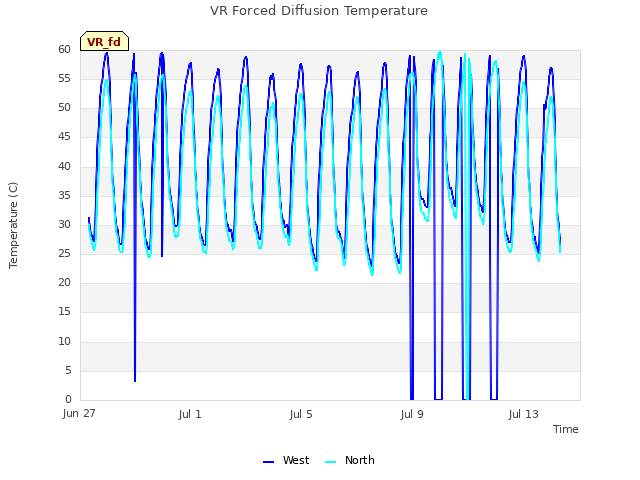

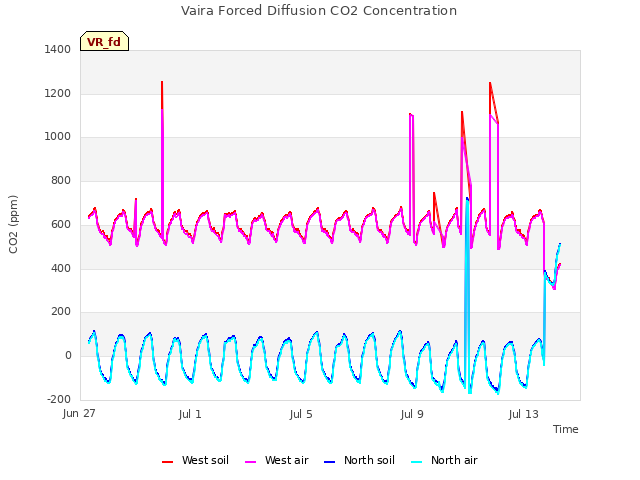

For the FD chambers I collected and then cleared their data before doing a performance check on each. The performance check is an option from one of the menus and it samples both chambers five times comparing the values. If both chambers are exposed to the same air (lying on its side) the chambers should read the same and flux should be zero. At the end you have the option to reset the concentration back to 400ppm. For chamber sn FD20200001 the CO2 reading was -58ppm and for chamber sn FD20180068 the CO2 reading as 611ppm (I had to do this one twice and got 615ppm the first time). Both were reset to 400 which was a little low â€“ ambient from the 7500 was about 419ppm. Both chambers were also removed from their usual position, laid sideways on the ground for the check and then reinstalled. The software says the check can take up to 10 minutes, but it is more like 20 minutes!

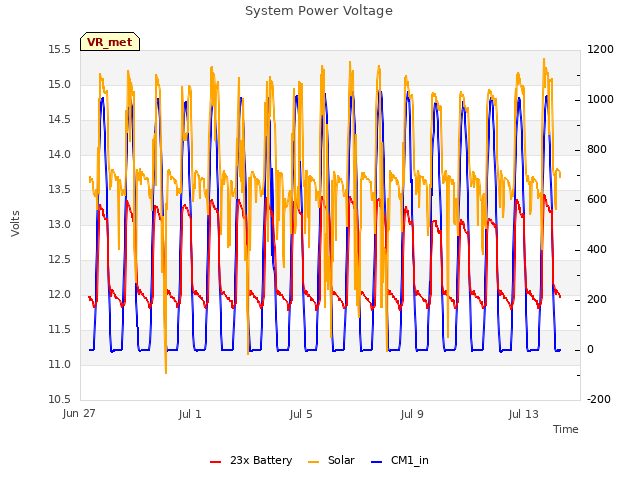

While I was waiting for chambers to do their thing I rewired the power in the data logger box. All the power runs through the pluggable power strip installed last time. Everything seemed to be working when I checked afterwards and downloaded the data. The Phenocam clock was good.

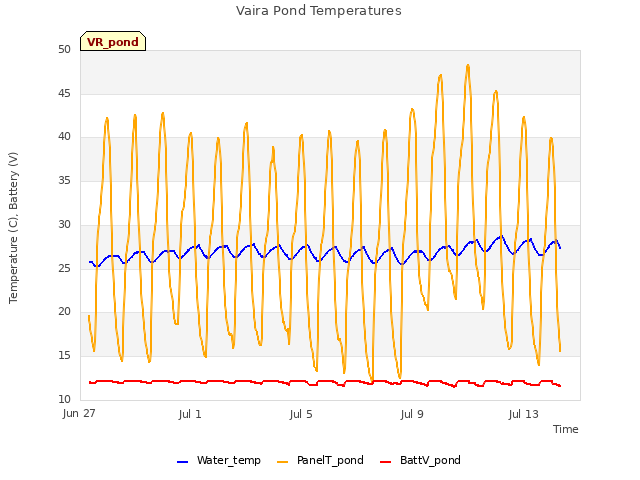

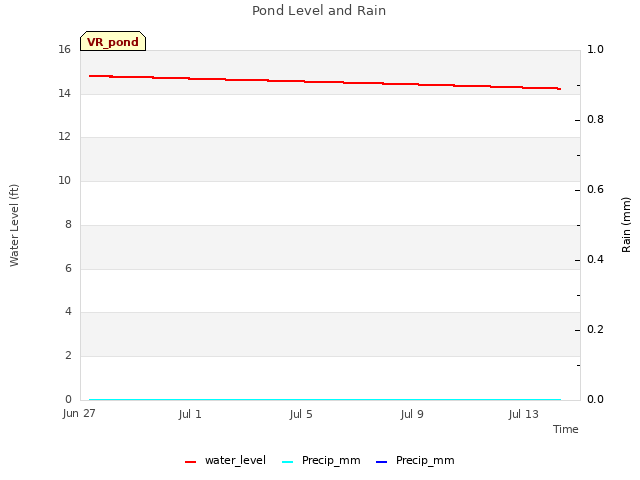

I went to the pond and collected the data there â€“ all seemed well. The lithium power pack was still showing full charge.

I left at about 11:45 PDT

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2021-07-13	VR_well	58.45
2021-07-13	VR_pond	14.28
2021-07-13	TZ_floor	31.45
2021-07-13	TZ_road	39.15
2021-07-13	TZ_tower	37.85

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Soil_Transect_3_1 [2] => Soil_Transect_2_1 [3] => Soil_Transect_1_1 [4] => SoilCO2_West_A_1 [5] => SoilCO2_West_B_1 [6] => SoilCO2_West_C_1 [7] => Tower_2 [8] => Soil_Transect_4_2 [9] => Soil_Transect_3_2 [10] => Soil_Transect_2_2 [11] => Soil_Transect_1_2 [12] => SoilCO2_West_A_2 [13] => SoilCO2_West_B_2 [14] => SoilCO2_West_C_2 [15] => Tower_3 [16] => Soil_Transect_4_3 [17] => Soil_Transect_3_3 [18] => Soil_Transect_2_3 [19] => Soil_Transect_1_3 [20] => SoilCO2_West_A_3 [21] => SoilCO2_West_B_3 [22] => SoilCO2_West_C_3 [23] => Tower_4 [24] => Soil_Transect_4_4 [25] => Soil_Transect_3_4 [26] => Soil_Transect_2_4 [27] => Soil_Transect_1_4 [28] => SoilCO2_West_A_4 [29] => SoilCO2_West_B_4 [30] => SoilCO2_West_C_4 [31] => Soil_Transect_4_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Soil_Transect_4_1	Spacial Count
2021-07-13	194	0	nan	3.6	0.9	3	3.9	5.3	4.2	3	12.1	4.8	13	12.1	3.9	13	0.2	12.1	14	10.1	12.6	16.2	13.1	20.7	14.8	11.7	19.6	10.7	17.9	29.1	13.9	17.9	11.3	13.9
2021-07-13	194	1	nan	3.3	0.9	3	3.6	4.7	5	3.3	11.5	6.6	12.7	11.8	4.5	8.1	0.5	11.2	14.5	9.2	12.6	15.9	13.1	19	15.1	10.9	19.3	11.3	21.3	28.2	13	15.3	9.6	13.9	8.3
2021-07-13	194	Avg	0-15cm																																	0
2021-07-13	194	Avg	15-30cm																																	0
2021-07-13	194	Avg	30-45cm																																	0
2021-07-13	194	Avg	45-60cm																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Flux_Tower_2	Biomass_Cage_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2021-07-13	194	0	nan	0.1	0.7	6.9	3.9	3.7	12	12.5	15.6
2021-07-13	194	1	nan	0.3	0.1	6.6	3.5	3.4	11.5	11.6	15.3
2021-07-13	194	Avg	0-15cm									0
2021-07-13	194	Avg	15-30cm									0
2021-07-13	194	Avg	30-45cm									0
2021-07-13	194	Avg	45-60cm									0
