Vaira: 2021-06-24 13:20:00 (DOY 175)
Author: Joe Verfaillie
Others:

Summary: Added sun shied to FD west, pond lithium power pack okay, end of season clip plots.

Vaira
2021-06-24

I arrived at about 13:20 PST. It was clear sunny and hot with a nice breeze. There were some thunderheads to the northeast. There were a handful of cows hanging out in the shade of some of the trees near the gate. The water whole is just a mud puddle.

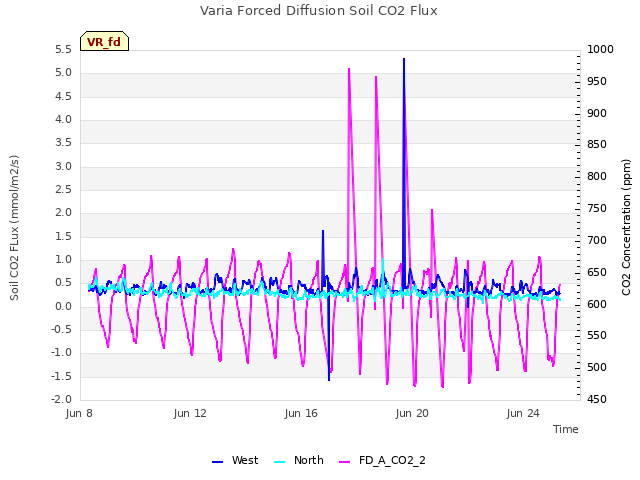

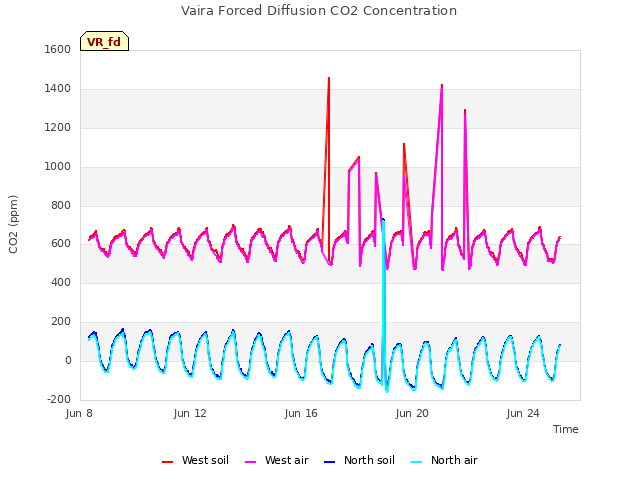

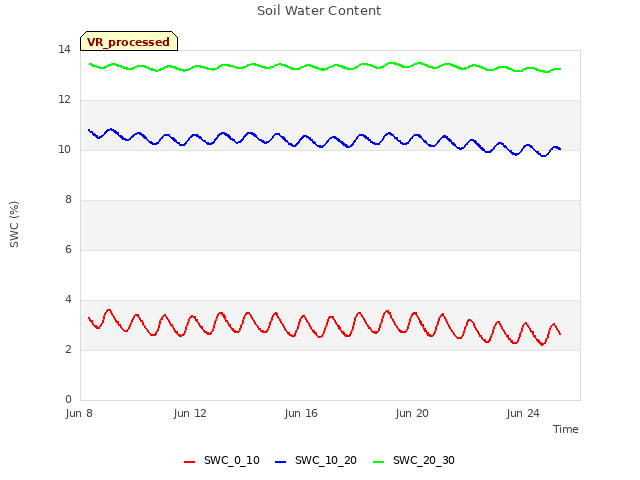

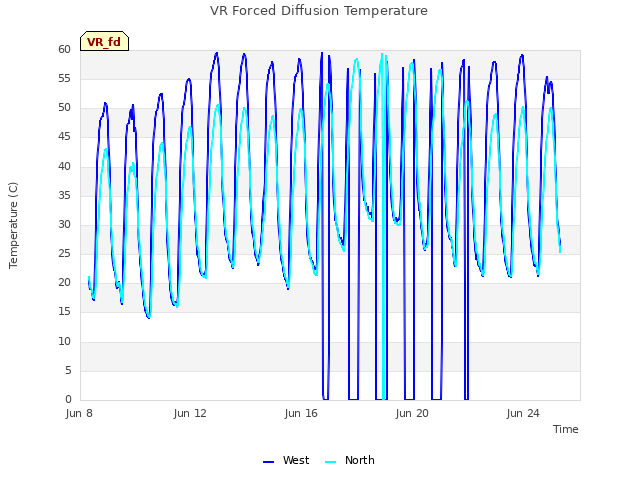

I measured the well and the two soil moisture profiles. I added a sun shield to the west FD chamber (the north one already has one). The sun shield is a split piece of pipe the fits around the body of the chamber and a mirrored Mylar hat that bolts to the guywire ring. I downloaded the FD data.

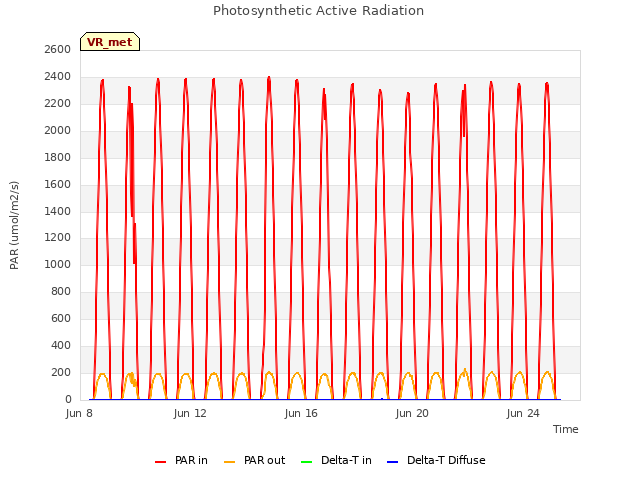

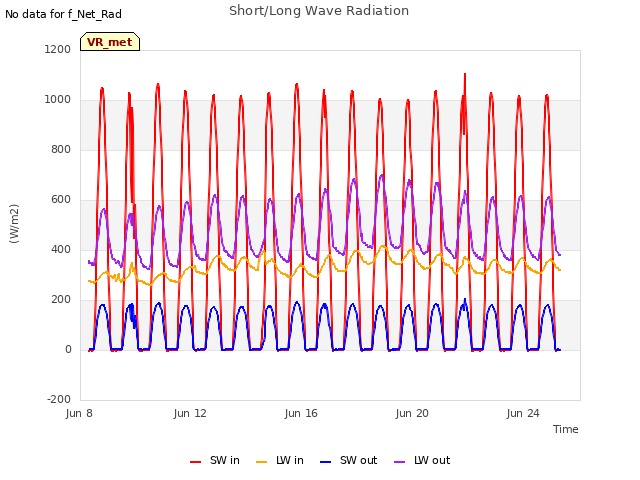

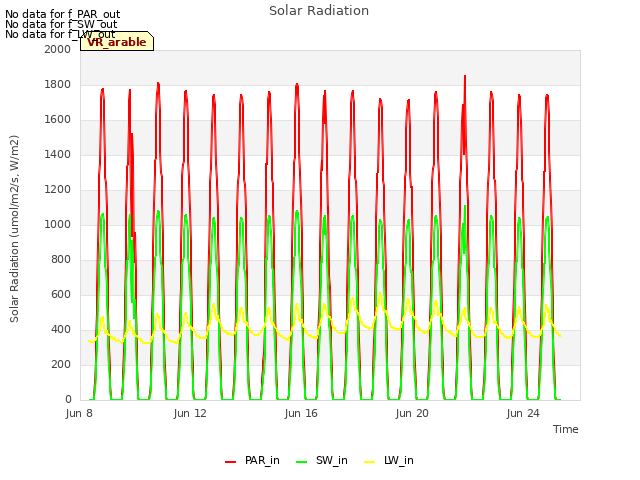

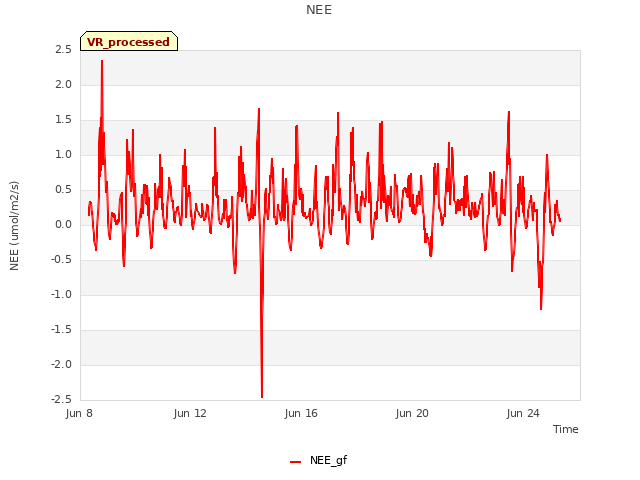

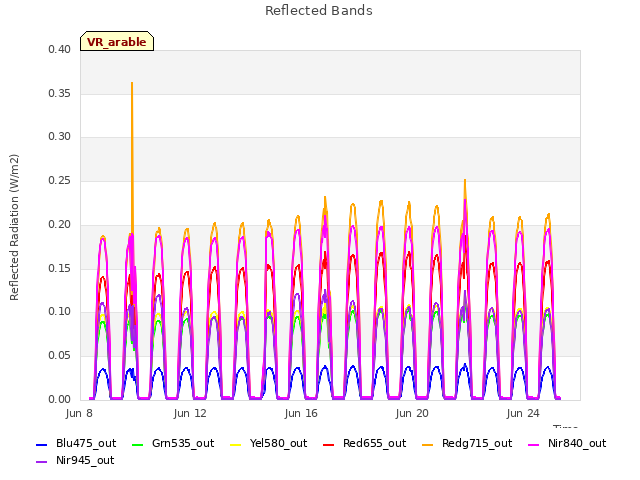

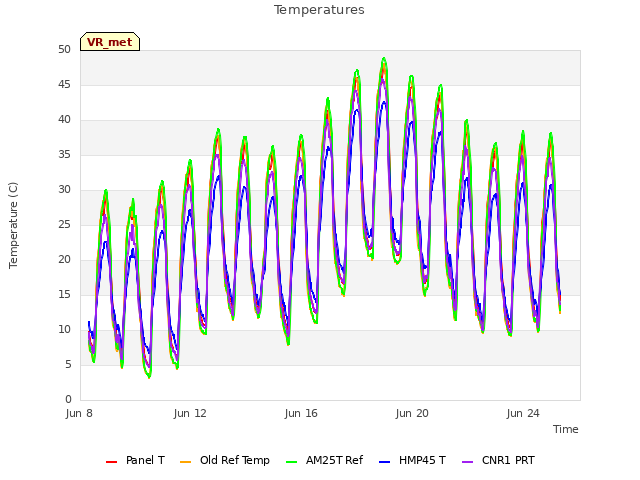

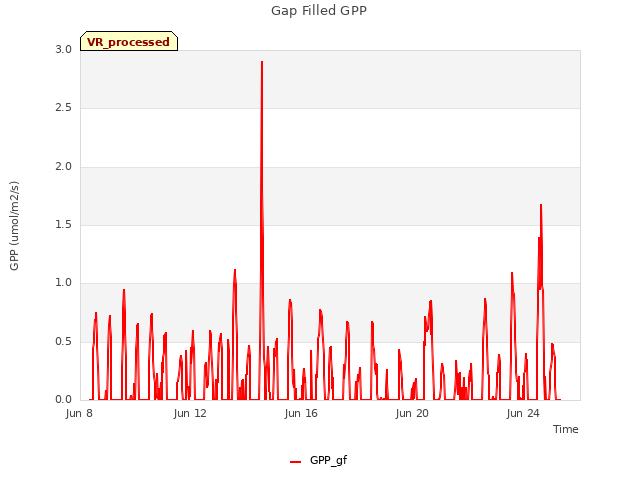

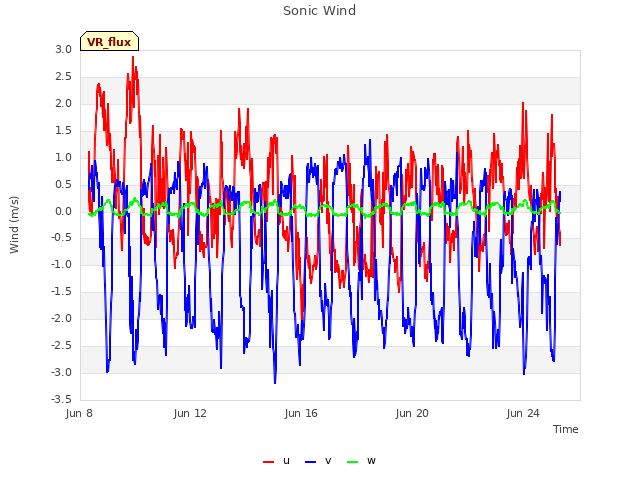

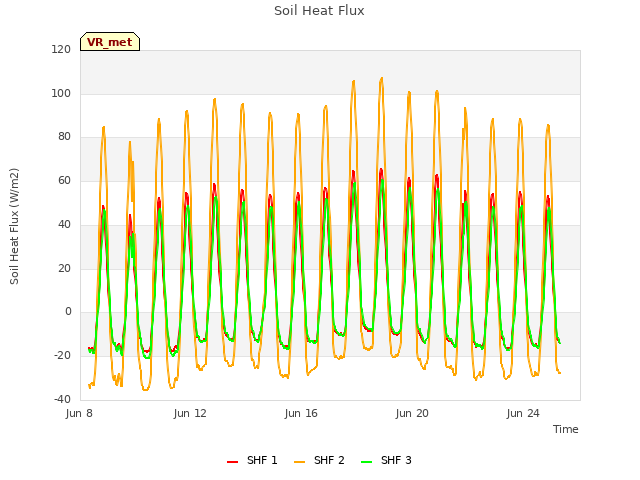

I collected the flux data â€“ this is the first batch since the upgrade to the new firmware. No issues noticed. I collected the met data and the phenocam images. I checked the radiometers and they were mostly clean.

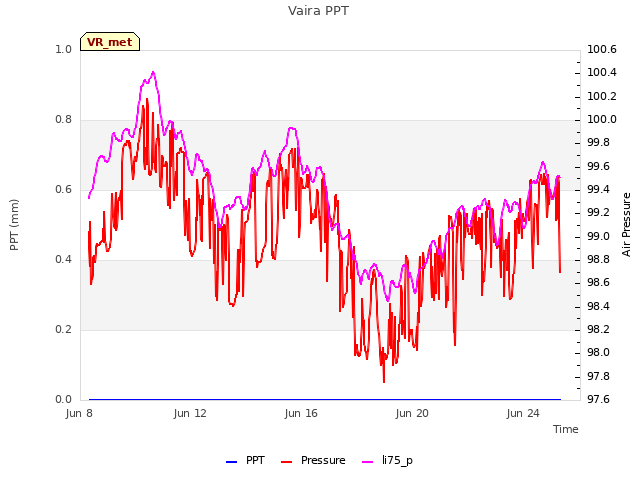

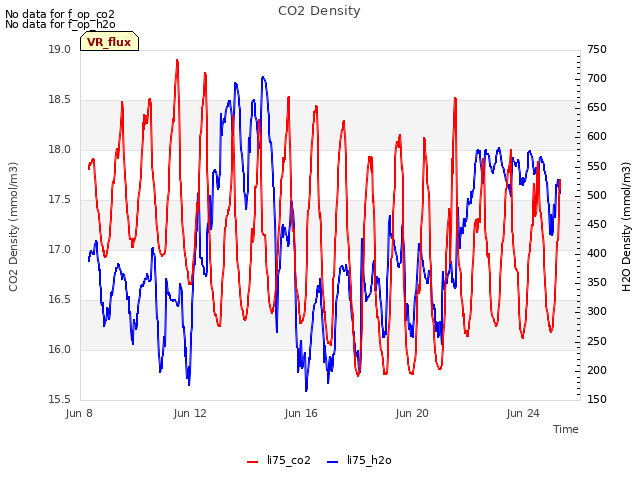

The 7500 read: 419.7ppm CO2, 509.2mmol/m3, 99.5kPa, 32.6C, 109.9SS

I collected four clip plots for end of season biomass. I used the 40cmx40cm frame and took all plant material inside. I tried to choose representative spots that were not disturbed by gophers or recently trampling.

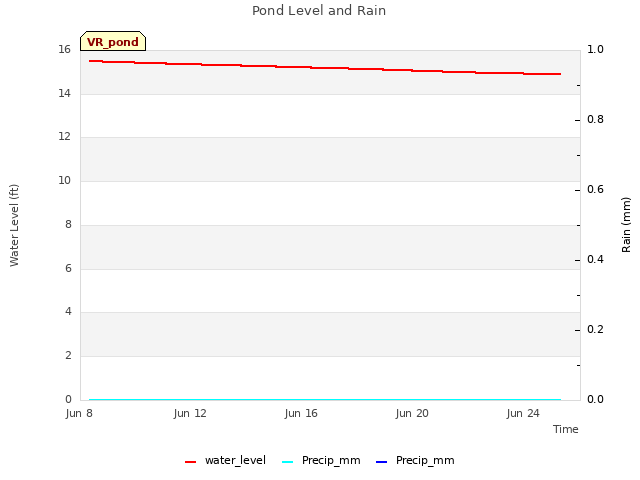

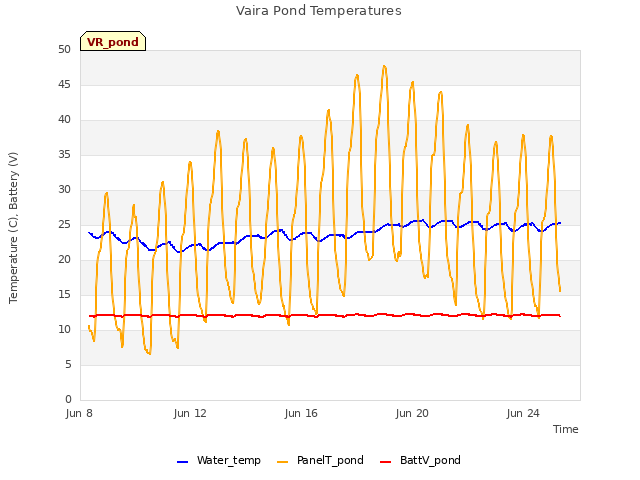

I went to the pond. Last time I swapped the SLA battery that was dying with a lithium power pack. The lithium power back was showing full charge on its indicator lights so I think itâ€™s working okay.

I left at about 14:30

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2021-06-24	VR_well	57.95
2021-06-24	VR_pond	14.92
2021-06-24	TZ_floor	31.95
2021-06-24	TZ_road	38.9
2021-06-24	TZ_tower	35.5

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Soil_Transect_4_2 [12] => Soil_Transect_3_2 [13] => Soil_Transect_2_2 [14] => Soil_Transect_1_2 [15] => SoilCO2_West_A_2 [16] => SoilCO2_West_B_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Soil_Transect_4_3 [20] => Soil_Transect_3_3 [21] => Soil_Transect_2_3 [22] => Soil_Transect_1_3 [23] => SoilCO2_West_A_3 [24] => SoilCO2_West_B_3 [25] => SoilCO2_West_C_3 [26] => Tower_4 [27] => Soil_Transect_4_4 [28] => Soil_Transect_3_4 [29] => Soil_Transect_2_4 [30] => Soil_Transect_1_4 [31] => SoilCO2_West_A_4 [32] => SoilCO2_West_B_4 [33] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2021-06-24	175	0	nan	4.5	3.1	2.5	1.5	3	4.2	7.1	3.1	1.2	12.1	4.8	7.8	13.9	12.4	4.5	6.6	1.4	11.8	14.3	10.1	12.6	16.5	13.4	15.9	17.3	11.7	18.5	12.5	19.3	29.4	13.3	19.9	10.2	14.8
2021-06-24	175	1	nan	4.7	0.1	2.1	1.8	2.7	4.2	7.4		1.8	11.5		7.5	13	11.8	4.2	7.5		11.8	14.5	10.3	13.1	16.5	13.4	16.8		12	19.6	12.2	19.1	28.8	13.3	19.3		14.5
2021-06-24	175	Avg	0-15cm																																			0
2021-06-24	175	Avg	15-30cm																																			0
2021-06-24	175	Avg	30-45cm																																			0
2021-06-24	175	Avg	45-60cm																																			0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Flux_Tower_2	Biomass_Cage_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2021-06-24	175	0	nan	0.7	0.4	7.5	4.2	3.9	12	11.6	15
2021-06-24	175	1	nan	0.1	0.1	7.8	4.2	4.2	12.3	11.3	15
2021-06-24	175	Avg	0-15cm									0
2021-06-24	175	Avg	15-30cm									0
2021-06-24	175	Avg	30-45cm									0
2021-06-24	175	Avg	45-60cm									0
