Field Notes

<--2021-05-18 15:40:00 | 2021-05-26 15:00:00-->
Phenocam link: Searching...

Sherman Wetland: 2021-05-25 09:30:00 (DOY 145)
Author: Ariane Arias-Ortiz
Others: Camilo

Summary: collected porewater samples for hotspot experiment

Camilo and I arrived at 9.30 am. It was a windy and sunny day. The water level at the wetland was at 98 cm, higher than during our previous hotspot sampling campaigns.

We started at the hotspot location and sampled standing water and porewaters for CH4, DIC and nutrients at 5, 10, 20, 30, 40 and 50 cm. We also took conductivity measurements with a handheld YSI at each depth.

We buried a minidot sn 931528 at 5 cm while we were sampling and took an additional soil core for DBD measurements. Sampling at the hotspot took us about 3 hours, then we moved to the open water location.

An animal (otter?) had chewed on the installed sedpoints so we had to install new ones at 5, 10, 20 and 30 cm depth. Here, we took samples at the surface and along these depths since we could not push the sedpoints deeper than 30 cm due to the hard and compacted nature of the soil. We also took conductivity measurements and buried the minidot at 5 cm.

Bryan visited the wetland in the late afternoon and Camilo showed him the hotspot location.

We left at around 5.30 pm, before that, Camilo downloaded data from the LGR. The LGR software was still frozen.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 SW_met graphs found

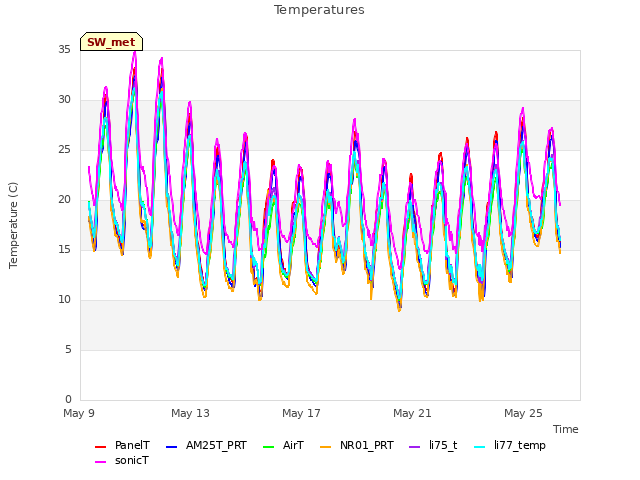

Explore the graph:Temperatures in a new window

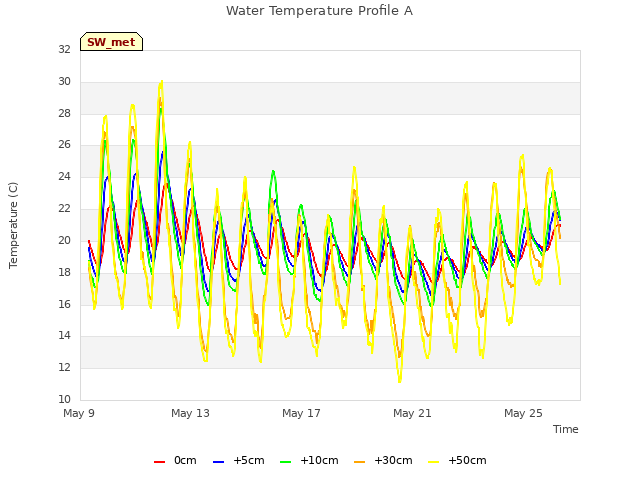

Explore the graph:Water Temperature Profile A in a new window

Explore the graph:Water Temperature Profile B in a new window

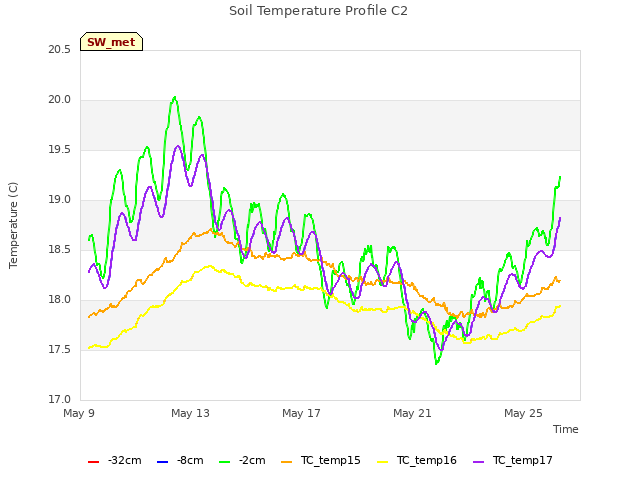

Explore the graph:Soil Temperature Profile C2 in a new window

Explore the graph:Soil Heat Flux in a new window

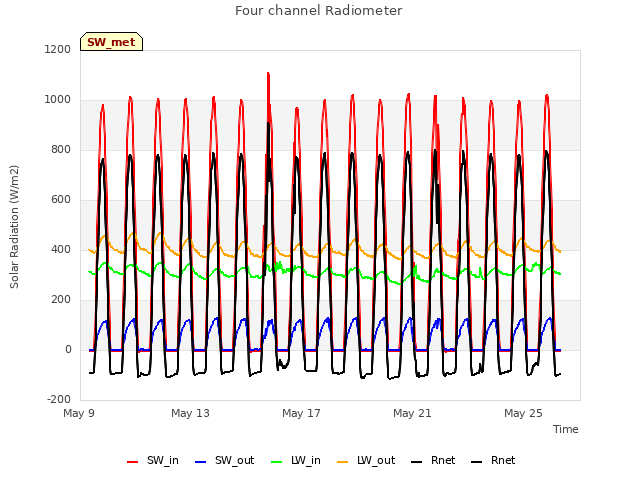

Explore the graph:Four channel Radiometer in a new window

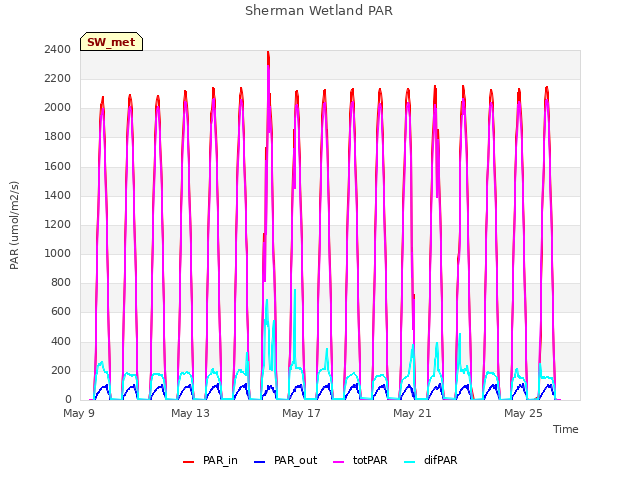

Explore the graph:Sherman Wetland PAR in a new window

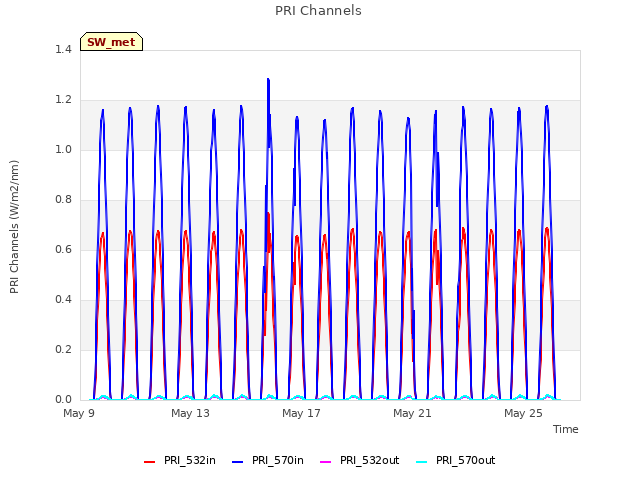

Explore the graph:PRI Channels in a new window

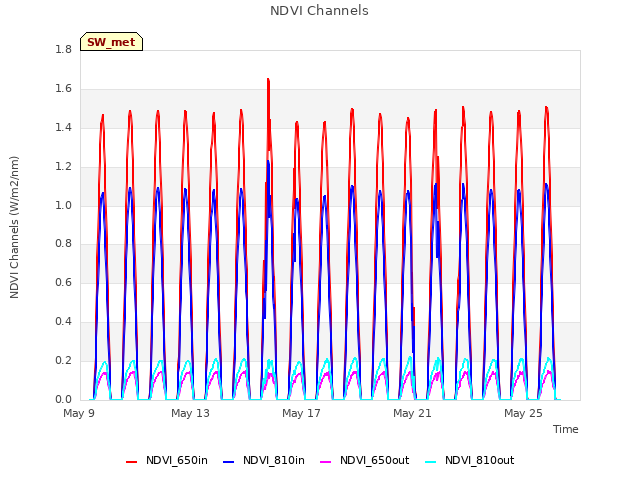

Explore the graph:NDVI Channels in a new window

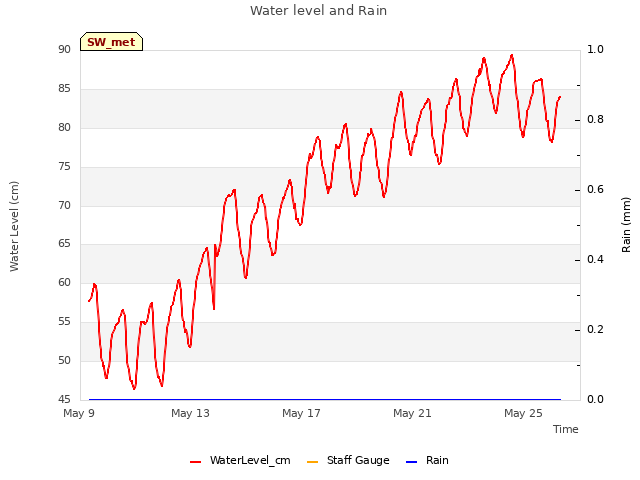

Explore the graph:Water level and Rain in a new window

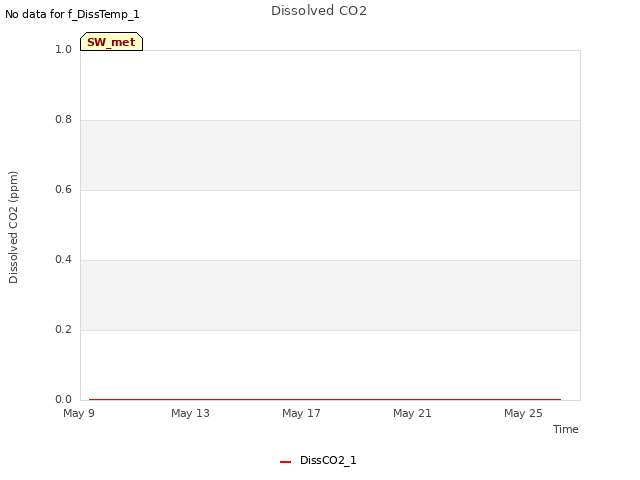

Explore the graph:Dissolved CO2 in a new window

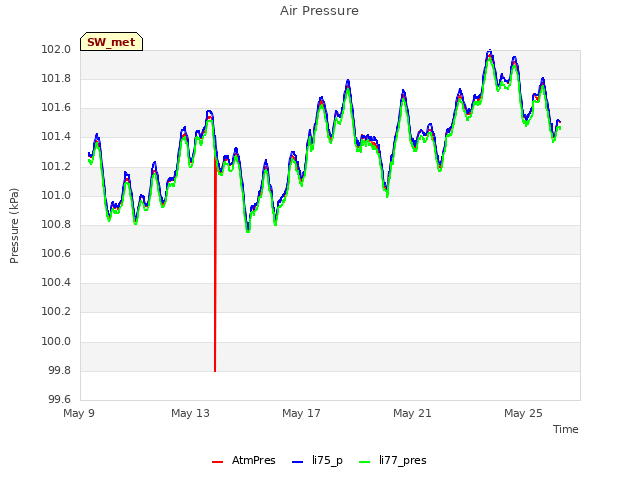

Explore the graph:Air Pressure in a new window

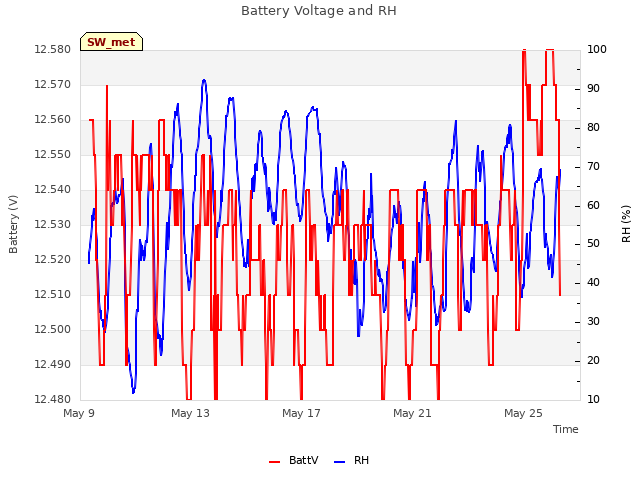

Explore the graph:Battery Voltage and RH in a new window

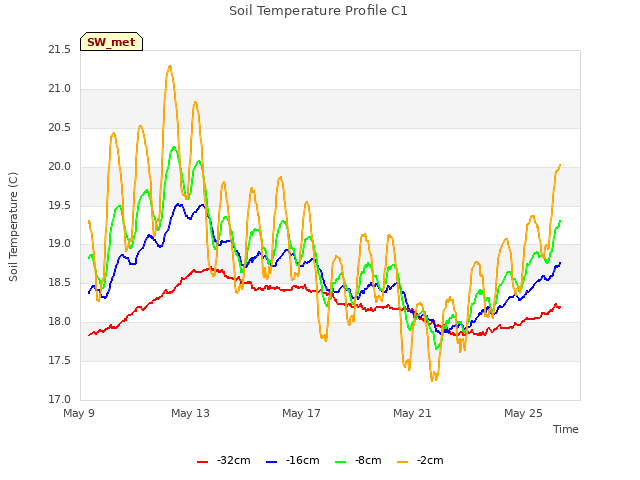

Explore the graph:Soil Temperature Profile C1 in a new window

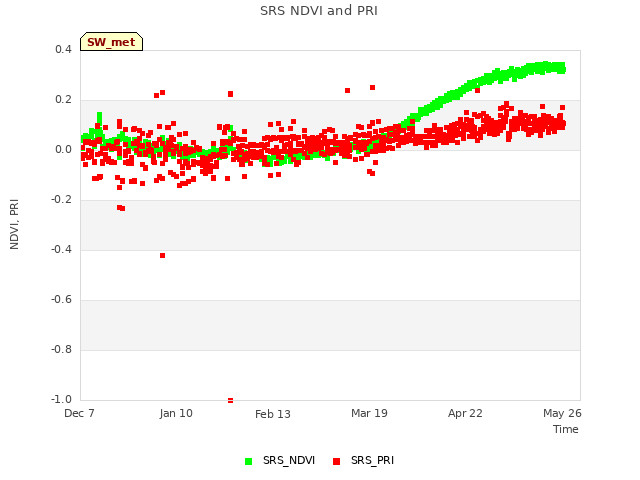

Explore the graph:SRS NDVI and PRI in a new window

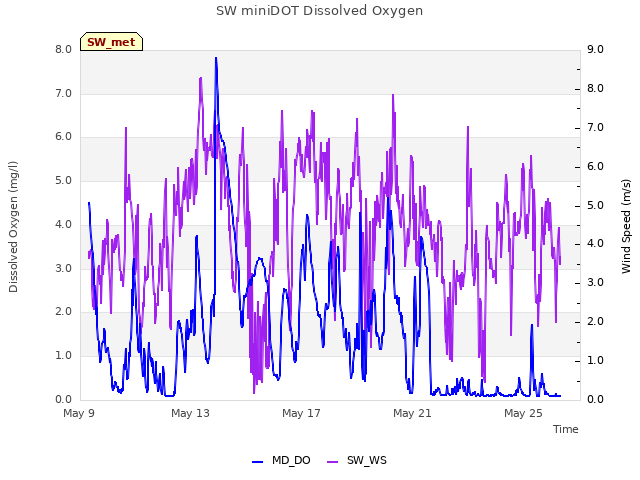

Explore the graph:SW miniDOT Dissolved Oxygen in a new window

4 SW_flux graphs found

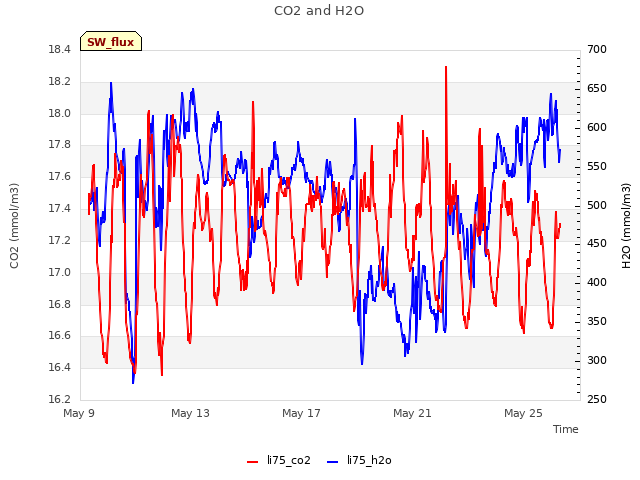

Explore the graph:CO2 and H2O in a new window

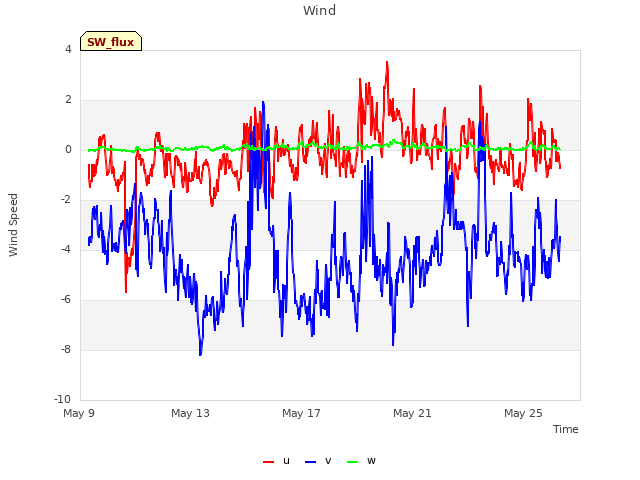

Explore the graph:Wind in a new window

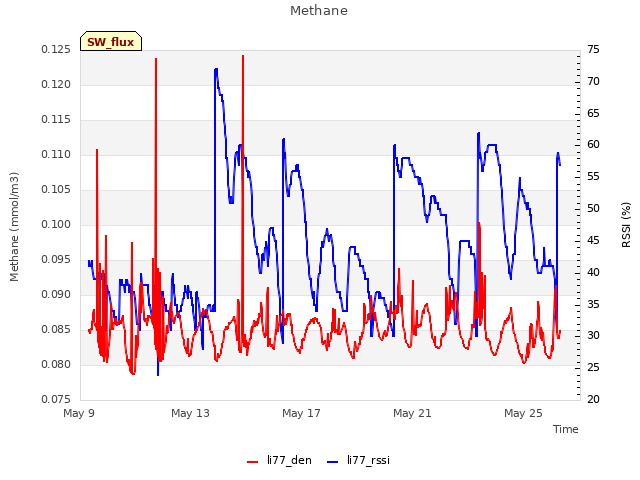

Explore the graph:Methane in a new window

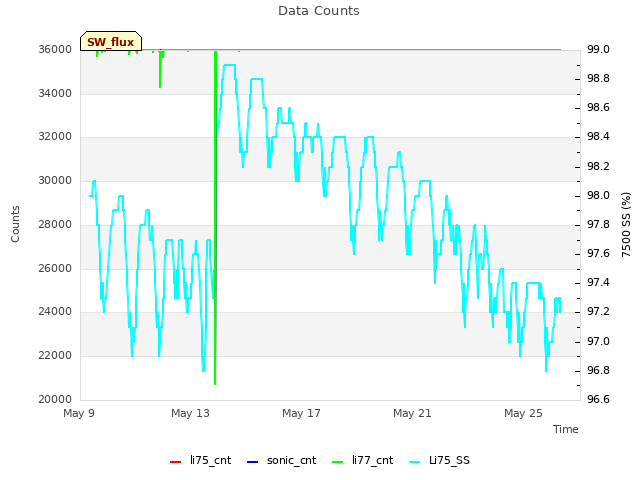

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

3 SW_arable graphs found

Explore the graph:Incoming Solar Bands in a new window

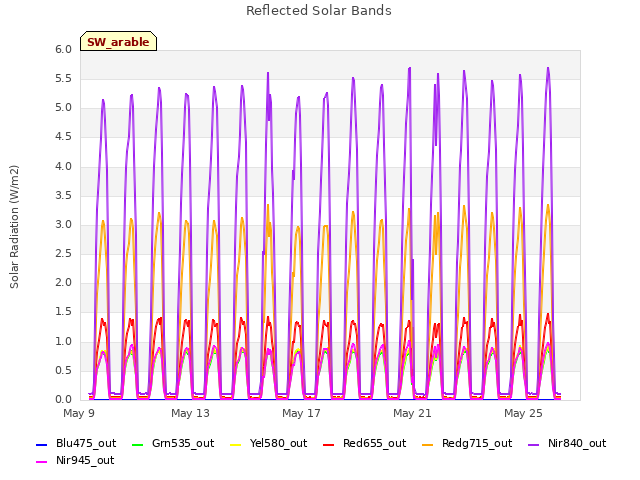

Explore the graph:Reflected Solar Bands in a new window

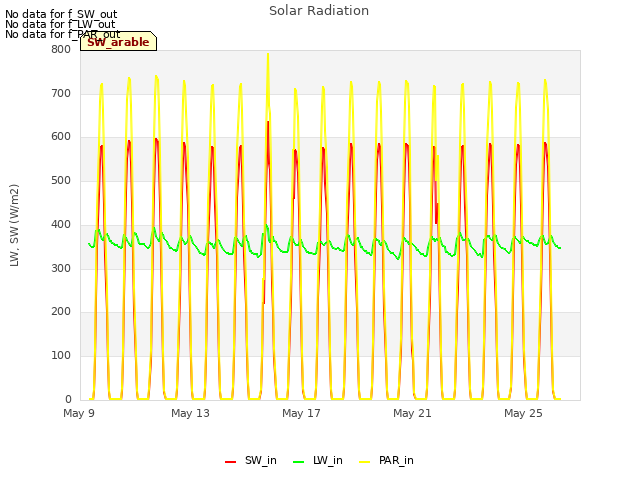

Explore the graph:Solar Radiation in a new window
