West Pond: 2020-11-19 12:05:00 (DOY 324)
Author: Joe Verfaillie
Others: Daphne

Summary: Swapped 7700, added test system for cross check T, RH and PAR, upgraded DC power strips

West Pond
2020-11-19

Daphne and I arrived at 12:05. We stopped and had a quick chat with Bruce at the gate on the way in. It was a very pretty fall day – mild and sunny with a cool breeze. The inlet was not running, the vegetation is golden and the water level was 8cm.

Daphne swapped out the 24V and 12V power strips for the newer pluggable and color coded power strips.

While she was working on that I mounted the test system with the HMP155 sn R0360206, the Ameriflux PAR sn 060831 and the two globe thermometers on the CR1000 sn 4190. The mounts were a bit difficult because this scaffolding doesn’t have the usual railing on top. The HMP155 is on the post with the HMP60. The globe thermometers are a bit lower and the PAR is on the radiation boom near the other sensors. The first fine wire TC on the globe thermometers is not reading. I cleaned dirt, fluff and bugs out of the HMP60 shield.

We started to calibrate the 7700 but it was being reported as “unknown sensor” by the Licor software. Daphne tried disconnecting and reconnecting it in the software. The data looked okay. Since we had the 7700 from BA we decided to swap the 7700 here – sn TG1-0224 came off and sn TG1-0421 went on. Then we calibrated 0421.
7700 0224 read: 1.99ppm CH4, 61RSSI
7700 0421 read: 2.0ppm CH4, 80RSSI – 2.1ppm CH4, 77RSSI after calibration.

The 7500 read: 403ppm CO2, 552mmol/m3 H2O, 16.9C, 102.5kPa, 96ss – 101 after cleaning.

Daphne downloaded the miniDot data, swapped its desiccant and the water level desiccant. She added a new longer chain on the mindDot, but it was still just barely in the water.

The camera window had condensation right in front of the lens. I tried to move the fan around to blow more across the window but I’m not sure it will help.

We left at 13:45

2 photos found

New 12V (green) and 24V (orange) pluggable power trips for the WP datalogger enclosure.
New 12V (green) and 24V (orange) pluggable power trips for the WP datalogger enclosure.

New 12V power strip for the WP datalogger enclosure with 14! pluggable terminals.
New 12V power strip for the WP datalogger enclosure with 14! pluggable terminals.

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

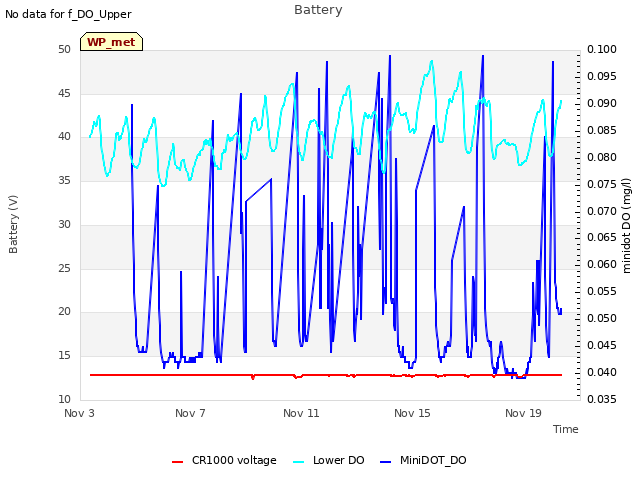

Explore the graph:Battery in a new window

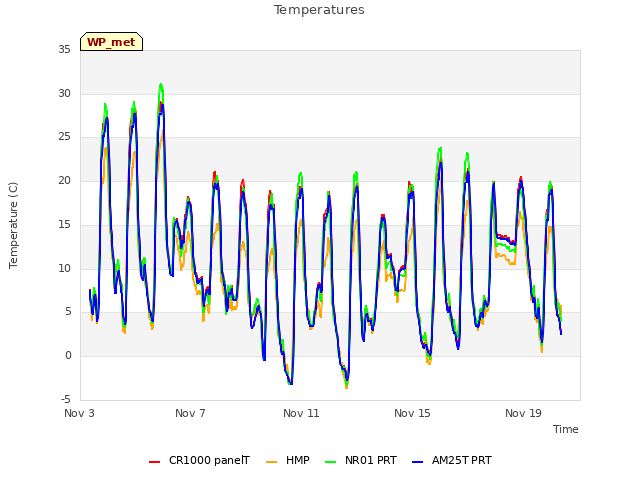

Explore the graph:Temperatures in a new window

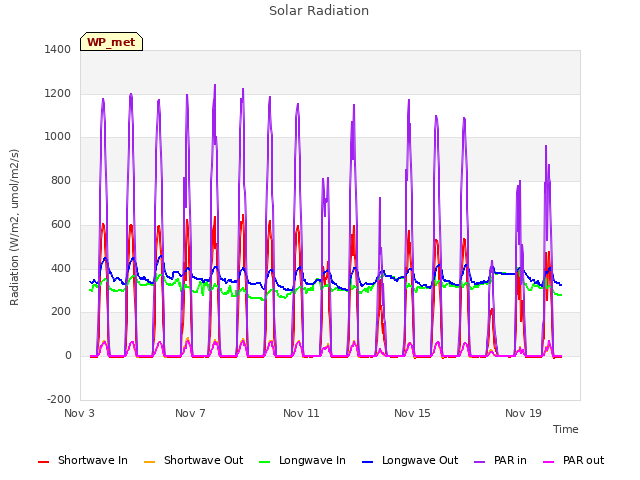

Explore the graph:Solar Radiation in a new window

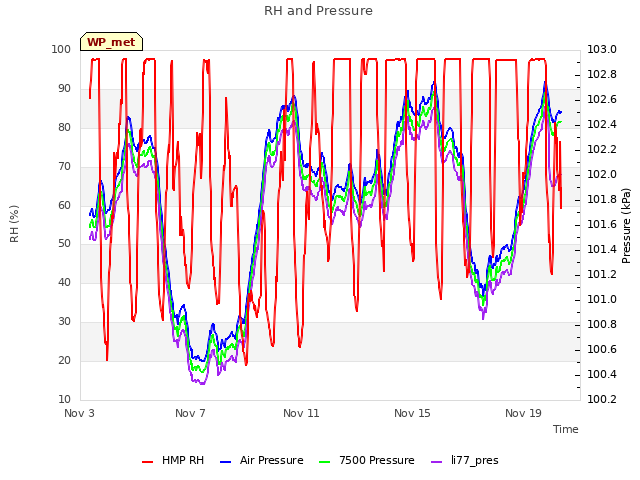

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

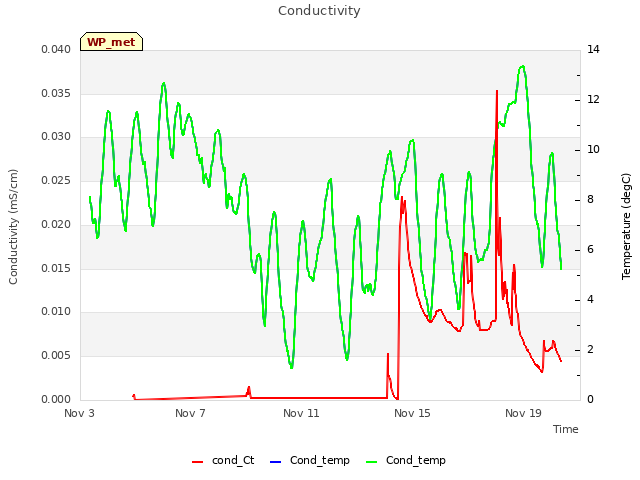

Explore the graph:Conductivity in a new window

Explore the graph:Temperatures Set A in a new window

Explore the graph:Temperatures Set B in a new window

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

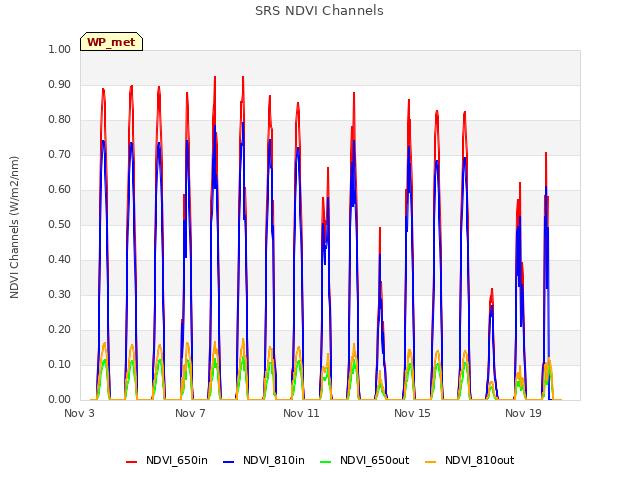

Explore the graph:SRS NDVI Channels in a new window

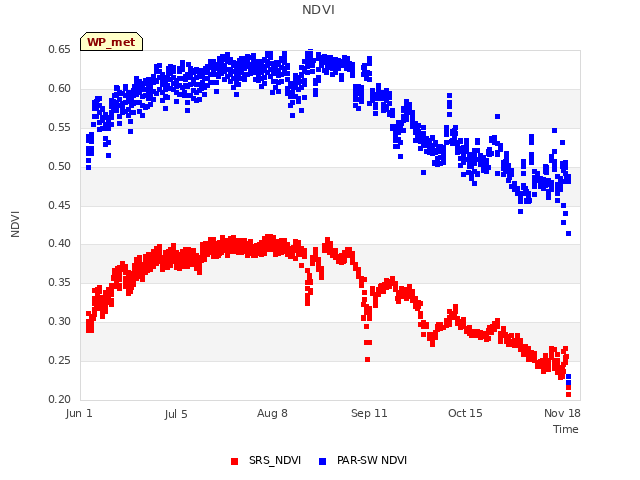

Explore the graph:NDVI in a new window

5 WP_flux graphs found

Explore the graph:Winds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

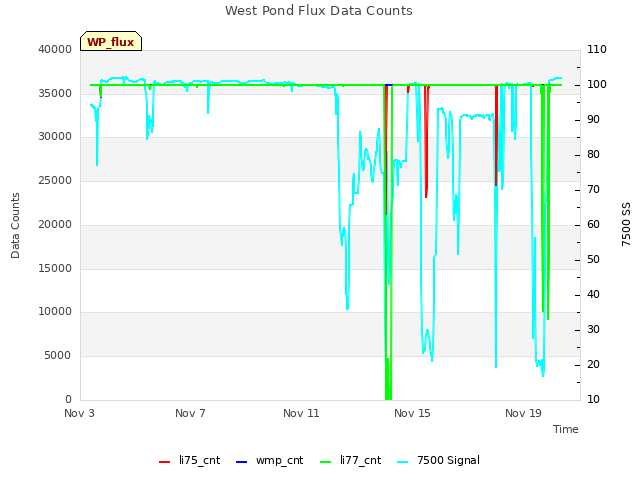

Explore the graph:West Pond Flux Data Counts in a new window
