Vaira: 2020-09-29 10:20:00 (DOY 273)
Author: Joe Verfaillie
Others: Siyan

Summary: Added Arable cup anemometer, removed original PAR sensors and update CR1000 program. All seemed well.

Vaira
2020-09-29

I arrived at about 10:20. Siyan was already there. It was hot and hazy with little to no wind. Air quality was in the moderate range with new fires burning in Napa.

I added a cup anemometer which plugs into the Arable Mark II. The anemometer is mounted on a post connected to an existing fence post with hose clamps and is 2m above ground level. Its cable runs along the top fence wire then up the tower to the radiation boom where it plugs into a junction box, Aux Bridge, also supplied by Arable. The Aux Bridge has connections for power and data from the anemometer (also an unused SDI-12 connection) and supplies both power and data to the Mark II on the standard power plug. I remove a plastic power junction box and fed our existing wires into the Aux Bridge where I splice them in with a screw terminal. It seemed to be working.

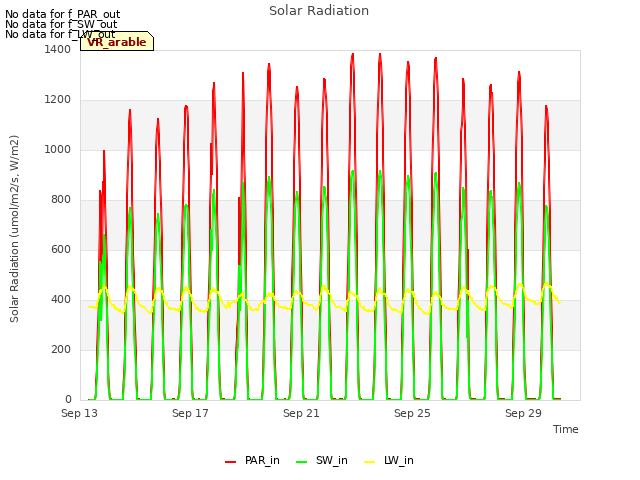

I also removed the two old PAR sensors (sn 990025 incoming and sn 990031 outgoing) which I had already swapped into the testing positions. The cables on these sensors is completely rotted near the sensors. After collecting the data I updated the CR1000 program to remove the two PAR testing readings and columns.

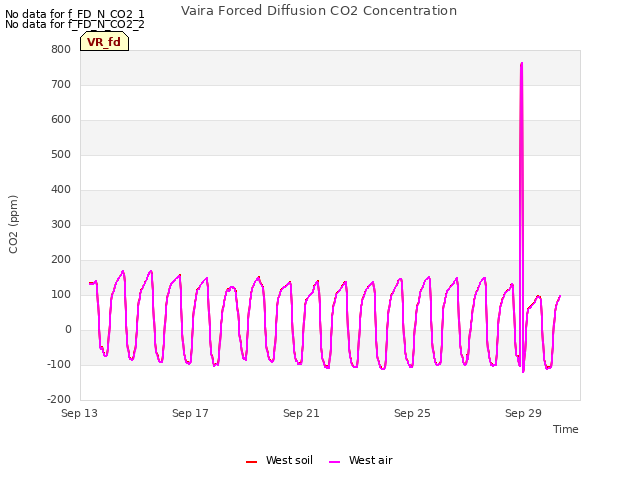

The data seemed to be all complete even though itâ€™s been about five weeks since it was last downloaded. I forgot the FD data in the morning and came back at about 14:30 to get it.

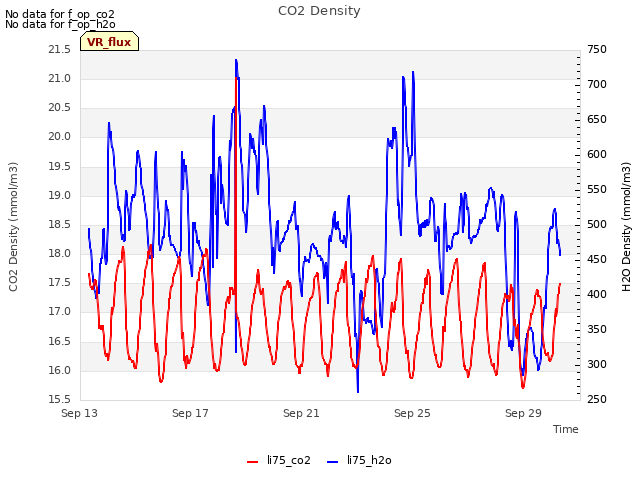

The 7500 read: 425.3ppm CO2, 377.5mmol/m3 H2O, 99.7kPa, 39.4C, 102.1SS

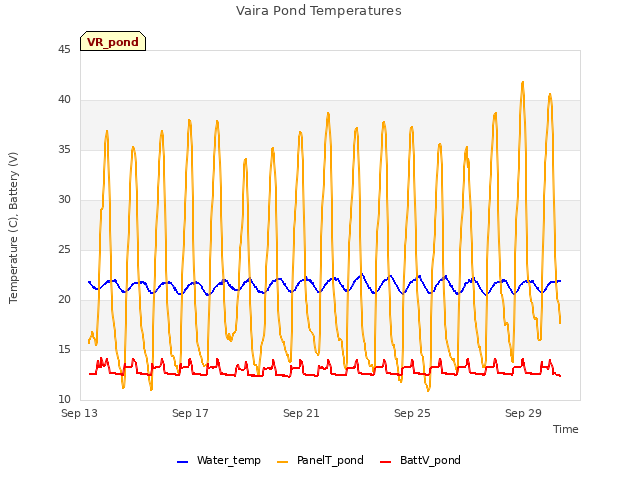

Siyan did the well, soil moisture, clip plots and went to the pond to collect the data there.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2020-09-29	VR_well	59.2
2020-09-29	TZ_floor	30.6
2020-09-29	TZ_tower	35.2
2020-09-29	TZ_road	38.3

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2020-09-29	273	0	nan	3.9	2.2	3.3	3.9	1.8	3	0.9	6.5	3	2.7	10	8.8	6	6	12.7	11.2	3.9	6	0.8	11.5	13.4	10.1	15.6	9.5	11.2	15	12.9	14.8	9.8	10.9	17	4.1	17.3	10.7	17	26.5	12.5	15.9	21	15.9
2020-09-29	273	1	nan	3.3	2.8	3.9	3.9	3	3	0.6	6.5	5.3	1.5	10.6	7.8	5.7	6	12.7	11.2	3.5	6.3	0.2	11.2	12.6	9.5	11.5	9.8	12	15.4	12.6	15.7	9.2	9.8	18.5	2.2	15.6	10.5	14.8	25.6	13.3	15.6	23.4	16.2
2020-09-29	273	Avg	0-15cm																																									0
2020-09-29	273	Avg	15-30cm																																									0
2020-09-29	273	Avg	30-45cm																																									0
2020-09-29	273	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Flux_Tower_2	Biomass_Cage_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2020-09-29	273	0	nan	0.1	0.1	6.6	2.9	4.2	13.7	14.2	16.8
2020-09-29	273	1	nan	0.4	0.1	6.9	3.2	4.8	14	13.6	16.8
2020-09-29	273	Avg	0-15cm									0
2020-09-29	273	Avg	15-30cm									0
2020-09-29	273	Avg	30-45cm									0
2020-09-29	273	Avg	45-60cm									0
