Vaira: 2020-08-26 11:30:00 (DOY 239)
Author: Joe Verfaillie
Others: Siyan

Summary: Very dry, trees turning brown, some thunder storms a week ago, swapped calibration PAR sensors, swapped the 7500

Vaira
2020-08-26

I arrived at about 11:30. Siyan was here earlier in the morning. Many of the trees have turned brown. The trees here arenâ€™t as extensively brown as at Tonzi but still a big change for this early in the season. The water hole by the road was dry. There was a little recent rain from some thunderstorms but only enough to pockmark the dust and get the sensors dirty. Today was kind of hazy but I didnâ€™t smell any smoke in the air.

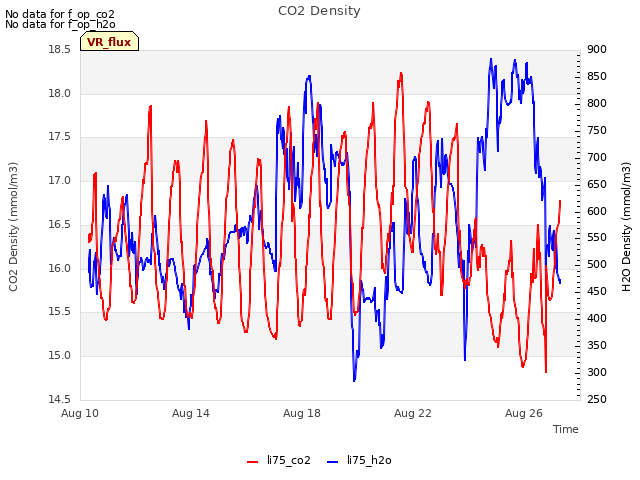

I swapped the 7500: sn 75H-2669 came off and sn 75H-2176 went on.
2669: 394.8ppm CO2, 663.2mmol/m3 H2O, 99.0kPa, 34.8C, 96.2SS â€“ before cleaning
2669: 417.9ppm CO2, 524.5mmol/m3 H2O, 99.0kPa, 35.0C, 101.8SS â€“ after cleaning
2176: 416.5ppm CO2, 511.8mmol/m3 H2O, 98.9kPa, 35.5C, 101.6SS

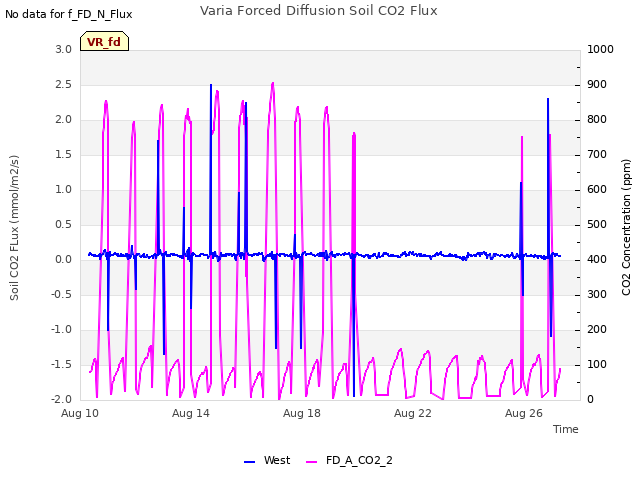

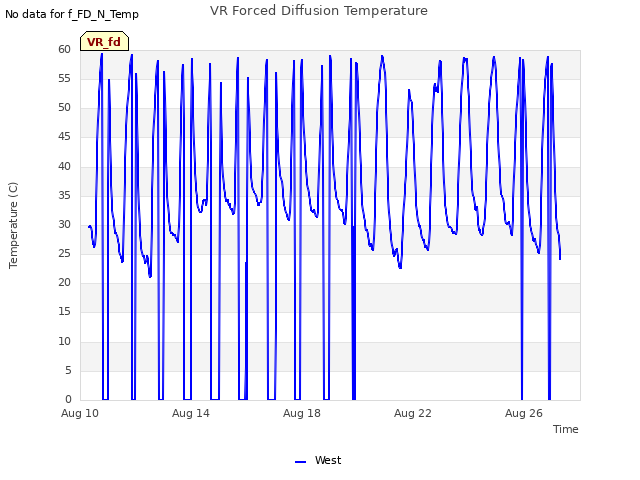

I collected the met, flux, Phenocam images and FD chamber clearing its memory. All seemed well.

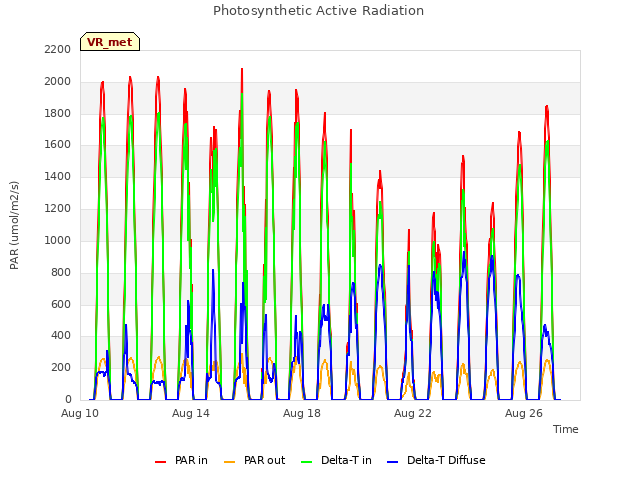

I swapped the PAR sensors I had been inter-comparing. One of them was the Ameriflux standard that needed to be returned to the lab. Sn 161073 was removed from the incoming position and sn 140455 was removed from the reflected position. Sn 040412 was installed in the incoming position and sn 030381 was installed in the reflected position.

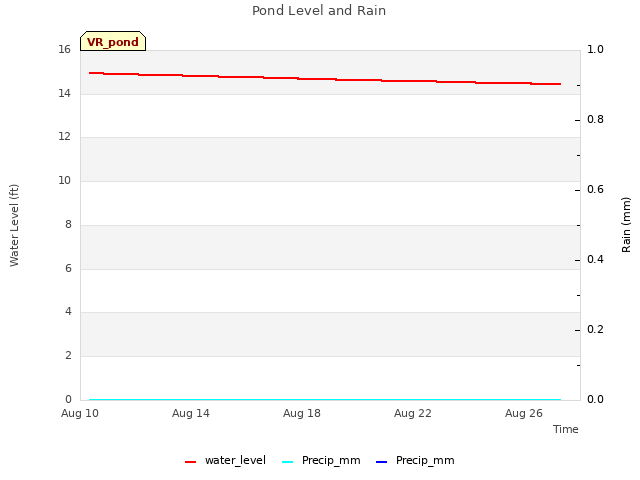

I went to the pond and collected the water level data. The pond level was 14.56ft. There were a couple of cows on the far side of the pond.

There was a four wheeler parked under a tree near the entrance that I didnâ€™t notice on my way in but it could easily have been there all along â€“ I didnâ€™t see anyone around.

I left at about 1pm

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2020-08-26	VR_well	58
2020-08-26	TZ_floor	29.8
2020-08-26	TZ_tower	34.3
2020-08-26	TZ_road	37.8
2020-08-26	VR_pond	14.56

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Soil_Transect_4_3 [23] => Soil_Transect_3_3 [24] => Soil_Transect_2_3 [25] => Soil_Transect_1_3 [26] => SoilCO2_West_A_3 [27] => SoilCO2_West_B_3 [28] => SoilCO2_West_C_3 [29] => Tower_4 [30] => Floor_South_4 [31] => Soil_Transect_4_4 [32] => Soil_Transect_3_4 [33] => Soil_Transect_2_4 [34] => Soil_Transect_1_4 [35] => SoilCO2_West_A_4 [36] => SoilCO2_West_B_4 [37] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2020-08-26	239	0	nan	3.6	9.5	4.7	1.9	0.3	3	0.3	8.6	2.7	2.1	10.9	8.1	4.2	6	13.3	1.8	4.2	6.9	2.7	11.8	13.7	10.6	10.6	12	15.9	13.7	15.4	15.4	11.5	18.8	2.7	11	17	27.1	13.3	16.2	22.5	17.3
2020-08-26	239	1	nan	3.3	2.2	5	2.2	0.6	3.3	0.6	8.8	3.6	2.4	10.9	8.4	6.3	6	13.3	11.6	4.5	6	0.8	11.5	13.4	13.7	9.5	12.9	15.9	13.1	15.9	14.3	11.5	16.8	2.4	11	17.3	26.8	13	16.2	23.1	16.8
2020-08-26	239	Avg	0-15cm																																							0
2020-08-26	239	Avg	15-30cm																																							0
2020-08-26	239	Avg	30-45cm																																							0
2020-08-26	239	Avg	45-60cm																																							0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Flux_Tower_2	Biomass_Cage_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2020-08-26	239	0	nan	0.4	0.1	7.5	3.9	4.5	14	14.5	17
2020-08-26	239	1	nan	0.4	0.4	7.5	3.5	3.9	13.7	13.6	17.3
2020-08-26	239	Avg	0-15cm									0
2020-08-26	239	Avg	15-30cm									0
2020-08-26	239	Avg	30-45cm									0
2020-08-26	239	Avg	45-60cm									0
