Vaira: 2020-07-28 10:00:00 (DOY 210)
Author: Joe Verfaillie
Others: Siyan, Sunny, Kyoko, Hisashi

Summary: Hot and Dry, Standard fieldwork, went to the pond, swapped positions of "cal" PAR sensors

Vaira
2020-07-28

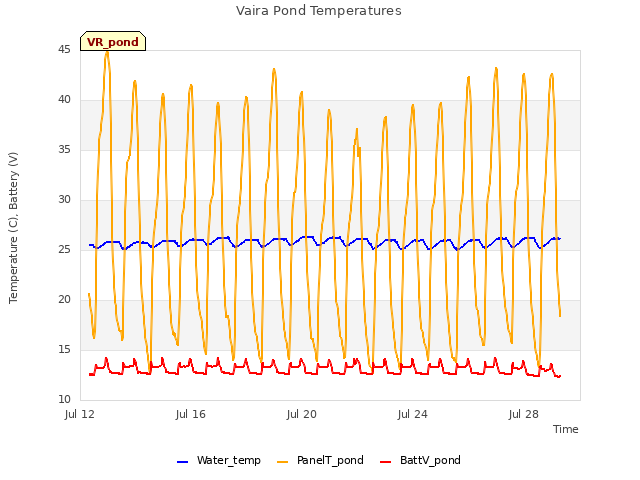

Siyan and Sunny, and Kyoko, Hisashi and I all arrived at 10:00 in two cars. It was hot sunny and dry. Thereâ€™s still a little water in the water hole. My family went to the pond. The stream was dry across the road and the pond level was 15.46ft. I cleaned the solar panel and skipped a stone.

Siyan and Sunny did the well, soil moisture and clip plots.

I downloaded the data. All seemed well.

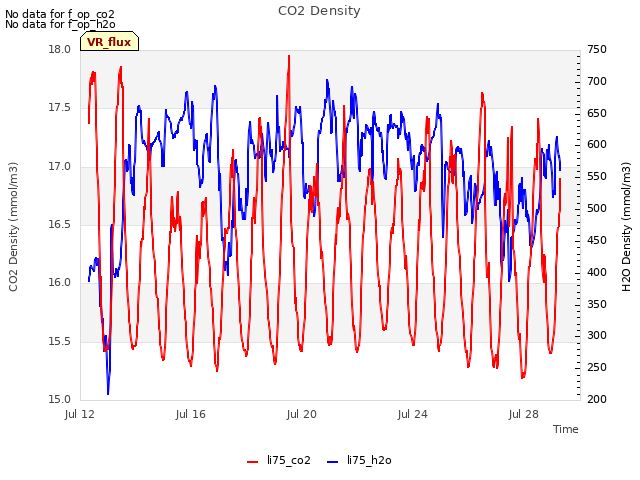

The 7500 read: 409.6ppm CO2, 553.1mmol/m3 H2O, 99.2kPa, 28.9C, 101.8SS

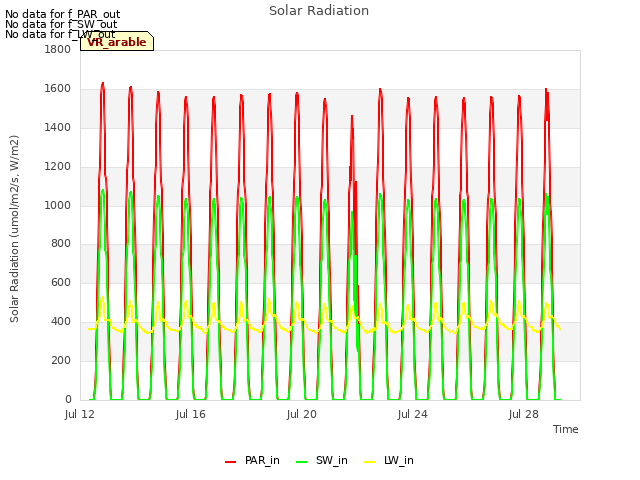

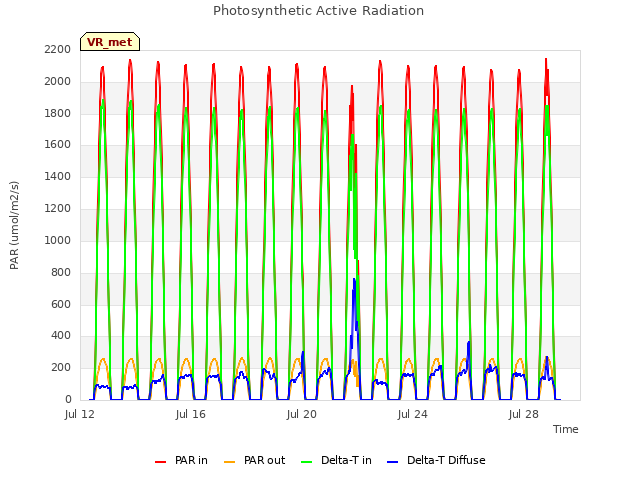

I swapped the positions of the two new â€œcalibrationâ€ PAR sensors: sn 161073 is incoming and sn 140455 is reflected. PAR sn 161073 is the Ameriflux calibration sensor and should not be permanently mounted on the tower. Iâ€™ll have to swap the old PAR sensors one at a time, repair their cables and swap them back in.

I removed the SMA antenna cable from the old radio link to the pond for use at Tonzi.

We left at about 11am

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2020-07-28	TZ_road	37.1
2020-07-28	TZ_floor	28.7
2020-07-28	TZ_tower	33.15
2020-07-28	VR_pond	15.46
2020-07-28	VR_well	57.1

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Floor_West_2 [12] => Soil_Transect_4_2 [13] => Soil_Transect_3_2 [14] => Soil_Transect_2_2 [15] => Soil_Transect_1_2 [16] => SoilCO2_West_A_2 [17] => SoilCO2_West_B_2 [18] => SoilCO2_West_C_2 [19] => Tower_3 [20] => Floor_South_3 [21] => Floor_West_3 [22] => Soil_Transect_4_3 [23] => Soil_Transect_3_3 [24] => Soil_Transect_2_3 [25] => Soil_Transect_1_3 [26] => SoilCO2_West_A_3 [27] => SoilCO2_West_B_3 [28] => SoilCO2_West_C_3 [29] => Tower_4 [30] => Floor_South_4 [31] => Soil_Transect_4_4 [32] => Soil_Transect_3_4 [33] => Soil_Transect_2_4 [34] => Soil_Transect_1_4 [35] => SoilCO2_West_A_4 [36] => SoilCO2_West_B_4 [37] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2020-07-28	210	0	nan	3.6	1.8	2.2	3.1	3.9	0.9	6.8	3.3	0.1	11.5	9.7	5.7	7.2	13.3	12.4	4.5	7.2	1.1	12.1	14	13.4	24.1	10.3	15.9	16.2	13.1	17	16.2	11.5	19.1	3.4	10.5	18.8	28.2	52.6	17.3	24.5	17.6
2020-07-28	210	1	nan	3.6	1.8	2.5	2.2	3.6	0.6	7.4	3.9	0.1	11.2	9.7	7.2	6.9	13.6	12.1	4.5	6	1.1	12.4	13.4	13.4	20.1	10.3	15.9	16.5	13.4	16.5	16.5	11.5	19.3	3.3	11.3	18.8	27.9	13.3	17.9	24.2	17.9
2020-07-28	210	Avg	0-15cm																																							0
2020-07-28	210	Avg	15-30cm																																							0
2020-07-28	210	Avg	30-45cm																																							0
2020-07-28	210	Avg	45-60cm																																							0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Flux_Tower_2	Biomass_Cage_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2020-07-28	210	0	nan	0.1	0.1	8.4	4.2	4.2	12.9	14.6	16.8
2020-07-28	210	1	nan	0.1	0.6	8.1	3.9	5	14	15	16.8
2020-07-28	210	Avg	0-15cm									0
2020-07-28	210	Avg	15-30cm									0
2020-07-28	210	Avg	30-45cm									0
2020-07-28	210	Avg	45-60cm									0
