Field Notes

<--2020-06-12 11:00:00 | 2020-07-28 10:00:00-->
Other sites visited today: Mayberry | Tonzi | Tonzi | West Pond
Phenocam link: Searching...

Vaira: 2020-07-07 10:00:00 (DOY 189)
Author: Joe Verfaillie
Others: Siyan, Kyoko, Hisashi

Summary: Standard field work, getting crispy, checked soil co2 resistors, solar charge controllers

Vaira
2020-07-07

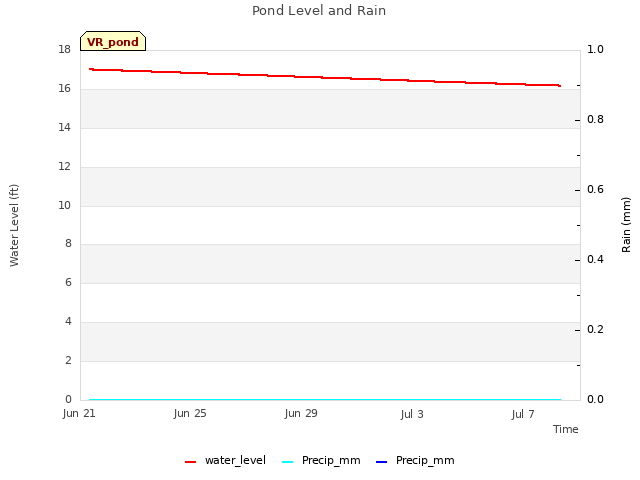

Siyan, Kyoko, Hisashi and I arrive at about 10:00. We are still social distancing in separate family cars. It was clear sunny and hot. The water hole still has some water but the grass and ground surface are crispy.

I collected the data from the eddy system and data loggers. All seemed well. Kyoko and Hisashi did the soil moisture and Siyan did the well and took clip plots.

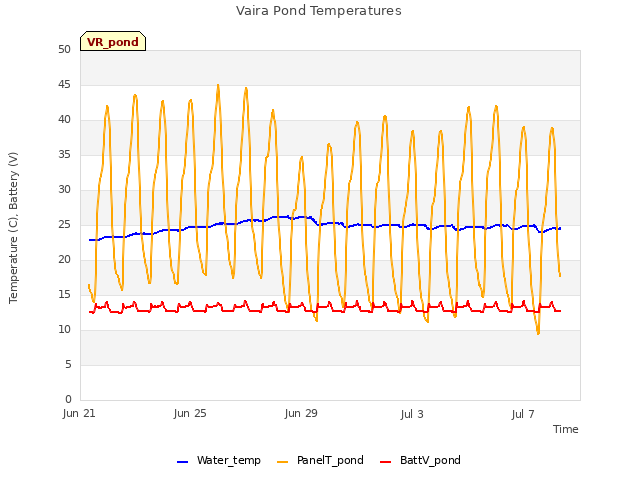

I made a few spectra measurements with the Jaz. We did not go to the pond.

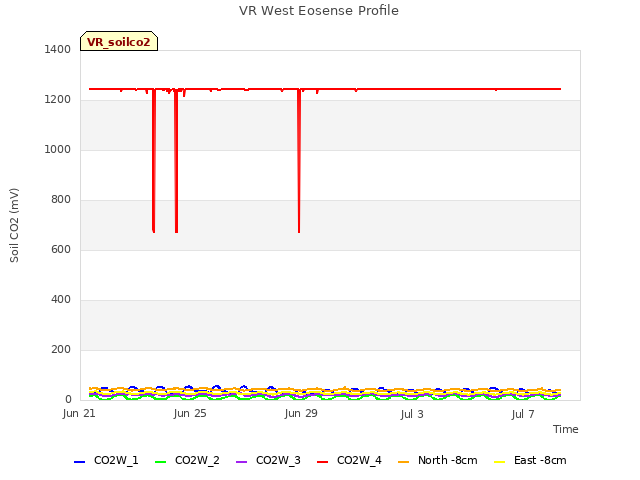

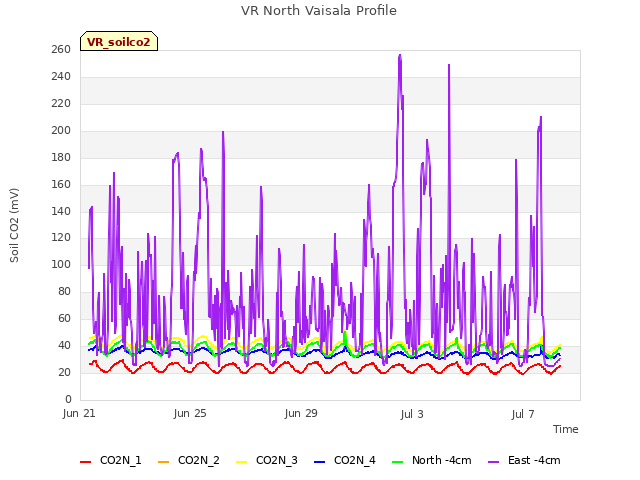

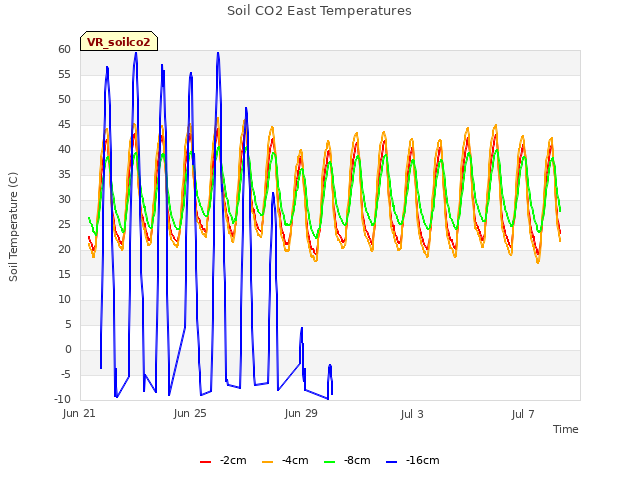

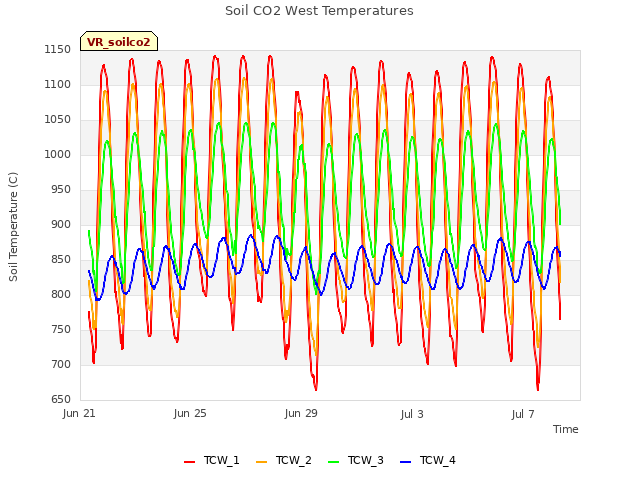

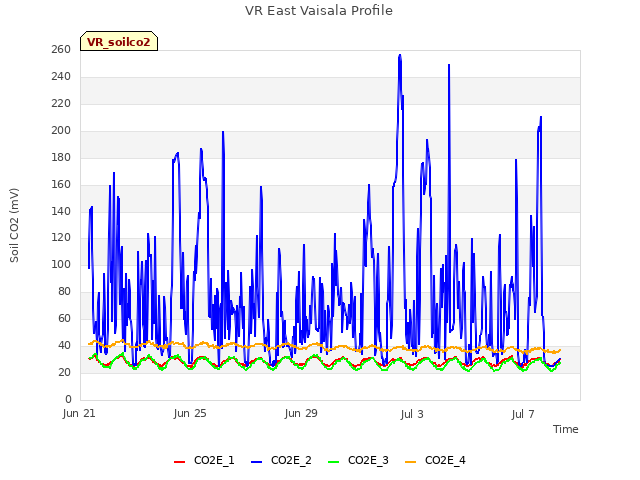

I spot checked the resistors used for the Vaisala CO2 probes â€“ looks like they are all 121 Ohm.

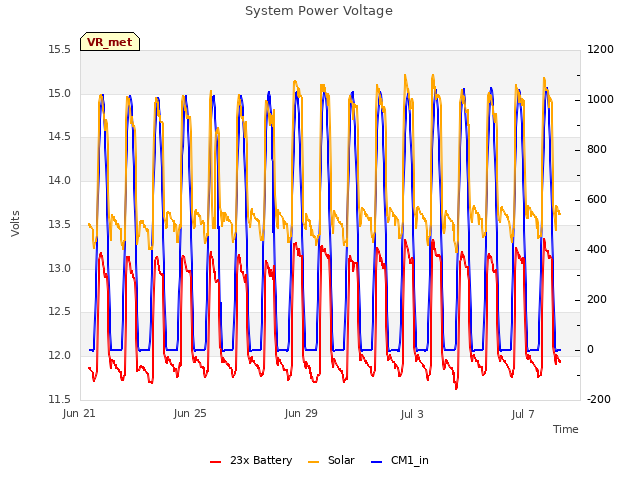

I also checked the solar charge controllers and they seem to match the equipment notes. The main controller is bolted to a back plane that will have to be removed to get its serial number.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2020-07-07	MB	1.77
2020-07-07	VR_well	56.2
2020-07-07	TZ_floor	27.8
2020-07-07	TZ_tower	32.2
2020-07-07	TZ_road	36.5
2020-07-07	WP	1.41

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Floor_West_2 [12] => Soil_Transect_4_2 [13] => Soil_Transect_3_2 [14] => Soil_Transect_2_2 [15] => Soil_Transect_1_2 [16] => SoilCO2_West_A_2 [17] => SoilCO2_West_B_2 [18] => SoilCO2_West_C_2 [19] => Tower_3 [20] => Floor_South_3 [21] => Soil_Transect_4_3 [22] => Soil_Transect_3_3 [23] => Soil_Transect_2_3 [24] => Soil_Transect_1_3 [25] => SoilCO2_West_A_3 [26] => SoilCO2_West_B_3 [27] => SoilCO2_West_C_3 [28] => Tower_4 [29] => Floor_South_4 [30] => Soil_Transect_4_4 [31] => Soil_Transect_3_4 [32] => Soil_Transect_1_4 [33] => SoilCO2_West_A_4 [34] => SoilCO2_West_B_4 [35] => SoilCO2_West_C_4 [36] => Floor_West_1 [37] => Soil_Transect_2_4 [38] => Floor_West_3 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_West_1	Soil_Transect_2_4	Floor_West_3	Spacial Count
2020-07-07	189	0	nan	4.5	1.8	4.2	5.1	3.6	0.1	8	5	2.1	10.2	9	4.8	7.8	14.5	12.4	4.5	7.8	1.1	11.8	14.3	13.7	10.6	16.5	16.8	14	16.8	15.1	12.6	18.2	10.7	11.3	19.1	49.7	17.6	24.5	19.1
2020-07-07	189	1	nan	3.9	1.5	3.4	5.4	4.2	0.1	7.7	4.5	2.1	12.4	7.5	6.3	7.8	14.8	12.4	4.2	8.4	1.7	12.4	14.3	14.8	10.3	16.2	17.3	13.7	16.8	15.9	12.6	19	7.9	12.5	19.3	50	17.6	24.2	18.2	0.1	28.8
2020-07-07	189	2	nan												7.5																											25.1
2020-07-07	189	Avg	0-15cm																																								0
2020-07-07	189	Avg	15-30cm																																								0
2020-07-07	189	Avg	30-45cm																																								0
2020-07-07	189	Avg	45-60cm																																								0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Flux_Tower_2	Biomass_Cage_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2020-07-07	189	0	nan	0.7	0.3	8.7	5.1	4.5	14.3	13.6	17
2020-07-07	189	1	nan	0.1	0.6	9.3	5.4	5	15.1	13.6	16.8
2020-07-07	189	Avg	0-15cm									0
2020-07-07	189	Avg	15-30cm									0
2020-07-07	189	Avg	30-45cm									0
2020-07-07	189	Avg	45-60cm									0
