Vaira: 2020-06-12 11:00:00 (DOY 164)
Author: Joe Verfaillie
Others: Kyoko, Hisashi, Siyan

Summary: The grass is dead, added PAR sensors to compare before swap, all seems well.

Vaira
2020-06-12

Kyoko, Hisashi and I arrived at 11:00. Siyan had been there since 10:30. It was a mild day with a high thin overcast and a strong gusty wind from the east southeast. There was a faint hint of smoke in the air and later from Tonzi we could see a fire burning to the northwest. The grass is pretty much completely dead. Only a few hints of green from some of the hardier natives. The water hole still had water.

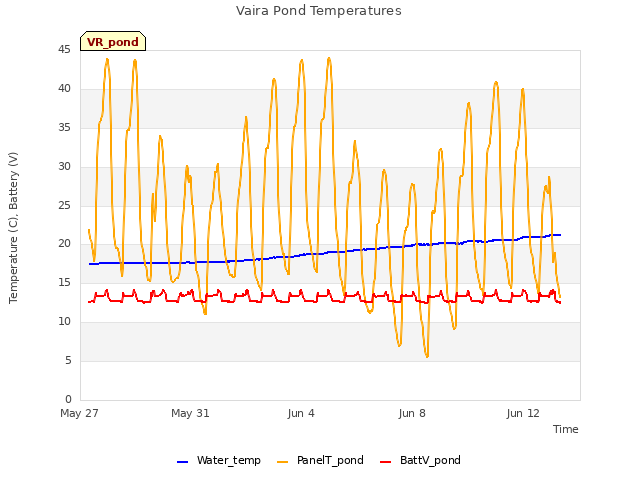

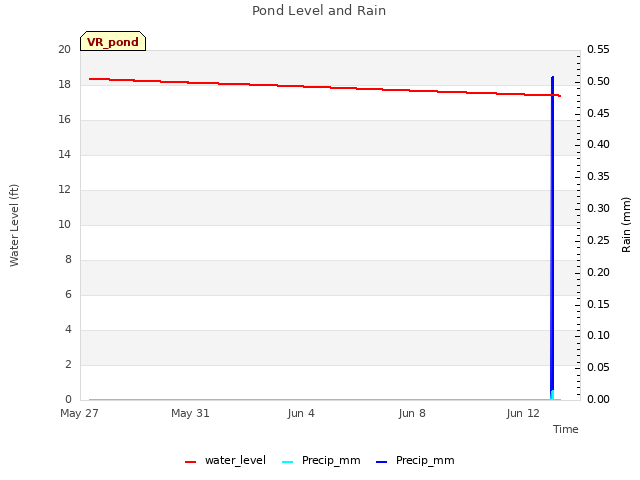

When we arrived Siyan had walked to the pond to collect the depth data there. She said there was water in the stream from the pond that crosses the road. She had already done the well and soil moisture measurements.

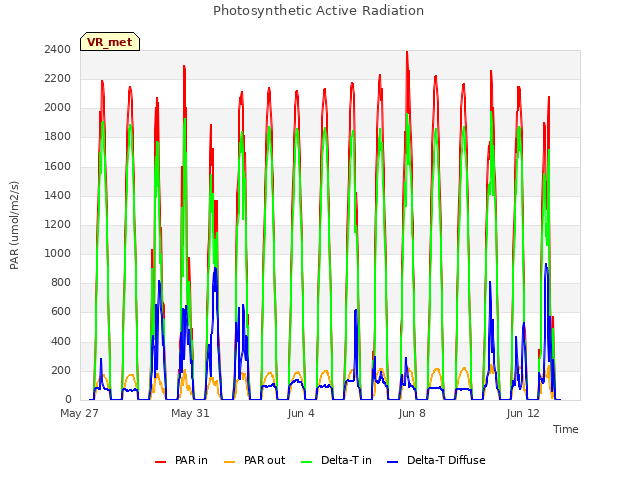

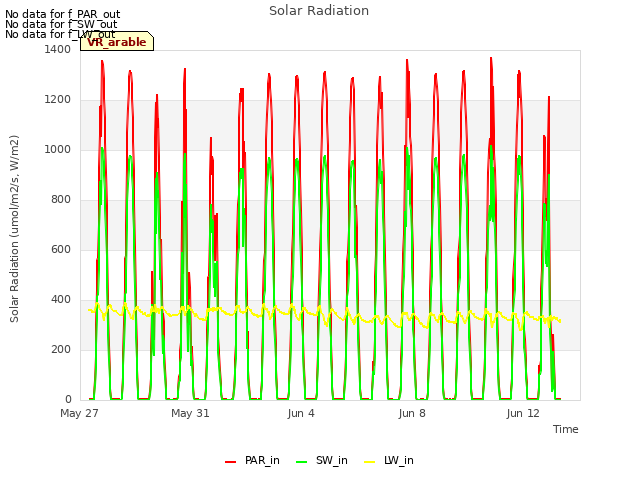

I added two PAR sensors to the tower. The cables on the old ones have been rotting away for years and Siyan sees some noise and is worried about a drift. The new sensors have temporary mounts using a C-clamp and cable ties. After a couple weeks of side-by-side data, Iâ€™ll remove the old ones and permanently mount the new ones. The new sensors are sn 140455 mounted in the incoming position and sn 161073 mounted in the reflected position. I collected the data, downloaded a copy of the program and edited it to add the two PAR sensors to the end of the multiplexor. The data looked okay after uploading the new program. The new PAR data is output in the 30min table at the end of the other averages and before the standard deviations.

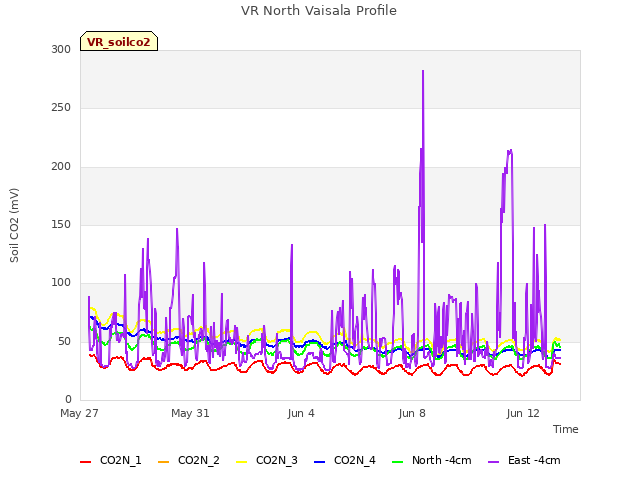

I collected the eddy data, camera images and soil co2. At first the soil co2 did not connect so I checked on its power which seemed okay. On the second collection try all seemed normal.

The 7500 read: 414.1ppm CO2, 426.0mmol/m3 H2O, 99.7kPa, 26.7C, 98.8SS

We left at about 11:45

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2020-06-12	VR_well	55.3
2020-06-12	TZ_floor	27
2020-06-12	TZ_tower	31.6
2020-06-12	TZ_road	36
2020-06-12	VR_pond	17.56

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Soil_Transect_4_2 [12] => Soil_Transect_3_2 [13] => Soil_Transect_2_2 [14] => Soil_Transect_1_2 [15] => SoilCO2_West_A_2 [16] => SoilCO2_West_B_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Soil_Transect_4_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Floor_South_4 [29] => Soil_Transect_4_4 [30] => Soil_Transect_3_4 [31] => Soil_Transect_2_4 [32] => SoilCO2_West_A_4 [33] => SoilCO2_West_B_4 [34] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2020-06-12	164	0	nan	5.3	6.6	2.4	9.4	3.7	0.3	9.7	5.9	4.7	11.2	11.8	9	15.8	21.9	5.1	14.8	6	13.6	15.6	15.4	11.5	16.5	29.3	14.1	20.1	17	12.6	20.2	7.3	12.5	21.6	27.4	17	23.4	20.5
2020-06-12	164	1	nan	5.3	1.5	2.1	8.8	1.9	0.3	8.3	5.3	5	12.1	11.2	9	15.5	19.1	4.8	12.4	4.5	13	15.6	16.5	10.6	16.5	25.4	14.3	20.1	15.6	12.6	19.9	7.3	13	21.9	27.6	17.6	23.4	19.6
2020-06-12	164	Avg	0-15cm																																				0
2020-06-12	164	Avg	15-30cm																																				0
2020-06-12	164	Avg	30-45cm																																				0
2020-06-12	164	Avg	45-60cm																																				0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Flux_Tower_2 [3] => Biomass_Cage_2 [4] => Flux_Tower_3 [5] => Biomass_Cage_3 [6] => Flux_Tower_4 [7] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Flux_Tower_2	Biomass_Cage_2	Flux_Tower_3	Biomass_Cage_3	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2020-06-12	164	0	nan	1.2	0.6	9.3	5.7	4.5	13.4	14.8	15.6
2020-06-12	164	1	nan	1.5	0.6	9.3	5.7	3.7	13.1	13.9	15.3
2020-06-12	164	2	nan	1.2	0.3	9.7	6	3.9	14	14.2	15
2020-06-12	164	3	nan	1.2	1.2	9	5.7	4.5	14	13.6	15.6
2020-06-12	164	Avg	0-15cm									0
2020-06-12	164	Avg	15-30cm									0
2020-06-12	164	Avg	30-45cm									0
2020-06-12	164	Avg	45-60cm									0
