Field Notes

<--2020-05-29 14:30:00 | 2020-06-09 11:00:00-->
Phenocam link: Searching...

Bouldin Alfalfa: 2020-06-01 00:00:00 (DOY 153)
Author: Camilo Rey-Sanchez
Others: Cassie

Summary: A-Ci curves

Cassie and I arrived at 9:15 AM. It was fresh for most of the day with partially cloudy skies. The alfalfa was tall and flowering. The leaves were smaller than the last time but there were some that covered most of the area of the cuvette and those where measured. We positioned a tarp near the tower and located ourselves and the console of the machine in the shade but measured leaves exposed directly to the sun. Five A/Ci curves were built using the following concentrations: 400, 300, 200, 150, 100, 75, 50, 400, 500, 600, 800, 1000, and 1300 ppm. The temperature was kept ambient and the light at 1500 umol m-2 s-1. The sample and reference IRGAs were matched after every CO2 step, as usual. After completing each curve, the leaves were collected, chlorophyll fluorescence was measured, and leaves were taken to the lab. We finished at 1:30 PM and helped Joe troubleshoot one of the arable marks that needed to have a reset done.

Next Mowing: 2020-06-04

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

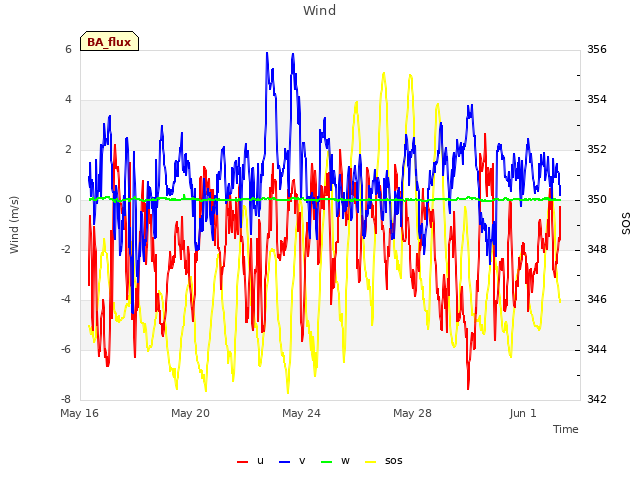

Explore the graph:Wind in a new window

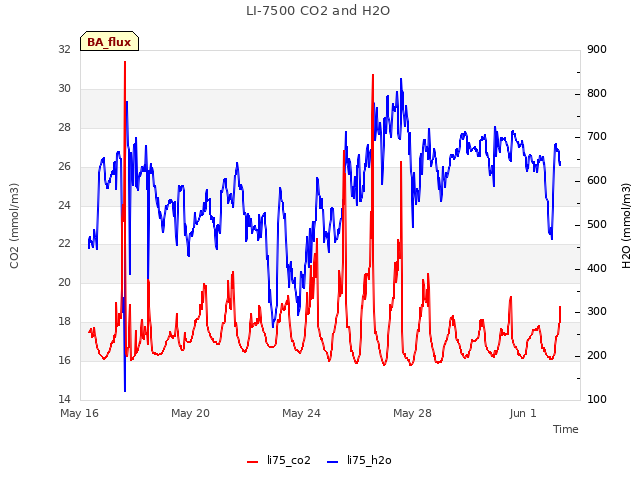

Explore the graph:LI-7500 CO2 and H2O in a new window

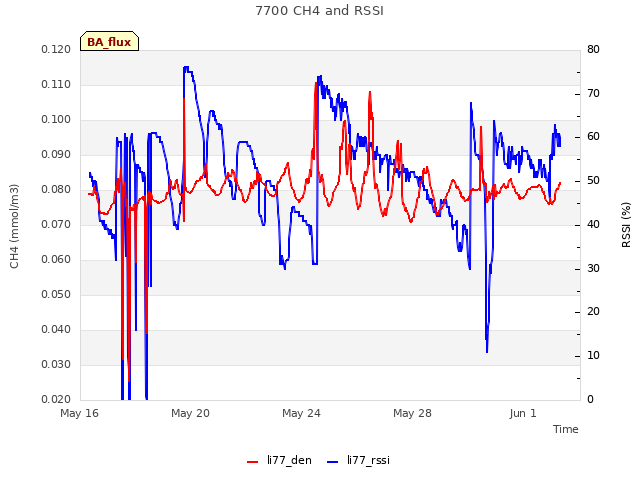

Explore the graph:7700 CH4 and RSSI in a new window

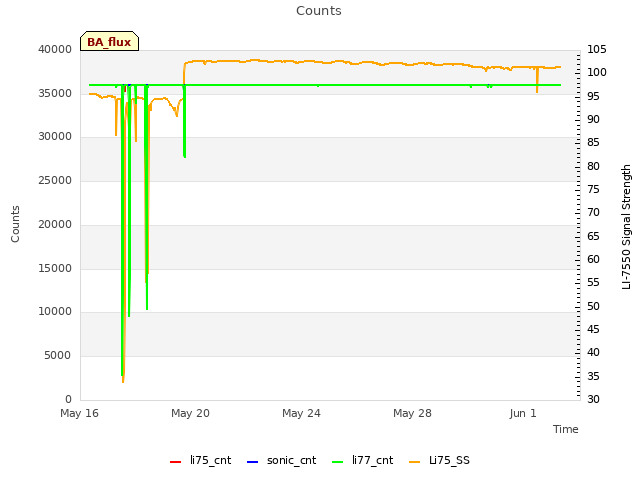

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

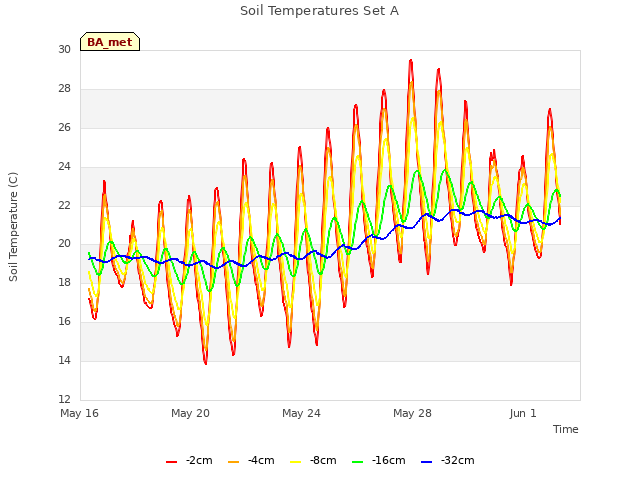

Explore the graph:Soil Temperatures Set A in a new window

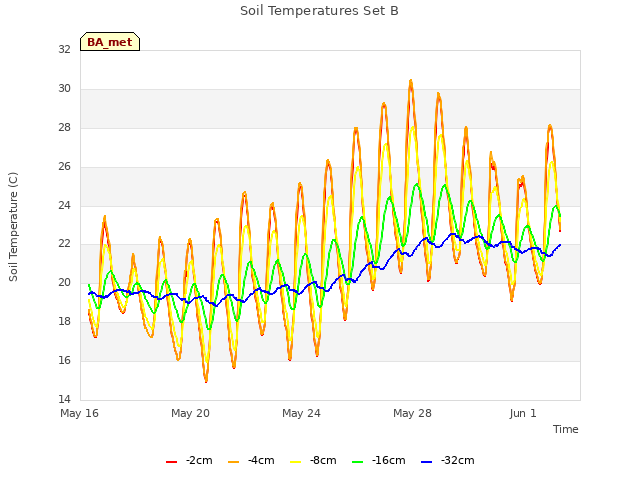

Explore the graph:Soil Temperatures Set B in a new window

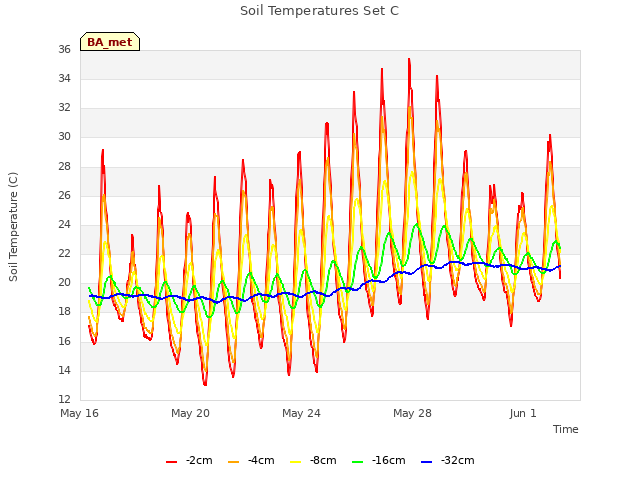

Explore the graph:Soil Temperatures Set C in a new window

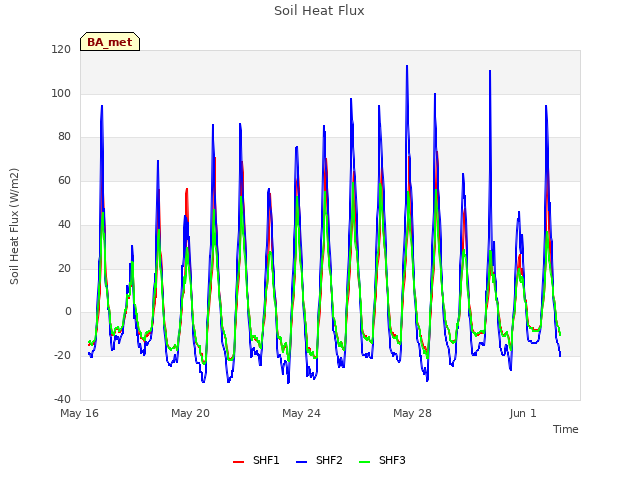

Explore the graph:Soil Heat Flux in a new window

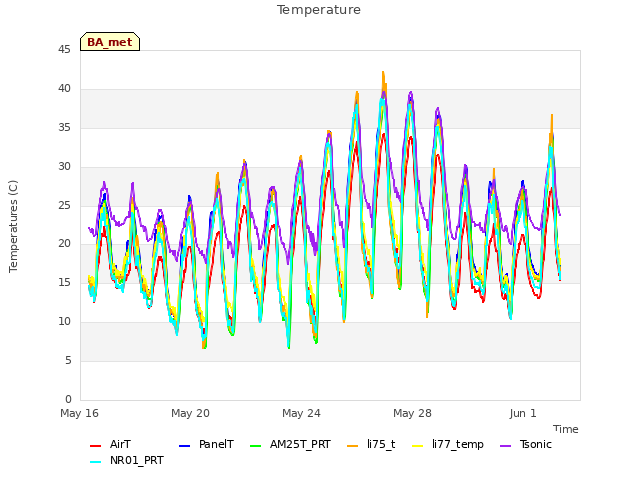

Explore the graph:Temperature in a new window

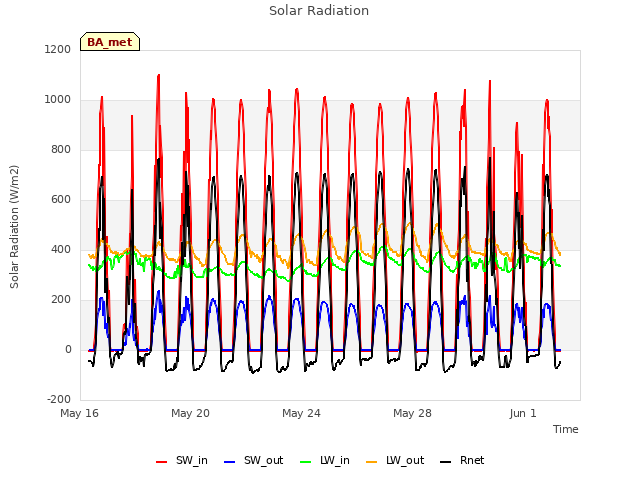

Explore the graph:Solar Radiation in a new window

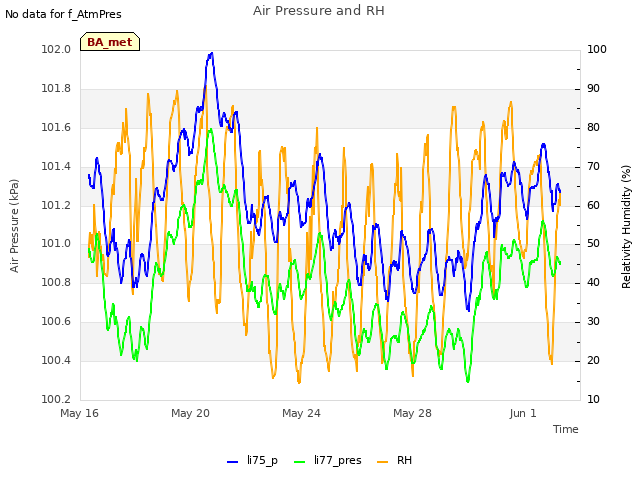

Explore the graph:Air Pressure and RH in a new window

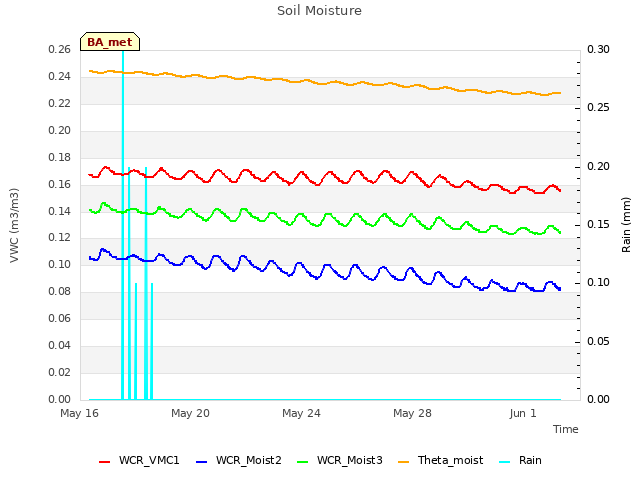

Explore the graph:Soil Moisture in a new window

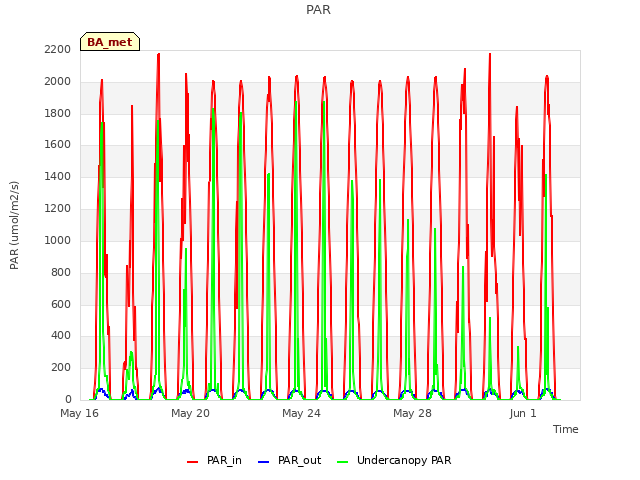

Explore the graph:PAR in a new window

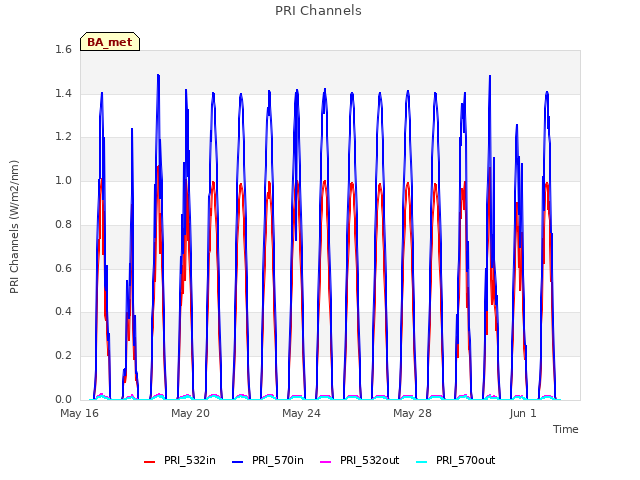

Explore the graph:PRI Channels in a new window

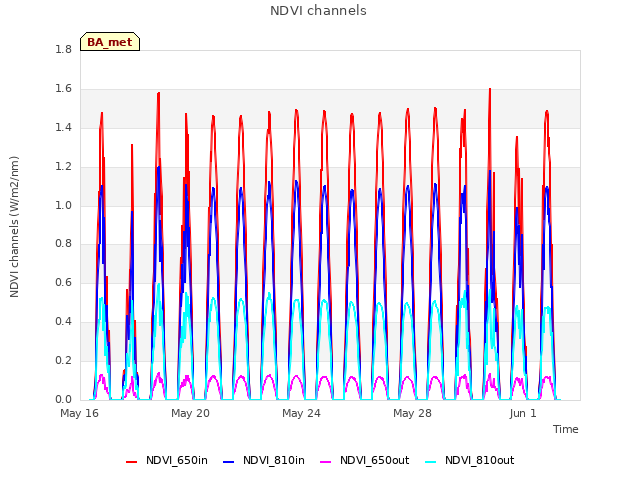

Explore the graph:NDVI channels in a new window

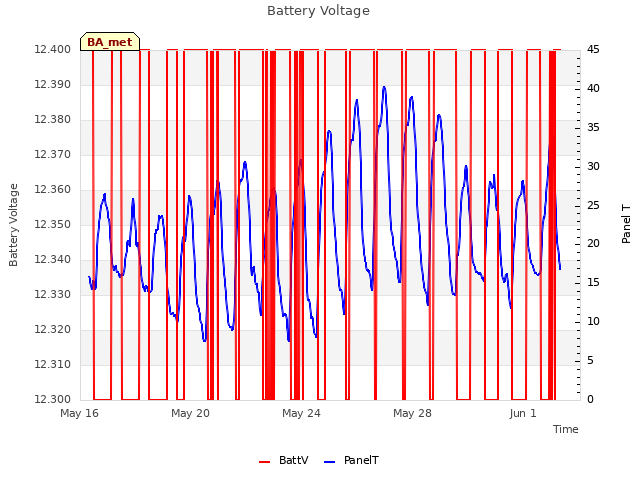

Explore the graph:Battery Voltage in a new window

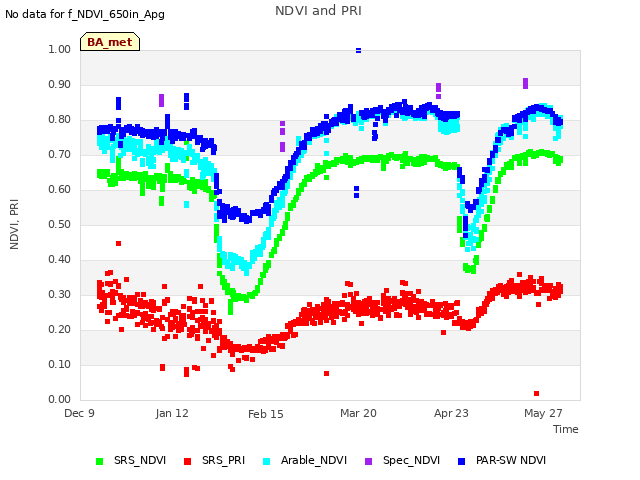

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

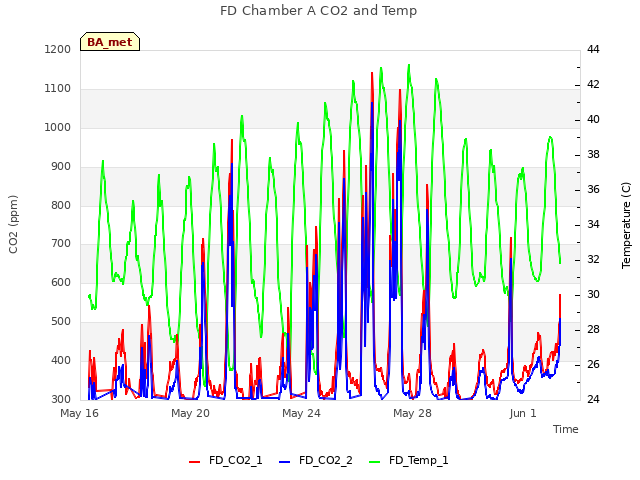

Explore the graph:FD Chamber A CO2 and Temp in a new window

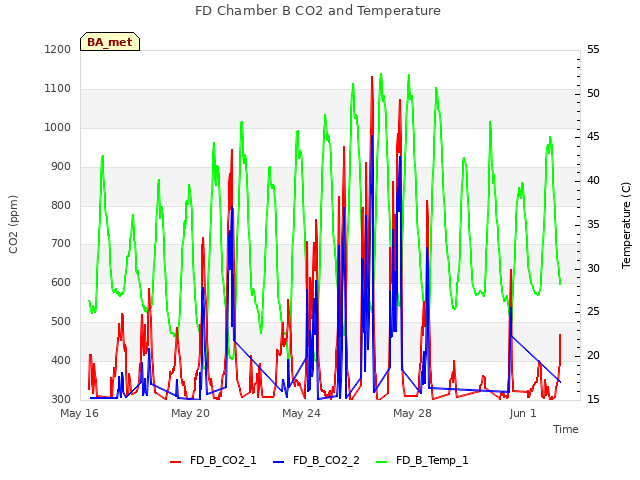

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

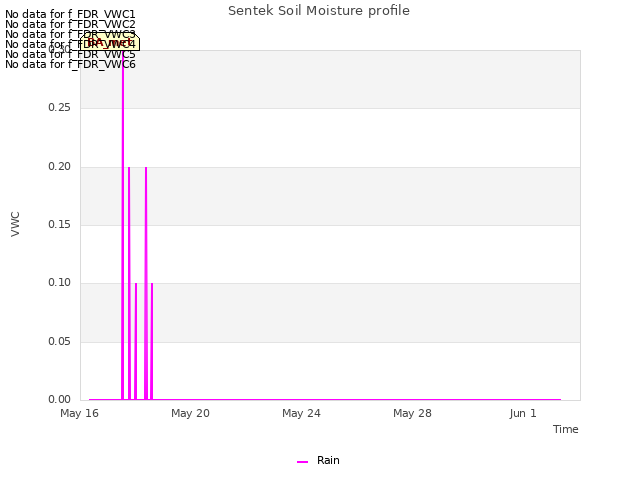

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

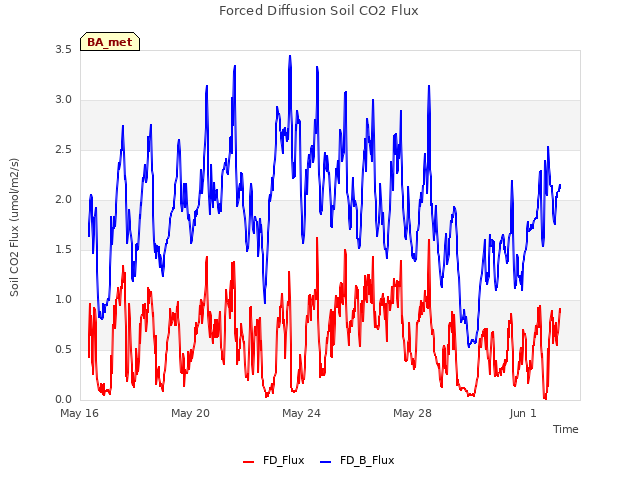

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

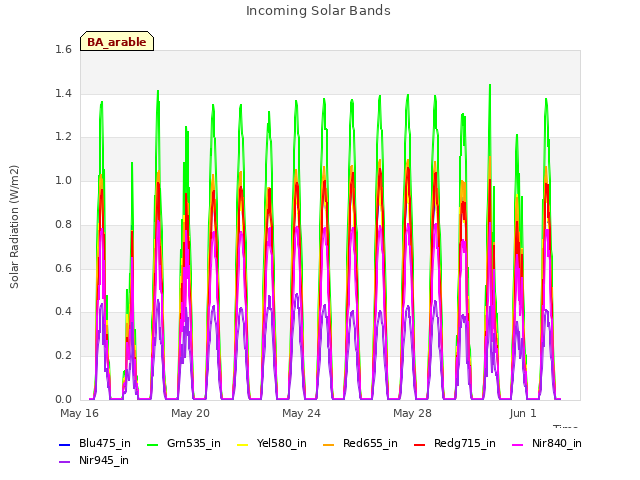

Explore the graph:Incoming Solar Bands in a new window

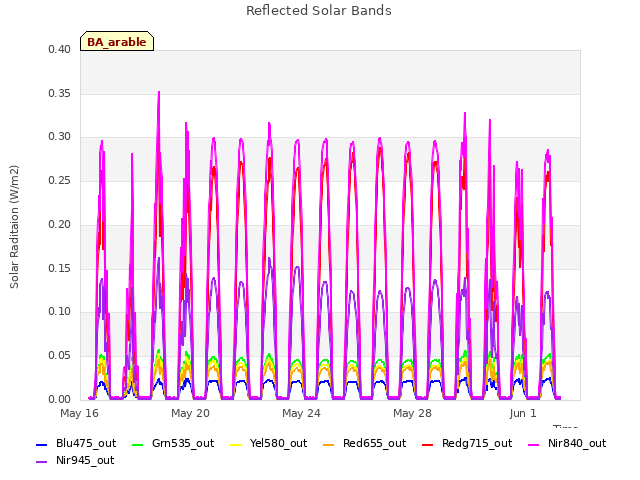

Explore the graph:Reflected Solar Bands in a new window

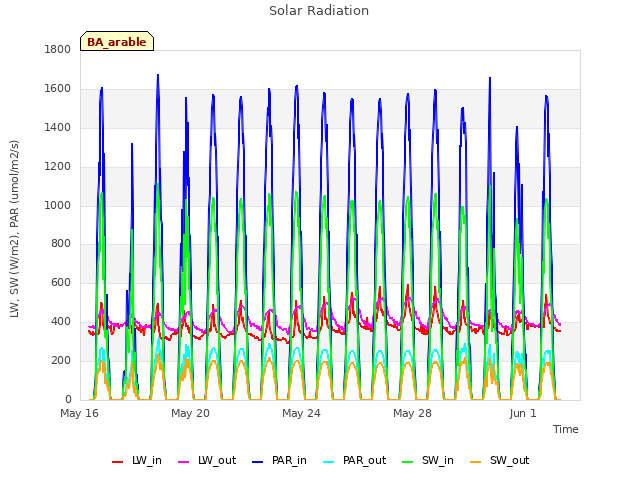

Explore the graph:Solar Radiation in a new window

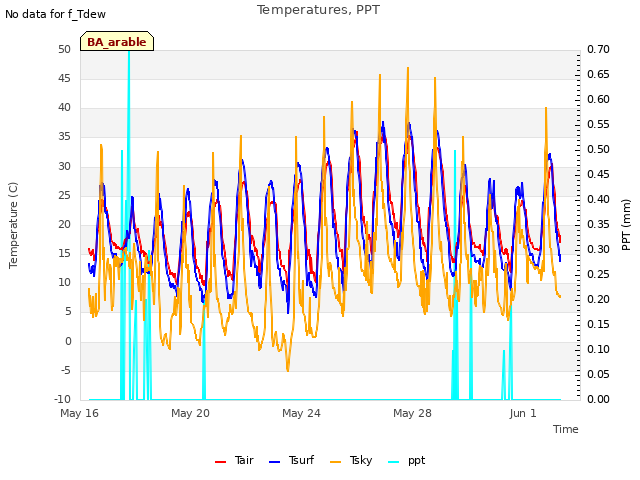

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

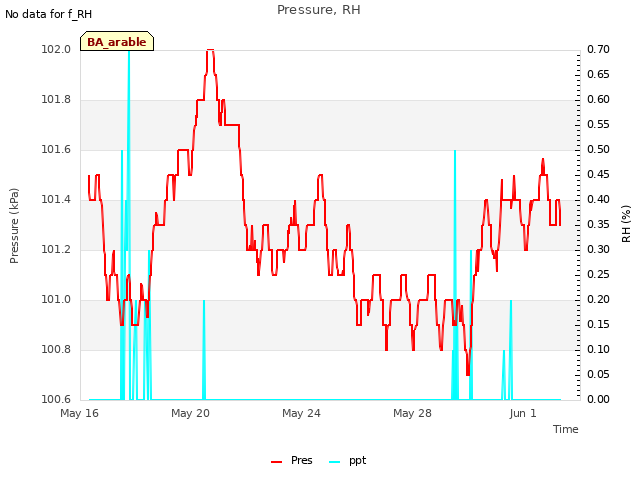

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

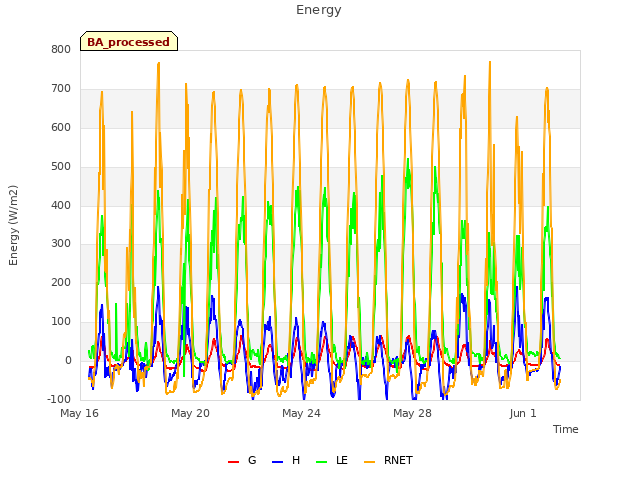

Explore the graph:Energy in a new window

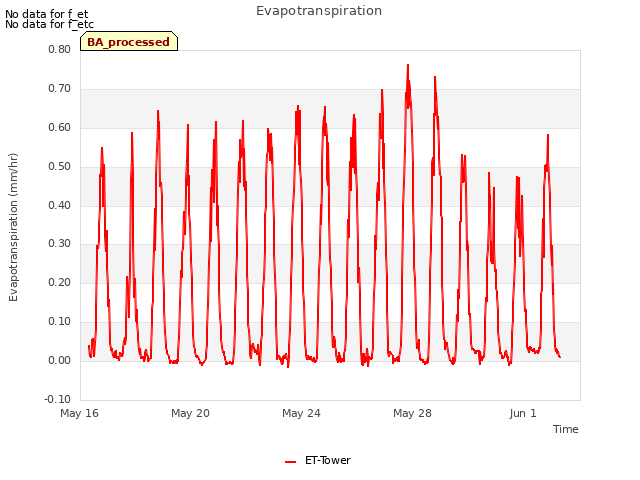

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
