Tonzi: 2020-01-08 10:00:00 (DOY 8)
Author: Joe Verfaillie
Others: Siyan

Summary: Cold and foggy, Standard data collection, Moved zcam control to CR6, soil co2 CR10X acting bad - replaced with zcam CR10X.

Tonzi
2020-01-08

Siyan and I arrive at about 10:00. It was cold and foggy with fog all through the Delta and Central Valley. About 1pm the fog lifted but it didnâ€™t seem to get any warmer. The ground seems drier than last time and the pond level seems unchanged. There is more green grass but itâ€™s still only about 5am tall.

I collected the Tower, Floor and soil CO2 data. All seemed well. The HMP45 fan at the top of the tower is a 24V fan on a 12V line. I was planning on replacing it or changing its power source but decided it was doing its job even at the lower voltage. It still would be a good idea to run a new power line for the Arable.

The thermocouple on the outside on the FLIR window has come loose and is hanging in the air. I don't know how to fix it to the window more securely or how important it is.

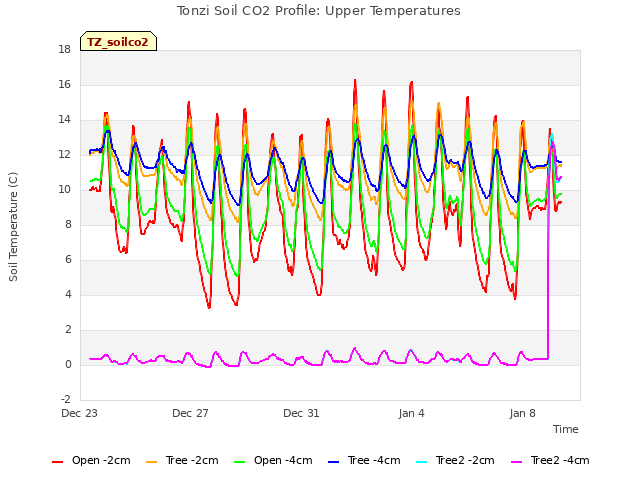

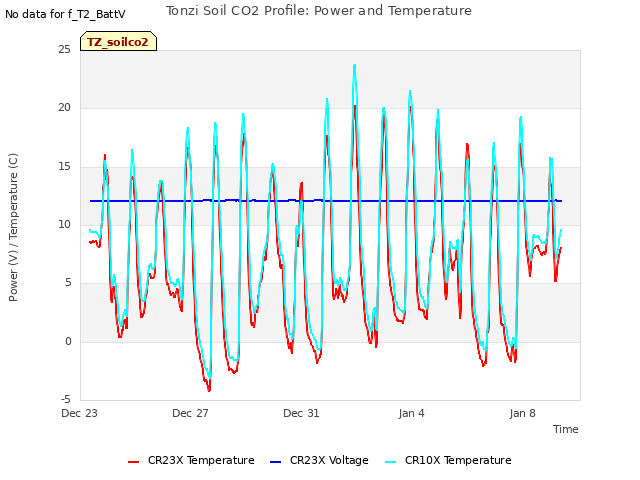

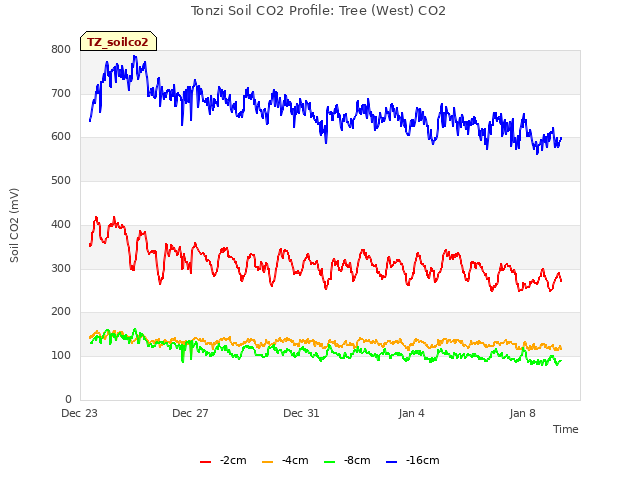

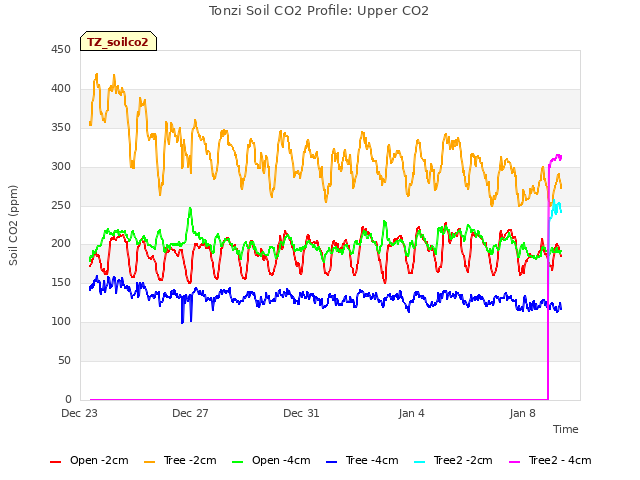

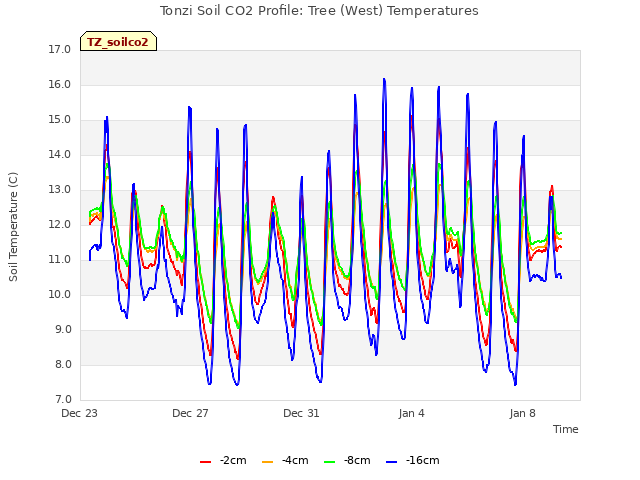

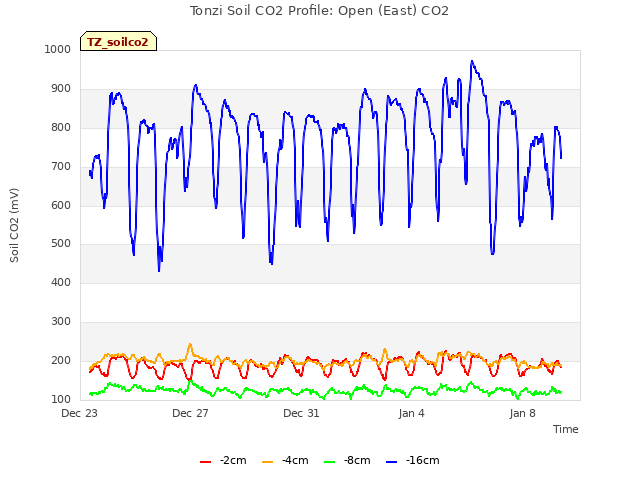

At the soil CO2 site the data from the CR10X near Liu Kangâ€™s tree was giving weird numbers. I was able to connect to it directly, collect all of its data and reload its program but this didnâ€™t fix the problem â€“ all of its data was wrong. I tired cycling its power but then could not connect to it at all. I thought there was nothing I could do, but just before we left I realized I had just removed another CR10X from the tower (see below). I removed the 10X silver box sn 19482 from the soil co2 CR10X and installed the silver box from the Tower sn 13214. I uploaded the program and all seemed well.

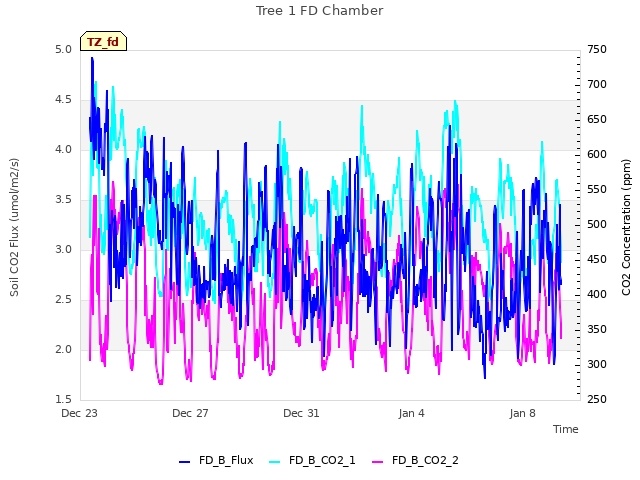

I added a DB9 serial connector to the FD Chamber under the tree so now both FD Chambers can be connected to with no special cables or rewiring. I collected the FD Chamber data but did not clear the memories.

The bad readings I saw at the FLIR cal panel last time were due to a mismatch of the program the 23x was running versus the one Loggernet on the white laptop was using. I retrieved the program from the 23x and using that in Loggernet all looked well. The grass DF Robot IRT is still in the lab.

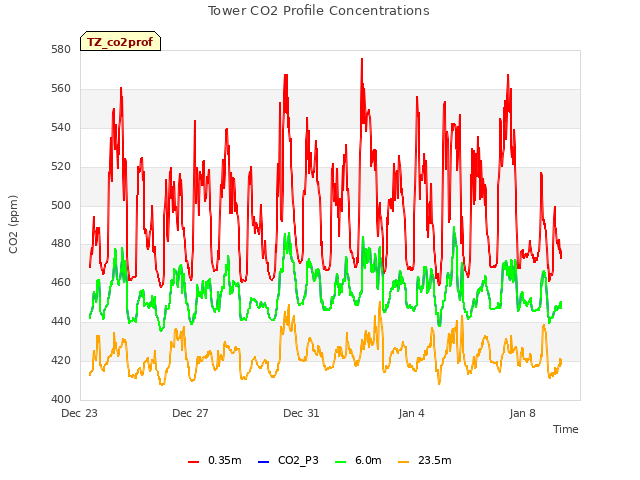

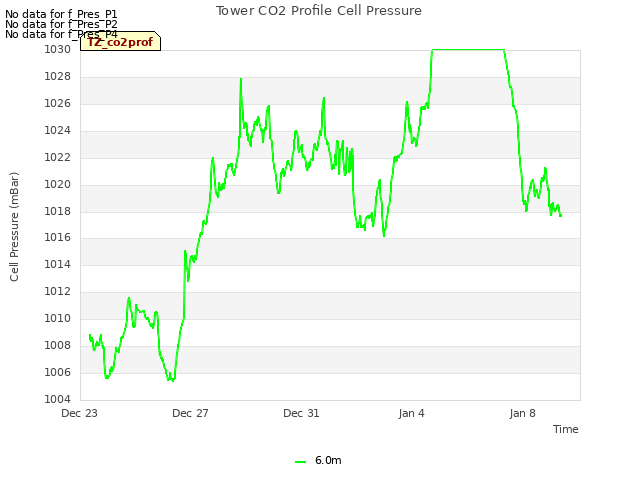

Back at the tower I updated the CO2 Profile CR6 data loggerâ€™s program to control zcam 1 and zcam 2. I moved a screw terminal for power, a three conductor cable for zcam 1 and a two conductor cable for zcam 2 from the old CR10X box at the base of the tower to the Vaisala CO2 profile box. This wiring needs to be cleaned up but is functional. I tested the new configuration by changing the zcam start time in the program and found one bug in the program but it seemed to work after I fixed the bug. I removed the CR10X and enclosure.

We could see and smell smoke on the way out. I think it was from a controlled burn nearby.

We left about 13:30

Field Data

No tank data

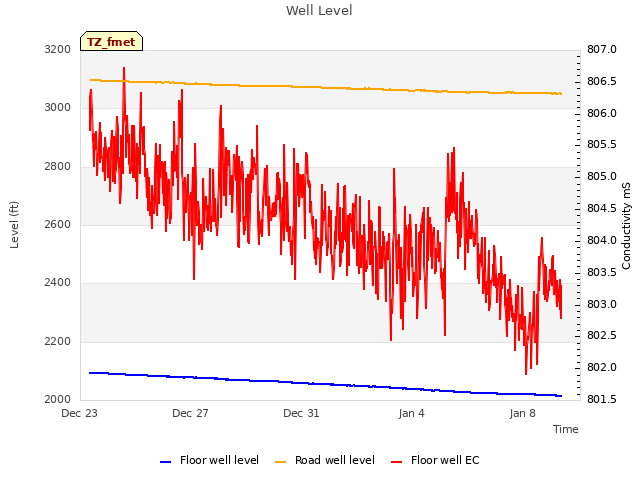

Well Depth

Date	Location	Depth (feet)
2020-01-08	VR_well	59
2020-01-08	TZ_floor	29.5
2020-01-08	TZ_tower	34.5
2020-01-08	TZ_road	37.9

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2020-01-08	8	0	nan	20.6	14.7	27.6	13.8	20.9	15	14.1	29.4	25.6	17.3	22.8	19.4	26.1	18.8	30.1	40.8	13.9	24	17.6	28	26	34.1	32.1	20.7	31.3	49.4	27.1	33.8	31.8	35.2	34.2	14.8	42.3	23.5	41.1	44.5	20.8	41.4	48	45.4
2020-01-08	8	1	nan	19.4	14.7	26.4	13.8	21.4	23.2	14.4	28.5	25.8	17.6	22.5	19.4	26.5	18.8	30.4	30.1	13.9	24.3	17	28.2	27.1	34.1	32.1	20.7	30.7	33.8	25.8	32.9	32.4	34.6	34.8	15.3	42	25.7	41.4	45.3	20.8	42.3	48.3	45.1
2020-01-08	8	Avg	0-15cm																																									0
2020-01-08	8	Avg	15-30cm																																									0
2020-01-08	8	Avg	30-45cm																																									0
2020-01-08	8	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2020-01-08	8	0	nan	49.9	12.5	13	50	42.53	19.4	39.6	38.5	30.1	41.4	15.9	30.2
2020-01-08	8	1	nan	39.5	13.4	13	50	44.8	18.8	22.1	32.4	29.9	41.7	15.6	30.5
2020-01-08	8	Avg	0-15cm													0
2020-01-08	8	Avg	15-30cm													0
2020-01-08	8	Avg	30-45cm													0
2020-01-08	8	Avg	45-60cm													0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2020-01-08	1	21.9
2020-01-08	102	14.3
2020-01-08	2	14.1
2020-01-08	245	12.0
2020-01-08	3	21.0
2020-01-08	4	6.5
2020-01-08	5	15.5
2020-01-08	7	18.9
2020-01-08	72	5.5
2020-01-08	79	19.0
2020-01-08	8	7.1
