West Pond: 2019-12-16 12:55:00 (DOY 350)
Author: Daphne Szutu
Others: Joe

Summary: Regular data collection/cleaning, water level low

2019-12-16
West Pond

Joe and I arrived at 12:55 PST. It was a clear and cool day with blue skies. The wetland was all brown. The water level was 27 cm, pretty low. The miniDOT was just barely touching the water. Joe called Bryan, and he said they are working on raising the outlets, so it will probably be low until spring when they complete the work.

Joe downloaded met, camera, USB GHG, and miniDOT data. The reservoir was ½ full; we filled it. I cleaned flux and rad sensors and swapped the miniDOT and water level sensor desiccant.

LI-7500 readings:
CO2 426ppm
H2O 390ppm
T 13.1C
P 102.7kPa
SS 102--> (forgot to write after cleaning)
LI7700 readings:
CH4 1.97ppm
RSSI 39--> 74 after cleaning

We left at 13:15 PST.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

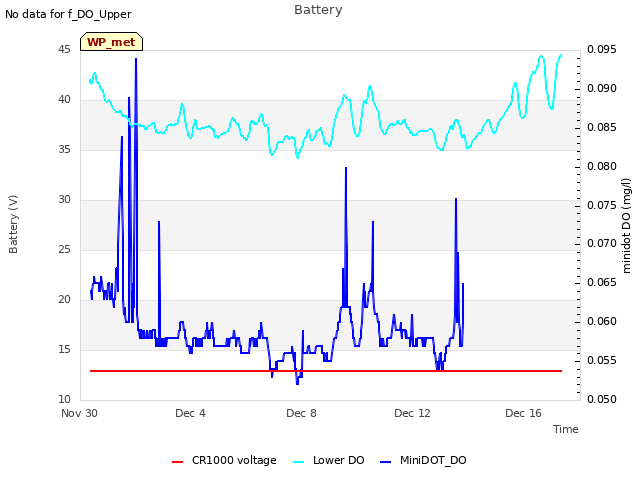

Explore the graph:Battery in a new window

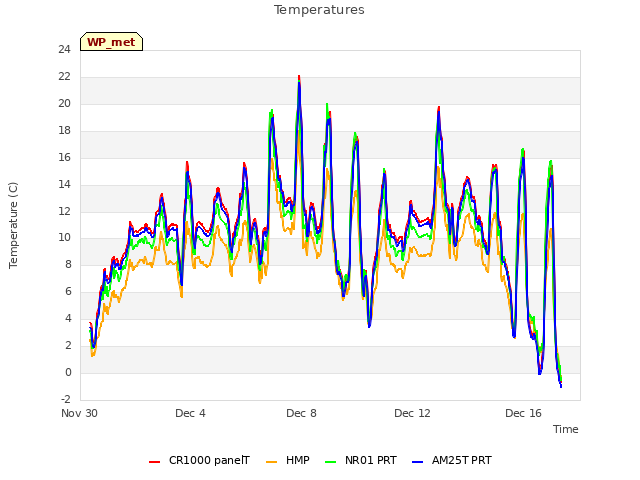

Explore the graph:Temperatures in a new window

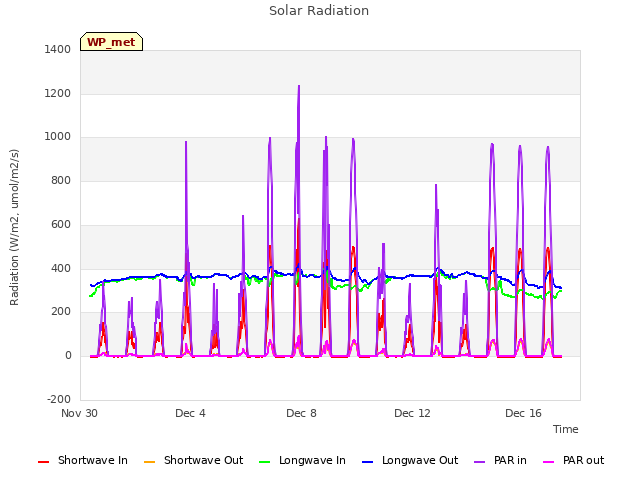

Explore the graph:Solar Radiation in a new window

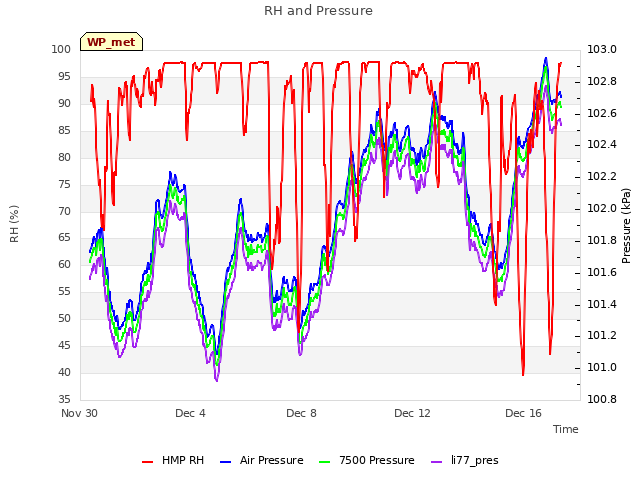

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

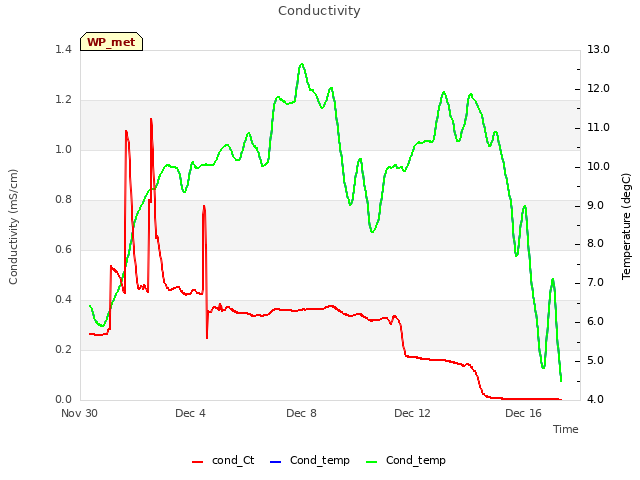

Explore the graph:Conductivity in a new window

Explore the graph:Temperatures Set A in a new window

Explore the graph:Temperatures Set B in a new window

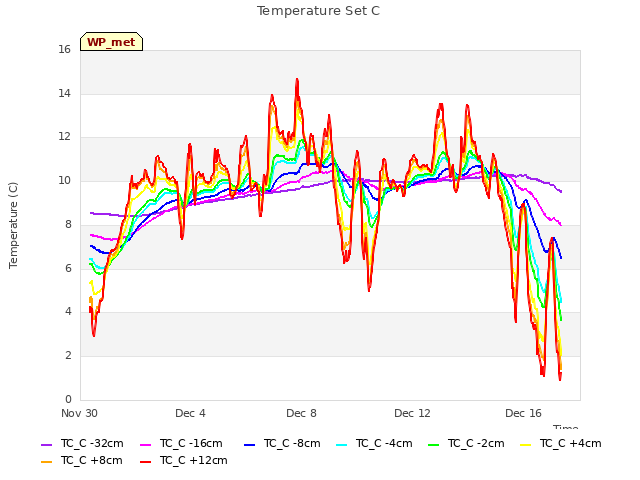

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

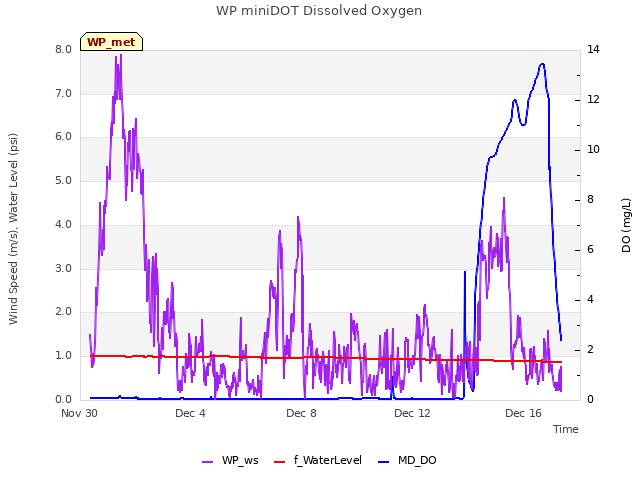

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

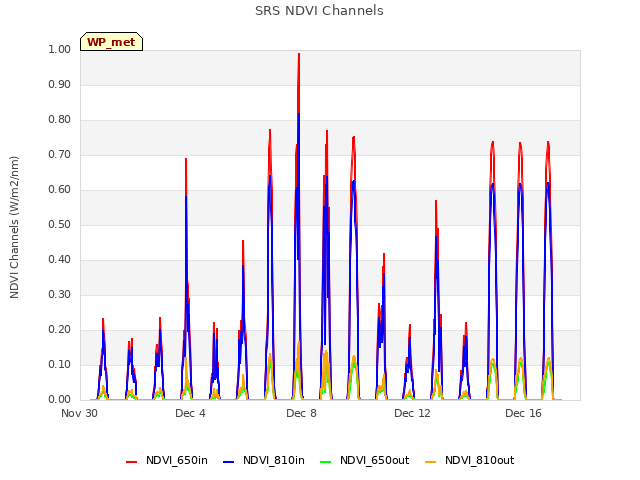

Explore the graph:SRS NDVI Channels in a new window

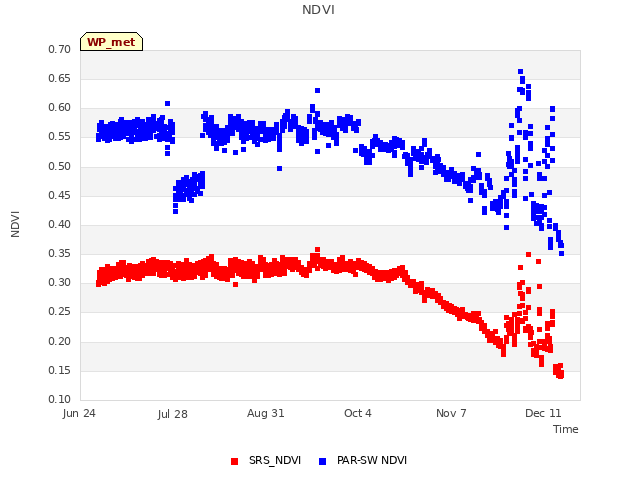

Explore the graph:NDVI in a new window

5 WP_flux graphs found

Explore the graph:Winds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

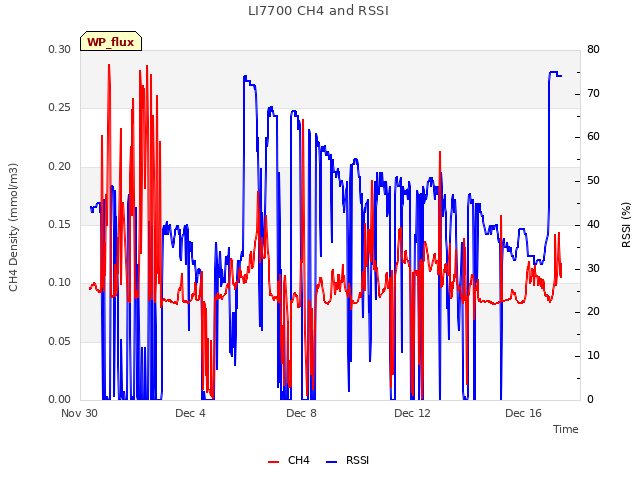

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:West Pond Flux Data Counts in a new window

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

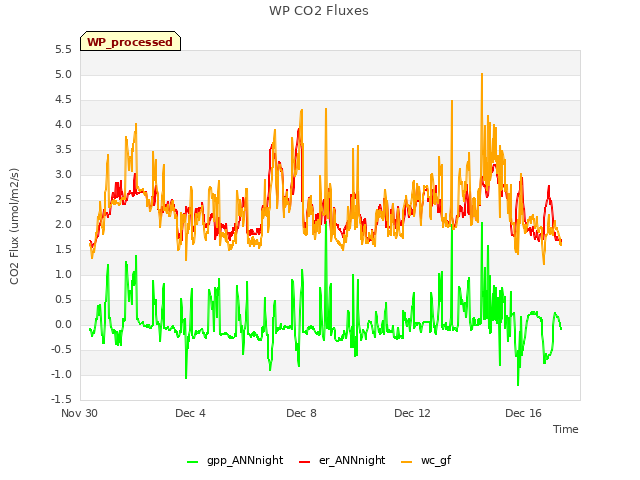

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
