East End: 2019-12-16 12:00:00 (DOY 350)
Author: Daphne Szutu
Others: Joe

Summary: Regular data collection/cleaning, adjusted eddy clock -46min

2019-12-16
East End

Joe and I arrived at 12:00 PST. It was a clear and cold day with blue skies. The wetland was mostly brown with a few green tules. The water level was 38 cm.

Joe downloaded met, camera, USB GHG, and miniDOT data. There were no camera images. The eddy clock was quite off, when it was 12:56 he reset it to 12:10. I cleaned flux and rad sensors. There was a lot of water in the radiation boom and spider webs on the eddy sensors. We swapped the miniDOT and water level desiccants. I forgot to test the conductivity sensor we removed last time, so this site is still missing a conductivity sensor. The wash reservoir was mostly full; I topped it off.

LI-7500 readings:
CO2 434ppm
H2O 421ppm
T 12.0C
P 102.7kPa
SS 99--> 100 after cleaning
LI7700 readings:
CH4 2.08ppm
RSSI 36--> 84 after cleaning

We left at 12:20 PST.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

Explore the graph:Solar Radiation in a new window

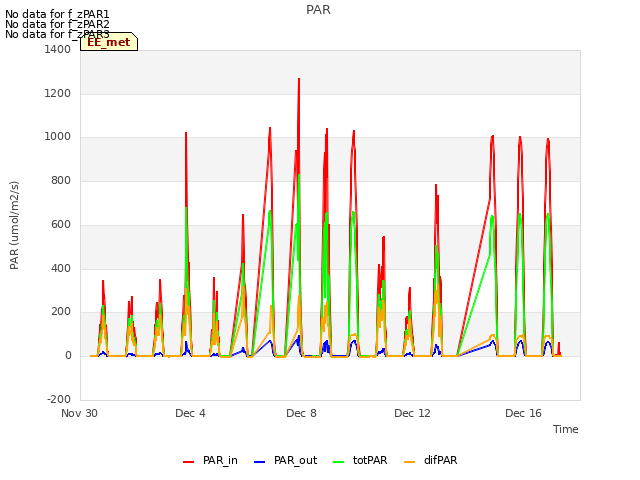

Explore the graph:PAR in a new window

Explore the graph:Soil Heat Flux in a new window

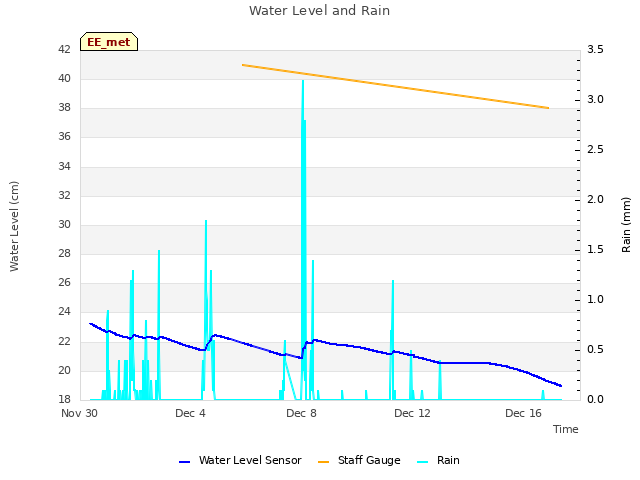

Explore the graph:Water Level and Rain in a new window

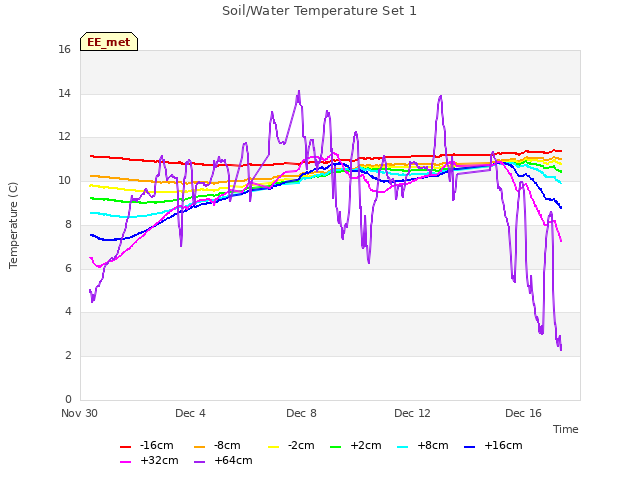

Explore the graph:Soil/Water Temperature Set 1 in a new window

Explore the graph:Soil/Water Temperature Set 2 in a new window

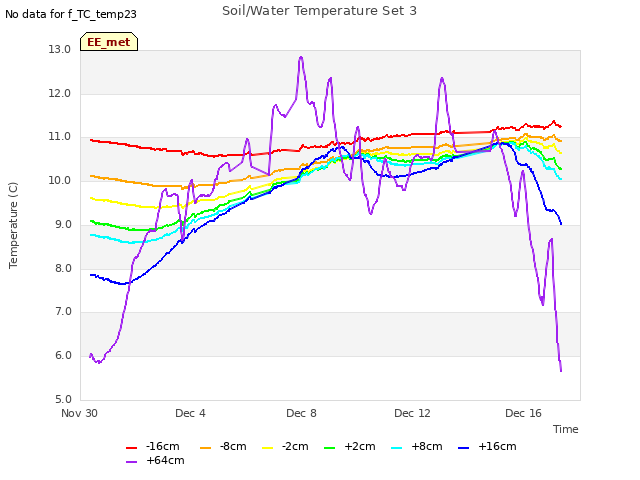

Explore the graph:Soil/Water Temperature Set 3 in a new window

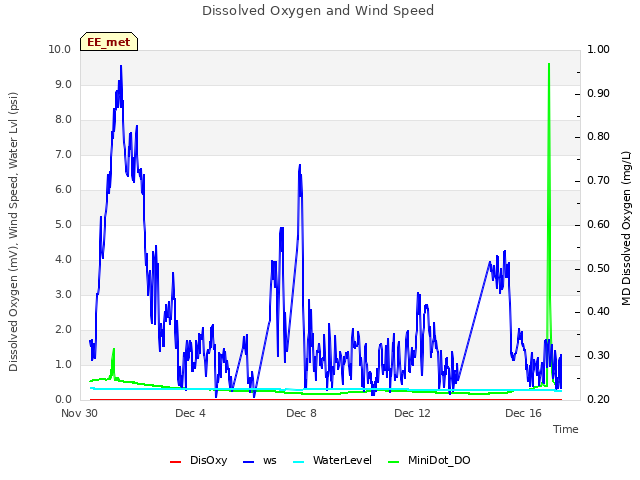

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

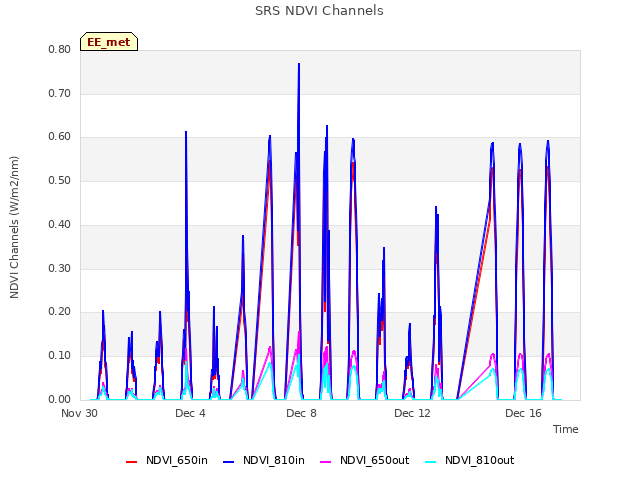

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:NDVI in a new window

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

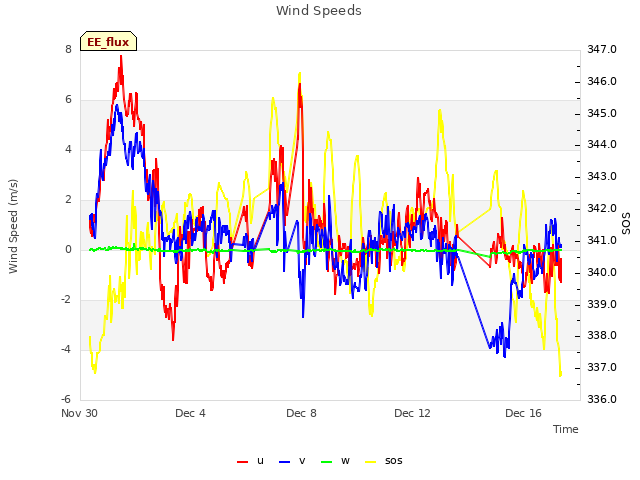

Explore the graph:Wind Speeds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

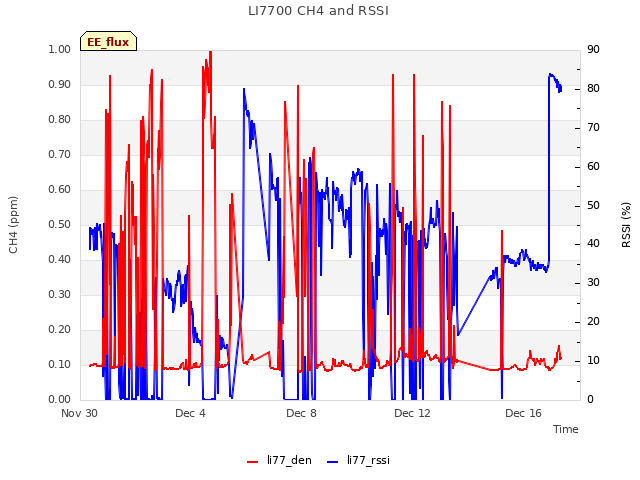

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

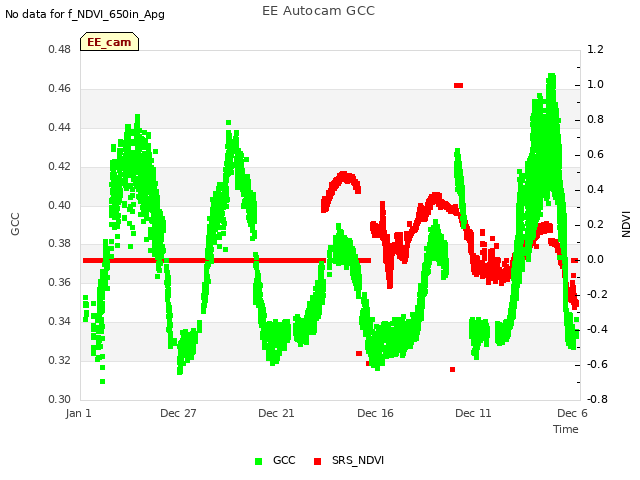

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

Explore the graph:Sonic SOS in a new window

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

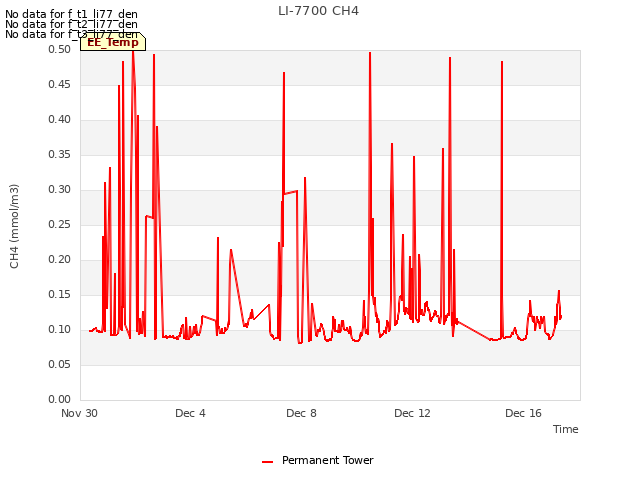

Explore the graph:LI-7700 CH4 in a new window

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

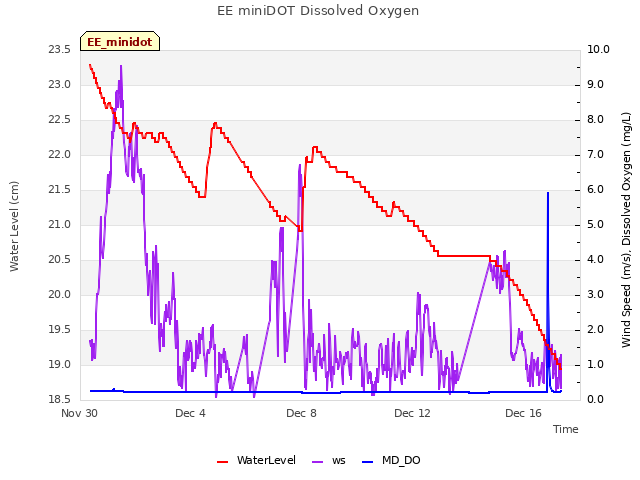

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

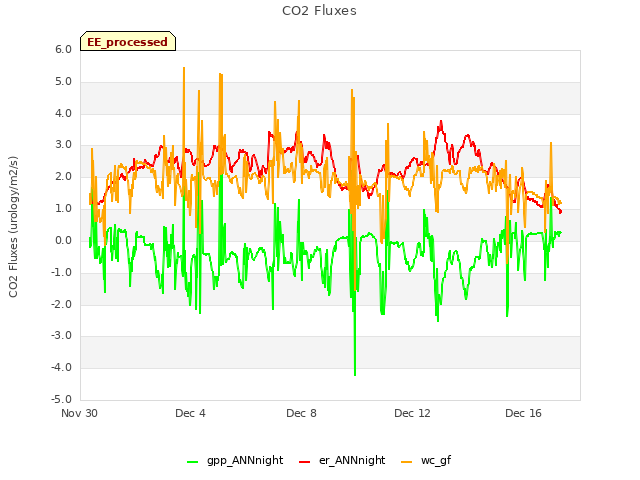

Explore the graph:CO2 Fluxes in a new window
