Sherman Wetland: 2019-12-16 10:15:00 (DOY 350)
Author: Daphne Szutu
Others: Joe

Summary: Regular data download/cleaning, adjusted eddy clock +10 min

2019-12-16
Sherman Wetland

Joe and I arrived at 10:15 PST. It was a clear and cold day with blue skies. The wetland still looks pretty green. The water level was 80 cm. There were many wasps in the diffuse PAR 10X box, but we let them be for now. Joe added mothballs to Patty’s box (saw many ants and 1 wasp). I also cleared the otter poop from underneath the white lattice--we should think of a finer lattice or grate to place here instead.

Joe downloaded met, camera, and miniDOT data. We may have forgotten to move the USB GHG data to the laptop, so it is probably on the USB stick at SB. The eddy clock was off; when the clock read 10:12, Joe set it to 10:22. I cleaned flux and rad sensors. There was lots of spider webs. The reservoir was ½ full; I refilled it. I swapped miniDOT and water level sensor desiccants.

LI-7500 readings:
CO2 416ppm
H2O 351ppm
T 10.7C
P 102.9kPa
SS 98--> 99 after cleaning
LI7700 readings:
CH4 2.1 ppm
RSSI 44--> 84 after cleaning

We left at 10:35 PST.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 SW_met graphs found

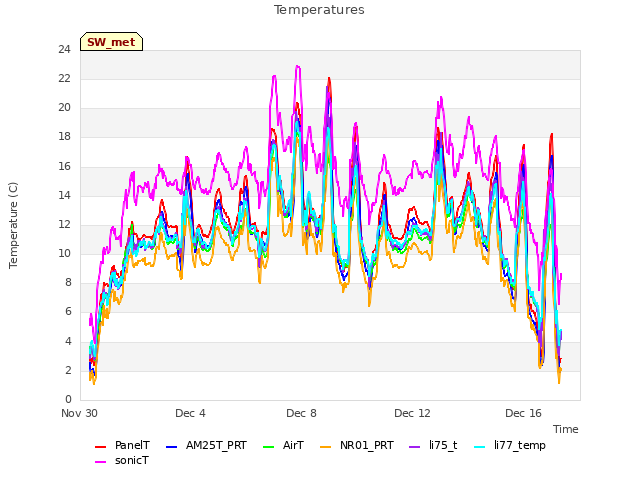

Explore the graph:Temperatures in a new window

Explore the graph:Water Temperature Profile A in a new window

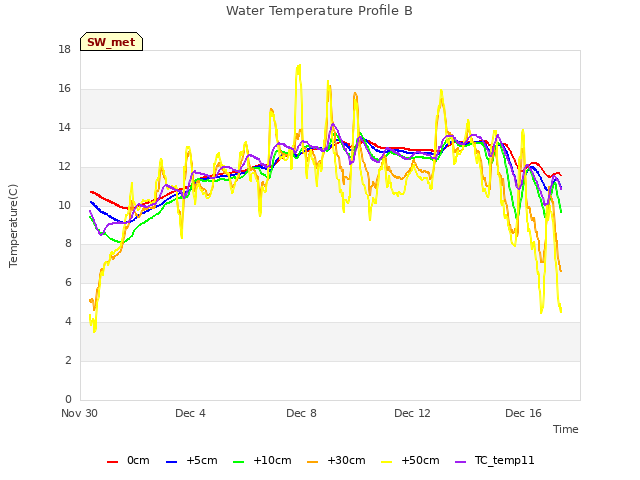

Explore the graph:Water Temperature Profile B in a new window

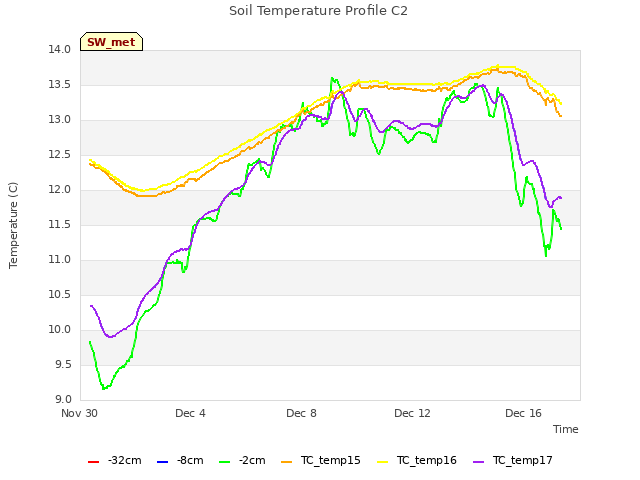

Explore the graph:Soil Temperature Profile C2 in a new window

Explore the graph:Soil Heat Flux in a new window

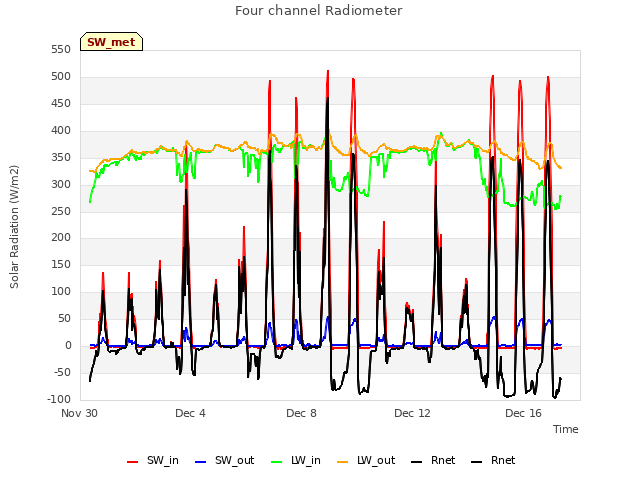

Explore the graph:Four channel Radiometer in a new window

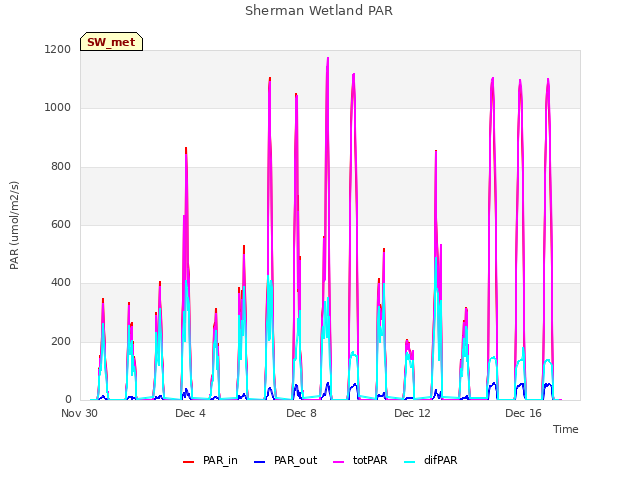

Explore the graph:Sherman Wetland PAR in a new window

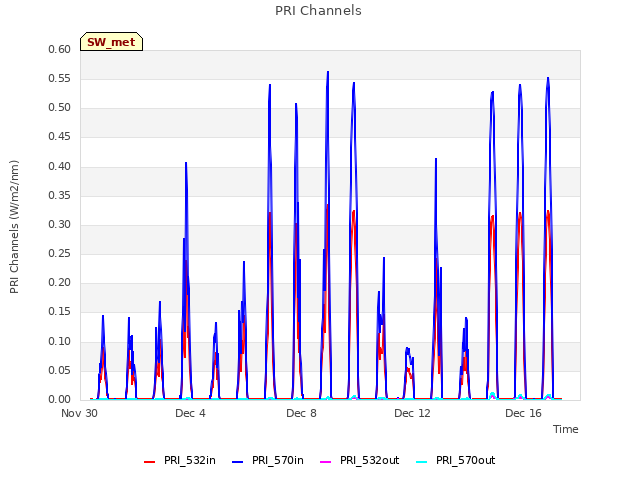

Explore the graph:PRI Channels in a new window

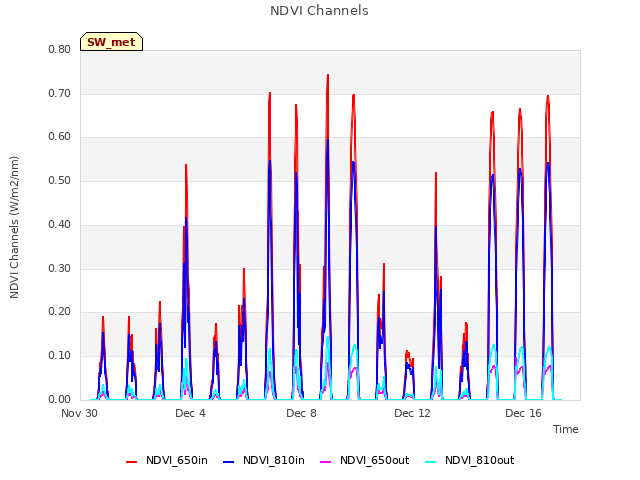

Explore the graph:NDVI Channels in a new window

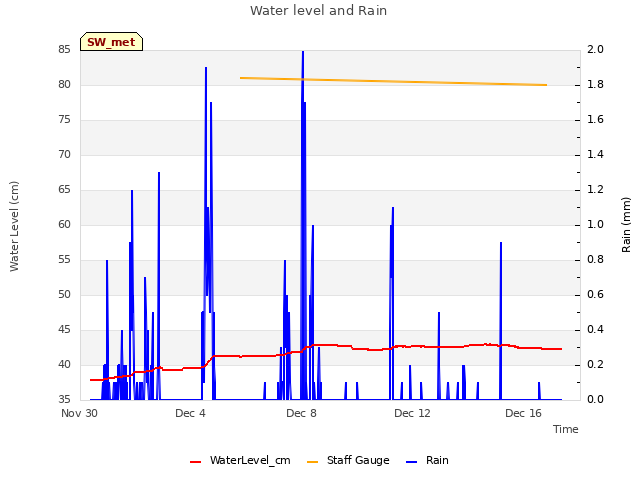

Explore the graph:Water level and Rain in a new window

Explore the graph:Dissolved CO2 in a new window

Explore the graph:Air Pressure in a new window

Explore the graph:Battery Voltage and RH in a new window

Explore the graph:Soil Temperature Profile C1 in a new window

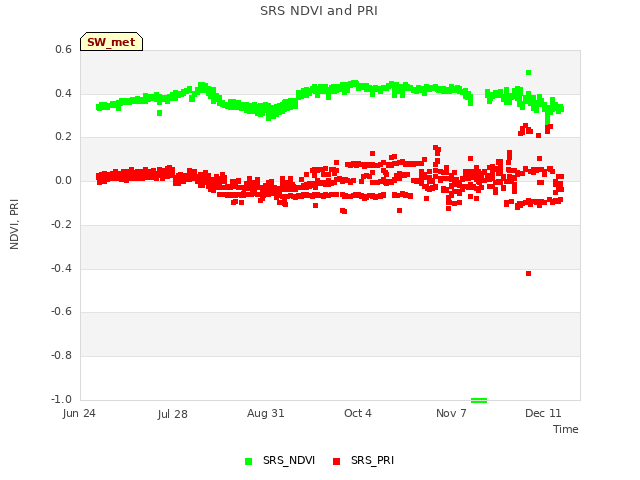

Explore the graph:SRS NDVI and PRI in a new window

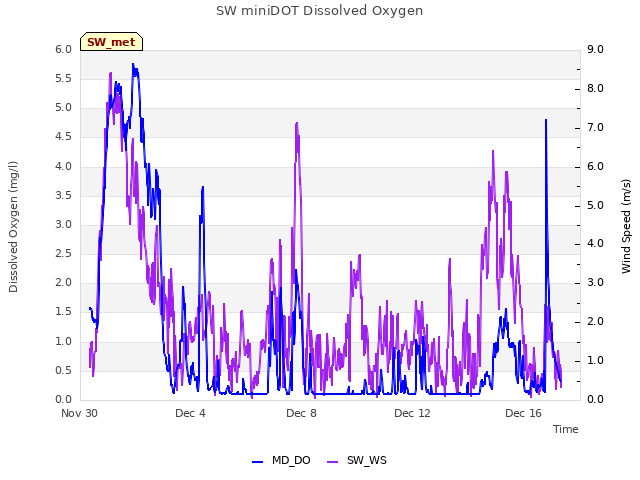

Explore the graph:SW miniDOT Dissolved Oxygen in a new window

4 SW_flux graphs found

Explore the graph:CO2 and H2O in a new window

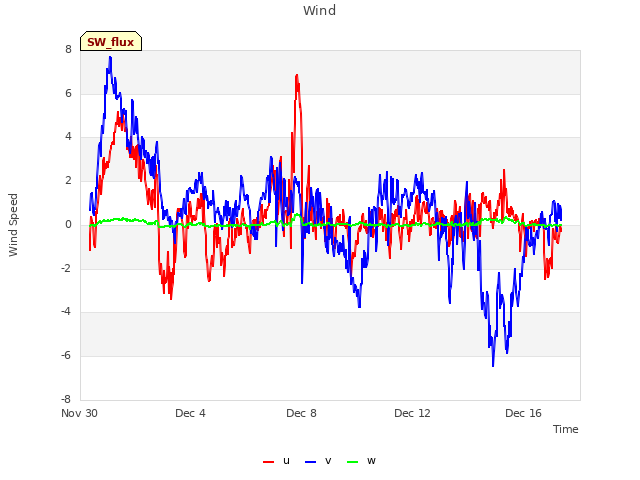

Explore the graph:Wind in a new window

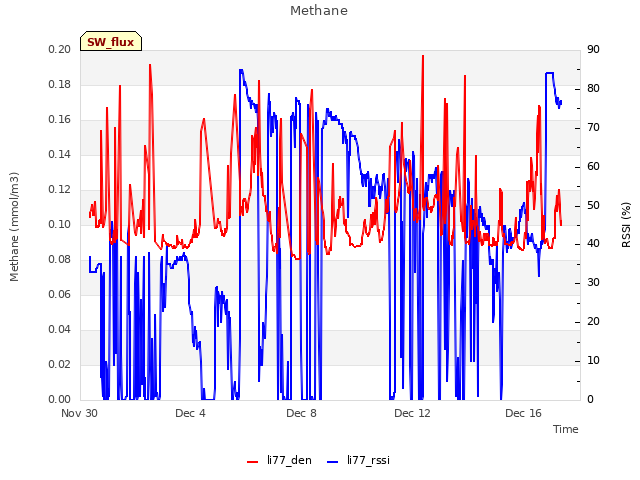

Explore the graph:Methane in a new window

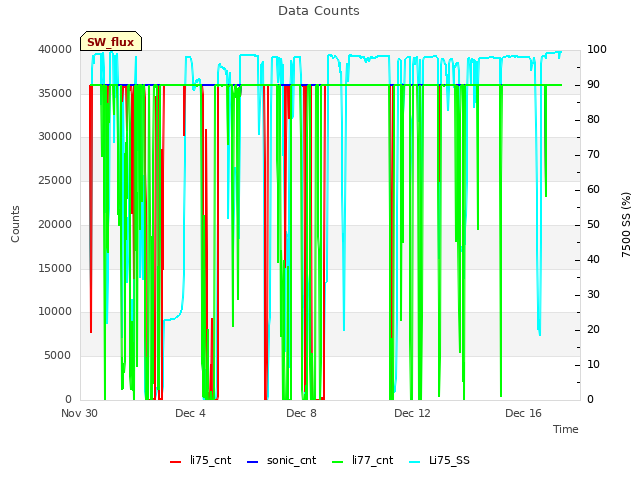

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

3 SW_arable graphs found

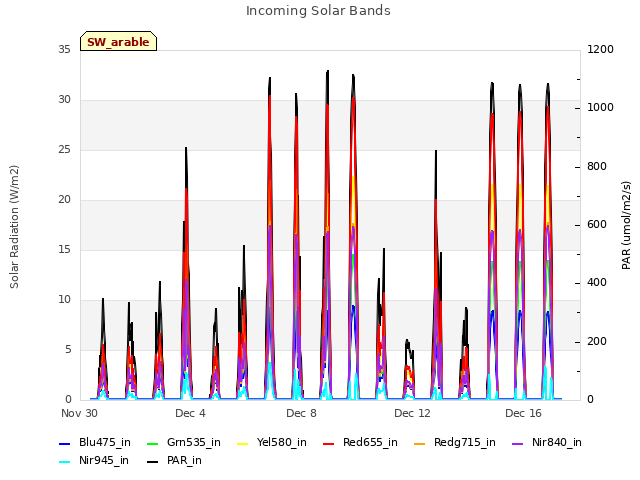

Explore the graph:Incoming Solar Bands in a new window

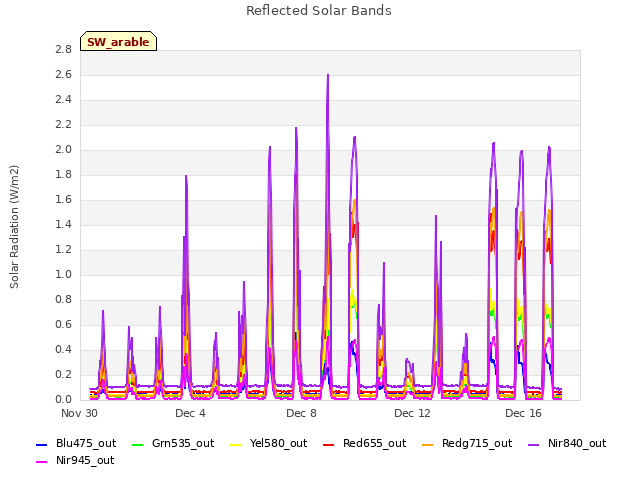

Explore the graph:Reflected Solar Bands in a new window

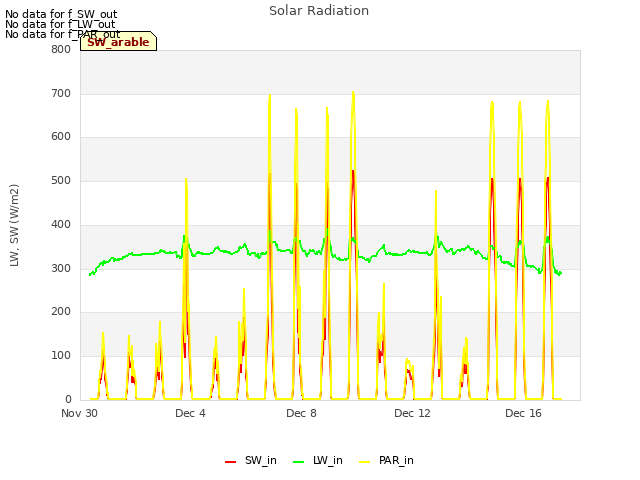

Explore the graph:Solar Radiation in a new window
