Field Notes

Vaira: 2019-11-19 11:00:00 (DOY 323)
Author: Joe Verfaillie
Others: Siyan

Summary: Swapped 7500, swapped Arable, standard data collections

Vaira
2019-11-19

Siyan and I arrive at about 11:00am. It was partly sunny with clouds moving in and a cool breeze from the south. It is still very dry but the forecast calls for thunder storms in Tahoe and Reno.

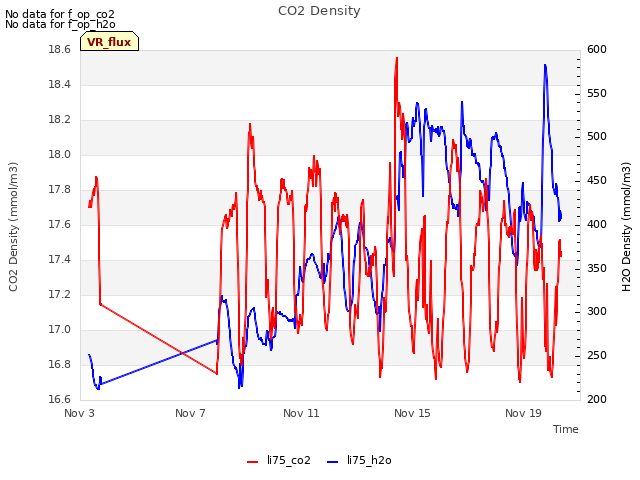

I swapped the 7500: sn 75H-2180 came off and sn 0035 went on.
2180 read: 419.1ppm CO2, 569.3mmol/m3 H2O, 98.7kPa, 24.1C, 95.5SS
0035 read: 418.9ppm CO2, 535.2mmol/m3 H2O, 98.7kPa, 25.3C, 100.8SS

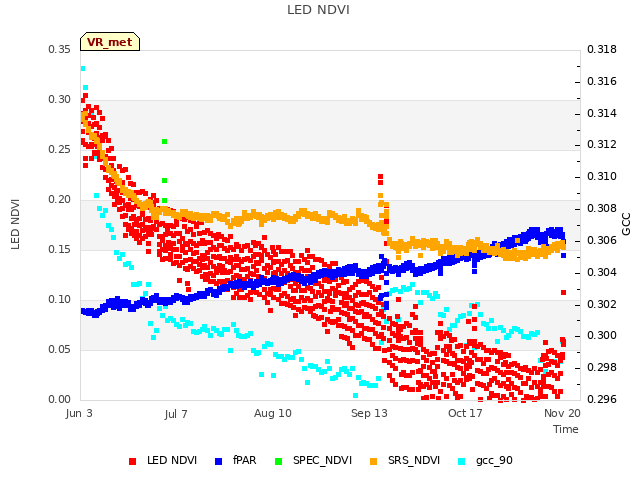

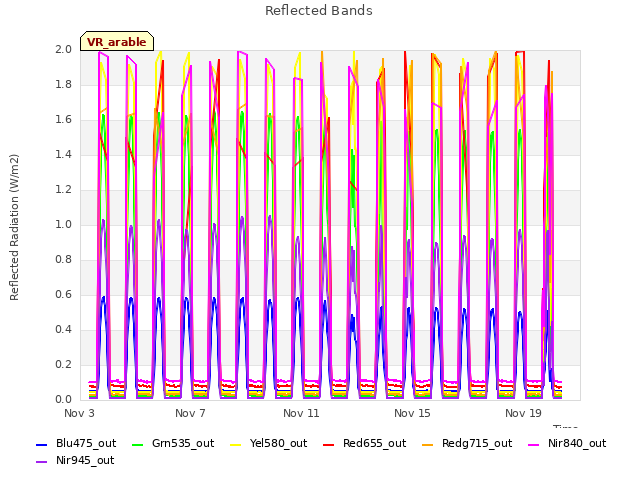

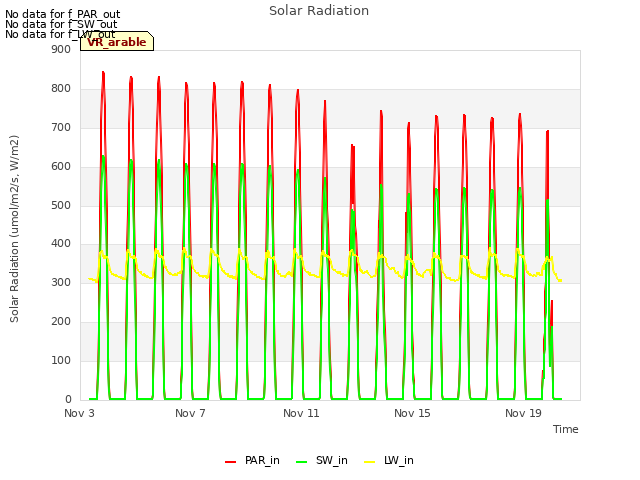

I also swapped and Arable unit. The prototype sn C002471 came down and sn C002714 went up. I confirmed with Loreli that it was reporting before we left.

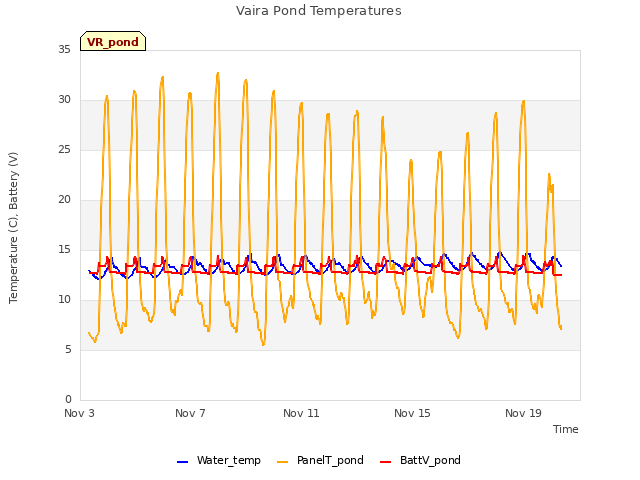

We went to the pond. The top of the deepest staff gauge board is above the water.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-11-19	SW	2.85
2019-11-19	MB	0.13
2019-11-19	VR_well	59.2
2019-11-19	VR_pond	13.68
2019-11-19	TZ_floor	28.5
2019-11-19	TZ_tower	33.3
2019-11-19	TZ_road	37.1

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Floor_West_2 [12] => Soil_Transect_4_2 [13] => Soil_Transect_3_2 [14] => Soil_Transect_2_2 [15] => Soil_Transect_1_2 [16] => SoilCO2_West_A_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Soil_Transect_4_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Soil_Transect_4_4 [29] => Soil_Transect_3_4 [30] => Soil_Transect_2_4 [31] => Soil_Transect_1_4 [32] => SoilCO2_West_A_4 [33] => SoilCO2_West_B_4 [34] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-11-19	323	0	nan	3.6	0.7	4.7	3.7	1.5	3.6	1	5	5	11.2	5.1	6.6	8.4	13.8	12.8	4.2	8.4	11.8	12.3	6.4	9.5	11.5	16.5	13.4	16.2	15.4	11.7	17	10.5	18.8	22.8	11.9	13.3	16.2	25.7
2019-11-19	323	1	nan	3.6	1	4.2	3.7	1.2	2.7	0.7	3.9		10.6	5.7	7.8	8.1	13.9	11.8	4.2	8.9	11.2	12.3	7.6	9.8	13.1	15.9	13.4	16.5	14.5	12.3	17	10.7	18.8	23.1	11.9	14.2	16.5	25.8
2019-11-19	323	Avg	0-15cm																																				0
2019-11-19	323	Avg	15-30cm																																				0
2019-11-19	323	Avg	30-45cm																																				0
2019-11-19	323	Avg	45-60cm																																				0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-11-19	323	0	nan	2.1	3	0.6	11.2	12.4	7	16.5	6.4	15.6	27.9	15.6	19.3
2019-11-19	323	1	nan		2.7	0.6		12.7	8.1		6.2	16.5	27.6	16.5	18.8
2019-11-19	323	Avg	0-15cm													0
2019-11-19	323	Avg	15-30cm													0
2019-11-19	323	Avg	30-45cm													0
2019-11-19	323	Avg	45-60cm													0
