Vaira: 2019-11-07 10:30:00 (DOY 311)
Author: Joe Verfaillie
Others: Dennis, Siyan

Summary: LBNL visitors, Standard data collection, 7500 head dead - replaced with Floor head.

Vaira
2019-11-07

Dennis, Siyan and I arrived at 10:30. Jennifer Holm and Sebastian Fiedler, modelers from LBNL, joined us to see the sites they use in their modeling efforts. It was clear, sunny and warm with little to no wind. It is still very dry with no rain in the forecast. Most of the trees here still look good but the wind may have blown most of the dead leaves off leaving the trees looking green.

Dennis did the soil moisture measurements and Siyan measured the well.

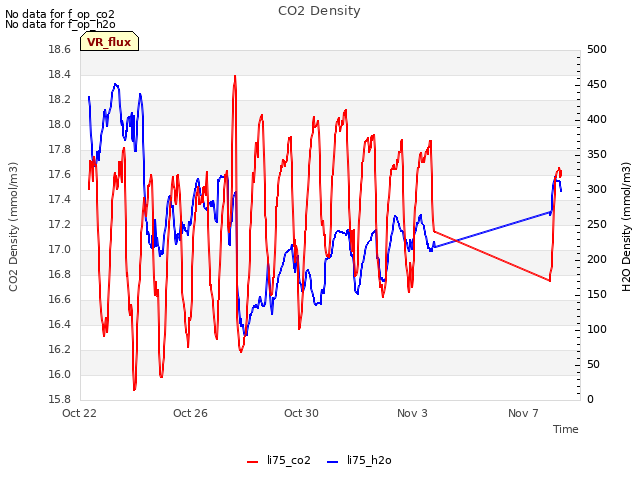

The 7500 head was dead â€“ no signal strength, no CO2 or H2O. I collected the data.

We returned around 13:00 with the 7500 head from the Floor Tower sn 75H-2180 and replaced sn 0418 which will probably have to be returned to Licor for repair. After installing the head, uploading the coefficients, setting the pressure coefficients and resetting the box, the CO2 was about 430ppm and H2O was about 250mmol/m3 which agreed with the readings from Tonzi.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-11-07	VR_well	59.3
2019-11-07	TZ_floor	28
2019-11-07	TZ_tower	32.8
2019-11-07	TZ_road	36.8

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_2_1 [4] => Soil_Transect_1_1 [5] => SoilCO2_West_A_1 [6] => SoilCO2_West_B_1 [7] => SoilCO2_West_C_1 [8] => Tower_2 [9] => Floor_South_2 [10] => Floor_West_2 [11] => Soil_Transect_2_2 [12] => Soil_Transect_1_2 [13] => SoilCO2_West_A_2 [14] => SoilCO2_West_B_2 [15] => SoilCO2_West_C_2 [16] => Tower_3 [17] => Floor_South_3 [18] => Soil_Transect_2_3 [19] => Soil_Transect_1_3 [20] => SoilCO2_West_A_3 [21] => SoilCO2_West_B_3 [22] => SoilCO2_West_C_3 [23] => Tower_4 [24] => Floor_South_4 [25] => Soil_Transect_2_4 [26] => Soil_Transect_1_4 [27] => SoilCO2_West_A_4 [28] => SoilCO2_West_B_4 [29] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-11-07	311	0	nan	3.6	10	4.5	3	0.4	5.3	6.5	0.3	11.2	3.9	5.4	11.2	4.2	9	0.6	11.8	12.6	7.6	16.6	13.7	16.5	15.1	11.7	17.3	8.5	25.4	11.9	13.9	16.5	21.5
2019-11-07	311	1	nan	3.9	7.4	5	2.7	0.1	5	8.3	0.7	10.6	3.9	6.3	11.5	3.9	8.4	0.6	11.2	14	7.3	15.6	13.4	15.9	14.5	12	17	8.5	23.4	11.6	14.2	16.8	22.2
2019-11-07	311	2	nan	3.6	8.3	3.6	2.4	0.4	5.3	7.1	0.4	10.6	3.9	4.5	11.5	4.2	8.4	0.5	11.6	13.4	7.8	16.2	13.4	16.2	14.8	12.3	16.2	9	23.4	11.6	14.5	15.9	21.5
2019-11-07	311	Avg	0-15cm																															0
2019-11-07	311	Avg	15-30cm																															0
2019-11-07	311	Avg	30-45cm																															0
2019-11-07	311	Avg	45-60cm																															0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Solar_Panels_2 [3] => Flux_Tower_2 [4] => Biomass_Cage_2 [5] => Solar_Panels_3 [6] => Flux_Tower_3 [7] => Biomass_Cage_3 [8] => Solar_Panels_4 [9] => Flux_Tower_4 [10] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-11-07	311	0	nan	1.8	0.3	11.5	11.8	7.2	15.9	6.7	16.2	28.2	16.2	19.1
2019-11-07	311	1	nan	1.2	0.6	10	11.8	7.5	15.9	5.9	16.8	27.9	15.9	18.8
2019-11-07	311	2	nan	1.2	0.3	10.9	12.1	6.9	15.4	6.7	17.3	27.9	15.9	19.3
2019-11-07	311	Avg	0-15cm												0
2019-11-07	311	Avg	15-30cm												0
2019-11-07	311	Avg	30-45cm												0
2019-11-07	311	Avg	45-60cm												0
