West Pond: 2019-07-25 15:30:00 (DOY 206)
Author: Daphne Szutu
Others: Dennis, Alex, Josep Penuelas

Summary: Regular data collection/cleaning, downloaded miniDOT, water level up under the tower, knocked down 2 wasps' nest

2019-07-25
West Pond

Dennis, our visitor Josep Penuelas, Alex, and I arrived at 15:30. It was sunny and warm. There were 2 wasps’ nests, one under each boardwalk; Dennis got stung on his hand. The water level has come up under the tower; the water level was 31 cm. However, when driving along the southern edge of the wetland, you can still see the dry soil. The inlet was off. We passed a backhoe parked on the western edge of the wetland, probably Steve’s peat-removal project.

I downloaded met, USB GHG, and miniDOT data. There were no photos on the camera card. The wash reservoir was mostly full; we topped it off. Alex cleaned flux and rad sensors. We swapped the miniDOT and water level sensor desiccants. I skipped the zcam photos because the fluxalot laptop battery is limited.

LI-7500 readings:
CO2 397ppm
H2O 610ppm
T 35.6C
P 101.1kPa
SS 95--> 96 after cleaning
LI7700 readings:
CH4 1.96ppm
RSSI 67--> 73 after cleaning

We left at 15:55.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

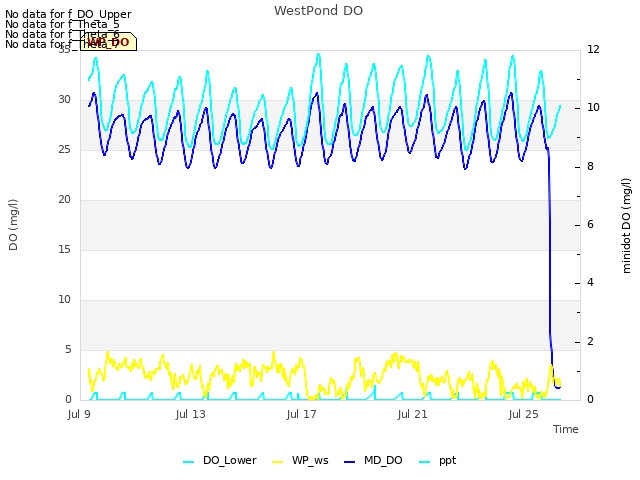

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

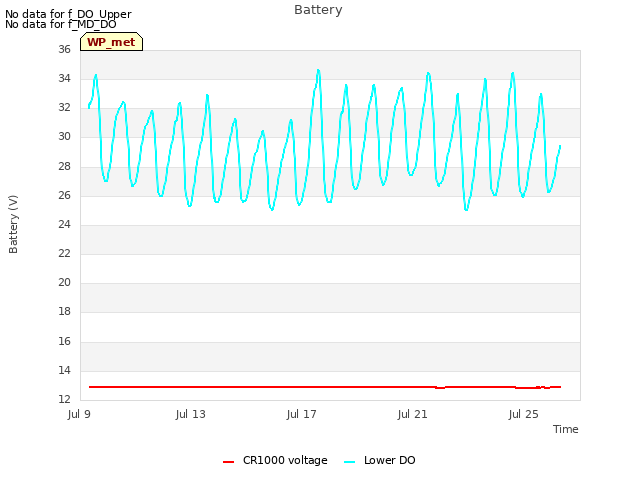

Explore the graph:Battery in a new window

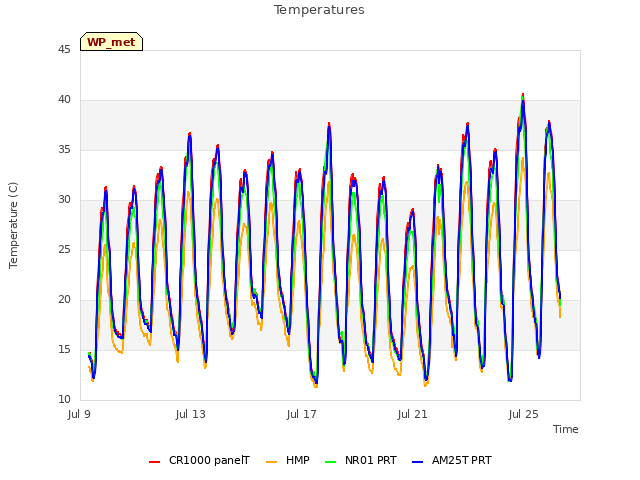

Explore the graph:Temperatures in a new window

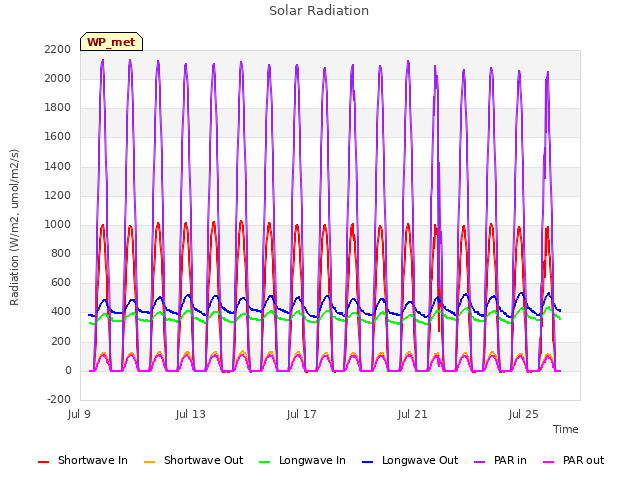

Explore the graph:Solar Radiation in a new window

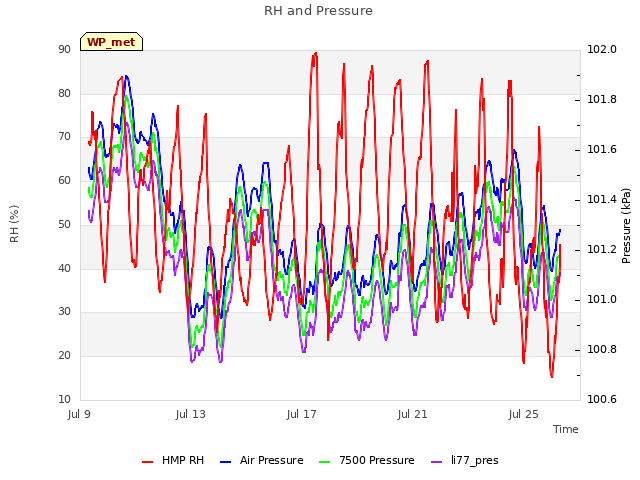

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

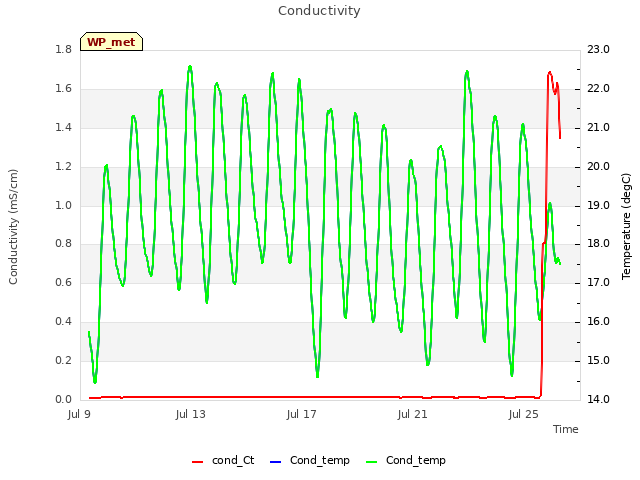

Explore the graph:Conductivity in a new window

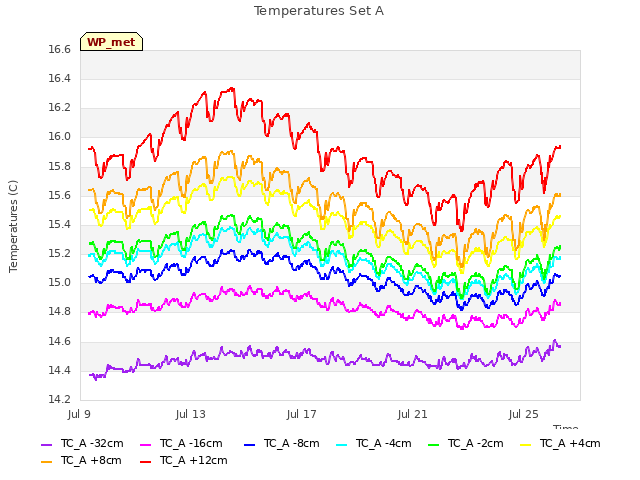

Explore the graph:Temperatures Set A in a new window

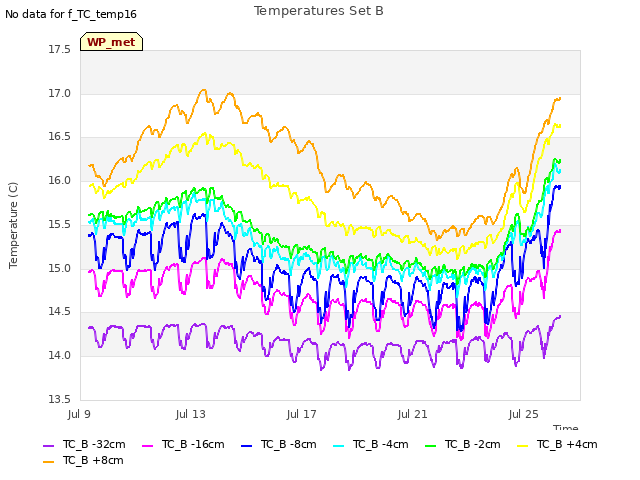

Explore the graph:Temperatures Set B in a new window

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

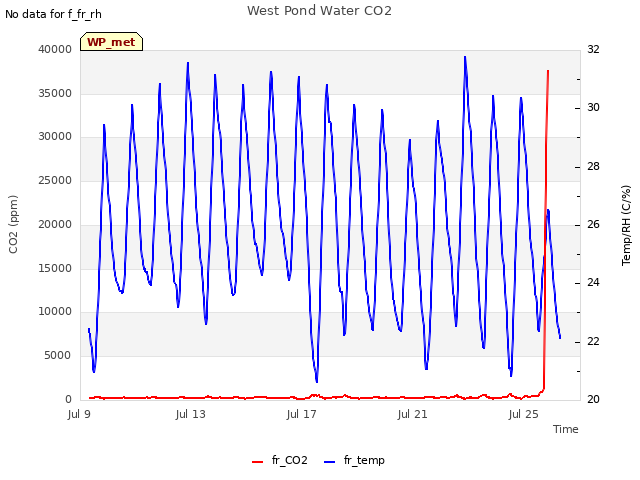

Explore the graph:West Pond Water CO2 in a new window

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

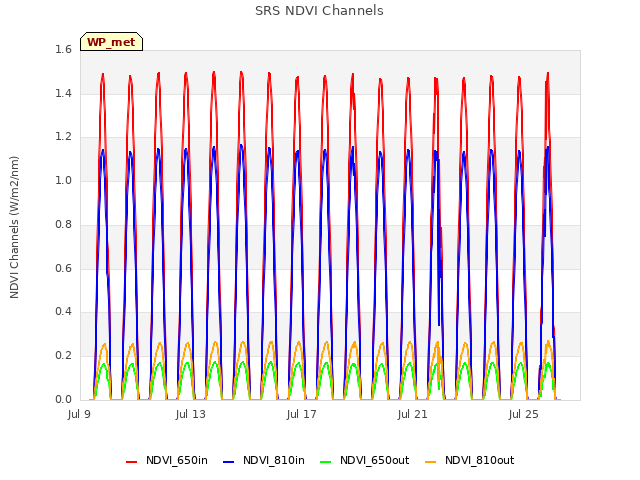

Explore the graph:SRS NDVI Channels in a new window

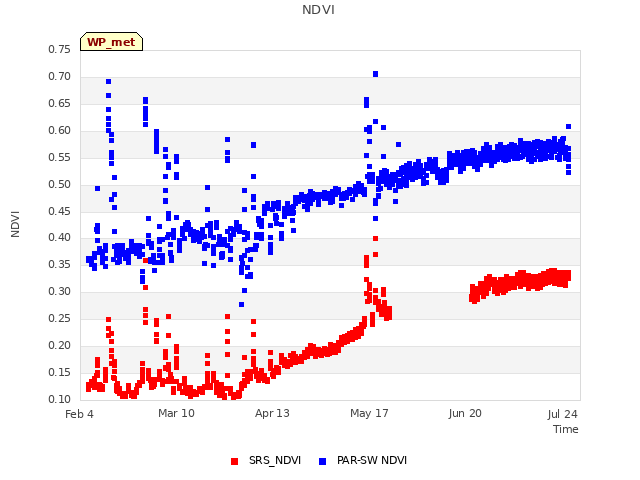

Explore the graph:NDVI in a new window

5 WP_flux graphs found

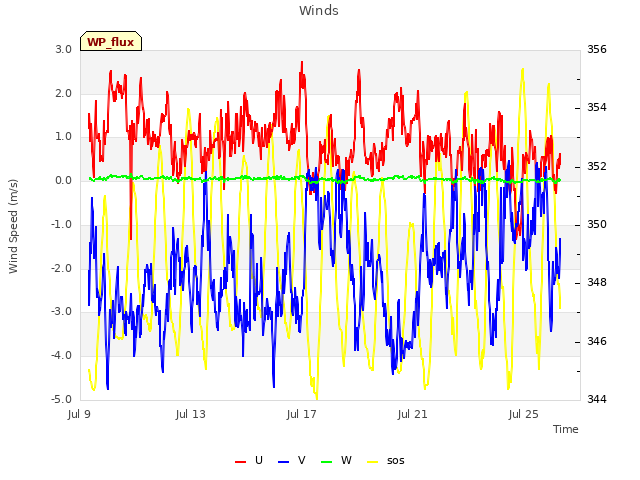

Explore the graph:Winds in a new window

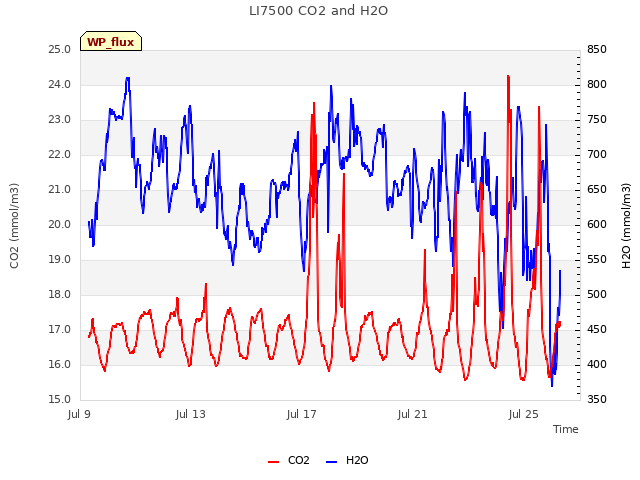

Explore the graph:LI7500 CO2 and H2O in a new window

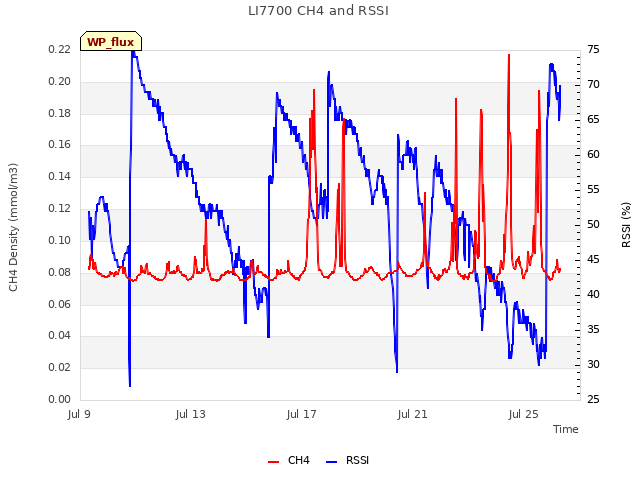

Explore the graph:LI7700 CH4 and RSSI in a new window

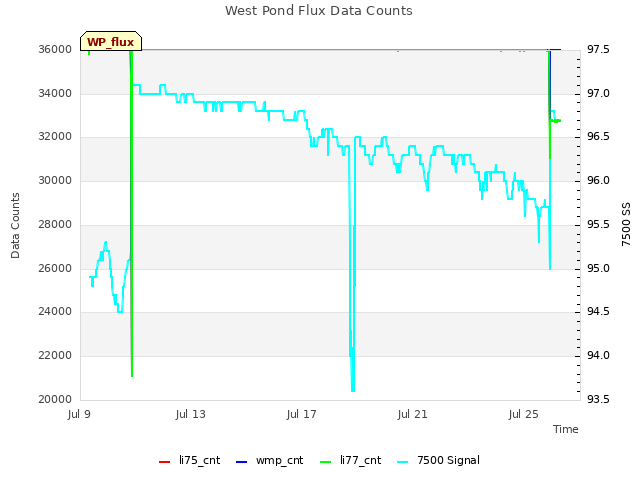

Explore the graph:West Pond Flux Data Counts in a new window

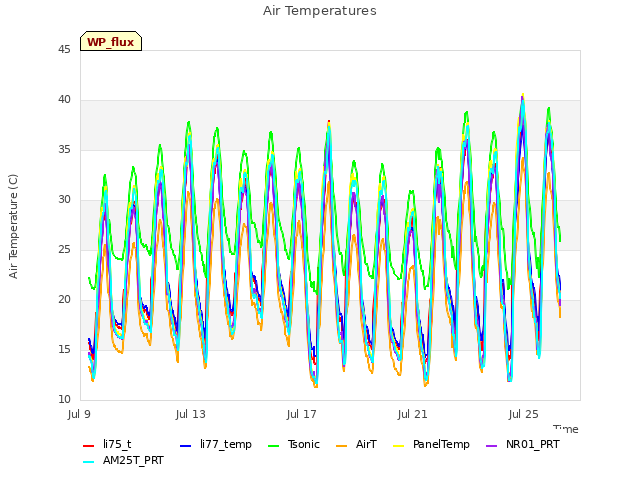

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
