Mayberry: 2019-07-10 09:55:00 (DOY 191)
Author: Daphne Szutu
Others: Dennis, Camilo
Summary: Regular data collection/cleaning, water samples for Isabel, Rnet_water needs replacing

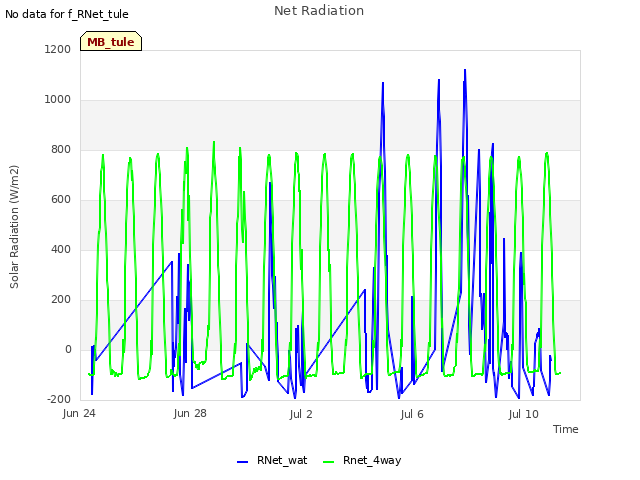

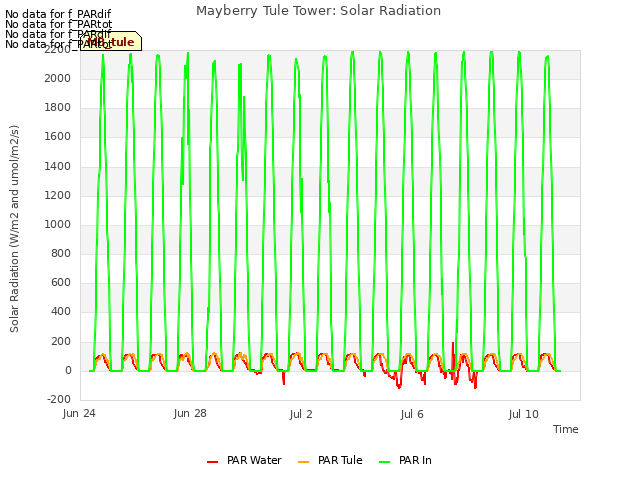

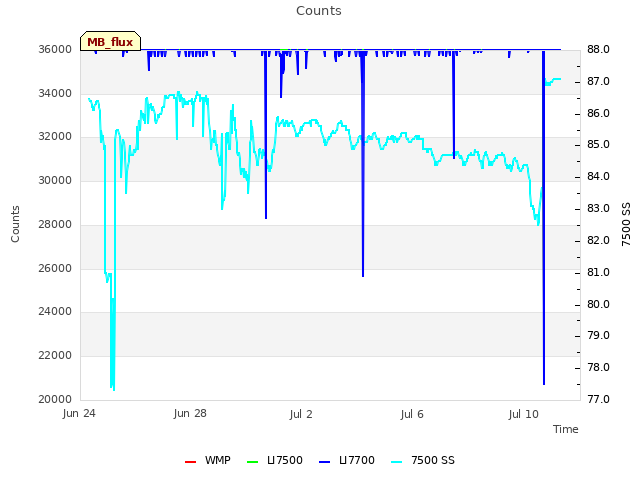

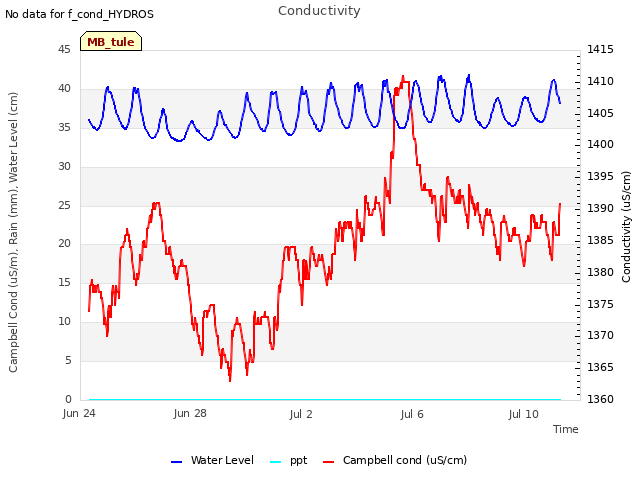

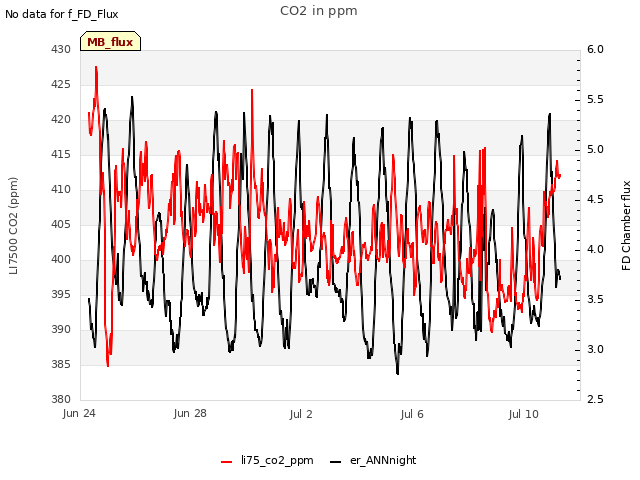

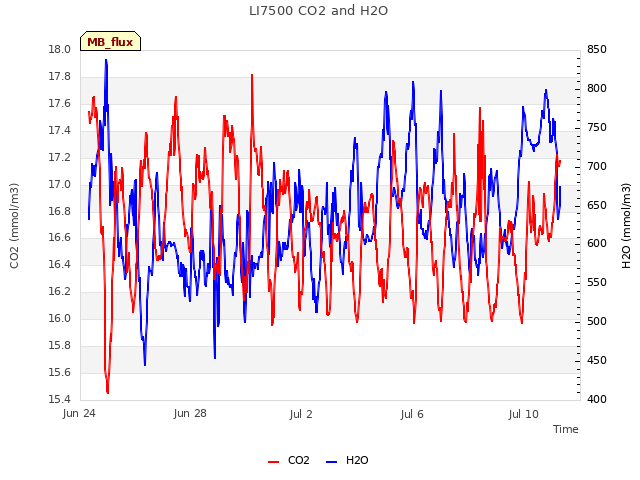

| 2019-07-10 Mayberry Camilo, Dennis, and I arrived at 9:55. It was a sunny and windy day with clear skies (some cirrus clouds). The weeds along the levee have died back. The wetland is looking nice and green, and the water is still a green-brown color. The water level was 44 cm. Dennis did some weeding along the path and checked on the solar charge controller; we were generating about 11A and pulling 1.4A. We did not check water sensors today. Dennis collected water samples for Isabel at 9:05 PST. I downloaded met, camera, and USB GHG data. The Rnet_water looks very spiky and should be replaced. Camilo cleaned flux and rad sensors and the phenocam window. The wash reservoir was empty; we refilled it. LI-7500 readings: CO2 400ppm H2O 773ppm T 22.2C P 101.6kPa SS 83--> 87 after cleaning LI7700 readings: CH4 1.6ppm--> 1.8 after cleaning RSSI 8--> 69 after cleaning We left at 10:40. |
0 photos found
11 sets found

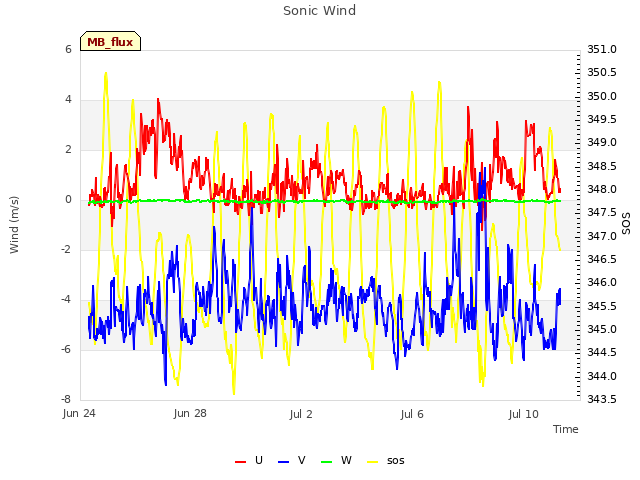

7 MB_flux graphs found
No data found for MB_met.

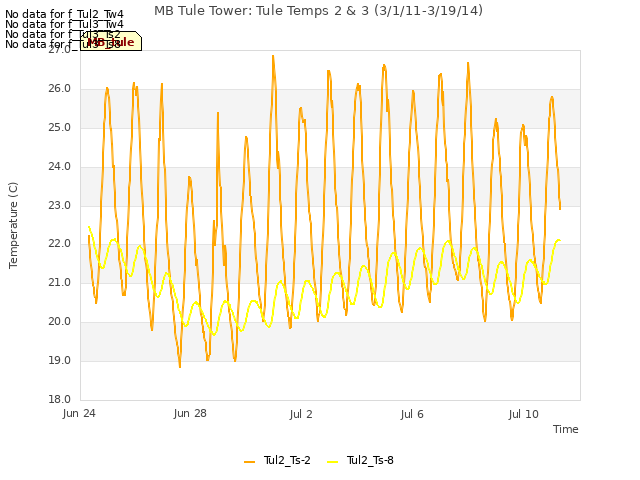

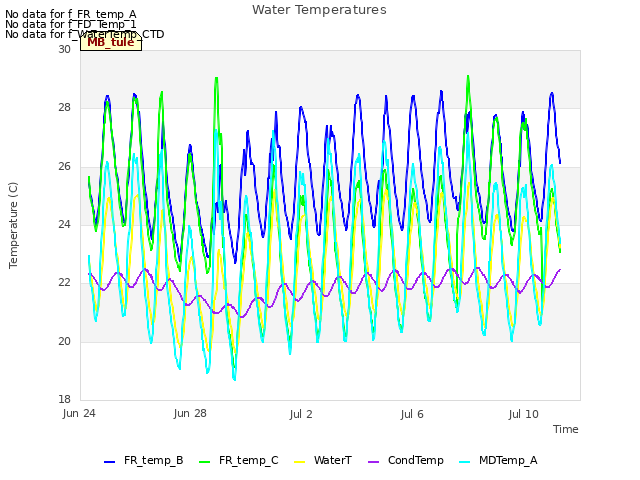

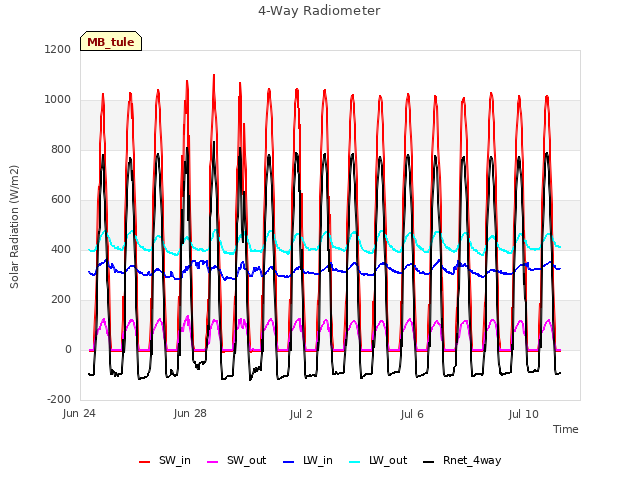

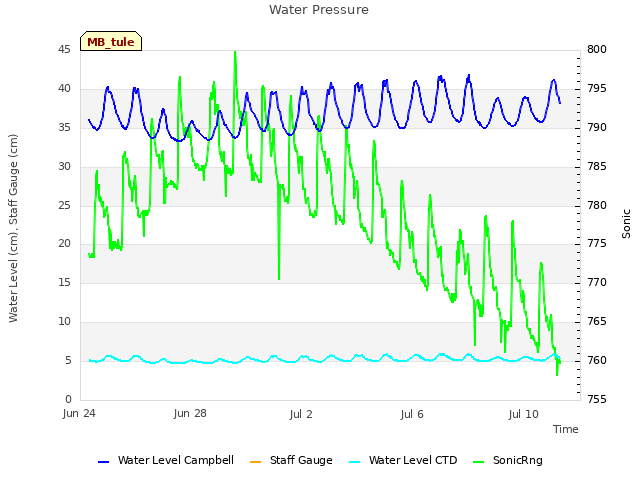

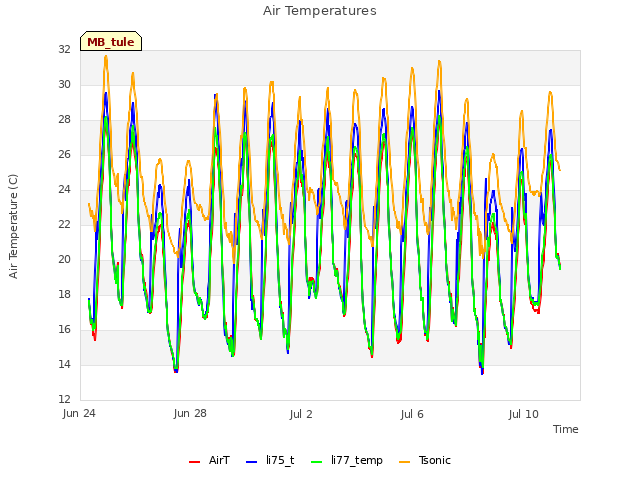

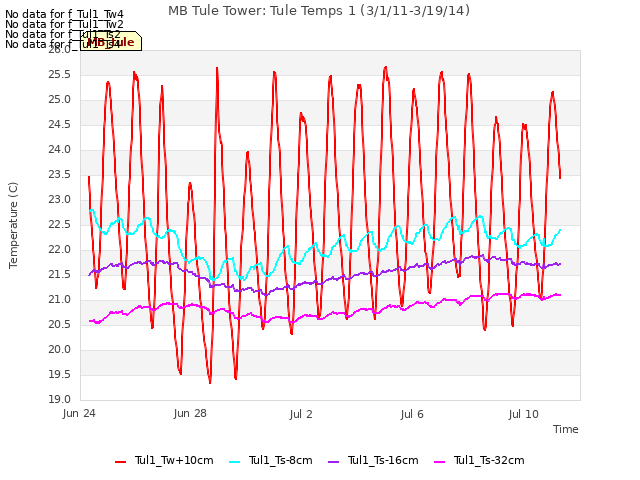

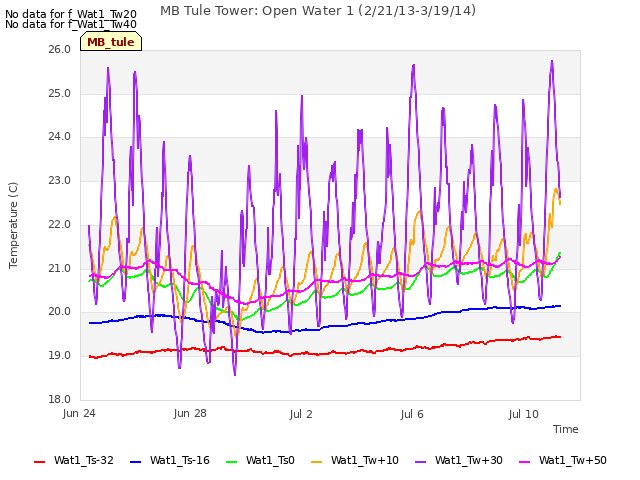

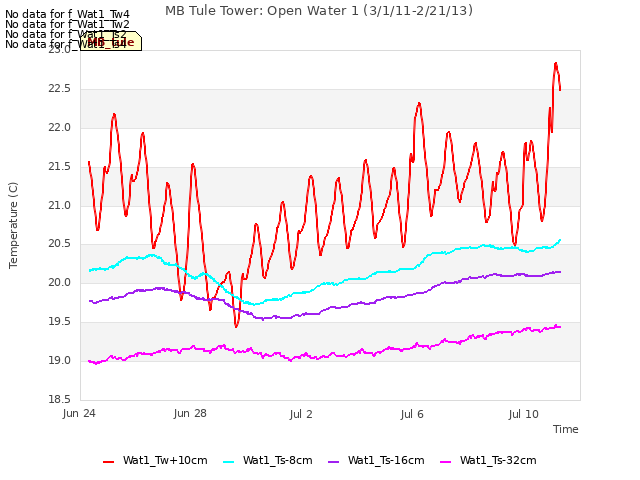

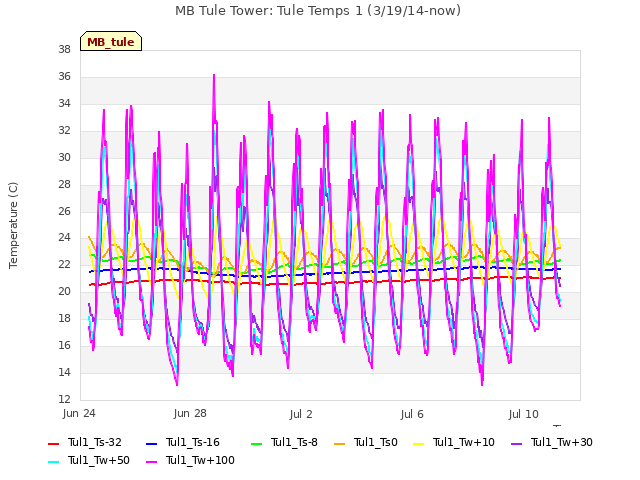

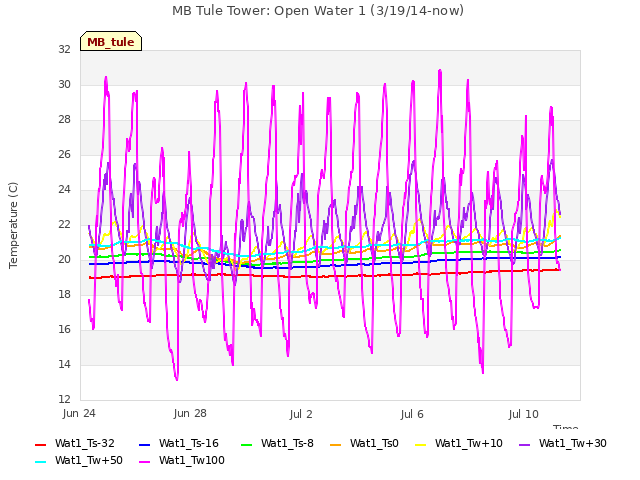

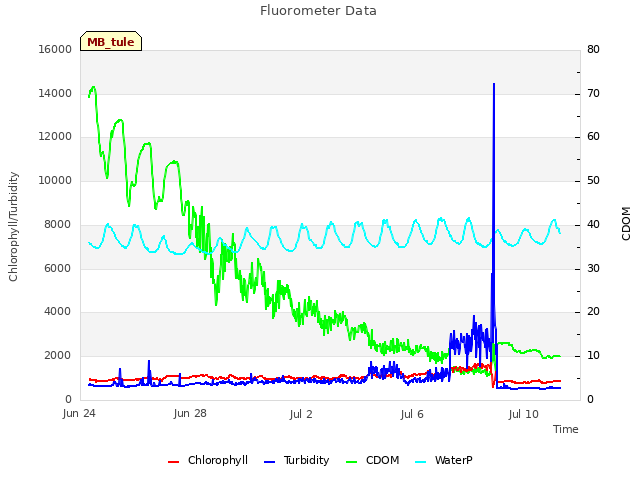

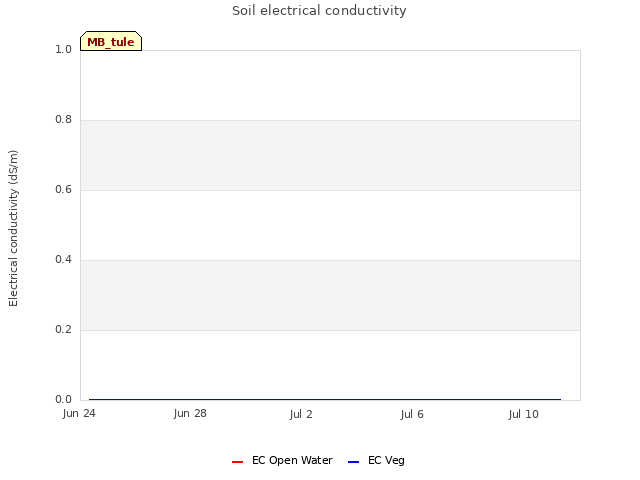

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed
1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met

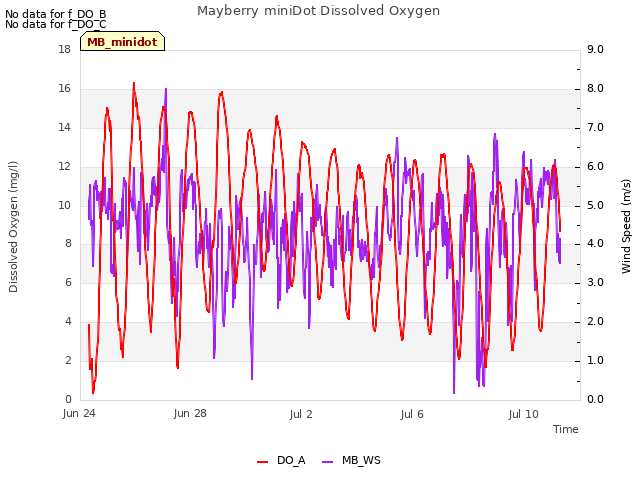

1 MB_minidot graphs found
Can't check MBSWEEWPBCBA

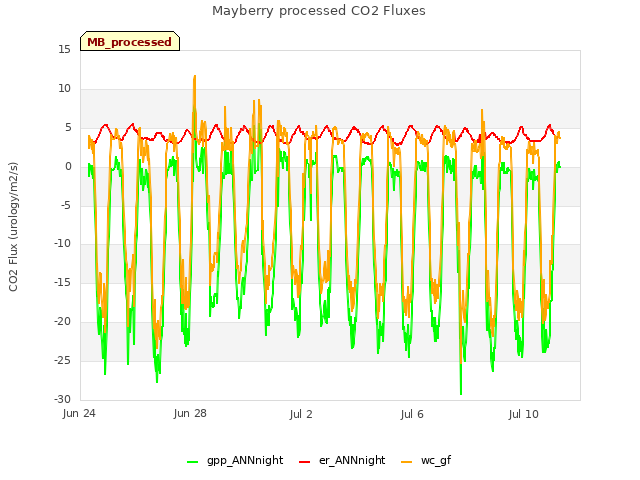

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
