Field Notes

Mayberry: 2019-06-20 15:30:00 (DOY 171)
Author: Daphne Szutu
Others: Kuno, Robert, Camilo

Summary: Regular data download/cleaning, water samples for Isabel, adjusted fluorometer brushes

2019-06-20
Mayberry

Kuno, Robert, Camilo, and I arrived at 15:30. It was sunny and windy with clear skies. The wetland is mostly green, water is still a brown-green color, and the water sensors were all slimy. I wiped down the staff gauge, but forgot to write down the water level.

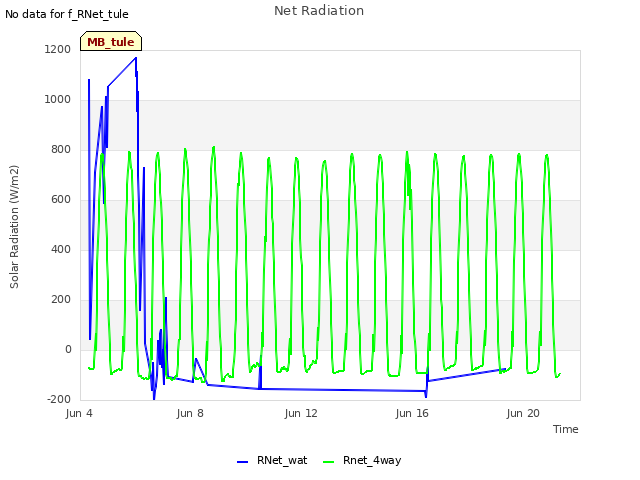

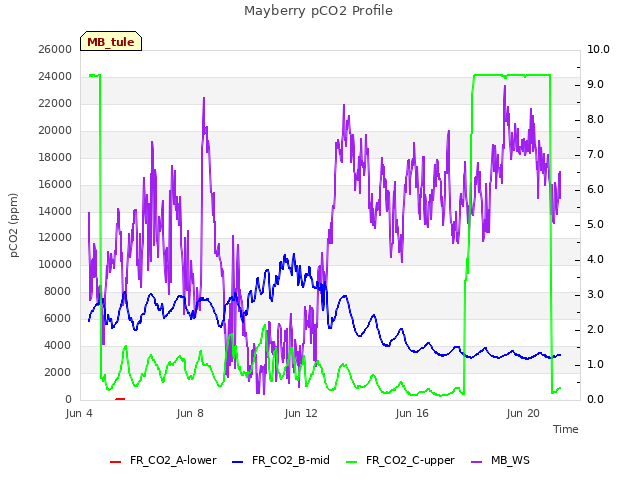

Kuno collected water samples for Isabel at 14:30 PST. Robert cleaned flux and rad sensors. I downloaded met, camera, USB GHG, and miniDOT data (from the solo â€œupperâ€ sensor). The lower eosCO2 sensor data seemed to be maxing out, and Rnet_water seemed spiky, so I checked the wiring (unwired and rewired in same port).

We swapped the desiccant in the miniDOT and in the water level sensor. Robert rinsed and wiped off the fluorometer lenses. The brushes did not seem to be touching the lenses, so I screwed them in a little tighter until I thought the brushes were in contact with the lenses. We confirmed the fluorometer was sending messages to the datalogger before lowering it in the water and jiggling the boom to get bubbles out. The wash reservoir was Â½ full; we refilled it. Kuno also trimmed down the path to the tower and washed the solar panels.

LI-7500 readings:
CO2 408ppm
H2O 686ppm
T 25.9C
P 100.7kPa
SS ??--> 87 after cleaning

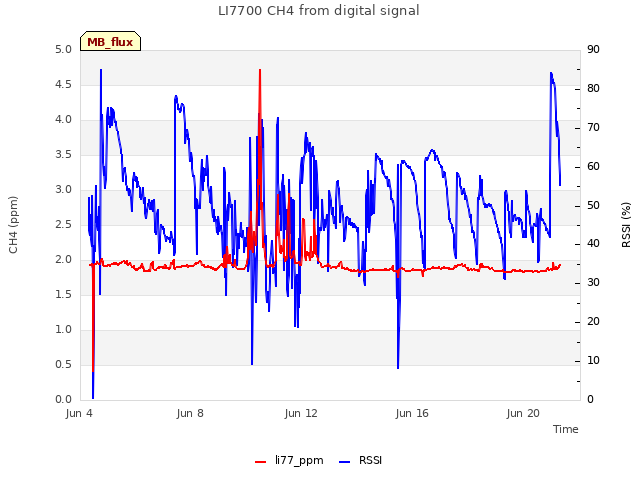

LI7700 readings:
CH4 1.86ppm
RSSI ??-->83 after cleaning

We left at 16:50.
