Bouldin Corn: 2019-02-12 12:25:00 (DOY 43)
Author: Daphne Szutu
Others: Kuno, Camilo
Summary: Regular data collection/cleaning, installed PurpleAir particle monitor
| 2019-02-12 Bouldin Corn Kuno, Camilo, and I arrived at 12:25. It was gray, cloudy, and cold. The chamber area is still flooded but most of our field is dry. I collected met, camera, and USB GHG data. Camilo cleaned flux and rad sensors. Kuno installed the PurpleAir sensor sn 68c63acc07a9 by bolting it below the upper boardwalk. It’s powered with a 12v-to-5v converter in the CR10x enclosure. We checked the number with our cellphones by connecting to the “AirMonitor†wireless network and opening 192.168.4.1. Raw PM2.5 was 21 and 20 ug/m3. LI-7500 readings: CO2 419ppm H2O 309ppm T 8.9C P 101.2kPa SS 103-->104 after cleaning LI7700 readings: CH4 2.3ppm RSSI 46 --> 89 after cleaning We left at 12:55. |
0 photos found
6 sets found

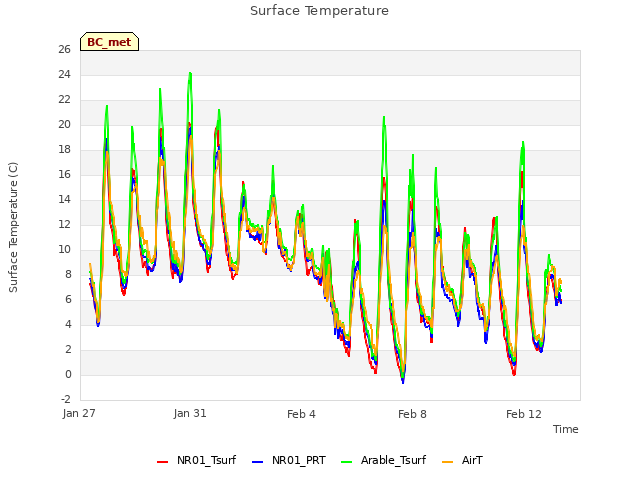

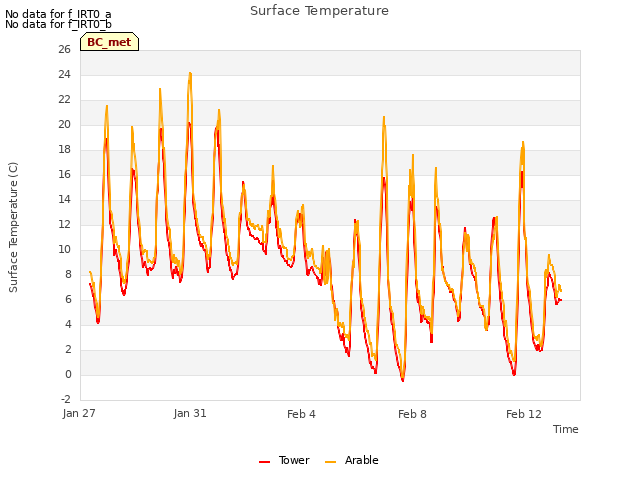

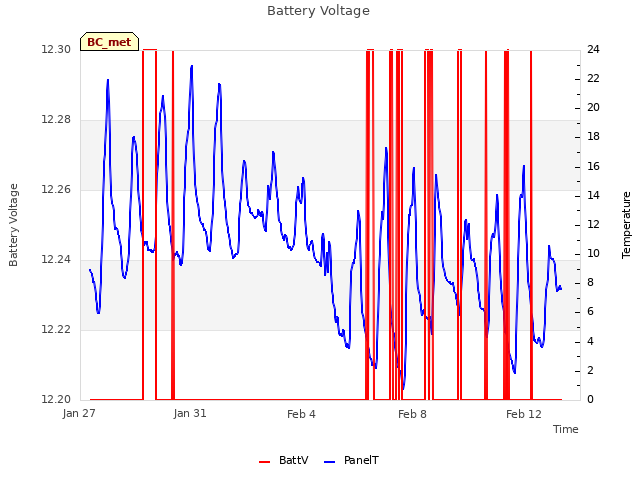

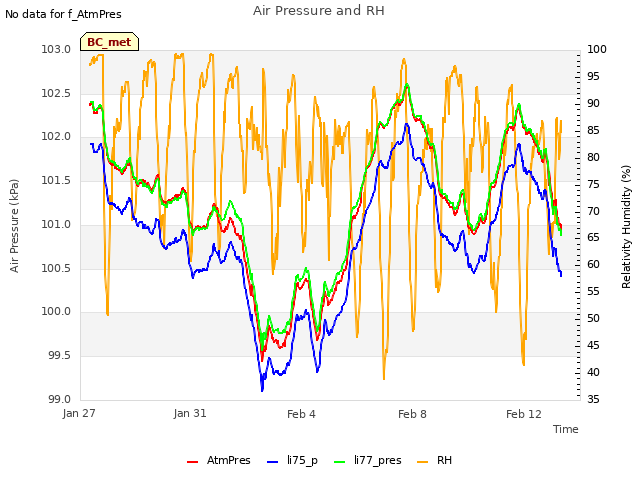

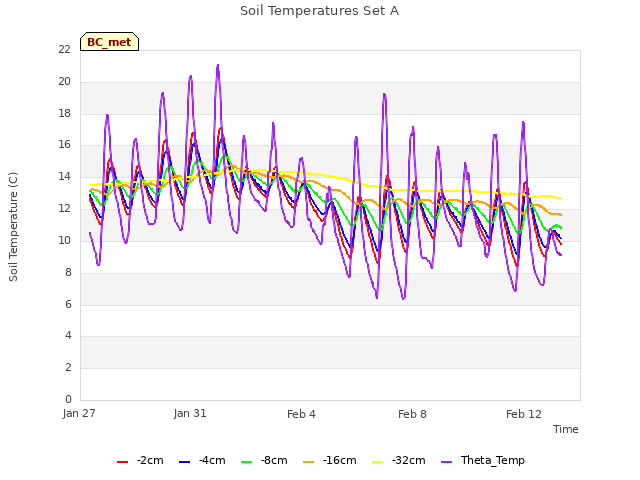

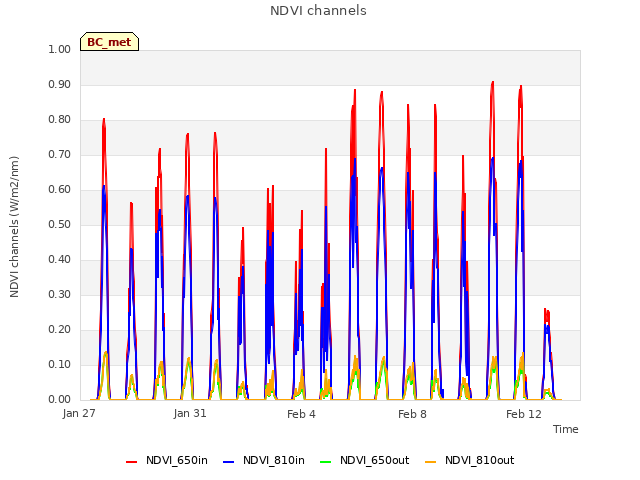

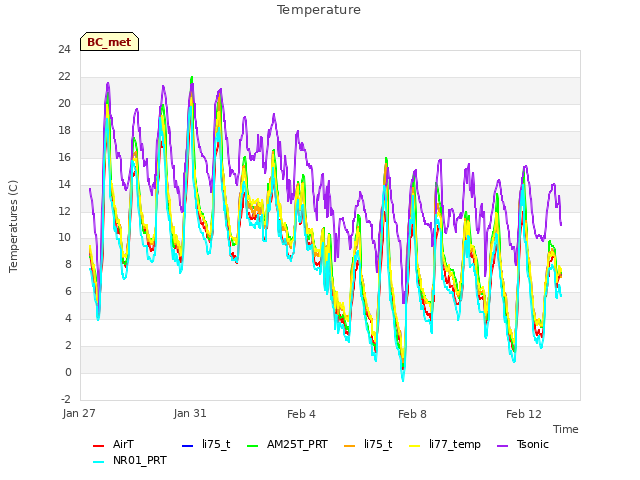

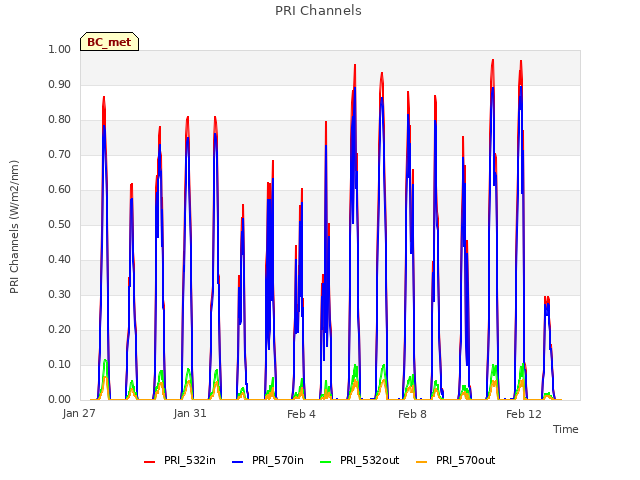

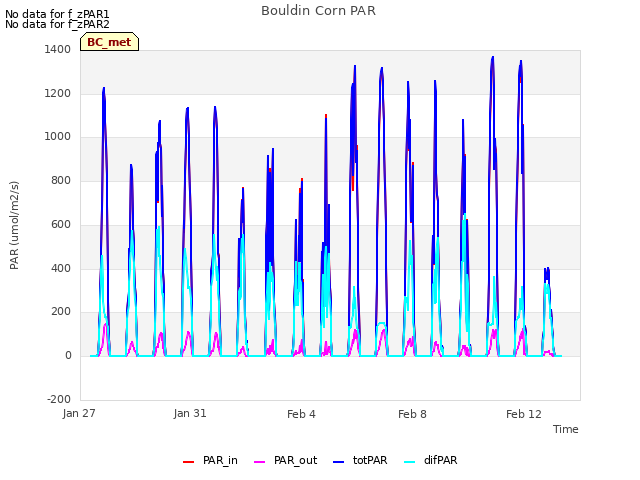

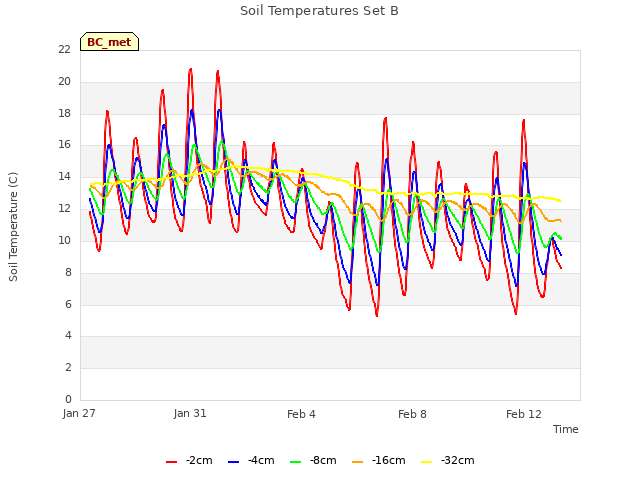

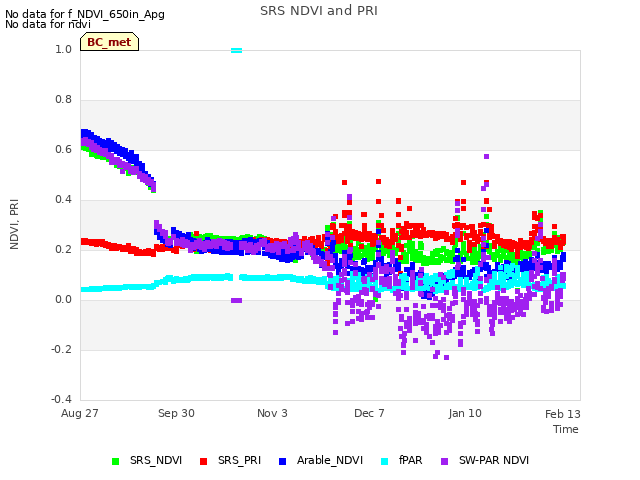

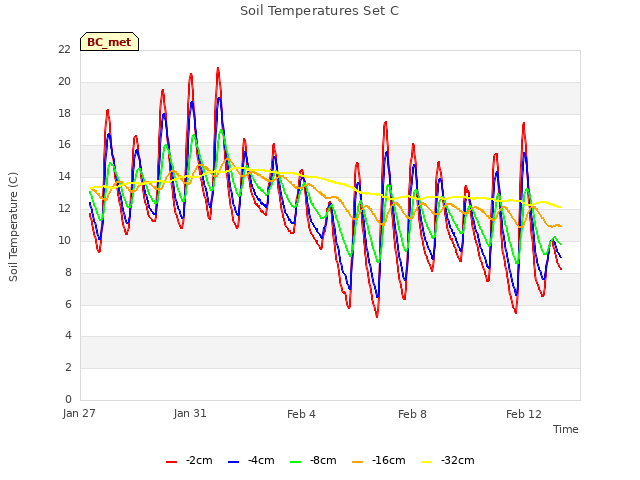

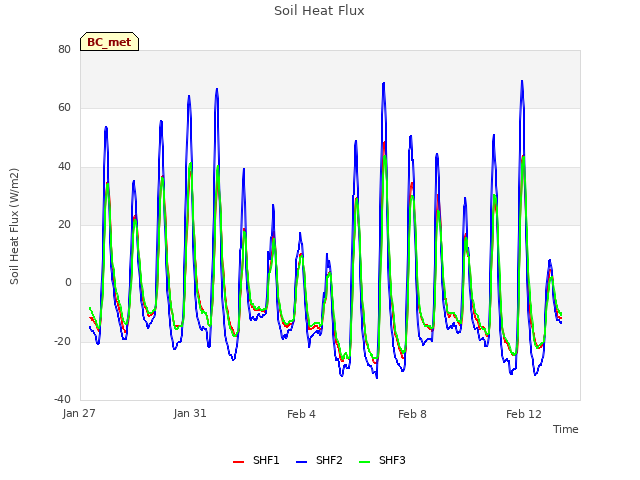

17 BC_met graphs found

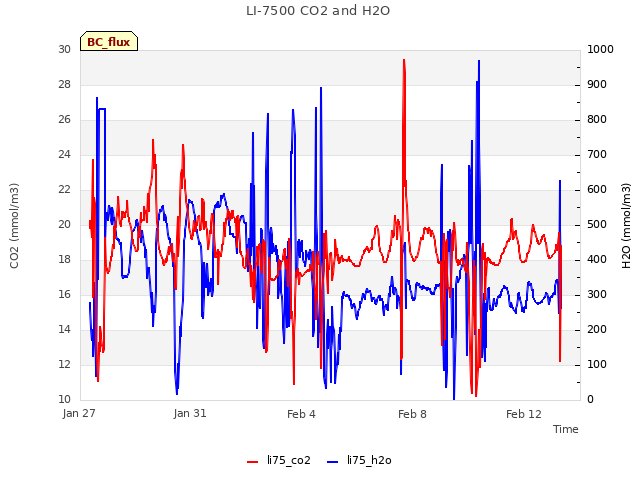

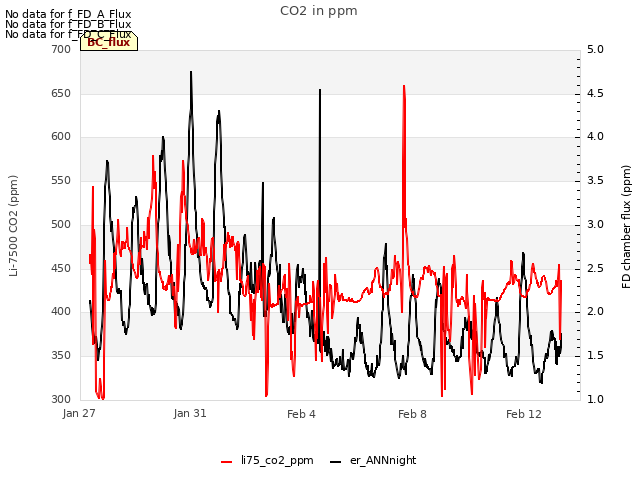

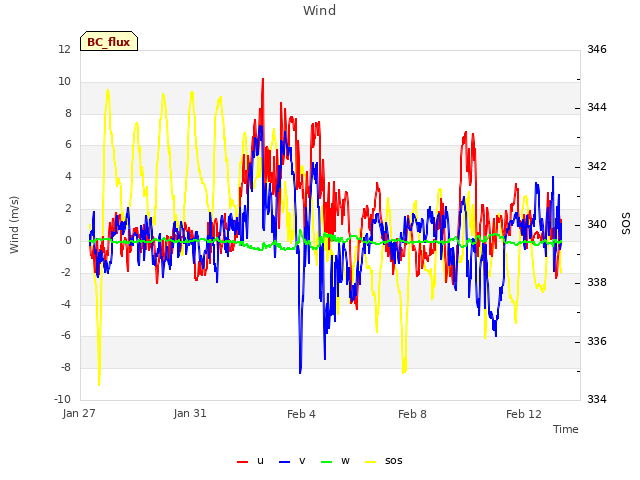

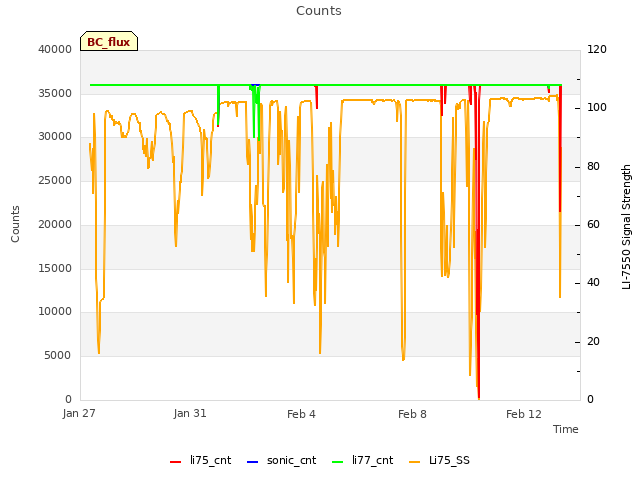

5 BC_flux graphs found
Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
No data found for BC_pa.
1 BC_arable graphs found
