Mayberry: 2018-11-01 15:50:00 (DOY 305)
Author: Daphne Szutu
Others: Dennis, Kuno

Summary: Regular data download/cleaning, serviced water sensors, swapped 7700 wash tubing

2018-11-01
Mayberry

Dennis, Kuno, and I arrived at 15:50. It was calm and sunny, with thin clouds. The wetland is definitely browning now. The water level is 30 cm.

Kuno replaced the original 7700 tubing with a black tubing that should is more resistant to solar degradation. The original tubing had a leak. Kuno and Dennis cleaned the flux and rad sensors and refilled the wash reservoir; it was almost empty. I forgot to bring sample vials so we didn't collect water samples for Isabel.

I downloaded met, cam, USB GHG, and miniDOT data. The lower miniDOT needs a new desiccant (dropped in the water) and maybe new batteries (didn’t see green LED on when I pushed the white eject button or when I turned the miniDOT back on).

LI-7500 readings:
CO2 405ppm
H2O 630ppm
T 26.5C
P 101.7kPa
SS 98-->100.6 after cleaning

LI7700 readings:
CH4 2.1ppm
RSSI 1 --> 86 after cleaning

We left at 16:30.

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

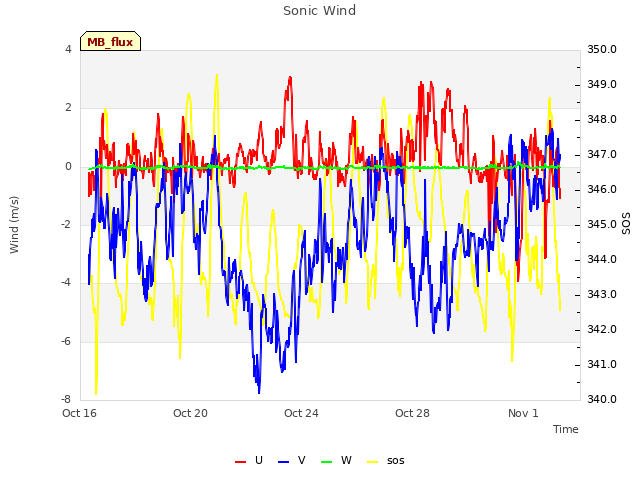

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

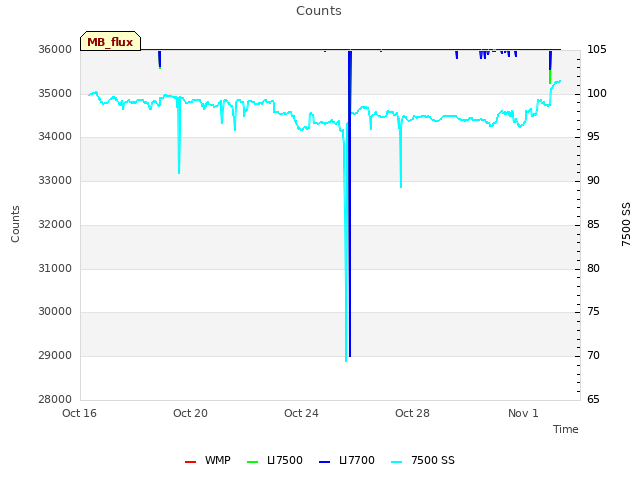

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

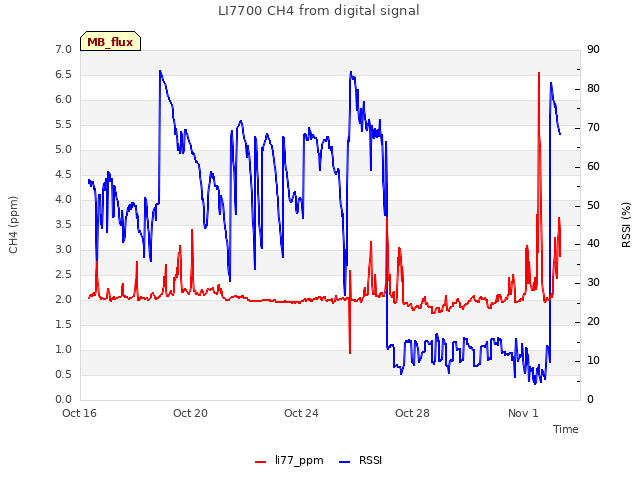

Explore the graph:LI7700 CH4 from digital signal in a new window

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

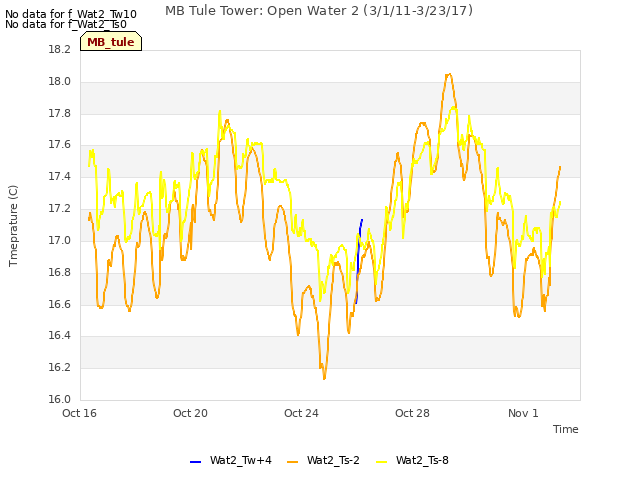

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

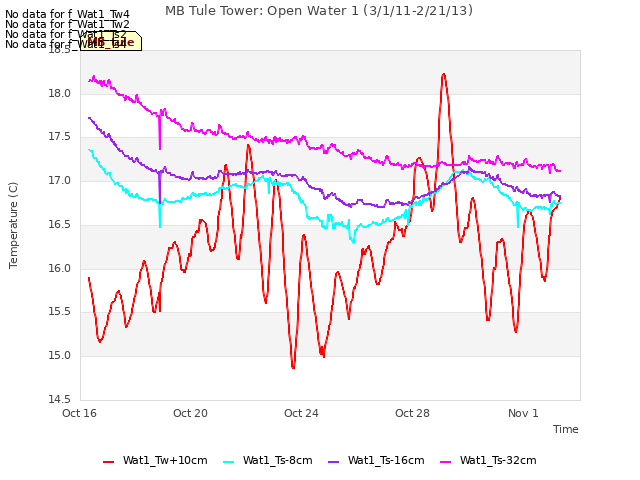

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

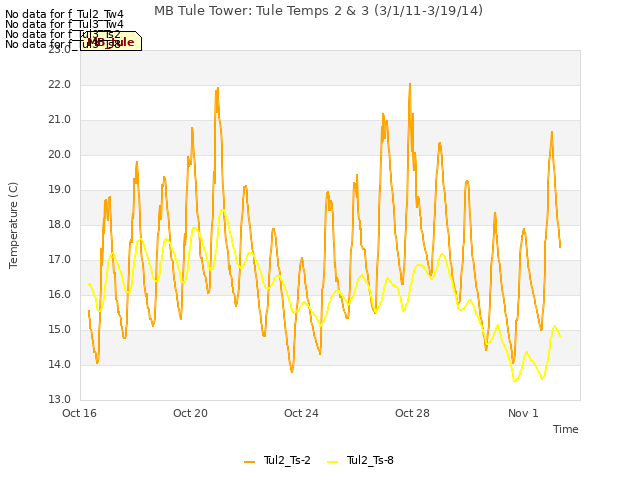

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

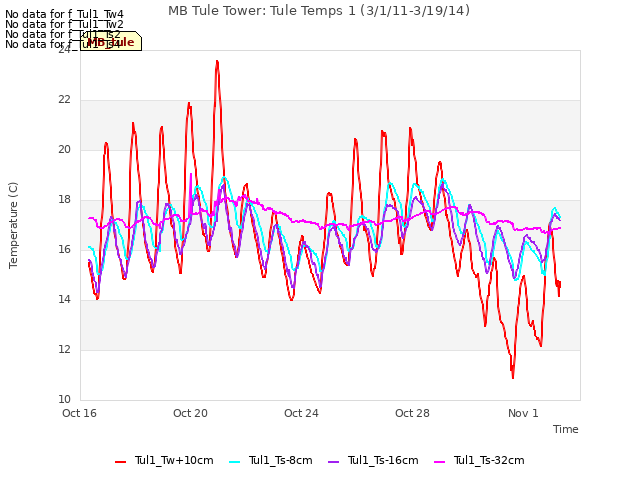

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

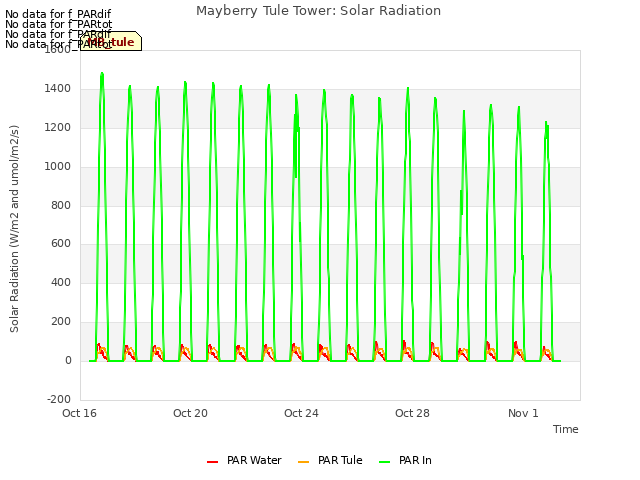

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

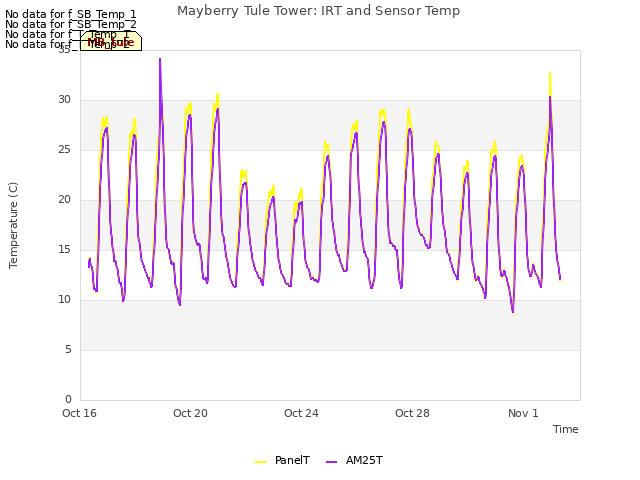

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

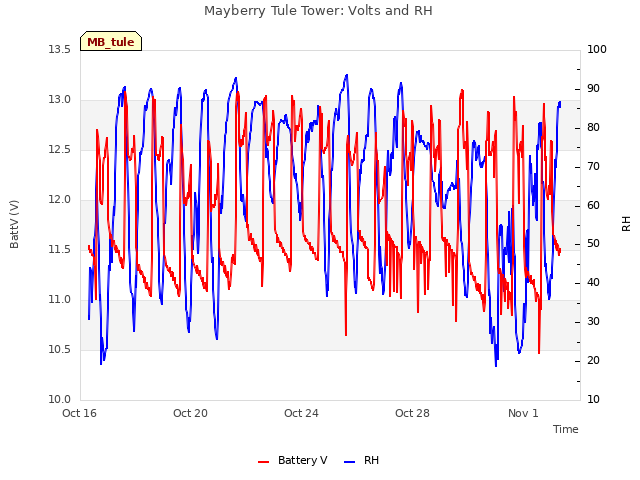

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

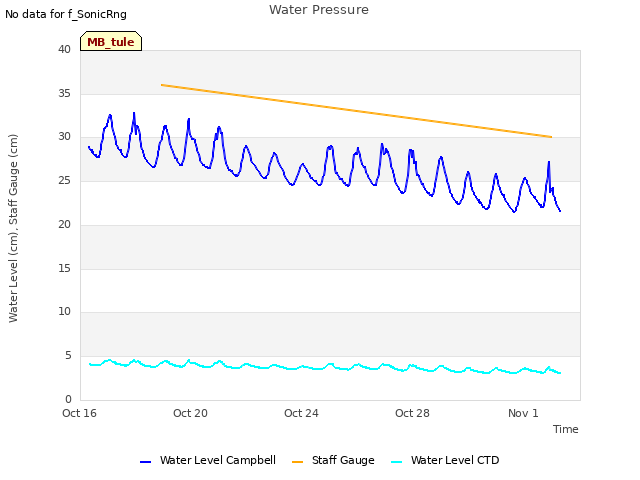

Explore the graph:Water Pressure in a new window

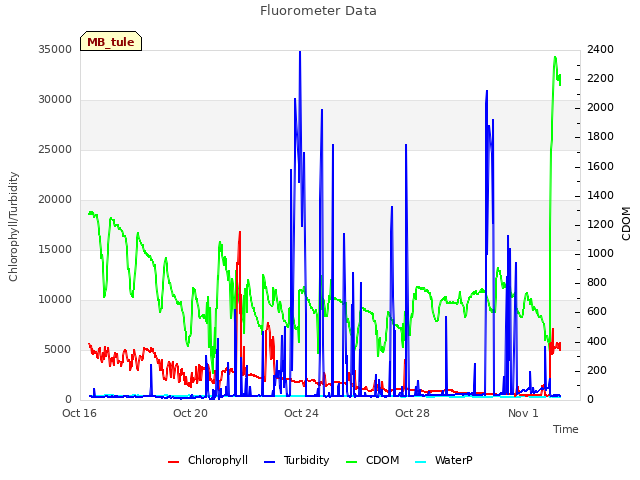

Explore the graph:Fluorometer Data in a new window

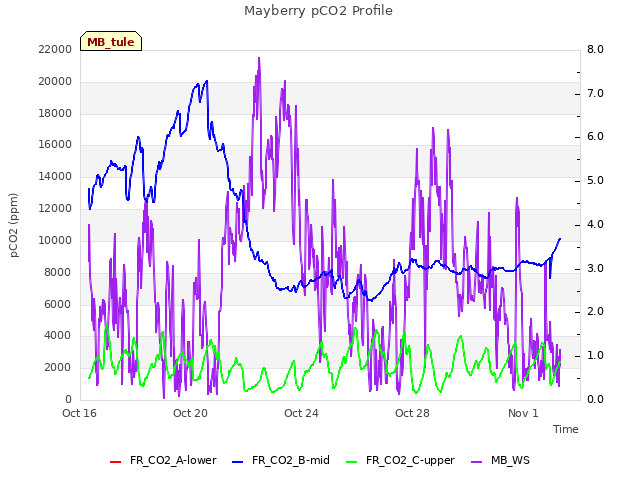

Explore the graph:Mayberry pCO2 Profile in a new window

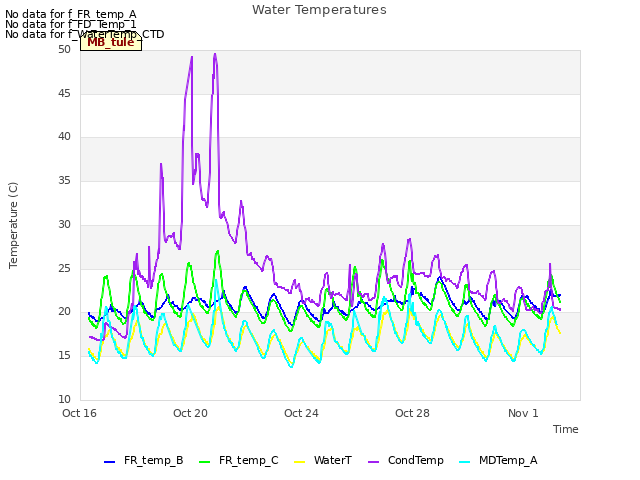

Explore the graph:Water Temperatures in a new window

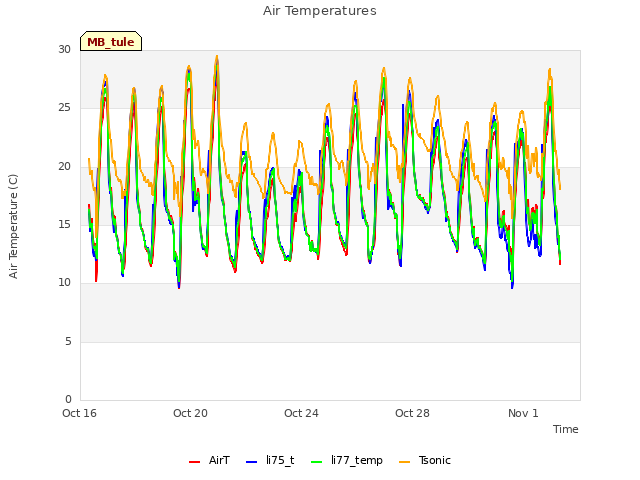

Explore the graph:Air Temperatures in a new window

Explore the graph:Air Pressure in a new window

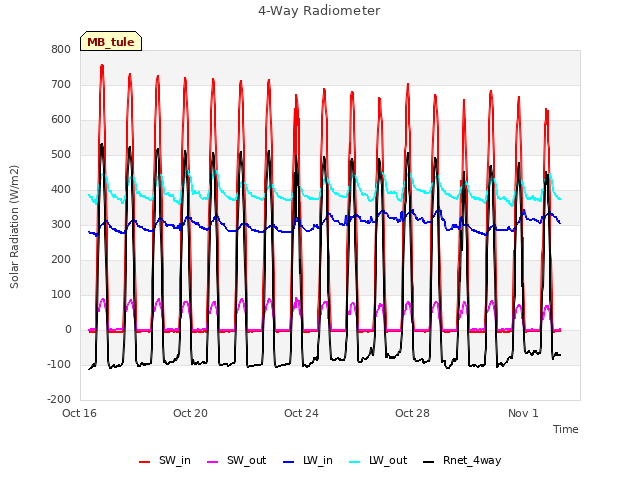

Explore the graph:4-Way Radiometer in a new window

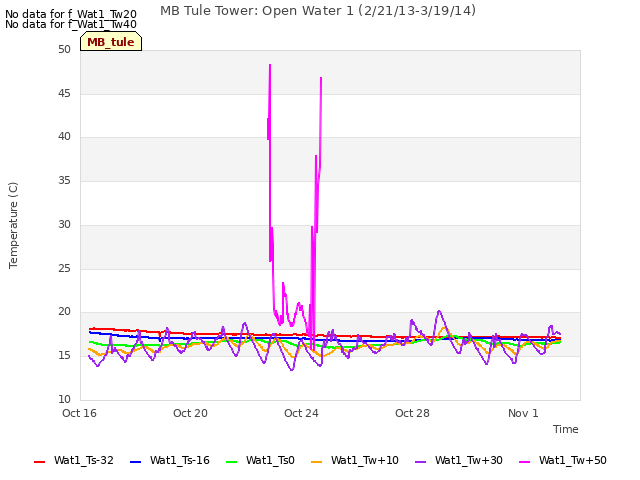

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

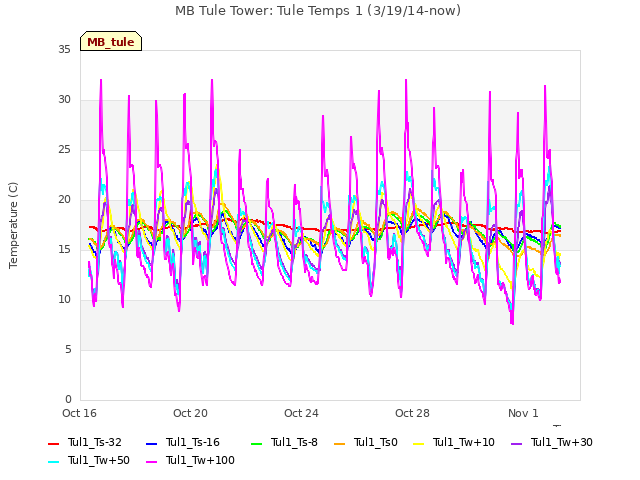

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

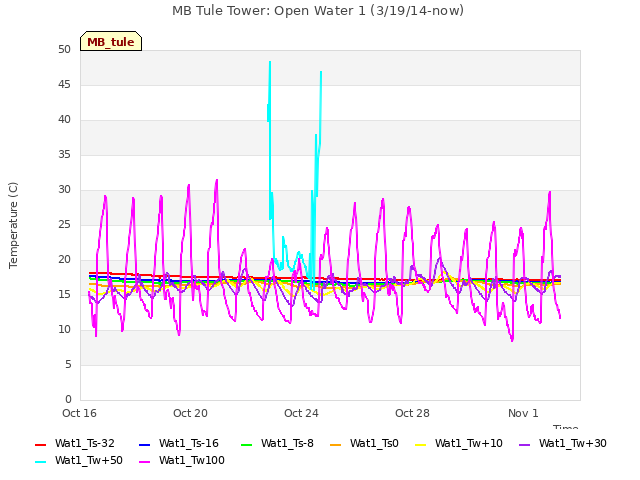

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

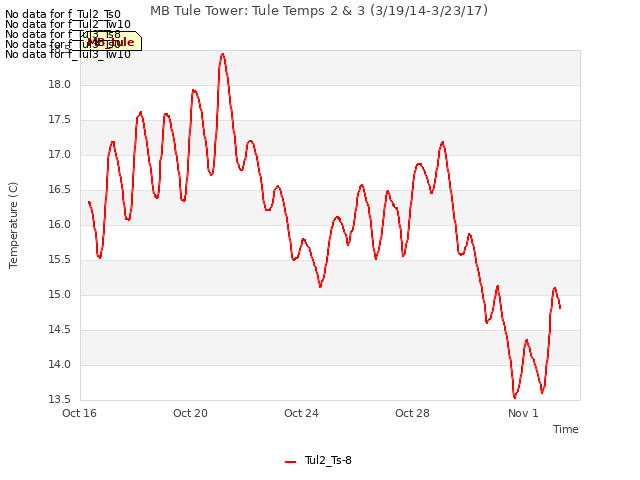

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

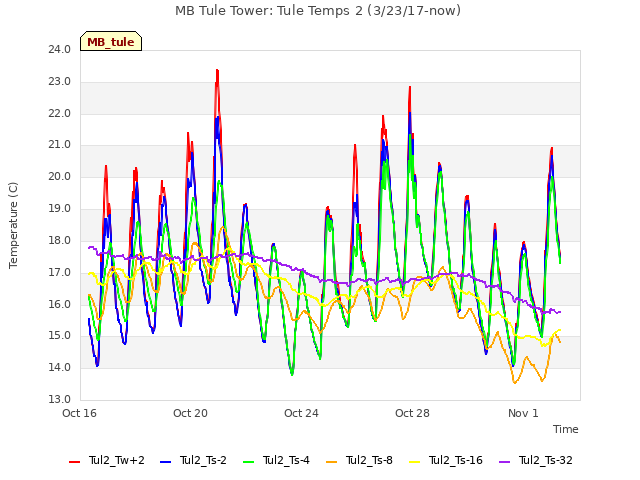

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

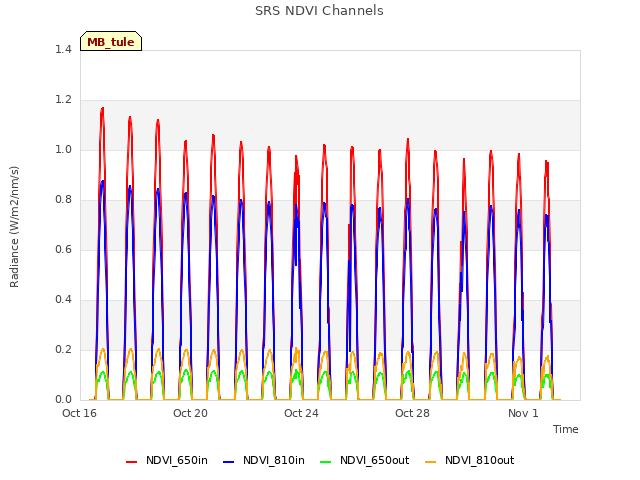

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:SRS NDVI in a new window

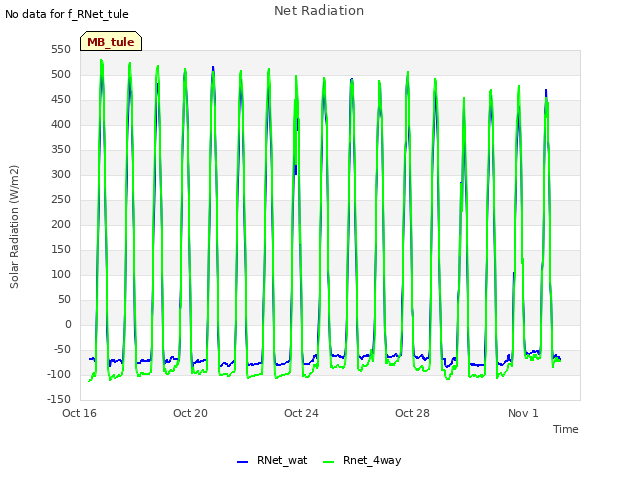

Explore the graph:Net Radiation in a new window

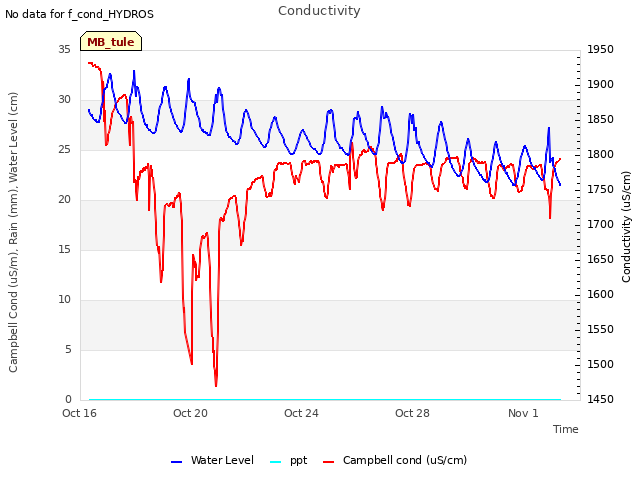

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

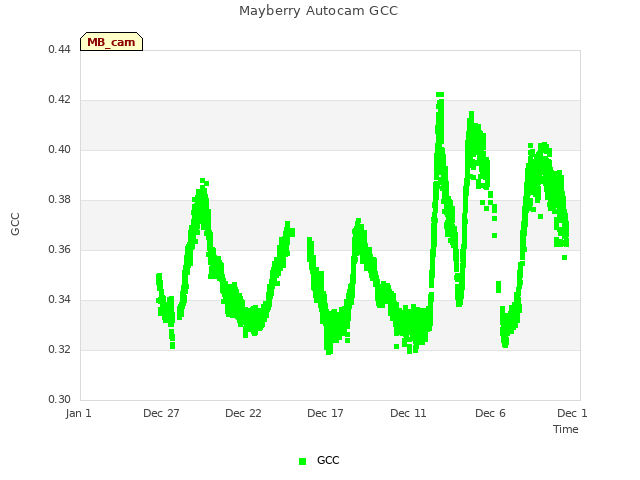

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

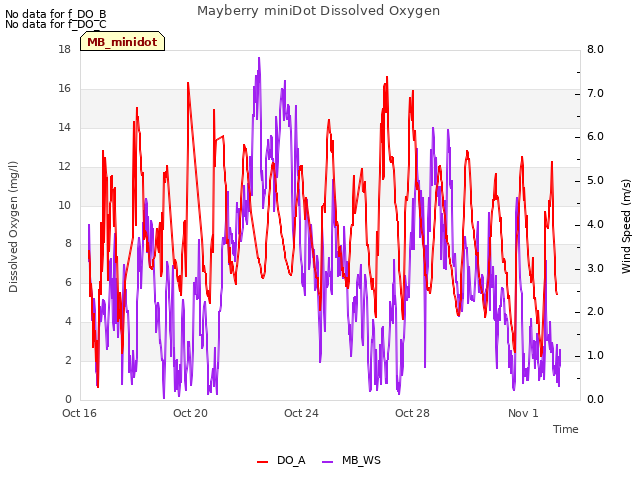

Explore the graph:Mayberry miniDot Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 MB_processed graphs found

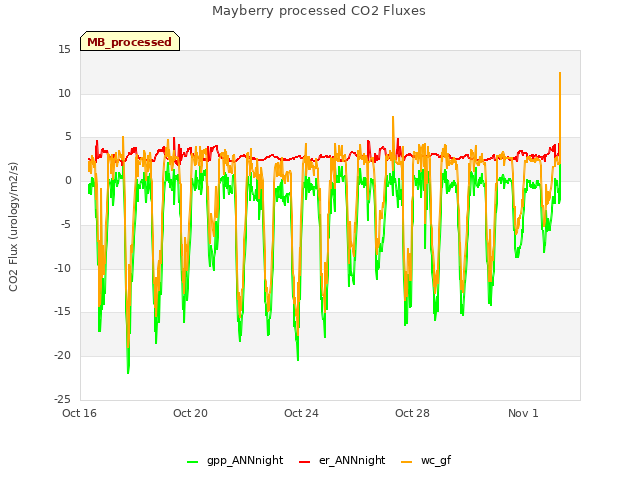

Explore the graph:Mayberry processed CO2 Fluxes in a new window
