Bouldin Alfalfa: 2018-10-04 10:10:00 (DOY 277)
Author: Joe Verfaillie
Others: Dennis, Kuno

Summary: Recent rain left gas analyzers dirty, ant in data logger box, took down camera experiment.

Bouldin Alfalfa
2018-10-04

I arrived at 10:10 with Dennis and Kuno. It was cool with patchy high, thin clouds. The ground surface and alfalfa was still wet with the first light rain of the season. We drove along to field roads from BC because of road work near BC and no dust due to the rain. However only the surface was damp and just below the surface was still dusty. Recent light rain left the gas analyzers (especially the 7500) dirty.

The 7500 read: 398.5ppm CO2, 704.8mmol/m3 H2O, 20.5C, 101.5kPa, 97SS – 98.9 after cleaning
The 7700 read: 2.01ppm CO2, 51.0RSSI – 83.5 after cleaning
The wash box was full.

There were little black ants in the data logger box. We left them a couple of moth balls.

The Picam seemed to have a full set of photos. I down loaded them but did not clear them from the camera and then had Kuno remove the four test cameras.

Dennis did veg height and spectral measurements. The protocol he used for the spectral measurements was to take a reference and dark and then take repeated measures looking down and up and then take a reference and dark at the end. He thinks the averaging was set to one.

We left at 10:35

On the way out we stopped to talk to Tyler at his alfalfa chambers. Then we drove on the levee under the bridge to get back on the highway on the north side. The new concrete median makes it impossible to make a left turn back onto the highway. There is also a lower road under the bridge that might work too.

Next Mowing: 2018-10-24

Veg Height (cm): Tape measure from ground to top of plant
43, 44, 46, 25, 34, 38, 42, 41, 39, 42, 38, 29, 42, 44, 40, 30, 38, 42, 30, 38, avg = 38.3, stdev = 5.77

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

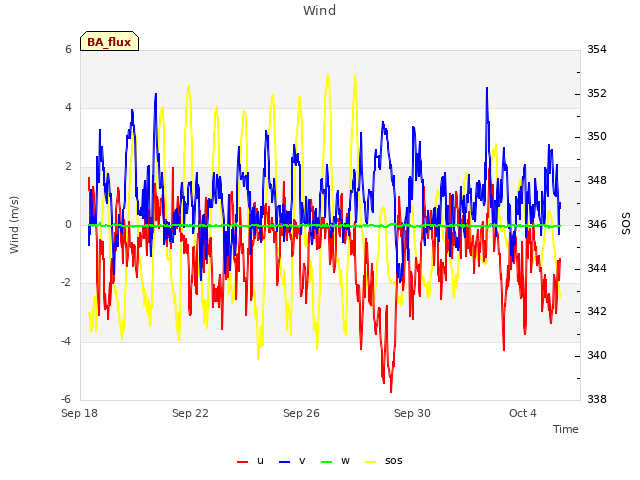

Explore the graph:Wind in a new window

Explore the graph:LI-7500 CO2 and H2O in a new window

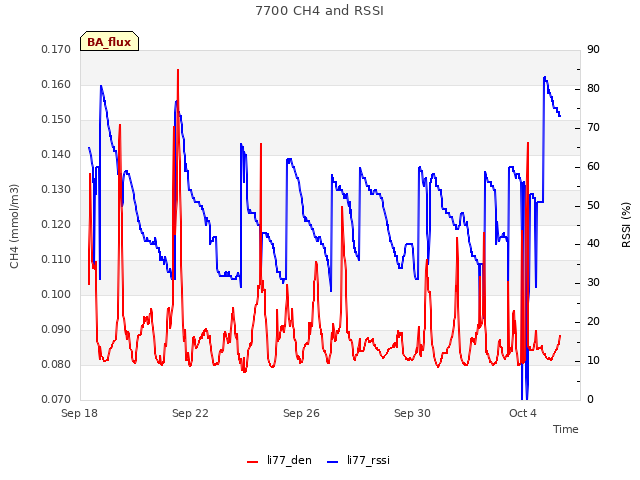

Explore the graph:7700 CH4 and RSSI in a new window

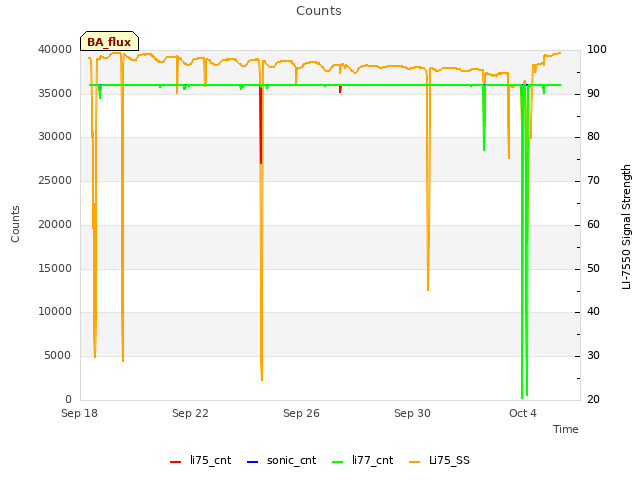

Explore the graph:Counts in a new window

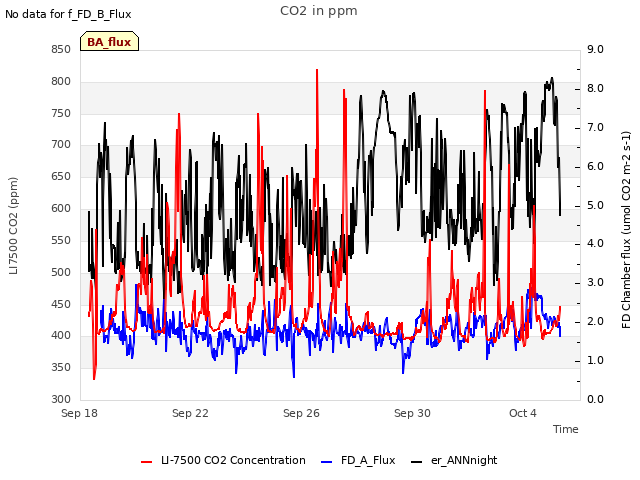

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

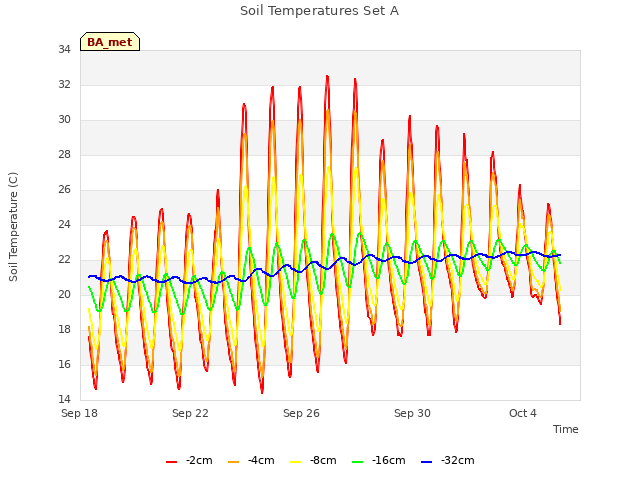

Explore the graph:Soil Temperatures Set A in a new window

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

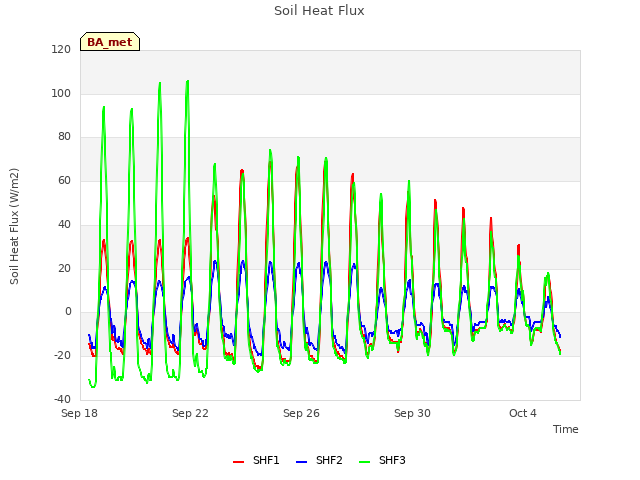

Explore the graph:Soil Heat Flux in a new window

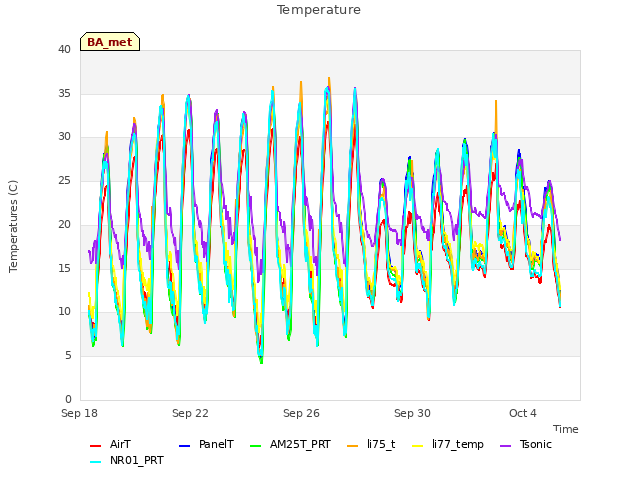

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

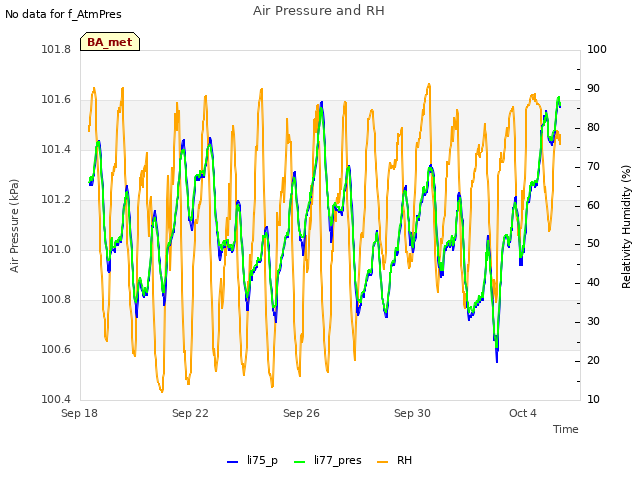

Explore the graph:Air Pressure and RH in a new window

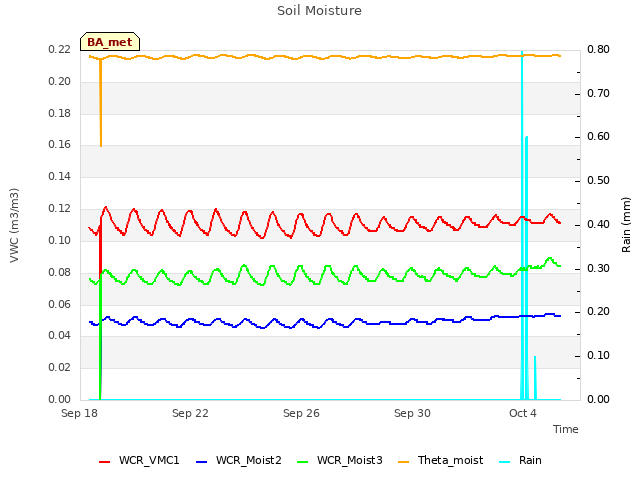

Explore the graph:Soil Moisture in a new window

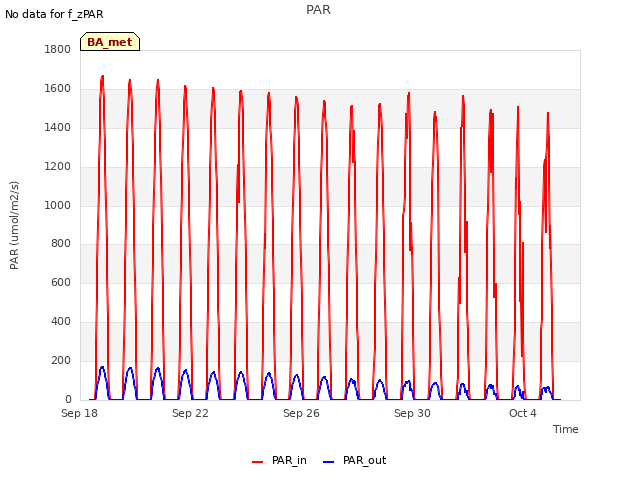

Explore the graph:PAR in a new window

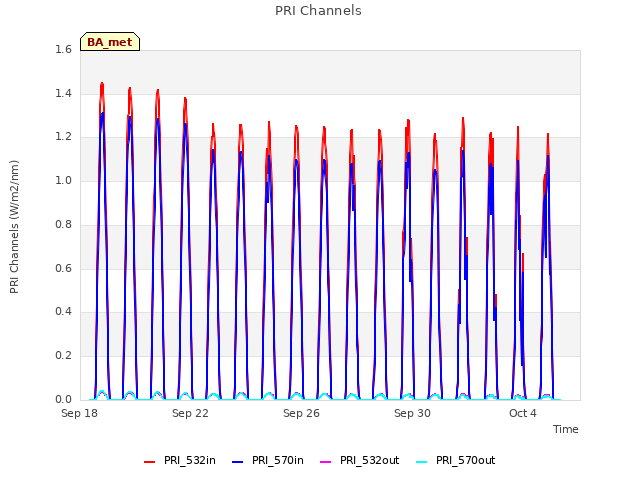

Explore the graph:PRI Channels in a new window

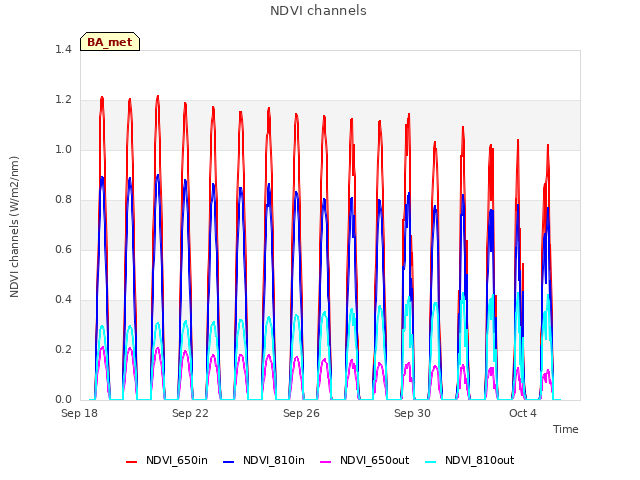

Explore the graph:NDVI channels in a new window

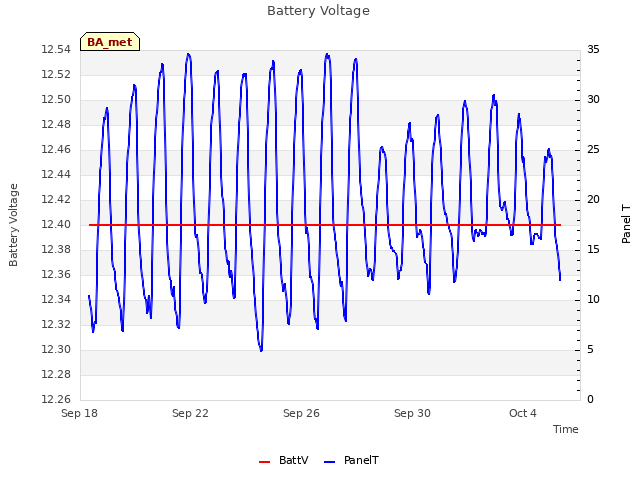

Explore the graph:Battery Voltage in a new window

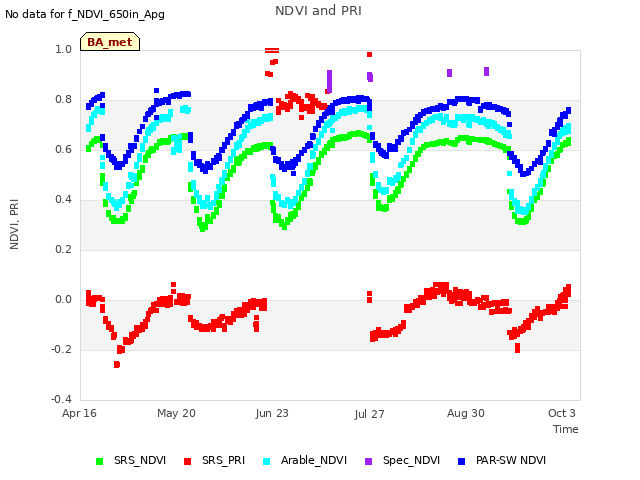

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

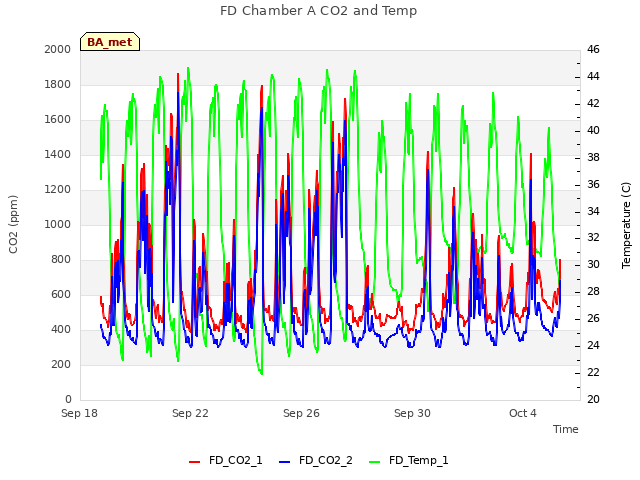

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

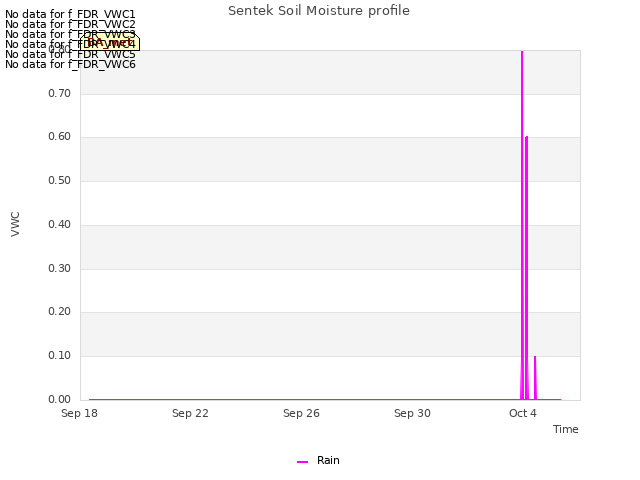

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

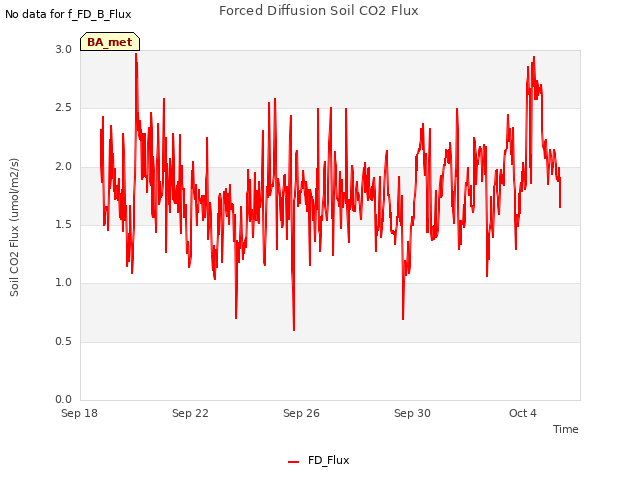

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

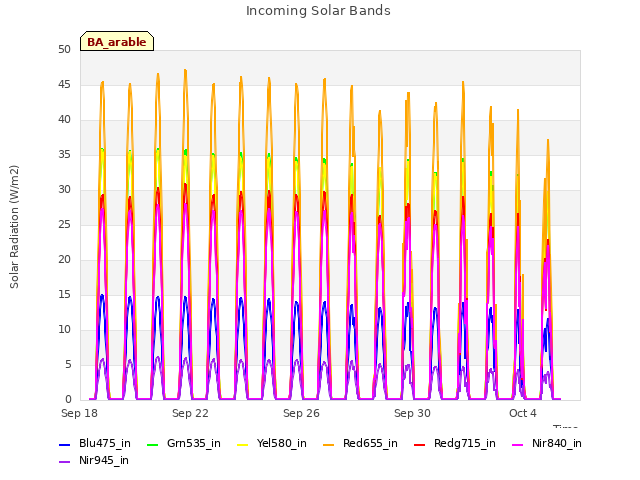

Explore the graph:Incoming Solar Bands in a new window

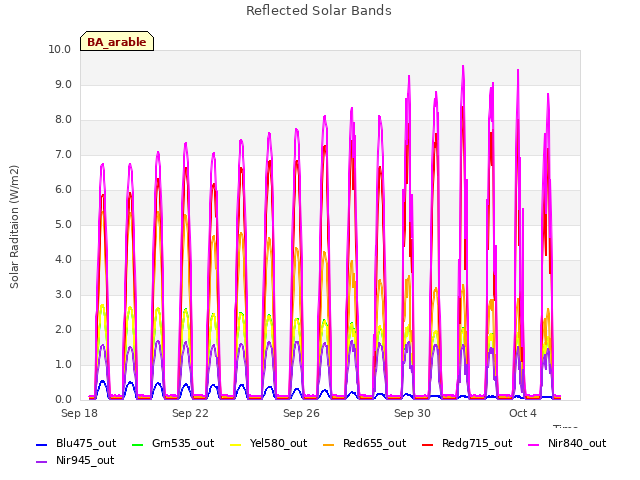

Explore the graph:Reflected Solar Bands in a new window

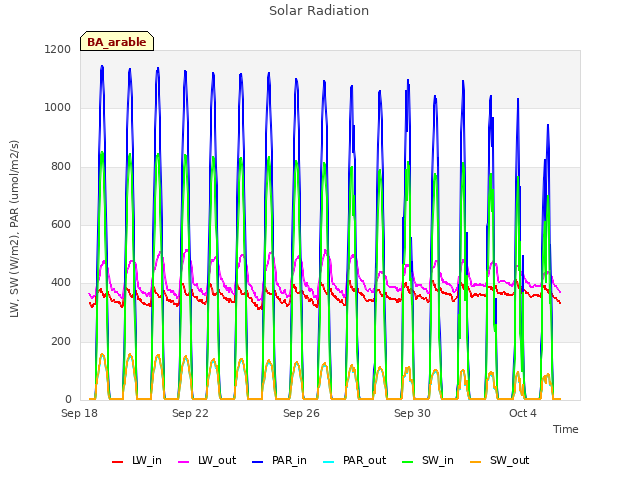

Explore the graph:Solar Radiation in a new window

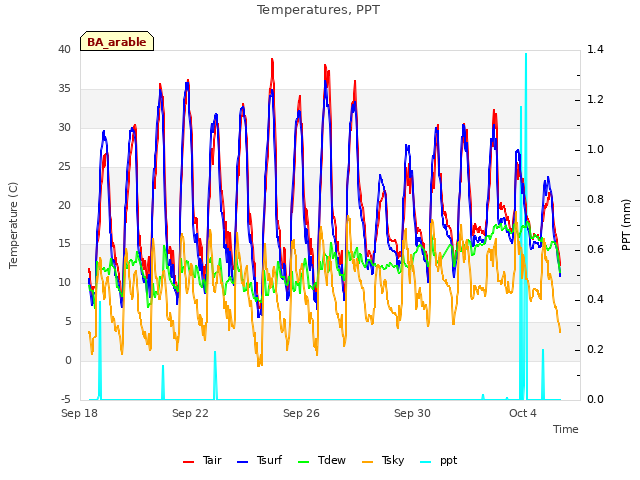

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

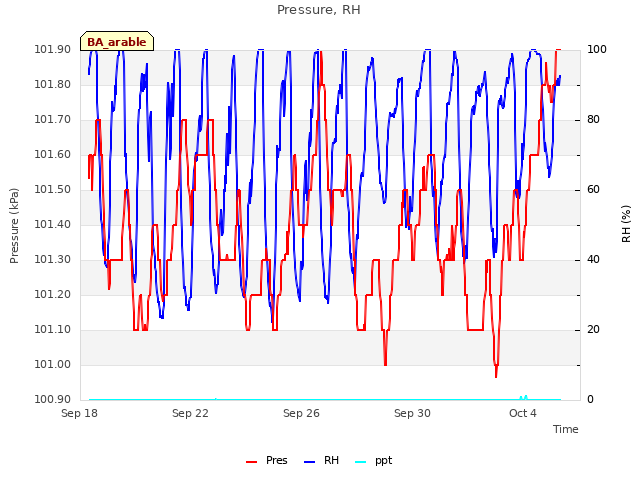

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

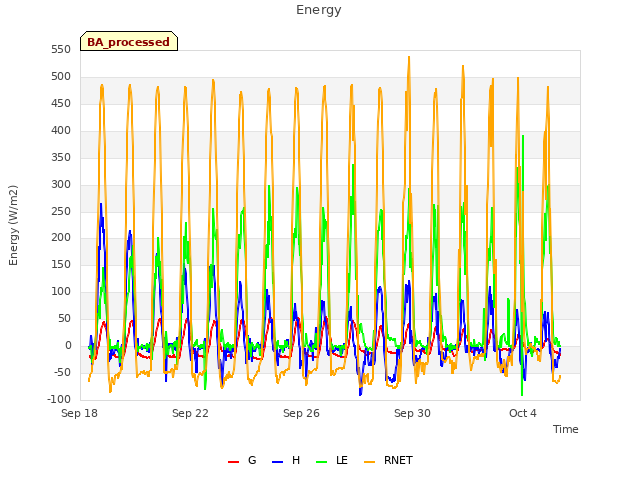

Explore the graph:Energy in a new window

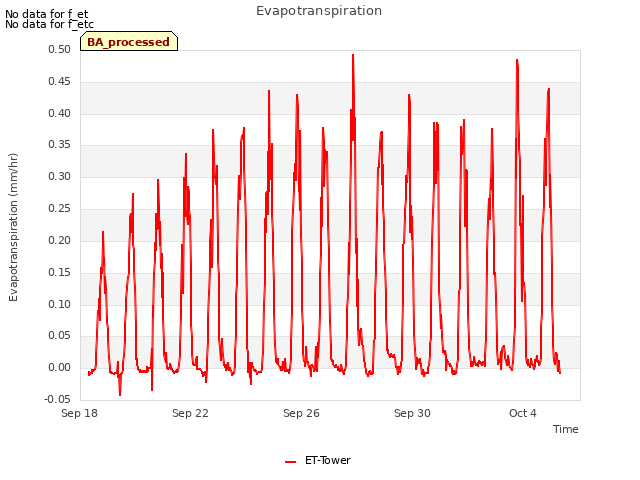

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
