Field Notes
<--2018-09-13 00:00:00 | 2018-10-12 10:30:00-->Other sites visited today: Bouldin Corn | Bouldin Alfalfa | Vaira
Tonzi: 2018-09-27 10:10:00 (DOY 270)
Author: Joe Verfaillie
Others: Daphne
Summary: Standard fieldwork, Added SSR to FLIR to to cycle once a day, tried LattePanda again, reset dendrometers, swapped 7500s
Tonzi 2018-09-27 I arrived at 10:10 with Daphne. It was sunny and warm with a variable breeze from the south. The trees are definitely brown here. The pond continues to shrink. The LattePanda was running but the FLIR web server was locked up again. I added a normally closed Solid State Relay (SSR) to its power line. I updated the CR1000 program to set control port 8 high at 10sec after midnight and set it back low 10sec later. This should cycle the FLIR power every night. I should probably move the power cycle farther away from midnight when the computer should ask for an image in case of offsets in the clocks. I collected the tower data and FLIR images. I put in a new power supply for the LattePanda. I tried running the other LattePanda with the touch screen. The touch screen worked fine this time but it is a little difficult to use. I got it setup but the scheduled task to collect the FLIR images didn’t seem to run. I could run it manually but if failed to run at its schedule time. I plugged the original LattePanda back in and all seemed well. Daphne did the Moisture Point measurements, the manual well measurements and the dendrometers. We reset the dendrometers on tree 2 and 3. We collected data from all the data loggers. I swapped the 7500s for calibration. On the Tower sn 75H-2180 came off and sn 0073 went on. 2180 read: 407.3ppm CO2, 353.0mmol/m3 H2O, 99.0kPa, 30.3C, 95.7SS 0073 read: 416.7ppm CO2, 302.8mmol/m3 H2O, 98.95kPa, 30.5C, 102.1SS Before restarting the box after the swap, I changed the network name to TT-1866 – this will be reflected in the file names. On the Floor sn 0035 came off and sn 75H-2514 went on. 0035 read: 419.5ppm CO2, 345.3mmol/m3, 99.1kPa, 31.9C, 97.4SS 2514 read: 419.7ppm CO2, 343.9mmol/m3, 99.0kPa, 32.4C, 103.3SS Before restarting the box after the swap, I changed the network name to TF-1869 – this will be reflected in the file names. We left at 13:00 |
Field Data
No tank data
Well Depth
Date | Location | Depth (feet) |
---|---|---|
2018-09-27 | TZ_floor | 27.3 |
2018-09-27 | TZ_tower | 31.85 |
2018-09-27 | TZ_road | 36.15 |
mode = both
Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Floor_South
[2] => Floor_West
[3] => Soil_Transect_4
[4] => Soil_Transect_3
[5] => Soil_Transect_2
[6] => Soil_Transect_1
[7] => SoilCO2_West_B
[8] => SoilCO2_West_C
[9] => SoilCO2_West_A
)
Date | DOY | Rep | Depth | Tower |
Floor_South |
Floor_West |
Soil_Transect_4 |
Soil_Transect_3 |
Soil_Transect_2 |
Soil_Transect_1 |
SoilCO2_West_B |
SoilCO2_West_C |
SoilCO2_West_A |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2018-09-27 | 270 | 0 | 0-15cm | 3.9 | 1.3 | 8.3 | 1.6 | 1.2 | 2.4 | 0.7 | 4.2 | 2.2 | ||||
2018-09-27 | 270 | 0 | 15-30cm | 11.5 | 10.9 | 6.6 | 8.4 | 13.6 | 11.8 | 3.9 | 0.6 | 11.2 | 7.8 | |||
2018-09-27 | 270 | 0 | 30-45cm | 13.4 | 9.8 | 11.2 | 10.1 | 11.5 | 15.6 | 13.7 | 14.3 | 12.3 | 16.5 | |||
2018-09-27 | 270 | 0 | 45-60cm | 16.5 | 3.6 | 10.7 | 17 | 25.9 | 11.6 | 16.5 | 22.5 | 15.6 | ||||
2018-09-27 | 270 | 1 | 0-15cm | 3 | 1 | 10 | 1.9 | 0.3 | 2.7 | 1 | 4.7 | 2.5 | 4.5 | |||
2018-09-27 | 270 | 1 | 15-30cm | 11.5 | 11.5 | 6.3 | 8.4 | 13.9 | 11.5 | 3.5 | 1.2 | 11.8 | 7.8 | |||
2018-09-27 | 270 | 1 | 30-45cm | 14.3 | 10.3 | 12.3 | 9.8 | 13.1 | 16.2 | 13.1 | 14.8 | 12 | 16.5 | |||
2018-09-27 | 270 | 1 | 45-60cm | 17 | 3.9 | 19.6 | 11 | 16.8 | 25.6 | 11.3 | 16.8 | 23.1 | 16.2 | |||
2018-09-27 | 270 | 2 | 0-15cm | 2.4 | 0.1 | 4.7 | 2.5 | |||||||||
2018-09-27 | 270 | 2 | 15-30cm | 7.2 | 13.9 | 1.2 | 8.4 | |||||||||
2018-09-27 | 270 | 2 | 30-45cm | 12.3 | 12.6 | 14.3 | 16.8 | |||||||||
2018-09-27 | 270 | 2 | 45-60cm | 17.9 | 17 | 17 | 15.9 | |||||||||
2018-09-27 | 270 | 3 | 0-15cm | 8 | 0.3 | |||||||||||
2018-09-27 | 270 | 3 | 15-30cm | 6.9 | 13.6 | |||||||||||
2018-09-27 | 270 | 3 | 30-45cm | 12.9 | 12.6 | |||||||||||
2018-09-27 | 270 | 3 | 45-60cm | 16.8 | 16.8 | |||||||||||
2018-09-27 | 270 | Avg | 0-15cm | 3.45 | 1.15 | 7.18 | 1.75 | 0.48 | 2.55 | 0.85 | 4.53 | 2.35 | 3.5 | 2.78 | 10 | 25 |
2018-09-27 | 270 | Avg | 15-30cm | 11.5 | 11.2 | 6.75 | 8.4 | 13.75 | 11.65 | 3.7 | 1 | 11.5 | 8 | 8.75 | 10 | 26 |
2018-09-27 | 270 | Avg | 30-45cm | 13.85 | 10.05 | 12.18 | 9.95 | 12.45 | 15.9 | 13.4 | 14.47 | 12.15 | 16.6 | 13.1 | 10 | 26 |
2018-09-27 | 270 | Avg | 45-60cm | 16.75 | 3.75 | 18.1 | 10.85 | 16.9 | 25.75 | 11.45 | 16.77 | 22.8 | 15.9 | 15.9 | 10 | 25 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Solar_Panels
[1] => Flux_Tower
[2] => Gate
[3] => Biomass_Cage
)
Date | DOY | Rep | Depth | Solar_Panels |
Flux_Tower |
Gate |
Biomass_Cage |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|
2018-09-27 | 270 | 0 | 0-15cm | 0.1 | 1.5 | 7.1 | 0.3 | |||
2018-09-27 | 270 | 0 | 15-30cm | 6.9 | 7.8 | 4.2 | 5.1 | |||
2018-09-27 | 270 | 0 | 30-45cm | 5.6 | 14.3 | 7.8 | 16.2 | |||
2018-09-27 | 270 | 0 | 45-60cm | 14.8 | 27.1 | 21.3 | 19.3 | |||
2018-09-27 | 270 | 1 | 0-15cm | 0.7 | 2.1 | 6.5 | 0.9 | |||
2018-09-27 | 270 | 1 | 15-30cm | 6.3 | 8.1 | 3.9 | 5.1 | |||
2018-09-27 | 270 | 1 | 30-45cm | 7 | 13.7 | 8.4 | 16.5 | |||
2018-09-27 | 270 | 1 | 45-60cm | 14.8 | 27.6 | 21.3 | 19.3 | |||
2018-09-27 | 270 | 2 | 0-15cm | 0.7 | 0.3 | |||||
2018-09-27 | 270 | 2 | 15-30cm | 6 | 5.7 | |||||
2018-09-27 | 270 | 2 | 30-45cm | 5.9 | 16.8 | |||||
2018-09-27 | 270 | 2 | 45-60cm | 14.2 | 19.3 | |||||
2018-09-27 | 270 | Avg | 0-15cm | 0.5 | 1.8 | 6.8 | 0.5 | 2.4 | 4 | 10 |
2018-09-27 | 270 | Avg | 15-30cm | 6.4 | 7.95 | 4.05 | 5.3 | 5.93 | 4 | 10 |
2018-09-27 | 270 | Avg | 30-45cm | 6.17 | 14 | 8.1 | 16.5 | 11.19 | 4 | 10 |
2018-09-27 | 270 | Avg | 45-60cm | 14.6 | 27.35 | 21.3 | 19.3 | 20.64 | 4 | 10 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Date | Tag# | Reading (mm) |
---|---|---|
2018-09-27 | 1 | 5.4 |
2018-09-27 | 102 | 10.4 |
2018-09-27 | 2 | 5.9 |
2018-09-27 | 2 | 19.7 |
2018-09-27 | 245 | 7.9 |
2018-09-27 | 3 | 4.6 |
2018-09-27 | 3 | 22.0 |
2018-09-27 | 4 | 9.0 |
2018-09-27 | 5 | 7.3 |
2018-09-27 | 7 | 4.7 |
2018-09-27 | 72 | 15.3 |
2018-09-27 | 79 | 12.2 |
2018-09-27 | 8 | 5.5 |
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

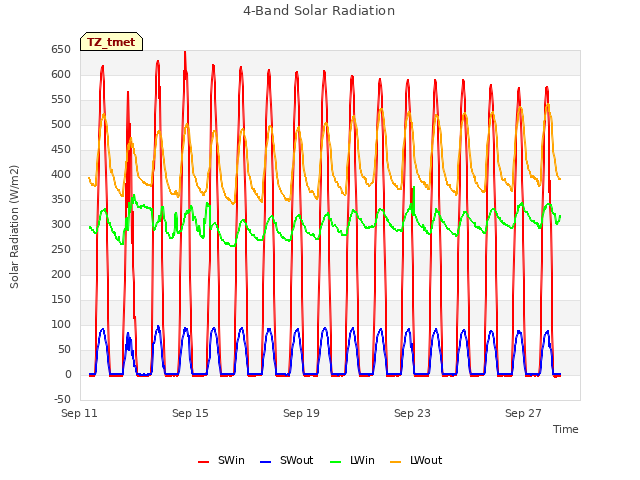

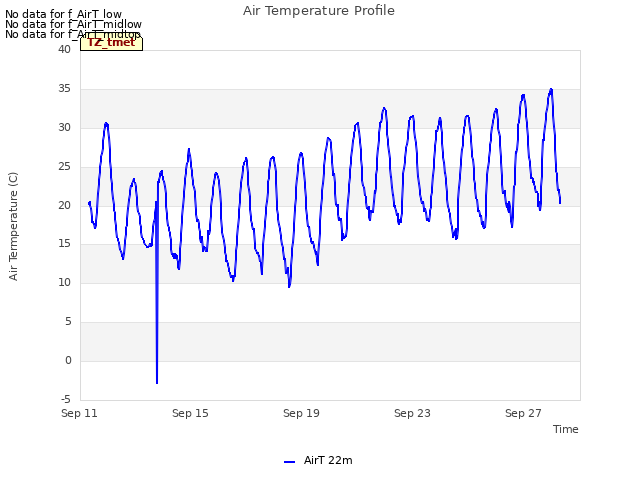

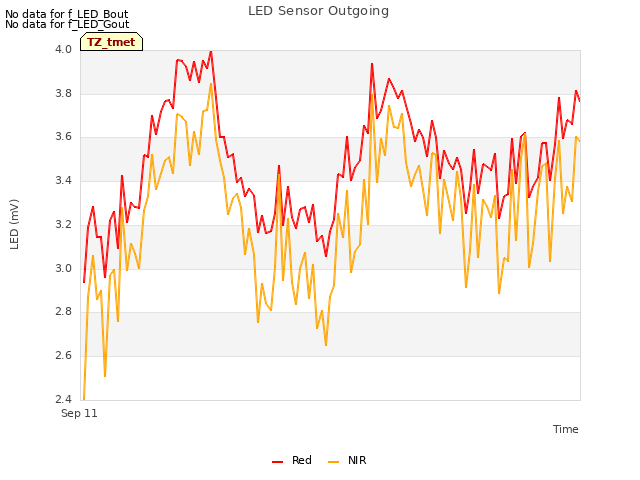

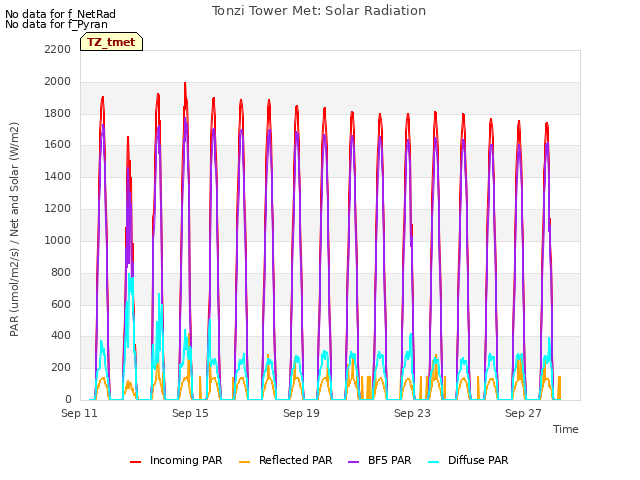

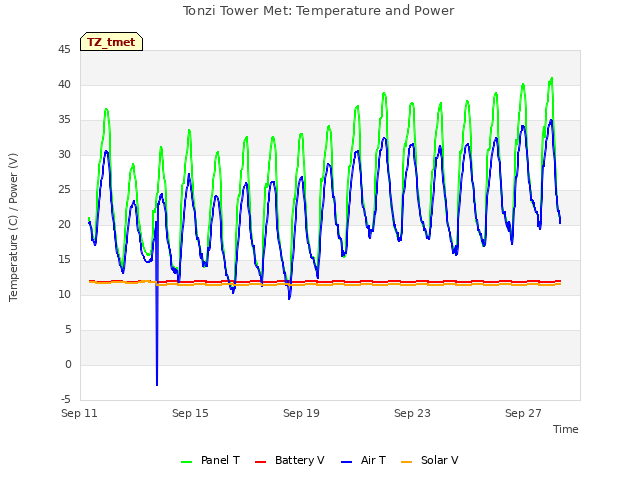

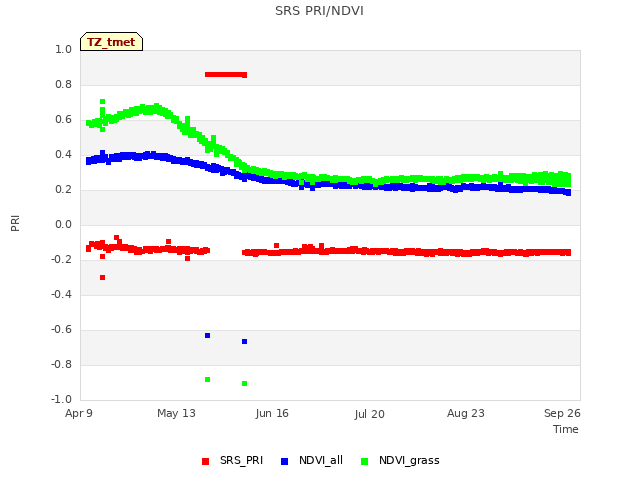

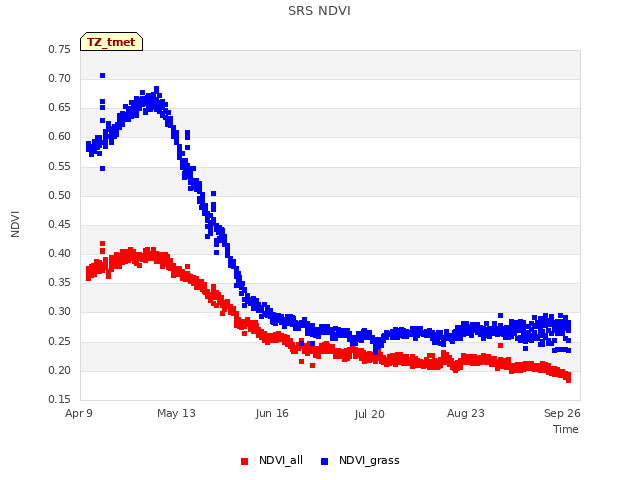

11 TZ_tmet graphs found

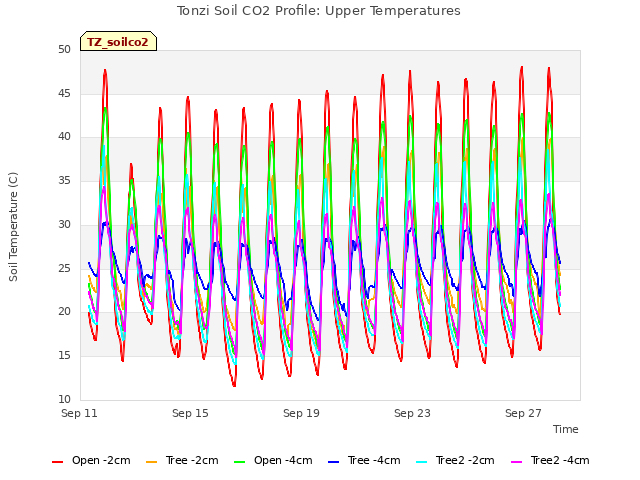

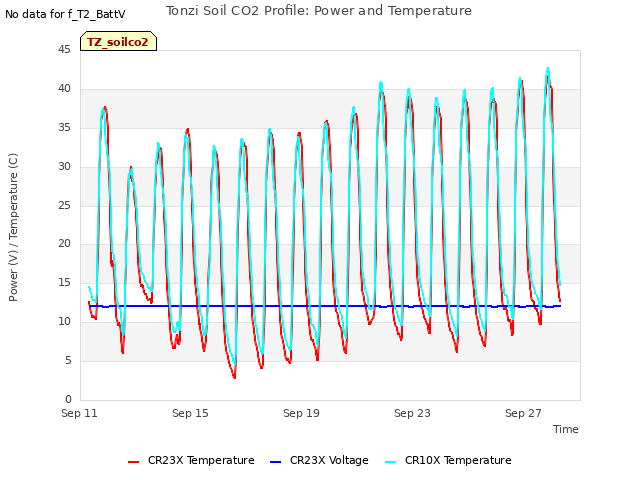

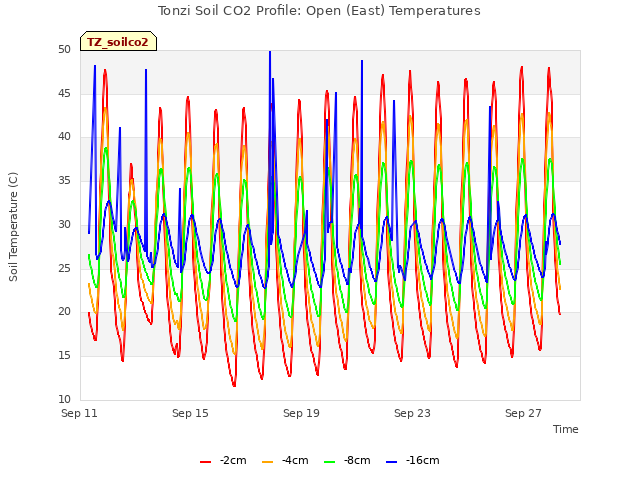

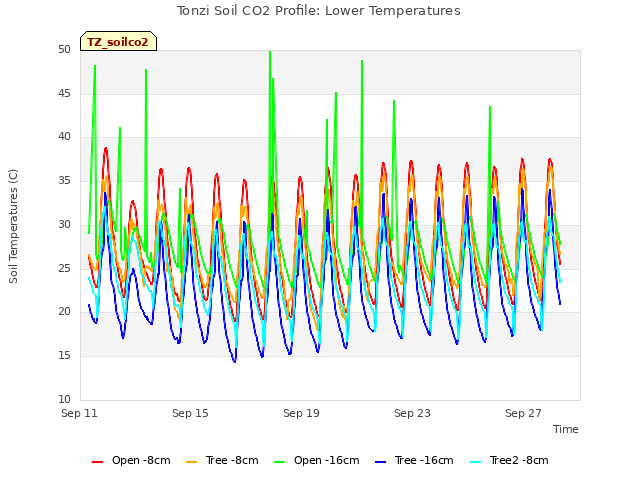

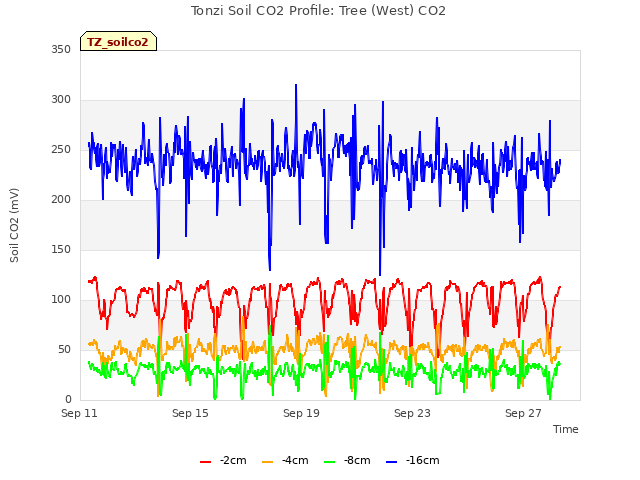

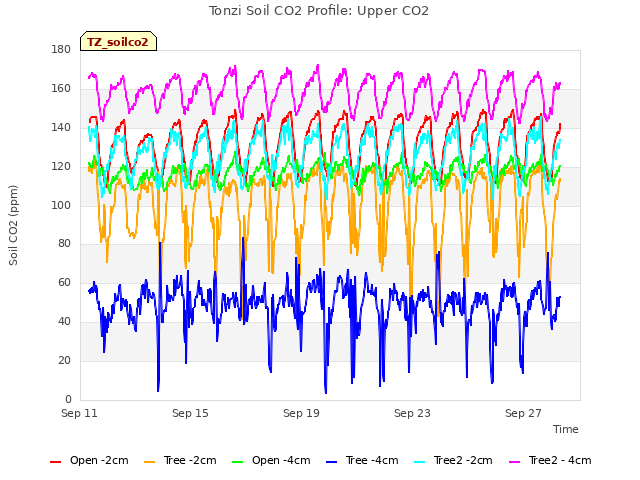

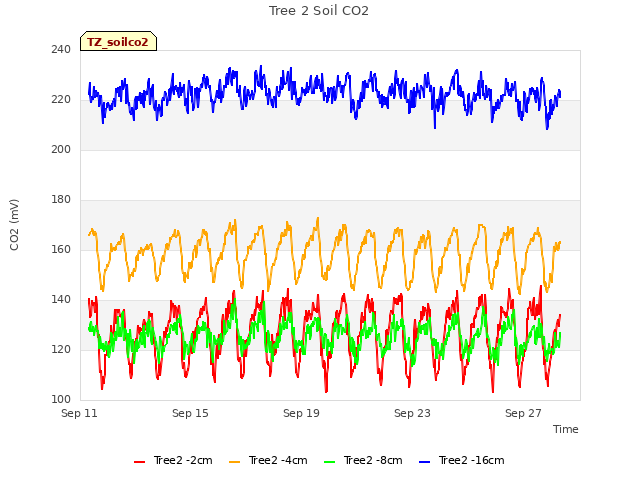

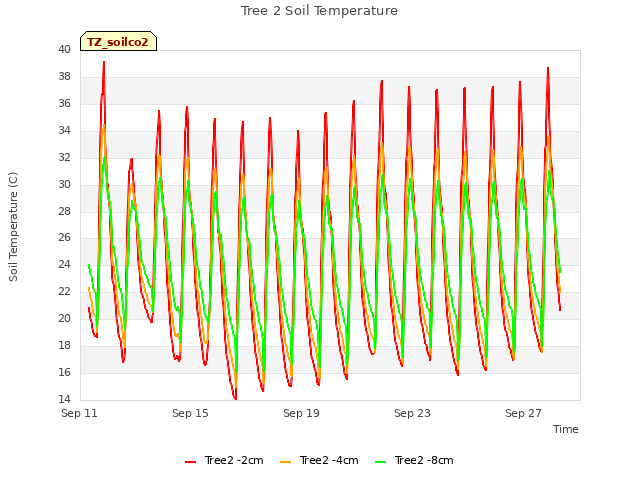

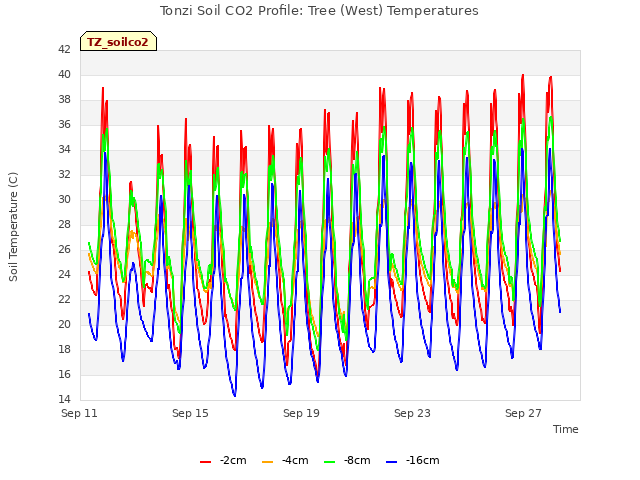

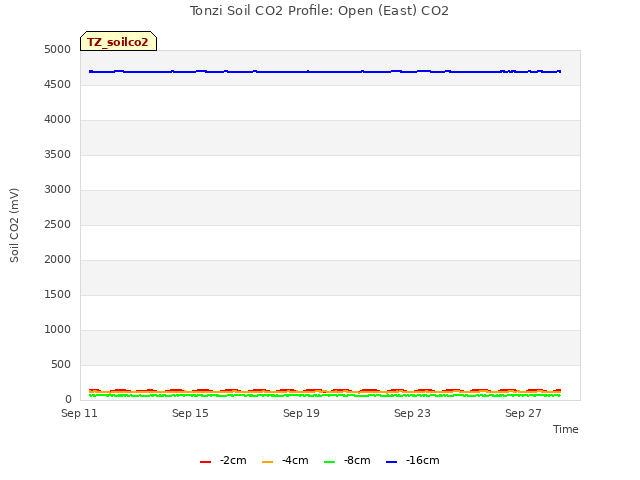

11 TZ_soilco2 graphs found
Can't check TZ_mixed

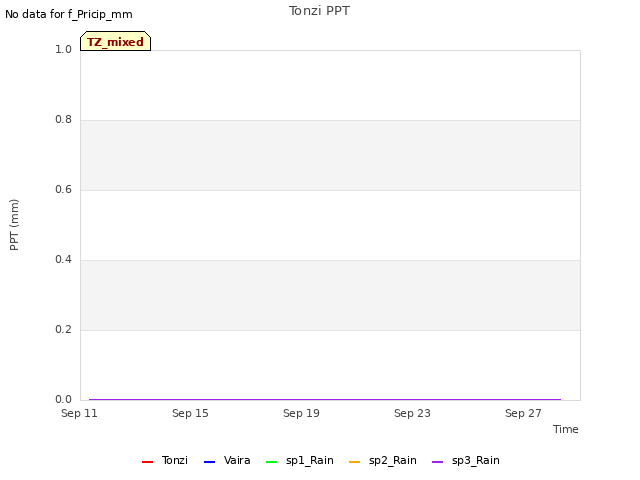

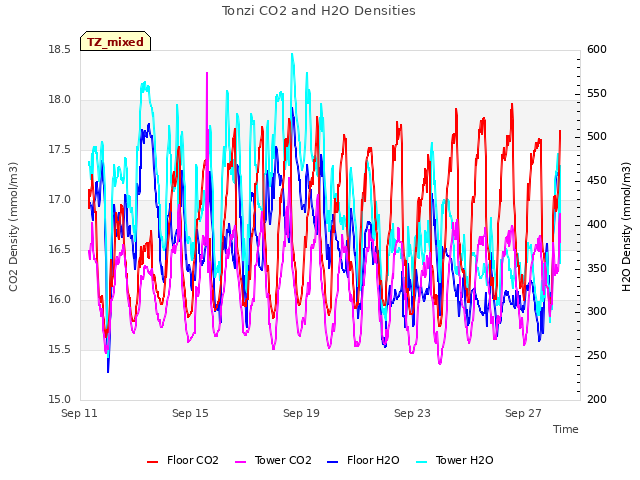

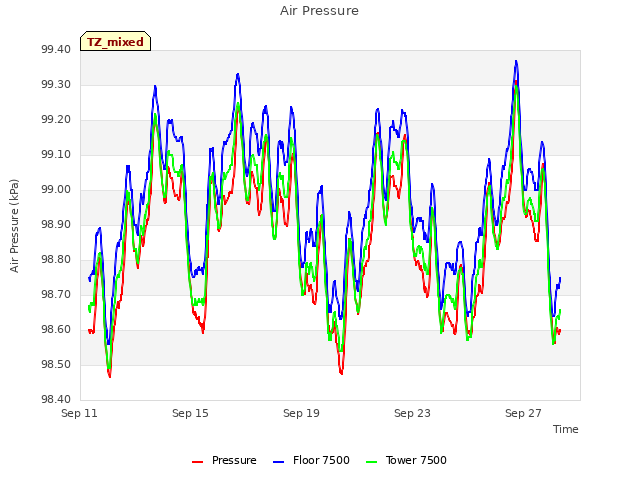

3 TZ_mixed graphs found

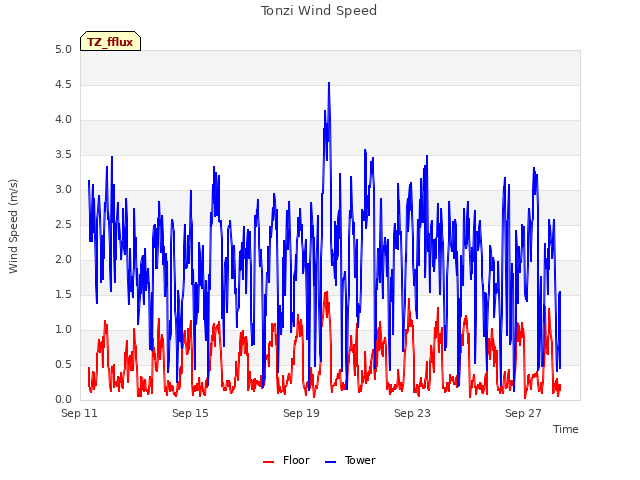

1 TZ_fflux graphs found

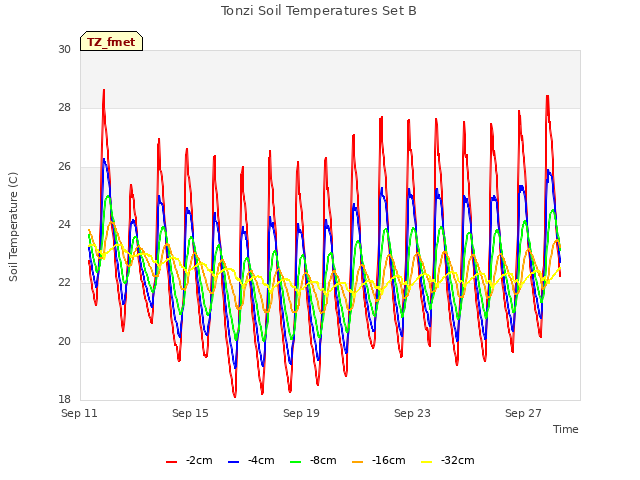

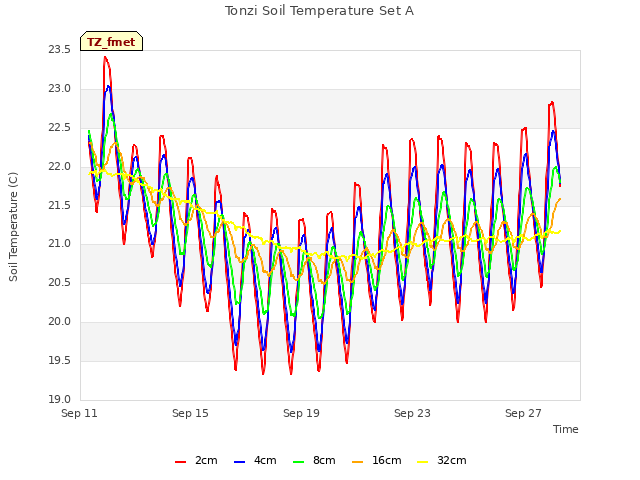

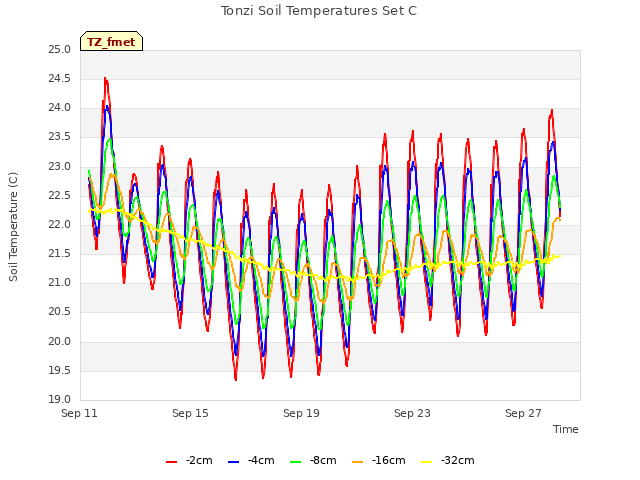

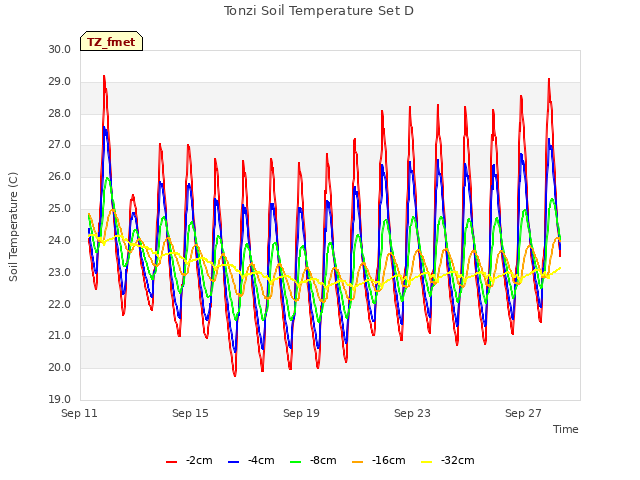

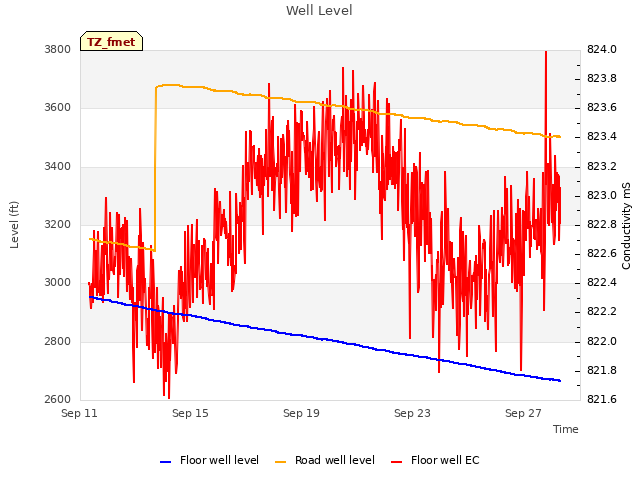

8 TZ_fmet graphs found
No data found for TZ_tram.

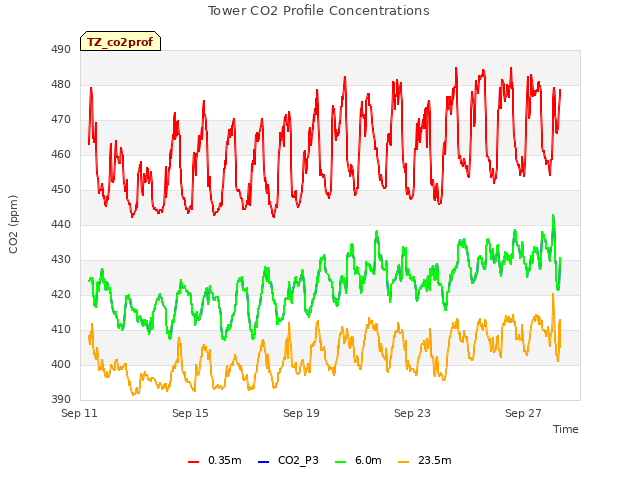

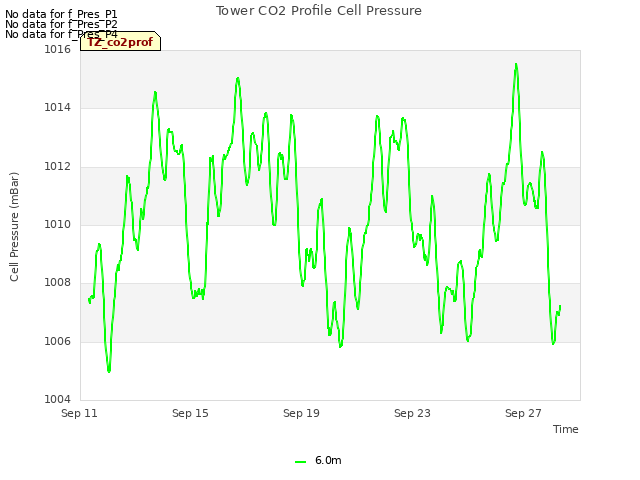

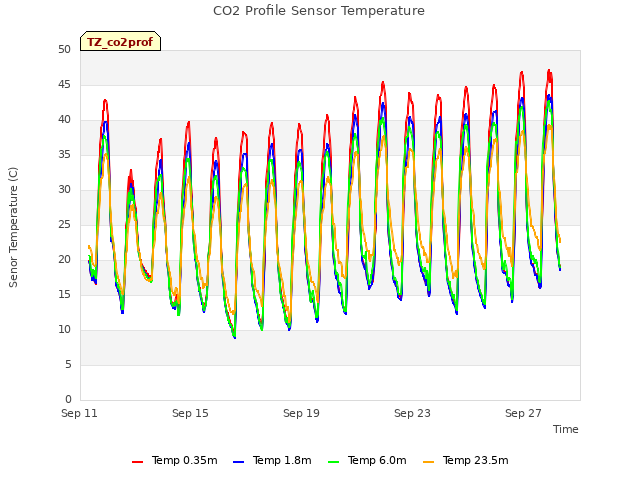

3 TZ_co2prof graphs found

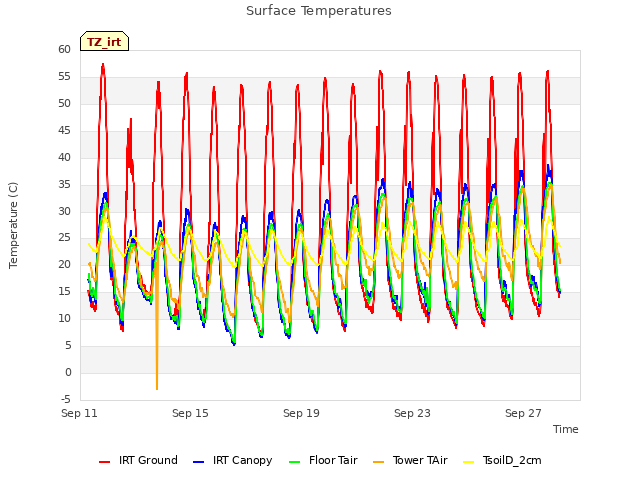

1 TZ_irt graphs found
No data found for TZ_windprof.

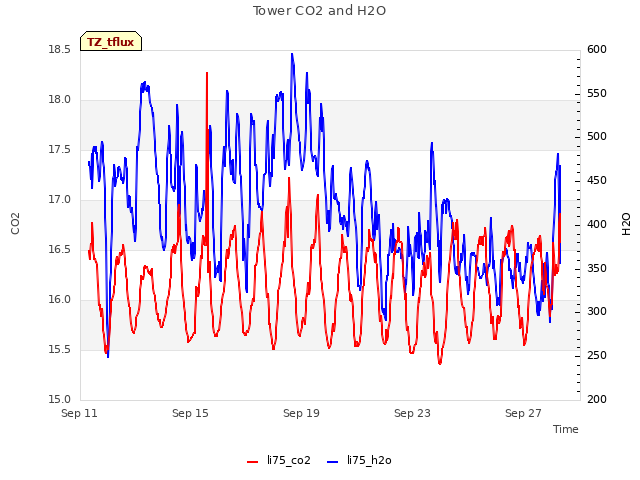

1 TZ_tflux graphs found

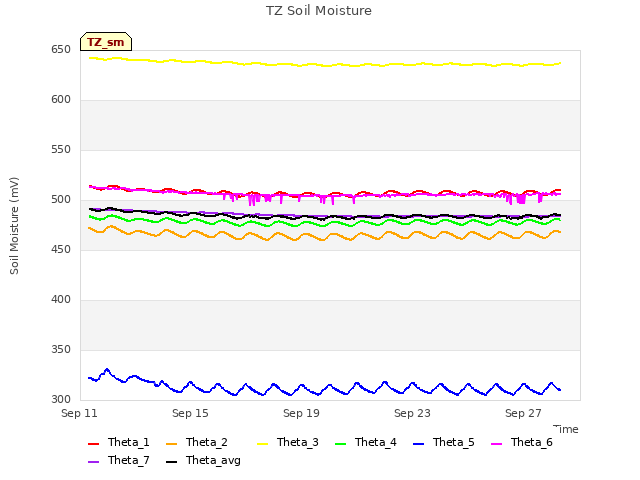

2 TZ_sm graphs found
Can't check TZ_met

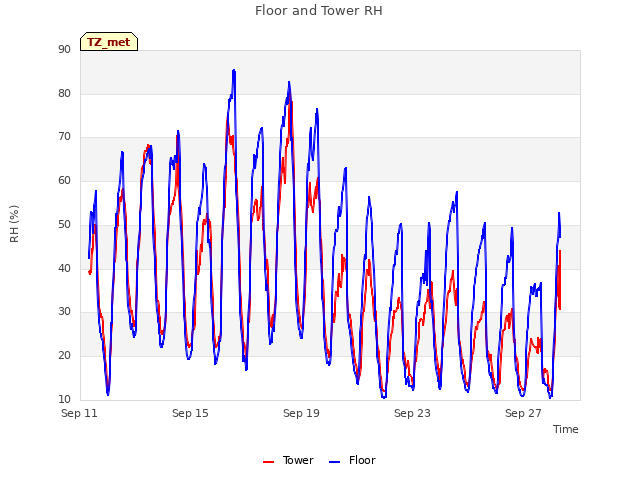

1 TZ_met graphs found
Can't check TZVR_mixed

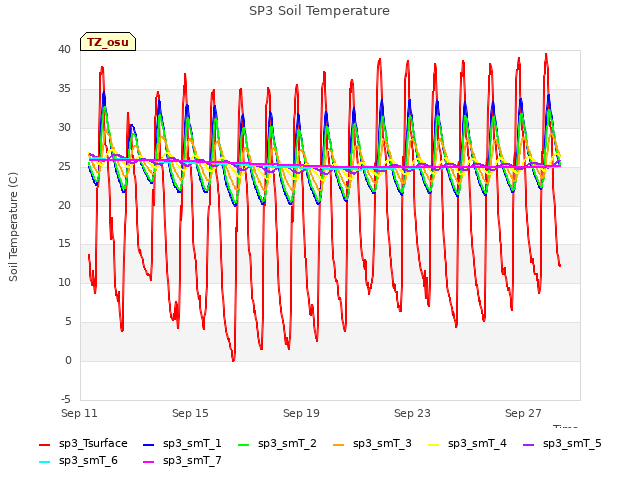

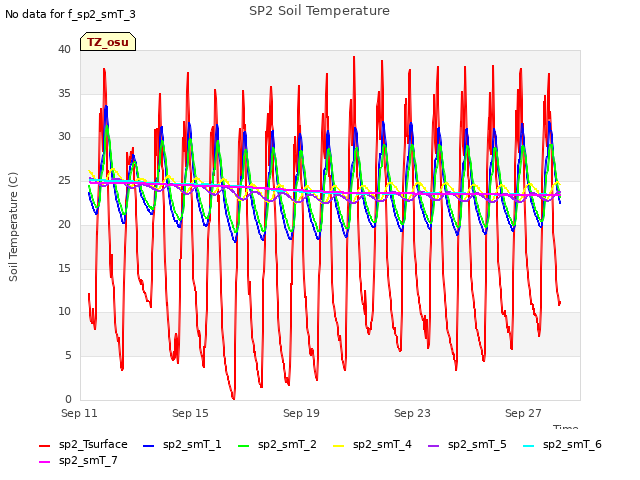

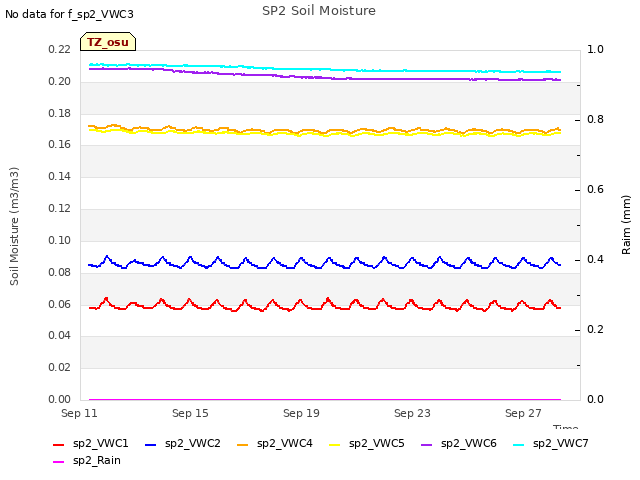

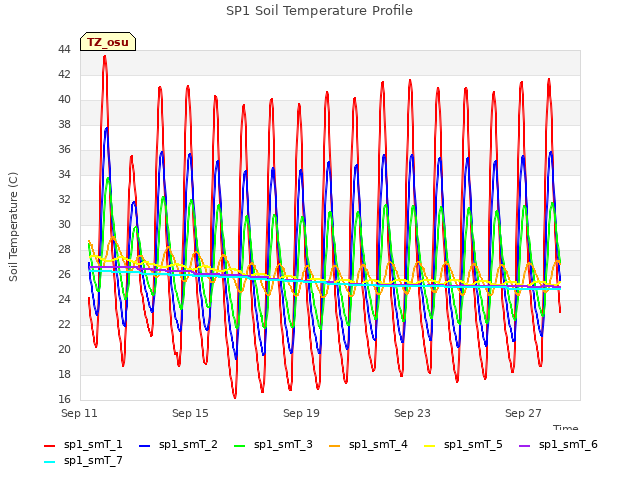

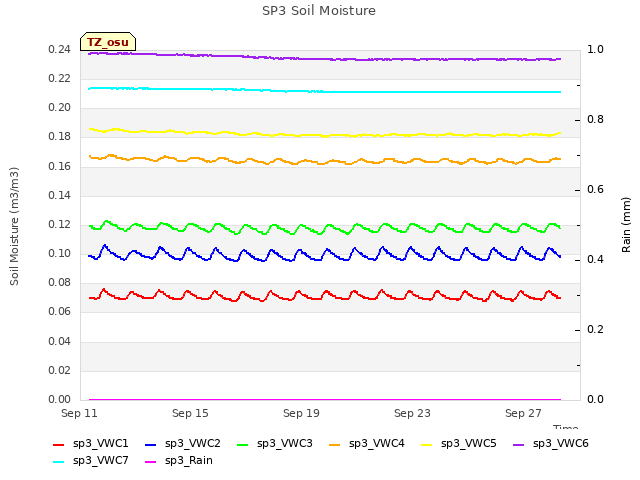

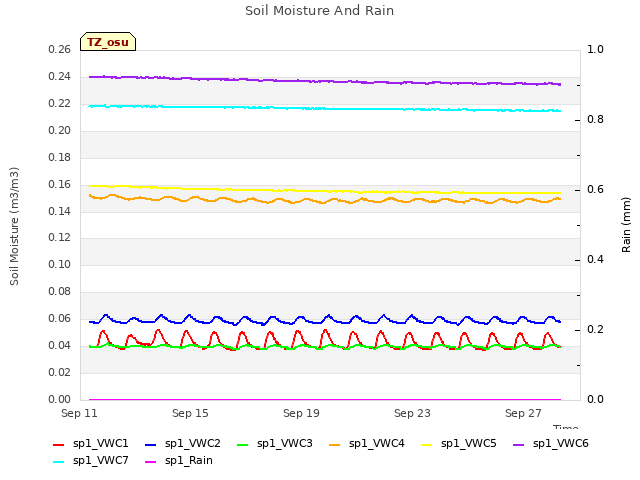

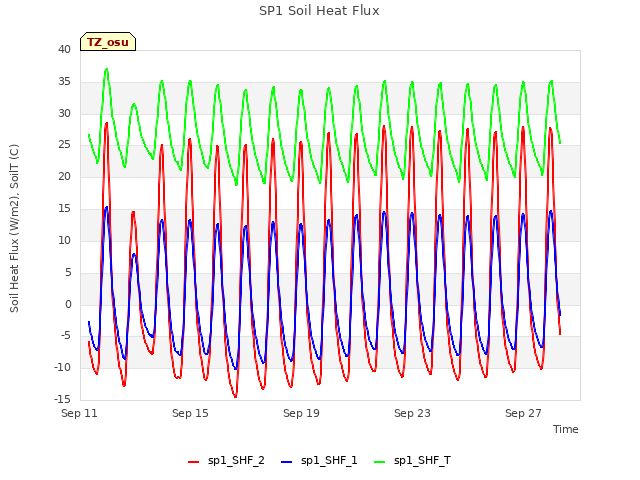

8 TZ_osu graphs found
No data found for TZ_fd.
Tonzi Z-cam data
