Sherman Wetland: 2017-07-07 10:36:00 (DOY 188)
Author: Patty Oikawa
Others: Max Burnham

Summary: Hooked up big pump to LGR

Visited LGR to check on specs and swap small pump (~2 L/Min) for larger pump. Installed cole-parmer rotometer to control flow through the LGR at 12 L/min. Pressure on LGR was stable after pump installment.
We also added conduit to the last bit of wire that was exposed along the levee.

LGR Specs:
gas temp 44.80C
Gas Pressure 119.76 Torr
Laser response time: 12.89microsec
[CO2]=433.91ppm
D13C= -8.23 per mil
D18O = 36.88 per mil
[H2O] = 637.5 ppm

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
15 SW_met graphs found

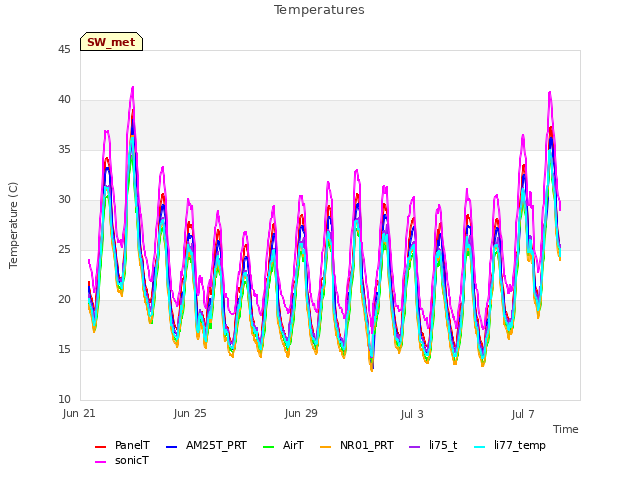

Explore the graph:Temperatures in a new window

Explore the graph:Water Temperature Profile A in a new window

Explore the graph:Water Temperature Profile B in a new window

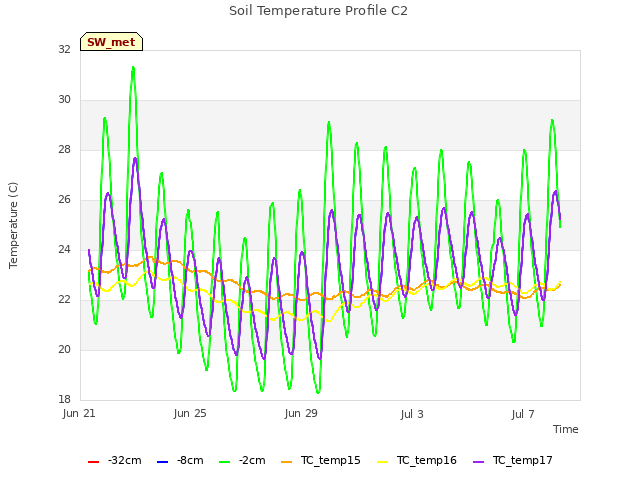

Explore the graph:Soil Temperature Profile C2 in a new window

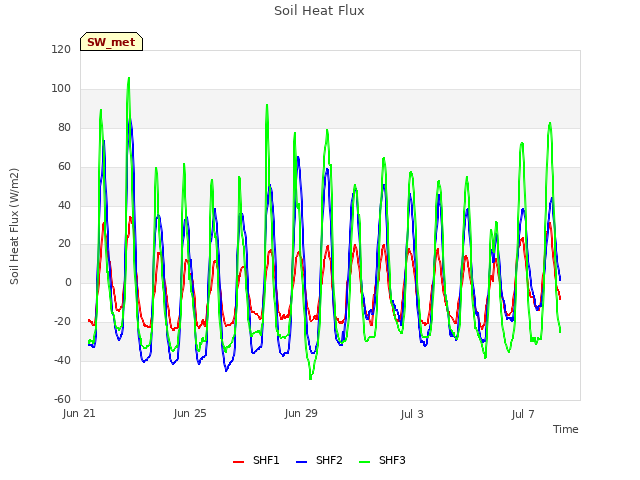

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four channel Radiometer in a new window

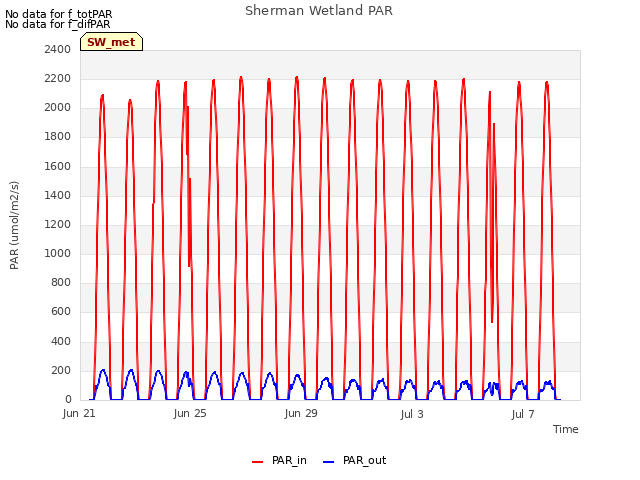

Explore the graph:Sherman Wetland PAR in a new window

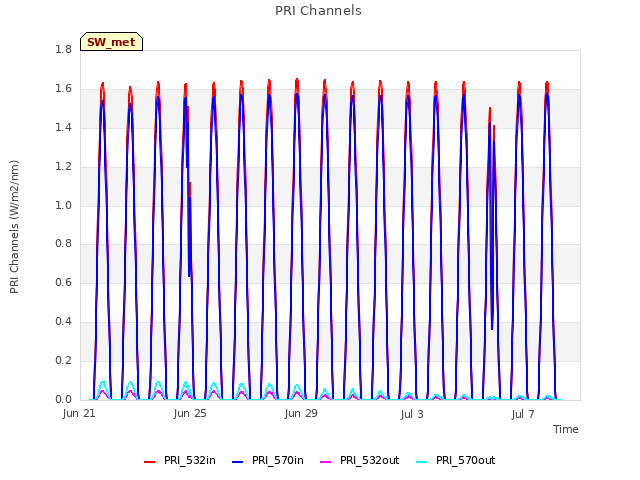

Explore the graph:PRI Channels in a new window

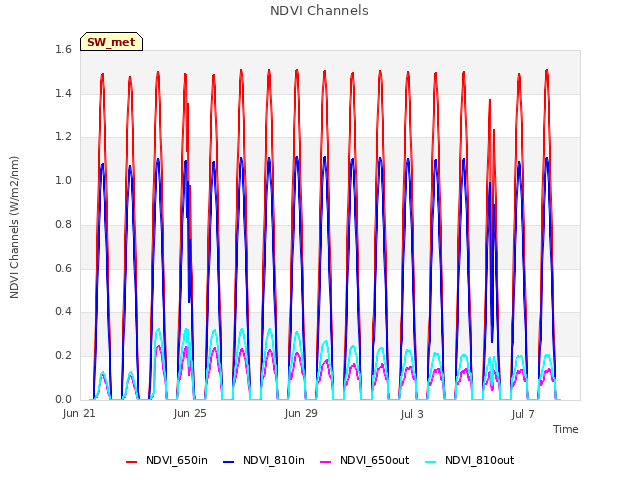

Explore the graph:NDVI Channels in a new window

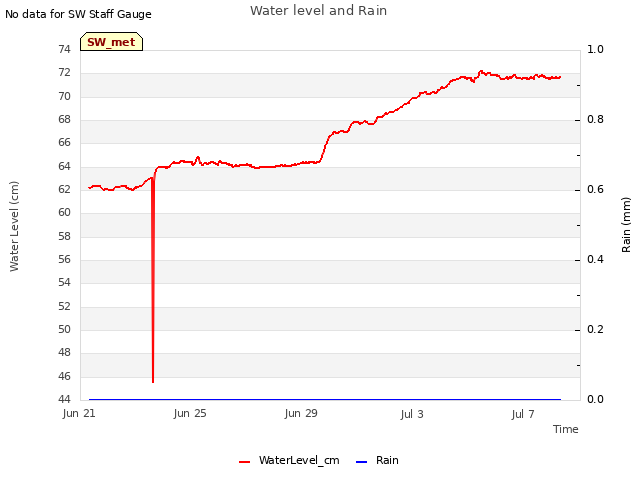

Explore the graph:Water level and Rain in a new window

Explore the graph:Dissolved CO2 in a new window

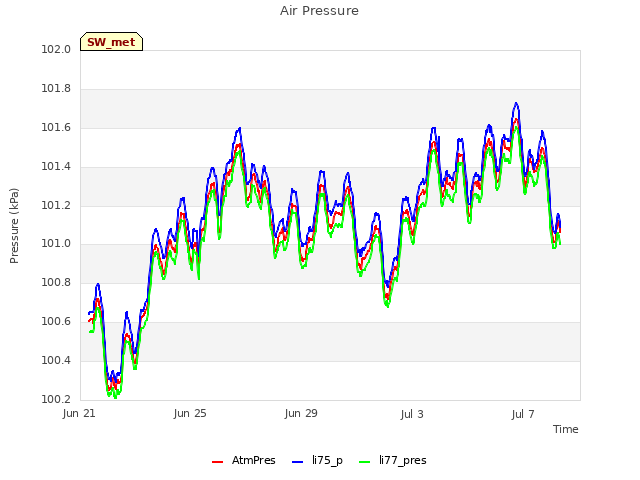

Explore the graph:Air Pressure in a new window

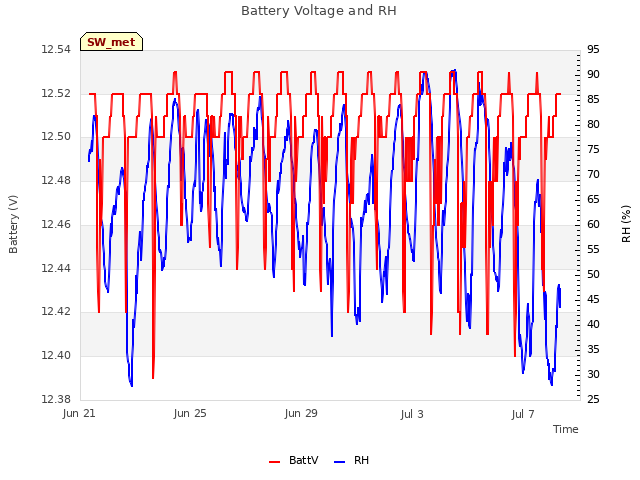

Explore the graph:Battery Voltage and RH in a new window

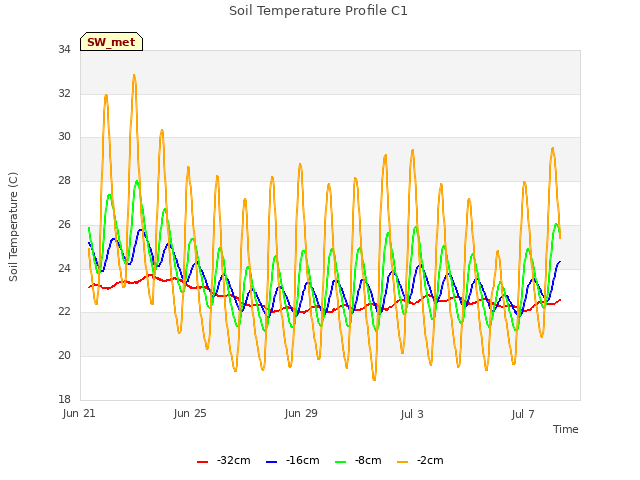

Explore the graph:Soil Temperature Profile C1 in a new window

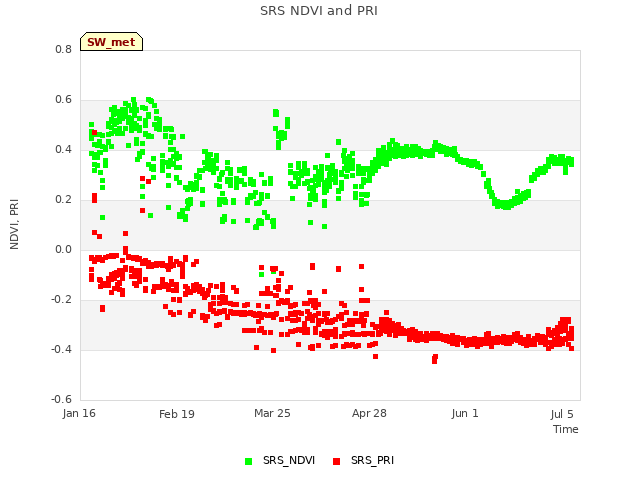

Explore the graph:SRS NDVI and PRI in a new window

4 SW_flux graphs found

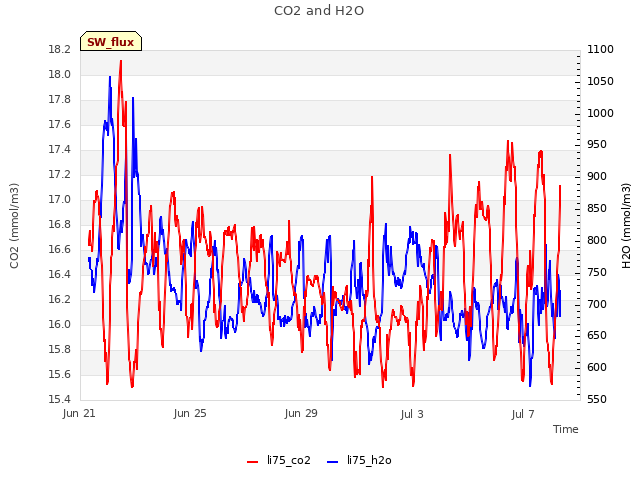

Explore the graph:CO2 and H2O in a new window

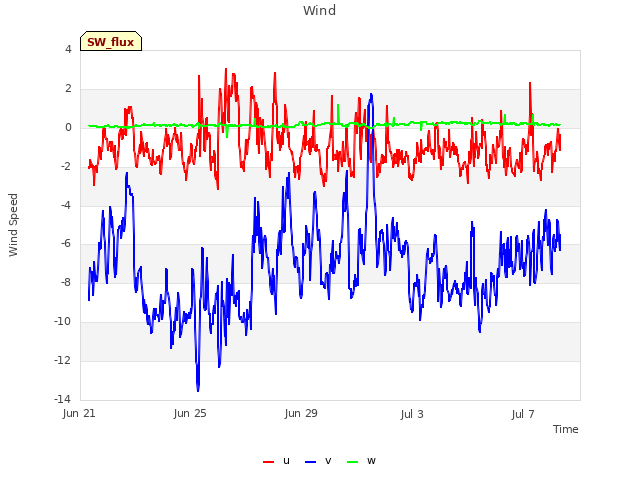

Explore the graph:Wind in a new window

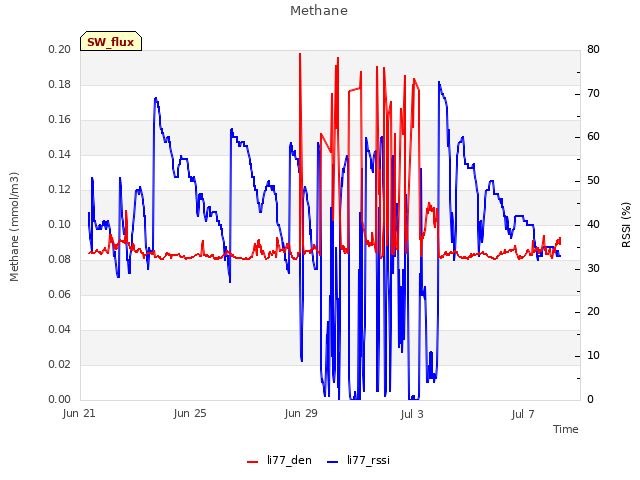

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

No data found for SW_arable.
