Sherman Wetland: 2017-07-03 15:25:00 (DOY 184)
Author: Ada Chang
Others: Joe Verfaillie, Elke Eichelmann, Kyle Hemes

Summary: Regular data collection. Li7700 clock sync error persists.

Arrived at 15:25. The weather was sunny and windy. The water level was higher than last time. There is about a foot of water at the base of the tower now.

RSSI was very shaky. Zip-tie in the way of the 7700 path.

LI7500 readings:
CO2 395.38
H2O 394.4
T 24.4
P 101.5
SS 101.9 -> 102.5

LI7700 readings:
CH4 2.1
RSSI 50 -> 73

Swapped CAM card. Collected MET data—looked good. Warning on 7700—clock sync. Resetting Li7550 box did not get rid of it.

Sonic orientation: 350 from magnetic north -> 4 from true north

Left at 15:38

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
15 SW_met graphs found

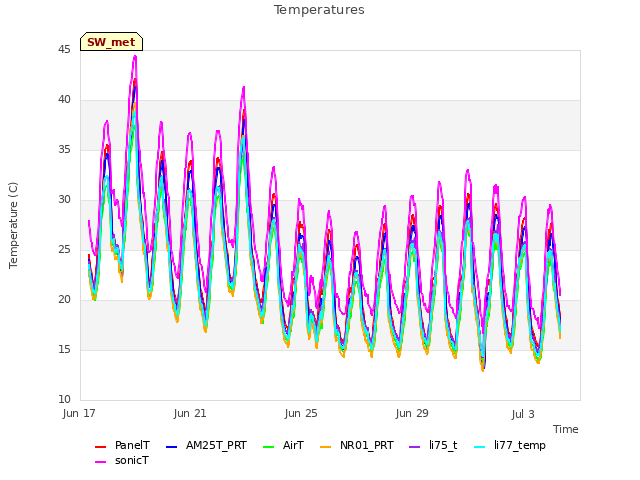

Explore the graph:Temperatures in a new window

Explore the graph:Water Temperature Profile A in a new window

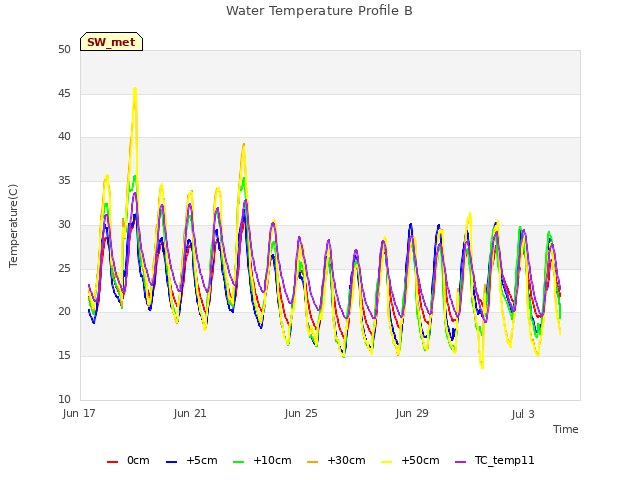

Explore the graph:Water Temperature Profile B in a new window

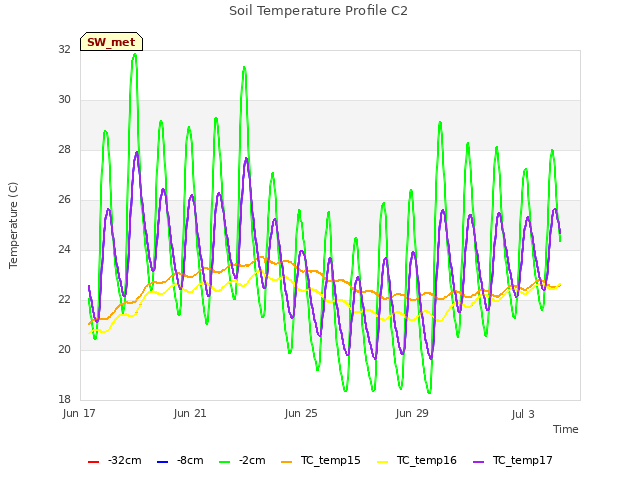

Explore the graph:Soil Temperature Profile C2 in a new window

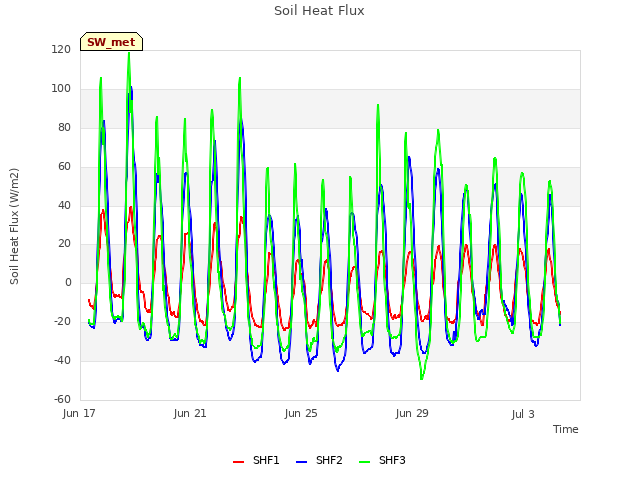

Explore the graph:Soil Heat Flux in a new window

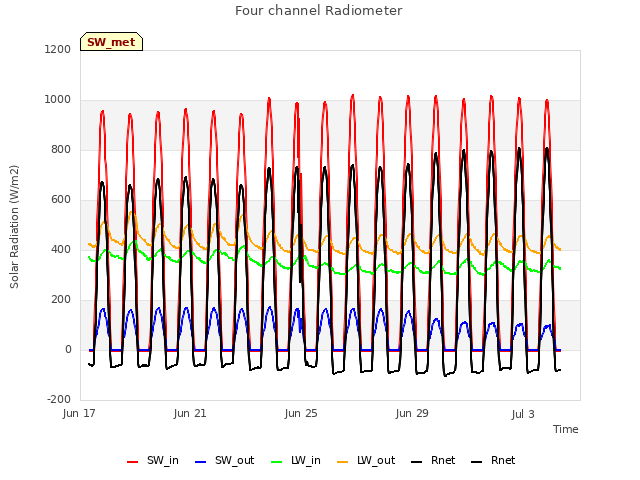

Explore the graph:Four channel Radiometer in a new window

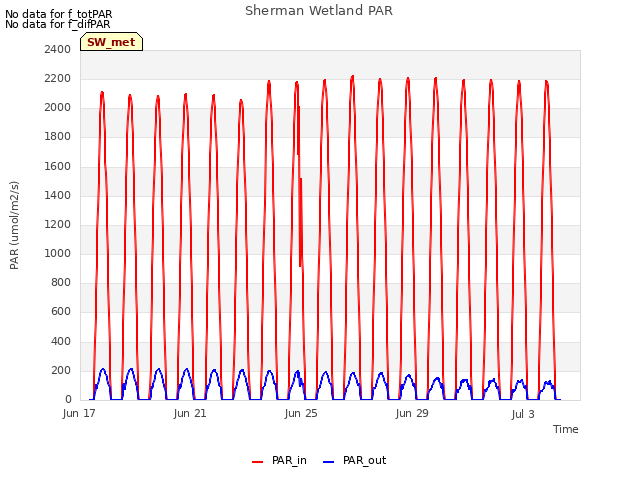

Explore the graph:Sherman Wetland PAR in a new window

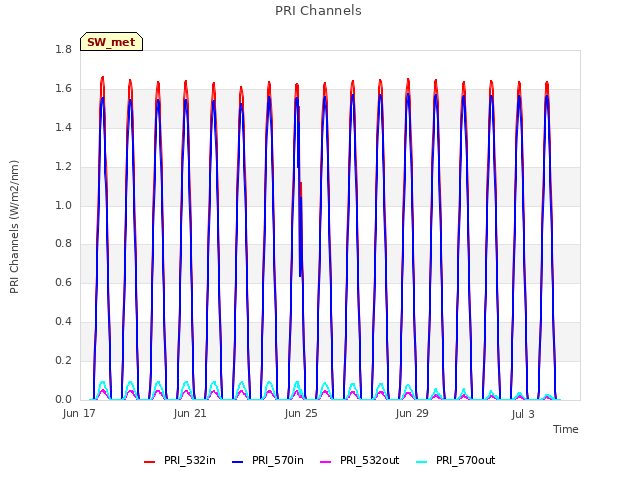

Explore the graph:PRI Channels in a new window

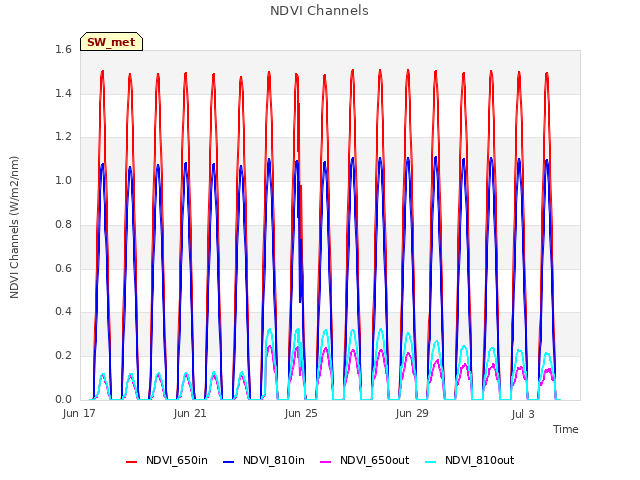

Explore the graph:NDVI Channels in a new window

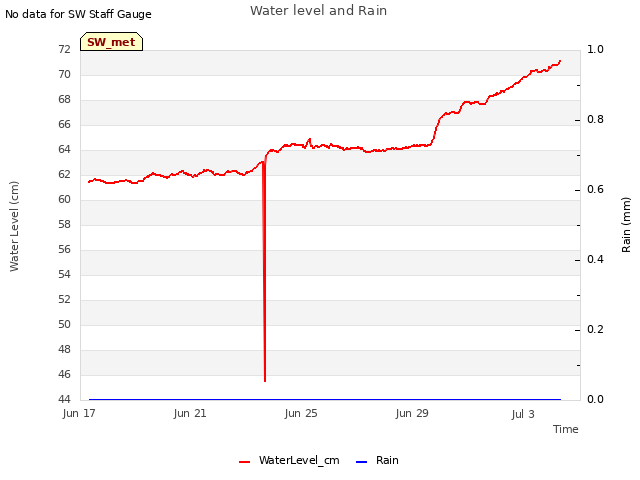

Explore the graph:Water level and Rain in a new window

Explore the graph:Dissolved CO2 in a new window

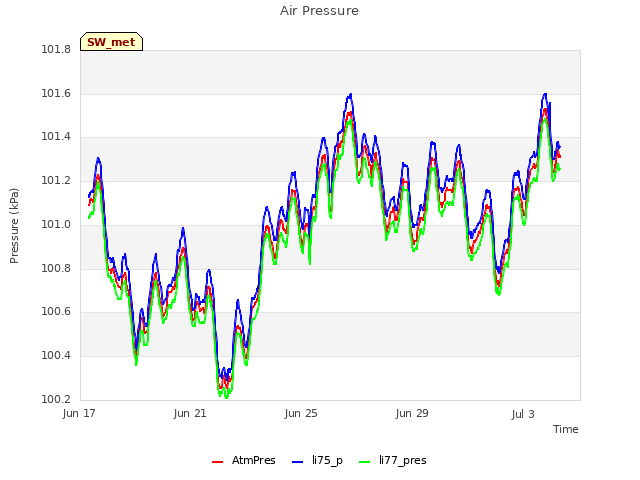

Explore the graph:Air Pressure in a new window

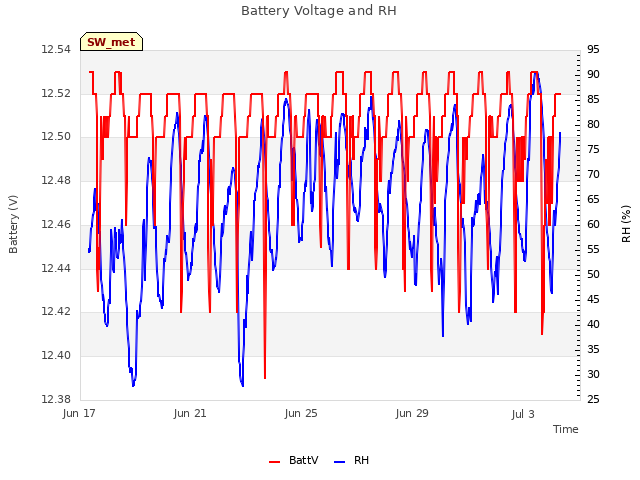

Explore the graph:Battery Voltage and RH in a new window

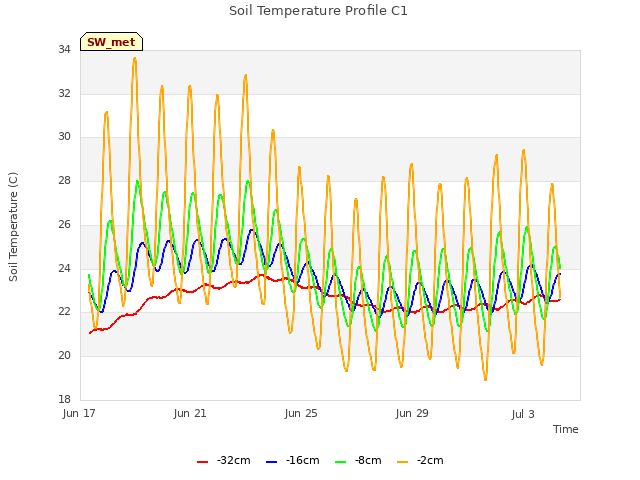

Explore the graph:Soil Temperature Profile C1 in a new window

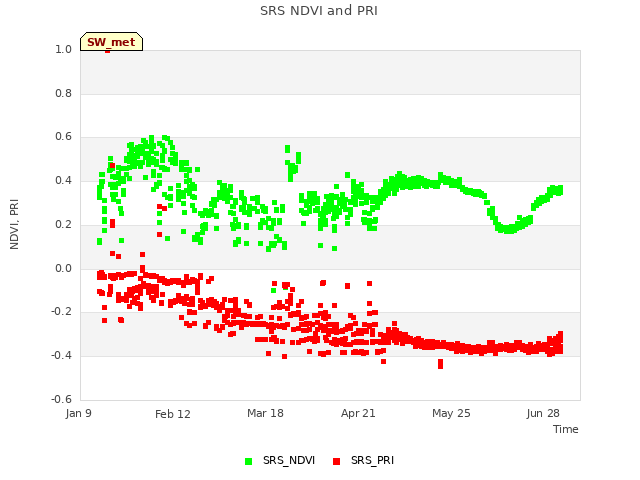

Explore the graph:SRS NDVI and PRI in a new window

4 SW_flux graphs found

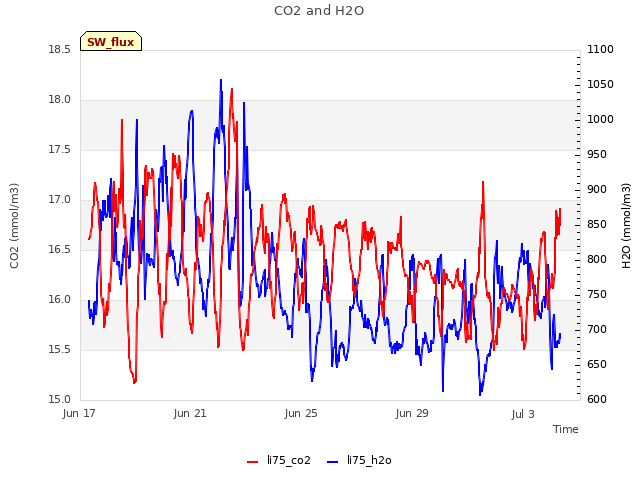

Explore the graph:CO2 and H2O in a new window

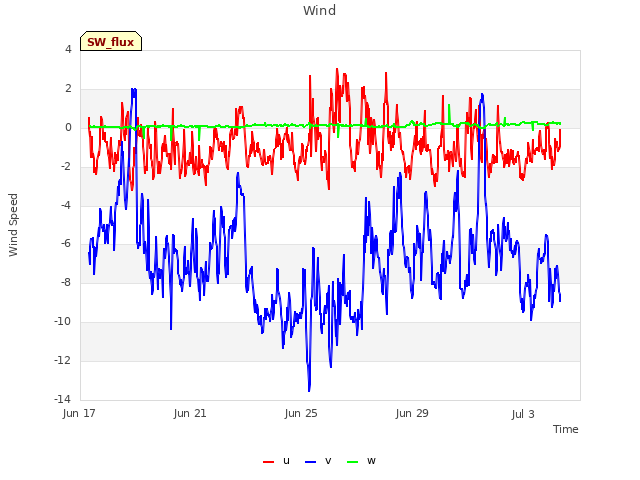

Explore the graph:Wind in a new window

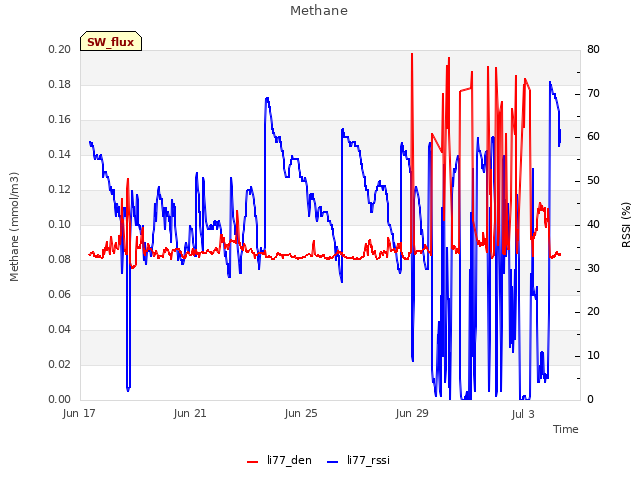

Explore the graph:Methane in a new window

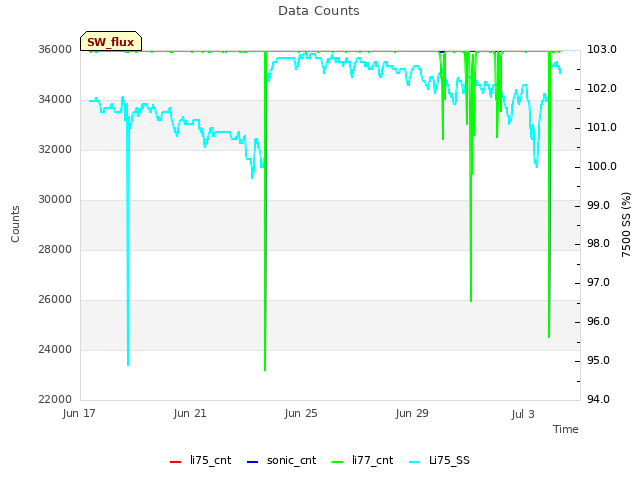

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

No data found for SW_arable.
